1. Description
Both VS11K34A and receiver MCU adopt high-performance 2.4GHZ FLASE microcontroller, up to 32 KB (16K+16K) SRAM, 512KB built-in FLASE. Made of highly integrated SOC, which is convenient for customer PCB design. Support USB2.0 full-speed mode, control, interrupt and bulk data transfer functions, fast response. The return rate can reach 1000HZ. Support AP to control lighting effects, custom buttons, macro definition, etc. The IC is an industrial-grade specification, and its parameters are superior to commercial-grade chips used in keyboards. The working environment has a wide temperature range and can maintain normal operation under complex external conditions. It is the best cost-effective choice for gaming keyboards.
The keys are processed with diodes to realize conflict-free input on the full keyboard, allowing consumers to have a smooth gaming experience.

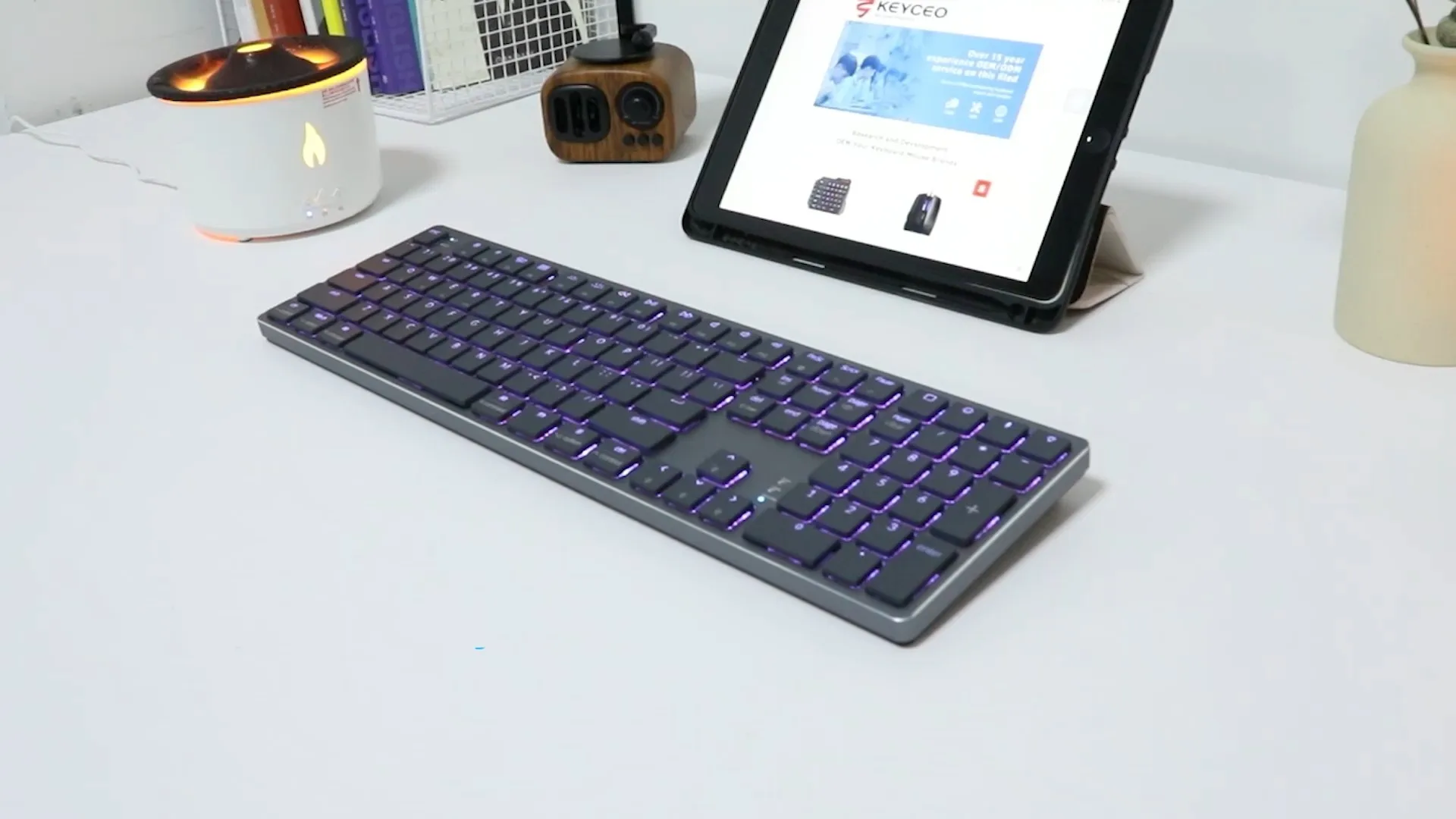

The buttons are designed with independent LEDs, and each LED light has 256 levels of PWM, which is delicate and soft. With a variety of cool lighting effects, it adds splendor to the game.
Support windows side driver software settings to make the keyboard function more powerful.
2. Characteristics
USB 2.0 full speed interface, support 1000 report rate
Support full keyboard conflict-free input (diode mode)
Support system: winXP/ Win7/ Win8/ Win10/Android/Apple and other operating systems
The number of keys with different key sequences such as 78/87/104 can be customized according to customer needs, and multi-language versions are supported
EEP-free, using Flash power-down memory
With windows driver software, to achieve a comprehensive configuration of the device
LED lights
Each LED is independently controlled and supports 256-level PWM
True full-color control, 16 million color settings
Support 6 major theme lighting effects, a total of 18 cool lighting effects
3. Lighting customization function
5.1. Press FN+~ to invoke custom backlight, only one set of custom memory lights is supported.
5.2. Custom light editing: Press Fn+~ to call the custom backlight, press Fn+~ again to start editing the light; at this time, the NUM CAPS SCROLL WINLOCK light starts to flash, directly press the key to be defined, and change a color without pressing it. After editing, press Fn+~ again to save the edited light.
4. Mode setting and pairing

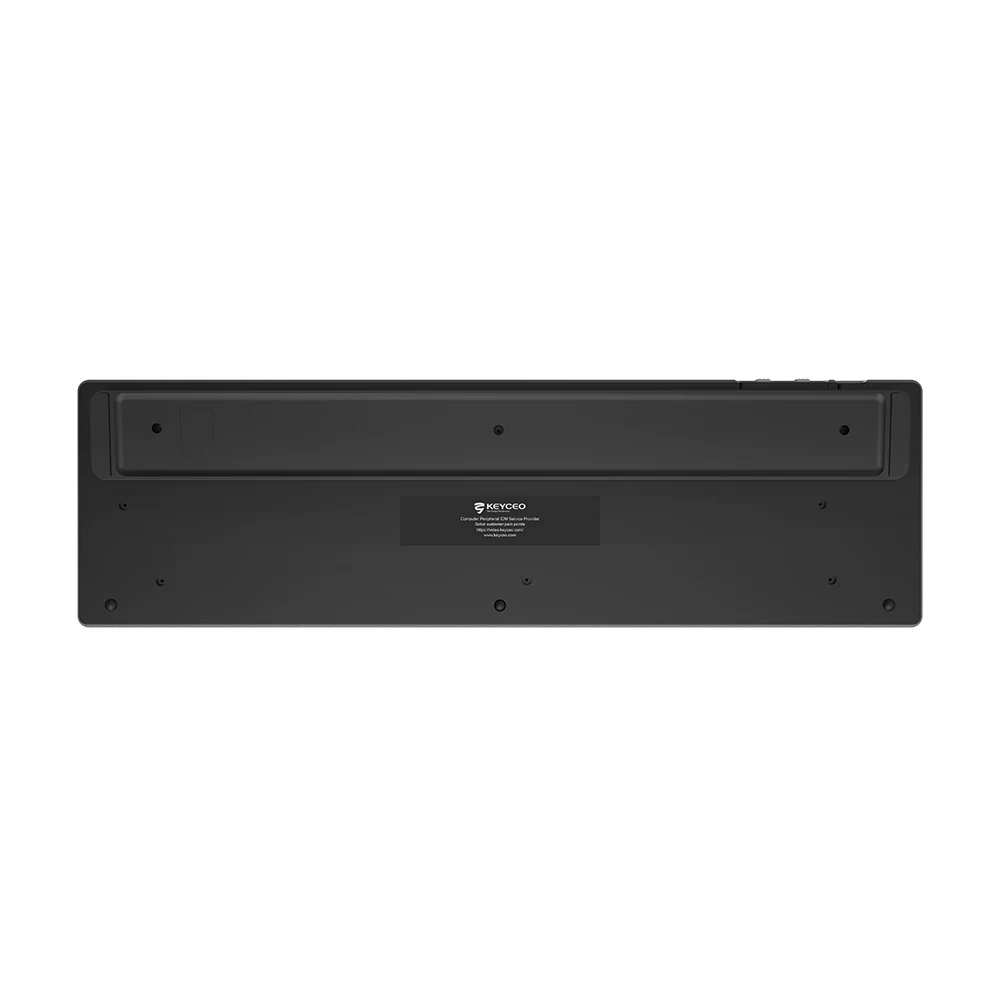

6.1 A power switch on the back controls lithium battery power supply
a. Connect the USB cable to the PC, and the wired mode is the priority.
b, b, connect the USB cable to a non-system usb port such as power supply, adapter, etc., and it is still in wireless mode.
6.2 If you do not move the keyboard for 3 minutes, the keyboard will automatically enter the first-level sleep state. At this time, the lights will be turned off, Bluetooth or 2.4G is in the connection state, and the key will wake up and there will be key output at the same time. If the keyboard does not move, it will enter the second-level sleep state after 10 minutes. The wireless is in the disconnected state. Press the keyboard button for the first time and the button will not come out. When the keyboard is woken up, it will automatically reconnect. After the reconnection is normal, the button will be output.
6.3 The working current is less than 320MA, the first-level sleep mode, the current is less than 300UA, and the second-level sleep state current is less than 30UA
7. Support wireless mode switching, pairing and code pairing in wireless mode:
Bluetooth 1: Fn+1 (short press to switch, long press to pair)
1 button light indicator, fast flashing when pairing, and slow flashing when reconnecting. After successful connection, the 1 button light is always on for 2 seconds and then returns to the overall backlight effect; pairing fails for 1 minute and enters sleep mode, and reconnection fails for 20 seconds.
Bluetooth 2: Fn+2 (short press to switch, long press to pair)
The 2-button light indicator flashes quickly when pairing, and flashes slowly when reconnecting. After the connection is successful, the 2-button light is always on for 2 seconds and then returns to the overall backlight effect; the pairing fails for 1 minute and enters sleep mode, and the reconnection fails for 20 seconds.
Bluetooth 3: Fn+3 (short press to switch, long press to pair)
The 3-button light indicator flashes quickly when pairing, and flashes slowly when reconnecting. After the connection is successful, the 3-button light is always on for 2 seconds and then returns to the overall backlight effect; the pairing fails for 1 minute and enters sleep mode, and the reconnection fails for 20 seconds.
2.4G : Fn+4 (short press to switch, long press to pair)
The 4-key indicator light flashes quickly when pairing codes, and flashes slowly when connecting back. After a successful connection, the 4-key light is always on for 2 seconds and then returns to the overall backlight effect; the code is not successfully entered into sleep after 1 minute, and the connection is unsuccessful after 20 seconds. sleep.
Mechanical keyboard FAQ
Do you have R&D department?
We have an experienced R&D department. Our team has been exploring the industry for a long time, and accumulates experience from it. We constantly pursue innovation, and always provide the best products for customers with professional R&D capabilities and excellent research and development results.
Are you able do a layout with special requirements?
We have all required equipment to make any layout for our customers.
How to make a backlit for my layout which is not commonly used?
We can offer you to develop double injection keycaps which bring to life any of your requests.
Can you make the double injection keycaps?
Yes, most of our mechanical keyboards use double injection keycaps.
What Switches are commonly used in your models?
Our most commonly used switch is Outemu, because it is a mechanical keyboard switch with the highest cost performance at present, but Cherry, kailh,Gateron and other well-known brands we will choose according to different customers' requirements.
