69 keys, support DIY, three-mode mechanical keyboard with small number keys, take it wherever you go

The keyboard and mouse are the most used in computer office. Everyone has different usage habits and different requirements for the keyboard. I am used to using a mechanical keyboard at home, but the office computer in the unit is shared by several people on shift. It is equipped with an ordinary keyboard. , Many people share the keycaps, several keycap characters commonly used in typing have been worn out, and some colleagues are not used to using mechanical keyboards, so they can only use their own mechanical keyboards, but my own mechanical keyboards do not have small numbers Key, it is not very convenient to use at work.

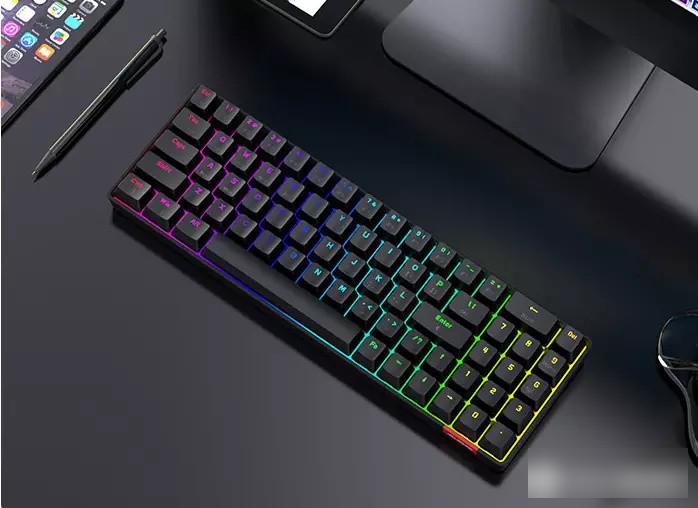

Until recently, I saw a 69-key small portable mechanical keyboard——Heijue AK692 three-mode mechanical keyboard, which supports hot-swappable shaft body, full-key no punching, RGB lighting, 69-key layout with small numeric keypad, and small size. Wherever I go, it is very suitable for me, so I quickly started to experience it! The point is that this three-mode keyboard is in the early 200s, which is a great value~

The packaging box of Heijue AK692 three-mode mechanical keyboard continues the product packaging style of Heijue. The appearance of the keyboard is printed on the front. The upper left corner clearly shows that this keyboard is a partner with the League of Legends professional youth training base. The back introduces the keyboard. Basic parameters and other information.

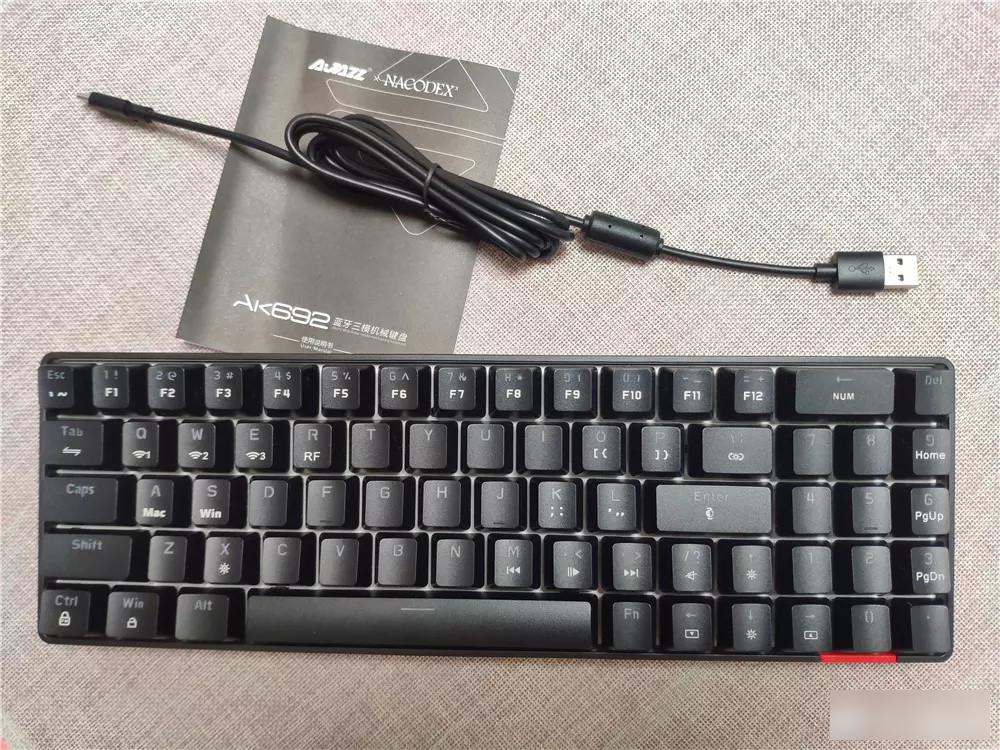

Accessories include keyboard, Type-c cable, key puller, shaft puller, and manual.

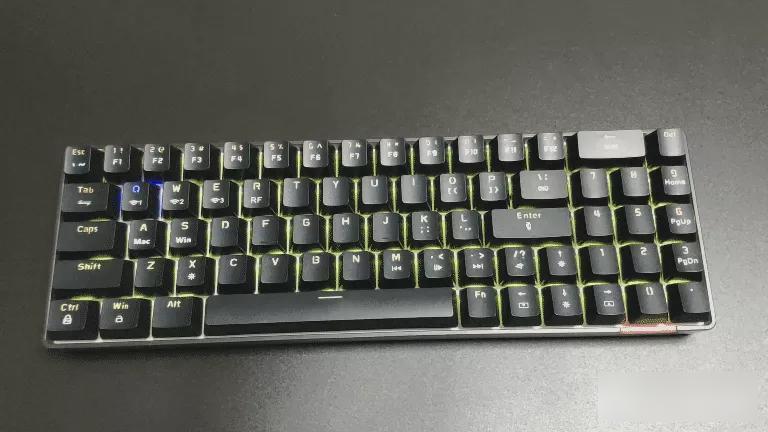

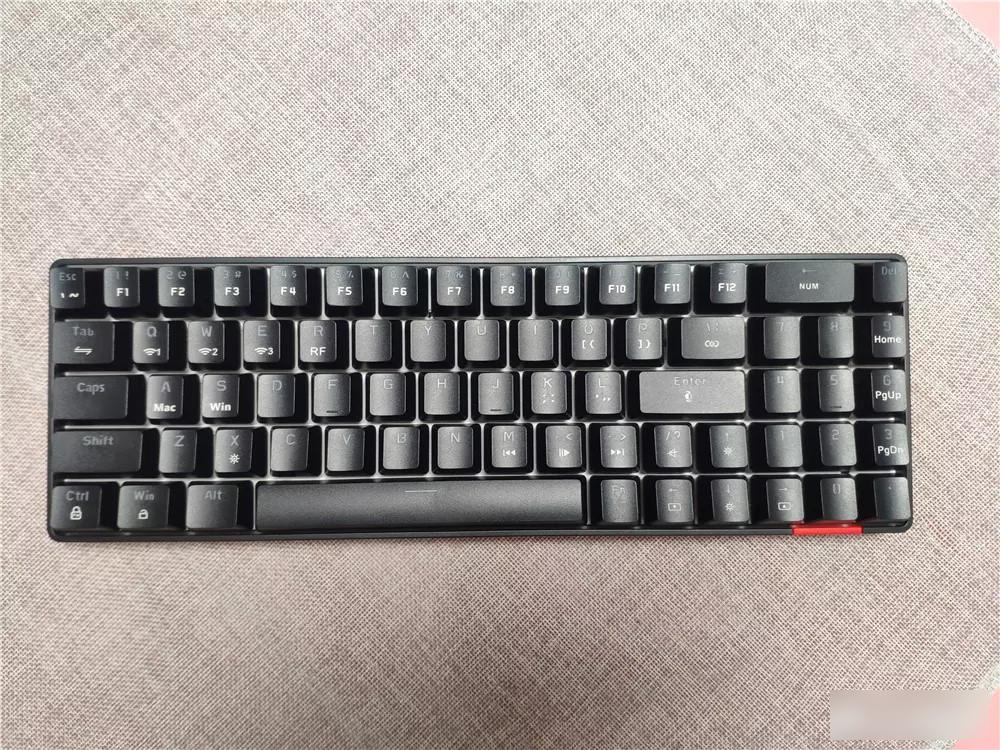

The keyboard adopts a 69-key layout, and there are two colors of black and white. Considering the use of the unit, I ordered the black model. The overall shell of the keyboard is made of ABS plastic material, and the size is: 311.3*101.6*37.5mm, which is very small. The keyboard retains the small number keypad that is commonly used in life, which is much more convenient for users who need to input numbers in office.

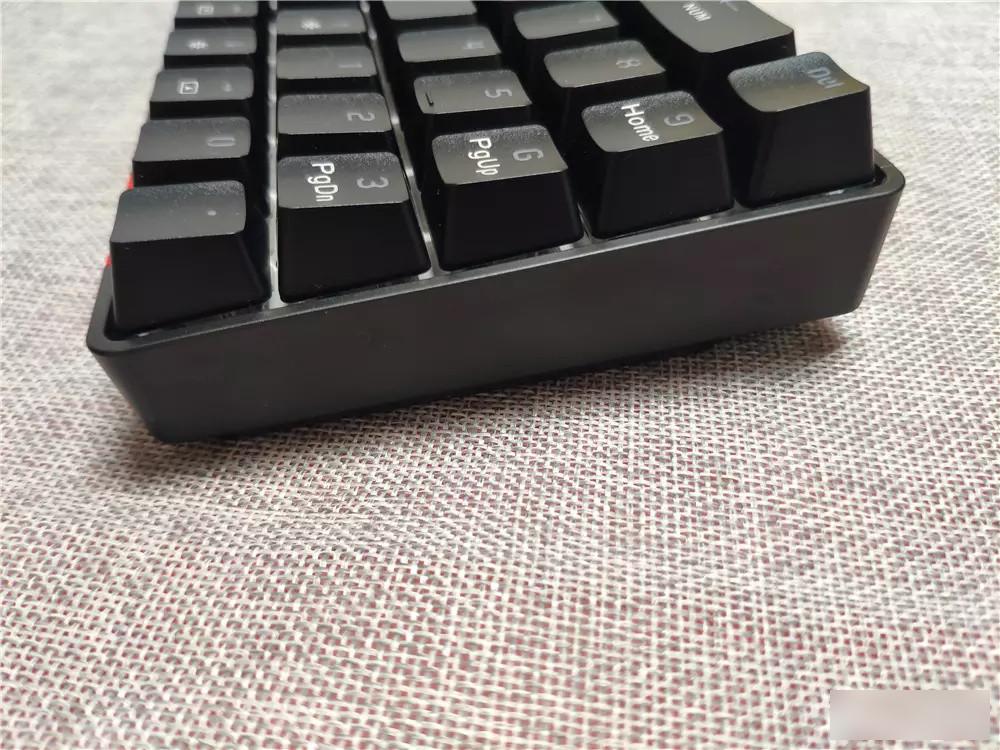

Viewed from the side, the keyboard adopts a simple and narrow frame design. The design is high and low, so you won’t get tired after typing for a long time. However, users who use it for the first time may not be accustomed to the position of some keys on the keyboard, and need to have an adaptation process. I just started When you hit enter, you will press the number key 4, and it will be much better after you get used to it.

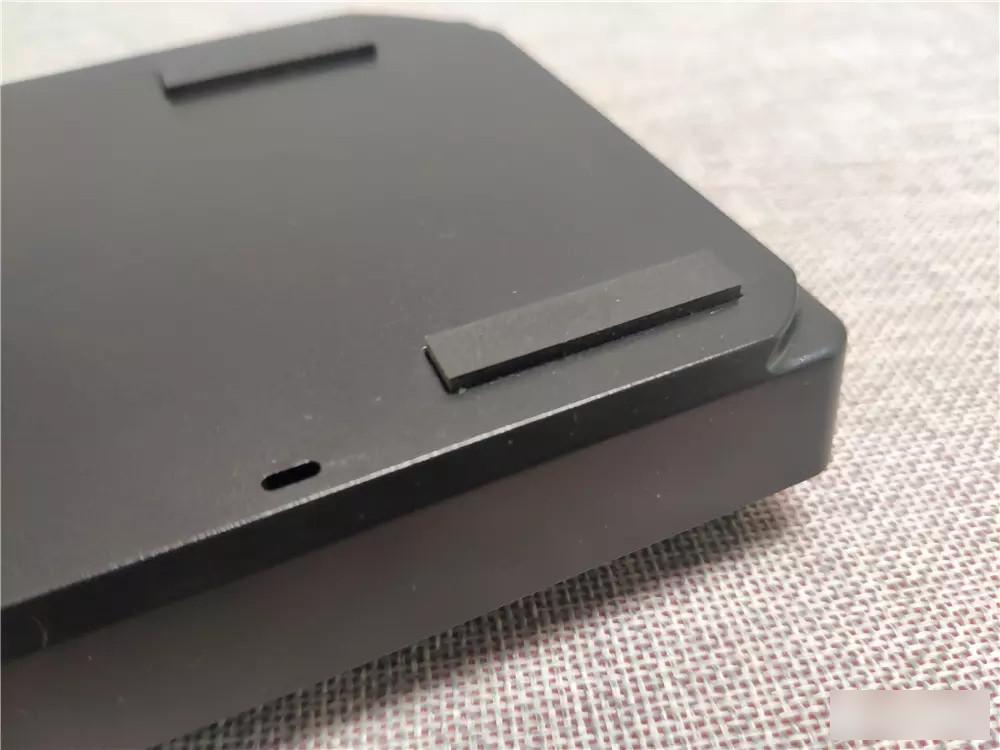

There is no adjustable foot support on the back of the keyboard. There are four rubber non-slip pads, which make the keyboard very stable during use and will not slip easily.

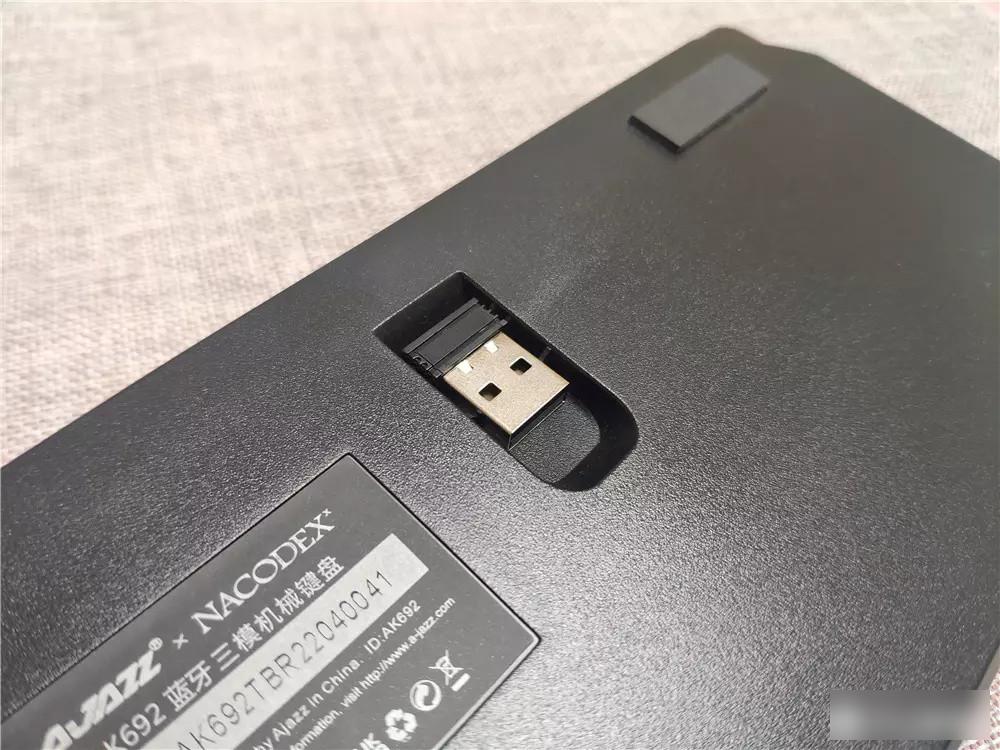

The right half is designed with a 2.4G receiver storage card slot. The receiver is small and easy to lose, so it is not convenient to carry. With this card slot, you can put it in after use and leave with the keyboard, which is much more convenient.

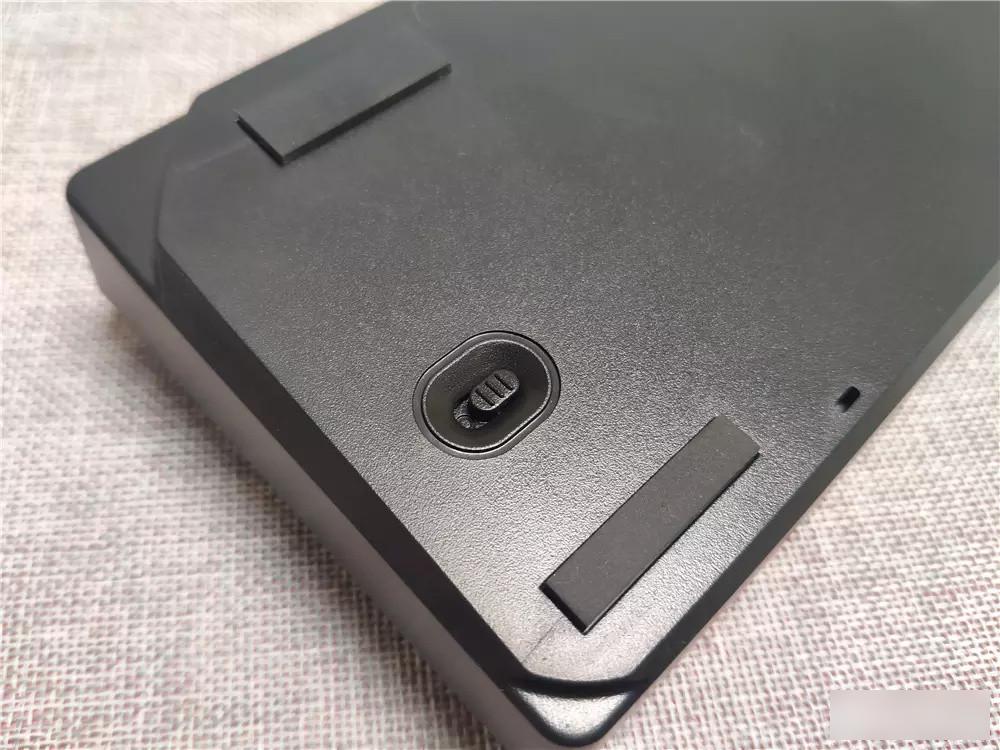

There is a recessed oval hole in the lower left corner of the back of the keyboard. Inside is the Bluetooth switch key. The keyboard supports three connection methods: Bluetooth 5.0, 2.4G, and wired.

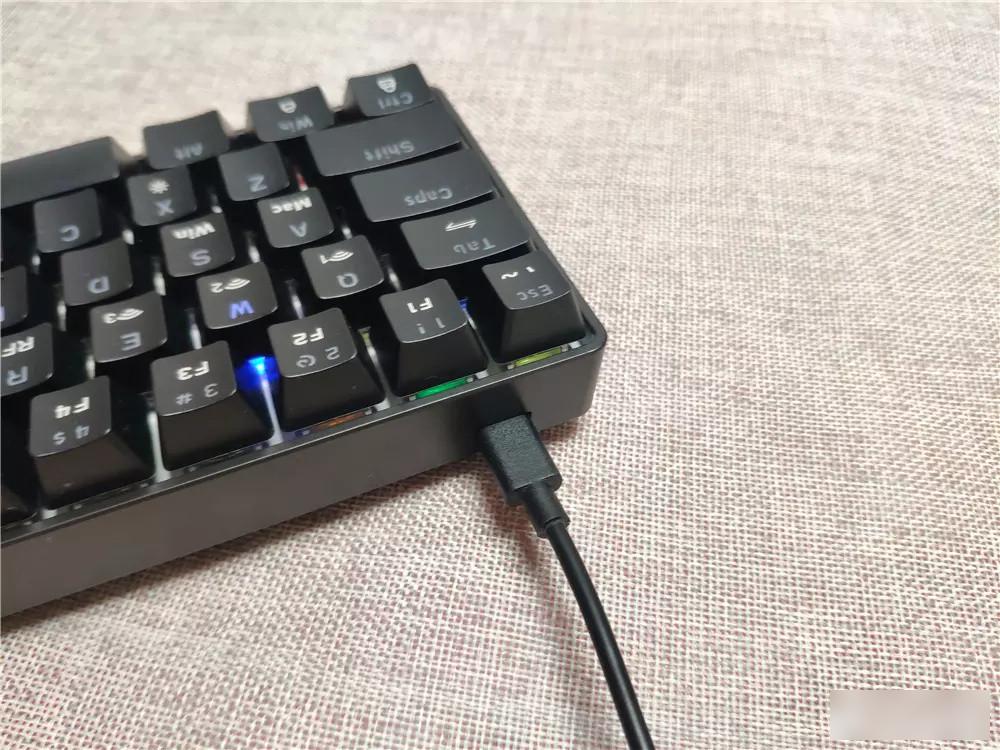

There is a Type-C charging interface on the upper left corner of the keyboard. There is no need to distinguish the front and back of the interface for charging. It has a built-in 2500mAh lithium battery. When using Bluetooth or 2.4G connection mode, the light effect mode can last for 25 hours, and the light effect can reach 25 hours. 260 hours, long battery life, basically meet the needs of daily use.

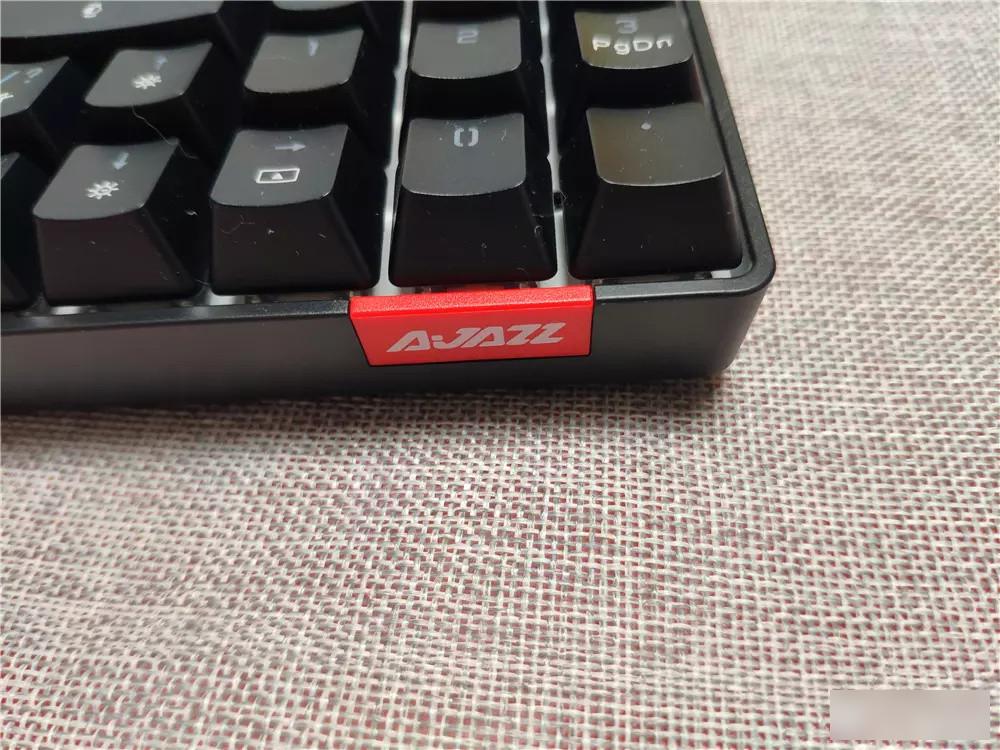

On the bottom right border of the keyboard, there is a red Heijue brand logo, the finishing touch design makes the appearance of the entire keyboard not monotonous, but more classy.

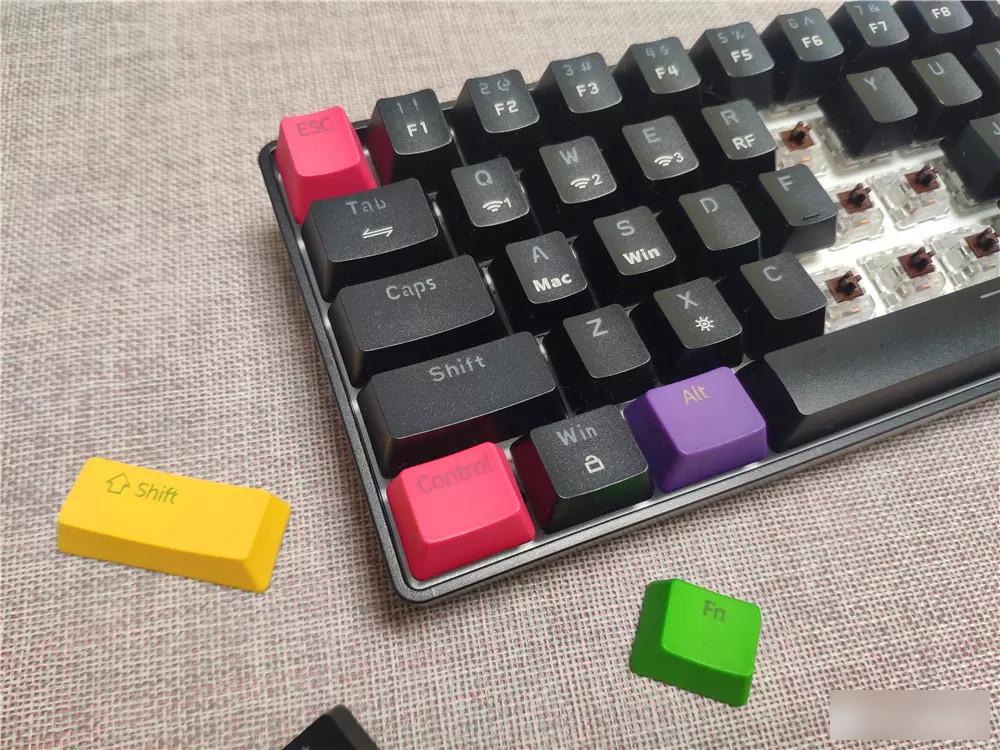

The keycap is made of ABS two-color injection molding, with clear characters and quite bright light transmittance. The keyboard switch body adopts Heijue's own series switch body, the life of the switch body is long and stable, and the trigger is fast and the feedback is accurate. There are three kinds of switch body options: green switch, brown switch and red switch. Smaller, suitable for gaming and office work, suitable for beginners.

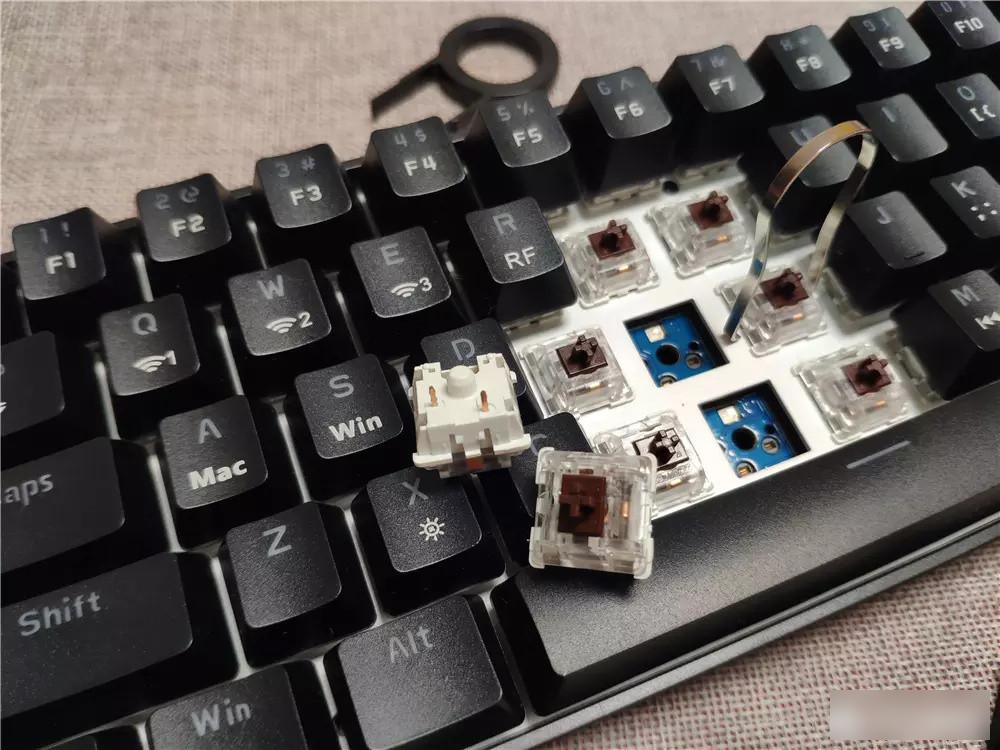

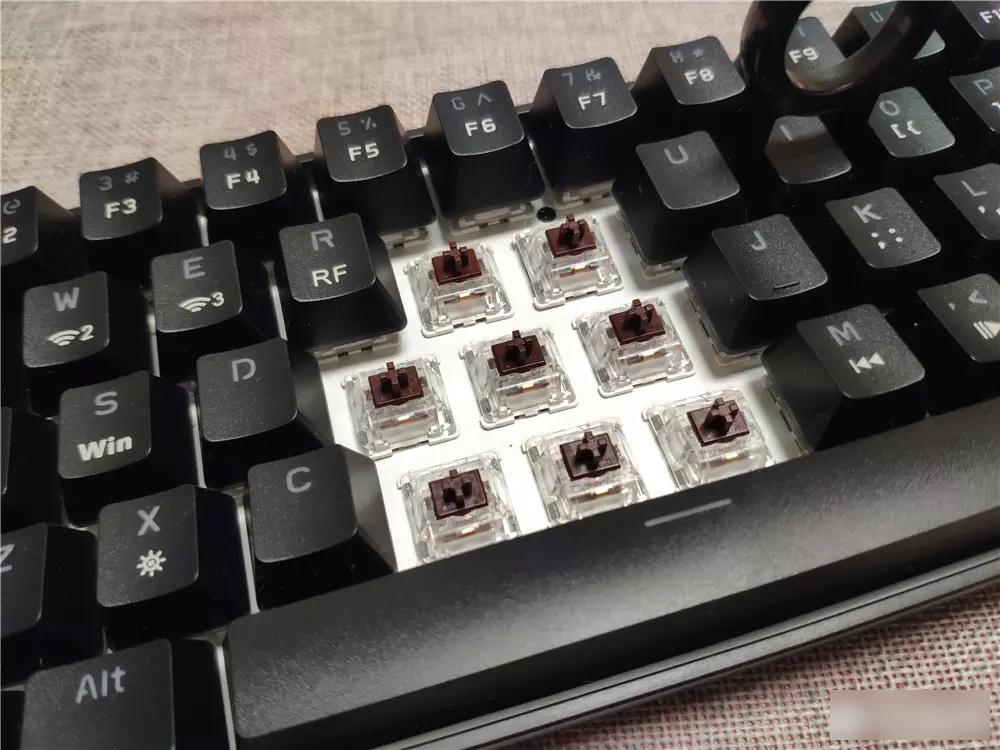

The keyboard adopts a hot-swappable PCB design, all keys are hot-swappable, compatible with most 3-pin and 5-pin switches on the market, users can DIY switches according to their own usage habits, and replace the switches with different handles to create A keyboard that suits your personality.

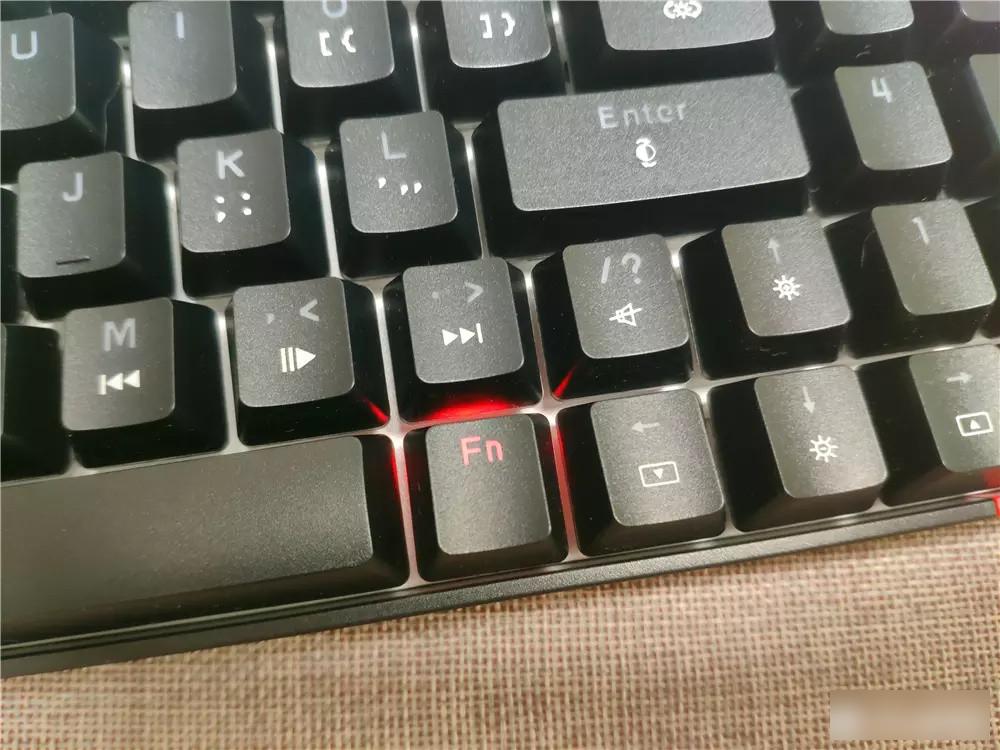

When the battery is out of power, the background light of the FN key flashes red. When charging, the red light is always on. When the battery is fully charged, the background light is off. When not charging, it follows the system.

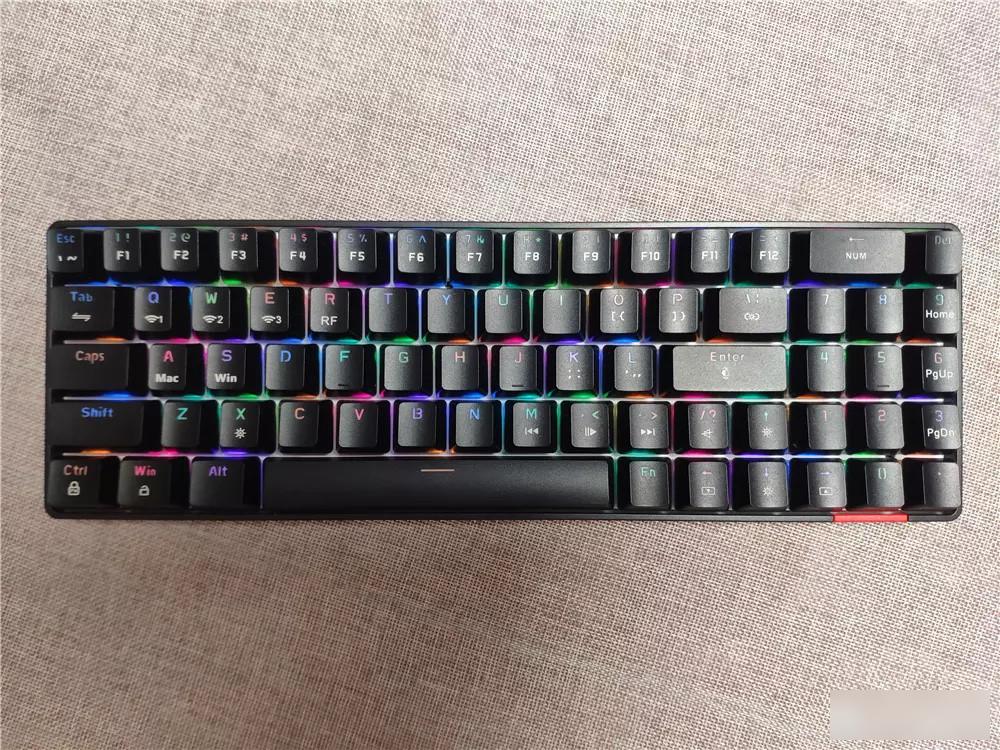

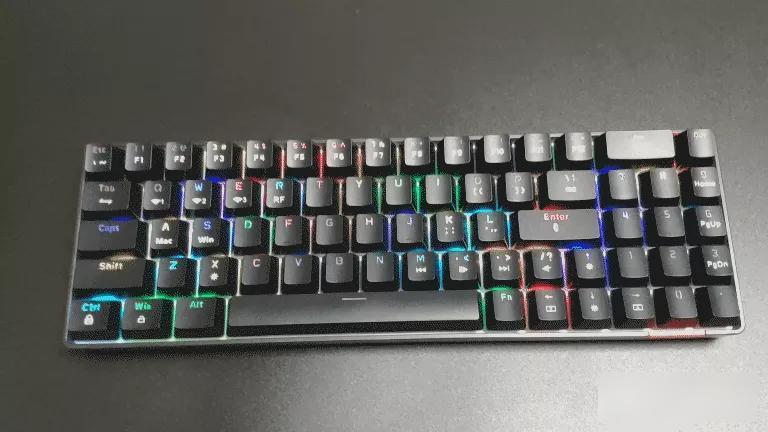

The keyboard I started with is an RGB full-color backlit version, which supports 16.8 million colors and 18 lighting effects. You can control the lighting effects through the "FN+|," combination key. Of course, if you don't like the lighting effect, you can use the FN+X combination key Turn it off or on directly. After installing the product driver, you can also realize 16 million RGB adjustment, or set music rhythm and other functions, which increases the entertainment of the keyboard. However, it is not suitable for me to use in the office, so I have not installed it for testing.

Select the Bluetooth connection by using the key combination FN+Q or W or E, and press and hold any one of the key combinations FN+Q/W/E for 3 seconds to enter the pairing mode, the indicator light will flash quickly, and the normal light mode will resume after successful pairing. Short press one of the FN+Q/W/E combinations to connect back to the connected device, press the FN+R combination key to enter 2.4G mode, FN+space bar for 3 seconds, the keyboard will restore the factory settings.

For users who use this keyboard for the first time, because its keyboard layout is different from the previous keyboards, many key functions need to be used in combination, and it takes time to get used to it, because only left Shift, Ctrl, and Alt are built, and I need to often When entering date, time and other information into the form, there will be wrong keystrokes, the input format is incorrect, and every time you press Enter, you will encounter the number 4 key on the small keyboard. But when I got used to it and got used to the layout of the rear keyboard, I found it really easy to use.

Summarize

Heijue AK692 three-mode mechanical keyboard, simple 69-key design, supports three-mode connection, seamless switching between multiple devices, all keys support hot swap, you can DIY your favorite switch body at any time, 16 million color RGB backlight equivalent, Support custom macro driver, easy to achieve music rhythm, small size, only the size of a notebook keyboard, easy to carry when going out, keep the numeric keypad, meet various office needs, black and white colors, a variety of shafts are optional, There is always one suitable for you!

If we say that it is not enough, it is the layout of the keyboard. Many functions need to be realized through the combination of keys. But I feel that when you get used to it, you will love it.

At least I already have my own exclusive keyboard in the unit, and the envious eyes (contempt) of my colleagues float over! Hahaha……
