98 configuration enthusiasts' unboxing Mechanic CK600 mechanical keyboard

In the previous article, I said that my work requires frequent input of numbers, so it is not suitable to use keyboards with 61, 75 and other arrays in the small keyboard area for work, and a group of colleagues who have the same needs And my friends, so I am particularly concerned about the keyboard with 98 configurations. This time, I bought a mechanical keyboard of Mechanic CK600, which is also a mechanical keyboard product with 98 configurations. The brand of Mechanic must be familiar to everyone as a brand of gaming notebooks. As a downstream product of games, mechanical keyboards are also a little bit involved in Mechanics.

The outer packaging of Mechanic CK600 is a conventional aircraft box design, the overall color is black and purple, and the product model is printed on the front.

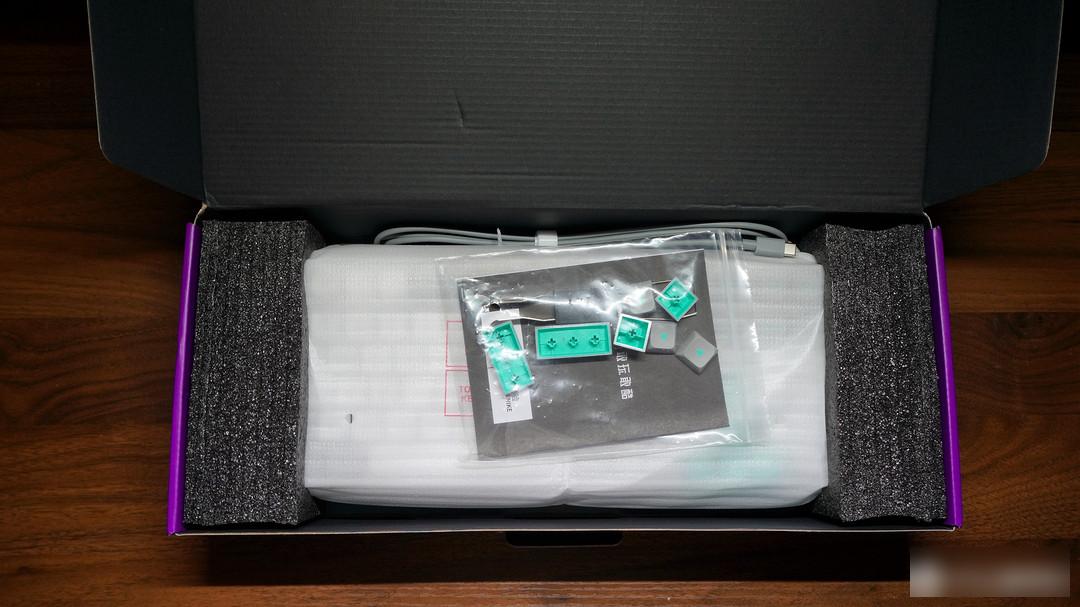

There are not many product accessories, a data cable, a key puller, a few supplementary keycaps, and an instruction manual.

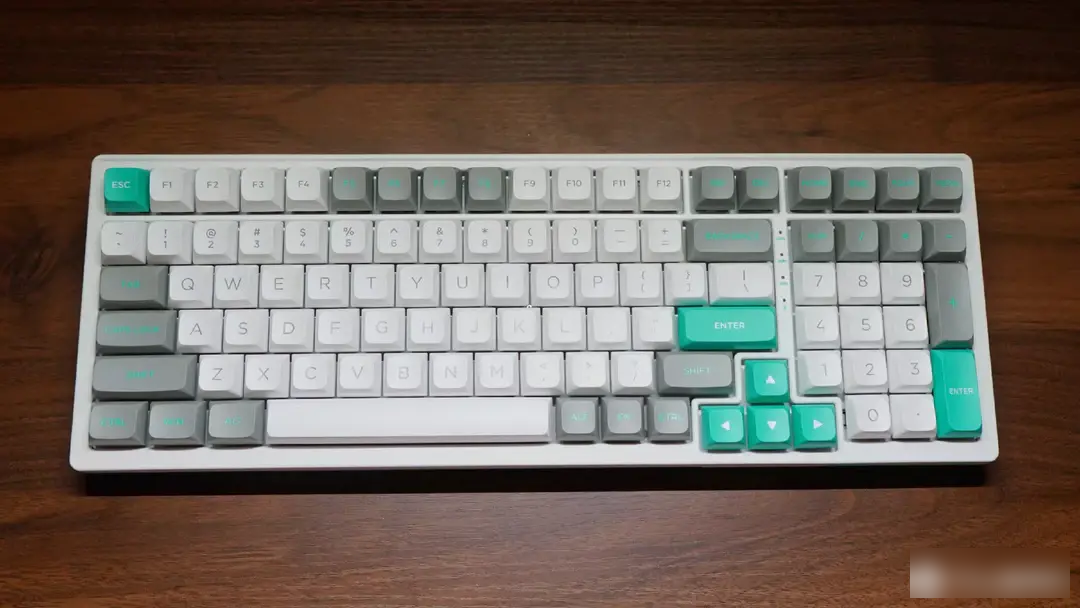

Although the keyboard is made of plastic, it feels quite heavy in the hand. Compared with the conventional 98, the F area has been changed to a compact design, so that there is more room for two keys, and the INS key and the DEL key are put in. The color of the keyboard uses a contrasting color design of green, white and gray

The function indicators of the keyboard are placed in the space between the main keypad and the keypad. The brightness of the light is still very conspicuous, so there is no need to worry about not being able to see clearly the status of the keyboard.

The C port and the mode switch of the keyboard are located on the top of the keyboard, which can be directly operated blindly with one hand, and the experience is good. However, the switch is two-stage, and can only switch between 2.4G wireless connection and wired connection.

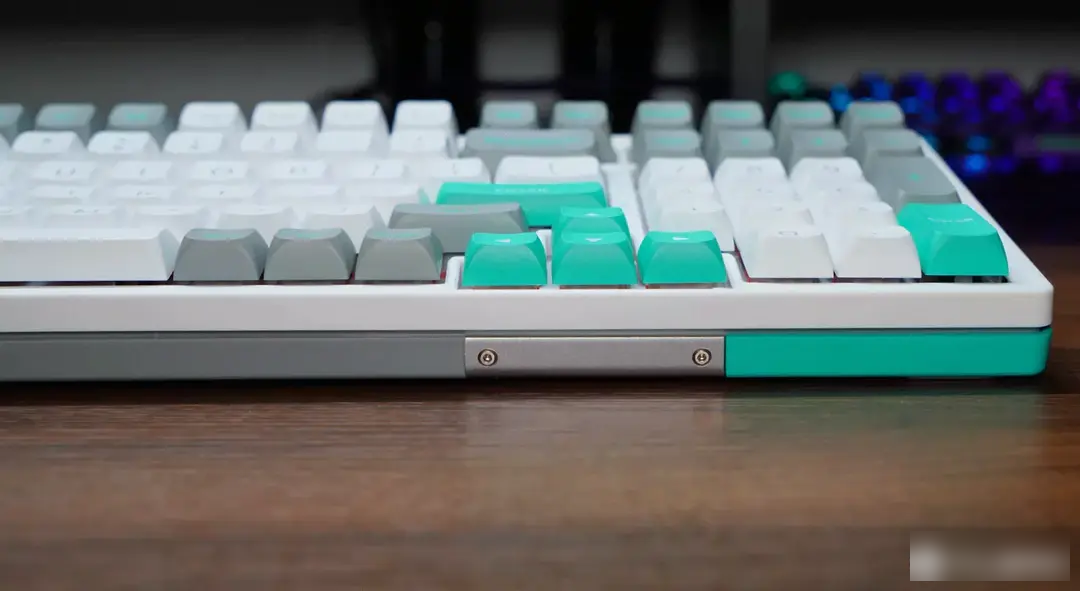

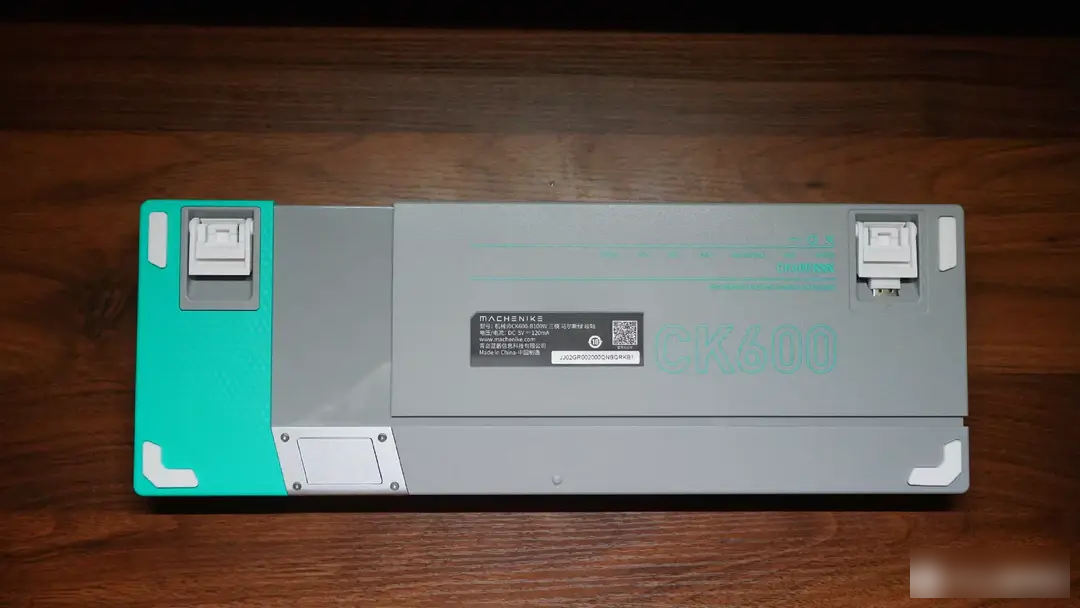

The bottom is also a color-contrasting design, with two-stage foot supports and four foot stickers; there is a metal decoration on the lower left that extends to the side of the keyboard.

The 2.4G receiver is stored under the right foot support, which is tight enough.

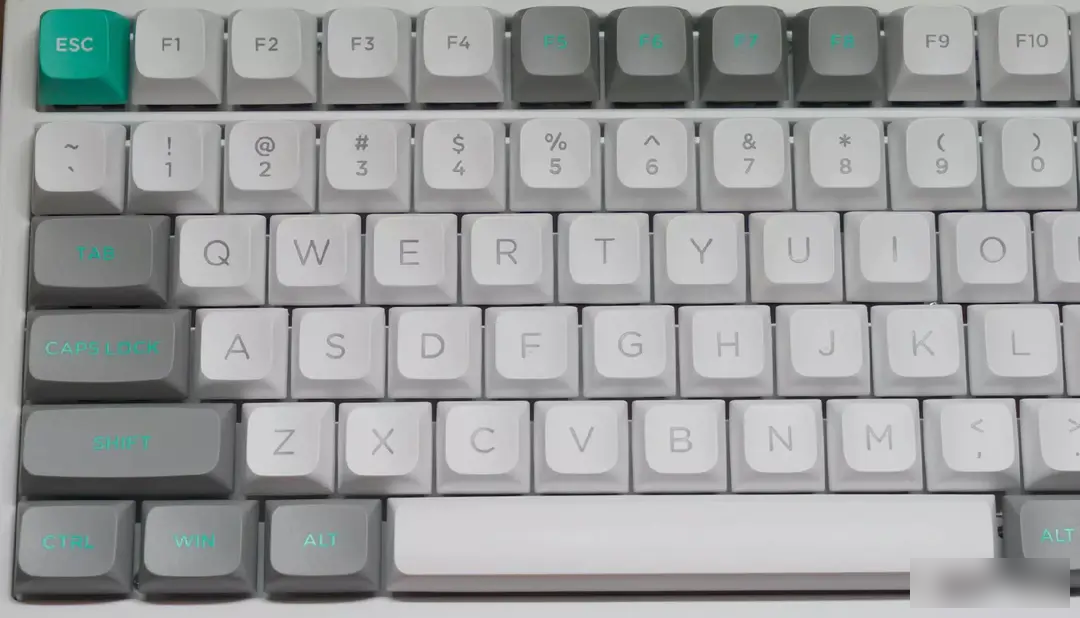

The keycap is a relatively rare CSA height ball cap, two-color PBT injection molding. It is characterized by a smooth transition between the zones, the contour of the ball cap is similar to a rounded rectangle, and the walls of the key cap are more vertical, making the area that can be touched by the fingertips larger. In addition, the edge of the space bar has been cut to make it easier to use the most frequently used keys on the entire keyboard.

It is a pity that the function of the combination key is not printed on the side of Jianmai. For most users, it is impossible to remember the function of each combination key.

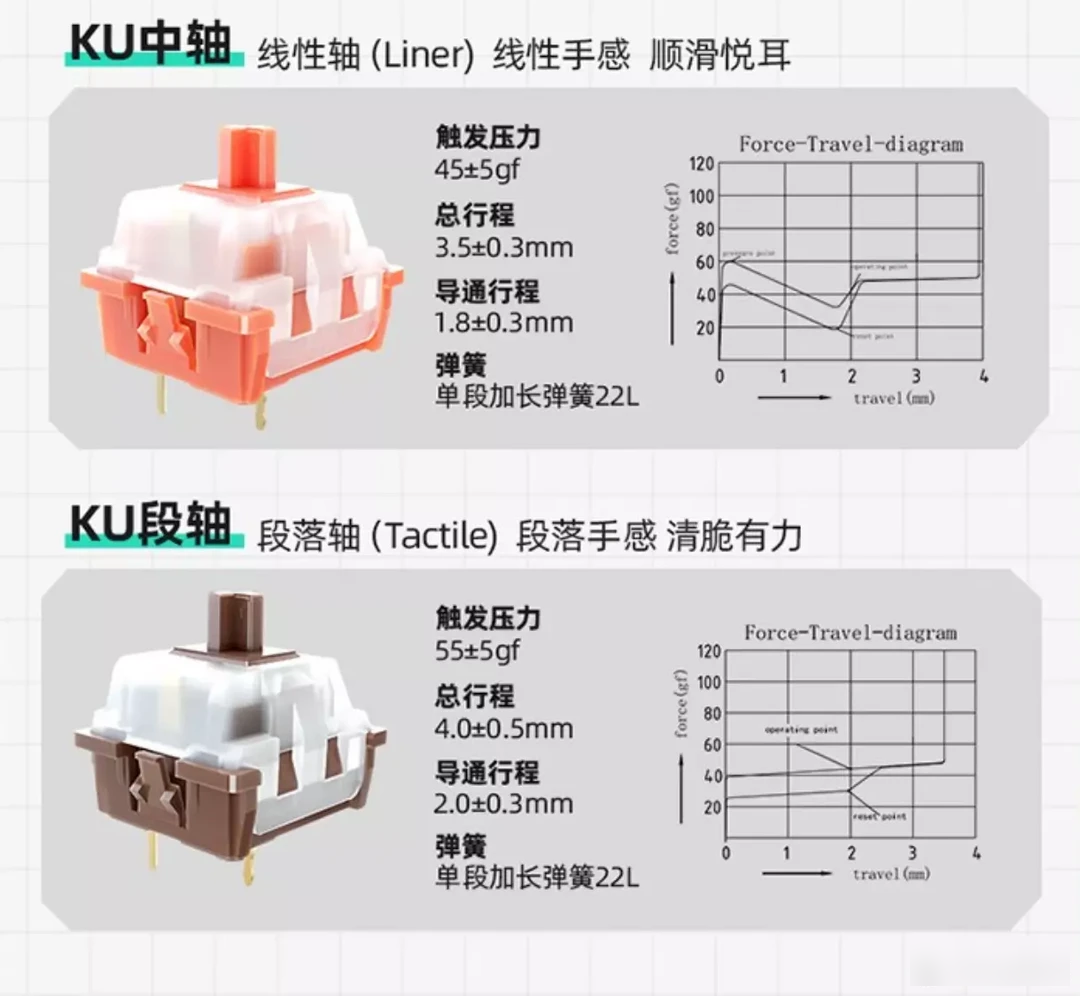

In terms of the shaft body, the mechanic CK600 uses its own black racing shaft and KU shaft. Black racing shafts can be divided into feather shafts and tea shafts. The former is a light linear shaft similar to gold powder shafts, and the latter is an advanced paragraph shaft. The KU axis is also divided into the KU middle axis and the KU segment axis. It is also a linear axis and a segment axis, but the trigger force is slightly larger than that of the black race axis.

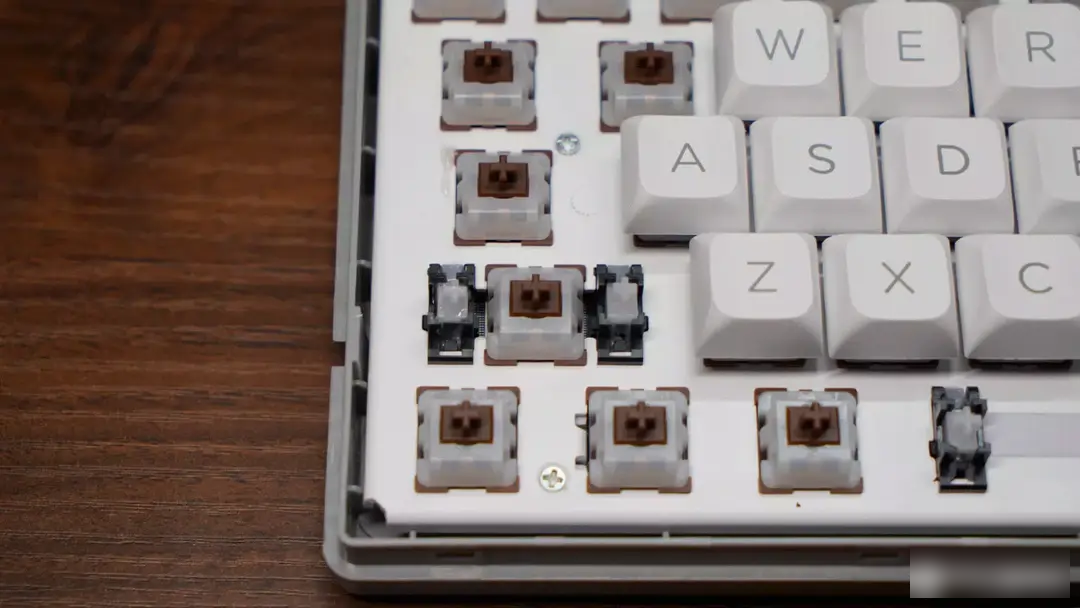

My model is a KU shaft. After checking, this shaft is manufactured by KTT. It has been hand-polished before leaving the factory, and the upper cover is fogged to ensure the RGB effect. The main feature is to achieve the sound of HIFI while ensuring the feel, the sound of the bottom of the axis is more concentrated, and the 22mm extended spring rebounds faster. This shaft is currently also used in products of brands such as Goss.

It still feels crisp. A lot of grease is given to several large keys, and the sound is crisp and neat without wire sound when used.

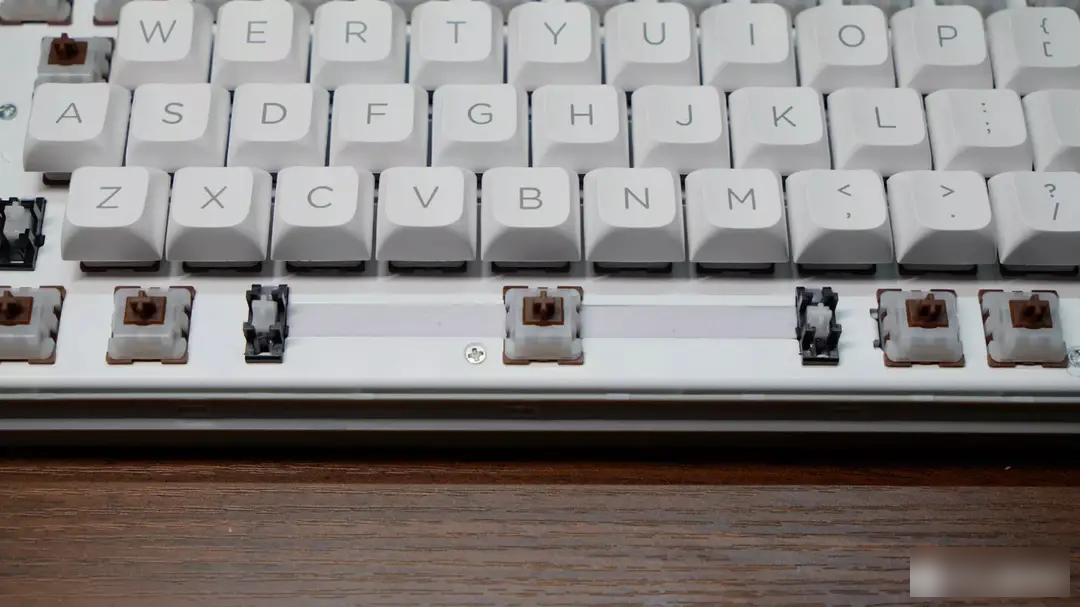

The slot of the space bar is also stuffed with stuffing cotton

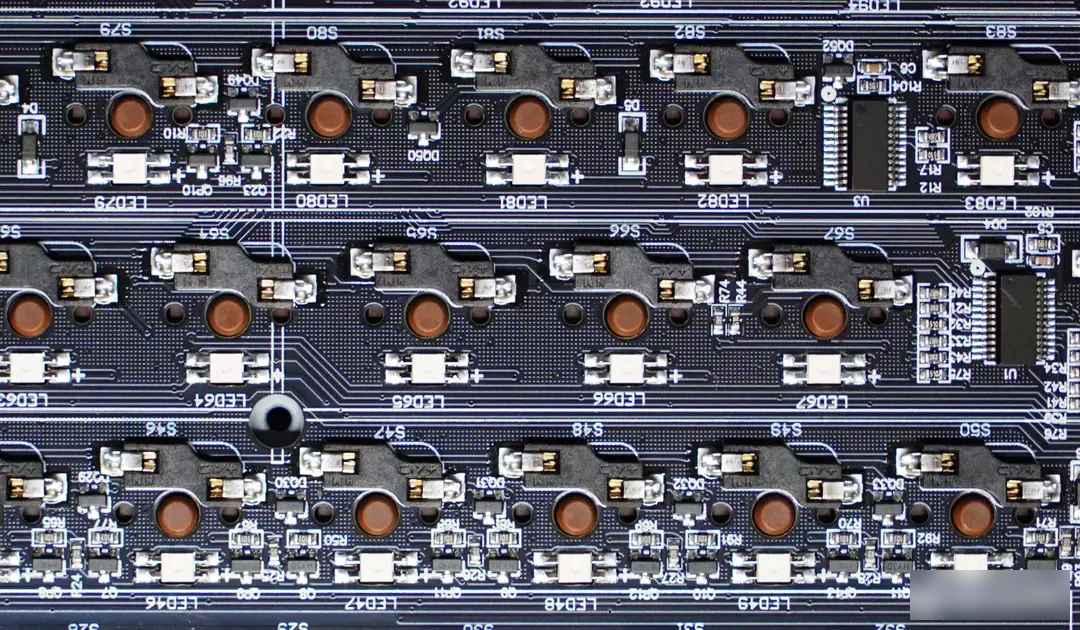

Nowadays, mechanical keyboards generally support hot-swapping, and CK600 is no exception. It supports five-pin shaft hot-swapping, and it is very convenient to change the shaft body you like.

The CK600 liner is directly fixed on the bottom shell with screws. When you take it apart, you can see a thin layer of bottom cotton. If possible, refill it yourself.

The shaft seat is very interesting. It has both the seawood stamp and the CI stamp Y.

The PCB and EVA sandwich quilt fasteners of CK600 are directly fixed under the positioning plate,

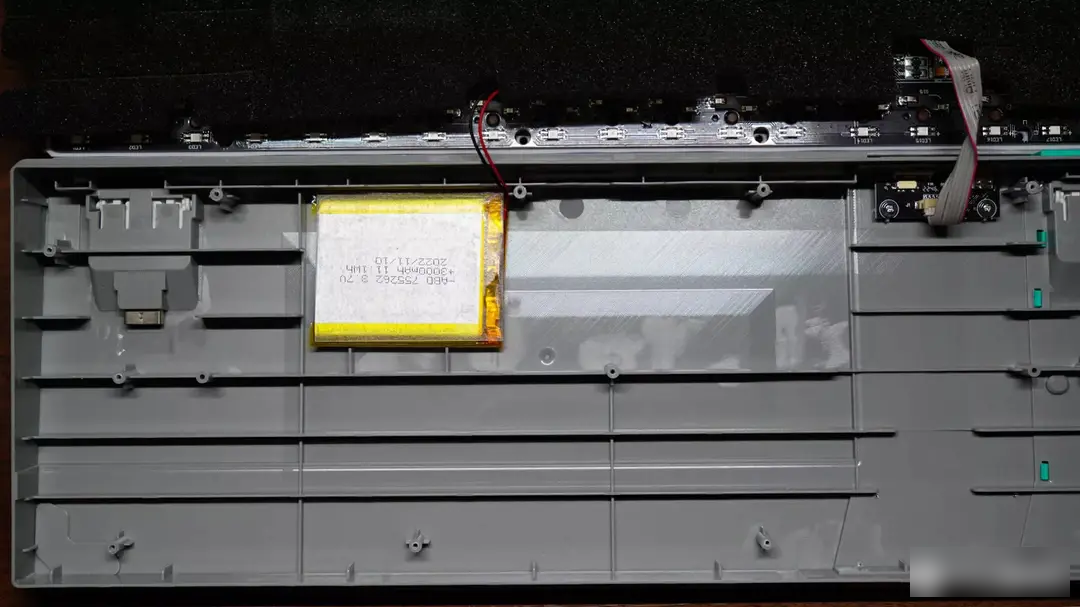

3000ma battery, I feel that there is obviously room for another battery in this space

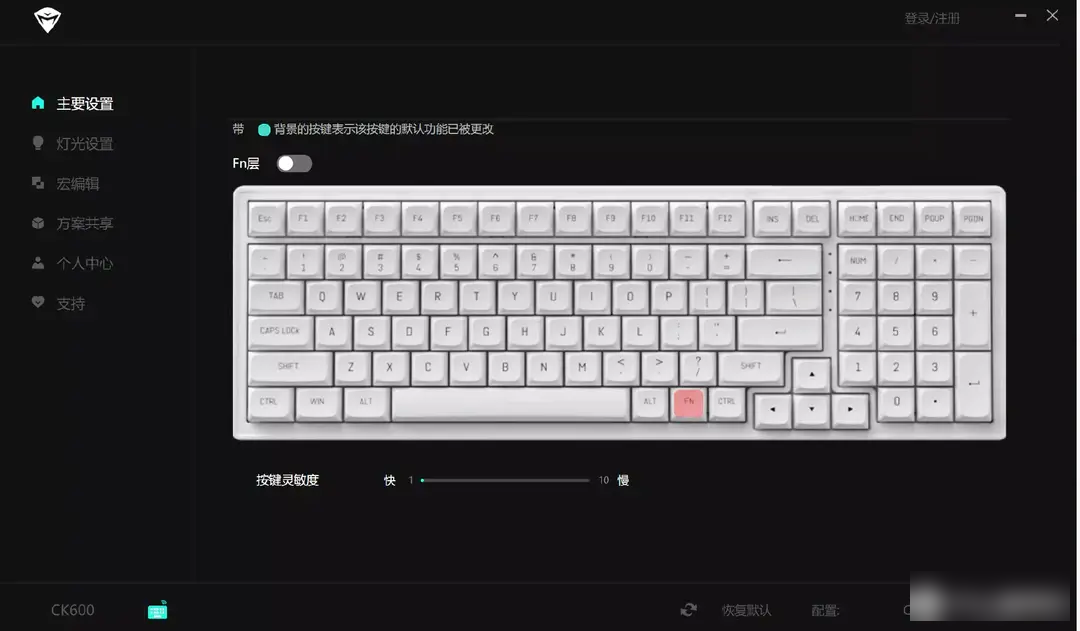

The driver of CK600 can be downloaded from the official website of the mechanic. The driver supports 2.4G wireless connection, praise. The red Fn key cannot be changed, other keys can be customized

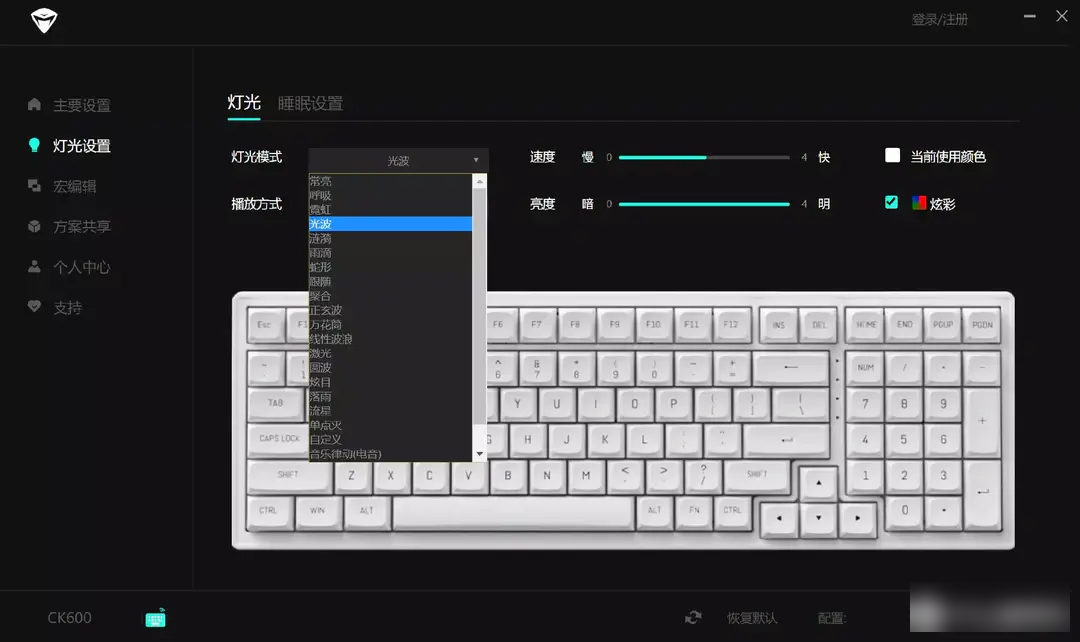

There are also music rhythms to choose from on the lighting mode, each lighting mode can be set, as for other macro settings, everything is available

The CK600 positioning plate is white, which can reflect the light very well, making the brightness of the keyboard light look satisfactory

If the K600 is just a mechanic's small test, then this time the brand new CK600 is a brand new work that goes all out, and the answer sheet handed over is also satisfactory.
