A small screen keyboard Sympart65

My main force has been using the hhkb pro2 keyboard. I changed the hasu bluetooth master control. It is very convenient to use, but I found that as a user of standard fingering and as a patient with obsessive-compulsive disorder, the natural posture of the hand is placed When on the keyboard, the distance between the left and right of the keyboard is different

the right side will be longer

Although the problem is not big, the more you pay attention, the more uncomfortable you feel (personal opinion)

有幸去年在Y&R工作室买了张nz67v2 pcb，单键开槽旋钮预留加底灯都有，买的是分离小板版本，正好可以满足我的需求

The original idea was to realize that the distance between the left and the right is basically the same. I just bought a desktop weather clock and measured the size of the screen. The idea is also partially referred to the "I am the leader of the beggar gang" up video https://www.bilibili.com/video/BV1sY41147cB/?spm_id_from=333.999.0.0 ）

I chose Zuoer's mortise-and-mortise-like acrylic structure for the basic drawings. Acrylic is cheap and affordable, and it is good news for customized players or DIY enthusiasts

Next is a few months of procrastinating drawing time (I had ideas in April and May, and then the finished product was delayed until recently. It doesn’t take that long to draw pictures. It’s just that I am procrastinating, so I draw from time to time)

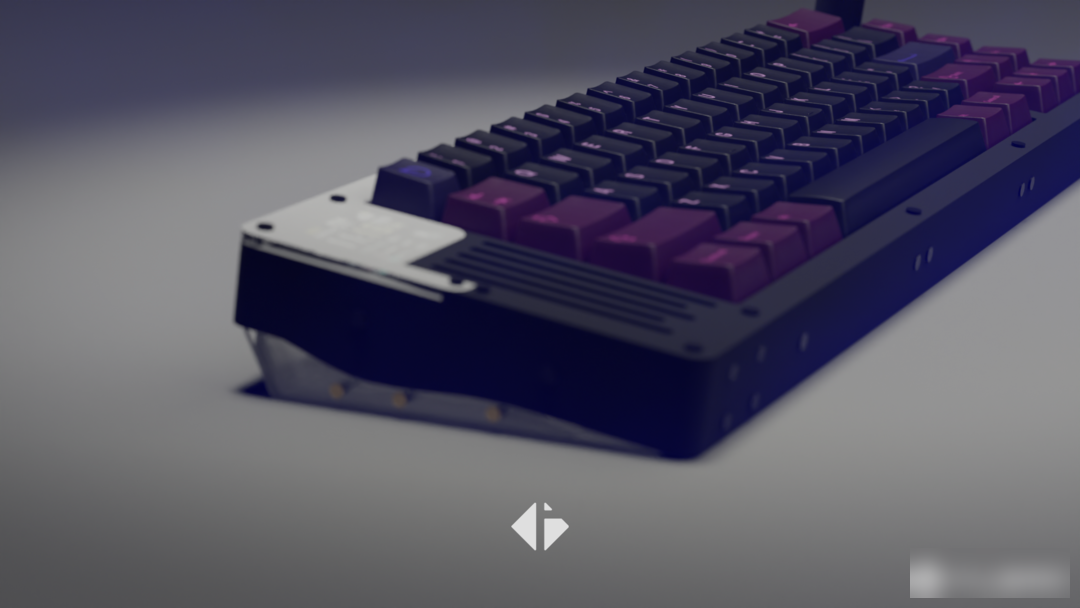

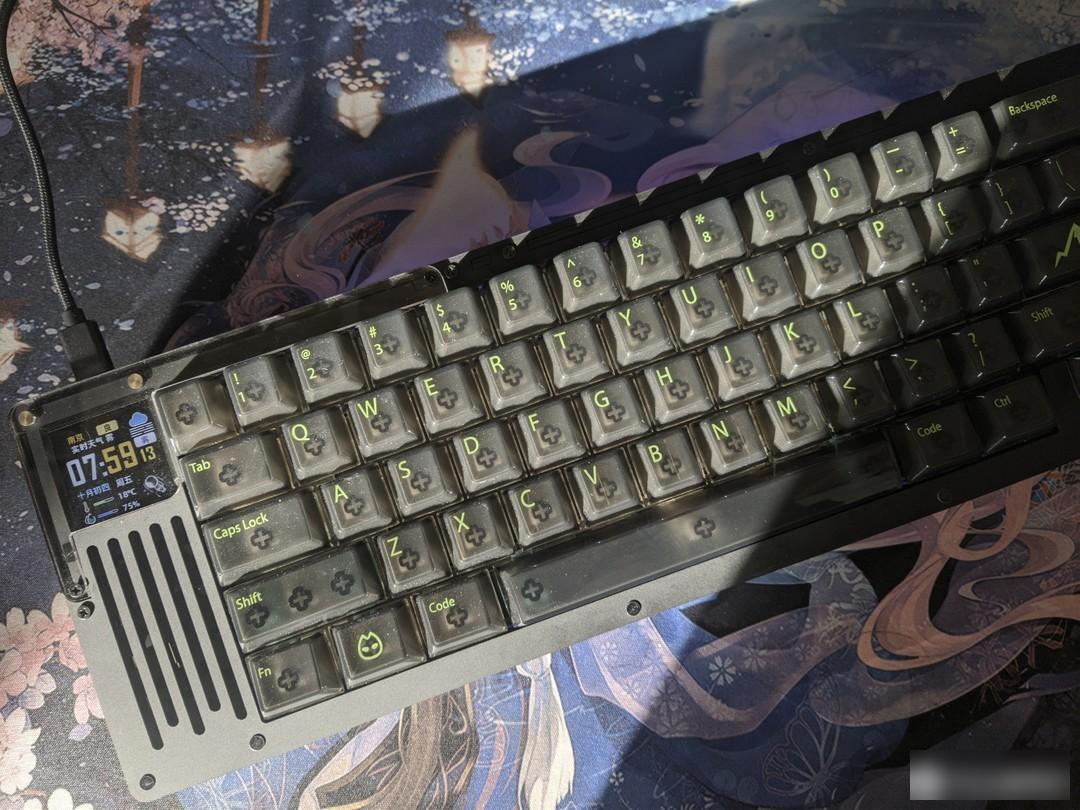

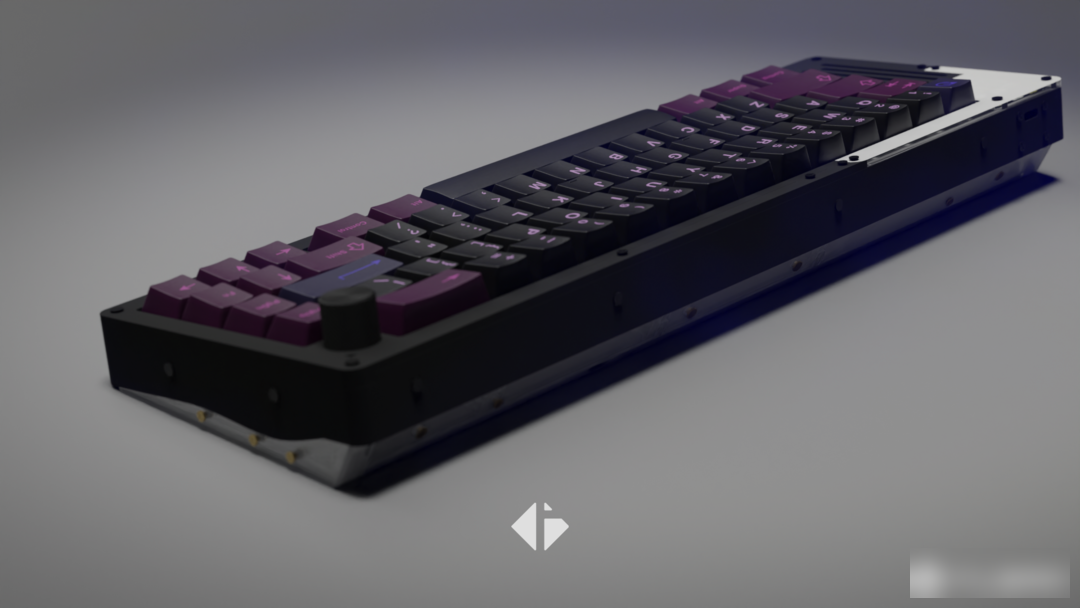

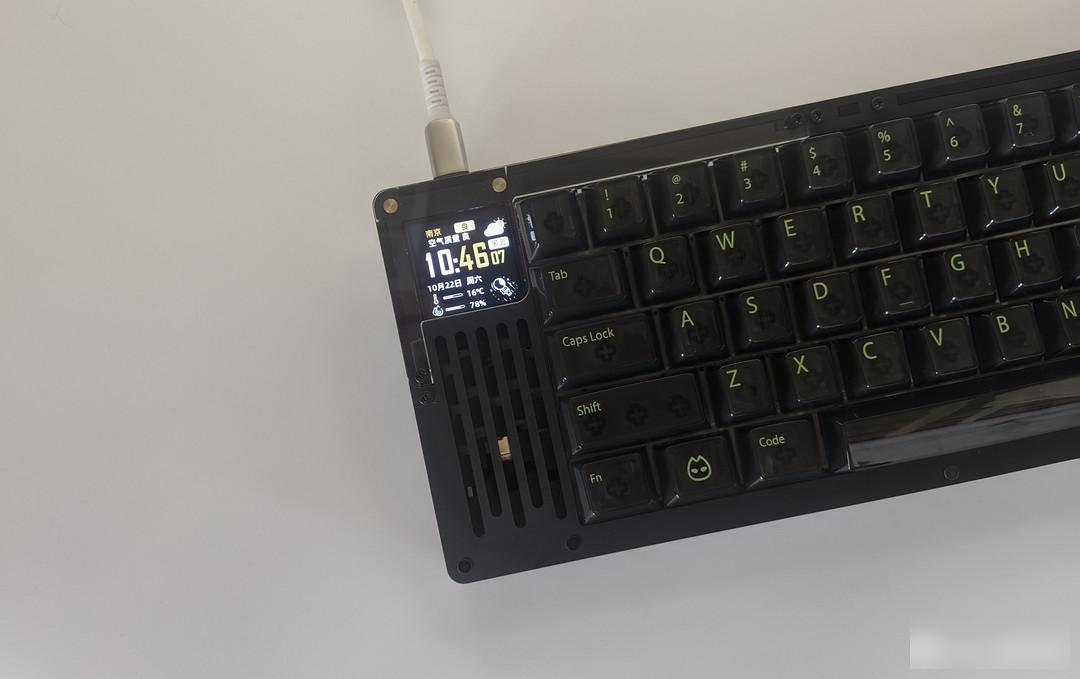

The weather clock and the keyboard pcb are connected in parallel to the power supply and signal lines of the keyboard separate board, so that one line can be inserted to meet the power supply requirements and signal transmission of the clock and keyboard (but the brightness of the clock screen is turned on when the bottom light and backlight of the keyboard pcb are turned on at the same time It will drop a little, it’s not a big problem for me who don’t turn on the light)

Take a look at the mobile phone

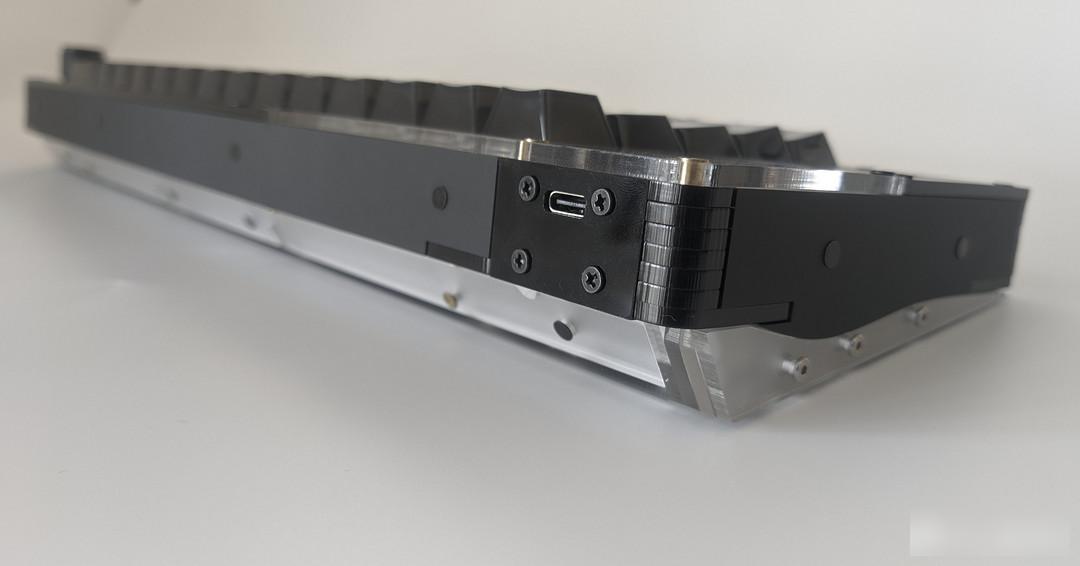

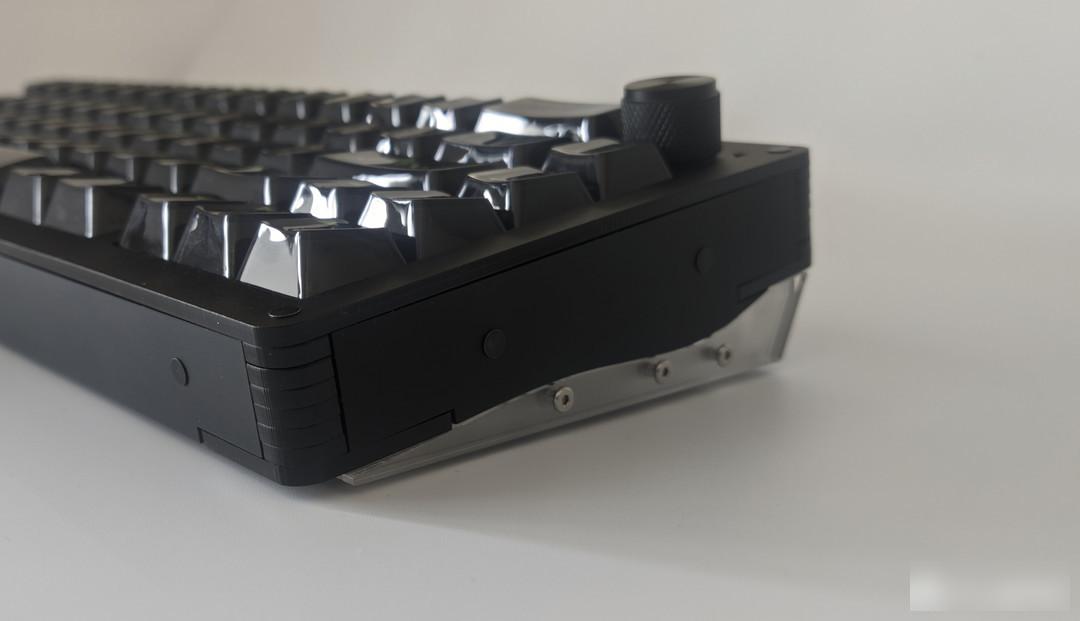

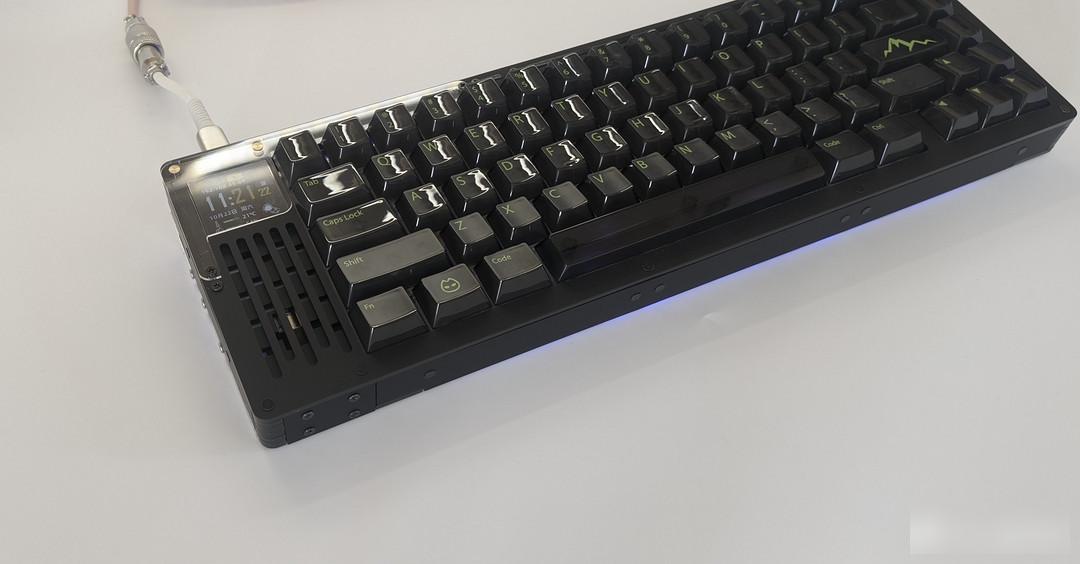

When the bottom light is turned on, the transparent acrylic at the bottom will be lit up, and the slag machine can’t take pictures without the atmosphere

Some people may say that it is like Hanwen 75, this is also my great honor, part of the idea collided with the boss

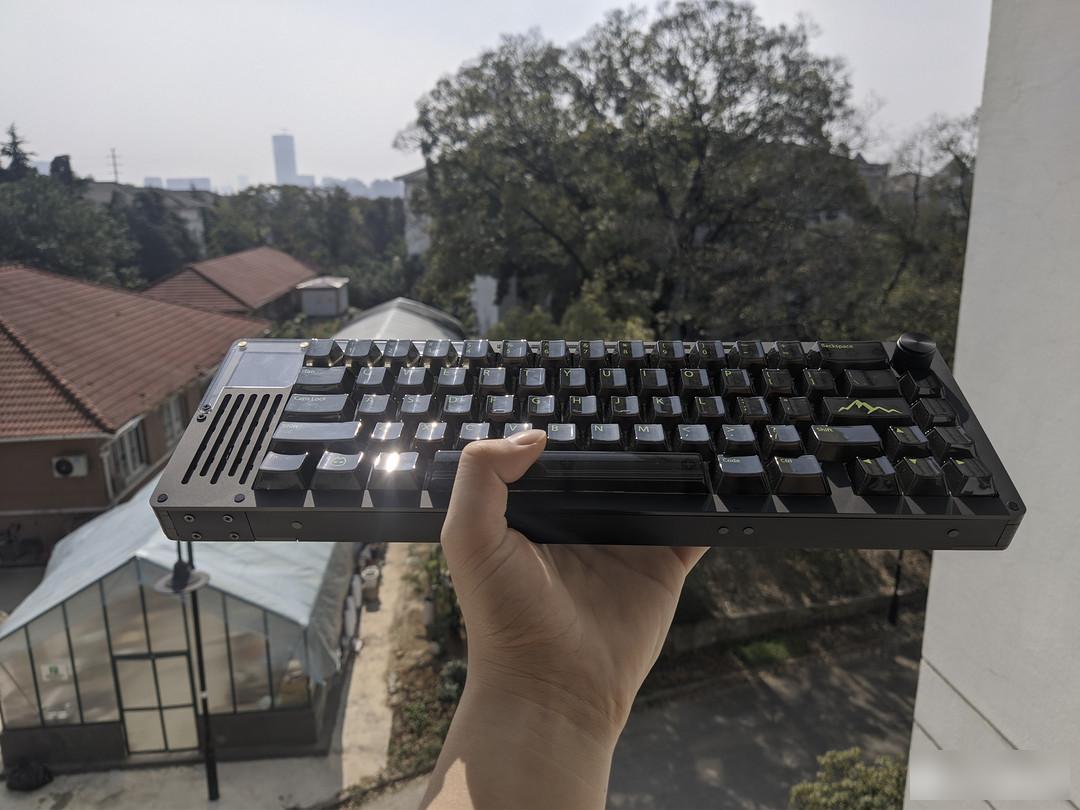

After half a month of experience, I feel very good, and there may be psychological factors of "beauty is in the eye of the beholder", but I am also very satisfied. The only dissatisfaction may be that the PC keycaps are too easy to accumulate dust

From the moment when the idea starts to the actual finished product, the joy brought should be the happiest moment for all DIY lovers

Finally, thanks to Mr. Zuoer, the author of the open source drawings, and the up master of "I am the leader of the gang of beggars"
