Can dismantling the new rx980 make the key ring crazy?

Two days ago, there were cute comments and private messages asking if the rx980 can be dismantled, this time I will dismantle the rx980, three-mode, 98 keys

Although it is a disassembly, I was quite sad when I opened the courier bag and scratched a line on the box. The courier bag is the packaging box of this keyboard.

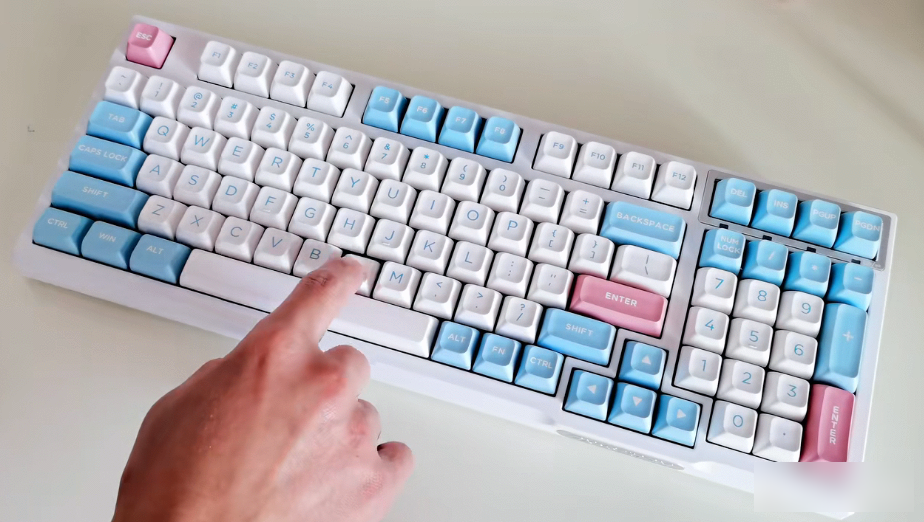

I started with the red axis, and the lollipop I chose was the color combination of blue, pink, and white.

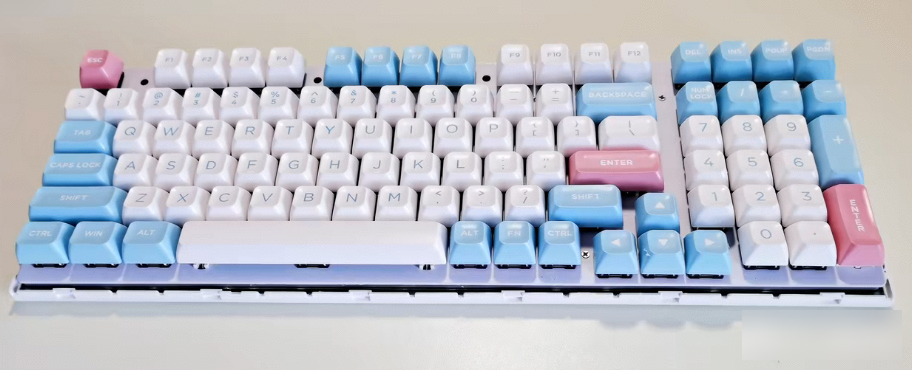

It is an accessory with a full complement of keycaps,

In terms of color, it can be supplemented with a blue and white keyboard

The keycap has a small space, B key, step-style caps, 7-character carriage return, and several game keycaps. Just relying on the keycaps that come with it, it is enough for daily use

The color of this keyboard is also very small and fresh, this is the feeling of summer, and it is a bit milky.

The whole machine is also 2 catties and 9 taels, which is 3 catties, which is really not light

The lower right corner is the logo on the metal nameplate

At the bottom of the back is the switch button for windows, mac and three modes. The default is to point to the wired one. This is actually good. If you use the wired one, you can switch to the wired one. It is more mechanical and easy to understand.

The C port is relatively wide, with slideways on both sides, and the built-in data cable does not have a card position for this slideway

It is also a three-way winding

There are two levels of feet, but there is a magnetic usb receiver hidden under the left foot, which is also designed to prevent loss and fall

Then there is the metal nameplate

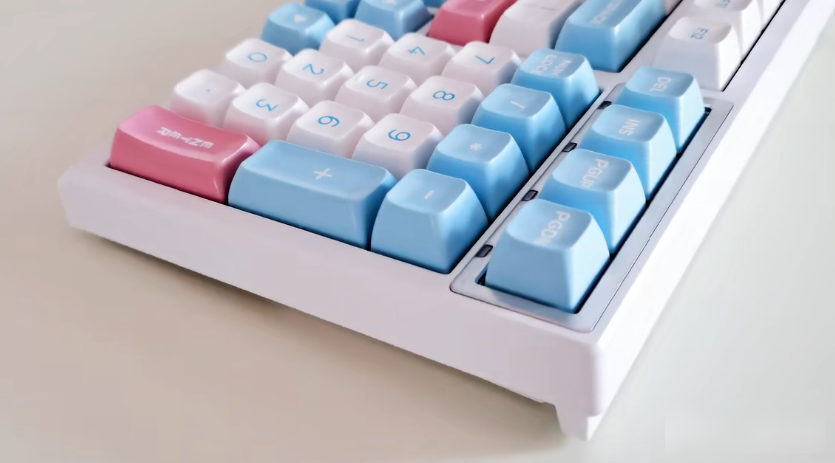

Its keycaps are concave and have curved radians. The small keys are low in the front and high in the back. The corners of the keycaps are also treated with obtuse angles. The two-color injection molded PBT feels smooth, and the bright ones can reflect light, like candy. kind of

has 2 heights

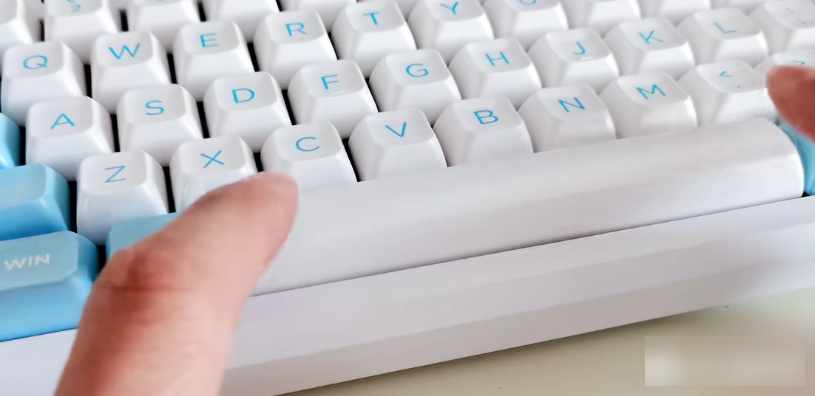

The satellite axis is very tight, and the big keys are very stable when they are tapped left and right, and the typing force is basically unshakable.

When typing, there is an obvious knocking sound like knocking on wood, without other noises, and the smoothness is good

The trigger stroke is about 1.8mm, the bottoming stroke is 3.8mm, the rebound is fast, the bottoming is relatively stable, suitable for coding

The pressure is 43gf, and the key travel is moderate and not deep.

In fact, I was also a little entangled in why I didn't choose gold powder at that time.

The next thing is to take it apart

The shell is buckled, and the back slides to open.

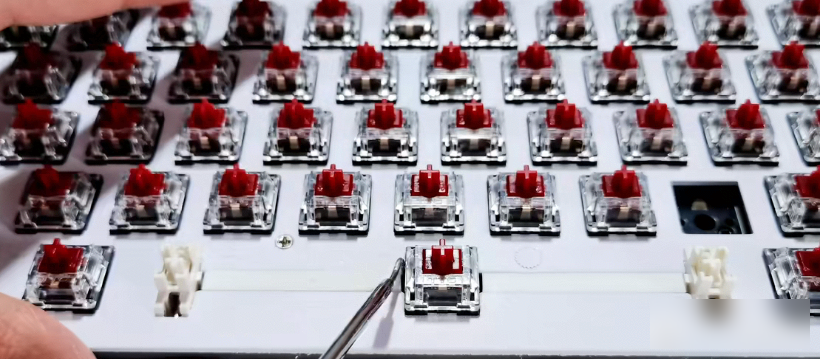

When pulling out the shaft, I feel that it is so easy to pull out. Even in a keyboard, when removing the keycap, I just slide it down four or five times.

The last time I pulled out Kaihua, some of them almost made a miracle with great effort, but that one was stuck really tight

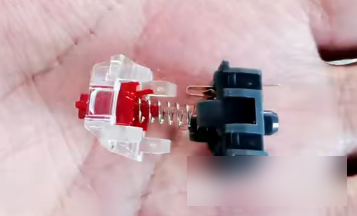

This is TTC's Jinhong pro, with factory run, three-legged

There are 2 sponges next to the space

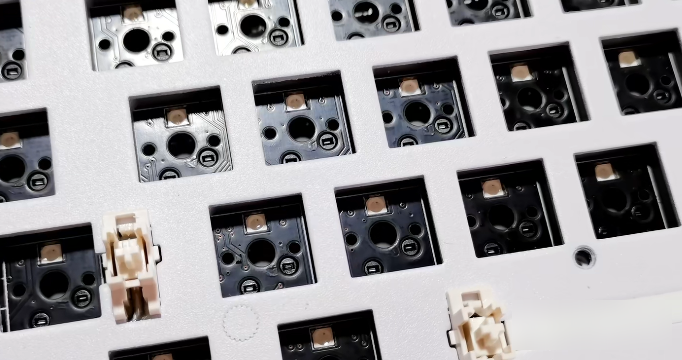

There is a mute pad between the PCB board and the positioning board, and the positioning board is also a piece of metal, which is very heavy

It supports three-legged and five-legged, and this comes with a three-legged red axis

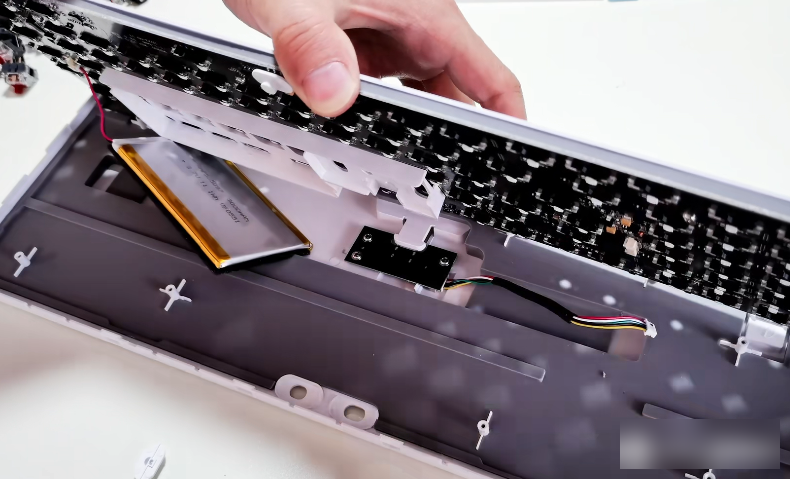

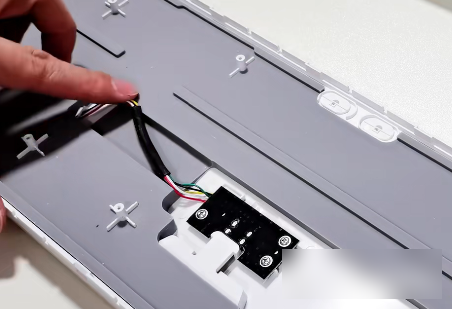

Unplug the pcb board connection line at the back and take it down

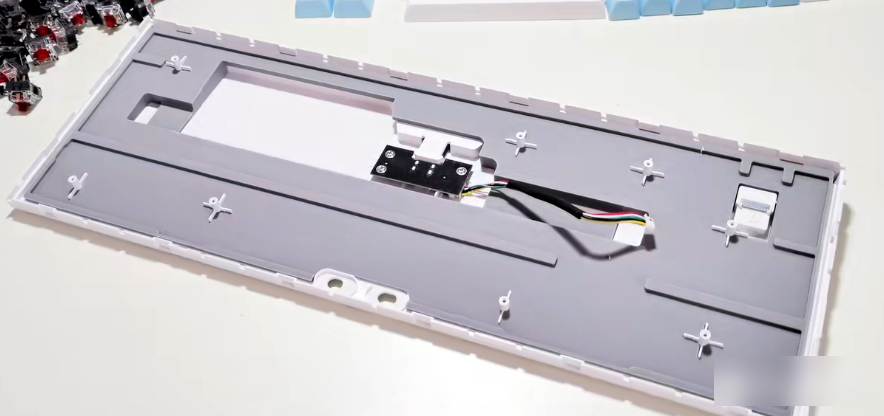

At the bottom is a very thick silicone pad, the opening is very accurate, the kind that fits perfectly

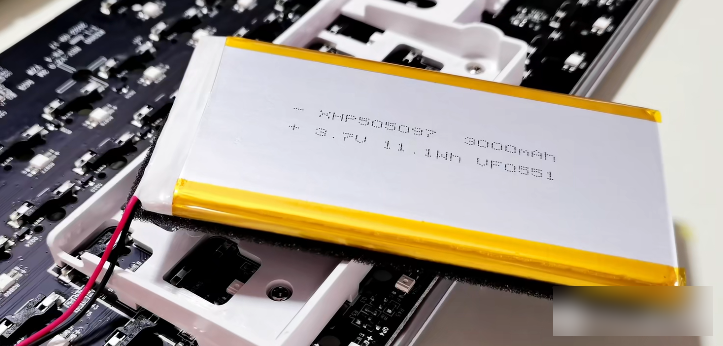

The battery is 3000mAh

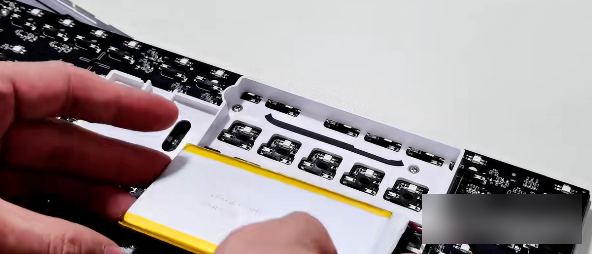

The battery is directly stuck in this groove, and there is a sponge on it,

It was okay when I disassembled it, but when I installed it, I wanted to complain. Of course, there is no need to complain if it is not disassembled.

One is that the battery is placed in the slot, although the space is just right, but after disassembly, as long as the board is picked up, the battery will either fall down, or when it is closed, I always worry that I won’t be able to reach the card position, afraid of being pressed , so I ended up adding a tape to it

The second is the connection line of the PCB board. A very wide rectangular line slot is reserved. adhesive tape

The Bluetooth 5.0 used in this keyboard can also use the usb receiver and cable. The driver downloaded from the official website can be connected in both Bluetooth and 2.4G wireless modes. It is possible to change key positions, macro programming, and set music rhythms.

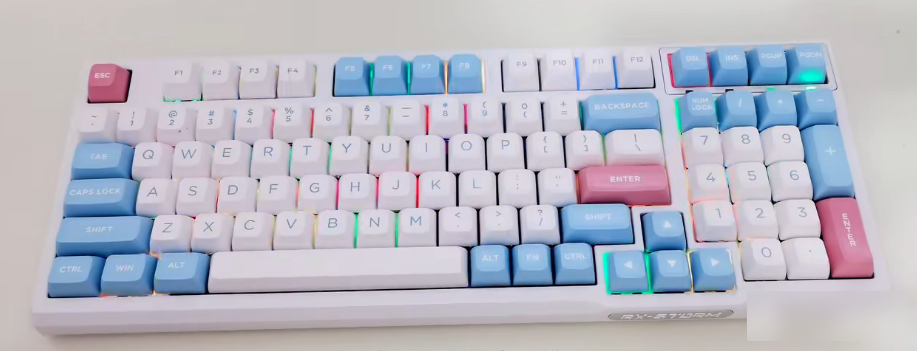

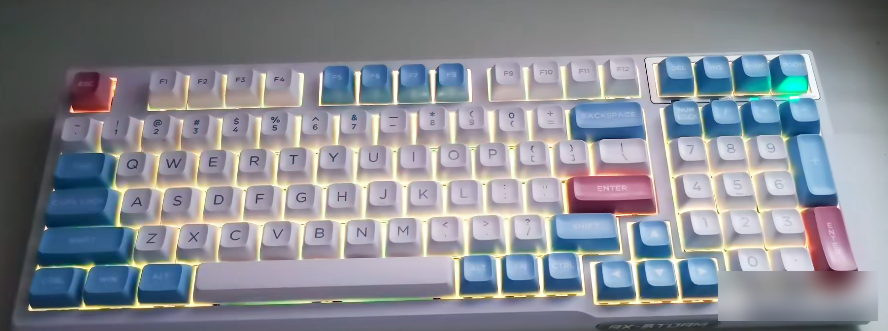

This keycap is not light-transmitting, so the light also goes to the four sides. The intensity of the light is average, and it will not be too eye-catching during the day.

The brightness and color can be adjusted, and the playability is good
