Custom Shooting Records Part Fourteen: TTC Tea Static Axis Experience Sharing

With more and more noise in life, more and more people are pursuing a stable and quiet living environment. The mechanical switch on the keyboard is also the first step in this process. It is said that the green switch is the representative switch of the mechanical switch. When it develops over time and now the silent switch is also emerging in an endless stream. Its users Loyalty often exceeds that of ordinary mechanical switch users.

TTC's silent version of tea shaft has been updated and iterated to the third version named: tea static shaft. Tea static axis for use experience sharing.

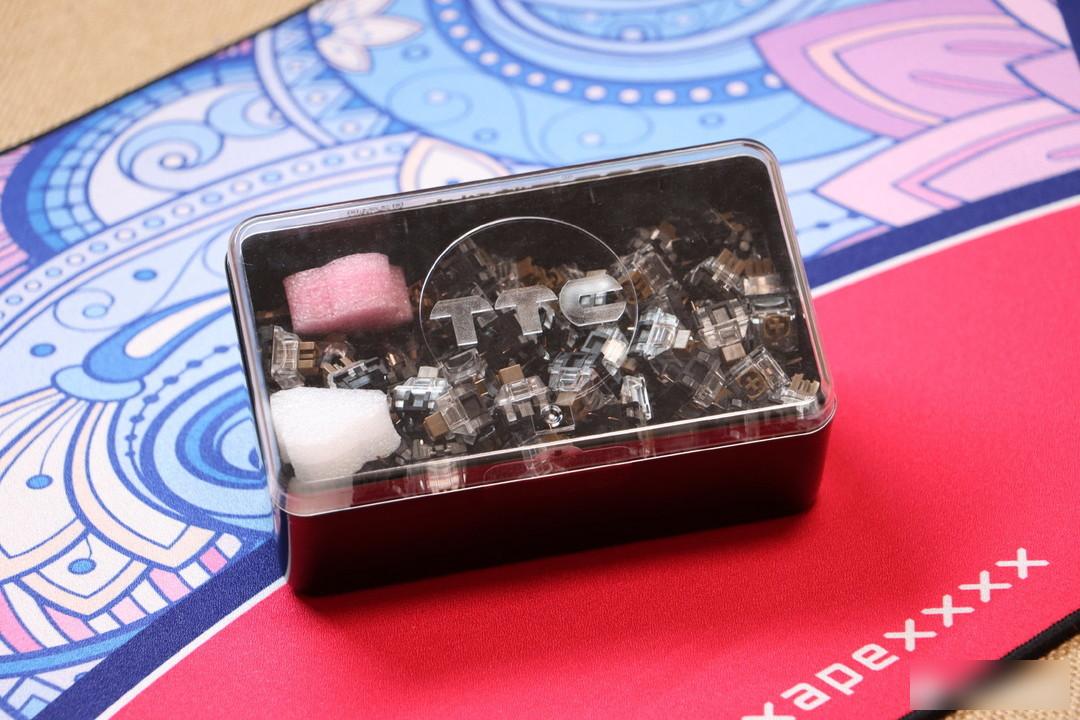

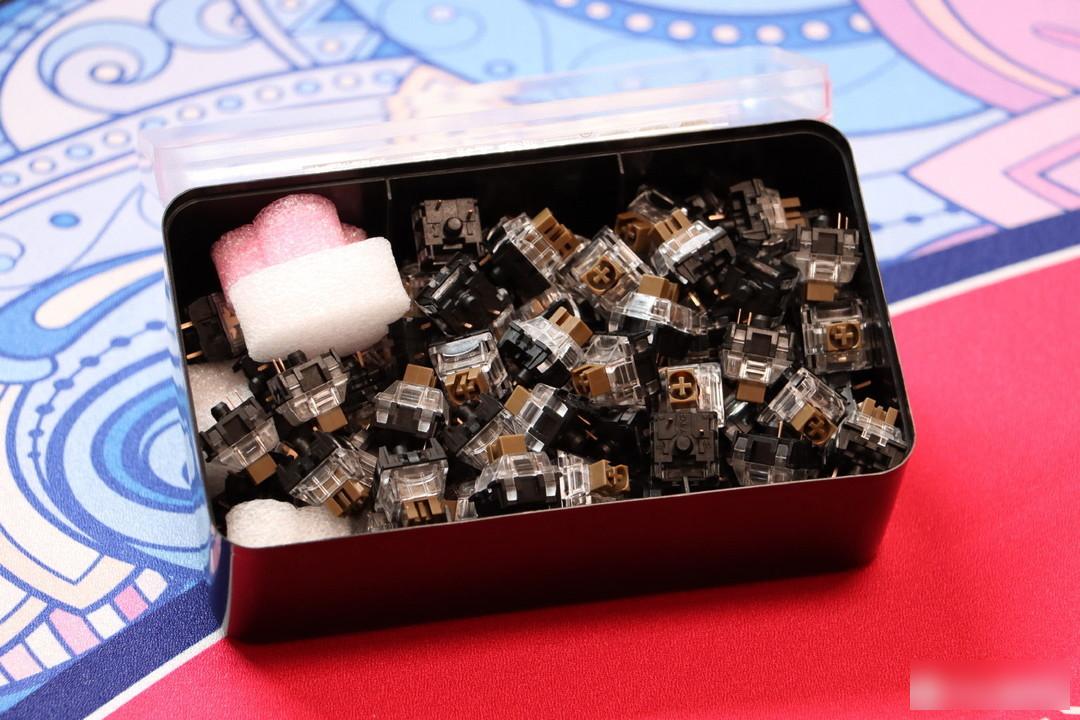

▲At this stage, TTC’s shafts are all shipped in boxes, and foam hearts are added inside to prevent damage

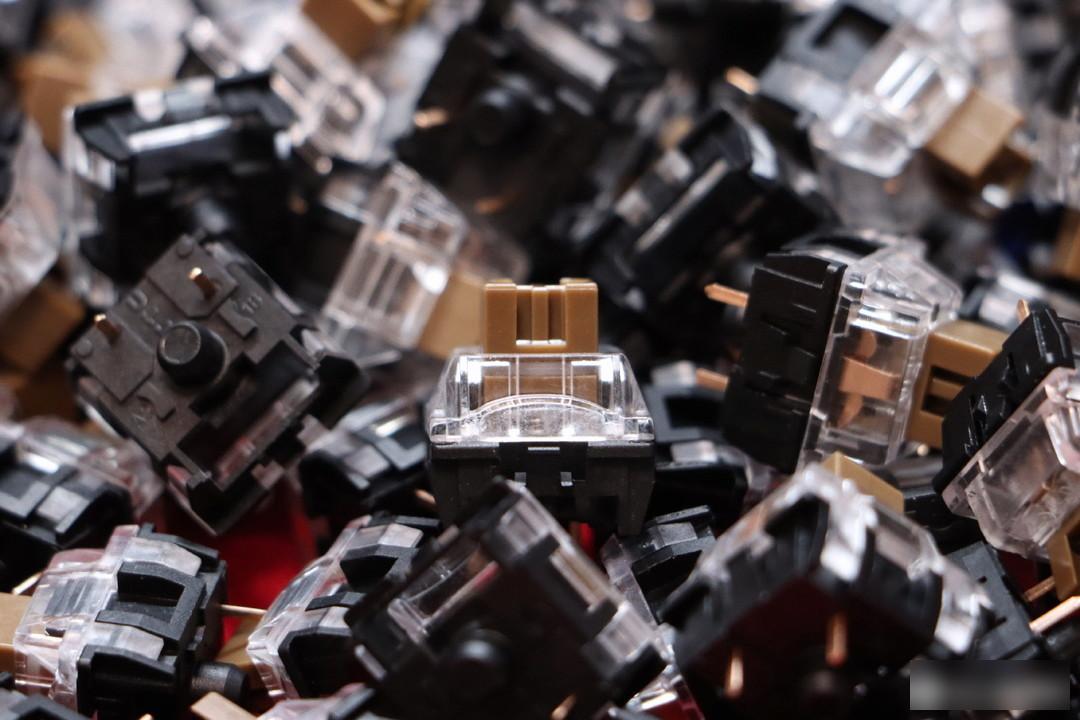

▲The tea static shaft adopts a combination of transparent PC shaft cover, tea brown POM shaft center and black nylon shaft seat.

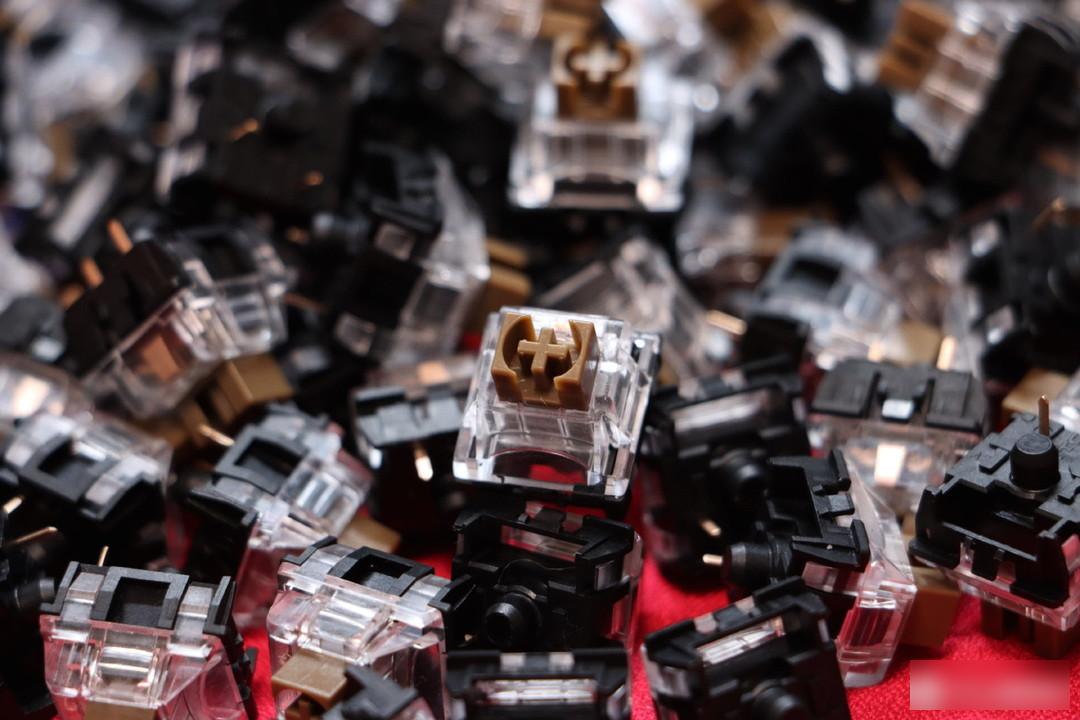

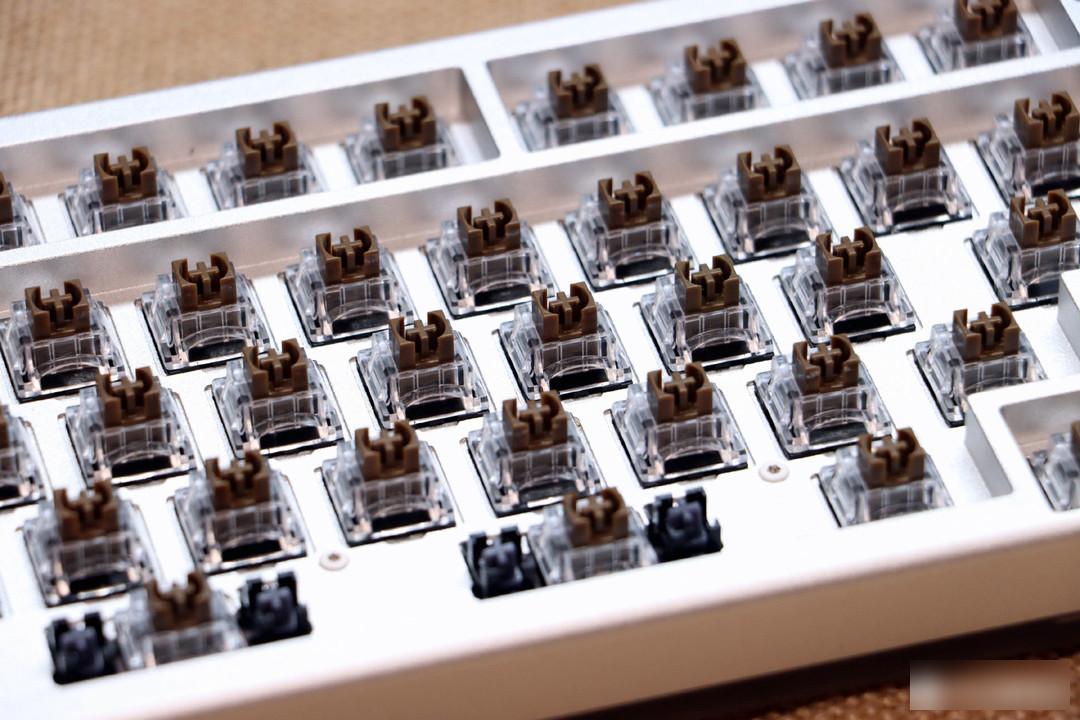

▲The transparent shaft cover with a convex lens can project the backlight evenly with almost no damage

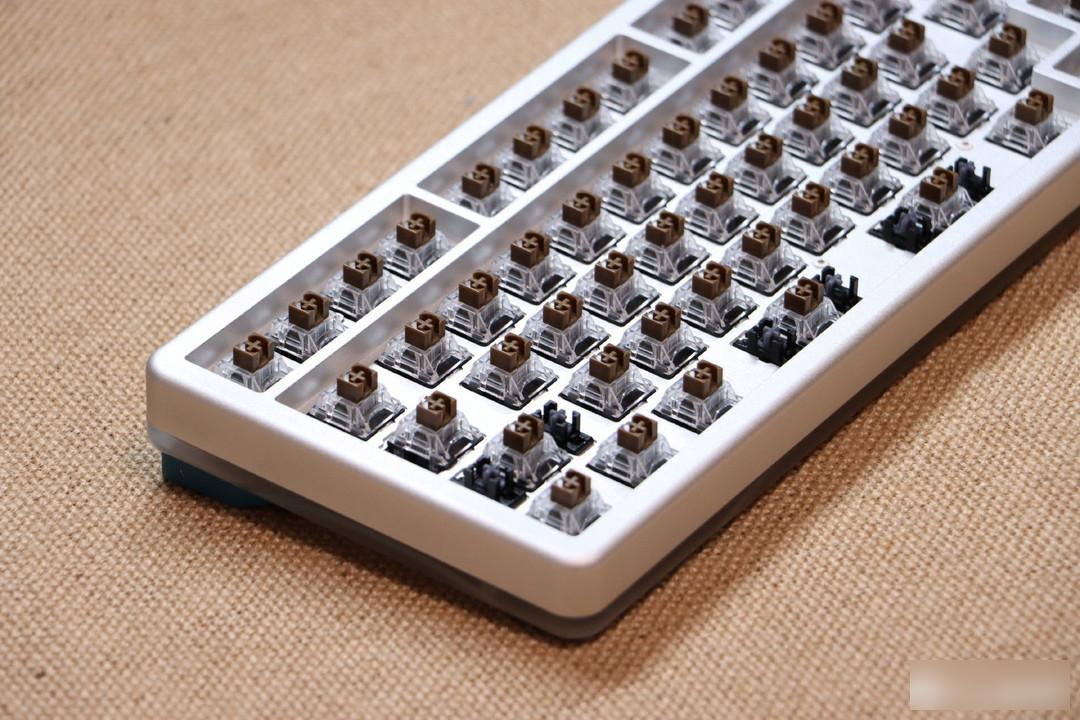

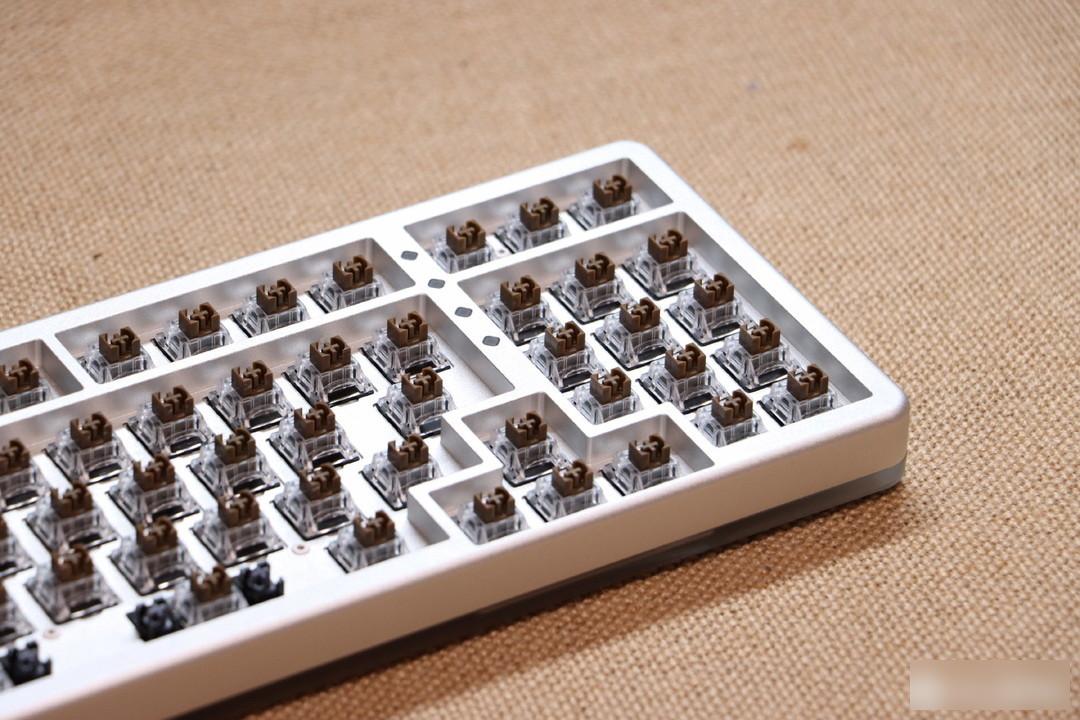

▲The tea static axis is designed as a tripod axis. It supports LED patch backlight on the PCB and is compatible with almost all keyboards on the market.

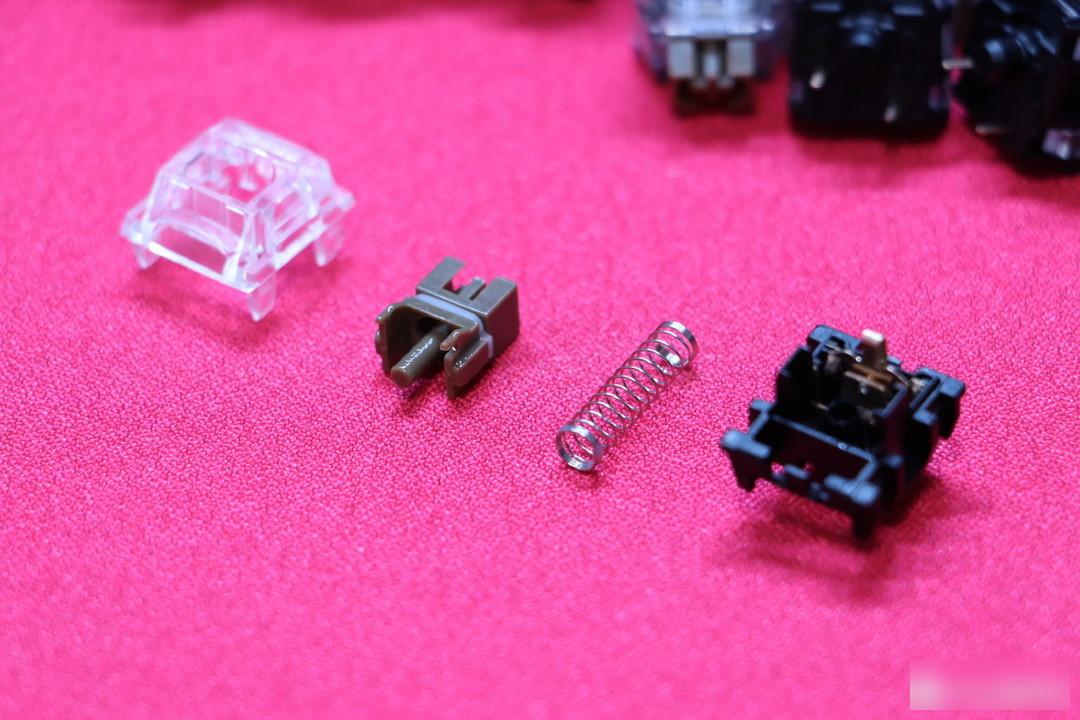

▲The tea static shaft is composed of the traditional shaft cover, shaft center, spring, and shaft seat. The trigger pressure is 45g, the segment pressure is 55g, and the bottoming pressure is 63.5g. The trigger stroke is 2mm and the bottoming stroke is 3.7mm.

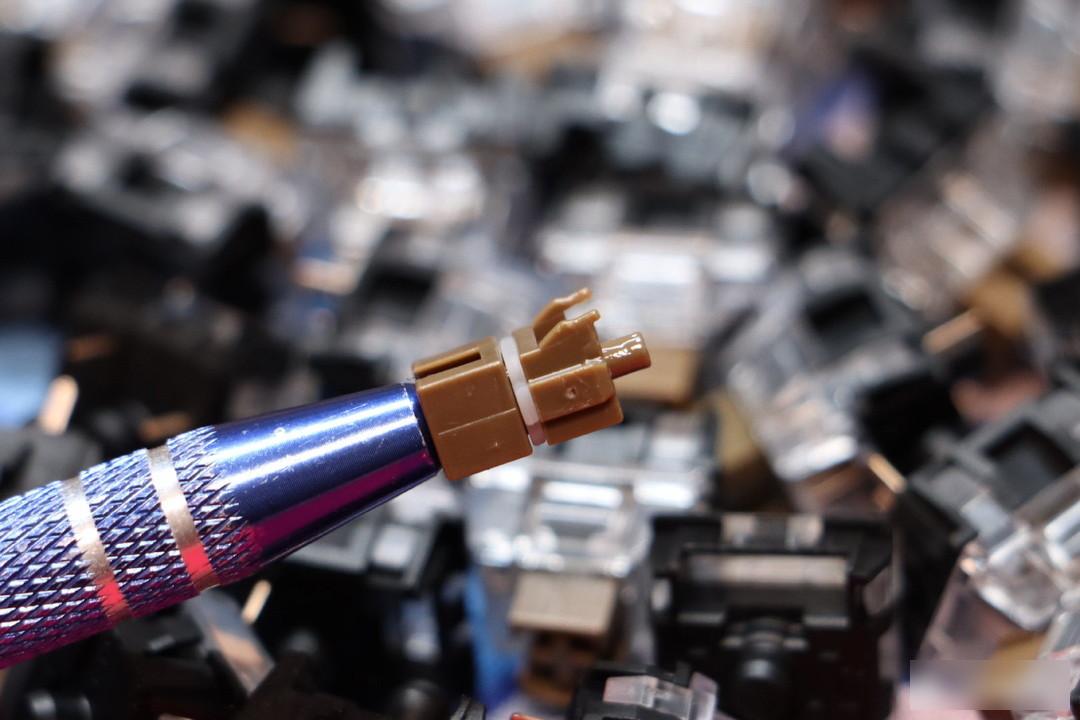

▲The tea-brown POM dust-proof wall shaft has been pre-lubricated before leaving the factory. Compared with the previous generation of silent tea shaft, the smoothness and noise of the shaft travel have been effectively optimized. The rustling sound in the past has disappeared, and the partitions adopted by the shaft body The independent silent structure is broken down to add a silent structure to the axis and the bottom. A rubber silent ring is added in the middle of the axis to eliminate the noise generated during the up and down stroke of the axis. Rubber pads are added to the internal axle bottoming to eliminate the sound of the axle bottoming out.

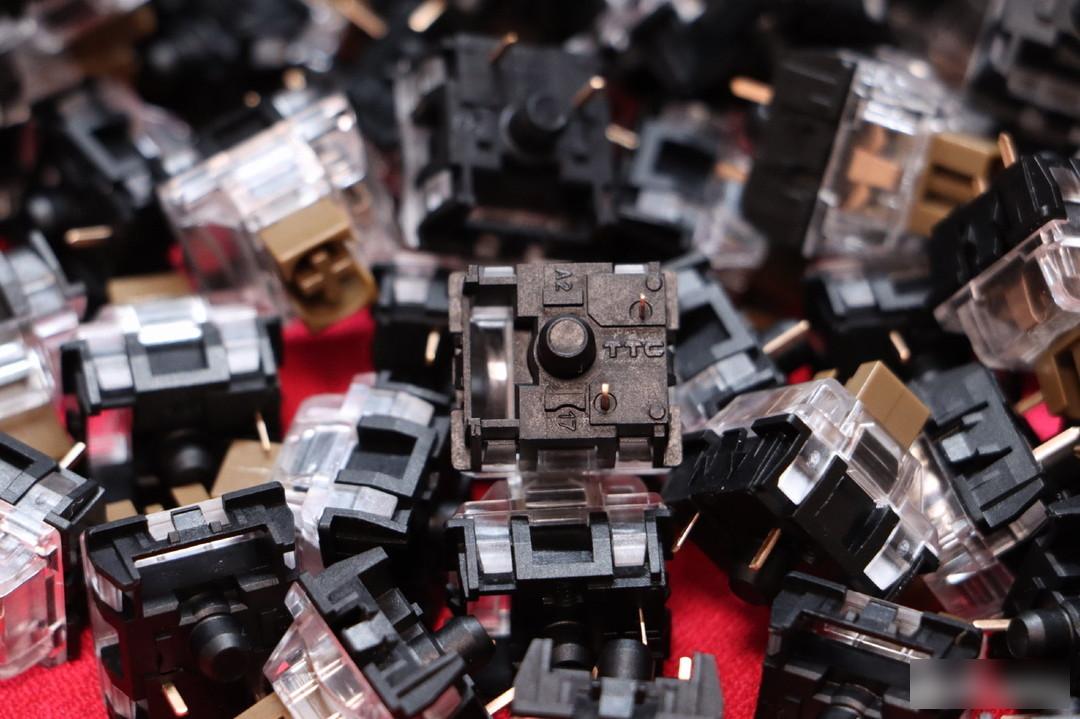

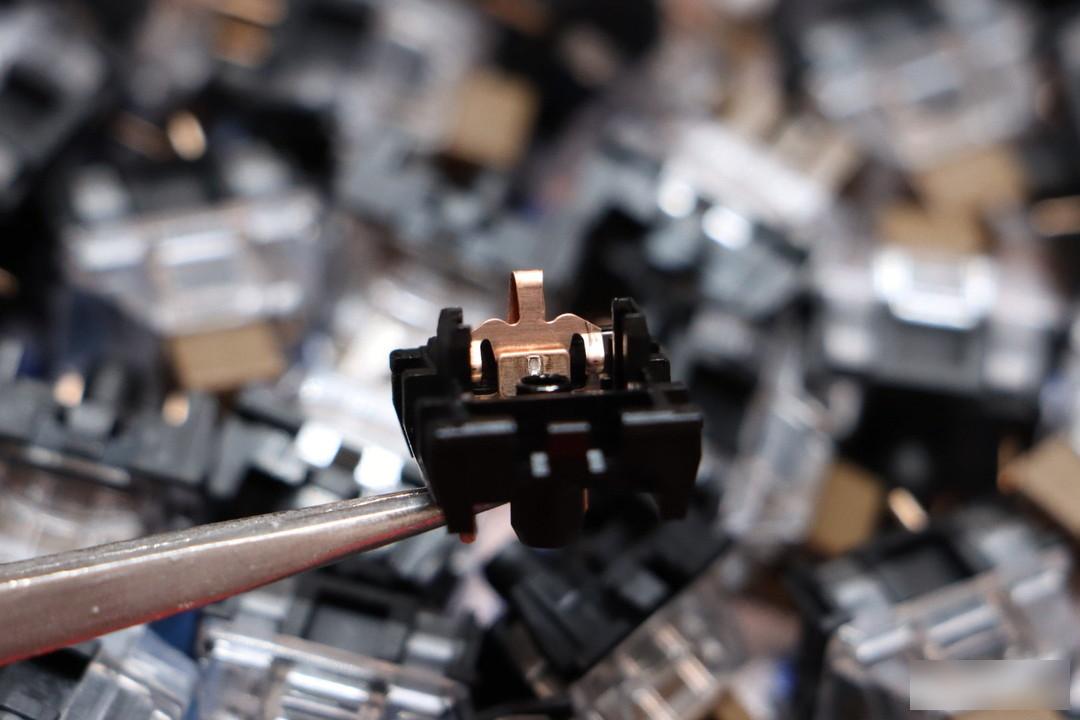

▲The shaft seat is made of nylon, and the gold-plated contacts and shrapnel are fixed by riveting, which is stable and reliable, with a lifespan of up to 60 million times

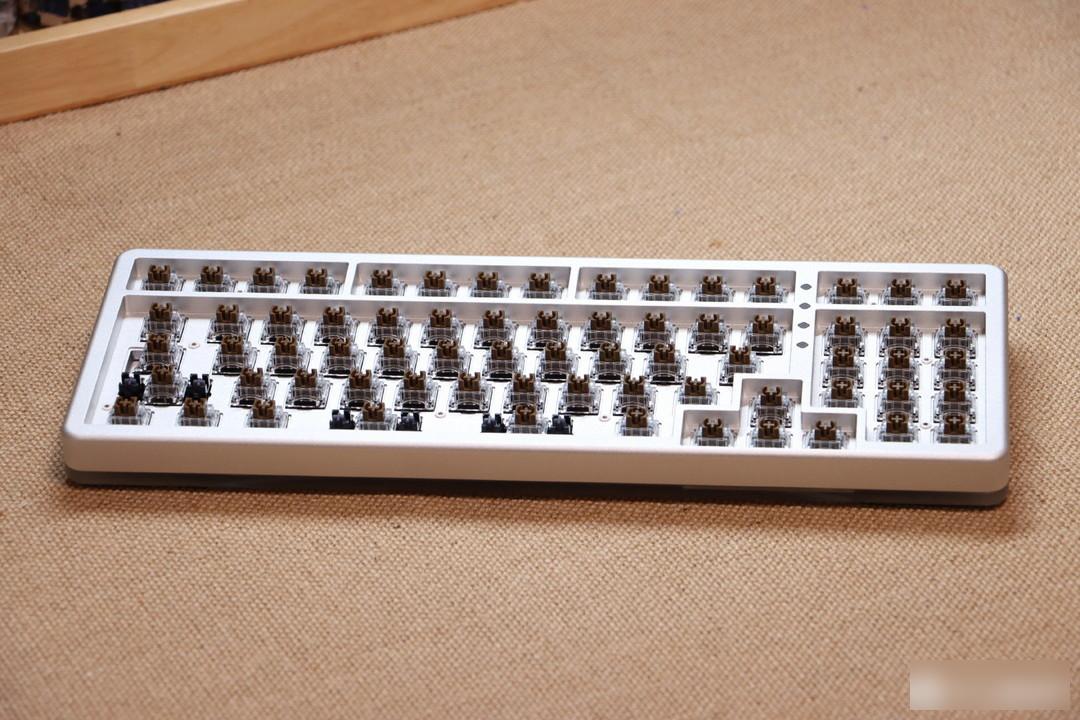

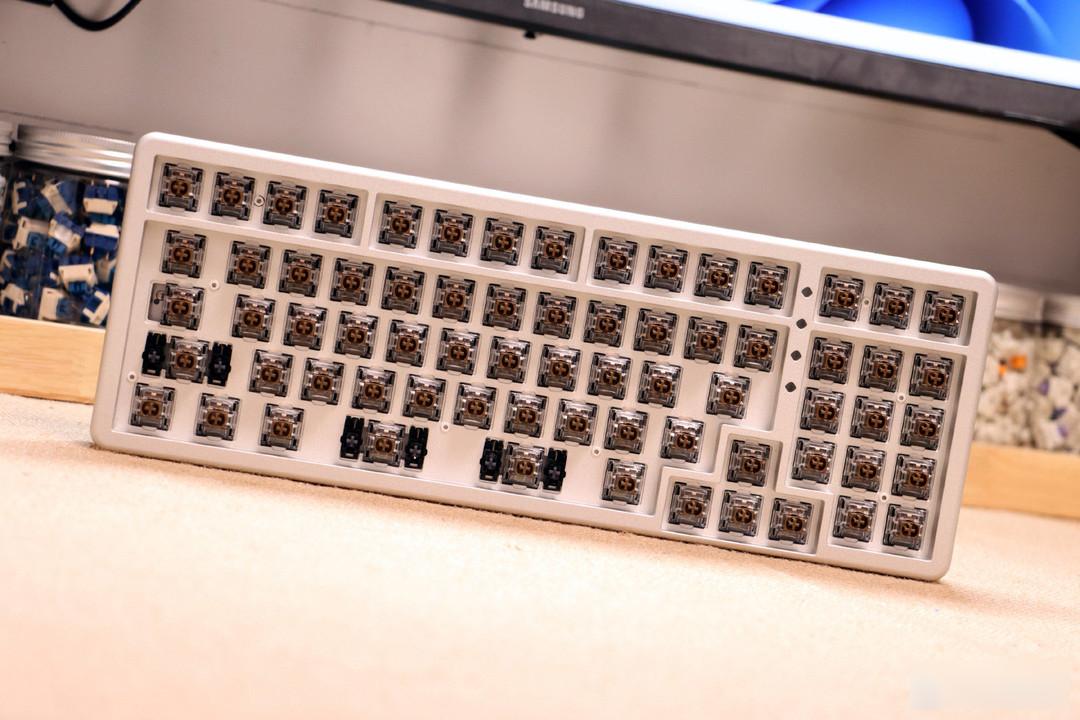

After many days of continuous typing and game use, the tea static axis has become more and more in line with psychological expectations. The micro paragraphs are clear but smooth without any abrupt feeling. The self-lubricating axis makes the up and down travel of the axis smooth and smooth. There will be no bang-bang bottoming sound when the sub-gravity is hit. On the contrary, there will be a slight elasticity when the bottom is hit. Every hit has an unfinished feeling. The tea static axis is more suitable for office codewords and home use. If there are players who want to start the mute micro-paragraph axis recently, you may wish to pay attention~
