Digital Life, Chapter 26: Can you buy such a fairy keyboard for hundreds of dollars? Wuhu! take off!

Halo~ Hello everyone! I am Love to toss digital peripherals Brother Yao~ See you again~

Speaking of the recent keyboard circle, I have to mention that during this period of time, there has been a burst of inexplicable blowing 75% arrangement+knob+Gasket structure The trendy style, looking cool and unique, made the author greedy, and this time, at the beginning of the long vacation, I finally caught up with this keyboard trend ~

The author started this time with Leikaze three-mode Gasket structure with 75% mechanical keyboard (Referred to as" Lei Kaze75 ”), then the author will give you a In-depth posting , to see how this keyboard performs~

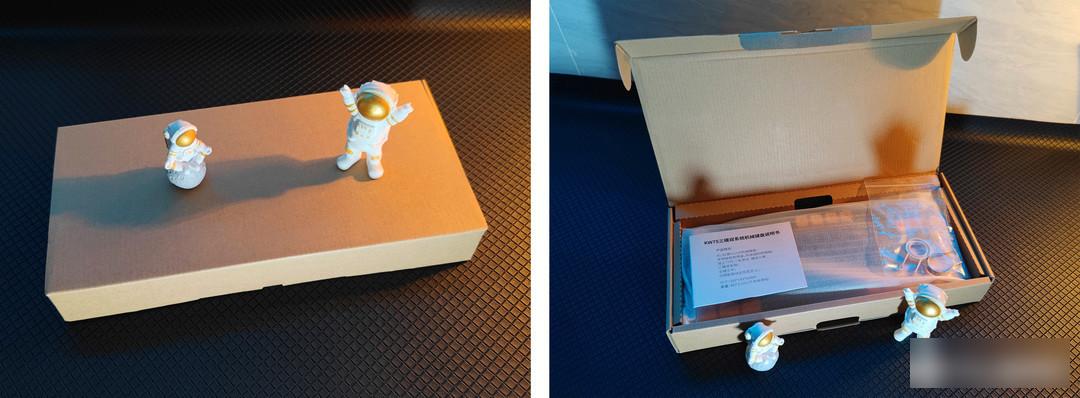

▲This time the author got Internal special edition , very environmentally friendly and simple kraft paper box outer packaging, but the outer packaging of the general sales version is not like this. Open the box, you can see the keyboard lying quietly inside, and you can also see the manual and accessories.

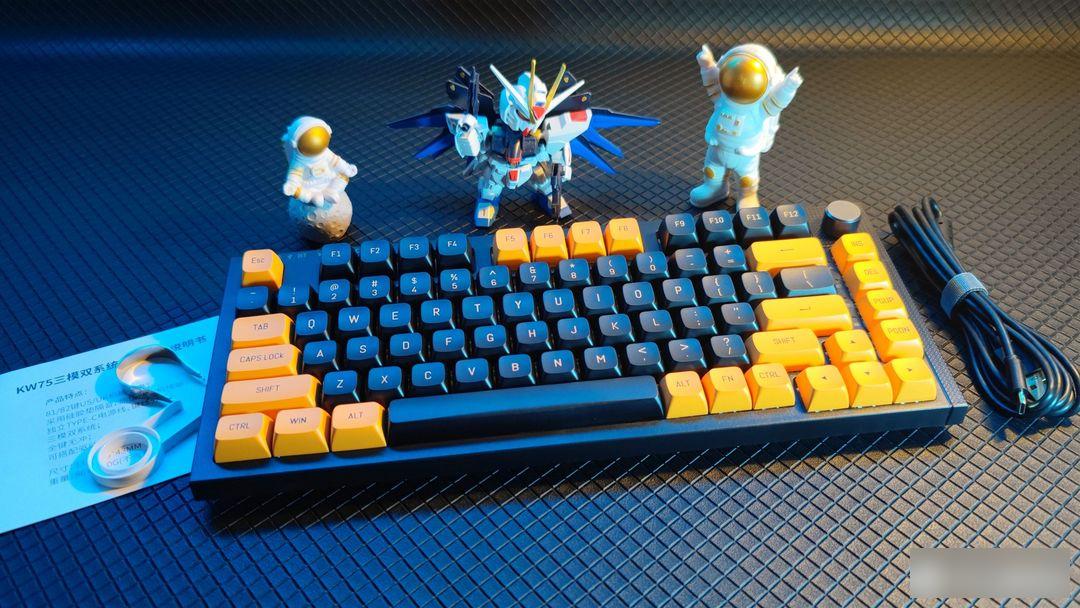

▲The author chose this time Black and orange keycap color matching 、 Jiadalong G yellow axis Pro version of Lei Kaze75 . In addition to the keyboard itself, there are Cable (USB-A to Type-C), cap puller, shaft puller and manual 。

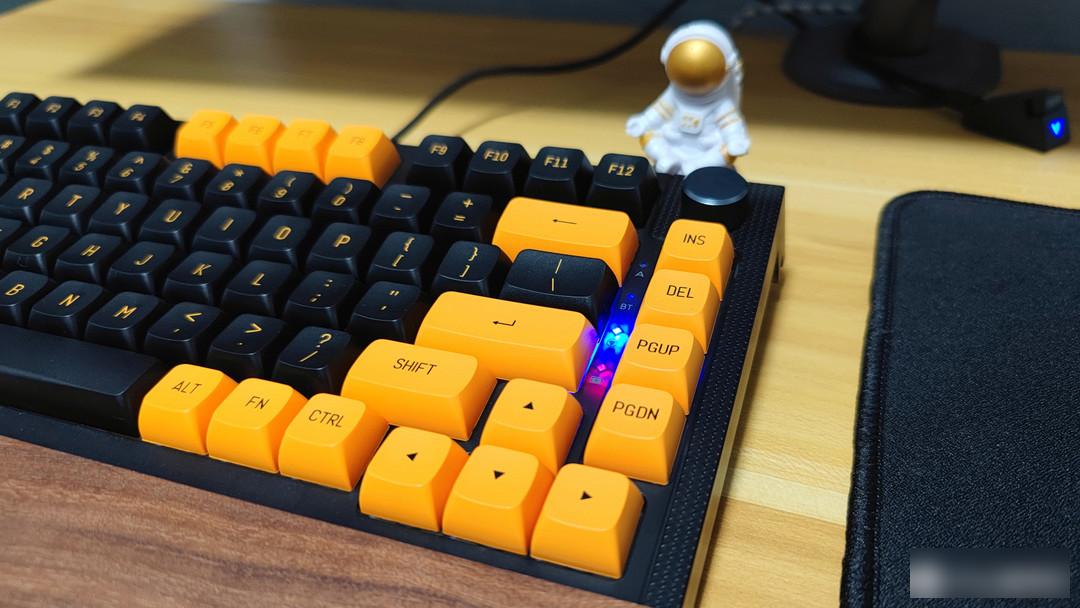

▲ Lei Kaze75 for 75% arrangement 、 81 keys mechanical keyboard, compared to conventional 87 key keyboard , it puts 9 function keys reduced to 4 , and added a round knob , and at the same time Arrow keys down and independent , the key layout is more scientific, and the size is only 333*143*43Mother , and the overall weight is only 867indivual . This size not only Significantly saves desktop space ,and Portability is also greatly improved ~

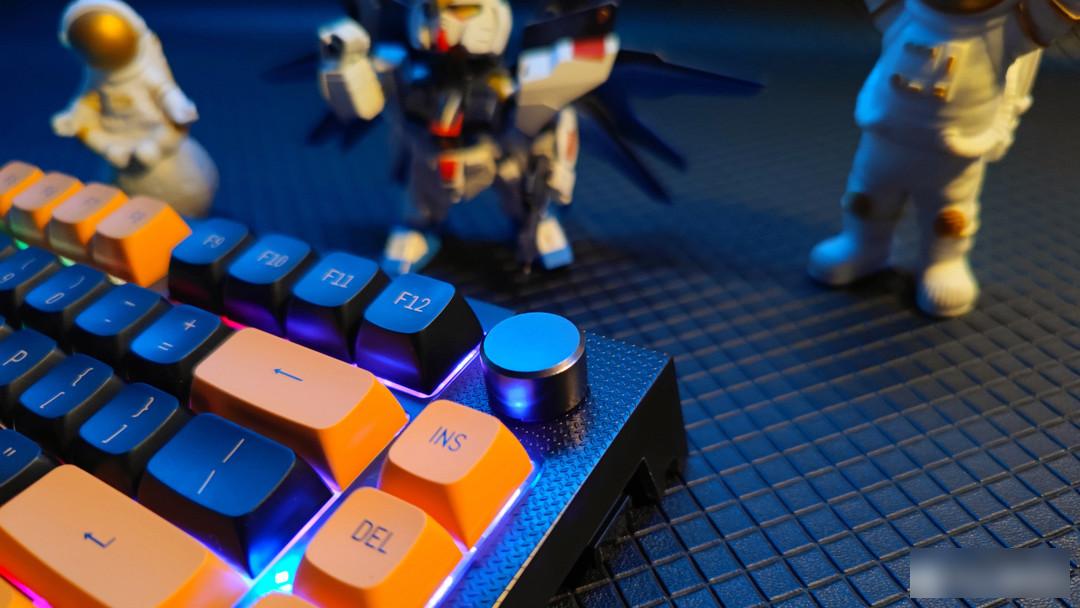

▲In the functional area round knob ,Can Adjust light brightness , also can Adjust system volume , very nice~

▲ Lei Kaze75 on the right side, there is a 2.4G receiver storage position , this design is very good, if there is no storage space, the receiver will run away at any time ( I already have three wireless peripheral receivers missing... ）。

▲In the upper left corner of the keyboard, two toggle switches are set. one of which is used for Connection mode switching (2.4G/wired/Bluetooth) , and the other is Toggle Win/Mac key mode . therefore, Lei Kaze75 is a Three-mode connection and compatible with Win/Mac dual system of Wireless Keyboard Peripherals , the applicability is very strong!

▲ Between the functional area and the main key area, there are four indicators, from top to bottom are Capital status/Bluetooth mode/2.4G wireless mode/Power status , as shown in the figure 2.4G wireless mode The indicator light is on, indicating that the keyboard is in this connection mode at this time.

▲Tap the button to activate the keyboard, Colorful RGB lights it lights up~

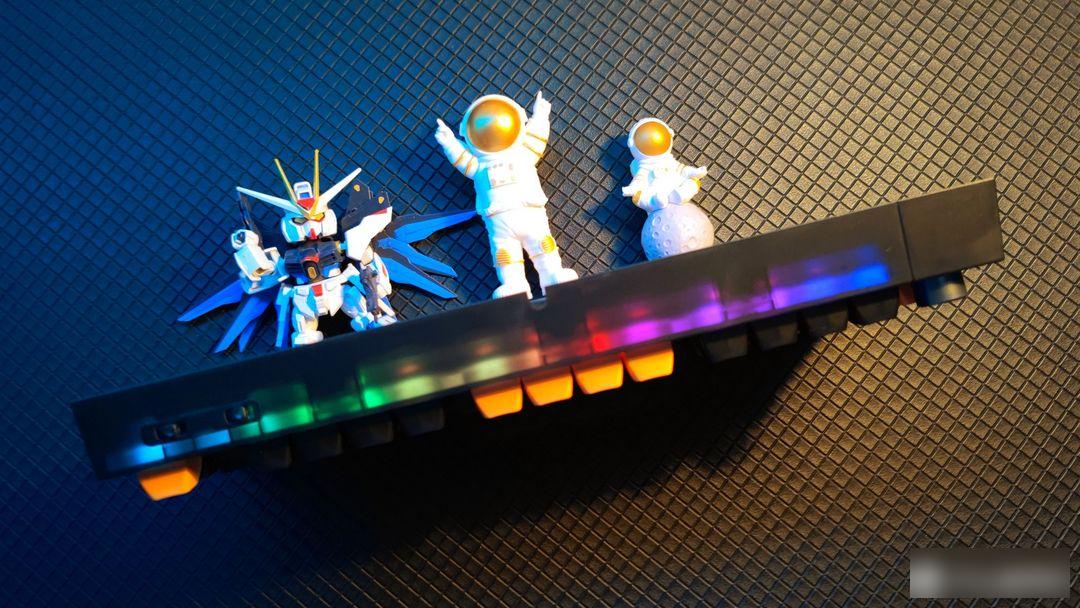

▲You can see that the shell is black material , you can see the light from the keyboard, very nice!

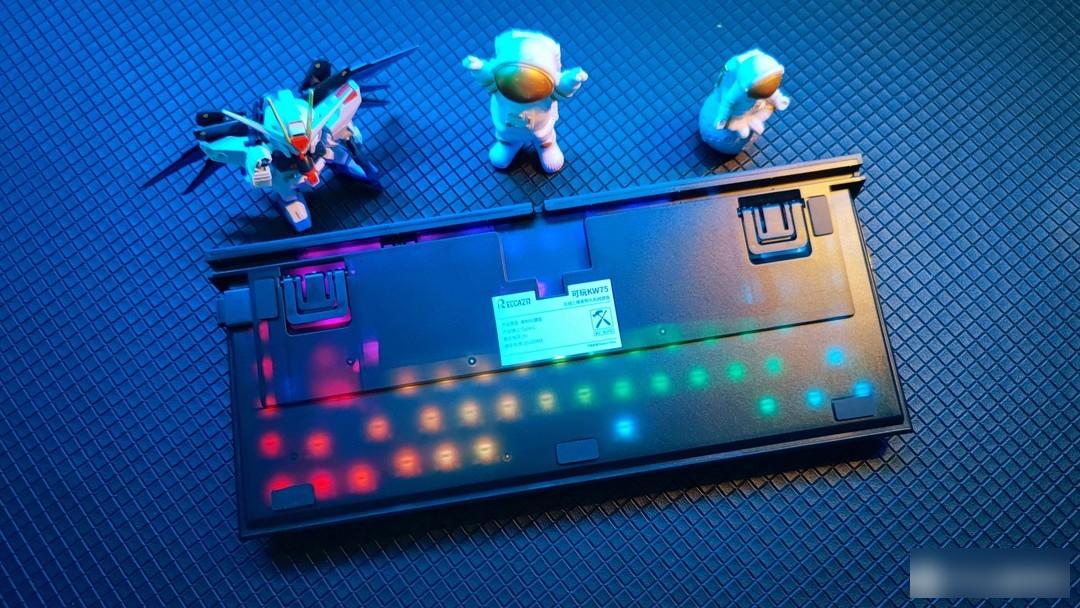

▲The same is black material There are five Rubber Anti-slip Mat , anti-skid ability Max; and set two two-stage kickstand , it is more convenient for users to adjust the keyboard angle. Also see three way out The design of the keyboard is in the center of the bottom case.

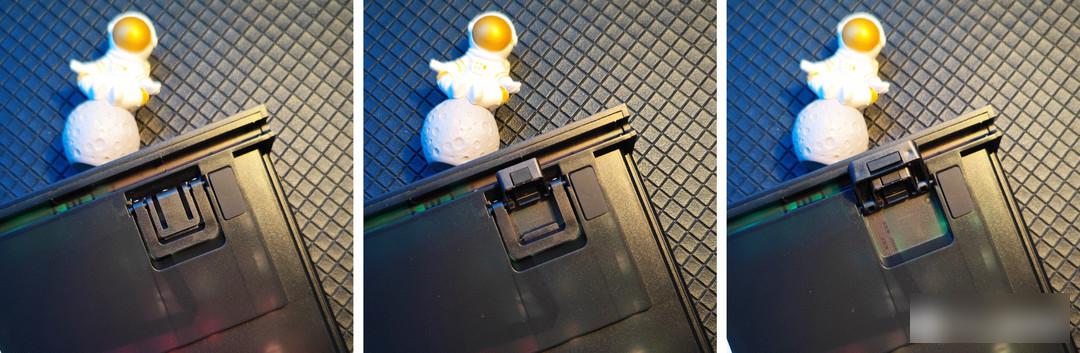

▲ two-stage kickstand The quality is very good, there are non-slip pads on the feet, and the details are full!

▲ After the foot support is fully opened, the keyboard appears close to 9° tilt , the input is equally comfortable~

▲ Lei Kaze75 using the Original height PBT material closed character ball cap ,Adopted Two-color molding process , the quality is very good! The concave ball cap feels very comfortable when used, I love it!

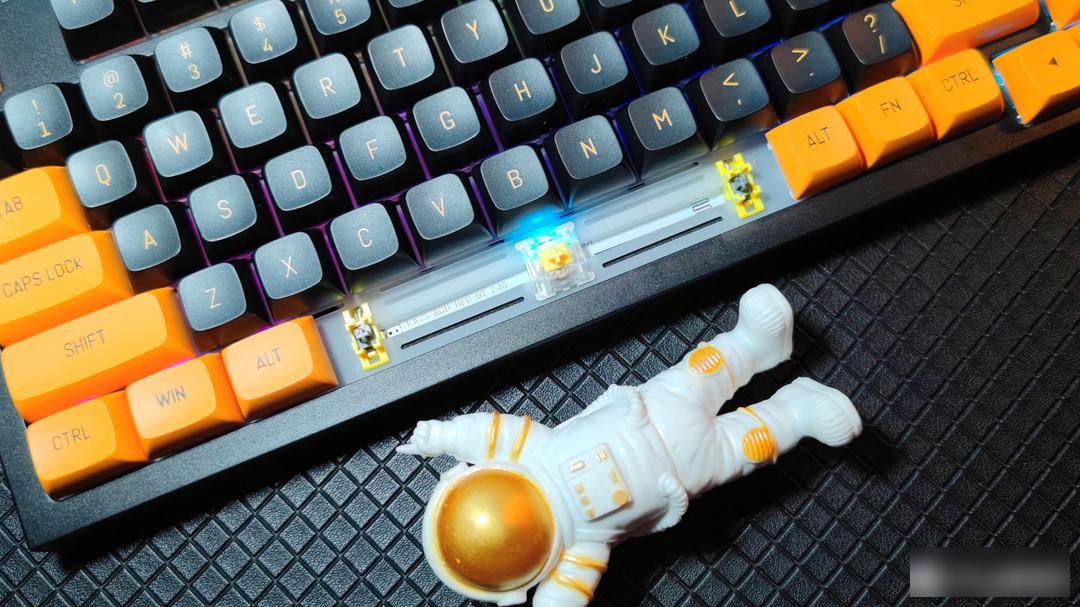

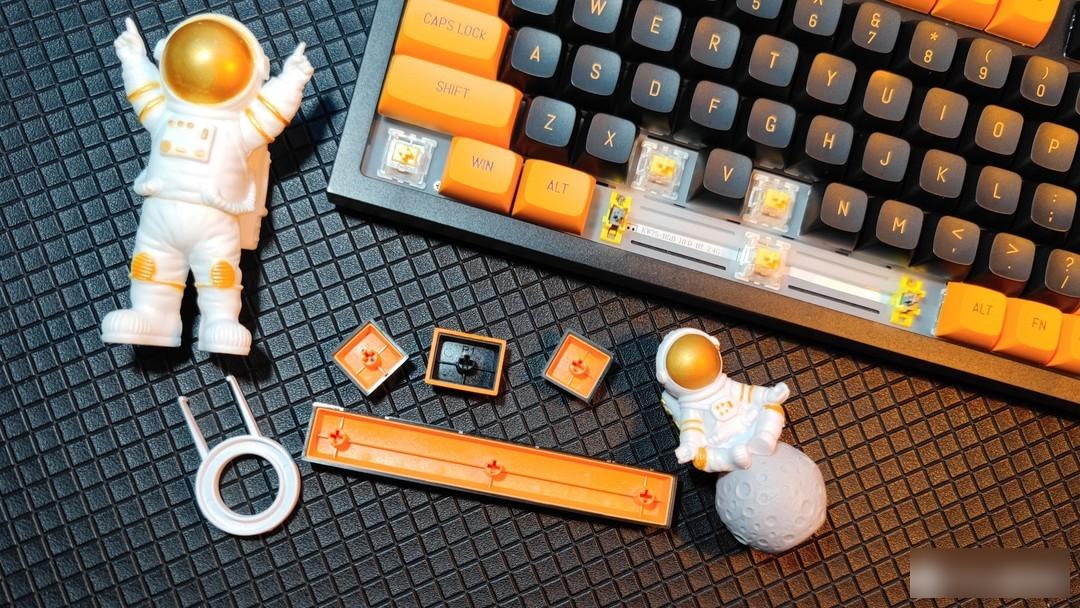

▲The big key adopts Satellite Shaft Design ， Yellow and black color The satellite axis is very individual, which is Lei Kaze Customized Self-lubricating special satellite shaft . After the author's experience, it is true that Lei Kaze75 The consistency of the big keys is very good~

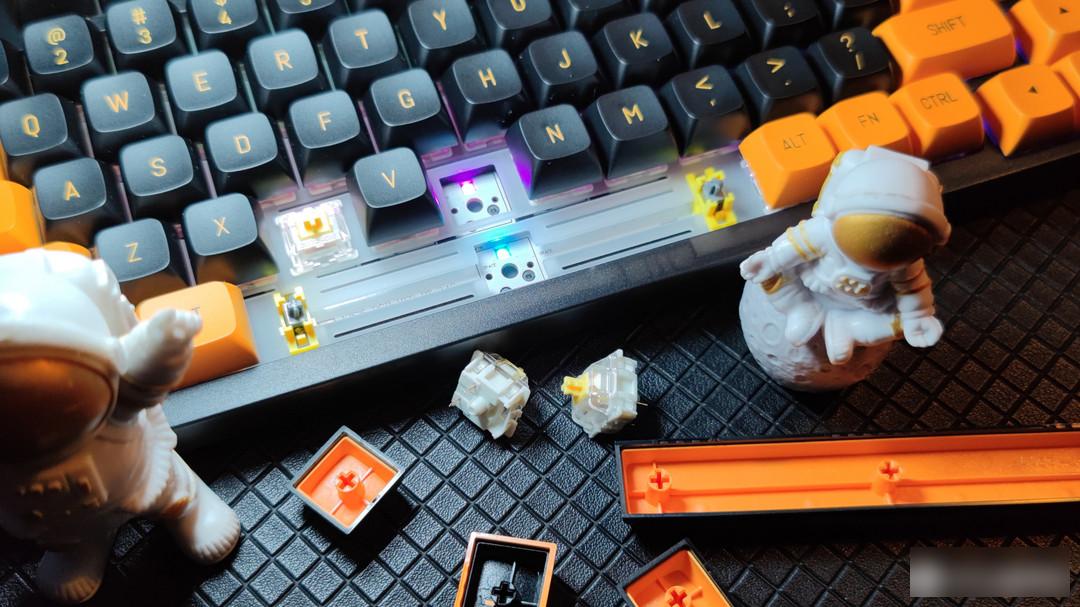

▲Take off the keycap and see the shaft body. because of Hot-swappable design , the author took advantage of the opportunity to pick up the attached shaft puller Pull out the shaft. It can be seen that the shaft is Jiadalong yellow axis Pro (Also known as G Yellow Pro ),belong Linear axis , moderate strength, smooth feel, inexpensive price, good experience, Widely sought after by customized players~

After pulling it out, you can see Shaft seat on PCB , and the glowing RGB reverse sticker LED lights . In fact, if you look closely, you will find that, like the author, Lei Kaze75 The material used in the positioning plate is not metal, but more Elastic PC material , so that Effectively reduces bottoming sound and is quieter 。

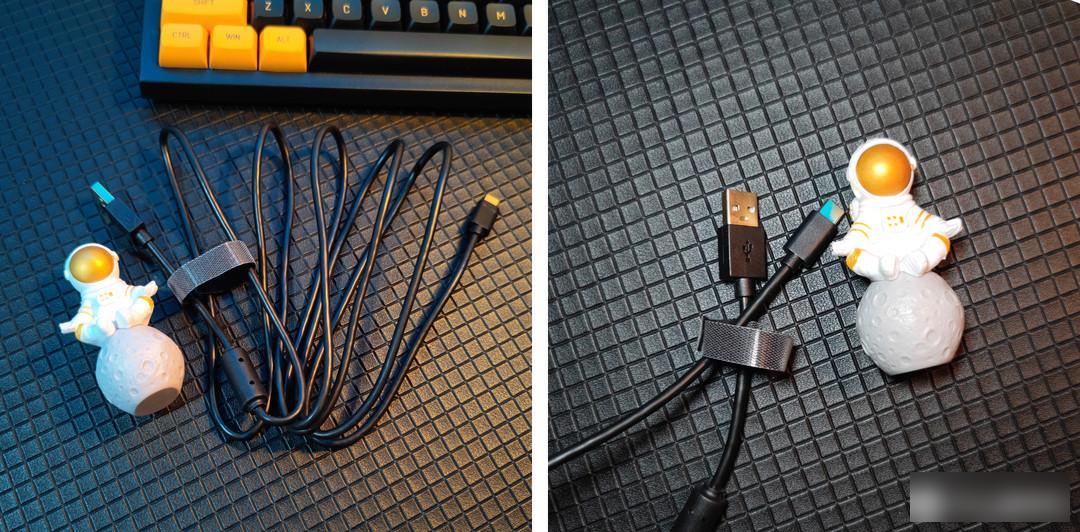

▲ Lei Kaze75 The attached cable is 2m long! fully able to meet the use. The joints are all gold-plated to ensure the effectiveness and life of the device.

as a Veteran keyboard player , the author brings you as usual this time Lei Kaze75 The dismantling display~

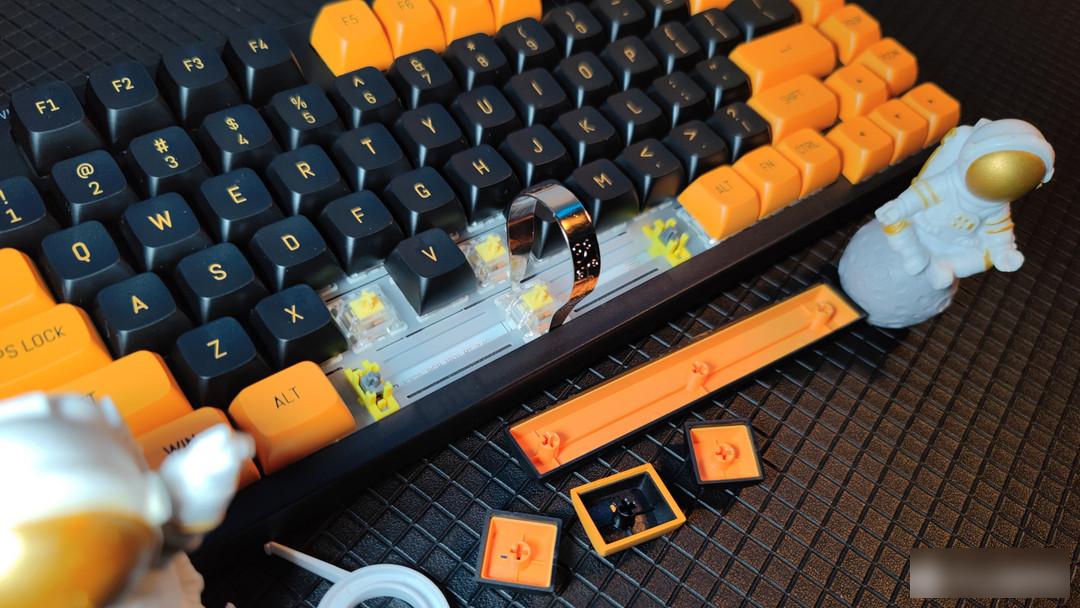

▲Because the key position is relatively compact, the attached cap puller is useless...but of course the author has his own tools, use Wire cap puller Take it easily~

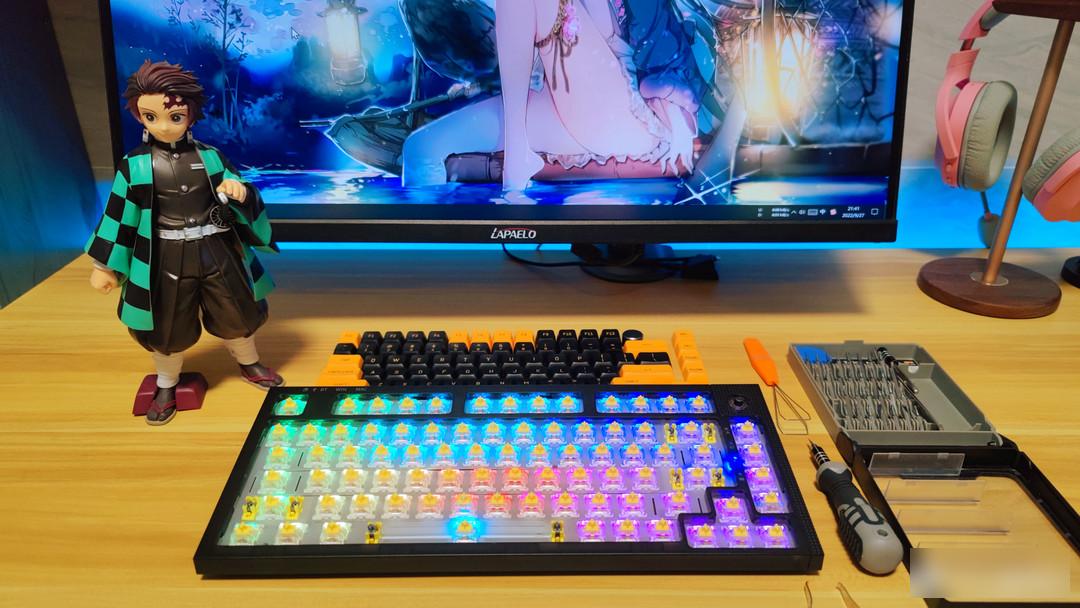

▲ Next, further dismantling (for this purpose, I also took out the screwdriver tool, and it turned out that it was completely unnecessary!)

▲ Lei Kaze75 Adopted Screwless design , so no screwdriver is needed at all, just use Cryer / crowbar Gently open the buckle to separate the shell.

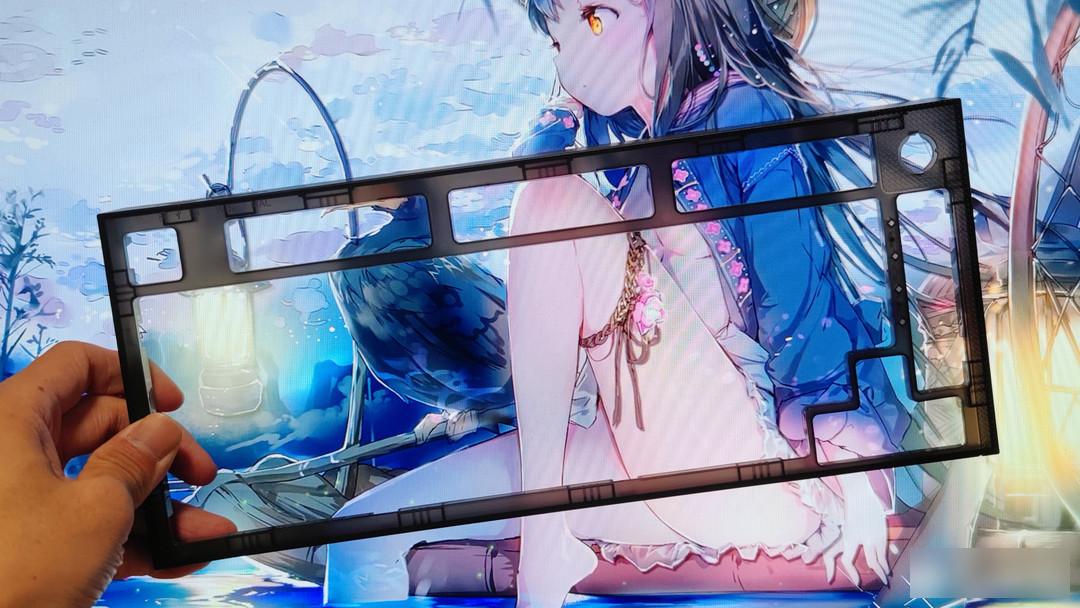

▲This black cover It's really good ~ the texture is excellent!

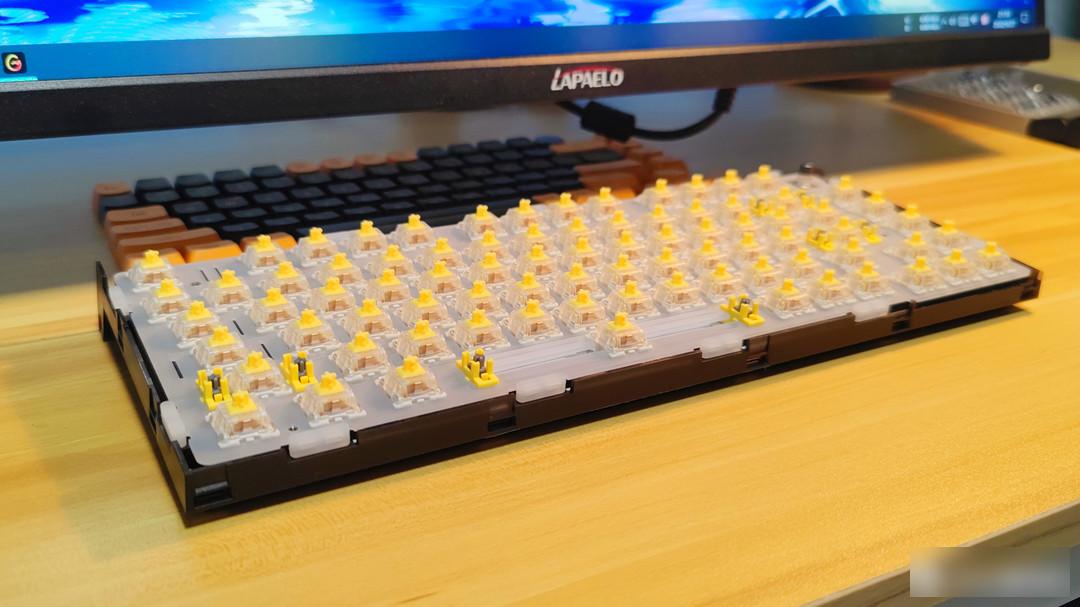

▲ After removing the top cover, you can see Positioning plate silicone pad Around the positioning plate, the overall structure of the keyboard is fixed between the upper cover and the bottom case, which is equivalent to Shock spring role. this is also Lei Kaze75 of GASKET structure a part of.

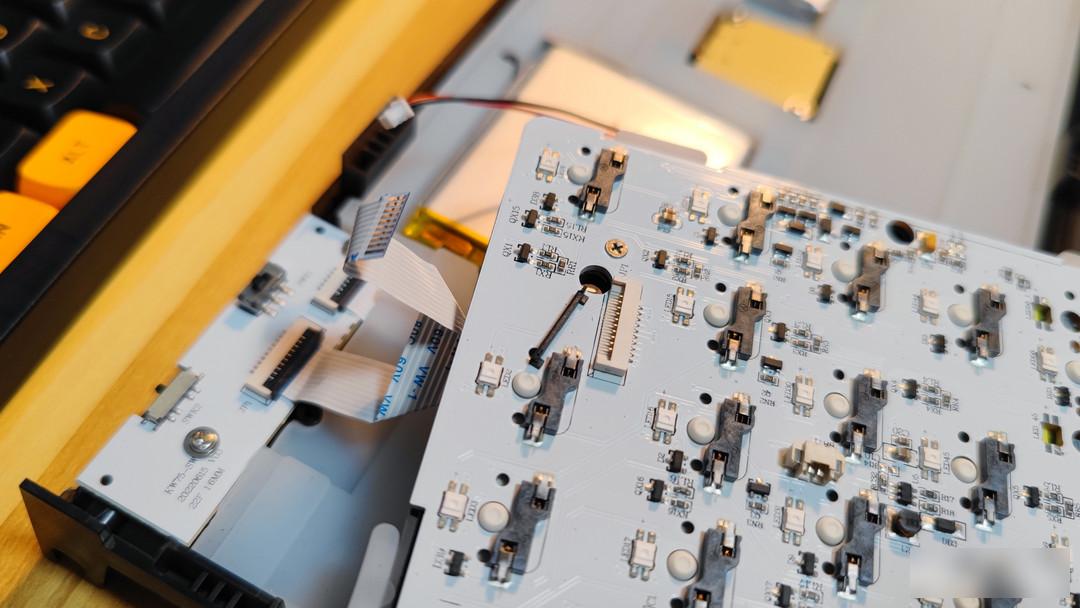

▲The cable at the bottom of the PCB almost caused my dismantling to overturn... Fortunately, after thinking about it, it was installed back smoothly

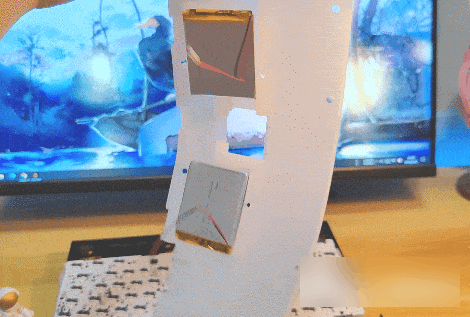

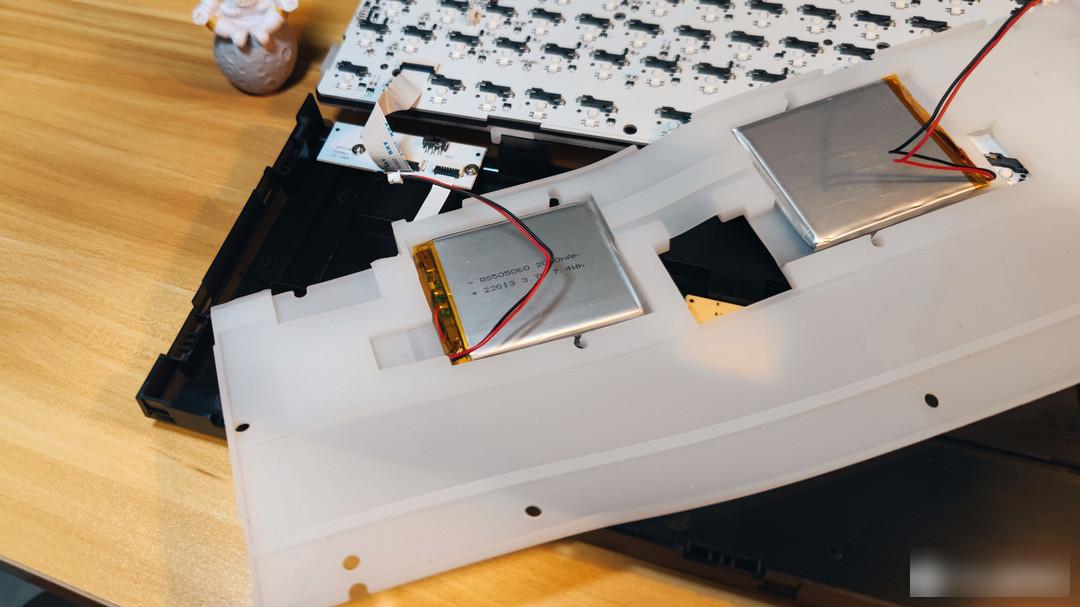

▲It is thick and soft under the PCB Dense Buffer Silicone , can effectively absorb shock. on it are two 2000mah of lithium-ion batteries, total 4000mah ,for Lei Kaze75 Provide stable battery life.

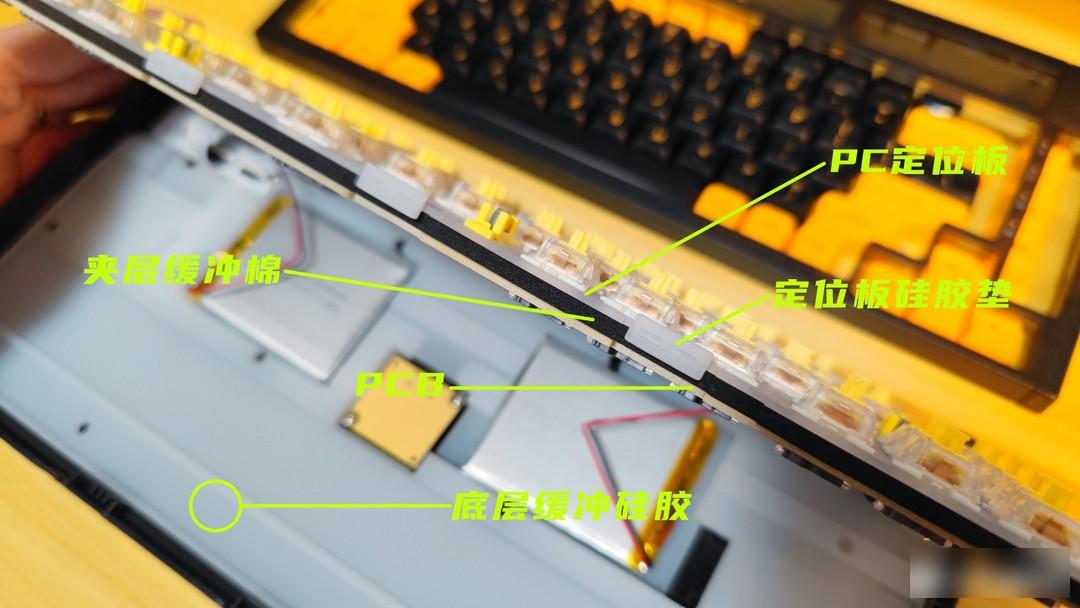

▲ After dismantling, Lei Kaze75 of GASKET structure It's all in front of your eyes. PC positioning board Cooperate Positioning plate silicone pad Effectively absorbs and disperses pressing pressure, and is more efficient than metal positioning plates soft and elastic , reducing overall vibration. at the same time Interlayer cushioning cotton and Bottom buffer silicone of Padding effect and shock absorption , greatly reducing the common cavity sound, murmur , thus getting Quieter, purer, softer The user experience ~ very good!

▲And through dismantling, you can see Hot-swappable shaft seat it has π character ,This is Gott produced; Master chip yes Hua Venda produced, the model is HFD801KJC ； wireless module chip The manufacturer is Ang Ruiwei ,the size is HS6620B . The components are of good quality.

1. Multi-mode connection and switching

Lei Kaze75 provided 2.4G/Wired/Bluetooth Three connection modes, of which wired mode 、 2.4G mode Needless to say the connection, just need Plug in the cable/2.4G receiver That's it.

And speaking of bluetooth connection If so, this keyboard provides Pair three Bluetooth devices at the same time The excellent function of , please refer to the author's demonstration for the specific method:

▲To use Bluetooth pairing Lei Kaze75 , first switch the mode position to BT (Bluetooth) ,Then Press and hold one of Fn+Q/W/E for three seconds , until Corresponding key flashing red light , at this time is Search pairing status 。

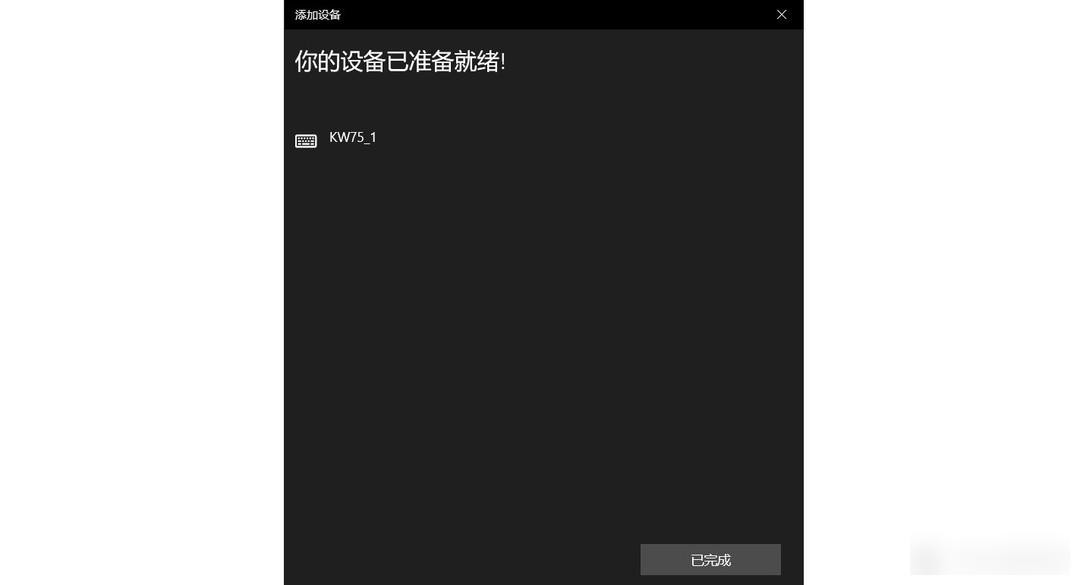

▲ Then search in the corresponding device KW75_1/2/3 , and pair it~

▲If you want Switch Mode/Device if, 2.4G/Wired/Bluetooth Switching between only requires Toggle the mode switch in the upper left corner That's it. and switch bluetooth device then you need switch bluetooth mode After that, use Fn+Q/W/E to switch to the corresponding Bluetooth device. Shown in the GIF is from W-channel paired Bluetooth devices switch to Q-channel paired devices 。

2、输入手感&游戏体验

▲ 2.4G connection mode

▲ wired connection mode

▲ Bluetooth connection mode

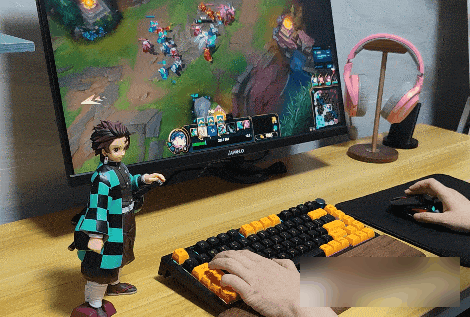

Lei Kaze75 The overall size is compact and light in weight, and its carried Jiadalong yellow axis Pro It feels really moist, plus PBT ball cap 、 GASKET structure blessing, Soft and smooth at the same time no unwanted noise ， very quiet! In addition, after the author's test, whether it is 2.4G/Wired/Bluetooth In which mode to play the game, the delay is very small, and there is no difference~ If you live with roommates in the dormitory and are afraid of disturbing others, this keyboard is very suitable!

3. Colorful lighting effects can be adjusted at will

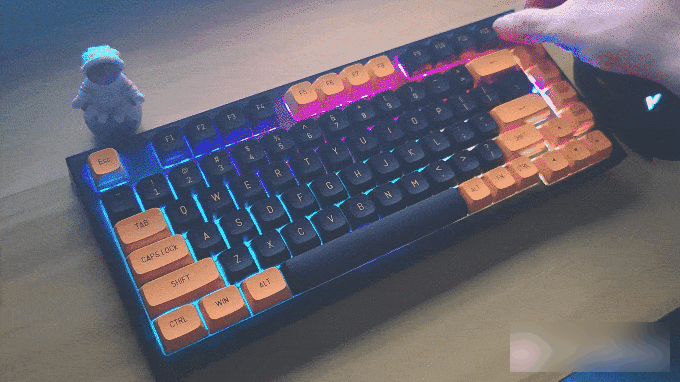

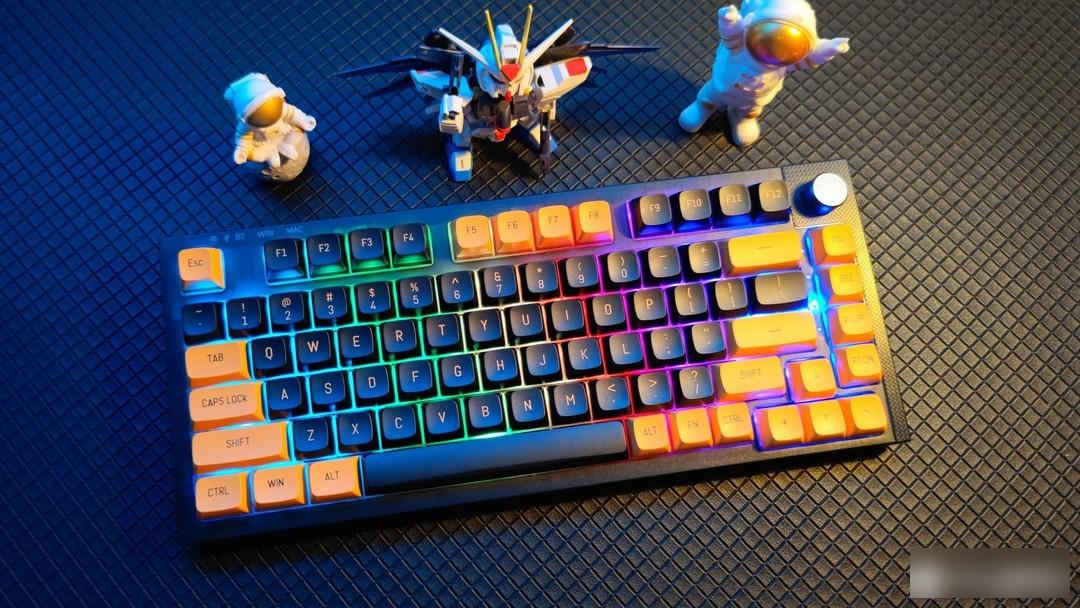

▲ Lei Kaze75 Full key equipped RGB axis down light , although the keycaps are opaque, the brightness is sufficient, and the lighting effects lit through the gaps are still beautiful! At the same time it has enough 19 lighting effects ! able to pass Fn+Ins to switch, and also via Fn+↑/↓ 、 Fn+←/→ to adjust brightness, frequency , a lot of ways to play!

in addition round knob can also be adjusted light brightness ,as well as system volume (switch by pressing the knob Lighting Control/Volume Control ）

4. Driving function support

▲ Lei Kaze75 also comes with a driver software , making it a few notches more customizable.

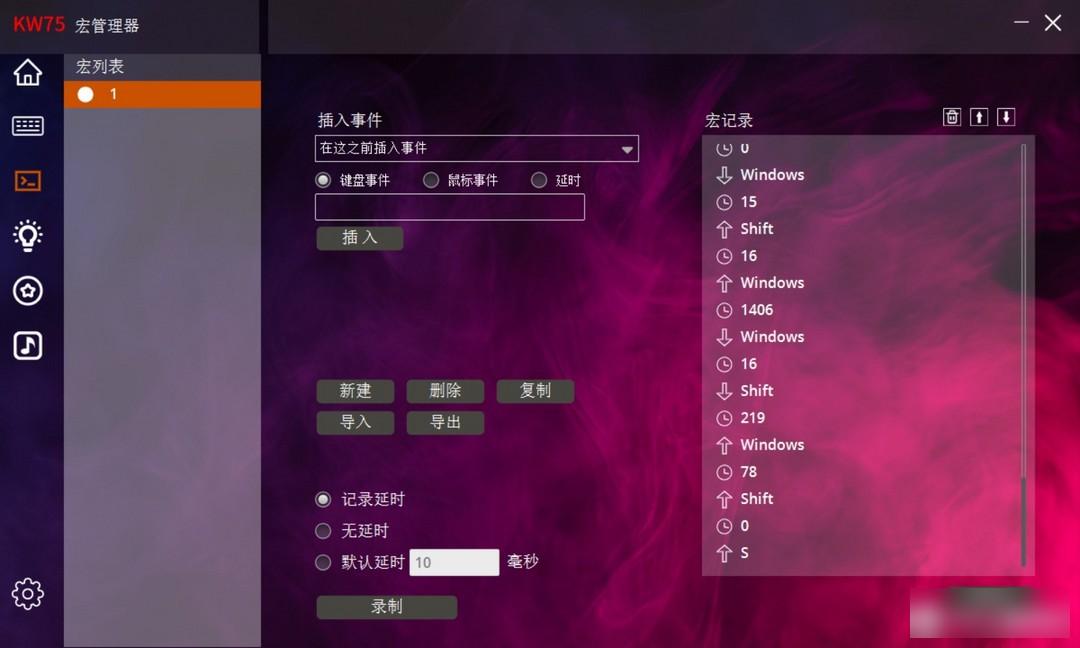

▲The driver functions are macro manager , you can record and edit.

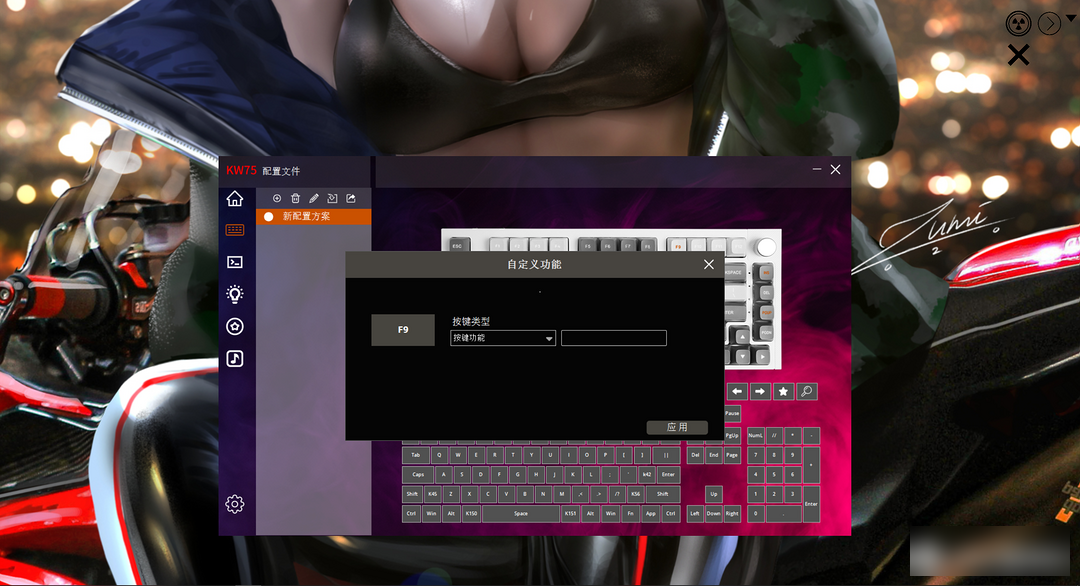

▲Support Full key function customization , can be set to System shortcuts, macros, key combinations, entering specific text and other functions.

▲ Lighting adjustment It can also be selected through the driver, which is more convenient and worry-free~

5. Long battery life and peace of mind

▲The previous dismantling also showed, Lei Kaze75 Adopted Two 2000mAh lithium-ion batteries ,That 4000mAh battery capacity There is no false mark. The official announced battery life is as long as 4 weeks , After the author's use, it is true that there is still 75% of the power after two weeks of use, but if the light effect is turned on, the power will disappear faster.

However, even if there is no power, it can be charged after connecting the charging cable, and it can still be used at the same time. 2.4G/Bluetooth wireless connection , does not affect its function at all~

Desktop space is very expensive. If you are playing games, a keyboard with 75% configuration is actually very suitable~ This time I used it successfully. Lei Kaze75 this Three-mode RGB GASKET structure 75% arrangement Excellent mechanical keyboard, the experience is really top!

1. Soft and quiet: using a very solid and mature GASKET structure Solution, there is no wire sound, cavity sound and other noises during typing and gaming, it is quiet and pure! with Jiadalong yellow axis Pro , the experience is really lore...

2. Pocket cool: 75% arrangement + knob ， Black and orange high-quality PBT keycap + black transparent shell , so that the overall size is short and pocket-sized and at the same time permeated with a cool atmosphere. 19 full-color lighting effects With the blessing of the desktop, it will completely change the appearance of the desktop!

3. Stable and convenient multi-mode connection: three connection methods + simultaneous pairing and switching of 5 devices , making it an equally productive choice. The game stability experience in wireless mode is also very good, and playing games is also very OK!

4. Worry-free battery life: equipped with 4000mAh high-capacity lithium-ion battery , battery life up to 4 weeks , the charging process does not affect the use, very good!

In general, Lei Kaze75 This keyboard is really, really good, and it's actually a Customized products , you can choose Shell color, shaft model, key cap color etc., for example, you can choose a particularly famous TTC gold powder shaft with Gundam color keycaps . recommended to Peripheral players who like keyboard customization or Low-key users with limited desk space who want a quieter keyboard so they don't disturb others ！

I am brother Yao who loves life, this sharing ends here, thank you very much for reading~ I wish you a happy life!
