Don’t brag or criticize, disassemble the popular stacking volume king 99-key K980 keyboard

This time I started with a three-mode mechanical keyboard k from MCHOSE980

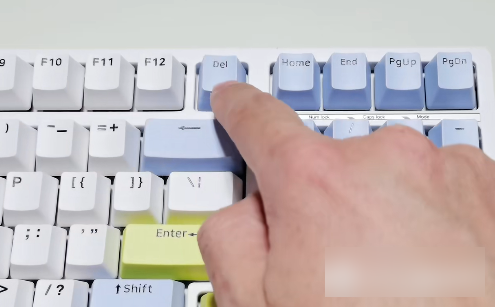

It is a 38cm 99-key keyboard with number keys, that is, 98+1. It is also a design considering size and function. A DEL key is added next to f12

This keyboard can change the keys by yourself, download a driver software, and change it to your favorite function key, for example, you can press the HOME key to change the position with him, and set this key as HOME

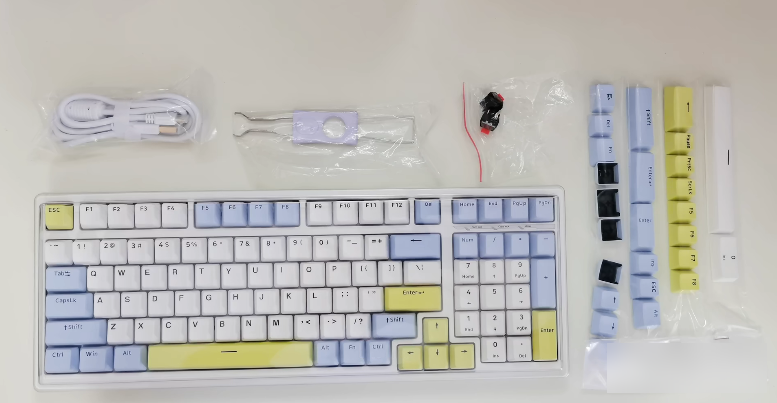

I chose a cool coconut lemon red switch, yellow, blue and white color matching, but it comes with a two-color keycap, a pure white space and 2 spare red switches. That is, you can change it to a blue and white two-color keyboard yourself.

The first impression of this keyboard is that it is really heavy, weighing 2 catties and 9 taels.

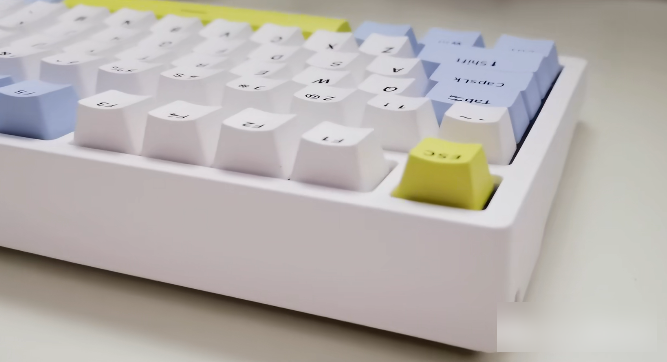

The overall texture is frosted plastic, and the lower right corner is a MCHOSE LOGO,

On the back is the switch, windows, and apple switching keys, and in the middle is the magnetic card slot, which houses the usb receiver, so that it is not easy to lose

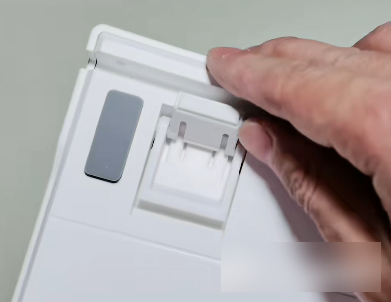

The position of the bracket is the height of the two gears

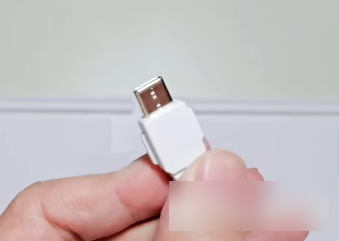

The C port has a slideway, and the data cable plug also has a card position, just right here, the cable management slot is three-way, so it looks much more regular

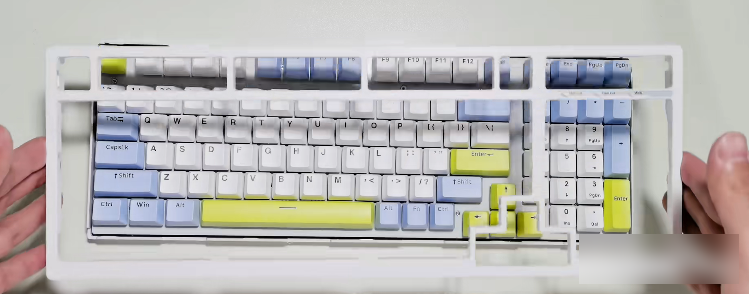

The cover on the outermost layer is fixed by buckles, and it can be opened with a thin slice.

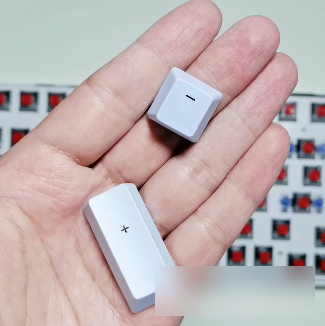

The keycaps are made of PBT plastic, which is also frosted, and the texture is not bad. The characters on the keys are not transparent, so if the backlight is turned on, they only go around the four sides. In this way, the light will not be too transparent, and the keys face the upward side. It is flat, so it is easy to distinguish the front and back after removing the keycap. The F, J, and 5 of the small keys have raised small horizontal bars for positioning touch typing.

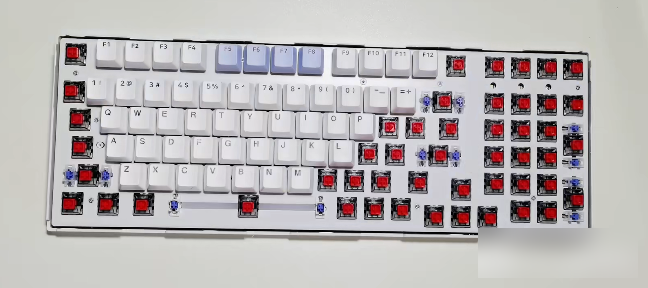

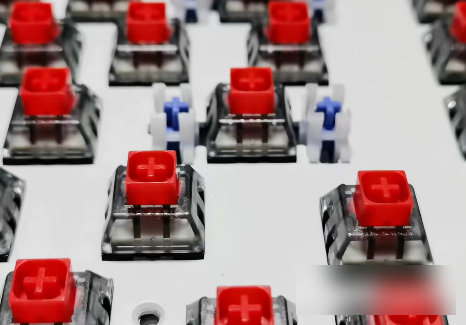

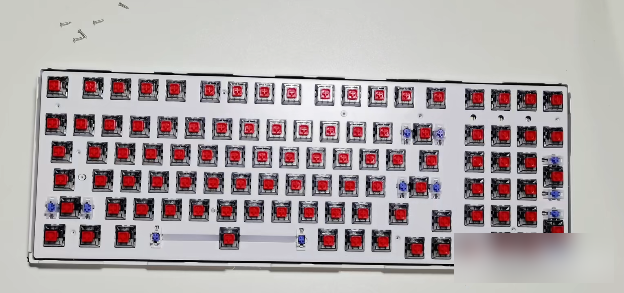

This is the hot-swappable red switch of Kaihua BOX V2. The five-leg factory self-lubricating switch feels relatively light, soft and smooth, with moderate rebound and saves effort.

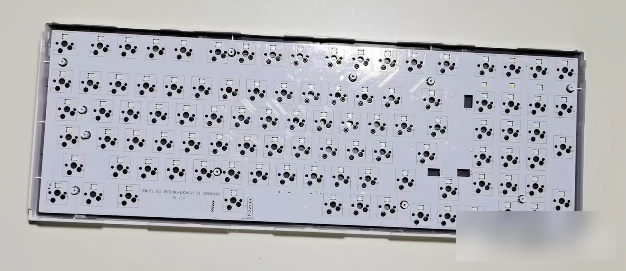

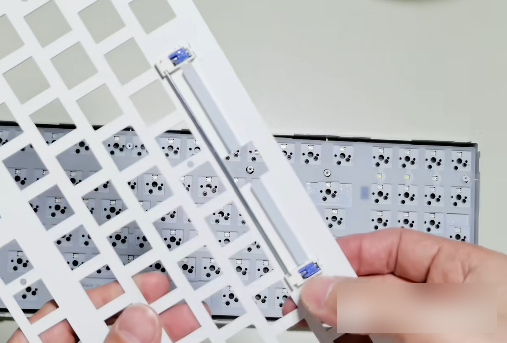

Below the shaft is a positioning steel plate, which is really not too thin. The weight of the keyboard is part of its strength, and it is fixed with 9 screws.

The big key is the satellite axis and balance bar tuned by Maicong. There is no obvious sound when you press it close to your hand. If you hit it in the air, the sound will be crisper than the small key, and there is no noise.

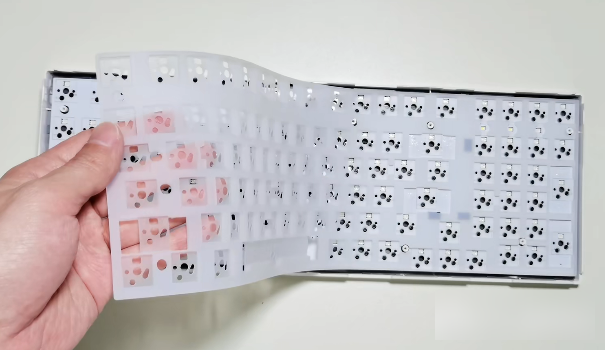

Underneath is a silicone pad, even the stitches are opened, and this pad is also very thick, and it is a reinforced and sound-absorbing integrated design

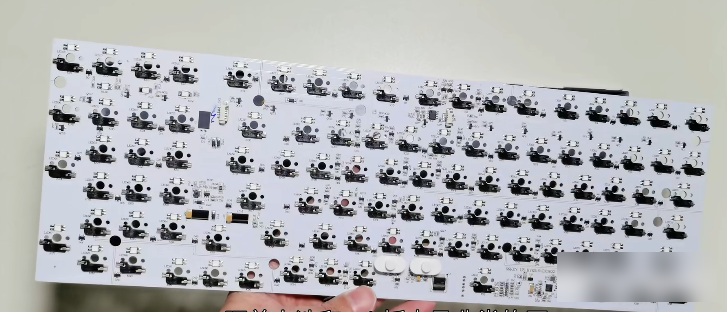

Below the silicone pad is the PCB board

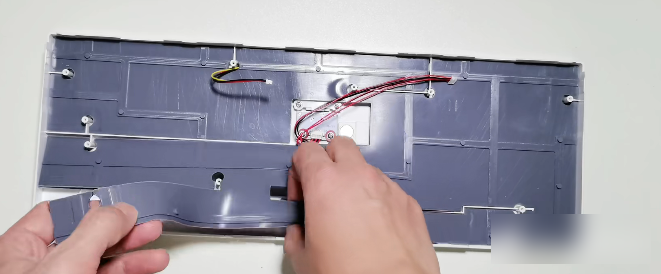

There is another rubber pad under the PCB, which is also very thick between the battery and the PCB board. There is a reason why this keyboard weighs 3 catties. The material is very sufficient, which can reduce shaking and noise

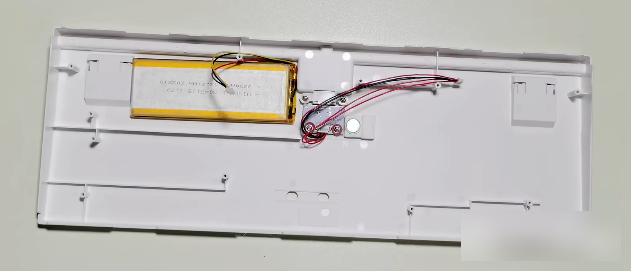

At the bottom is a 3300mAh battery.

This keyboard is a three-mode model with Bluetooth 3.0, 5.0, usb 2.4G wireless, and data cable. After wiring, it will not automatically change to wired mode. You need to press Fn+T to switch.

RGB color backlight, brightness and color can be adjusted, 7-color mixing, can also display solid color, more than 20 modes, can be customized

Download a driver software on the computer, which can customize macro programming, light color adjustment and shortcut keys. Moreover, you can set the mode that the light moves with the sound, that is to say, the light will flash with the sound and music intensity on your computer.
