Double Shell F96 three-mode hot-swappable mechanical keyboard evaluation: transparent and textured

Double Shell (Dark Deck) can also be regarded as an old-fashioned mechanical keyboard manufacturer. Its early keyboard products were mainly used in banks, supermarkets and other industrial fields. DECK changed its name to Double Shell. When it comes to DECK, I believe that many old burners have heard of the first Cherry MX axis backlit mechanical keyboard, and it still has a long history in the brand history. Recently, Double Shell has brought a 96% keyboard with a very distinctive design feature, and then follow the author to take a look.

包装&附件：

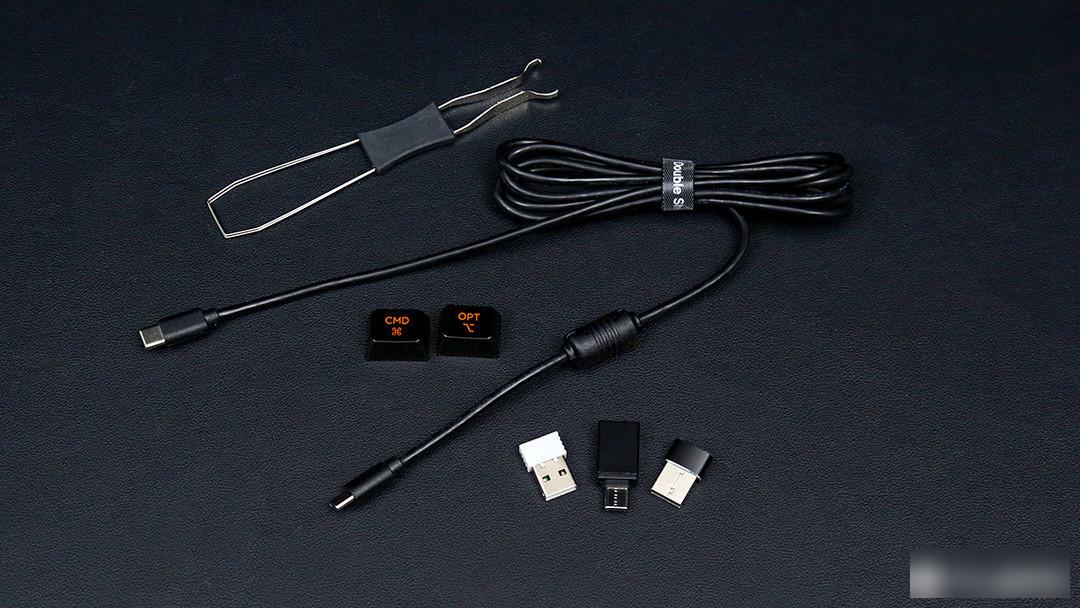

The outer packaging of the Double Shell F96 three-mode hot-swappable mechanical keyboard adopts the method of matching the product pattern with the model name. The phantom keyboard pattern looks very eye-catching, and it also matches the name of the F96 phantom version. In terms of accessories, a rare USB Type-C TO C data cable, key puller, replacement keycap, receiver and two adapters are provided. The content of the accessories is simple and practical, and the consideration is very thoughtful.

外观&细节：

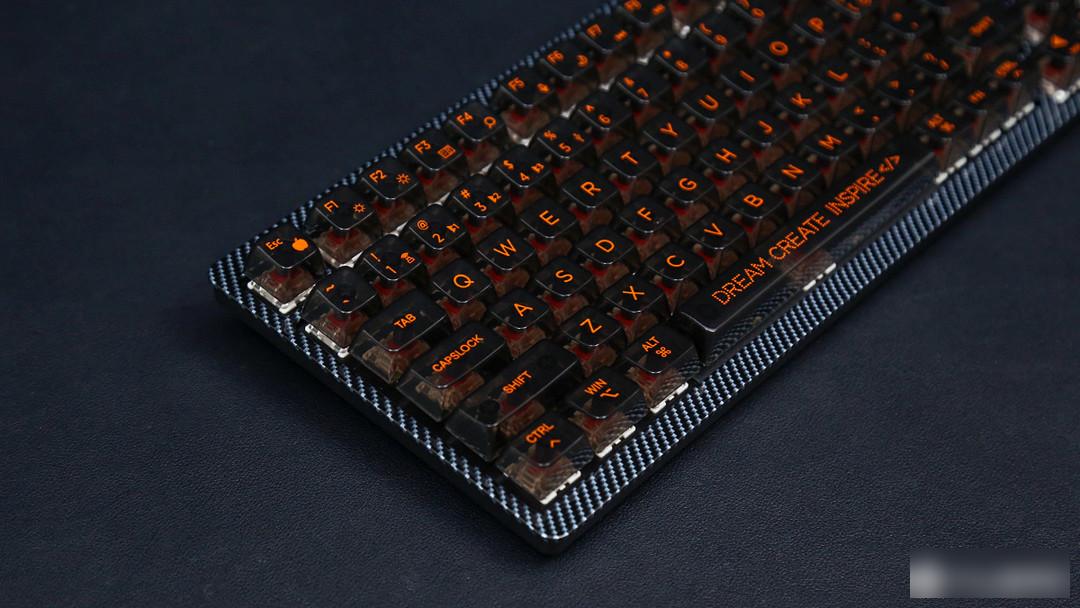

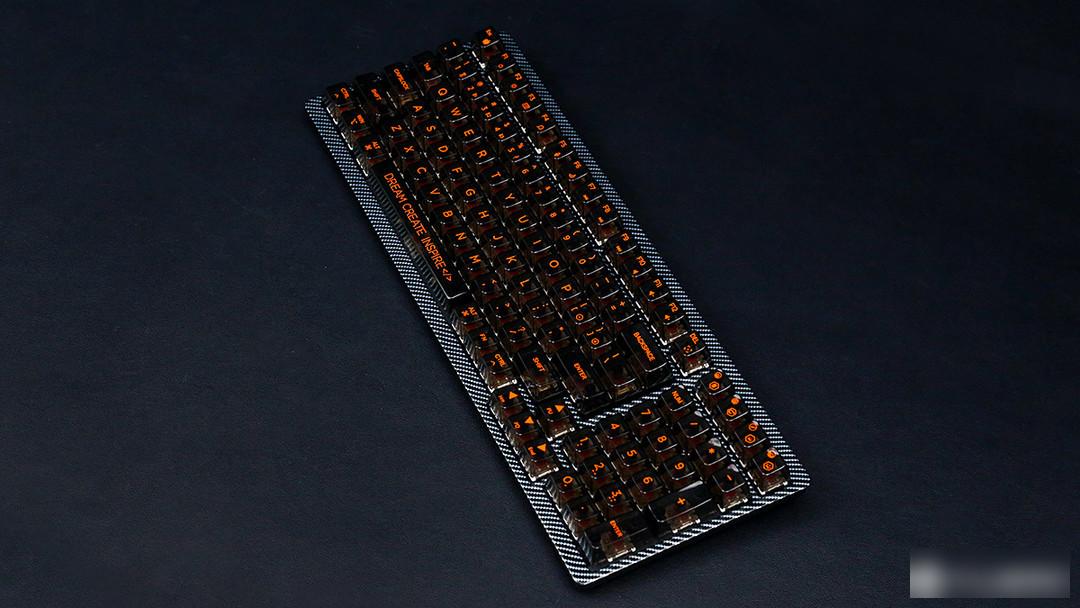

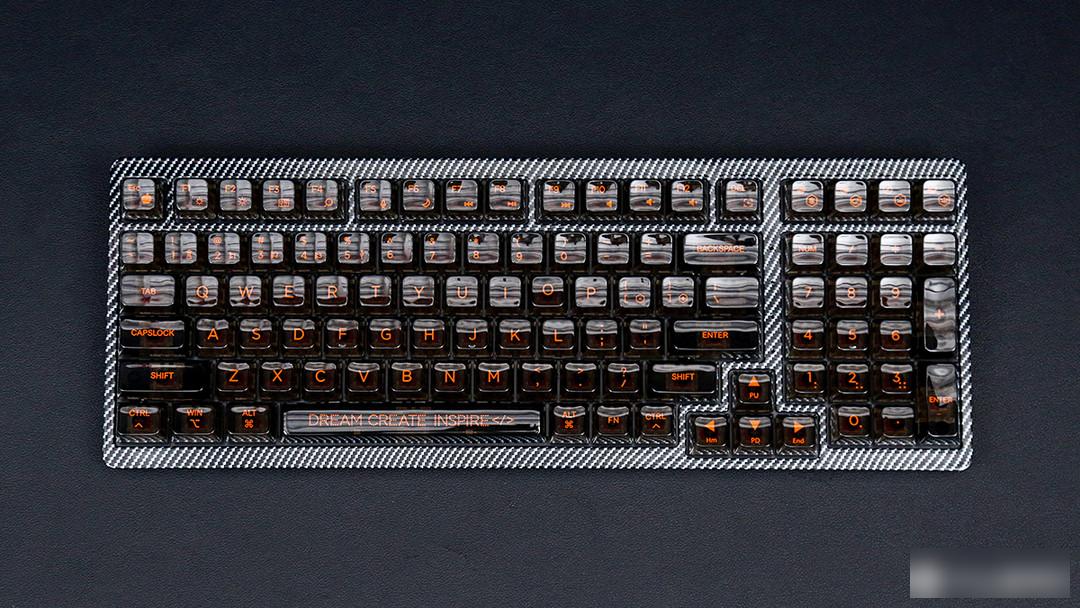

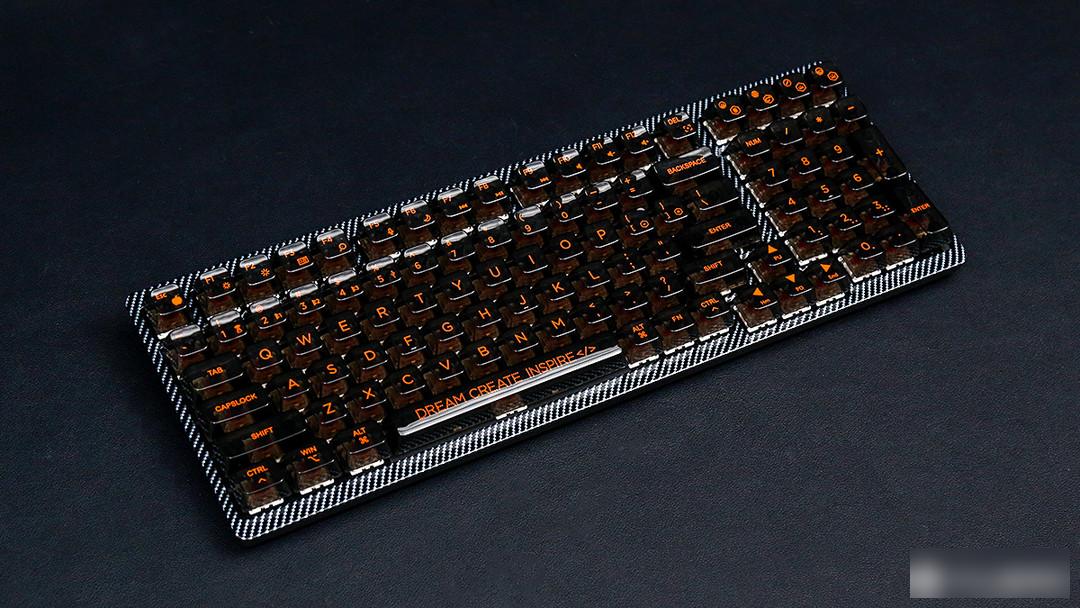

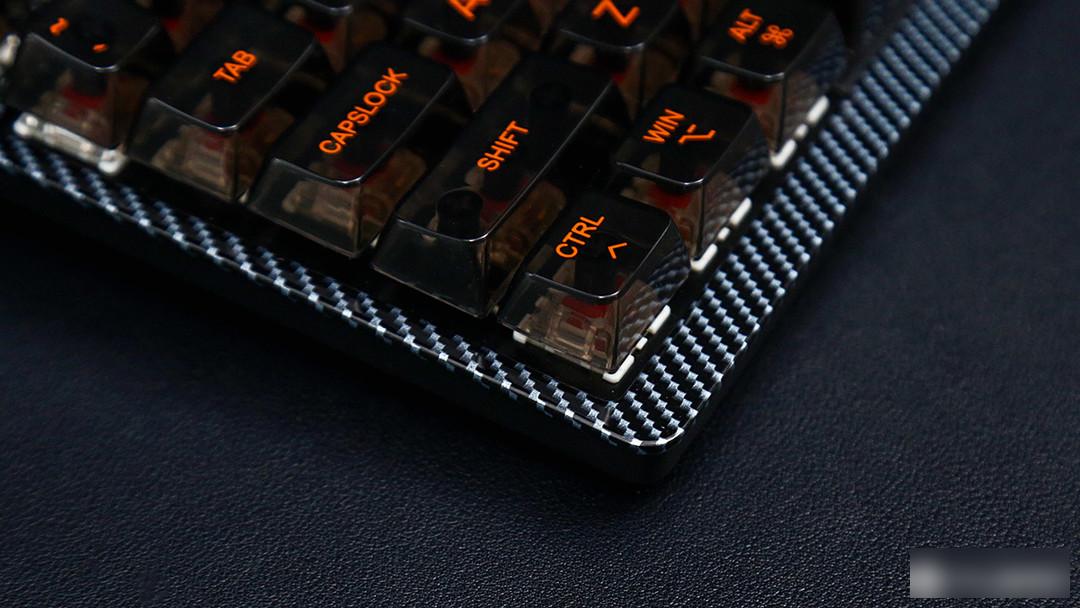

The Double Shell F96 three-mode hot-swappable mechanical keyboard adopts a 96% layout scheme with 99 available keys. In terms of the overall key layout, it is very similar to the 98-like scheme, but it is similar to the common compact 96% 100 Key schemes are not the same. In terms of overall design, this keyboard has very distinctive features. It adopts PC black keycaps with a floating shaft solution, and the top cover of the fuselage is treated with bright carbon fiber textures. The visual effect is still very prominent. The carbon fiber pattern top cover with black semi-transparent keycaps and orange fonts also brings a high degree of recognition to the keyboard, and the visual look and feel is also very cool, which is more pleasing to the aesthetic preferences of young people today.

This keyboard provides a wealth of combined key functions to facilitate users' daily use. The F area keys provide functions such as brightness adjustment, calling system programs, multimedia control, and lighting control. The independent direction key area supports some function keys. As a three-mode connection keyboard, it also provides a quick switching function in the connection mode, which is more friendly to multi-device users. At the same time, this keyboard has also adapted the key positions for the MacOS system. Press and hold FN+A for three seconds, and the status indicator area on the right will also flash for prompts. The performance is still very good in terms of shortcut operations and system support. not bad. Four status indicators are placed vertically on the right side, the brightness is slightly dim, but it is enough for daily identification.

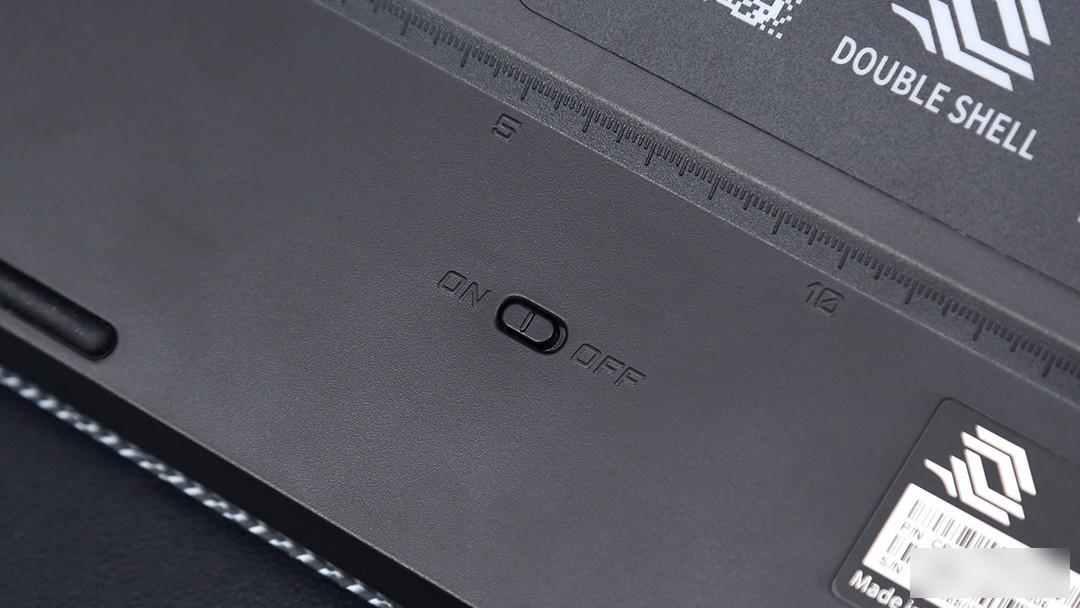

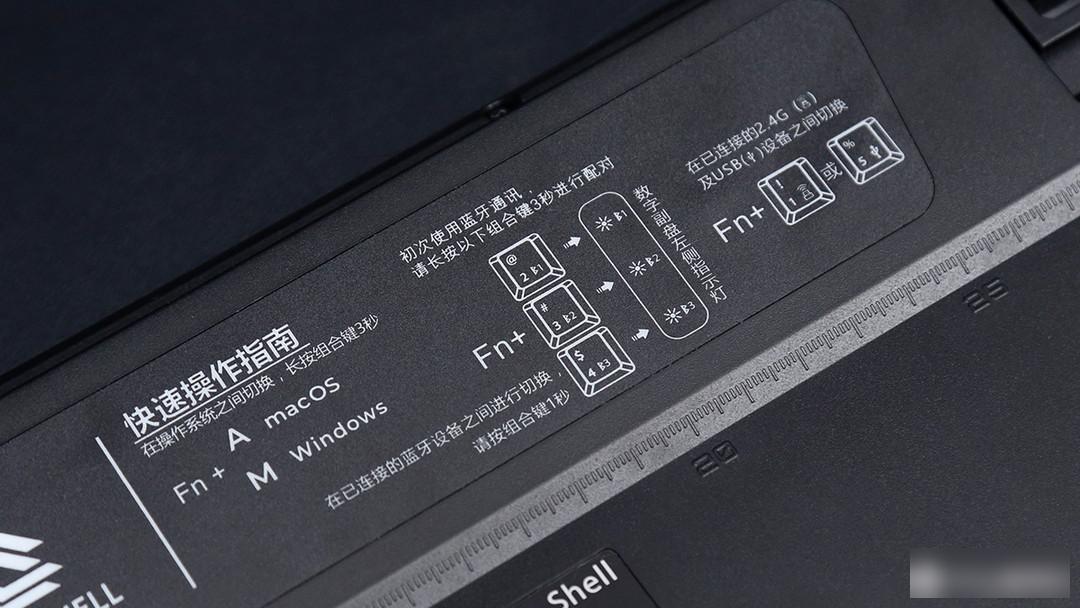

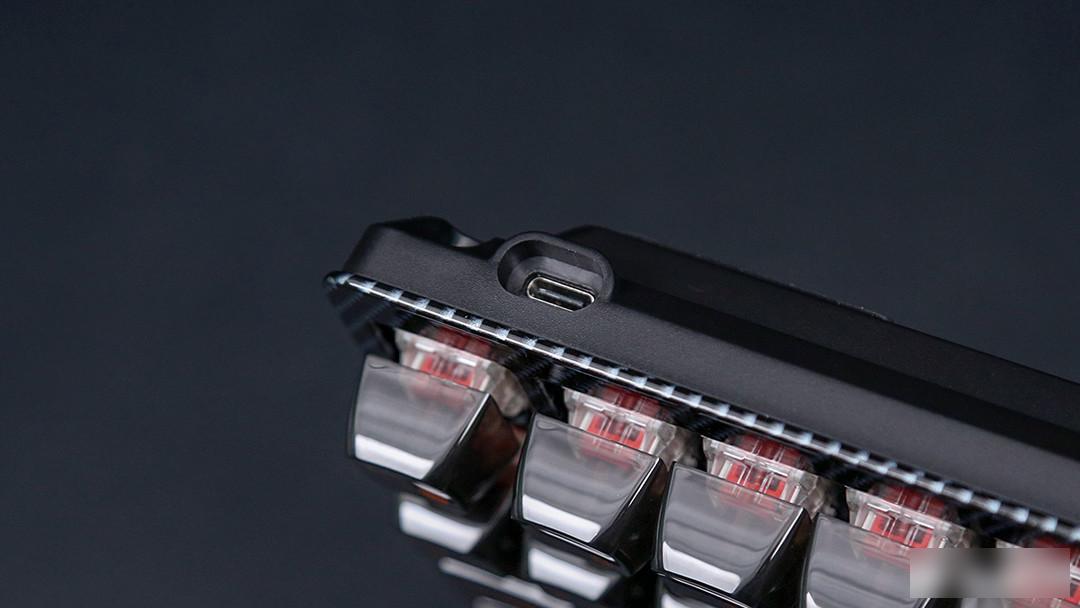

The top left side of the fuselage provides a USB Type-C data interface, which is convenient for users to charge the keyboard or use it in a wired state. The location of the interface is reasonable, and it is very convenient to install and disassemble. The bottom of the fuselage continues the simple design style, providing a quick operation guide, two-stage support feet, power switch, ruler and multiple non-slip mats, and the functional configuration is still very rich. The quick operation guide provides illustrations and text descriptions for switching system modes and connection schemes, which is convenient for users to understand and use; two two-stage support feet can also bring users a variety of inclination adjustments to ensure comfortable use; the power switch below It is also convenient for users to save power when not in use and improve the battery life of the keyboard; a scale is provided at the bottom of the fuselage, which is convenient for users to use; multiple non-slip foot pads improve the stability of the keyboard when it is placed on the table, avoiding slipping during use, etc. Condition.

键帽&轴体：

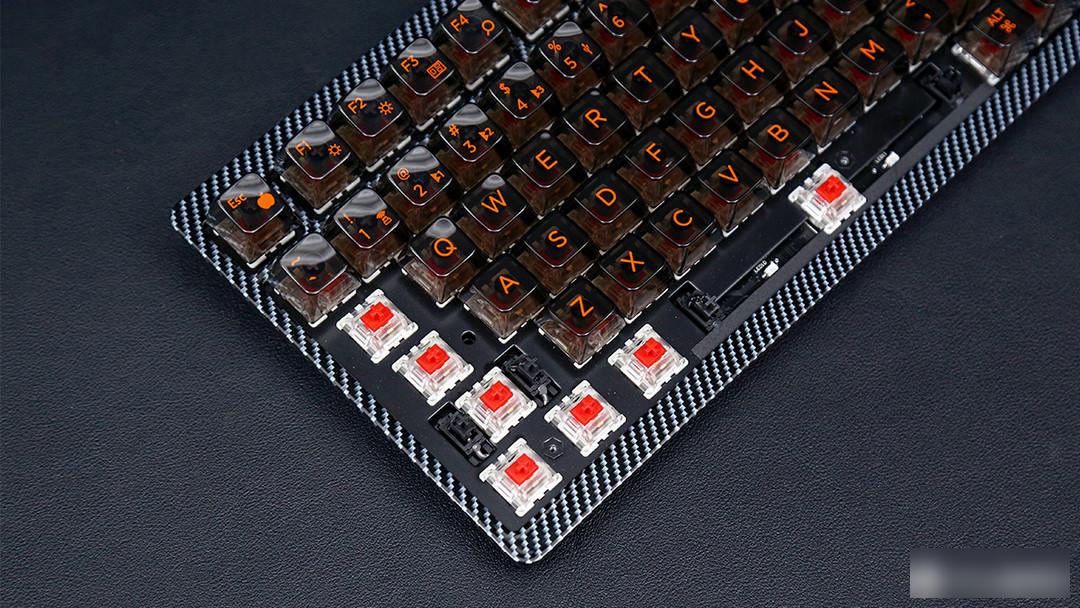

In terms of switches, the Double Shell F96 three-mode hot-swappable mechanical keyboard provides two options: Jiadalong red switches and brown switches. The author got the red switch version. The Jiadalong red switch is designed with a linear feel scheme and adopts a transparent switch cover scheme, which also improves the lighting performance of the keyboard. In terms of shaft parameters, it has a trigger pressure of 45gf, a total stroke of 4mm, and a trigger stroke of 2mm. The pressing feels light and smooth, the bottom is soft and comfortable, and the rebound is relatively easy to handle. It is enough for daily office or game scenarios. The large key position adopts the satellite axis scheme, and the feel performance is relatively crisp and neat. The shaking and noise control is acceptable, and the overall feel feedback is relatively good, and there is room for further improvement.

This keyboard also provides a full-key switch hot-swappable solution, supports three-pin and five-pin MX switches, and has good compatibility with mainstream switches. Users can replace other switches according to their personal preferences. Bring a different feel experience. This keyboard also adds sound-absorbing bottom foam, which can reduce cavity sound and percussion noise, make the sound performance clearer, and improve the user experience to a certain extent.

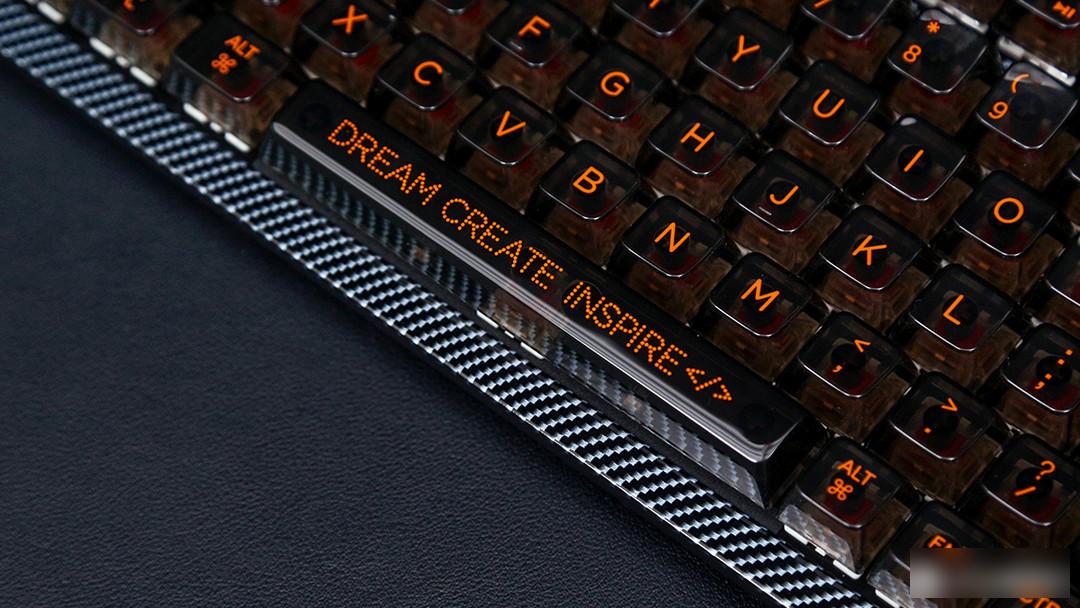

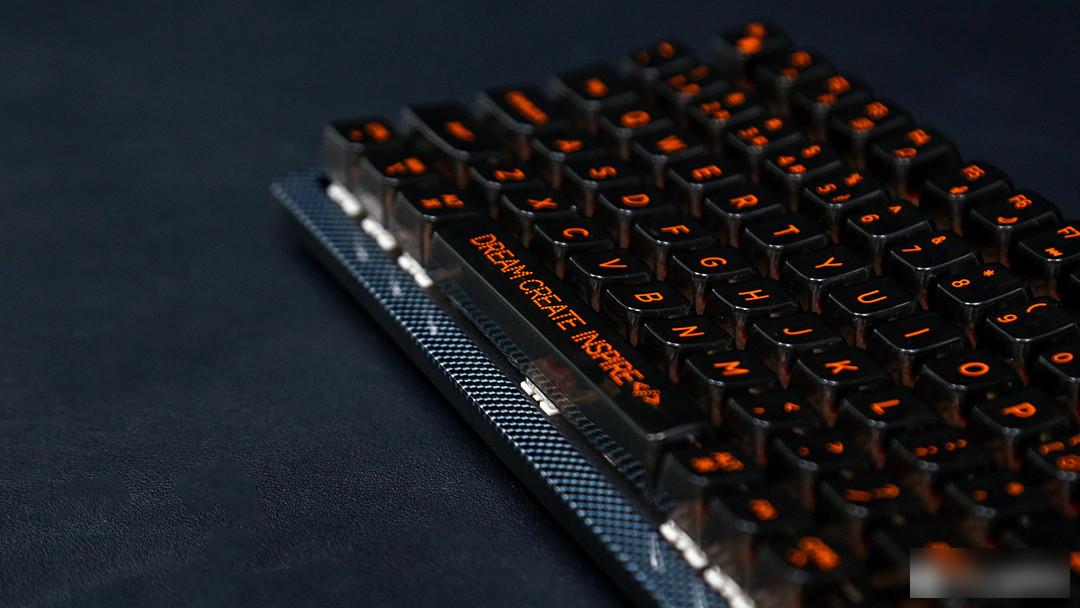

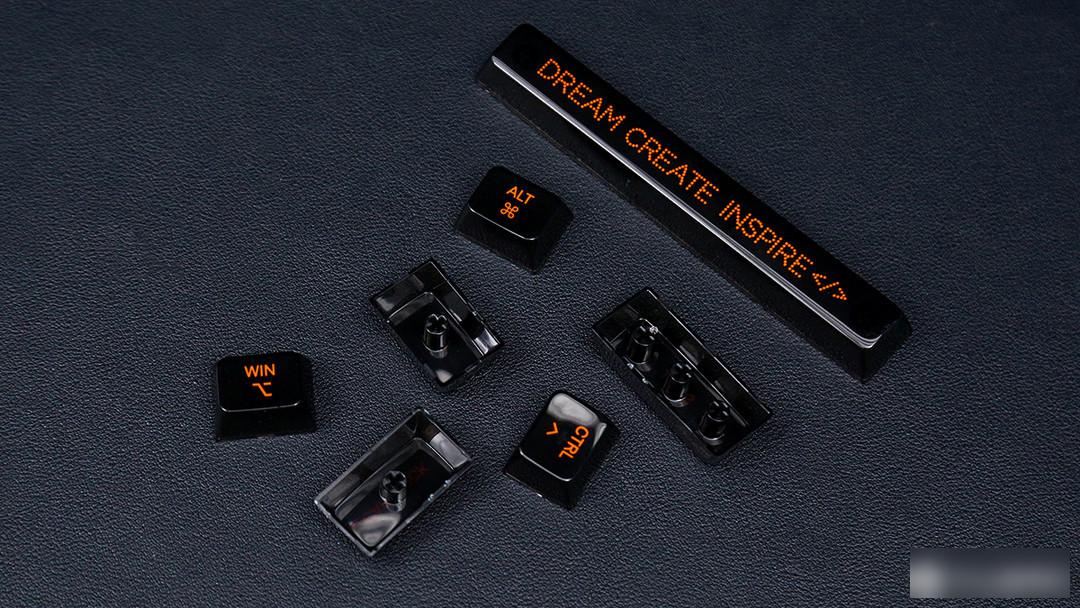

It is equipped with a set of PC material keycaps with black transparent treatment. The surface of the keycaps is treated with a mirror surface. With the black transparent treatment and orange characters, it is very good in terms of appearance and visual recognition. The keycap adopts the MDA height ball cap design, and the concave design on the top can better fit the arc of the user's fingertips, which can bring better wrapping around the fingertips and improve the comfort of use. The surface of the keycap is fine and smooth to the touch, with a little stickiness, and the overall performance is good. However, the bright and translucent material scheme is also more prone to fingerprints and stains, and there are still certain requirements for daily care.

RGB backlight:

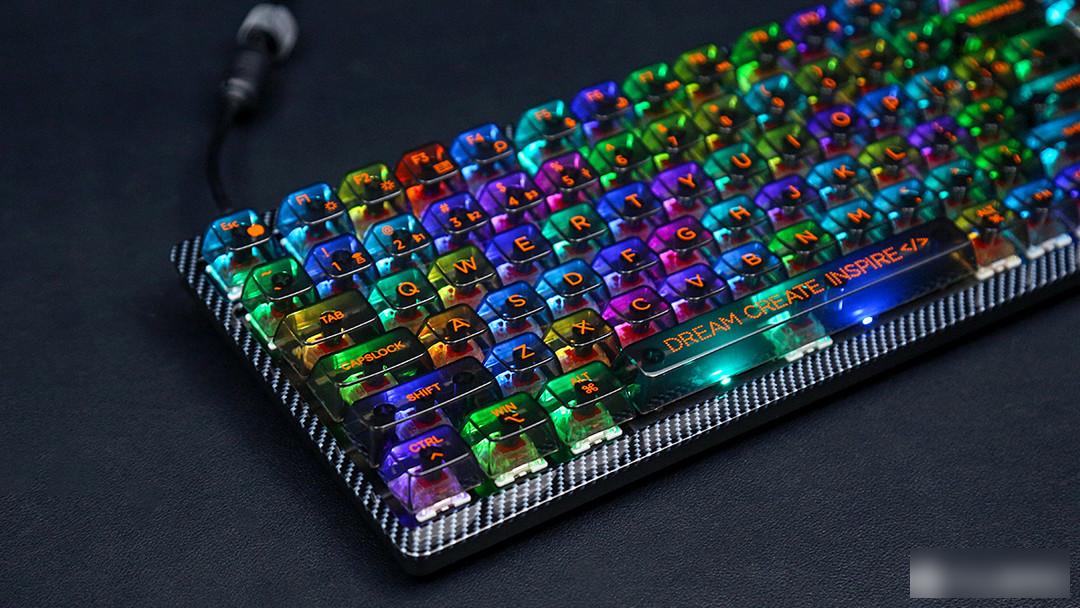

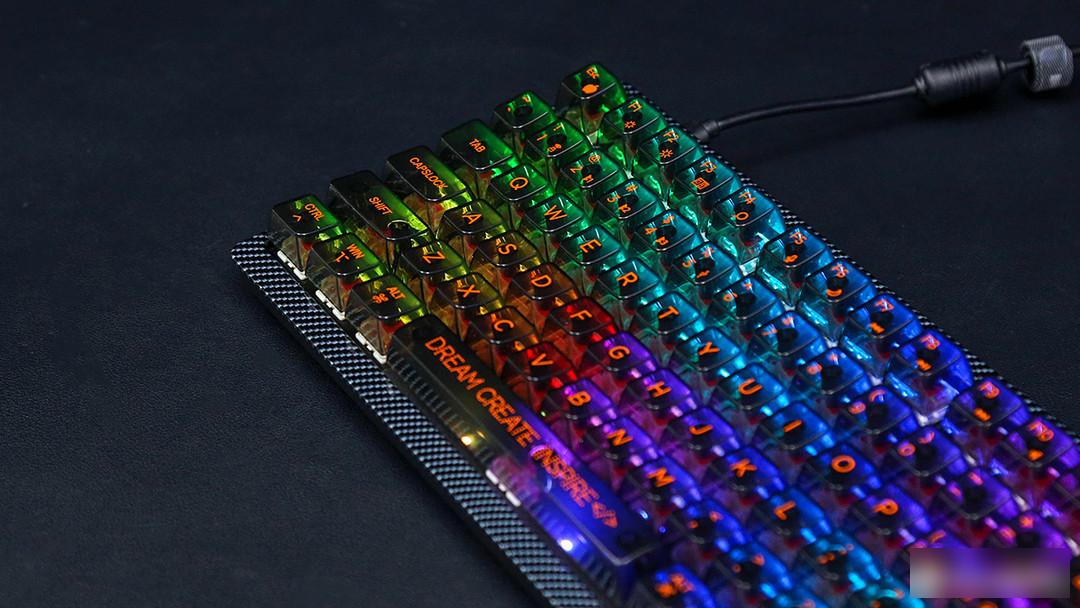

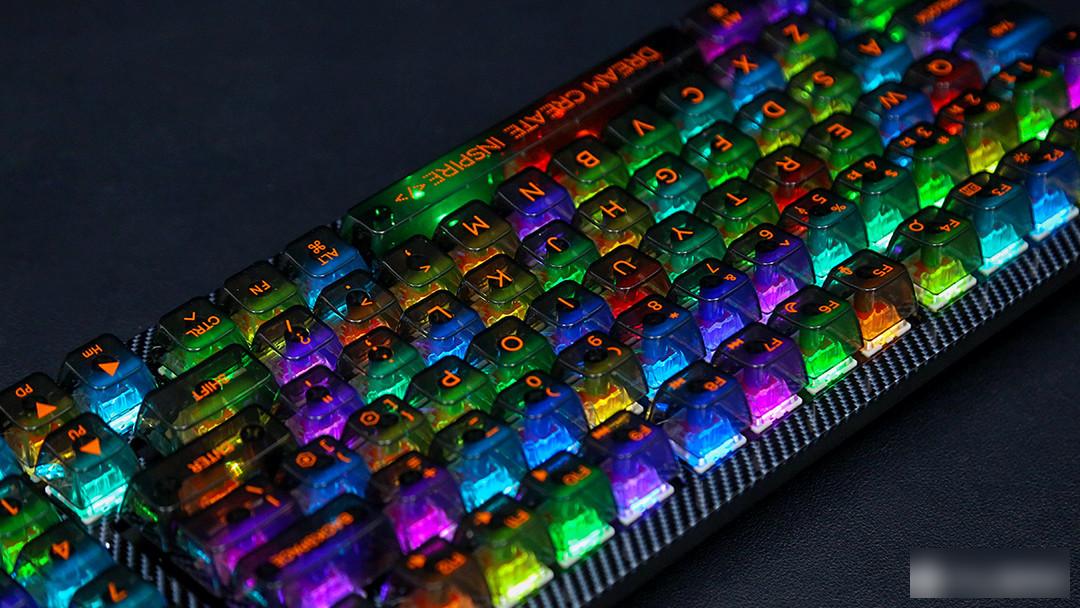

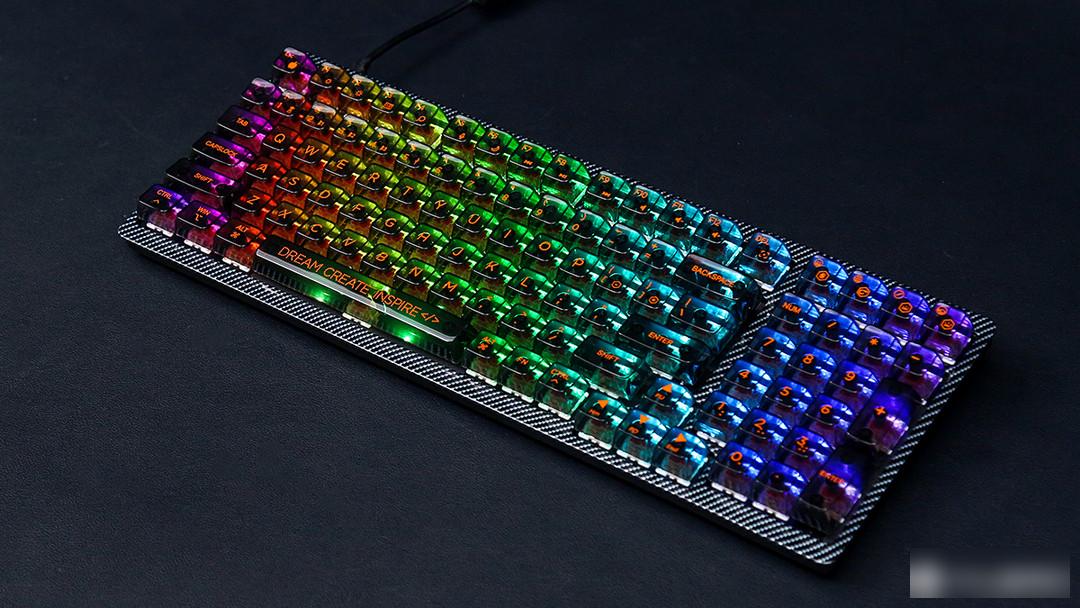

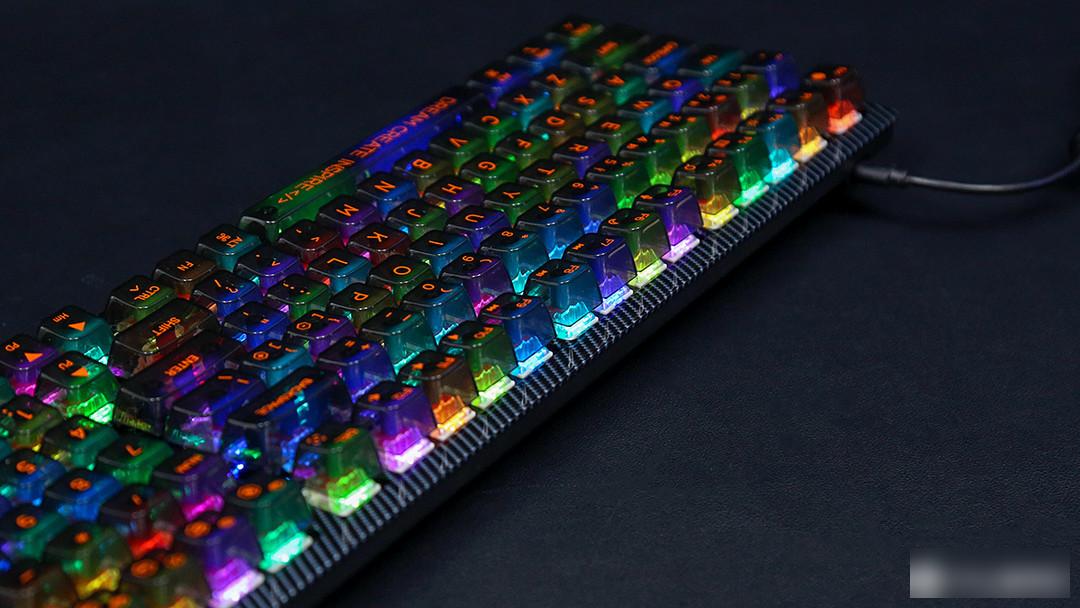

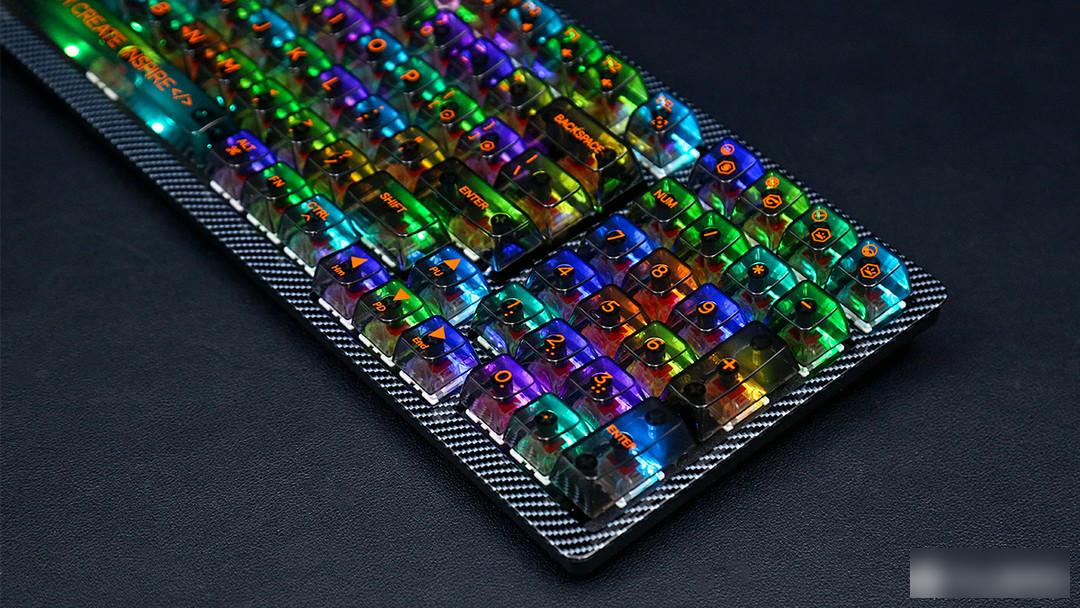

Double Shell F96 three-mode hot-swappable mechanical keyboard provides full-key RGB backlight, supports 11 kinds of lighting effect switching and custom lighting effect functions, and provides 7 levels of brightness adjustment and 3 levels of speed adjustment, through FN combination keys , the user can quickly switch the lighting effect, lighting color, lighting brightness and dynamic speed. The operation is simple and quick, and the gameplay is richer. The lighting is colorful, the look is soft and natural, and the dynamic performance is relatively smooth. The black keycap scheme can also further improve the overall lighting performance of the keyboard, creating a better lighting atmosphere for the player's desktop, and making the visual look even better.

Driver settings:

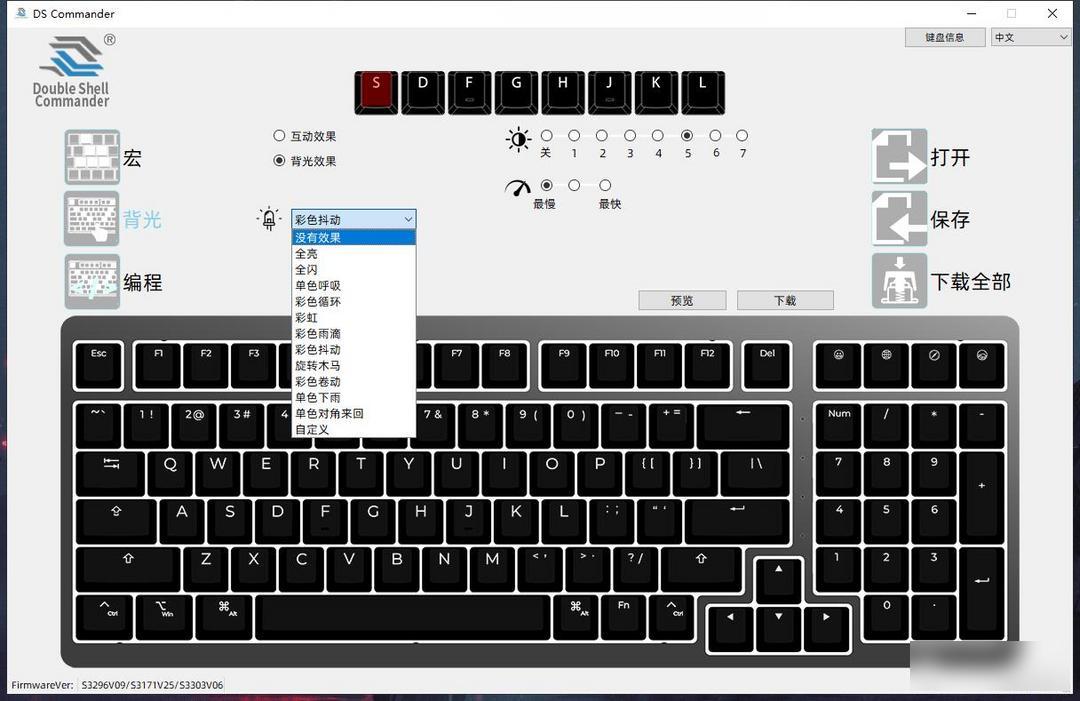

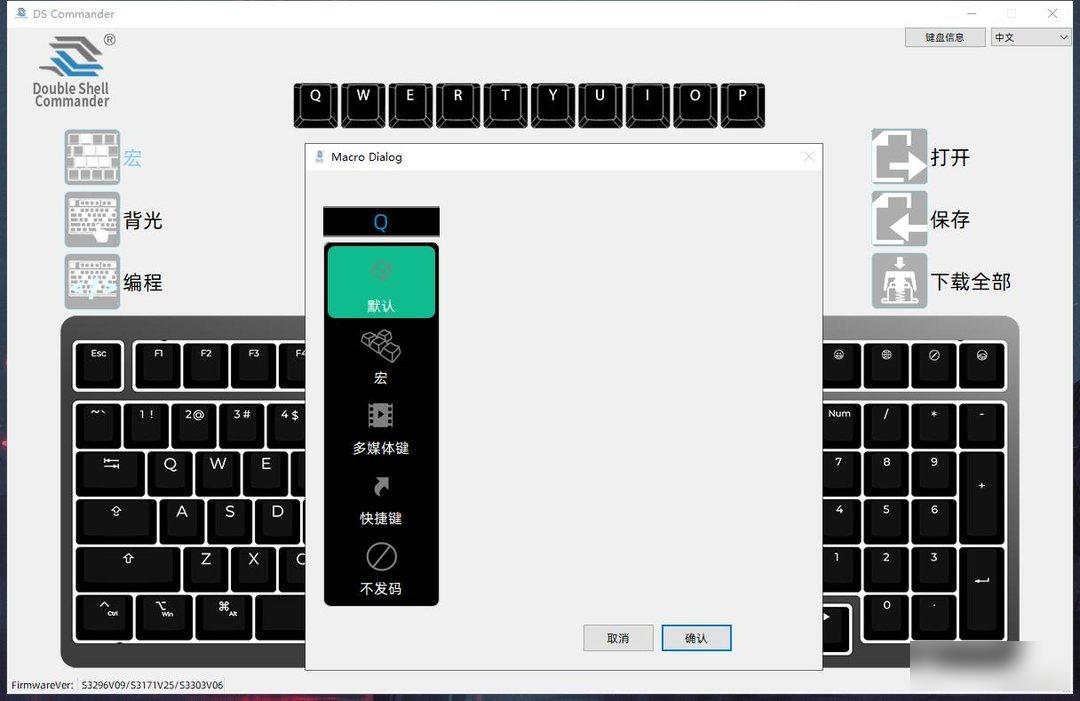

Through the DS command console, users can also change and adjust key functions and lighting effect modes conveniently and quickly. The driver interface is simple and intuitive, which is very convenient for operation. The driver mainly provides three major functions of button, backlight and lighting programming. Users can change the function of the button according to their personal habits. The driver software also provides a wealth of preset options for users to choose, and it is very convenient to use. The backlight page provides intuitive lighting effect adjustment, brightness adjustment and dynamic speed adjustment. It also provides two modes of interactive lighting effect and backlight lighting effect, which are convenient for users to adjust according to their personal preferences. In terms of lighting programming, users can customize the key lighting effects to further meet the user's custom lighting needs.

Use test:

Double Shell F96 three-mode hot-swappable mechanical keyboard provides mainstream three-mode connection solutions, supports wired, 2.4G wireless and Bluetooth 5.0 connection methods, and supports storage of three sets of device information in Bluetooth 5.0 mode, with good platform compatibility performance , can be adapted to most user devices, and the overall performance is still very friendly. At the same time, this keyboard has also adapted the keys of the MacOS operating system, so that MacOS users do not need to re-adapt to the key functions, making it easier to use. The keyboard has a built-in 1000mAh lithium battery, which can provide up to 45 weeks of battery life when the lights are turned off. The battery life is very good, and it is enough to meet the needs of most users. However, in the 2.4G wireless and Bluetooth 5.0 mode, the keyboard light will be automatically disabled, which still needs further optimization.

This keyboard provides a wealth of combined key functions and four independent function buttons, which are also very helpful for users' daily use. In addition to the common combined key positions for calling system functions, multimedia control, and lighting control, this keyboard has also designed independent key functions for the four keys in the upper right corner. Browsers, voice assistants, and corresponding key functions can be provided under Win/MacOS. Compared with other keyboard products, the functions are more abundant, and it can also bring users a more convenient and quick operating experience. At the same time, the keyboard also provides a MACRO programming mode. Users can enter the programming mode through FN+Backspace, select the binding key, set the key function and delay time, and then save it through FN+Enter. At this time, the indicator light will flash to indicate the current keyboard status. The addition of MACRO programming mode can facilitate users to set key binding functions according to individual needs, improve the efficiency of repeated operations, and is very helpful for office work or games.

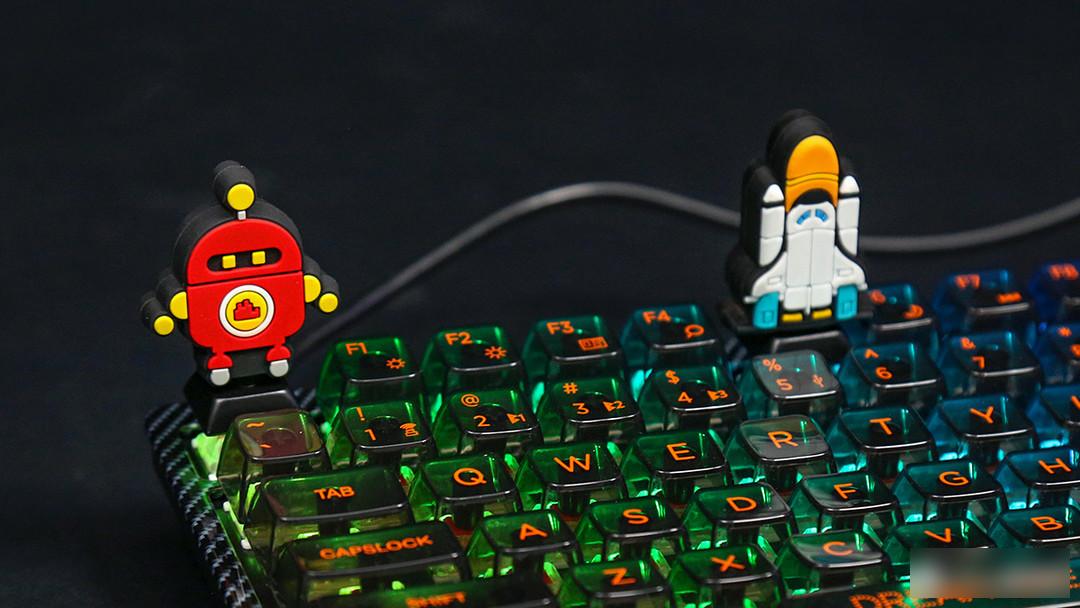

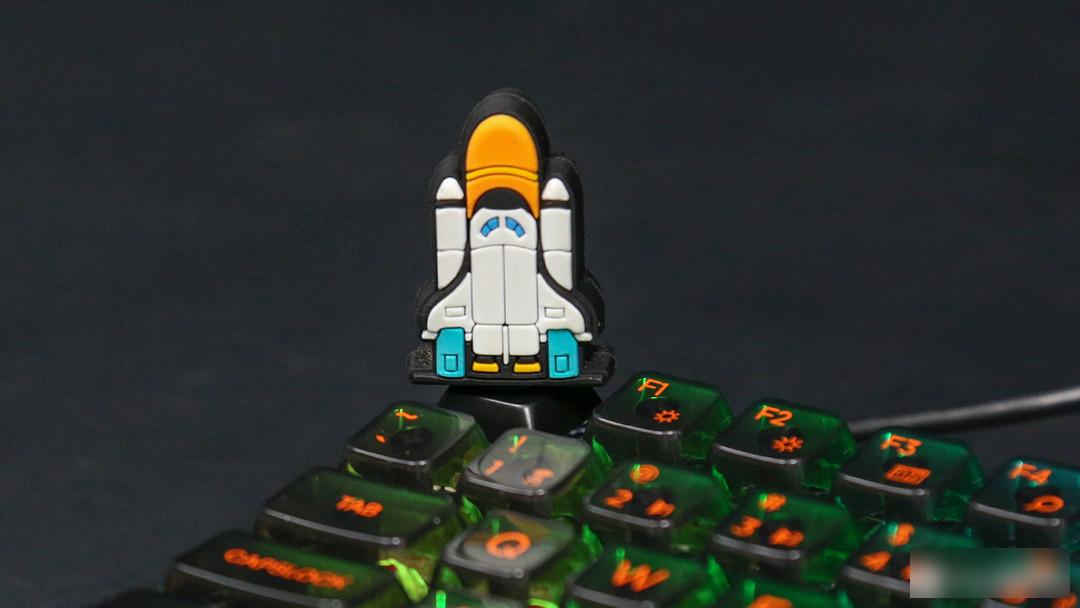

In addition, this keyboard also provides interesting ways to play. Through the gifted DIY 3D innovative keycaps, users can replace their favorite interesting keycap dolls by themselves, or buy their favorite pencil cases separately to create personalized keyboard matching, further The matching gameplay of the keyboard has been improved, and it is also more interesting, and it is still very pleasing to young users and female users.

Summarize:

Double Shell F96 three-mode hot-swappable mechanical keyboard adopts a unique black transparent keycap with carbon fiber texture panel design, which is still very brilliant in visual effect. The current mainstream three-mode hot-swap solution, RGB backlight, and sound-absorbing bottom cotton Joining can also bring a good experience to users. At the same time, this keyboard's rich combination key function design and powerful programming function also allow users to create their own keyboard functions according to their needs, further satisfying users' individual needs and improving user experience. The overall performance is still Very brilliant. At present, this keyboard has been officially released, and the official price is 799 yuan. Interested users may wish to pay more attention to it.

The author declares that there is interest in this article, please respect the author and the content shared, communicate friendly, and make rational decisions~
