[First release] Juan Juan RK always releases new products so curly? ——RKr87s unboxing experience

Flow-saving assistant: 269, three-mode gasket structure, single-sided slotted pc positioning board, 3000 mAh battery, large keys ready to use, will be on sale after Double Twelve

Hello everyone, this is Pai Xiaoxing. Just a few days ago, I received his new keyboard rkr87s from rk. After the previous r87 volume king, I welcomed his keyboard again. Upgraded version, then let's take a look at what upgrades he has today.

The outer packaging here is still the outer packaging of the previous r87, and there is no special outer packaging (maybe actually done, but I am here for the sake of samples)

After opening the outer package, you can see all the contents inside the box:

manual

dust cover

keyboard body

data line

Two-in-one key puller

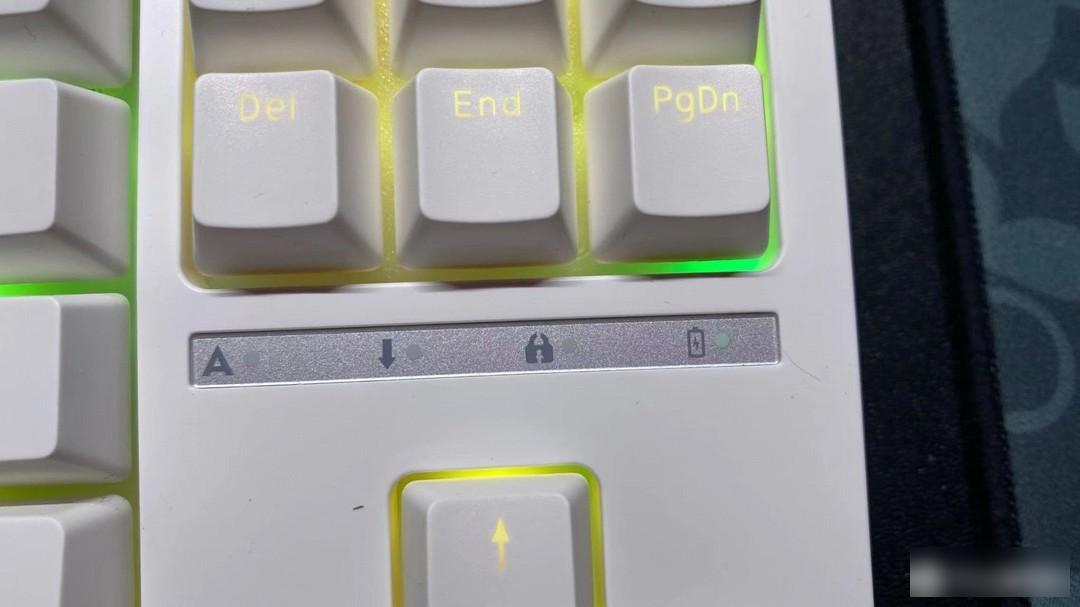

There is an indicator light design above the arrow keys on the keyboard. In fact, there is nothing to say about it. It is a very classic design. Compared with others, it actually lacks a part of the design.

In terms of the shaft body, the shaft body adopts an upgraded version of the K-series shaft. The overall experience can be said to be: the stability has increased, the dust-proof wall has been added, and the smoothness of the shaft body has increased.

The sound-absorbing cotton sliver is stuffed here to suppress the cavity sound of the space to a certain extent. This detail design is still good.

The satellite axis adopts the new satellite axis of rk, the tuning quality is very good, it can be said that it is in a state of ready-to-use.

An rgb light strip is designed on the side of the keyboard. The advantage of this is that it can add an ambient light effect. In fact, this design is useless for people like me who basically don't turn on the lights.

Then there is no certain design on the chamfered corners of the keyboard, and it feels quite handy, which feels a bit uncomfortable for me who owes my hand

The back of the keyboard is actually quite different from the previous single-mode version:

Two-stage foot support

2.4g storage compartment

mode switch

Three-way cable management port

The position of the c port has a recessed design, and then a three-way design for the cable management port. This design is conducive to the cable management of the keyboard, but it is a bit tasteless for the aviation plug. There are many aviation plugs. Lines are actually not supported.

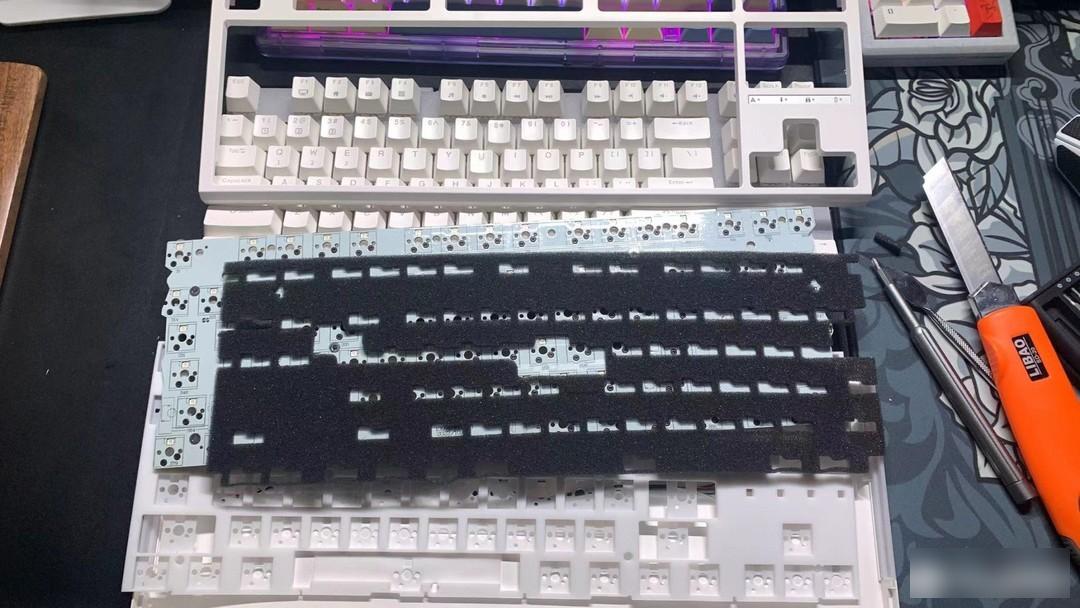

After disassembling the keyboard, we can see all the contents of the keyboard:

cover

pc positioning board

Bottom cotton

Two-in-one silicone sandwich cotton

pcb

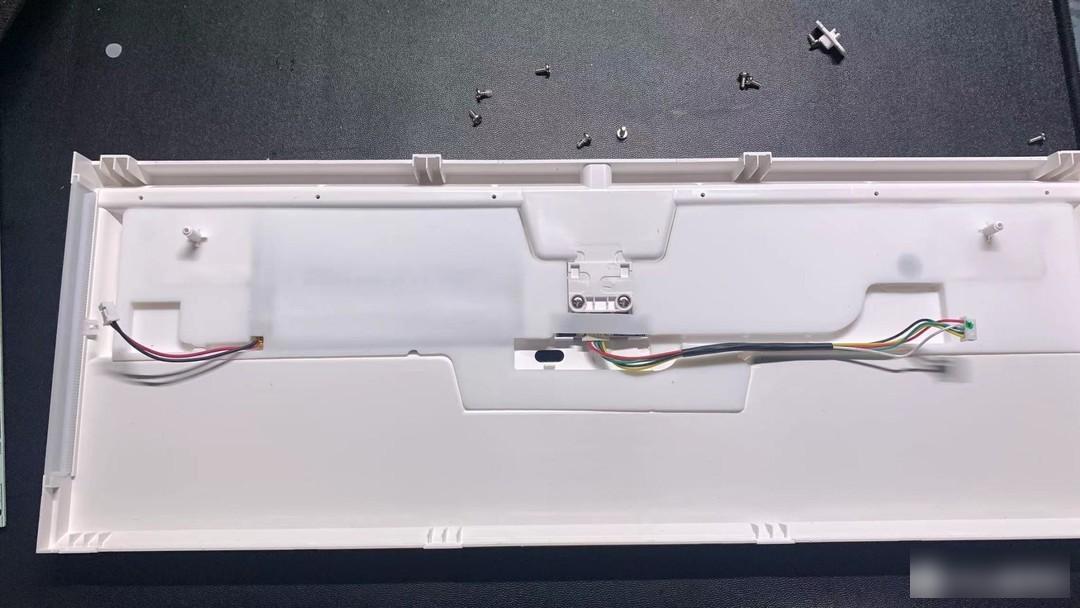

Bottom case

Battery

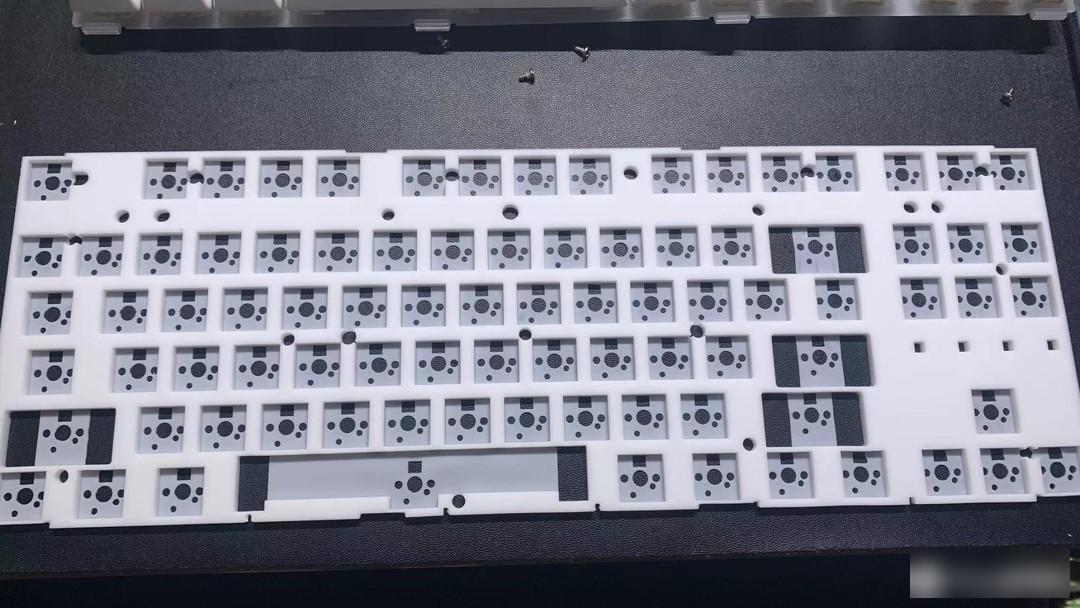

The pc here also adopts a single-sided slotted design, which will make the pc more flexible, but the effect is not much.

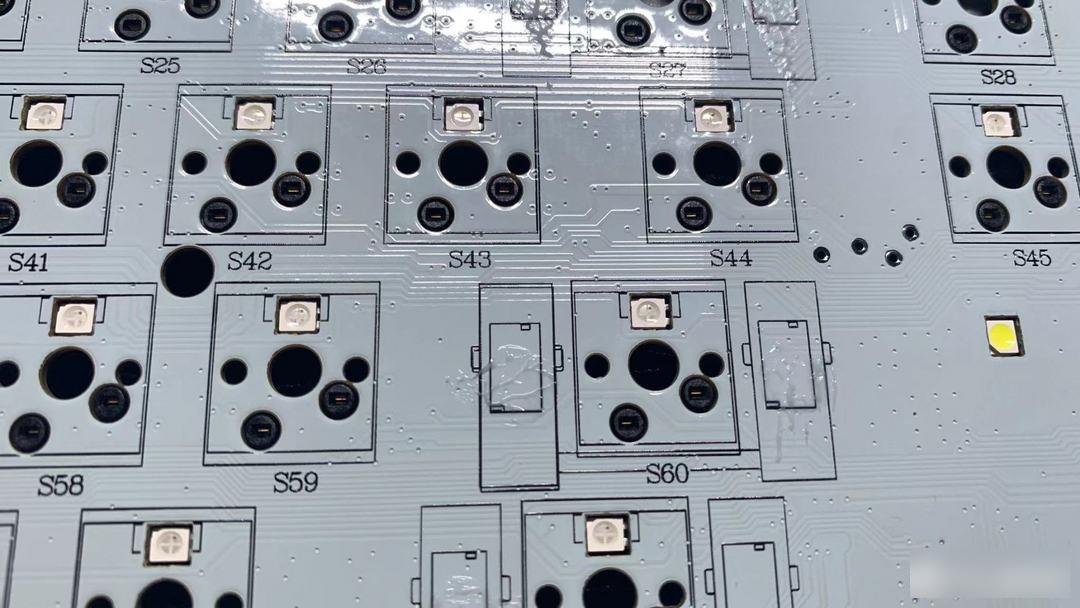

The front of the pcb is designed with an upper light position, and the brightness of the light is still good

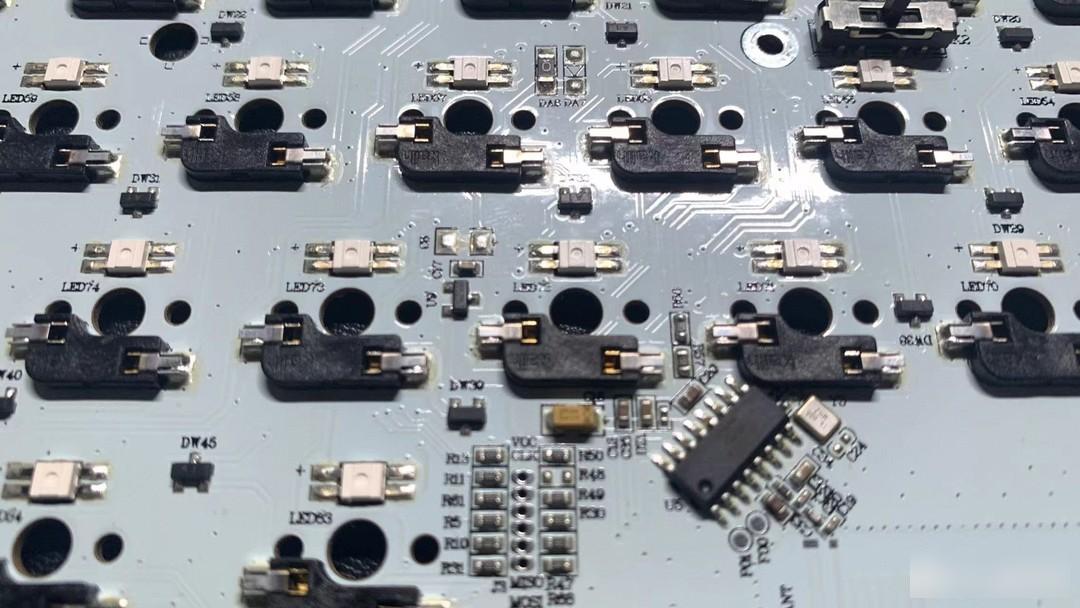

The axle seat on the back is Kaihua's axle seat, which ranks high in the domestic axle seat and is still a good axle seat.

It should be noted here that if you want to modify the power port of the battery, you must be careful, because it is actually relatively loose.

The sandwich cotton here is made of silicone, which includes the under-shaft pad, which is a bit interesting, but I want to say that personally, I don’t really like this kind of two-and-one sandwich cotton.

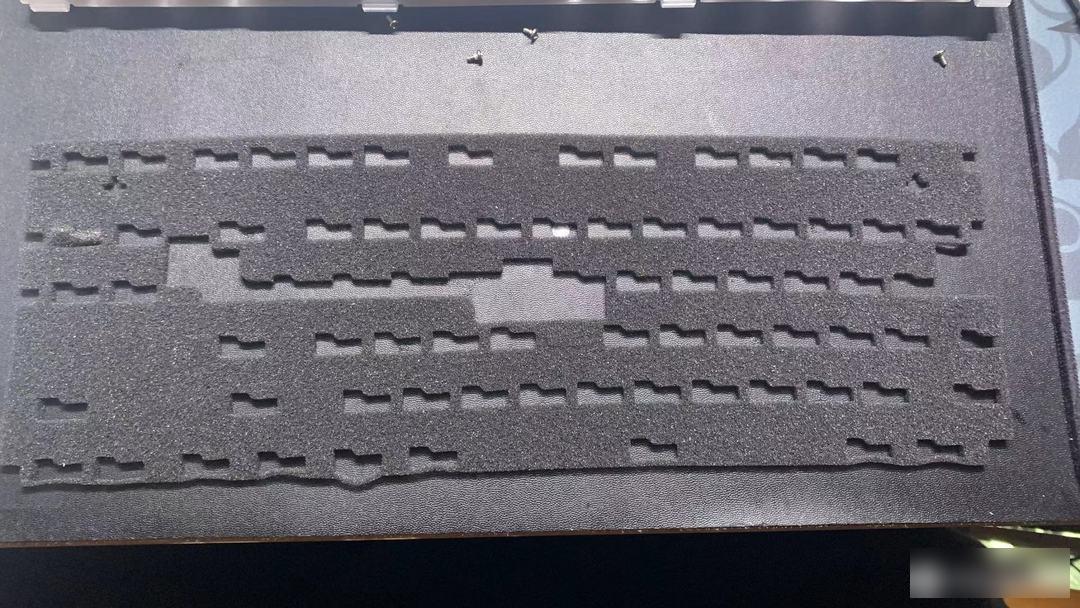

The bottom cotton is made of pearl cotton, which adopts a separate mold design, and the noise reduction effect is not bad.

There is also a layer of silicone sandwich cotton at the bottom, which can reduce the gap in the battery compartment, which can also reduce the cavity sound.

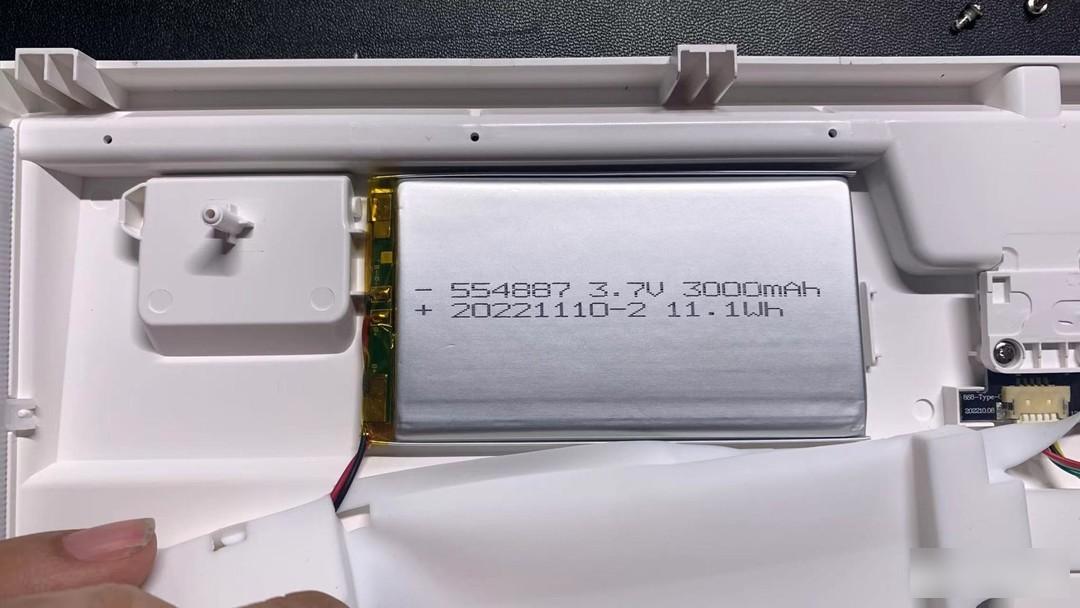

The battery capacity is a 3000mAh lithium battery, and the battery life is not bad.

Key aspects: The large keys of this keyboard can be said to be in a state that can be used directly at hand, without adjustment or replacement, mainly because it uses the satellite axis newly released by rk.

Shaft aspect: This keyboard uses k yellow, and the silver-white upgraded version of the pro axis has improved stability and smoothness.

Battery: The battery capacity of this keyboard is actually relatively small for me personally, because its light is too bright, so I personally feel that the 3000 mAh battery is actually somewhat insufficient.

Keycaps: The keyboard uses a set of abs material keycaps. The light transmission of this keycap is acceptable, but the reason for its material makes the keycaps relatively easy to oil.

Personal experience: This keyboard has actually been here for three or four days. After using it for the past few days, I feel that it is actually okay. After all, I can’t ask for too much at this price, and its stacking is still very good. Within 200 yuan The price, its internal stacking is still very sufficient, in terms of use feel, the stability must be much more than the ordinary r87, here is very recommended.
