Fun at fingertips for daughter-in-law —— Unboxing experience of Yufu Y68 three-mode mechanical keyboard

A few days ago, my daughter-in-law’s mechanical keyboard was spilled with milk tea, and a few keys were not working after drying. Although it can be easily repaired with my maintenance skills, considering that her keyboard has been used for more than 3 years , simply change her to a small-sized "macho-colored" keyboard, she should like it very much.

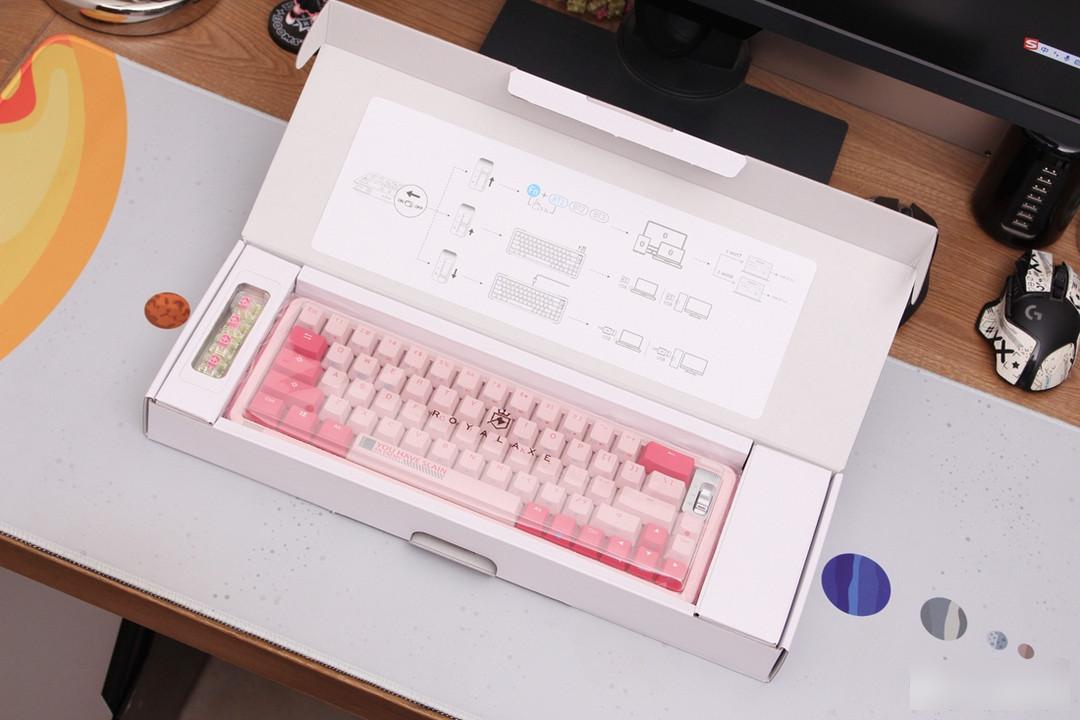

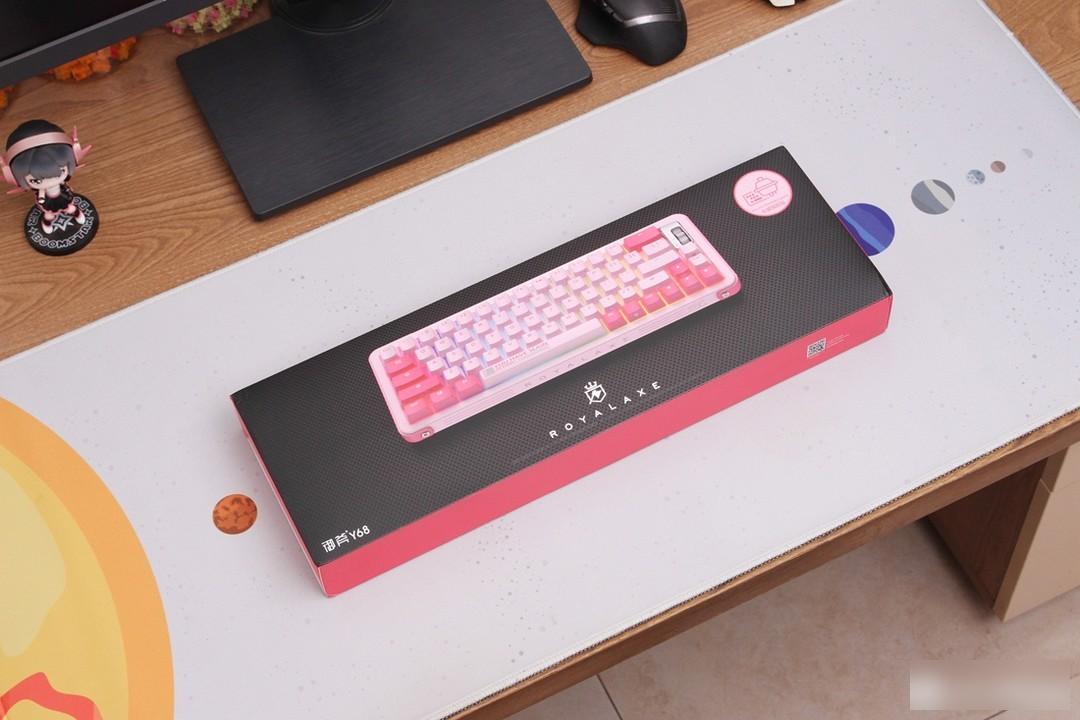

After unpacking the Yufu Y68 three-mode mechanical keyboard, you can see the description of the connection method in the box, and the four TTC gold powder switches V2 attached to the left side of the box.

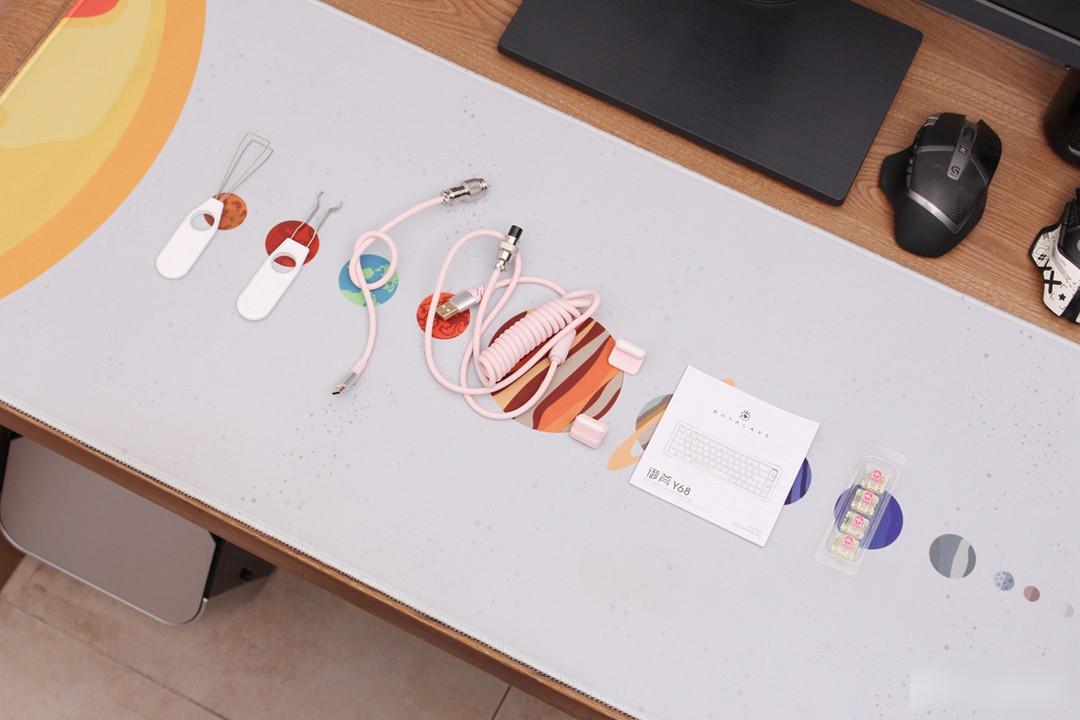

Accessories: key puller, shaft puller, two cables connected to aviation plugs, detachable support feet, keyboard manual, four TTC gold powder switches V2.

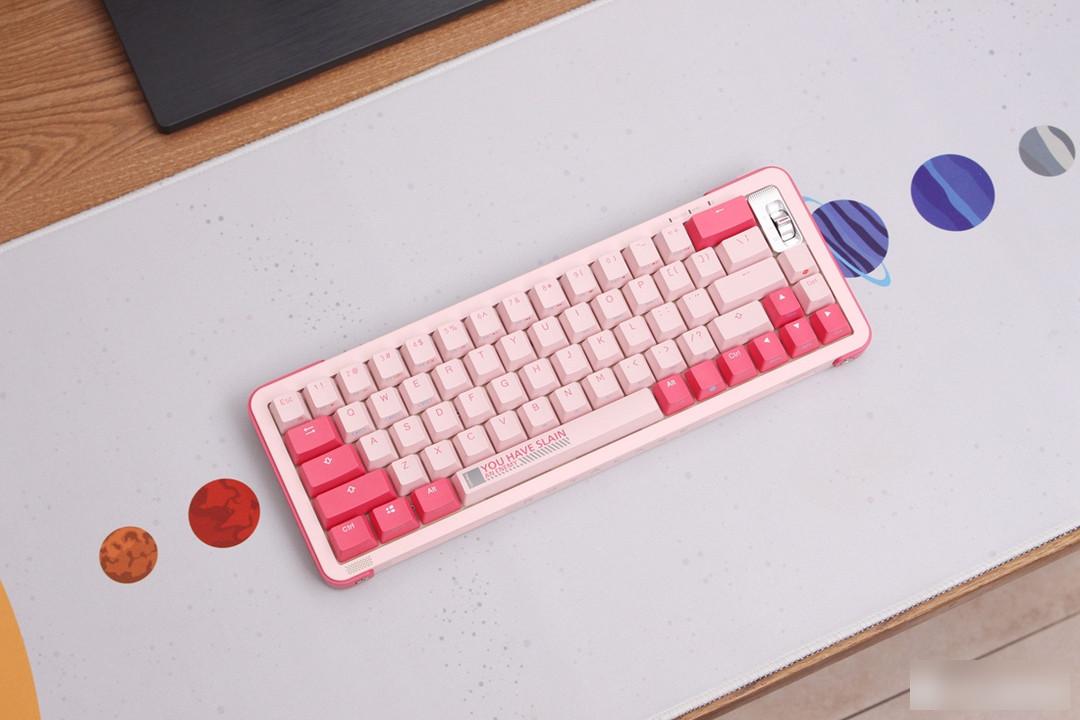

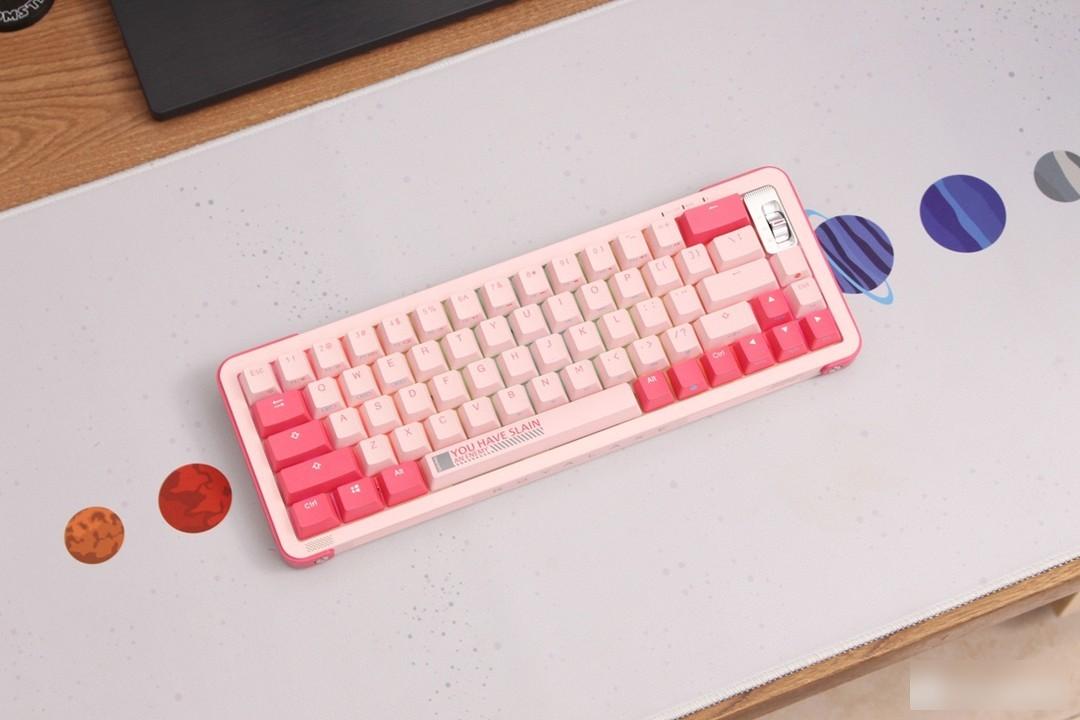

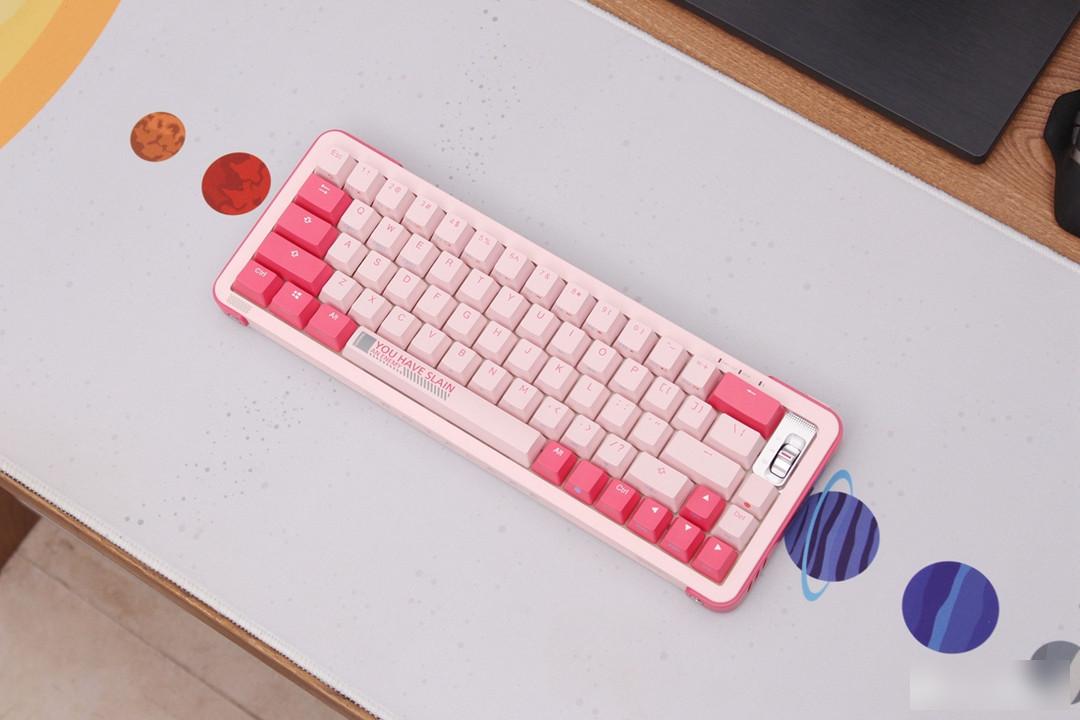

Yufu Y68 three-mode mechanical keyboard is a 60-size small keyboard. The full keyboard has 66 keys and a connection mode switch. The overall size of the keyboard is 326.5mm*118.1mm*39.5mm, and the weight is 693g, which can be regarded as a small-sized mechanical keyboard with great weight.

This keyboard has 4 colors to choose from. The pink keyboard is named Candy Factory. The keyboard is matched with rose red and pink. The color can really attract many female users. The keyboard switch uses TTC's gold powder switch V2 , This can be regarded as a fan from the inside out.

The keyboard supports RGB lighting effects, and there are 22 lighting modes that can be switched, but the keycaps made of PBT do not have a light-transmitting design for characters, which is a pity in terms of pure lighting effects. The keyboard supports full-key non-conflict function, and supports 3 connection modes: Bluetooth, 2.4G, and USB wired connection. The triple-mode connection function can be competent for all working environments.

The keyboard has a built-in 3000mAh lithium battery, which can be recharged once every 2-3 weeks under normal use. In wireless connection mode, it is recommended to turn off the RGB light if you want to last longer. For example, my commonly used Logitech G502 wireless mouse never turns on the light to ensure the maximum battery life. time.

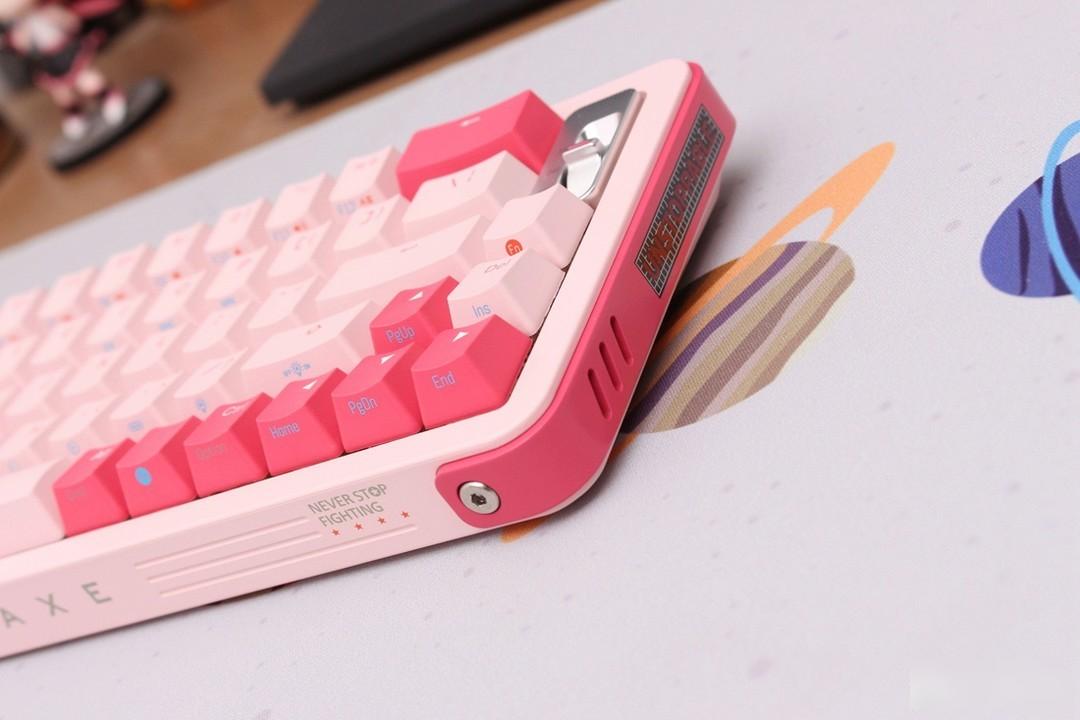

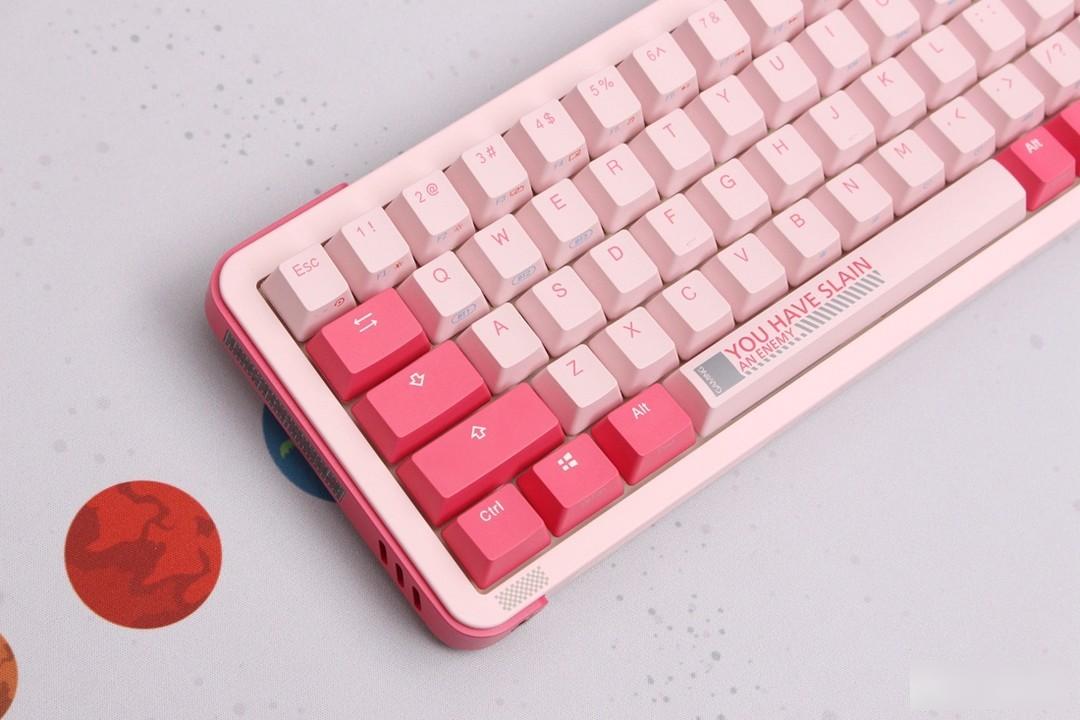

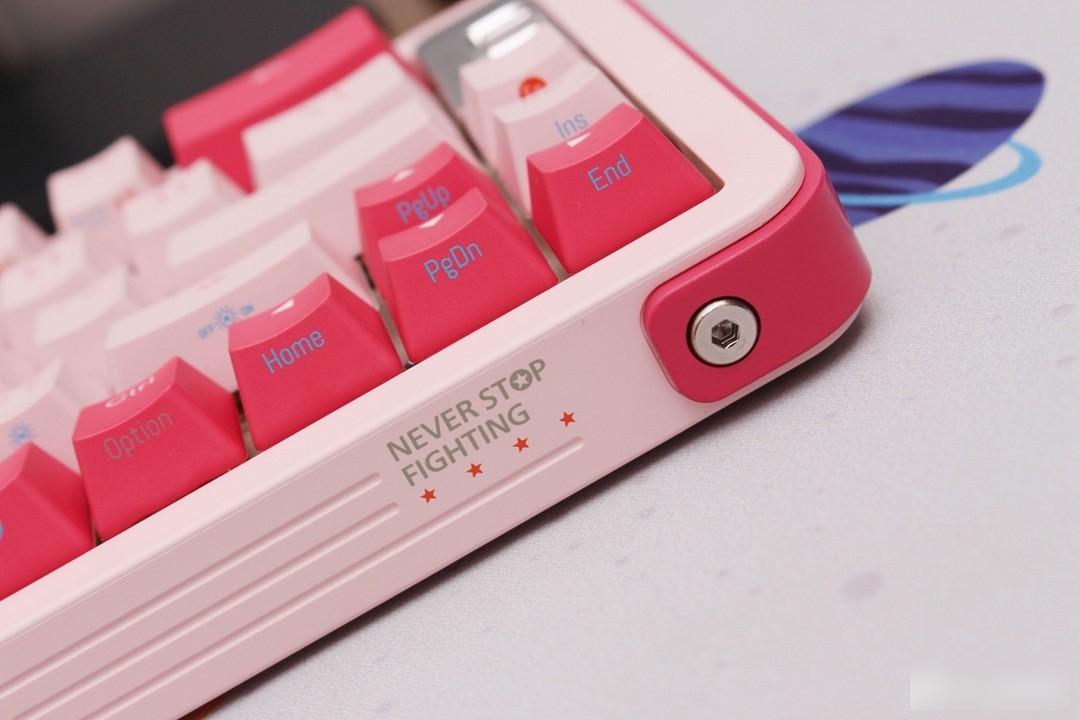

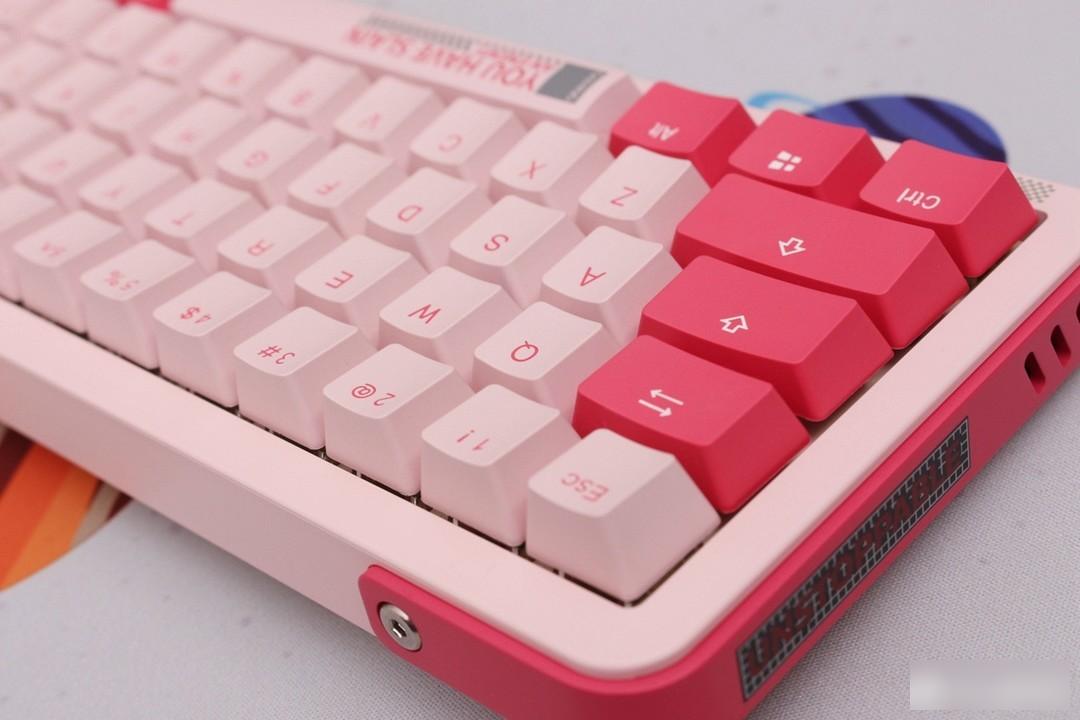

Close-up on the left side of the keyboard

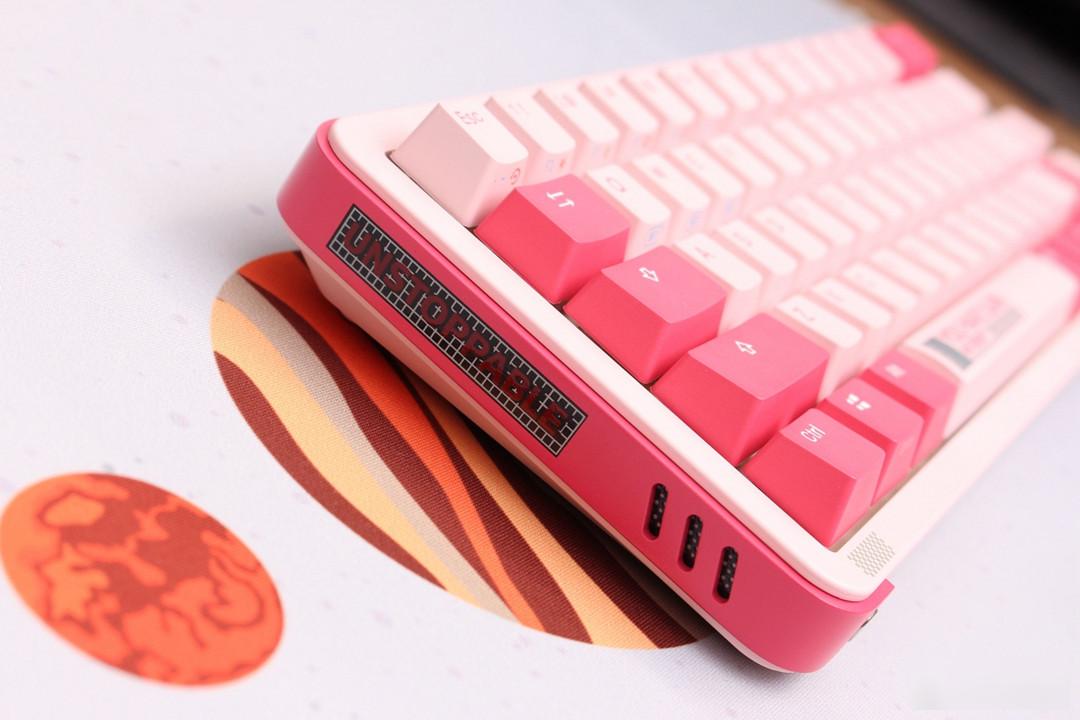

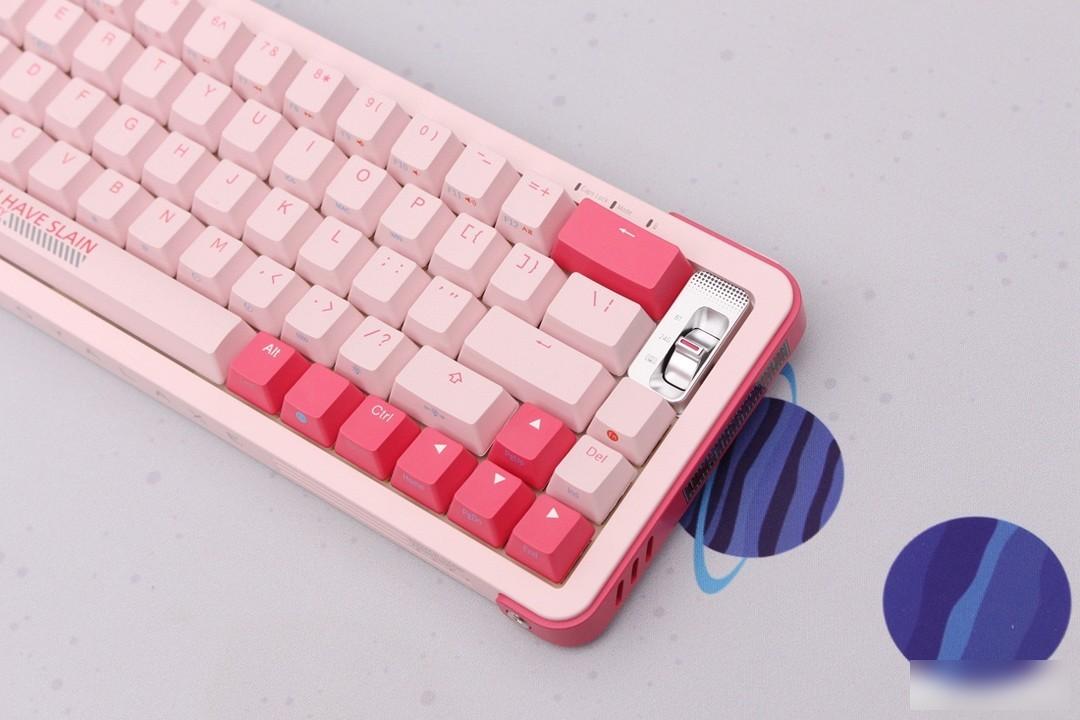

Close-up on the right side of the keyboard

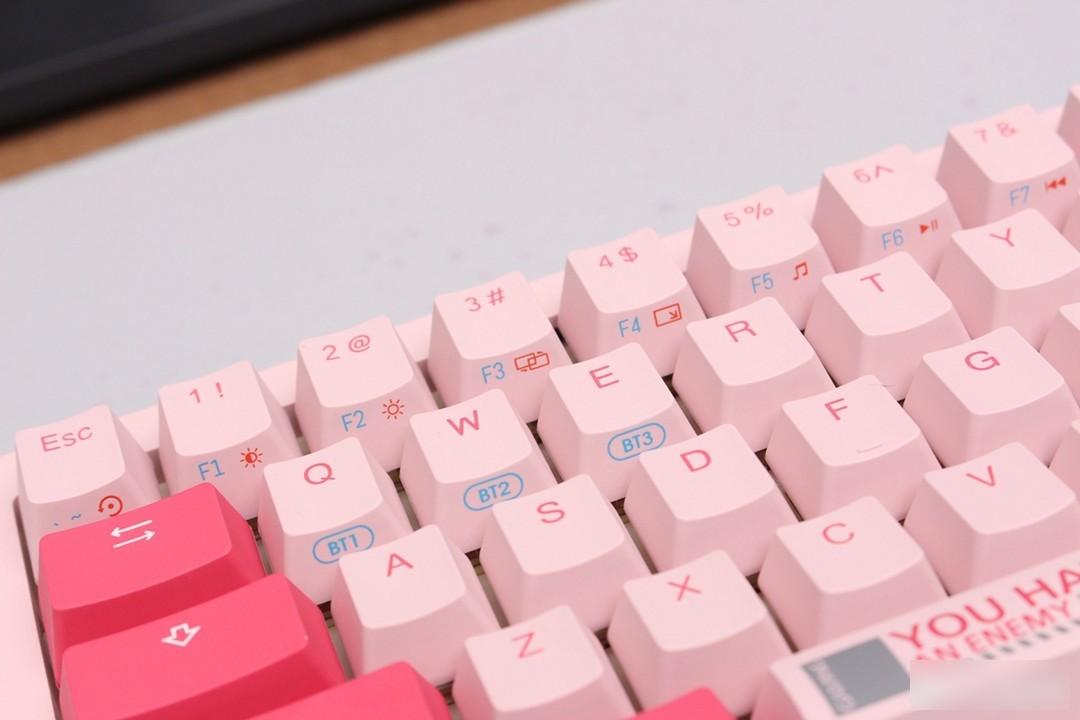

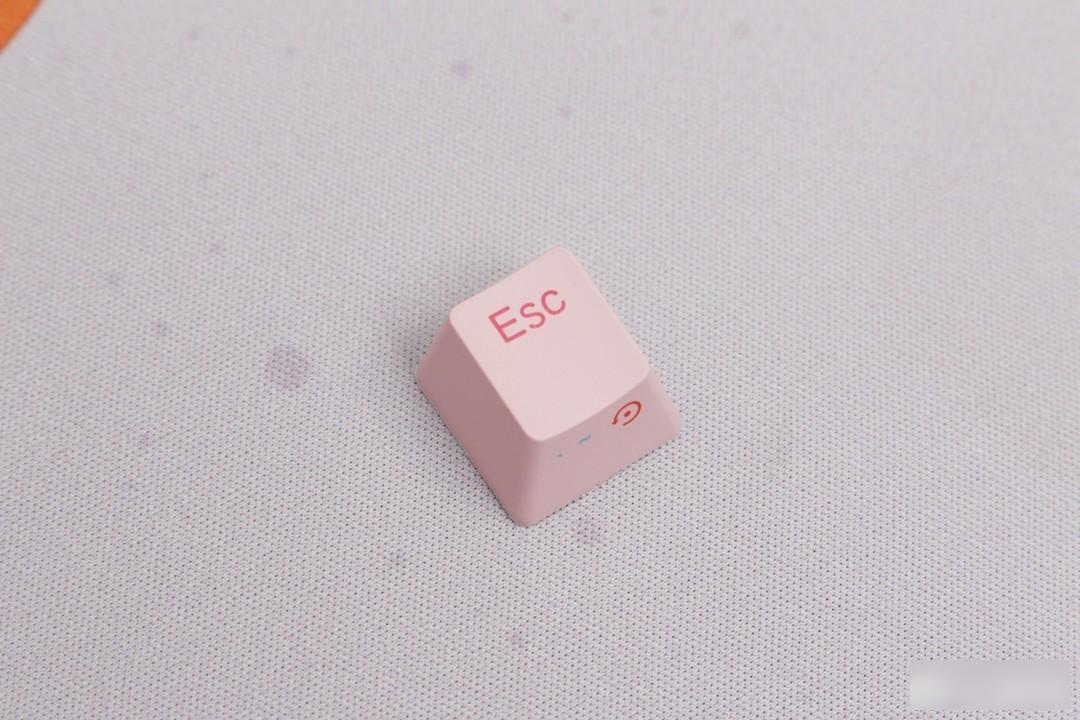

The side engraving on the keycap marks the function of the combination key

Partial close-up of the keyboard

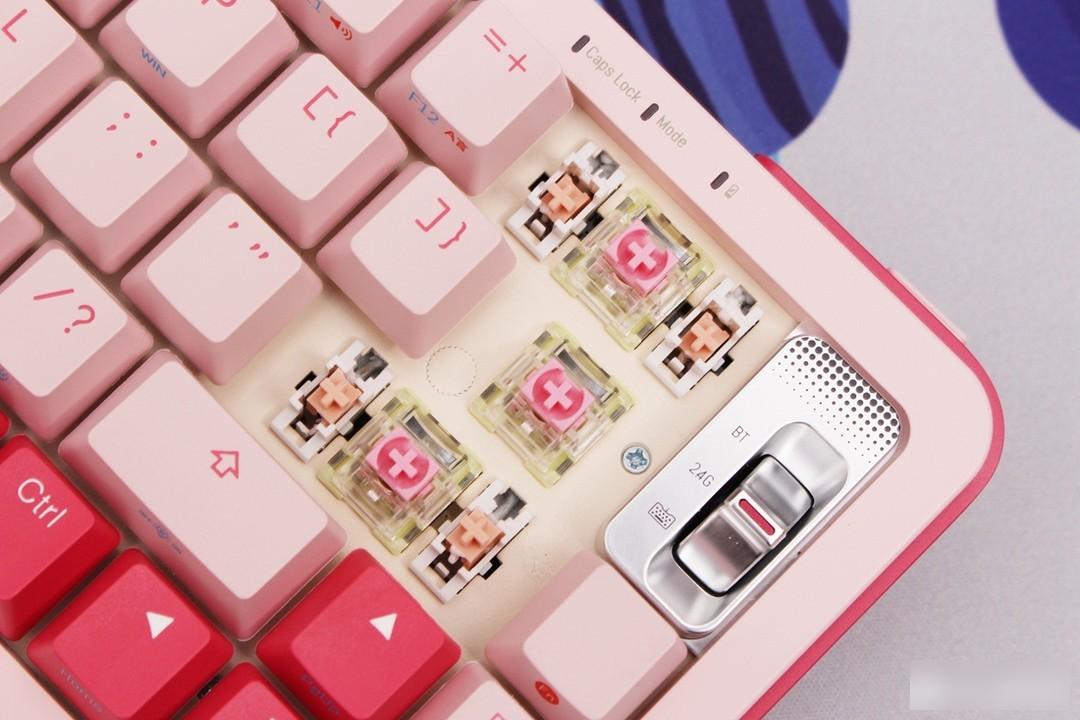

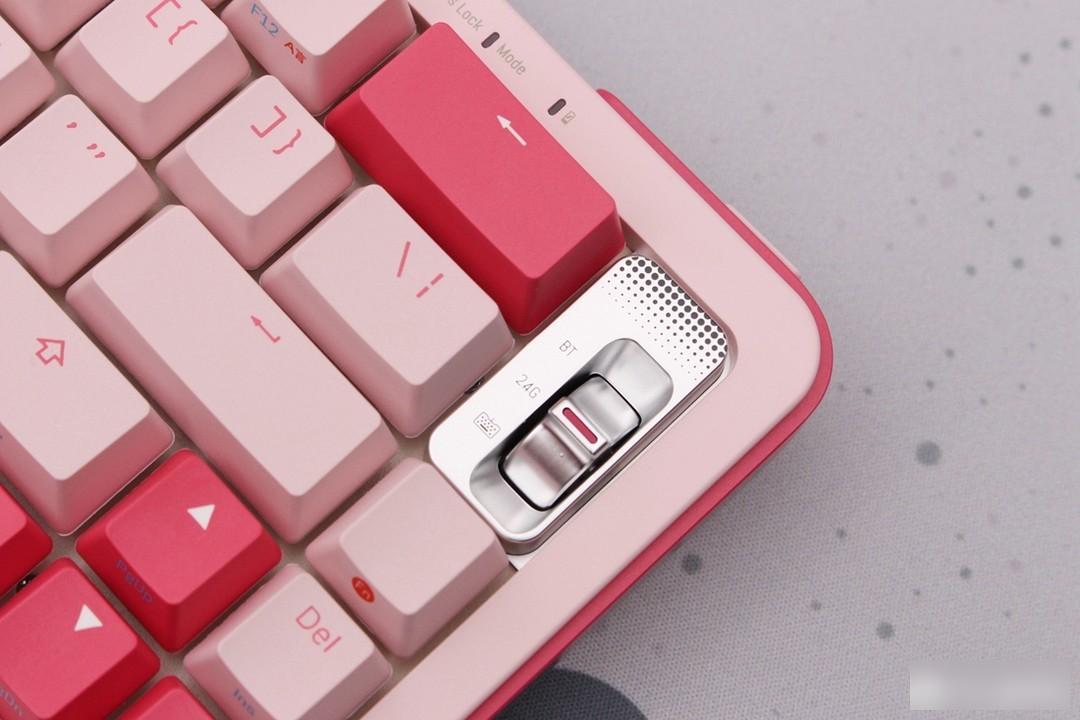

Connection Mode Switch

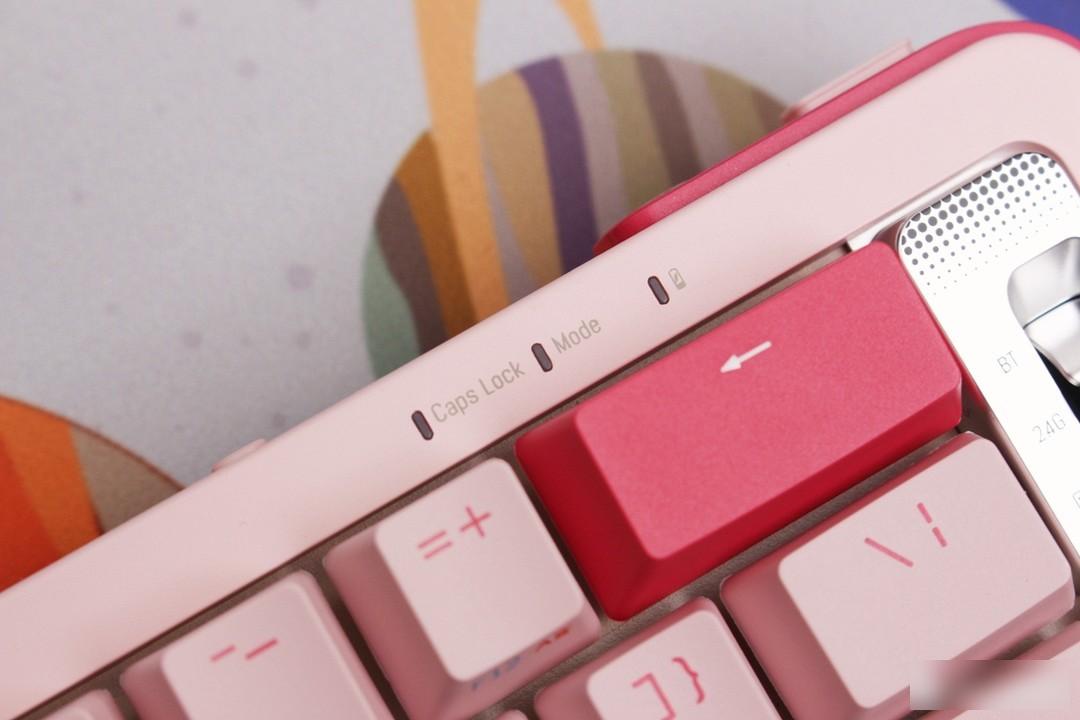

keyboard light

Close-up on the left side of the keyboard

Close-up on the right side of the keyboard

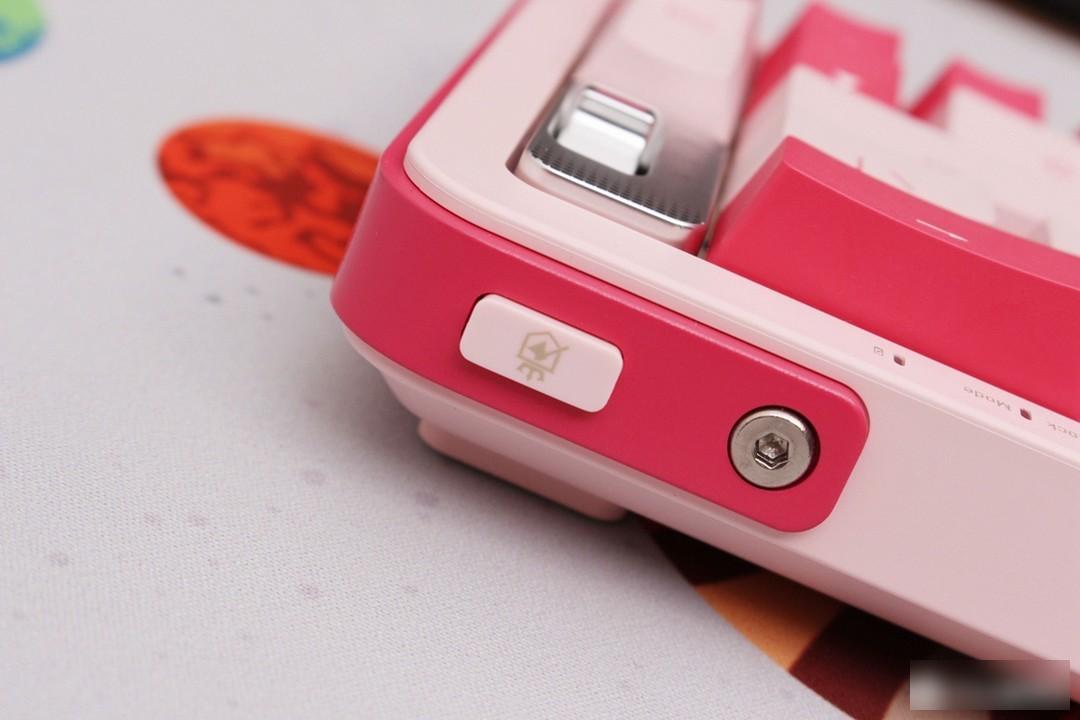

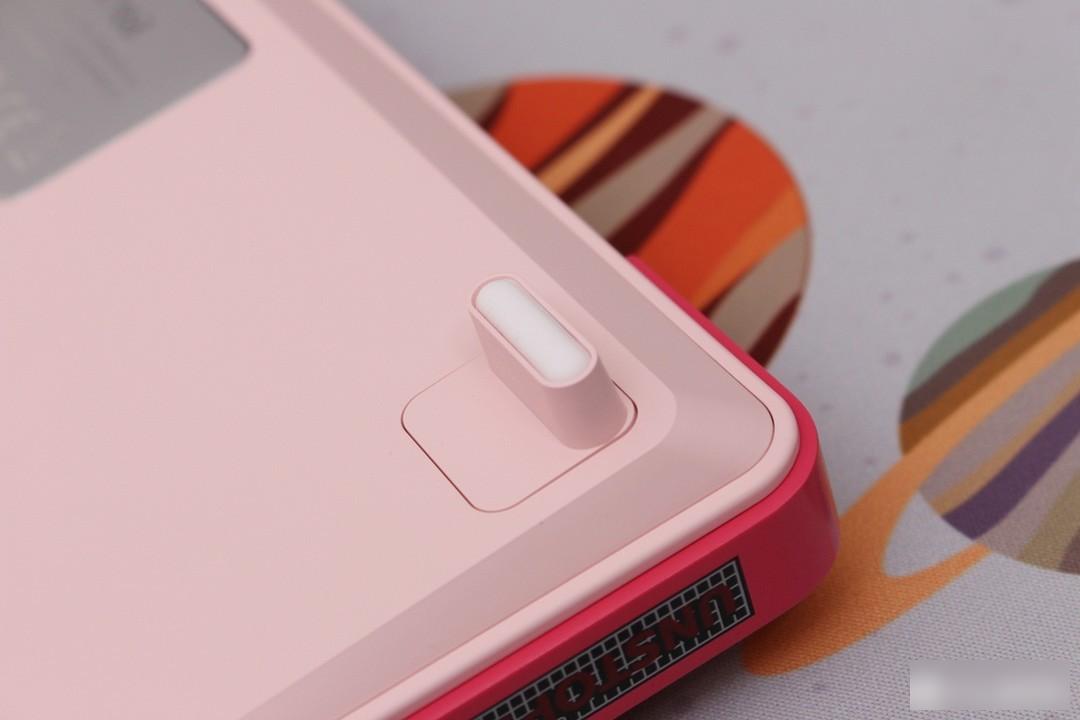

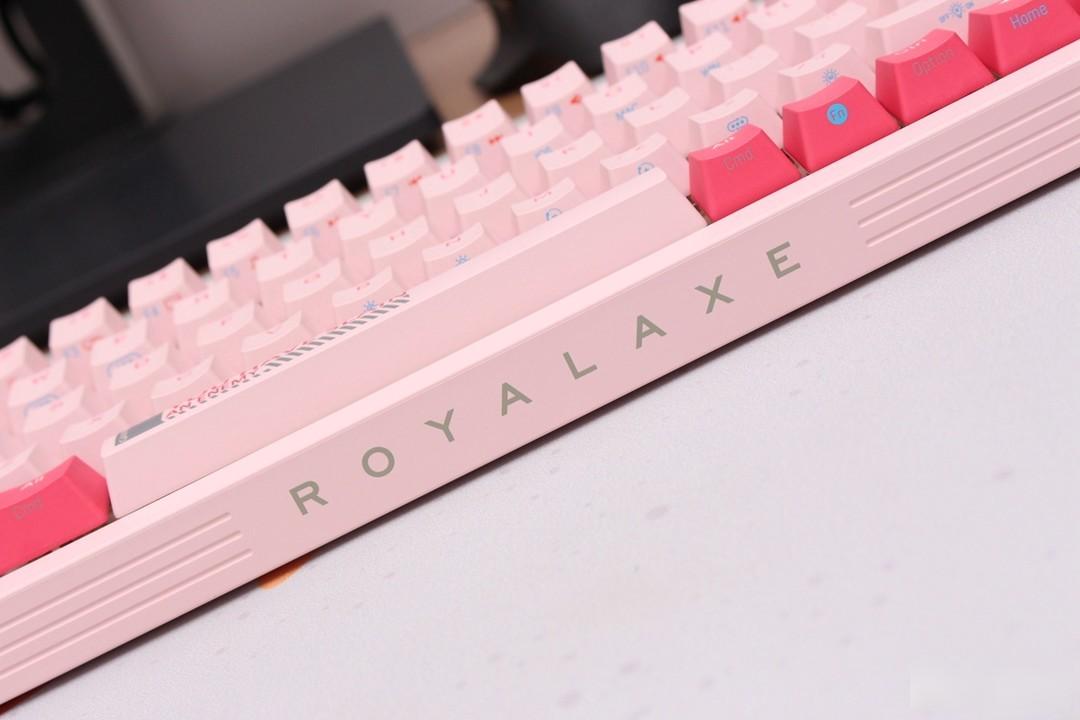

On the right rear side is the storage slot for the keyboard 2.4G wireless receiver.

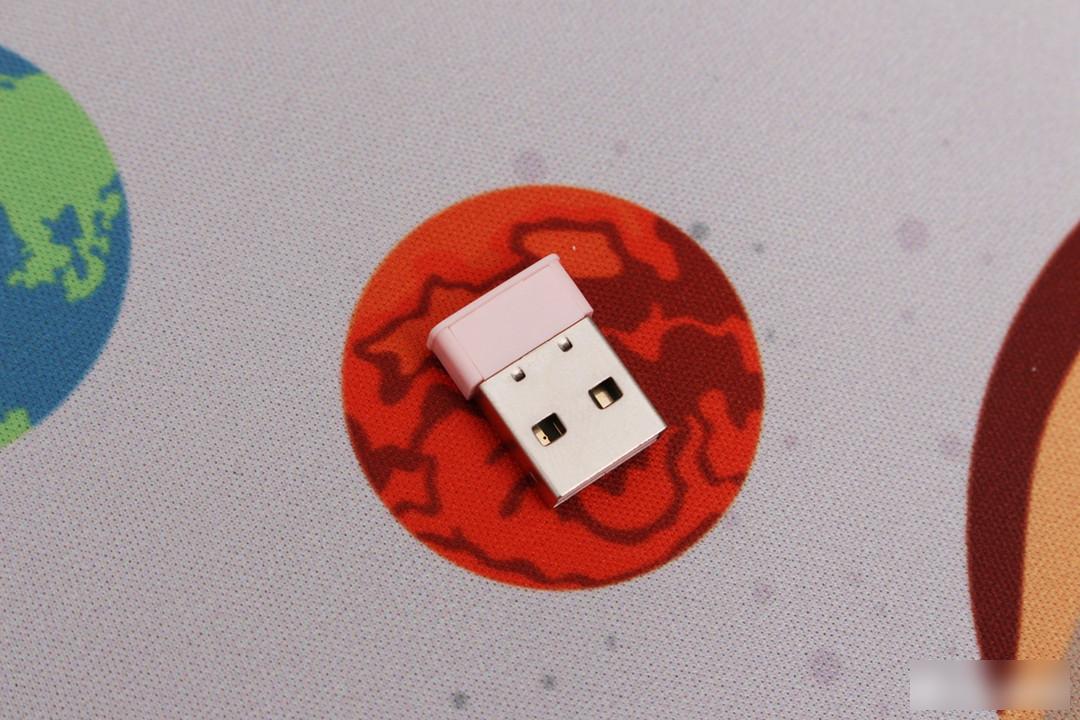

2.4G wireless receiver

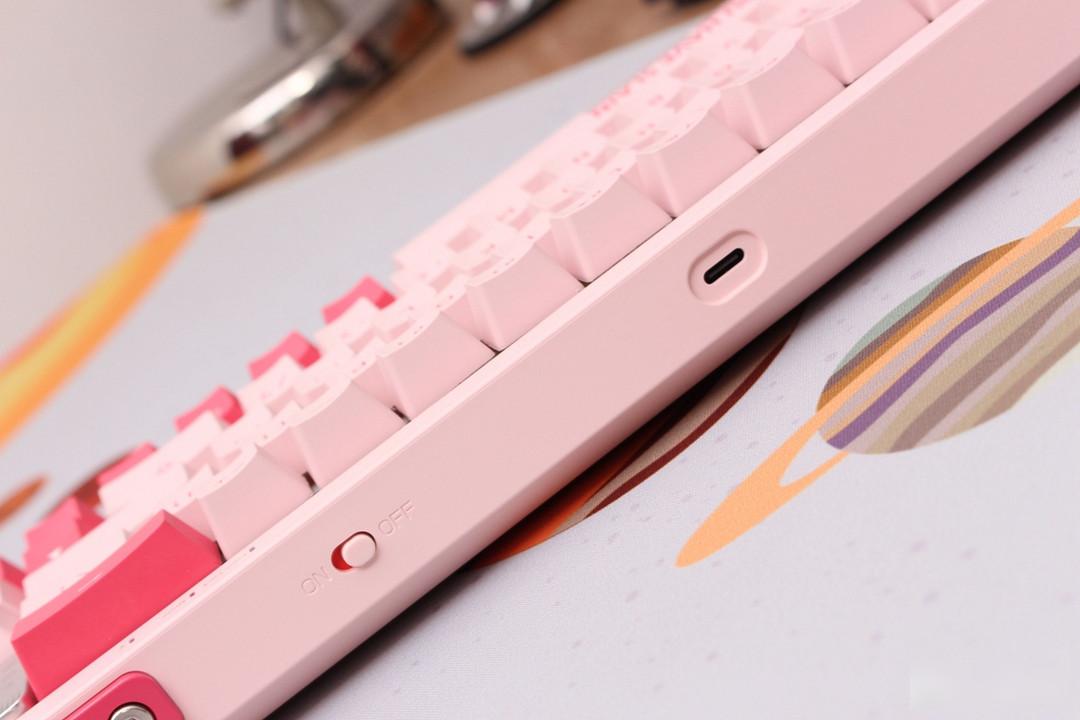

There are also keyboard switches and USB-C ports on the rear.

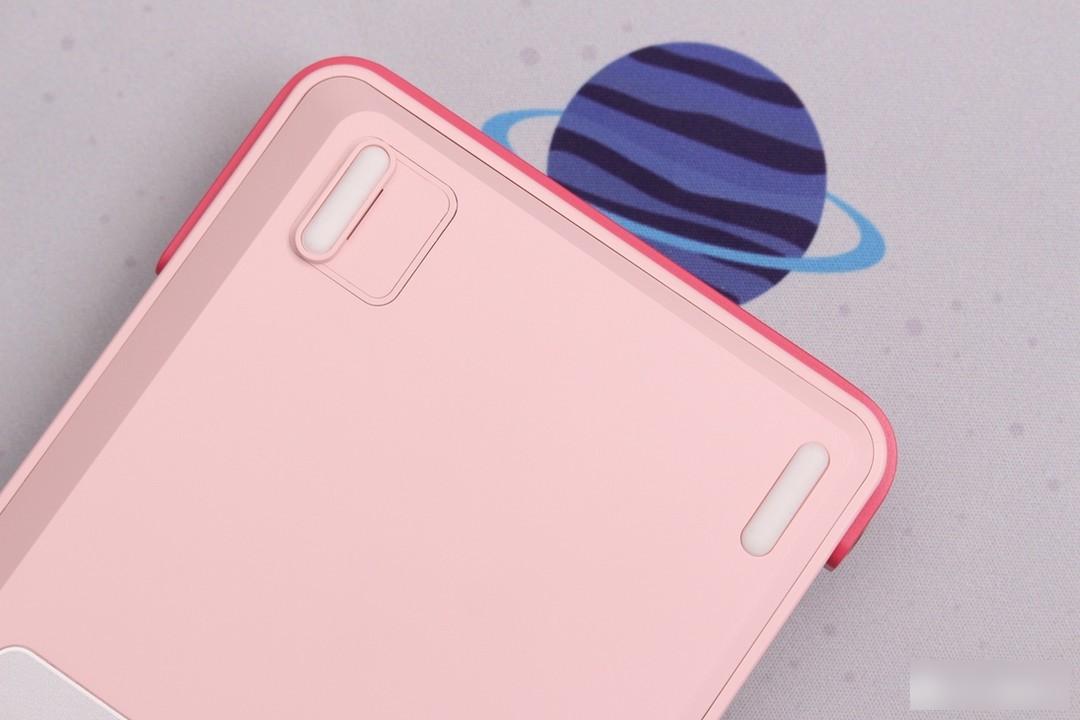

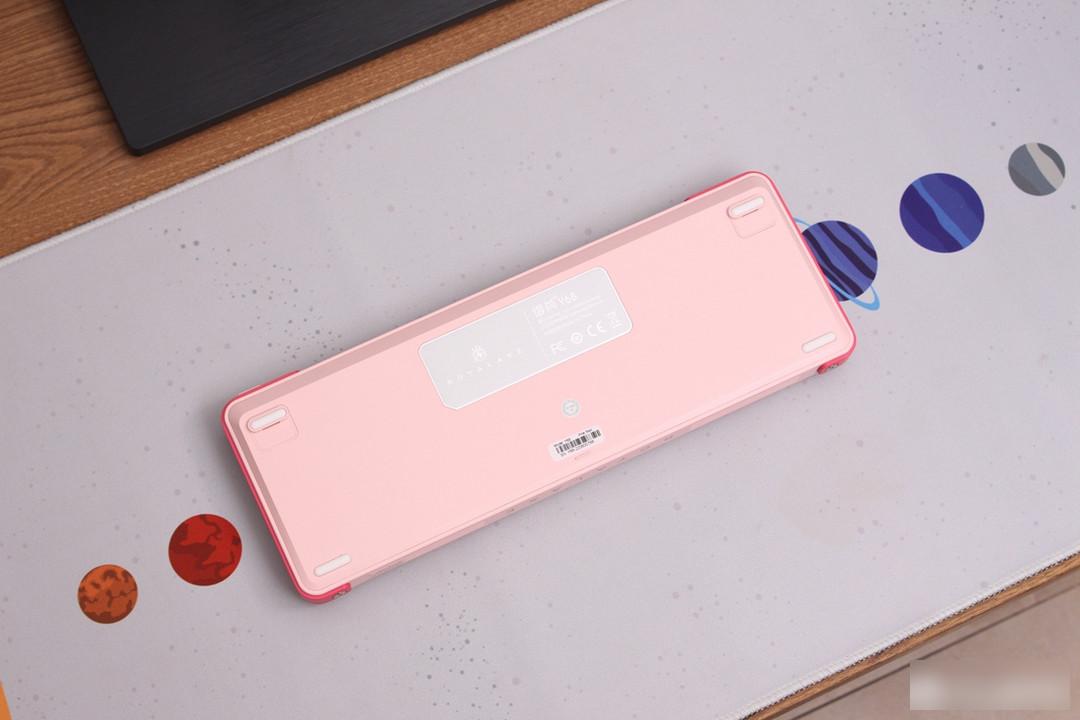

Close-up of the bottom of the keyboard

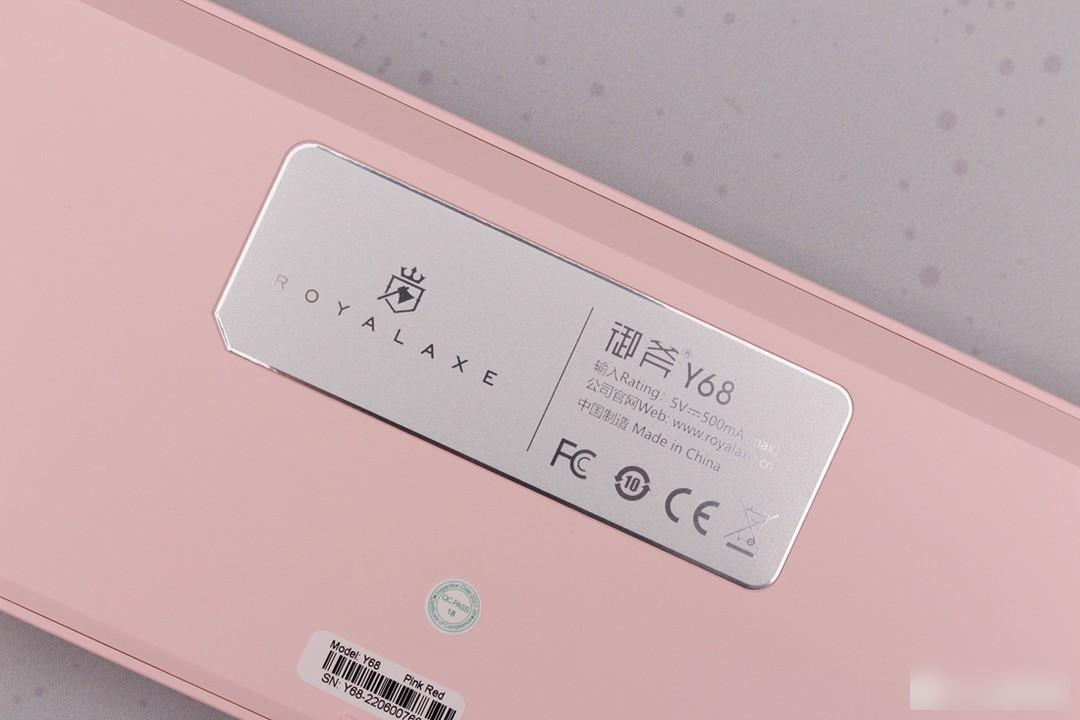

metal nameplate

White narrow strip non-slip foot stickers

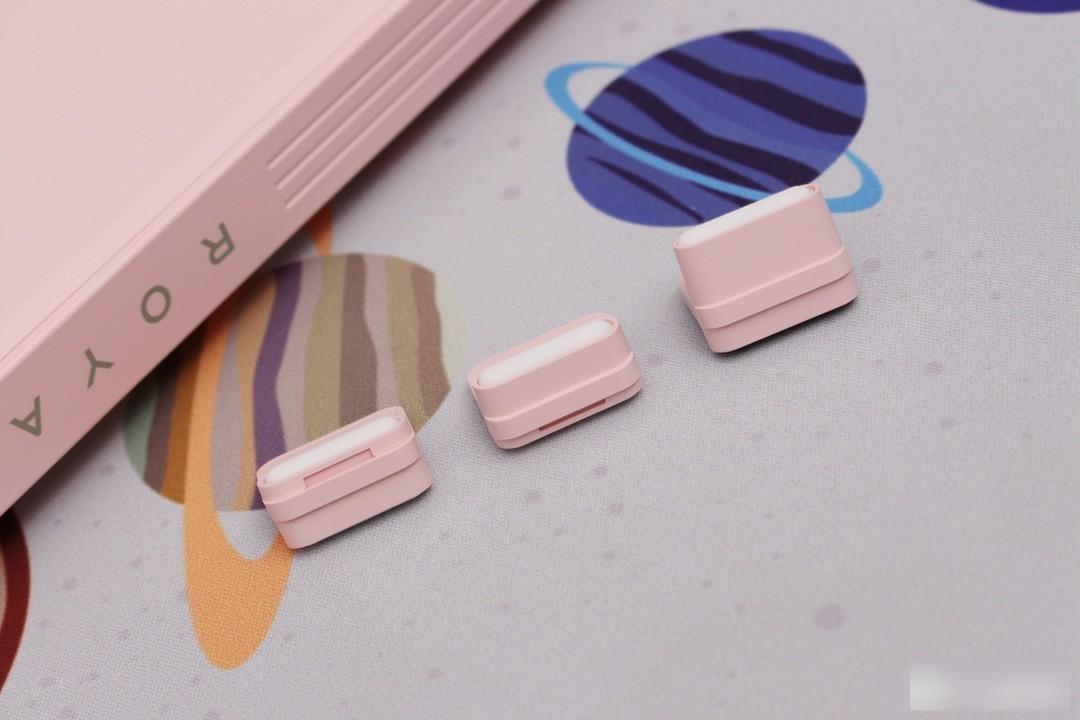

The default support feet can be used on both sides, and the keyboard also comes with a high support foot sticker, so the keyboard has a total of 3 support heights to choose from. The foot stickers are fixed by magnetic attraction.

Keyboard support feet close-up

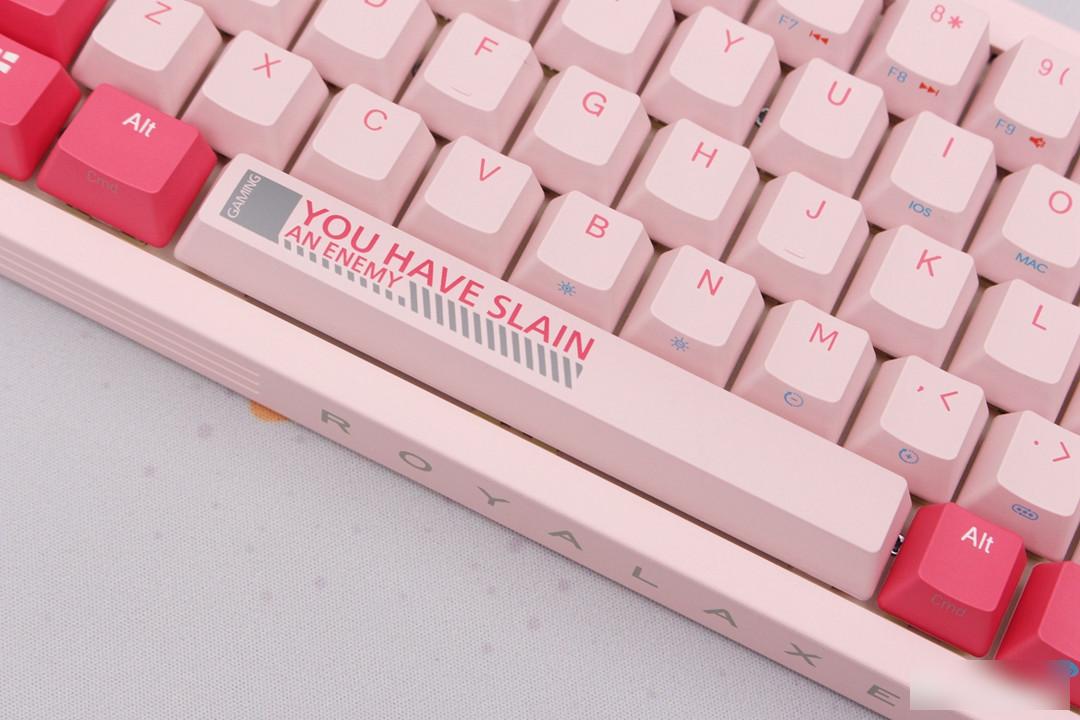

The keycap of the keyboard is made of common PBT material, and a two-color injection molding process is adopted, and the keycap characters are closed design.

The advantage of the PBT keycap is that it is very wear-resistant, and the surface of the keycap is very fine.

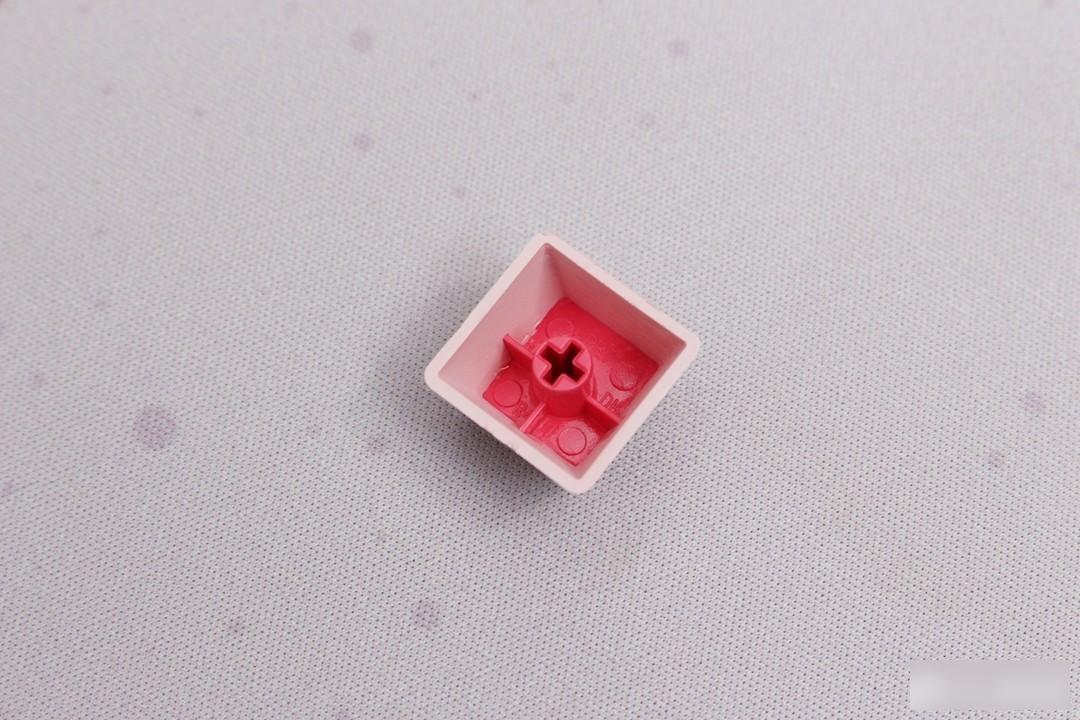

Close-up of the bottom of the keycap

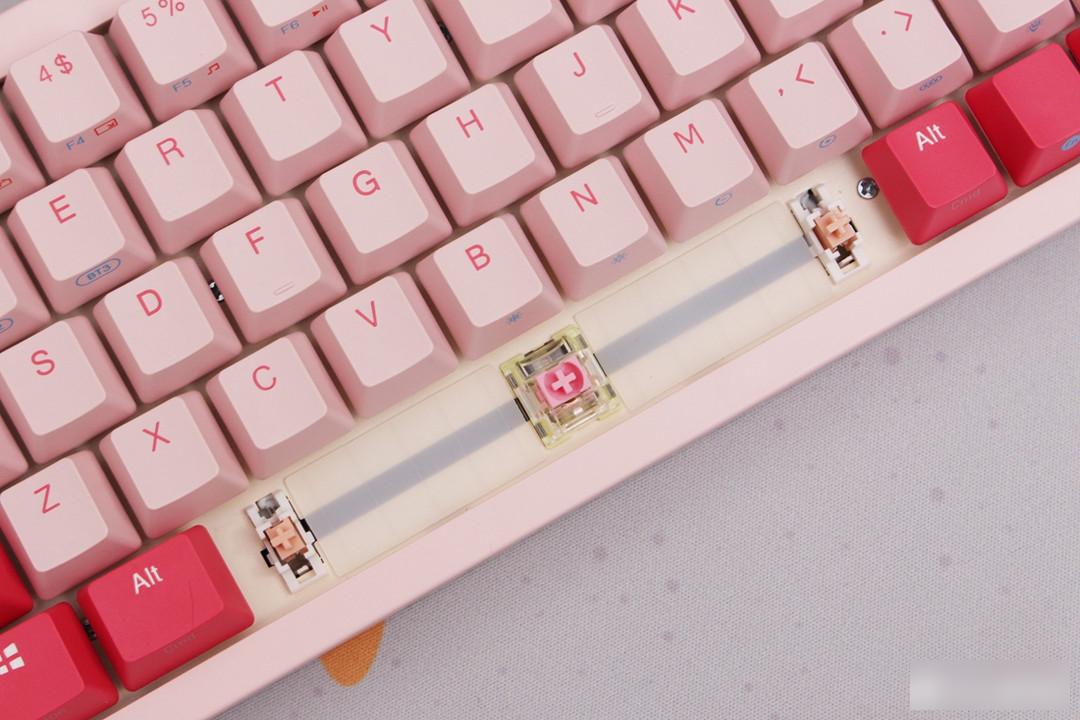

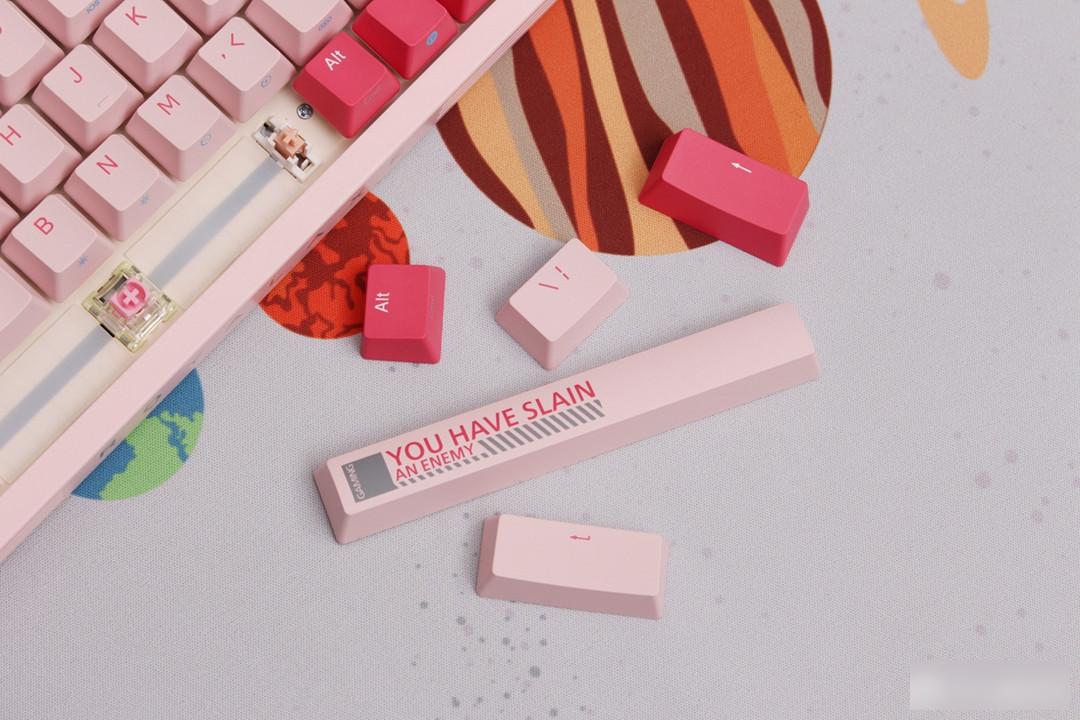

The large keys of the keyboard adopt the satellite axis scheme.

The big buttons are obviously adjusted, and all the big buttons are very smooth up and down, and there is no feeling of meat.

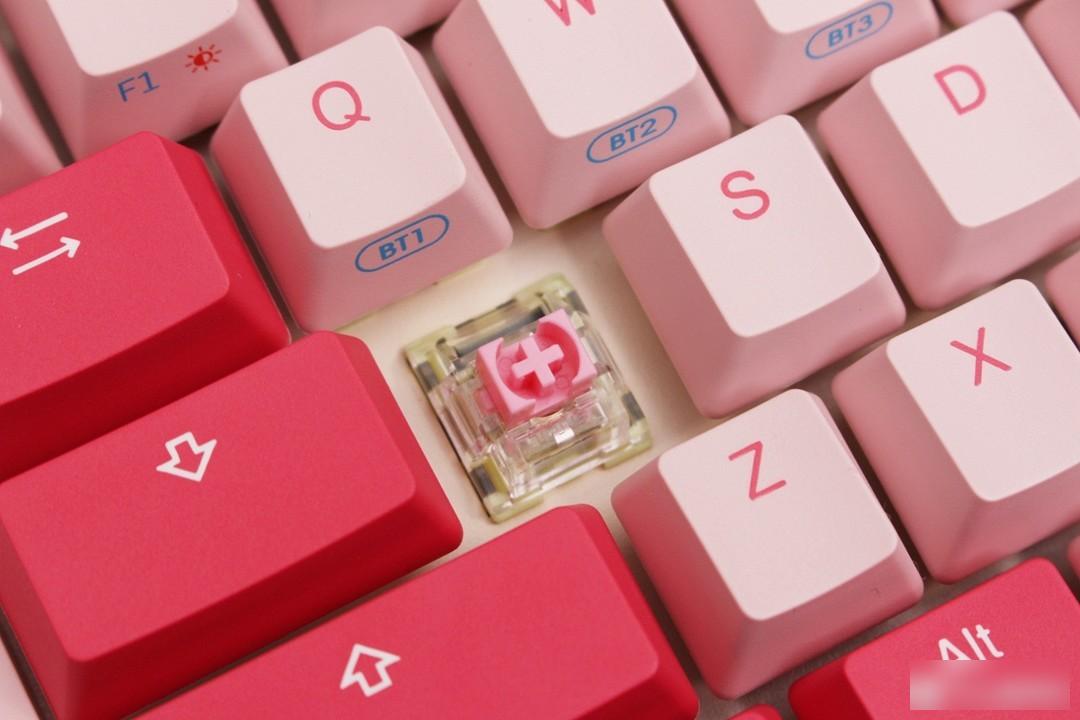

The TTC gold powder switch V2 is an upgraded version of the TTC gold powder switch V1. The shrapnel and terminals of the upgraded version of the switch body are all silver-plated, which means that the reliability of the switch body is greatly increased. The total stroke of the shaft key is 4mm, the trigger stroke is 2mm, the trigger pressure is 37gf, and the key life is 100 million times. The smoothness of the TTC gold powder switch V2 is quite good, and the bottoming sound of the shaft core is relatively short and sharp, unlike most shafts that have some heavy feeling. The keyboard uses a metal positioning plate, and there is a layer of black rubber between the positioning plate and the PCB, which can reduce the vibration noise when the shaft is struck, and make the bottom of the shaft appear very solid.

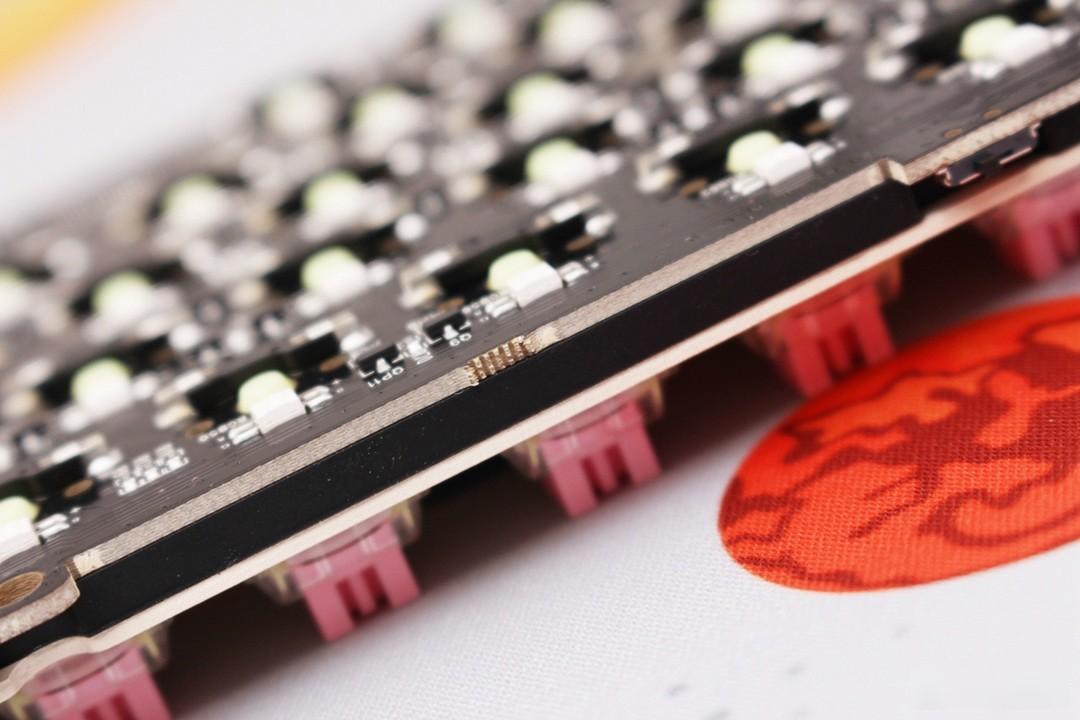

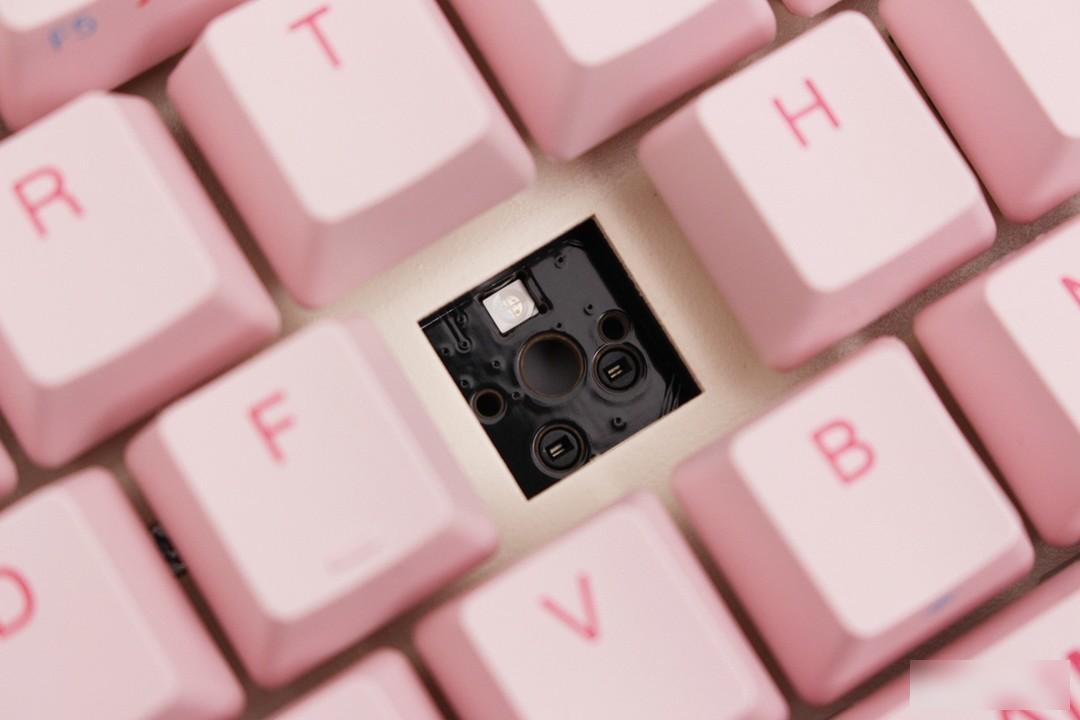

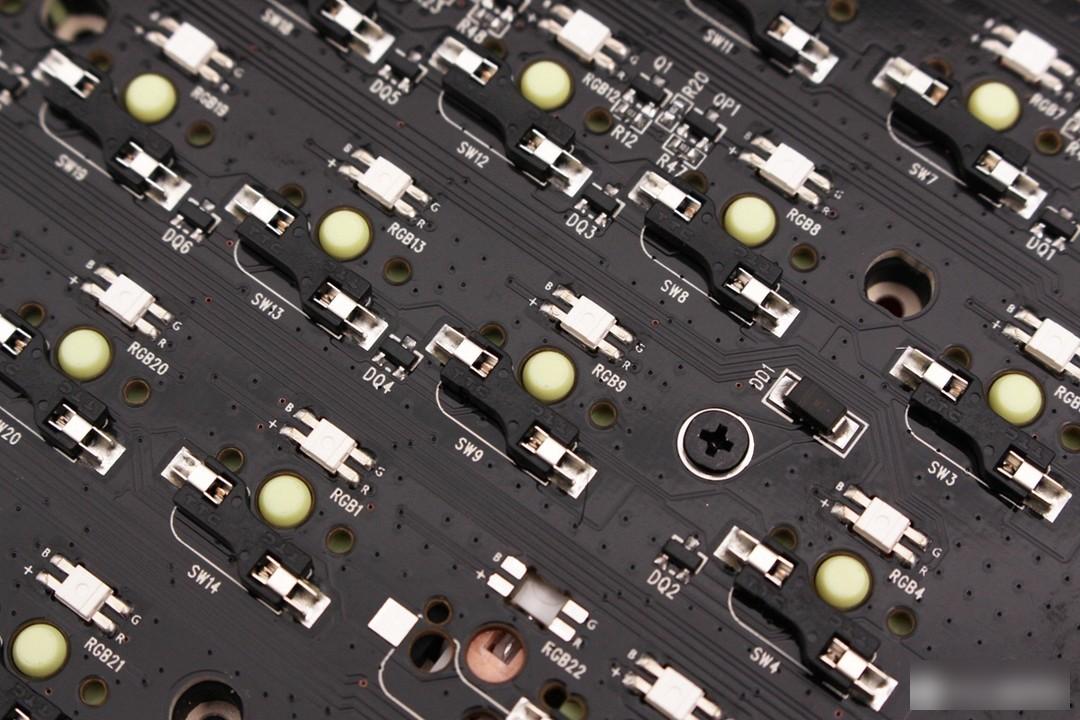

The keyboard supports hot-swapping of the shaft body. It can be seen from the jack that the keyboard supports a 5-pin shaft body, and the LED light adopts a PCB reverse-mounted design. The height of the lamp bead is flush with the PCB, so any shaft body can be supported here. It is a very friendly design.

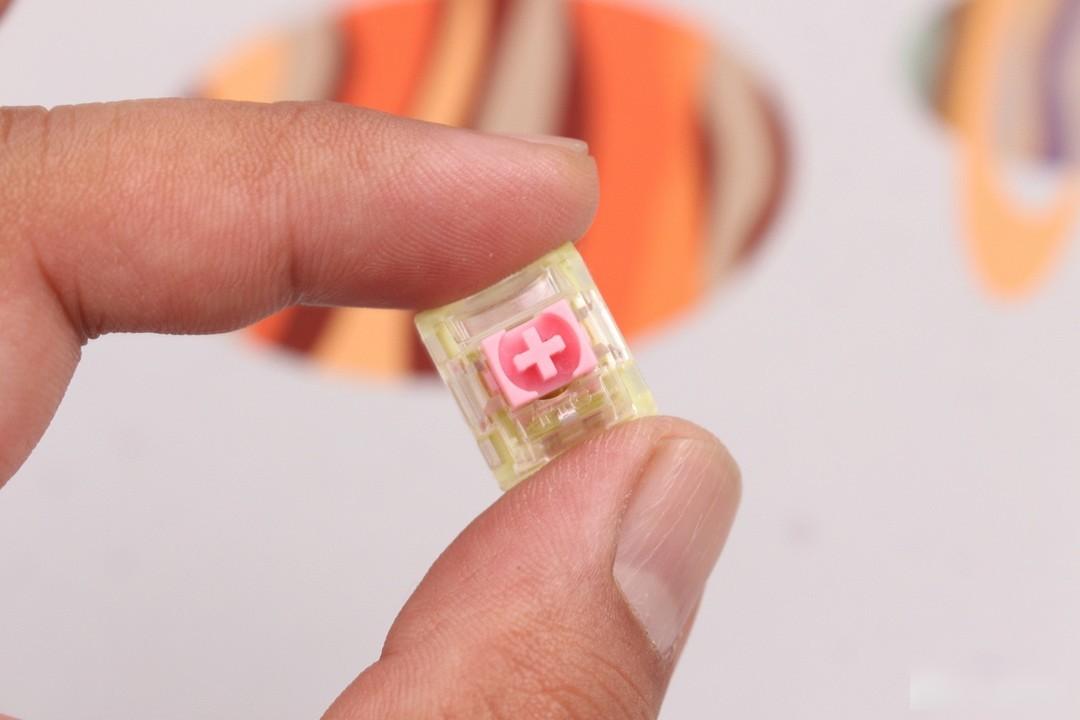

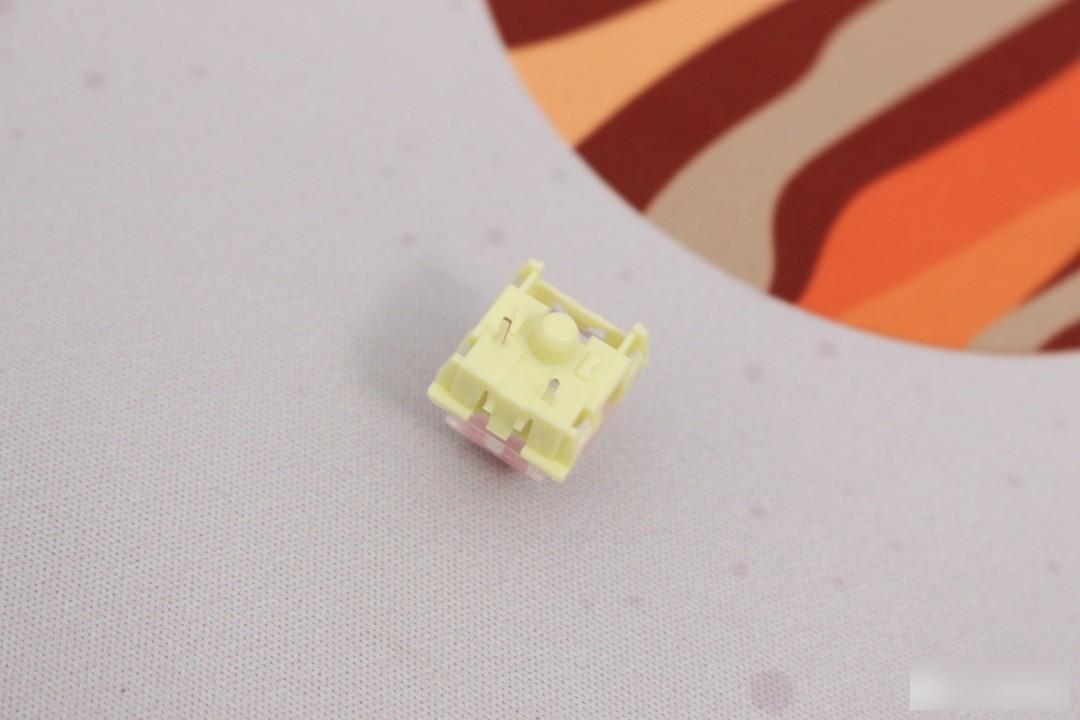

TTC gold powder shaft V2

TTC gold powder shaft V2

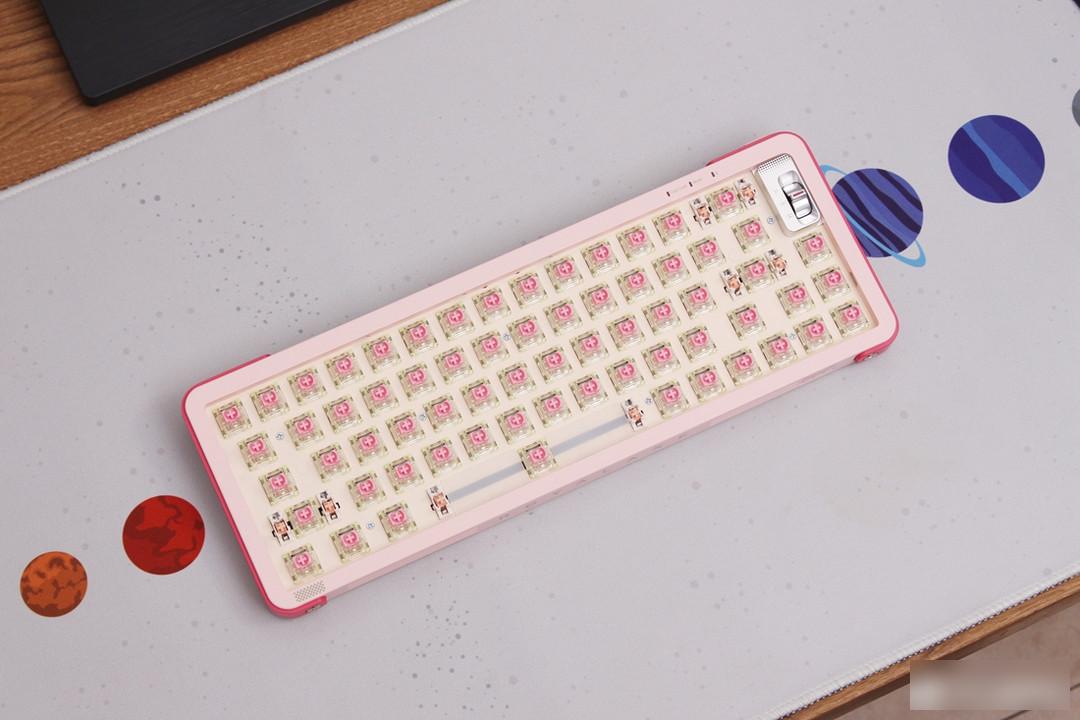

Unplug all the keycaps of the keyboard, and then enter the disassembly part

lighting effects

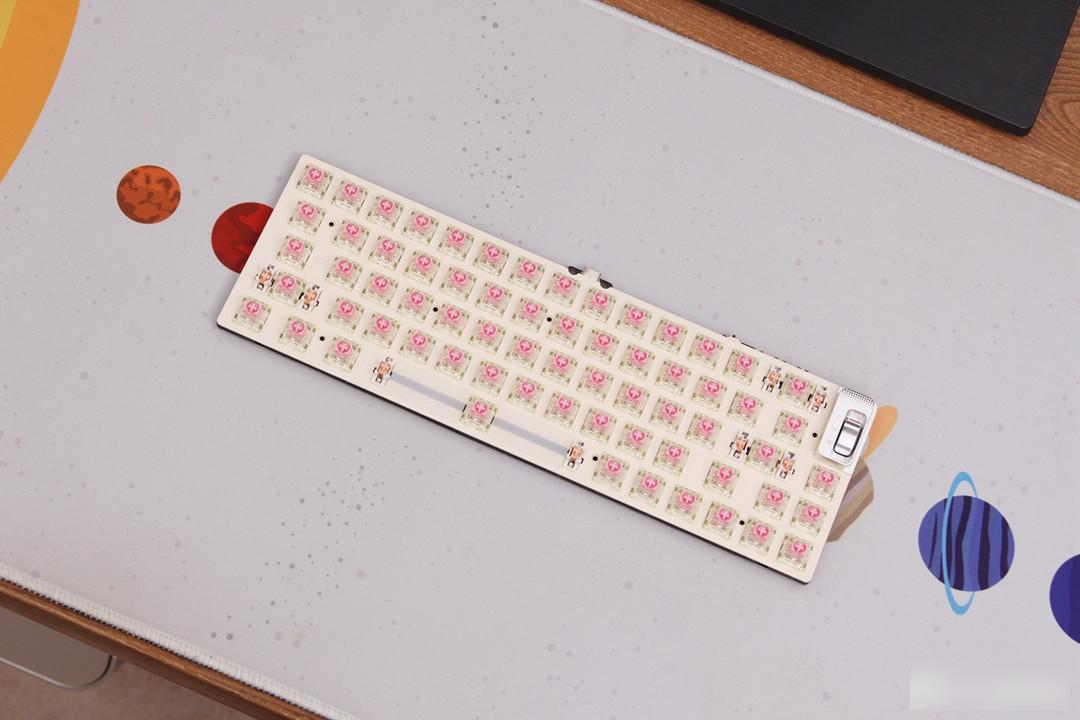

Keyboard positioning board close-up

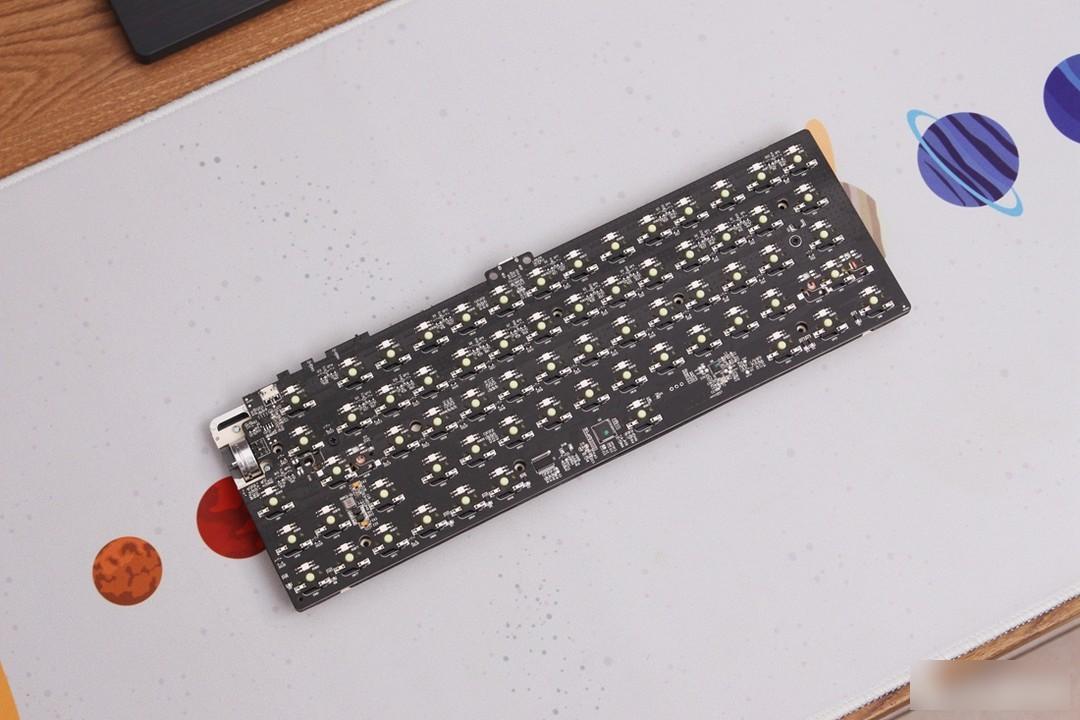

Overall close-up of keyboard PCB

Hot-swappable axle housings for TTC.

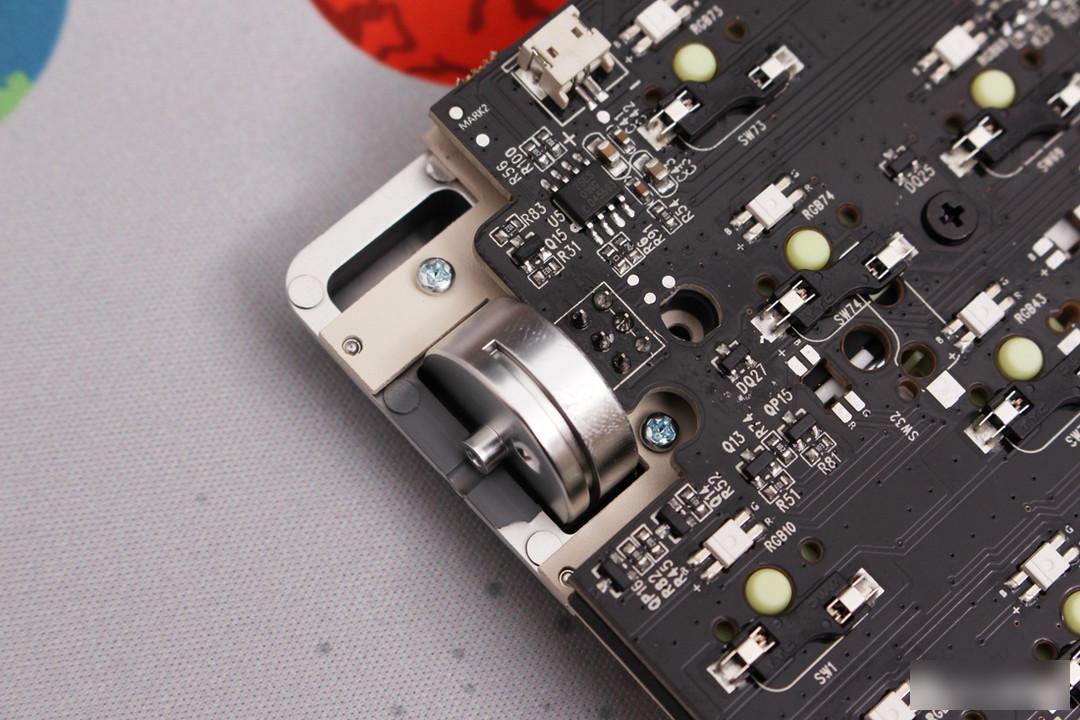

Mode switch mechanical switch

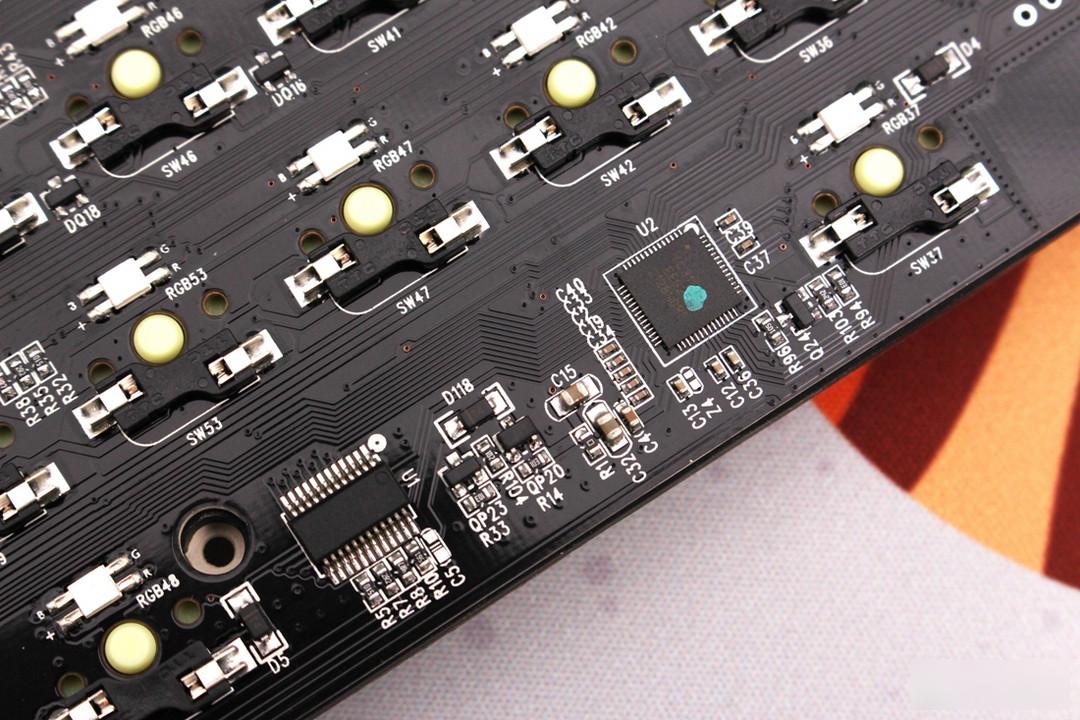

Keyboard master control and light control chip close-up

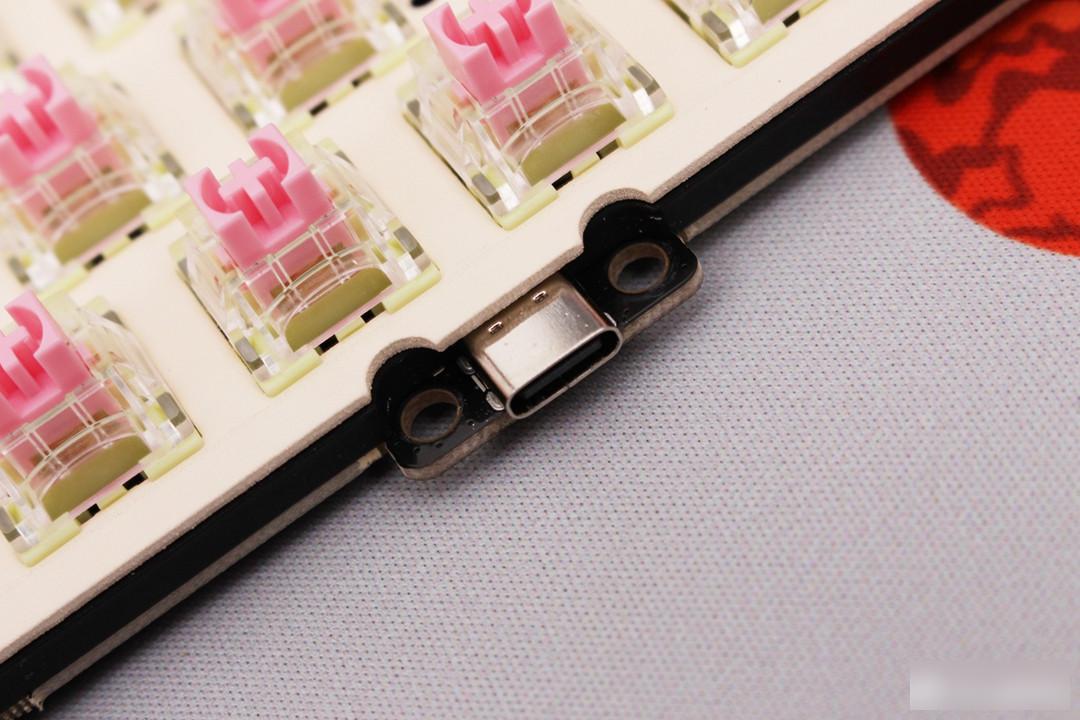

USB-C interface

There is a thick rubber pad between the PCB and the positioning board.

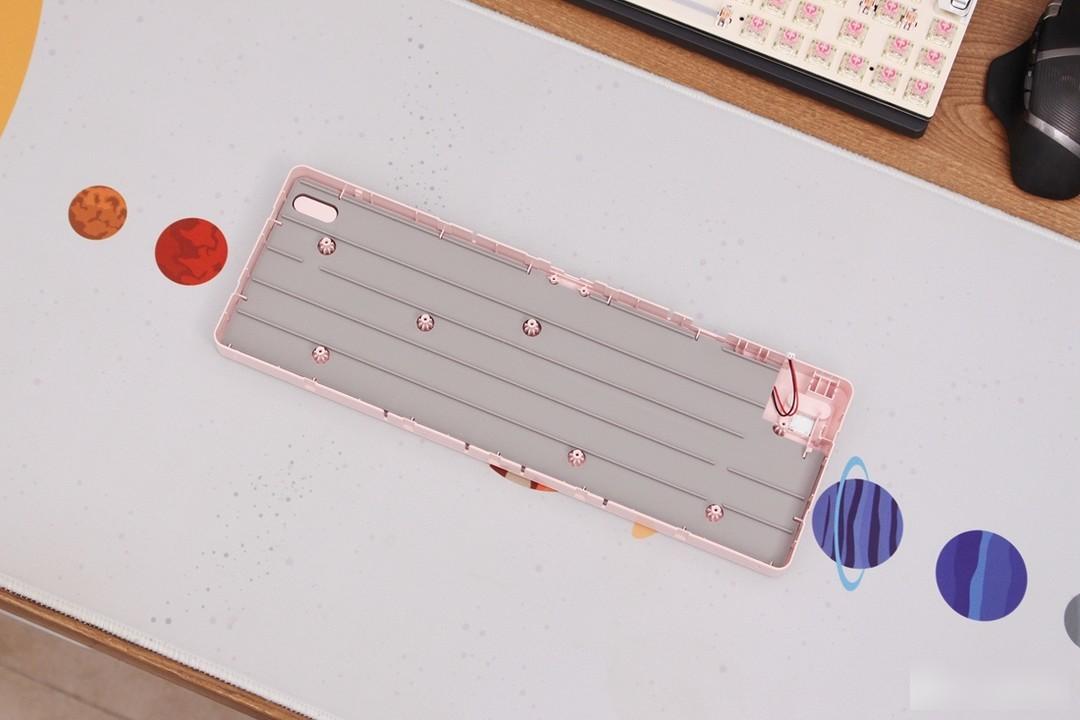

There is a layer of gray rubber support pads inside the keyboard bottom case.

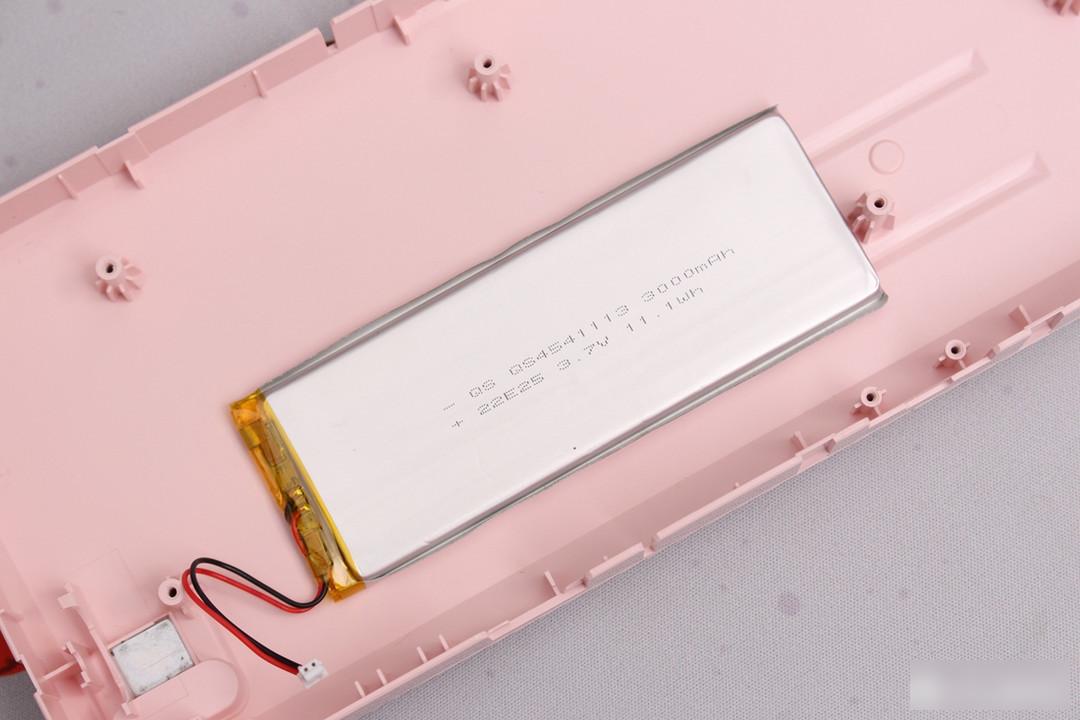

There is a 3000mAh lithium battery under the rubber pad. The lithium battery is not fixed by sticking. There is a battery slot on the inside of the gray rubber pad, which can just be inserted into the battery, which can be regarded as fixing the battery.

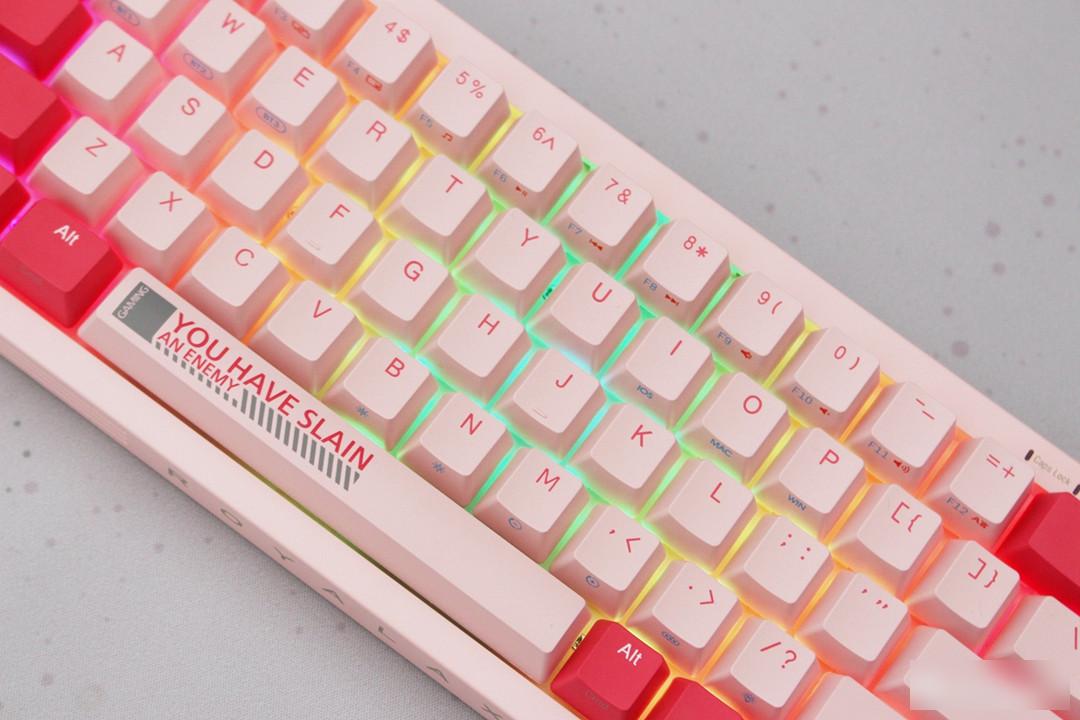

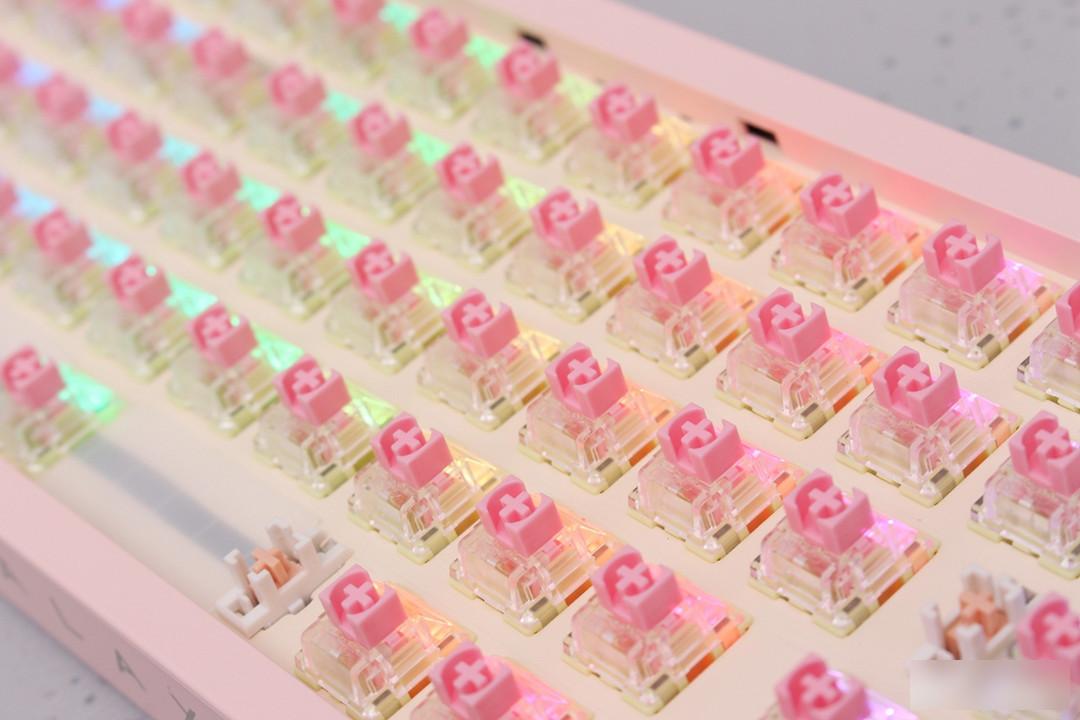

The keyboard turns on the RGB lighting effect

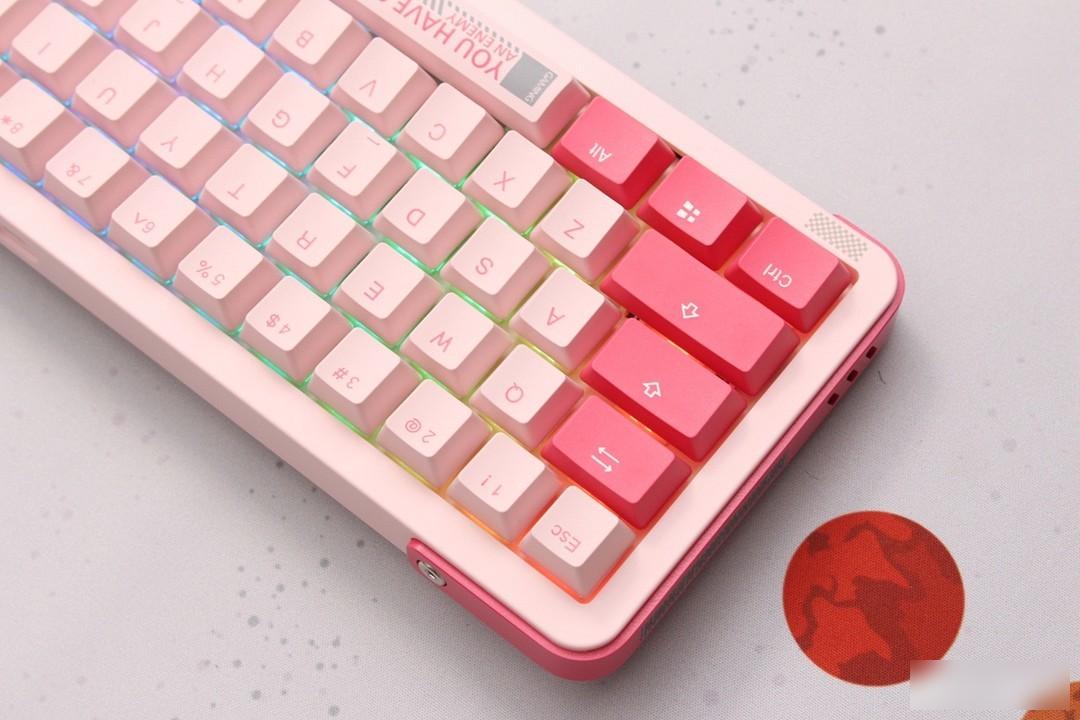

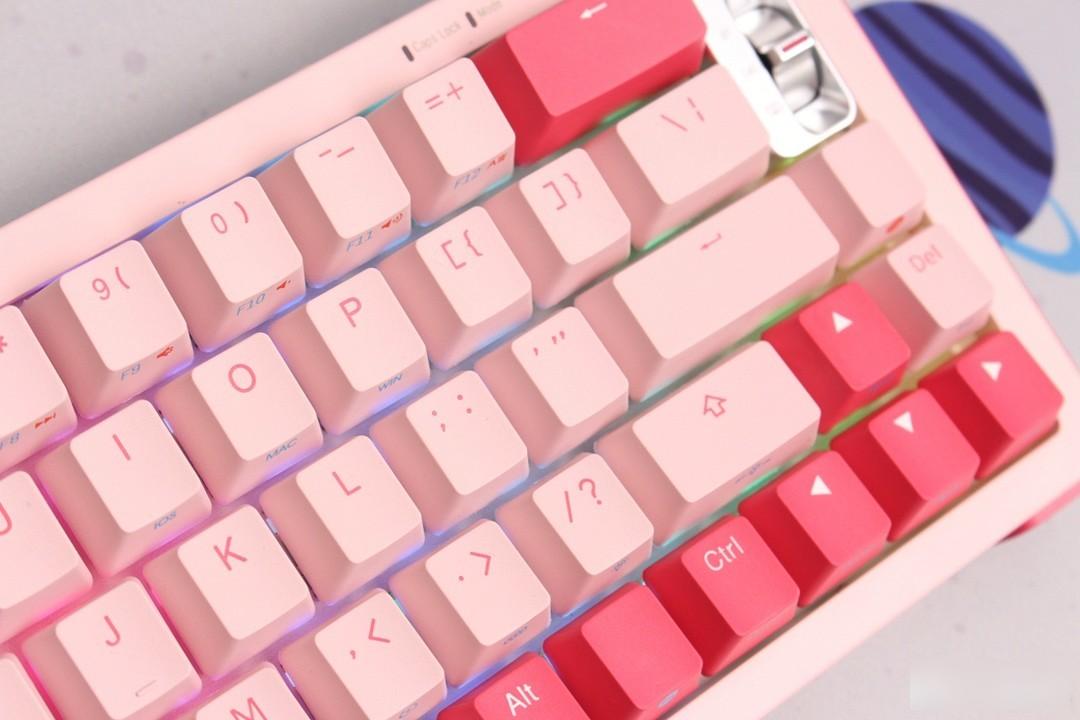

Keyboard lighting effect close-up

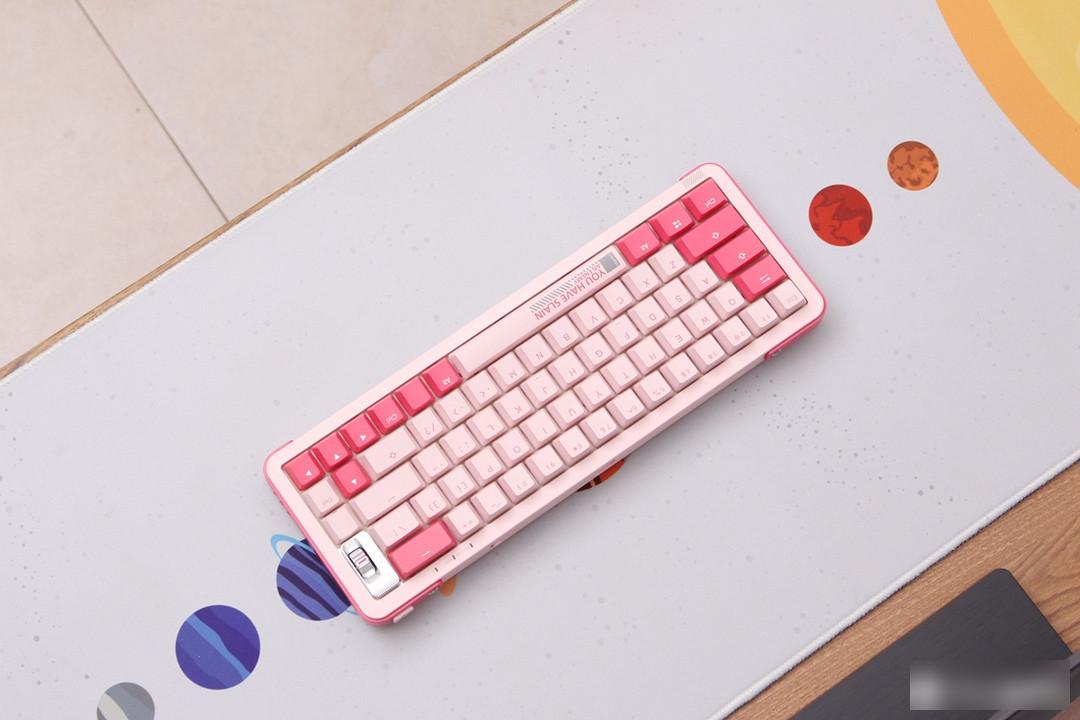

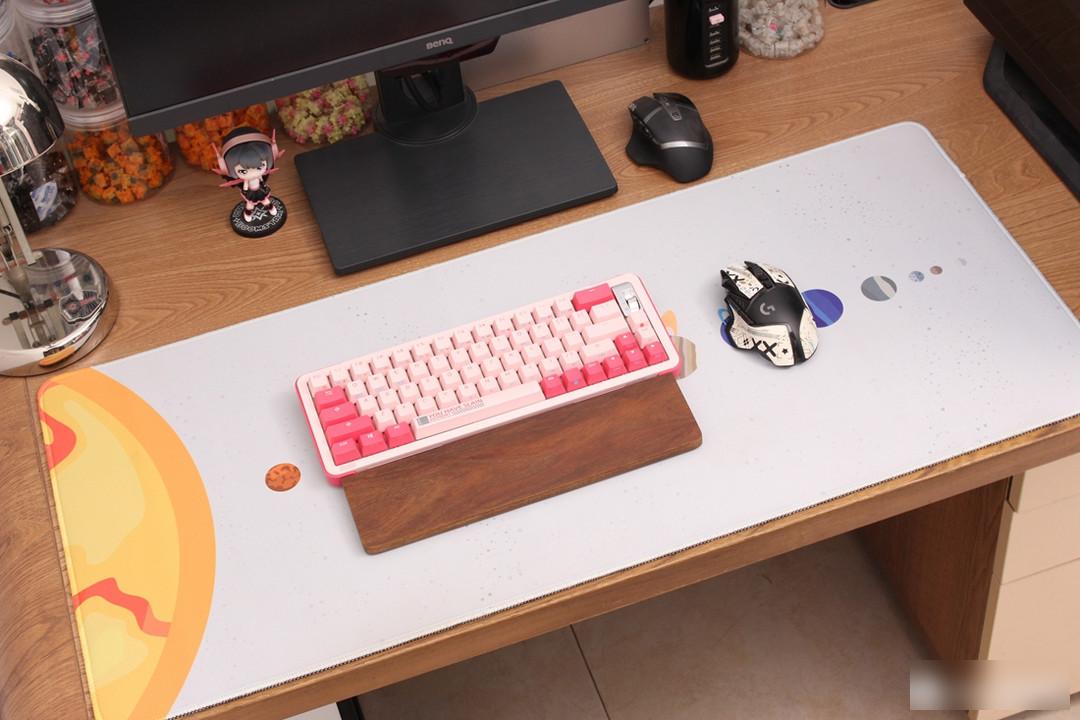

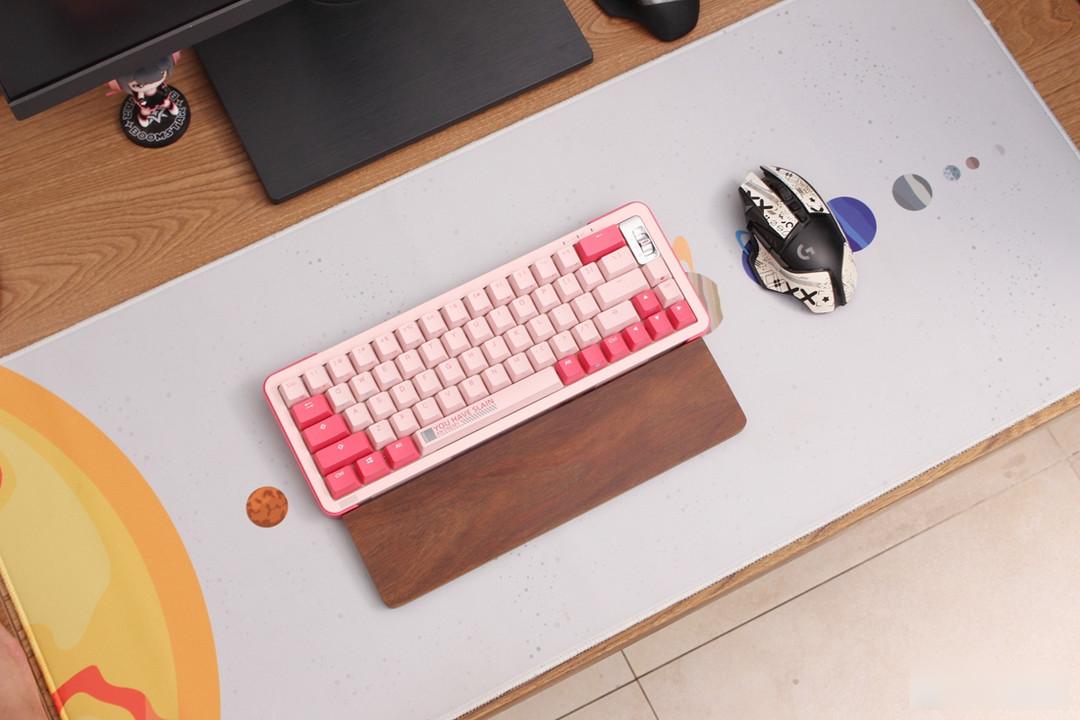

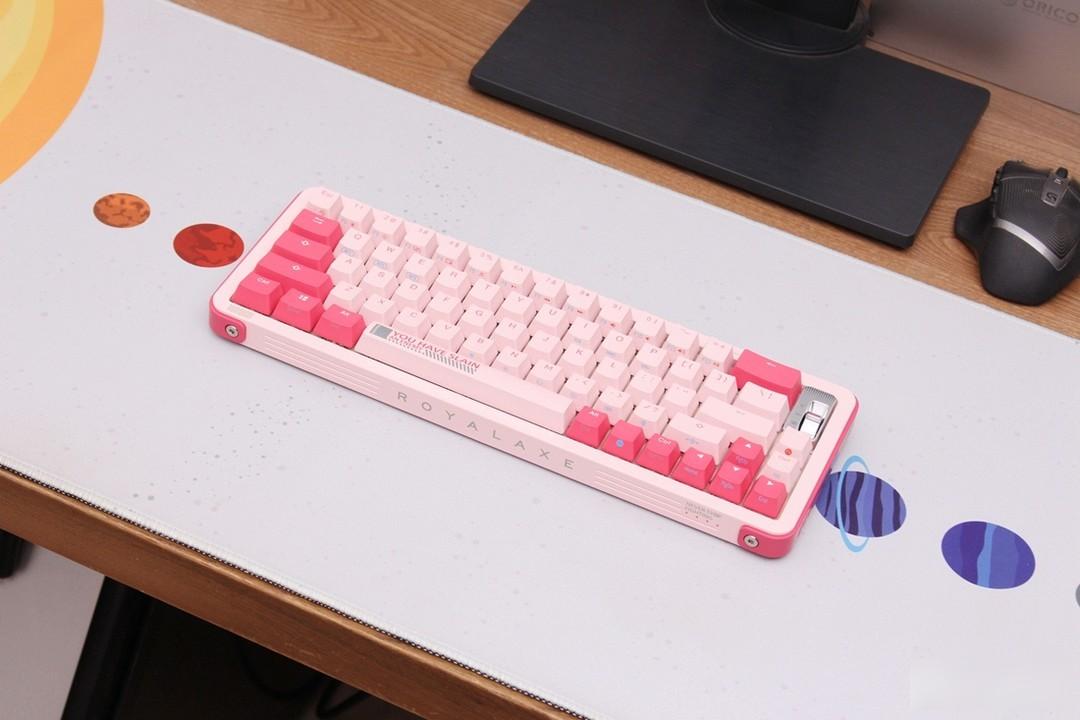

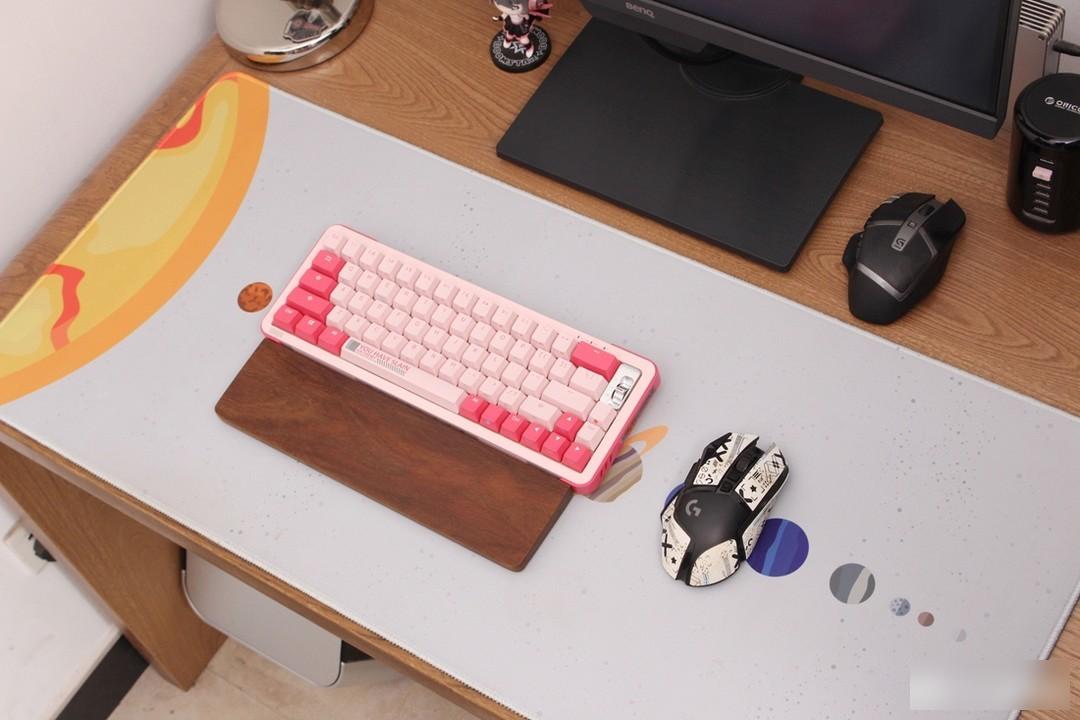

Overall close-up of the desktop

Overall close-up of the desktop

Overall close-up of the desktop

Summarize : It is not easy to find your own way in the same mechanical keyboard design. Many keyboards have opened up a custom-like design route. This is the custom-made shoe. There is no way to go, it is a bit exaggerated, but the mechanical keyboard products of small factories in the past two years are very hard, very curly, and it is difficult to sell without something different. Yufu Y68 three-mode mechanical keyboard provides almost all the functions that can be given to players, such as RGB lighting, PBT keycaps, full-key no punching, drivers, switch hot-swappable, net red switch TTC gold powder V2 Yes, the design is not out of the ordinary. The three-mode switch on the right side of the keyboard is also a small embellishment besides the function. Some features of the keyboard are the magnetic keyboard support feet, which can be freely disassembled and can be selected from 3 heights. The default support The feet can also be used reversibly. In order to increase the style of the keyboard, the ordinary USB-C cable has been replaced with two spring cables connected by aviation plugs. Does the metal nameplate on the back of the keyboard look like some customized keyboards? Customization can be played This keyboard pretty much has it all. In the disassembly, we can see that the internal workmanship of the keyboard is also very particular. There is a sound-proof rubber pad between the PCB and the positioning board, and there is a shock-absorbing rubber pad in the bottom shell of the keyboard. The internal and external workmanship is satisfactory. In the end, I hope Her Lady Queen can use it to her satisfaction.
