HELLO GANSS HS 75T three-mode RGB mechanical keyboard + misty rain purple keycap out of the box

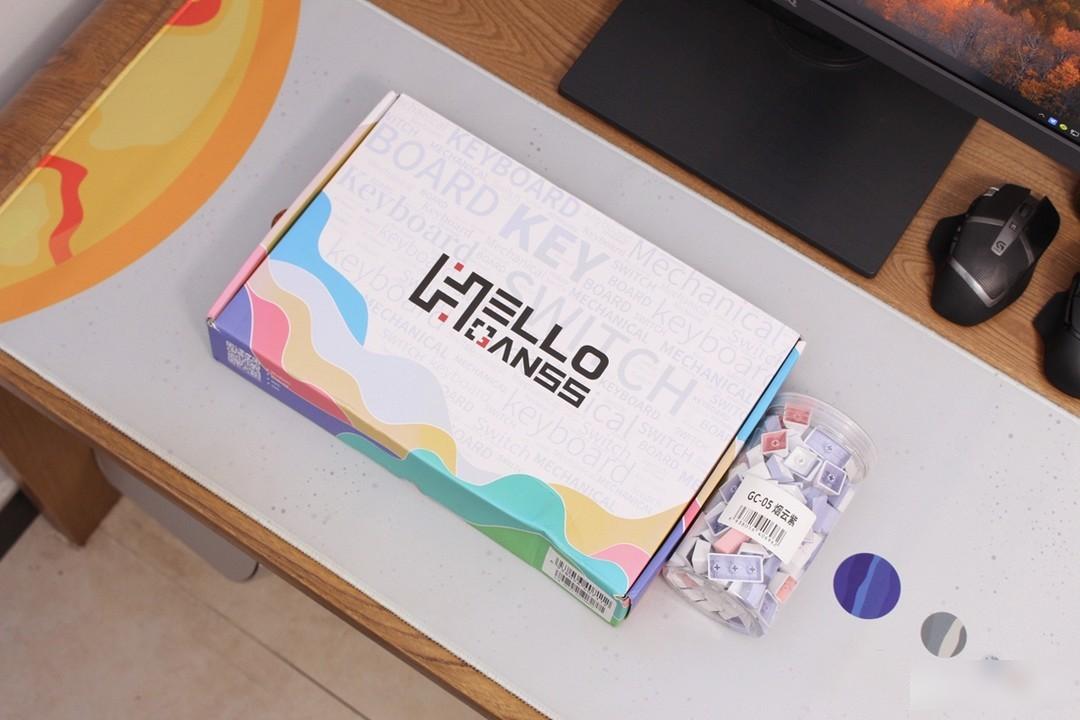

This time, I would like to share with you the unboxing experience of HELLO GANSS HS 75T three-mode RGB mechanical keyboard + smoke and rain purple keycaps. I seldom touched HELLO GANSS keyboard products before. I didn’t expect that the current keyboard colors are so small and fresh.

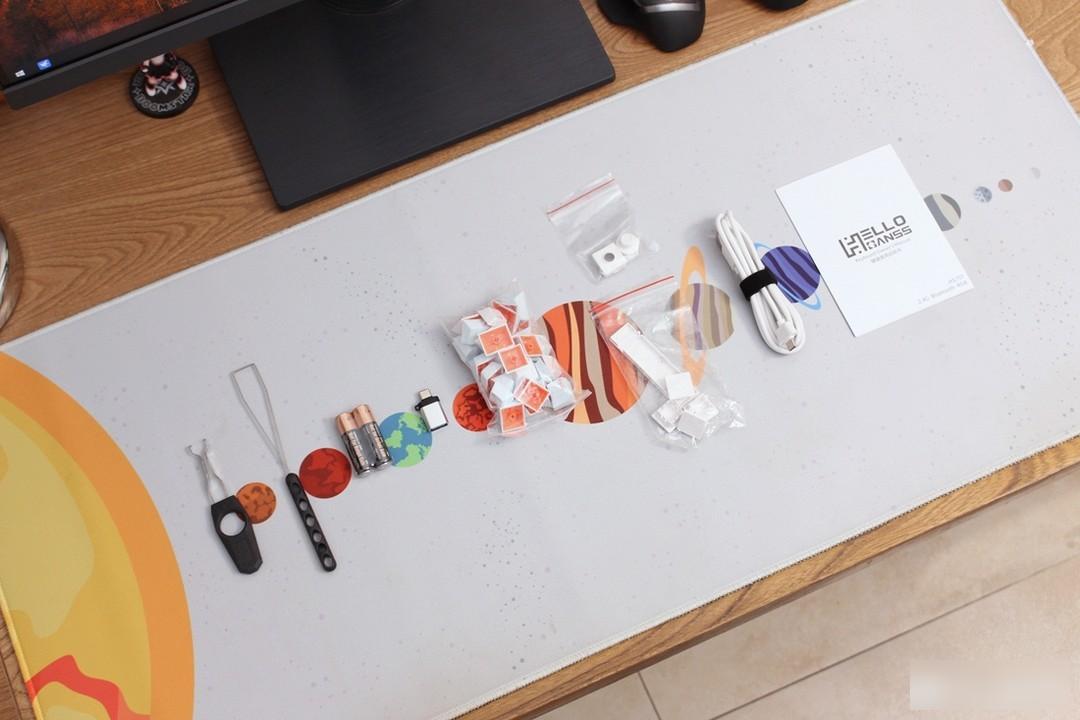

Accessories: shaft puller, key holder, 2 AA batteries, USB-C adapter, supplementary keycaps for large-size keyboards, key shielding covers, USB-C interface data cables, manuals.

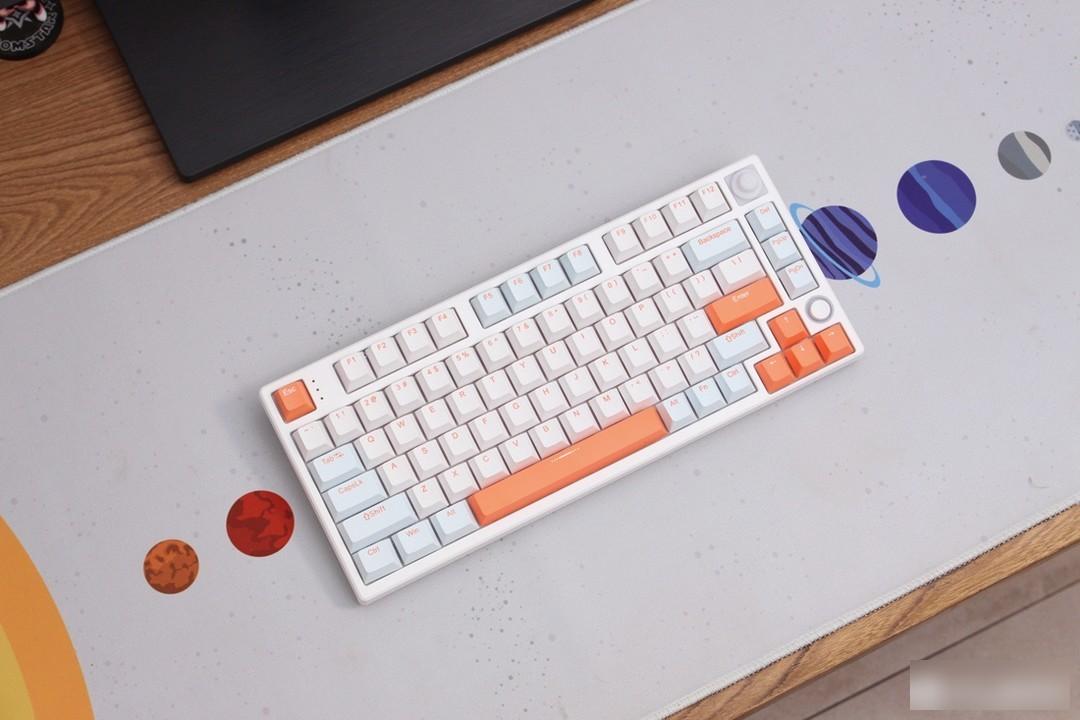

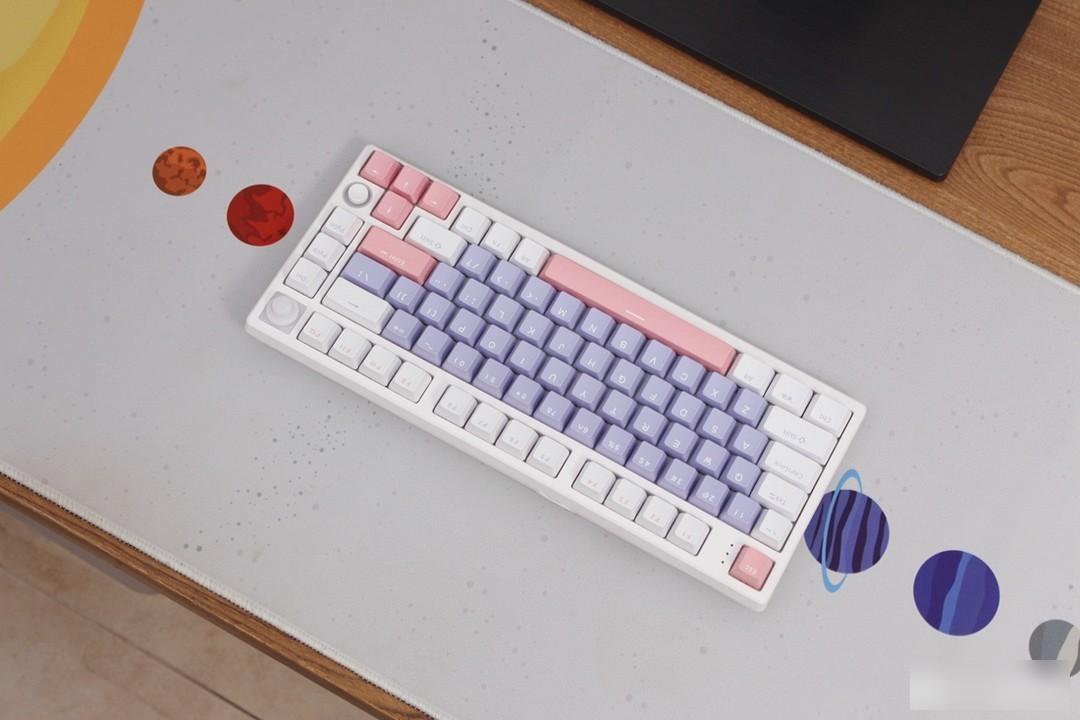

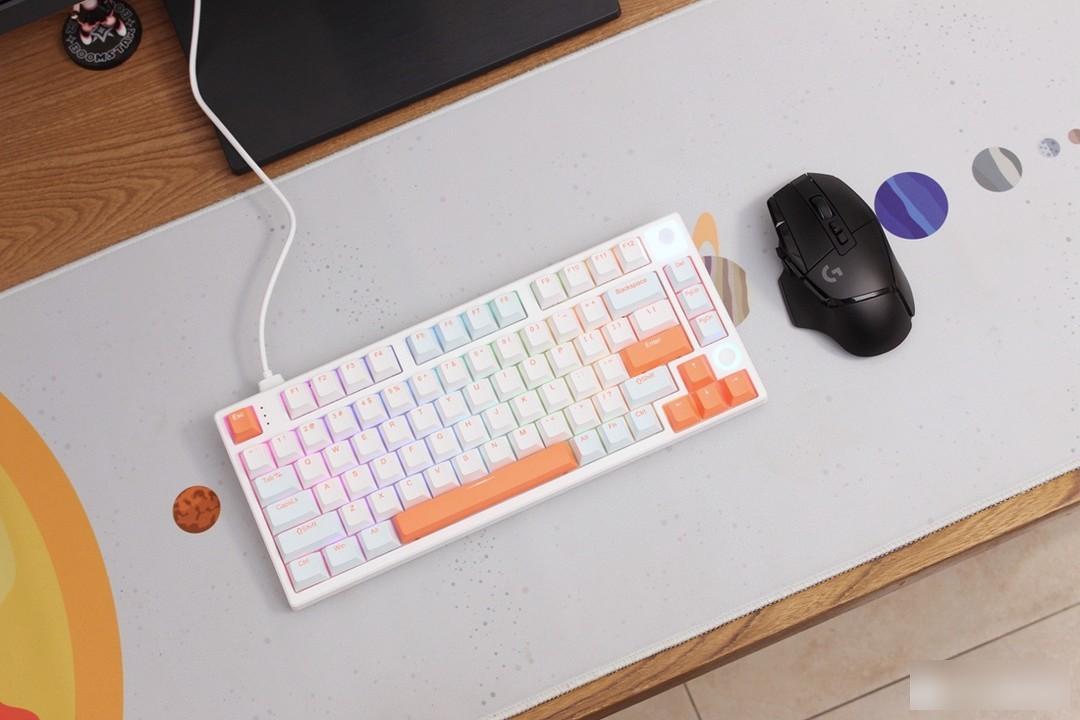

HELLO GANSS HS 75T three-mode RGB mechanical keyboard is an 80-key keyboard with 75% layout, the overall size is 318*136*33mm, and the weight is 828g. The keyboard supports three connection methods: 2.4G wireless, USB wired, and Bluetooth 5.1, which greatly facilitates switching operations between various terminals.

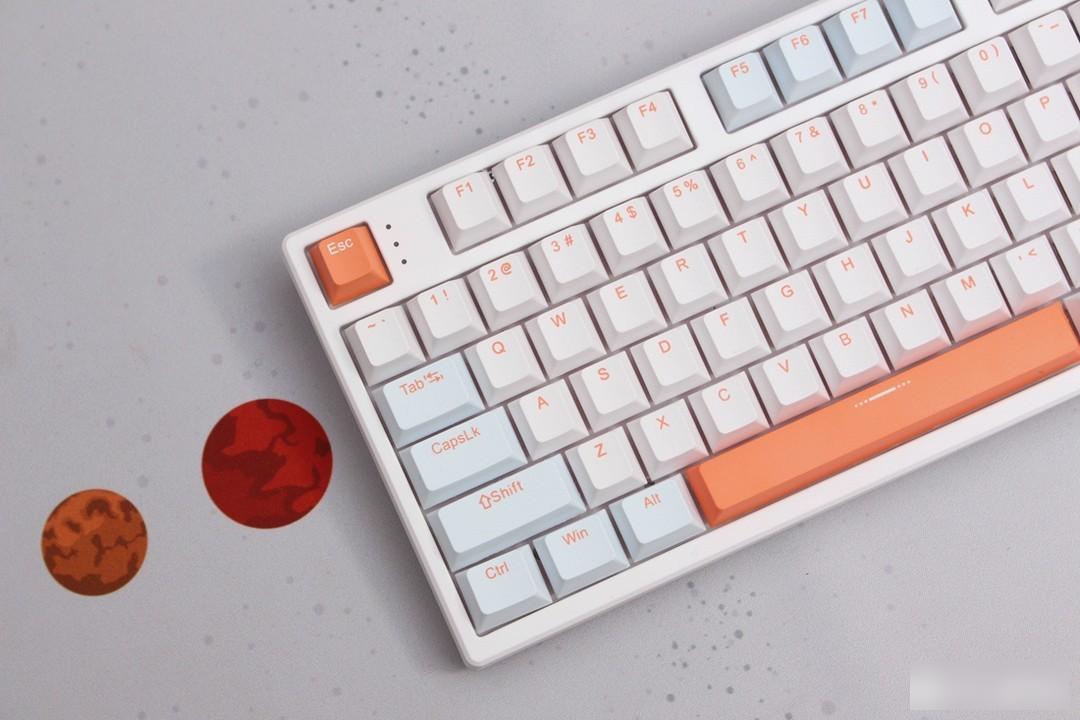

The name of this keyboard is Baiyu, and the color combination of the keyboard and the switch body is very small and fresh. The keycaps are made of PBT two-color injection molding process, a total of three colors are matched, but the keycaps do not have the light transmittance of the text, so the RGB lighting effect text part of the keyboard will not light up, although the lighting effect is poor. Some, but the overall appearance of the keyboard has been greatly improved.

The keyboard can be installed with 4 AA batteries, but it can be used normally with only 2 batteries installed. The battery life of 4 AA batteries can reach 600 hours. If it is used for 3 hours a day, it can be used for about 200 days. What is interesting about keyboard price comparison is that the keyboard can only turn on the RGB backlight function in wired mode, and the backlight cannot be turned on in 2.4G and Bluetooth modes, which also forces users to maximize the battery life of the keyboard.

The keyboard supports a variety of combination key functions, but there is no functional mark on the keycaps, so please keep the instruction manual so that you can easily query the functions of each combination key.

The keyboard is equipped with Jiadalong’s G silver switch PRO, and the keyboard supports hot-swappable switches. If you want to change the switch, you can easily do it yourself.

keyboard light

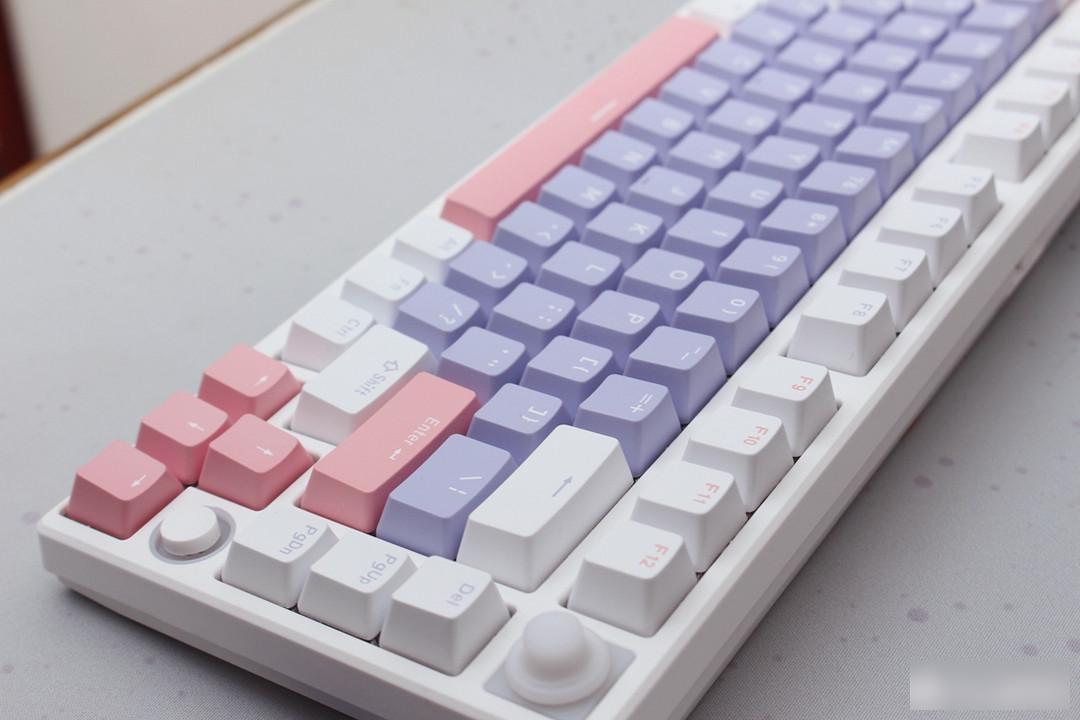

The detachable audio knob, press to mute or unmute function, turn to the left to decrease the volume, and turn to the right to increase the volume.

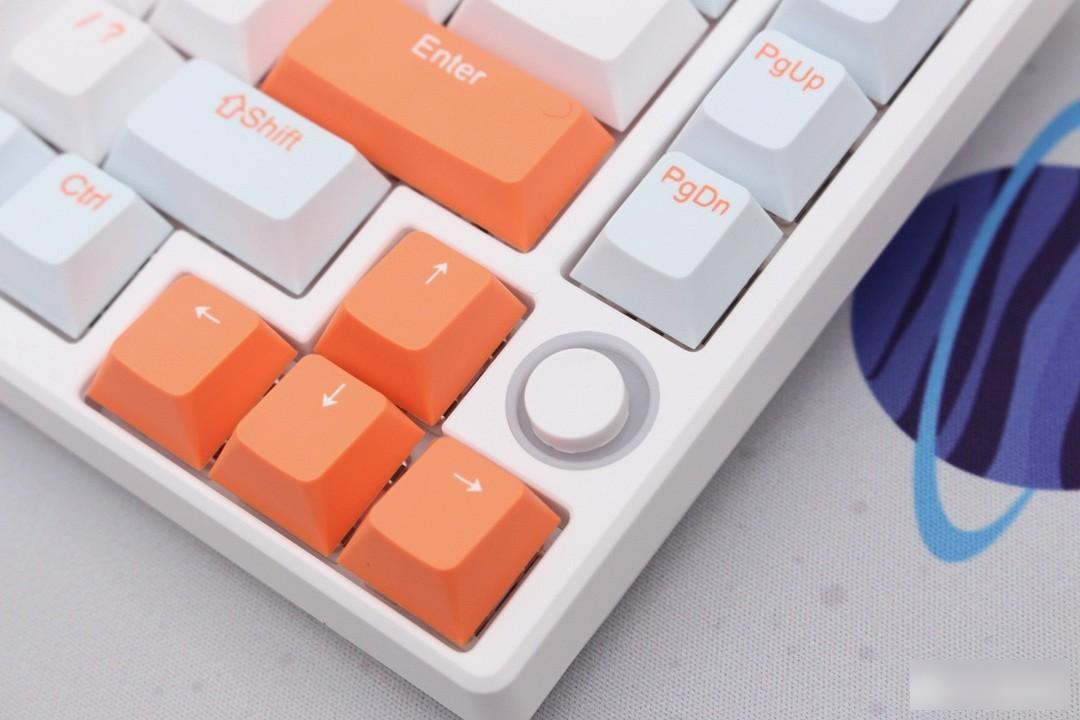

5-way navigation lever, in the wired mode, you can adjust the RGB light speed and light brightness here, and you can also customize the function of the lever during driving.

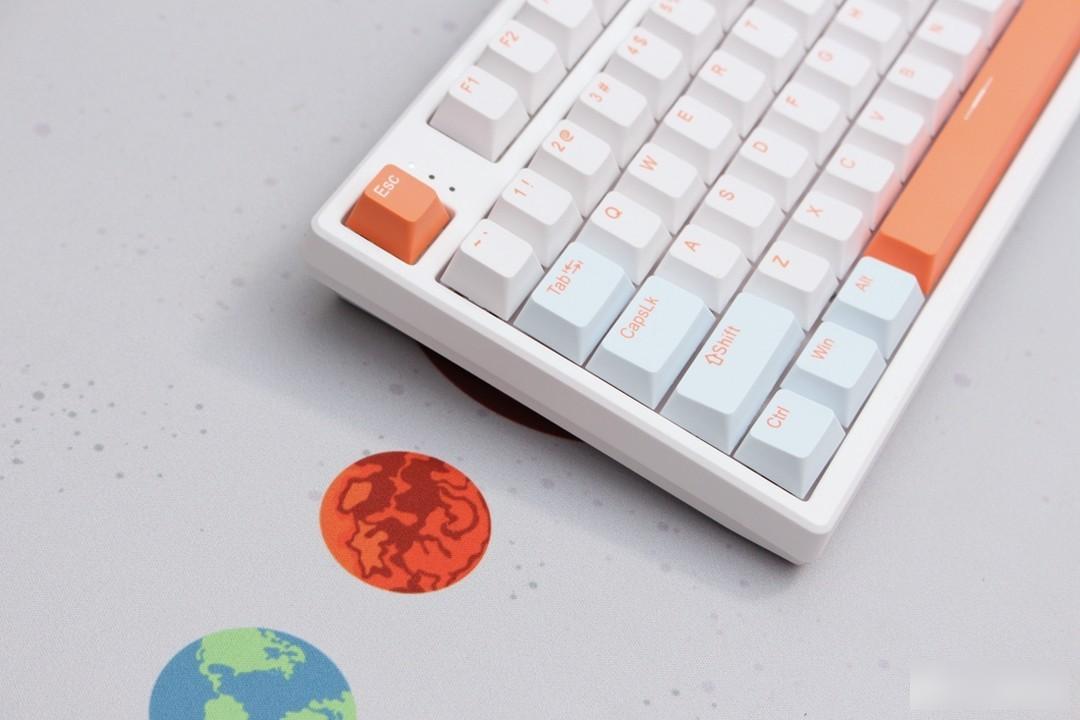

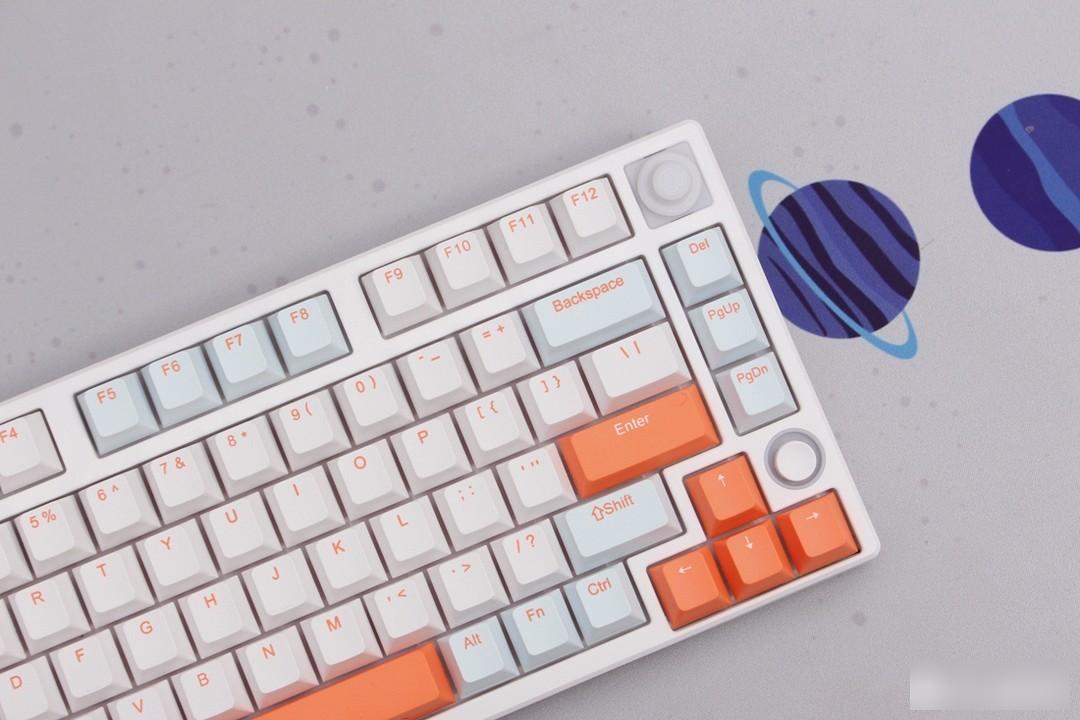

keyboard close-up

keyboard close-up

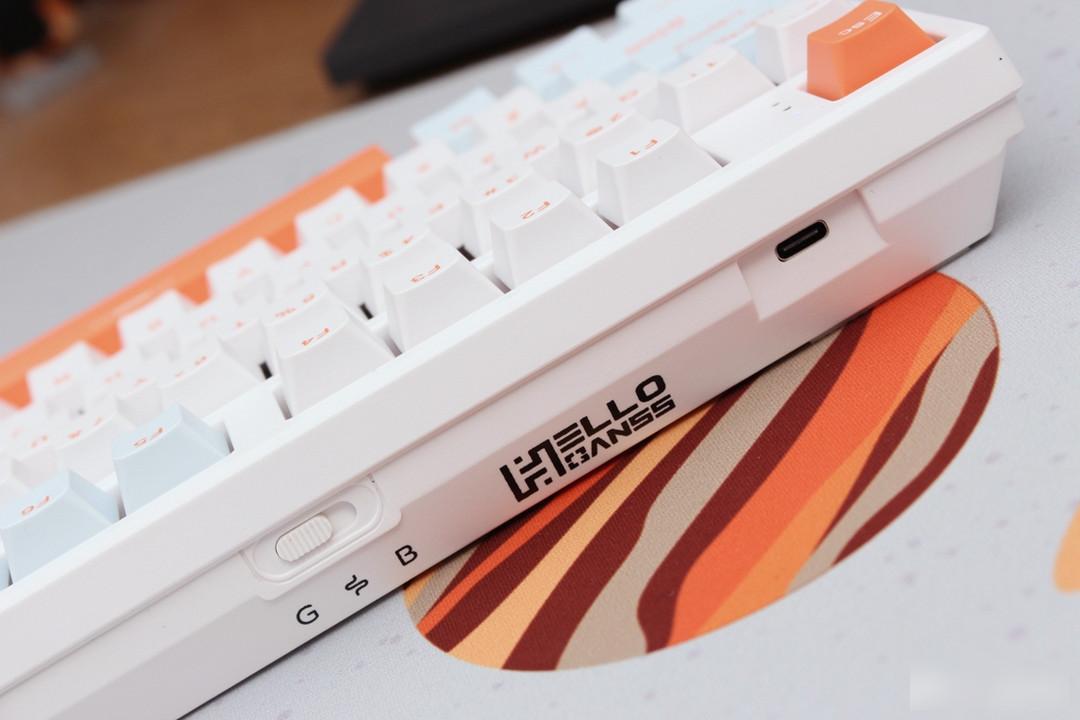

On the left is a 3-mode switch, from left to right are 2.4G connection mode, wired connection mode, and Bluetooth connection mode. On the far right of the keyboard is the USB-C cable interface.

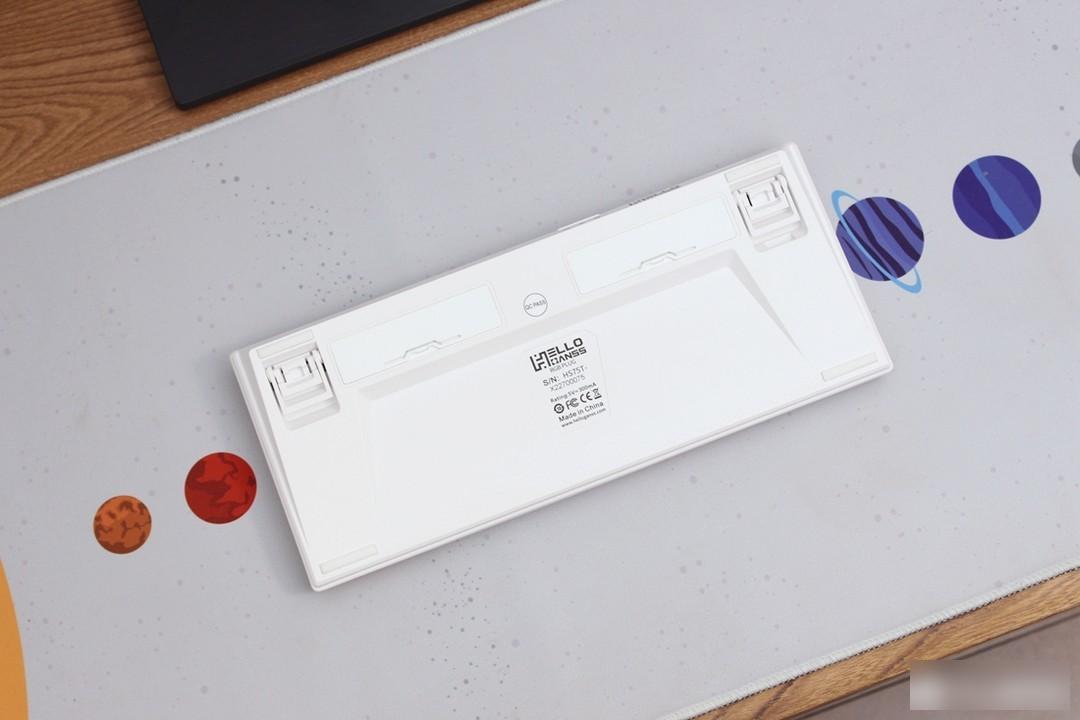

Close-up of the back of the keyboard

Battery compartment close-up

The 2.4G wireless receiver is stored on one side of the support leg. This design is very convenient. If the support leg is not opened, the receiver cannot be taken out. This design prevents the receiver compartment from loosening and causing the receiver to slip out.

2.4G wireless receiver close-up

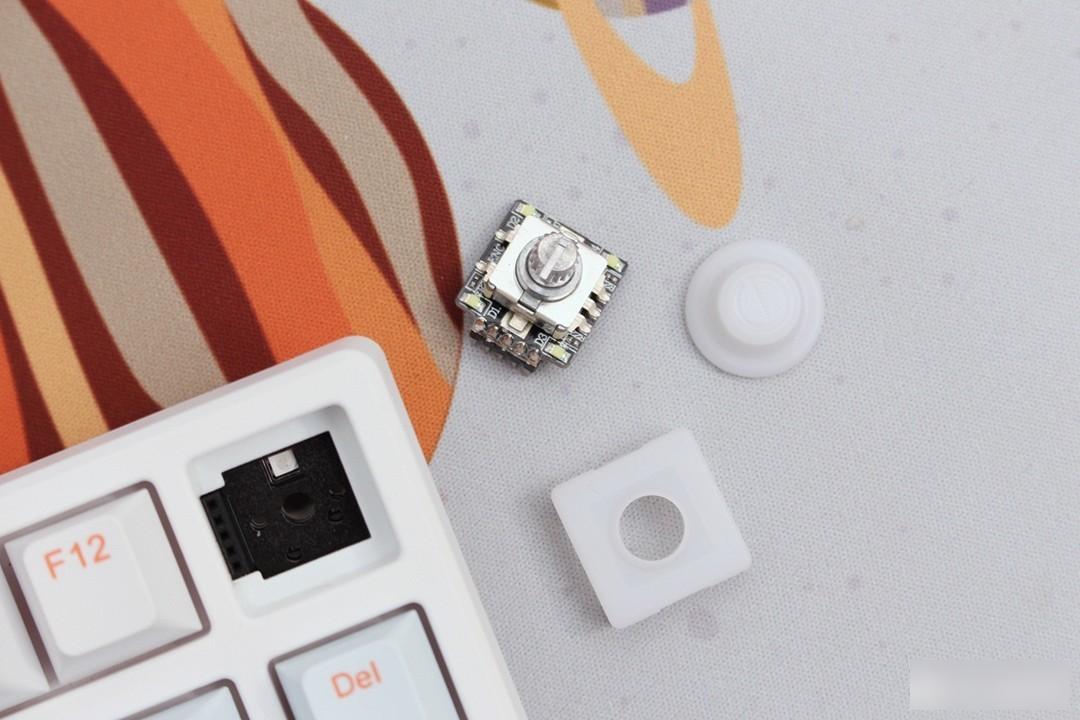

The audio adjustment switch in the upper right corner of the keyboard can be pulled out, and it can be replaced with a cover plate, so this function is no longer used.

Pay attention to the 5 pins here when installing.

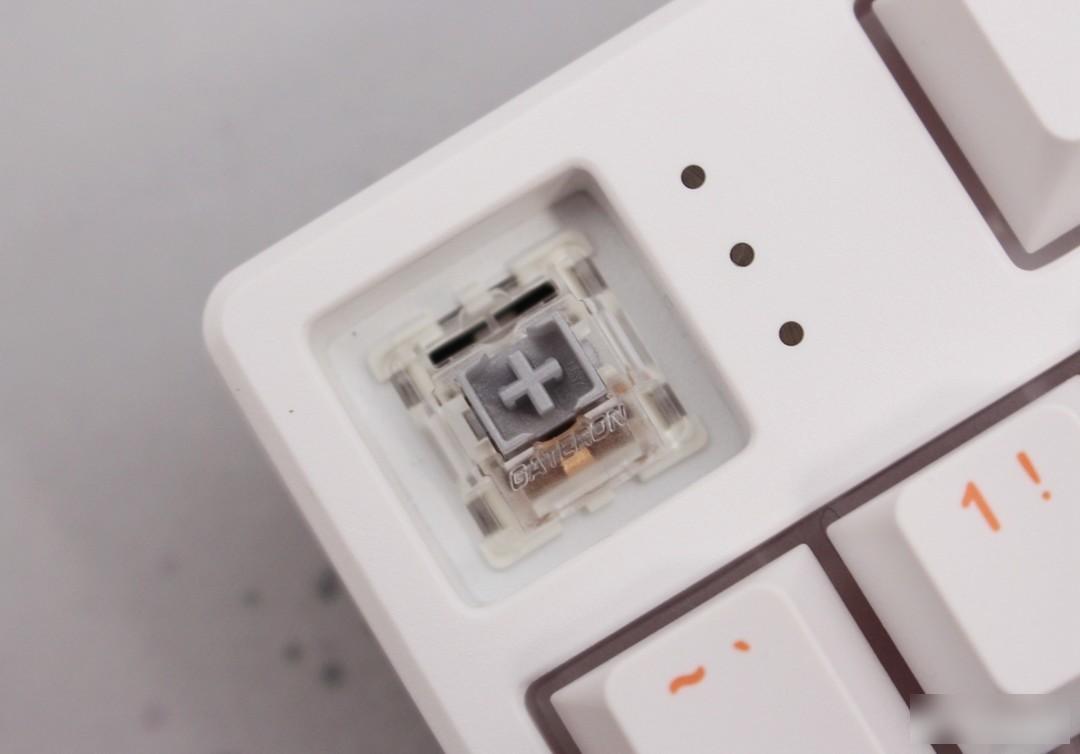

A shaft body can also be installed here to be used as a button, which is a very clever design.

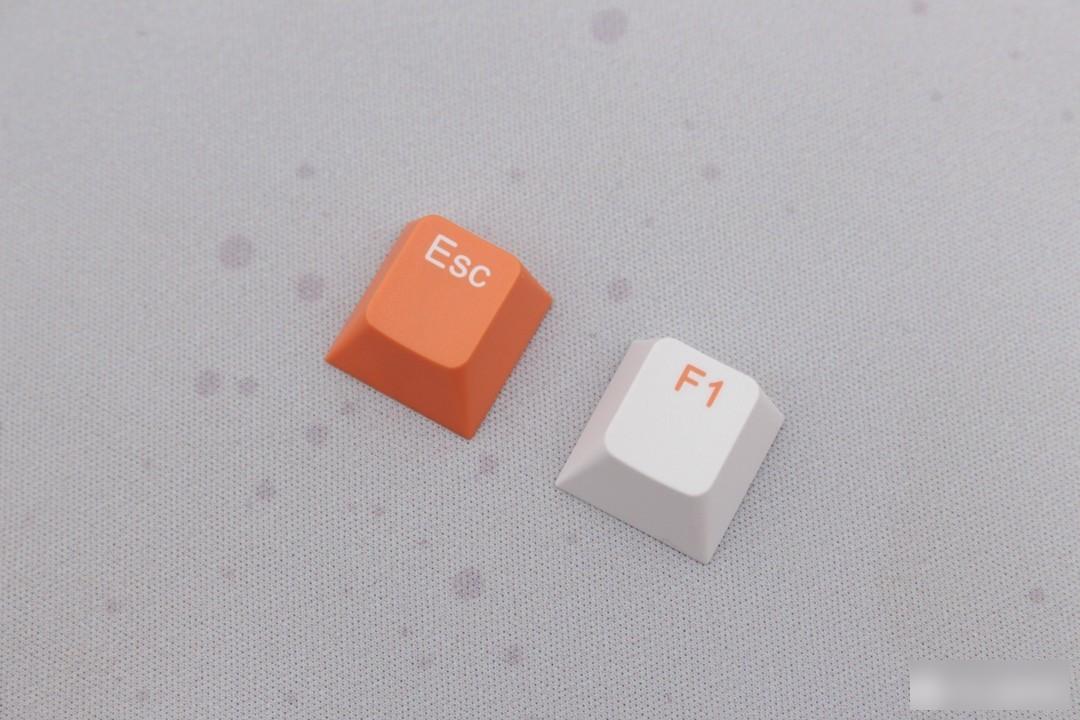

keyboard keycap close-up

The keycap is made of PBT material, which is made by two-color injection molding process. The surface of the keycap can be very fine and the details are handled very well.

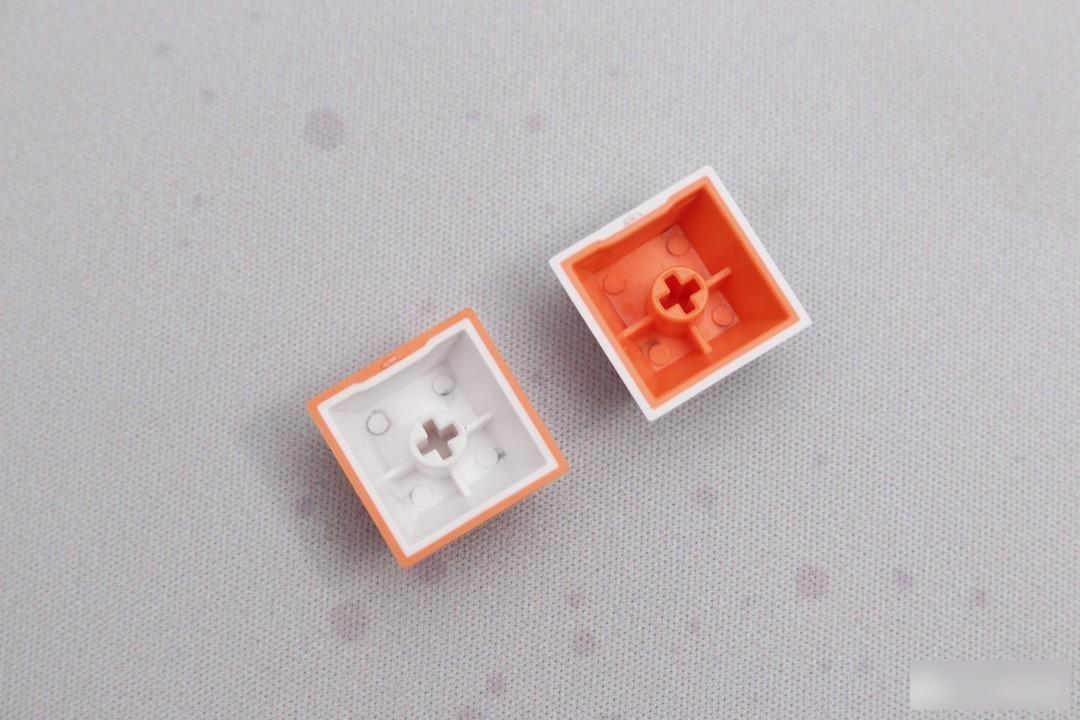

Close-up of the back of the keycap

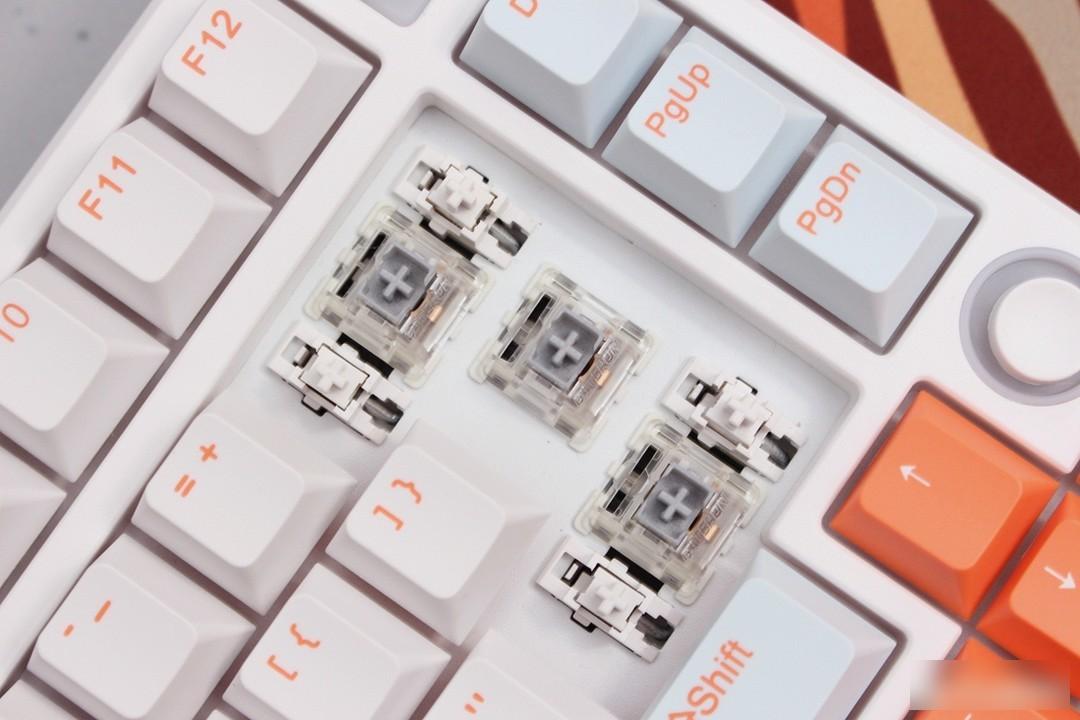

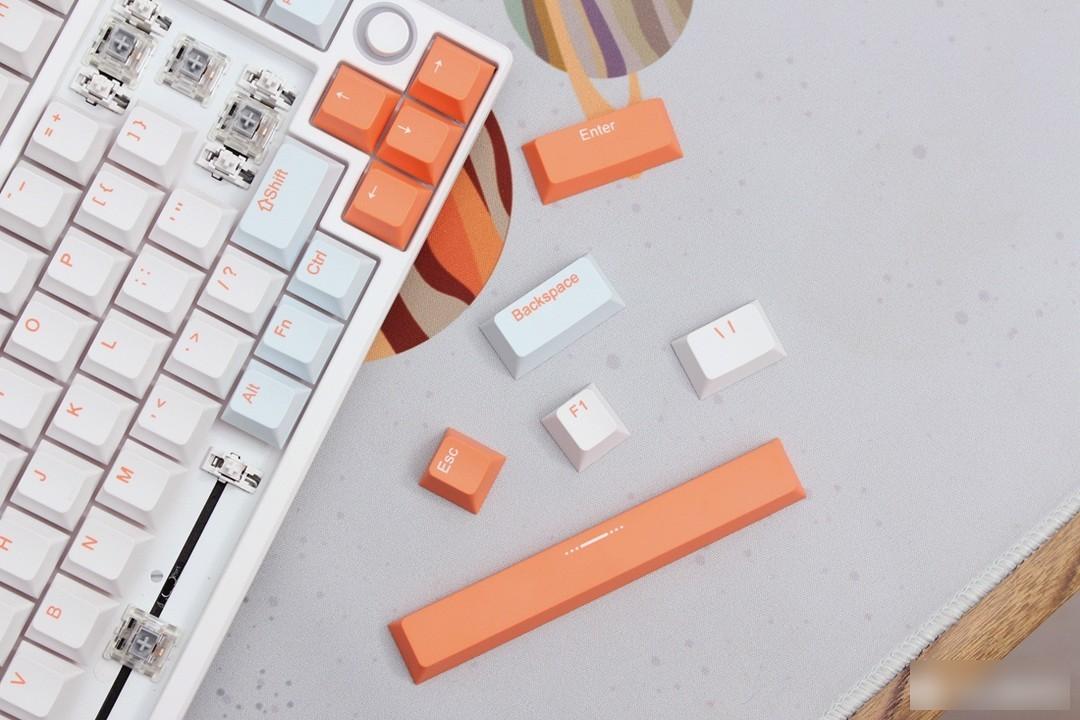

Big button close-up

The satellite axis of the big button has been optimized quite well, and none of the buttons has a sensual feel.

Jiadalong G silver switch PRO, this is a linear switch with fast trigger speed, the total stroke of the axis is 3.4mm, the trigger stroke is 1.2mm, the trigger pressure is 43g, the bottoming pressure is 50g, and the key life can reach 80 million times , The shaft has been lubricated before leaving the factory, and the buttons go up and down very smoothly.

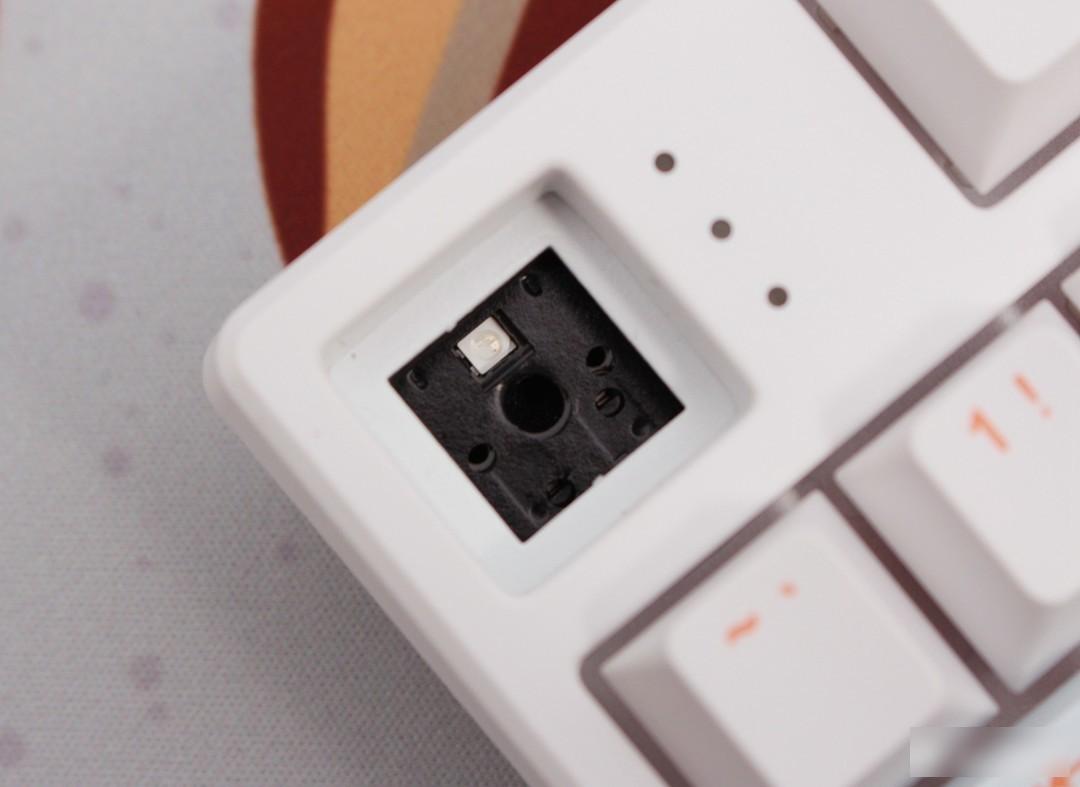

The keyboard supports hot-swappable switches, and supports switches with 3-5 feet. The LED lamp beads are reversely attached to the back of the PCB, even if there is a switch with a light guide column, it is also compatible.

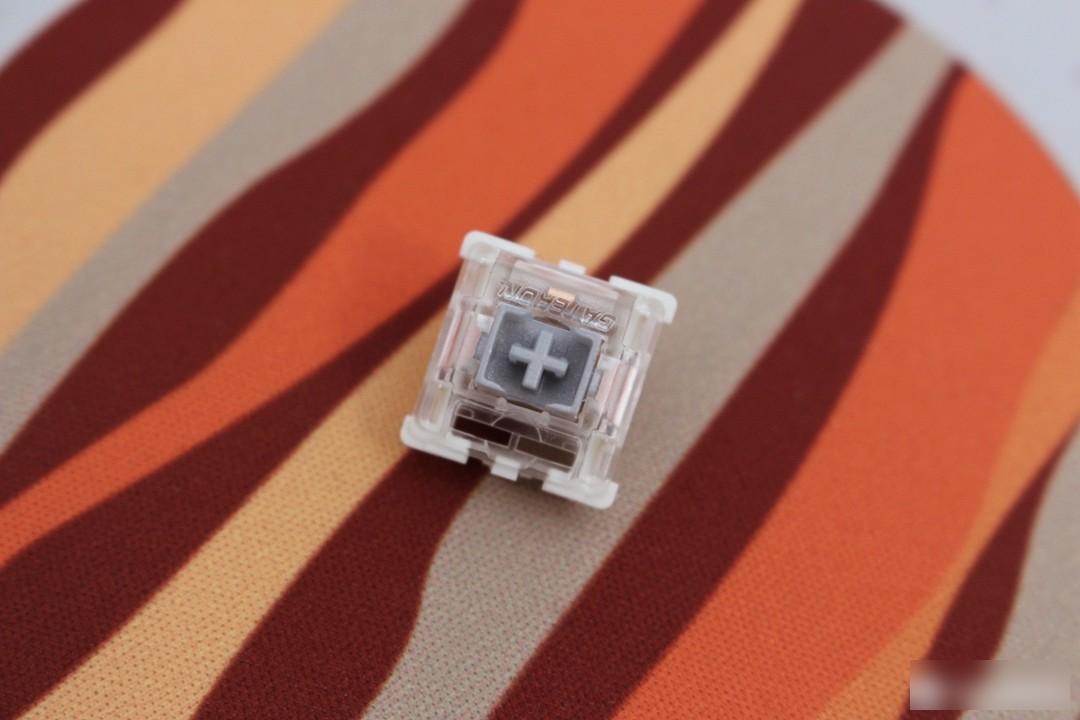

Jiadalong G Silver Axis PRO

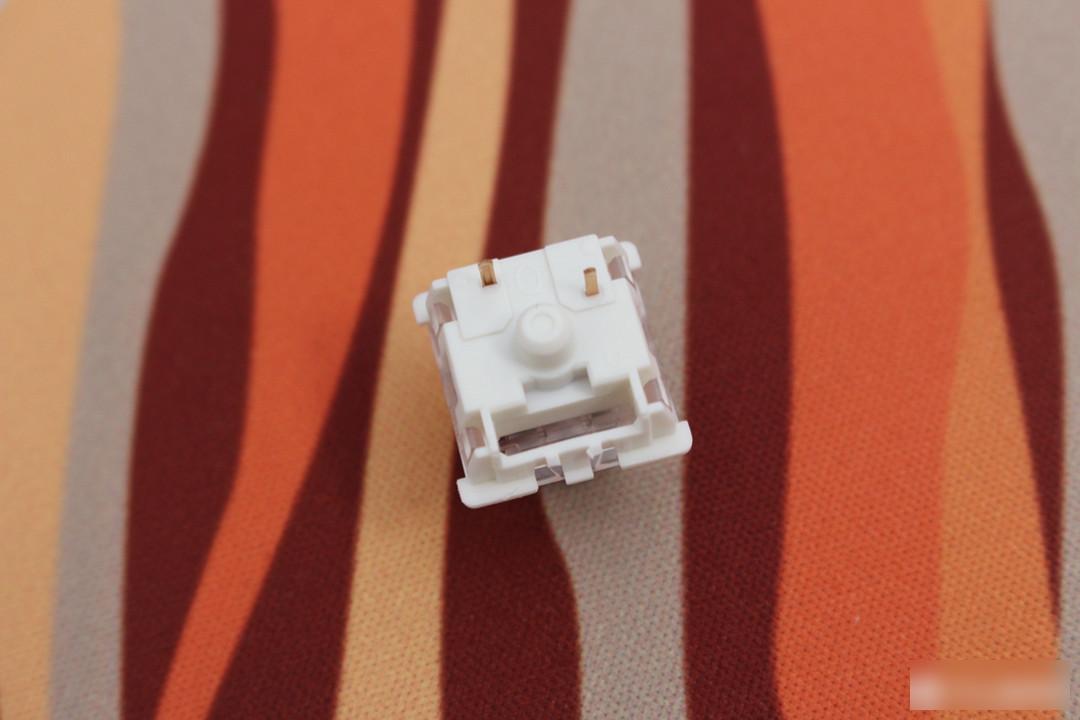

Jiadalong G Silver Axis PRO

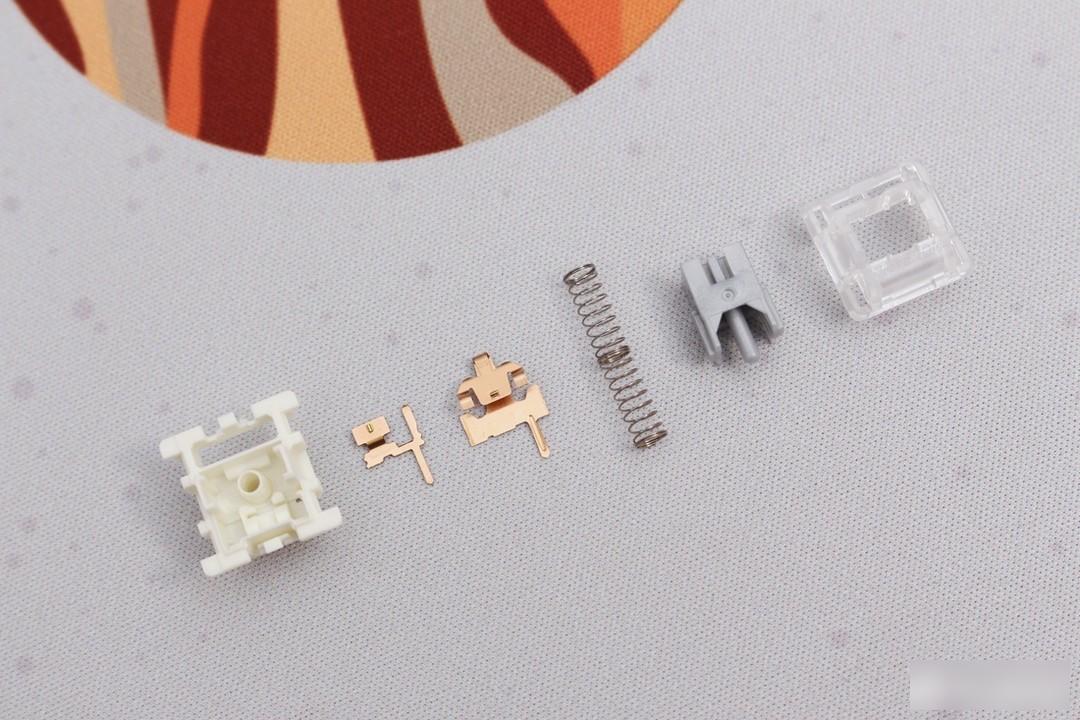

Shaft disassembly close-up

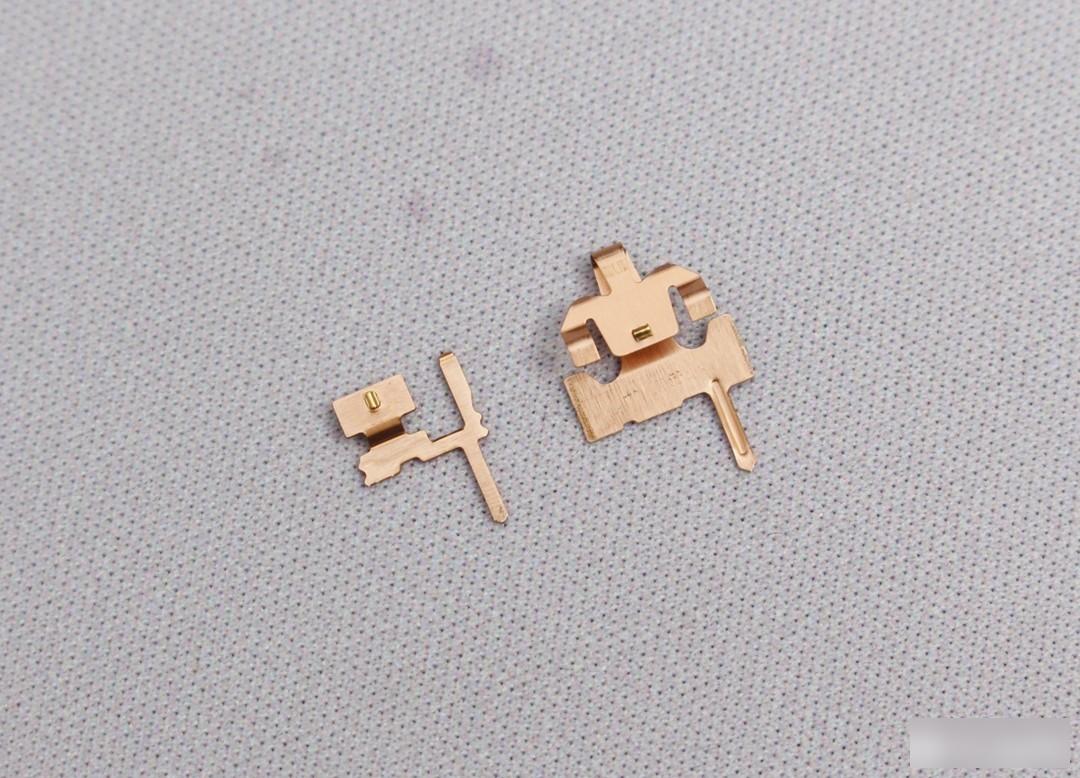

Shrapnel and terminal close-up

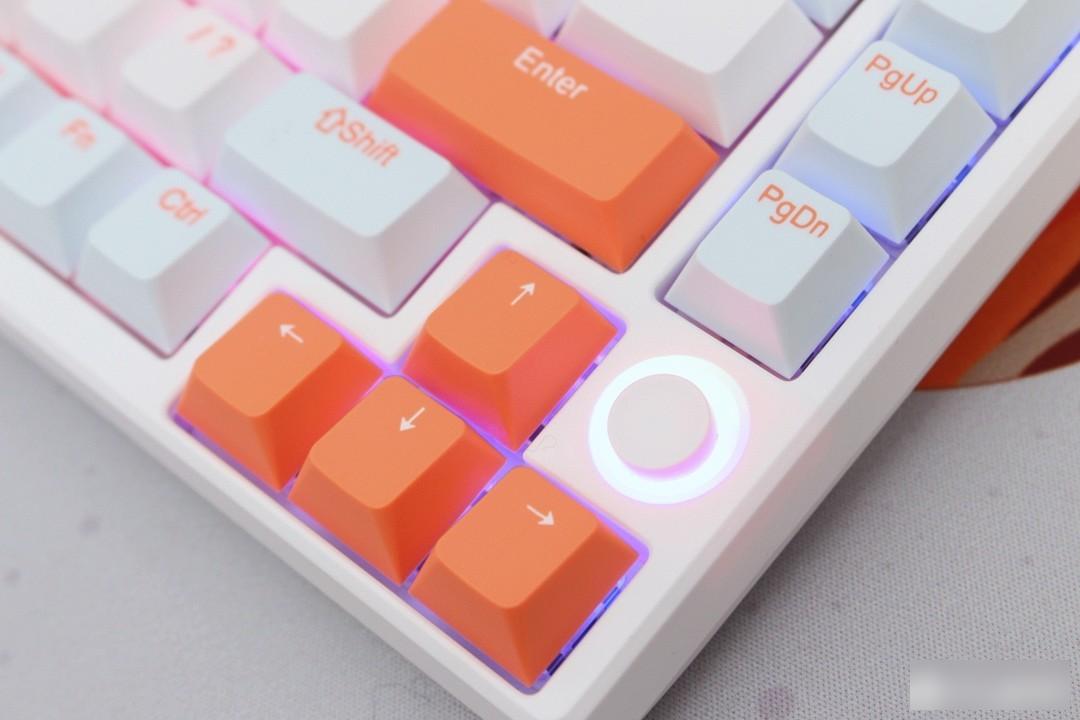

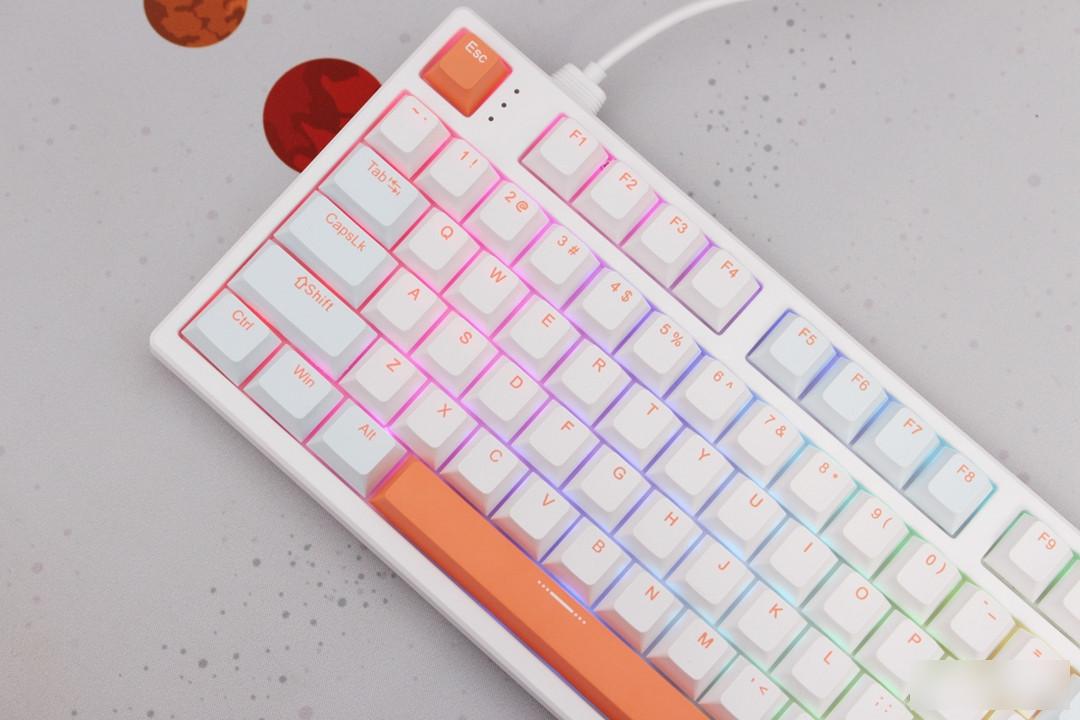

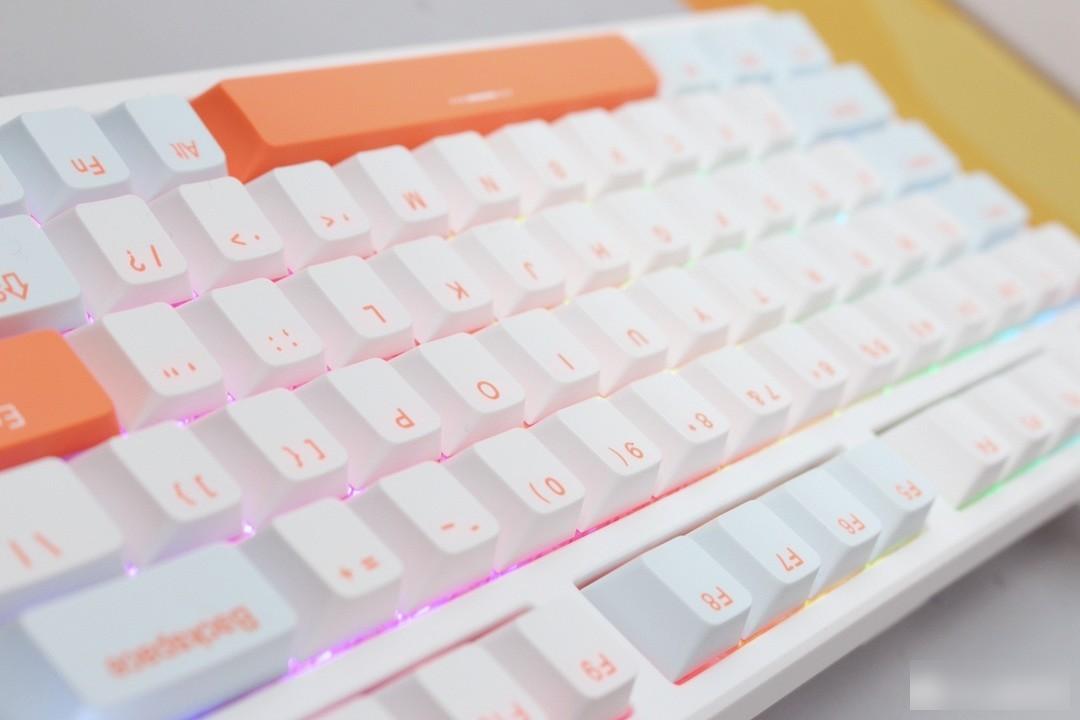

Turn on the keyboard light in wired mode

The color of the light is warm and bright.

The keyboard supports custom key functions and Fn key combination functions in the driver.

The driver supports macro editing functions and setting trigger buttons.

Here you can also choose and customize the RGB lighting mode.

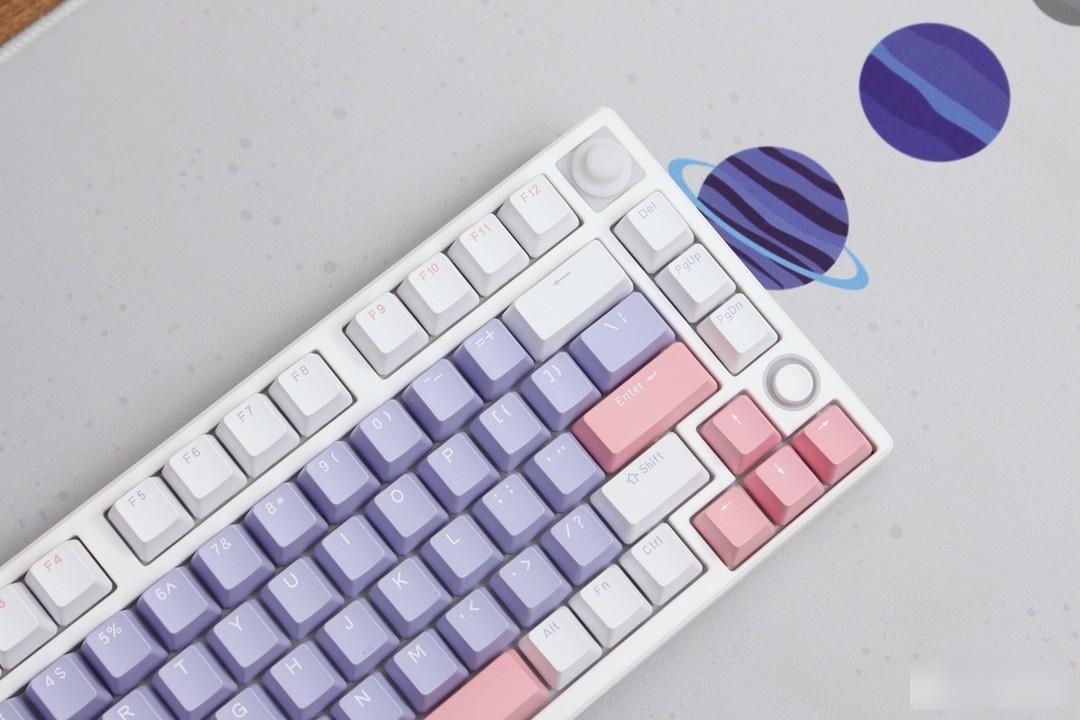

HELLO GANSS Misty Rain purple keycaps support a full-size arrangement of 104 keys, so there are plenty of keycaps to be installed on this keyboard.

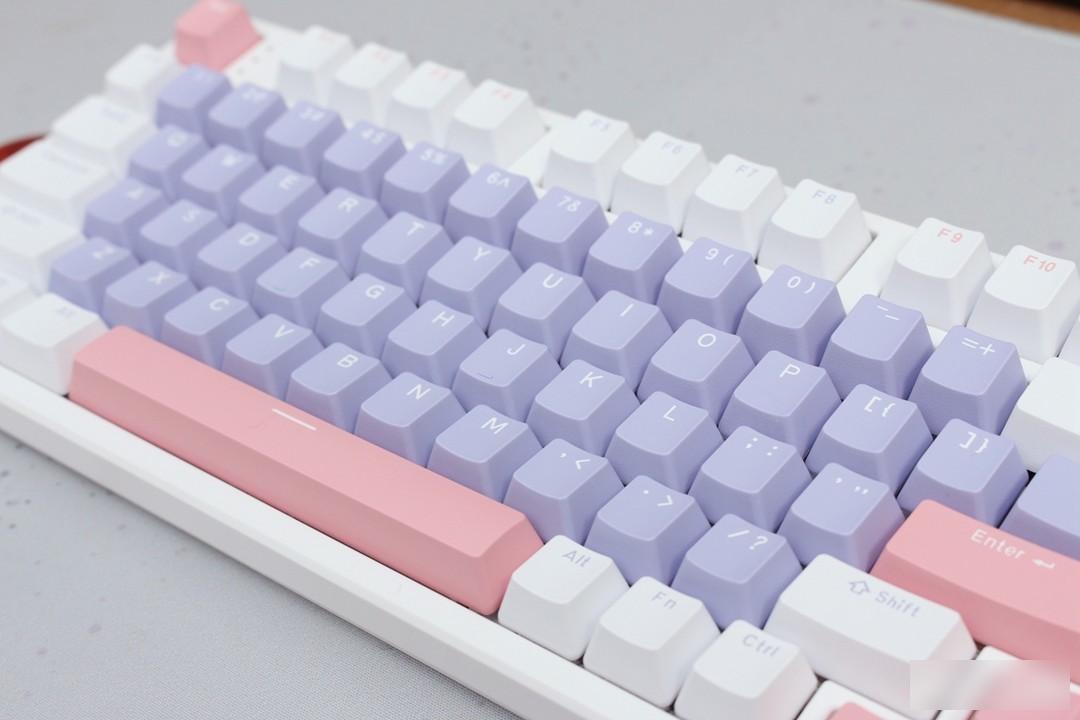

keycap close-up

The keycaps are well made, and are tighter than the chrysanthemums of the original keycaps of the keyboard, especially when they are installed.

Summary: Generally speaking, the quality of the keyboard is still reliable. Its characteristic is to seek some differences in functions and designs, especially the detachable volume adjustment knob, 5-way navigation lever and AA battery power supply scheme. These designs are often Won't be seen on most mechanical keyboards. From my personal point of view, the design is looking for a breakthrough, but the practicability of the function is relatively poor. A breakthrough is always a good thing and it takes some time to polish to make the function perfect. In addition to the surface features we have seen, the interior of the keyboard is also well treated. Noise-absorbing cotton is installed between the metal positioning plate and the PCB, and there is also a layer of sound-absorbing cotton between the keyboard PCB and the bottom case. cavity sound. However, some details of the keyboard still need to be improved. The alignment of the black paper under the shaft is a bit crooked, but it does not affect the insertion and removal of the shaft body, and the edge of the 5-way navigation lever is somewhat rough. Subsequent products can be improved in quality and details.
