High-value translucent black keychron V5 customized mechanical keyboard

With the continued popularity of customized keyboards, more and more keyboard manufacturers have begun to join the battlefield, and customized keyboards that used to be expensive have also begun to be crazily introverted. Nowadays, hundreds of yuan-level customized keyboards are beginning to pour in on the market. Keychron, which was once known as the flower inside the wall and the fragrance outside the wall, has also launched a variety of customized keyboards. The V5 I bought this time is one of them. It supports RGB, hot-swappable, gasket structure, and has a knob, which can be regarded as a relatively mainstream configuration at present. In terms of price, the price of the keyboard is only 458 yuan, and the shaftless and keycap kit is 328 yuan. The price difference between the two is only 120 yuan, so it is naturally more cost-effective to choose a keyboard.

The packaging is quite satisfactory, the whole box is mainly black, the front of the keyboard body is gilded, there is no too cool design, the overall is not bad, and it is also very suitable to be placed on the side of the seat as a decoration.

On the back are pictures of the product and some selling points, but they are all in English. Fortunately, I have passed CET-4 and can understand them.

The internal packaging is relatively elegant, and opening layers is very ceremonial, and the protection is also done relatively well.

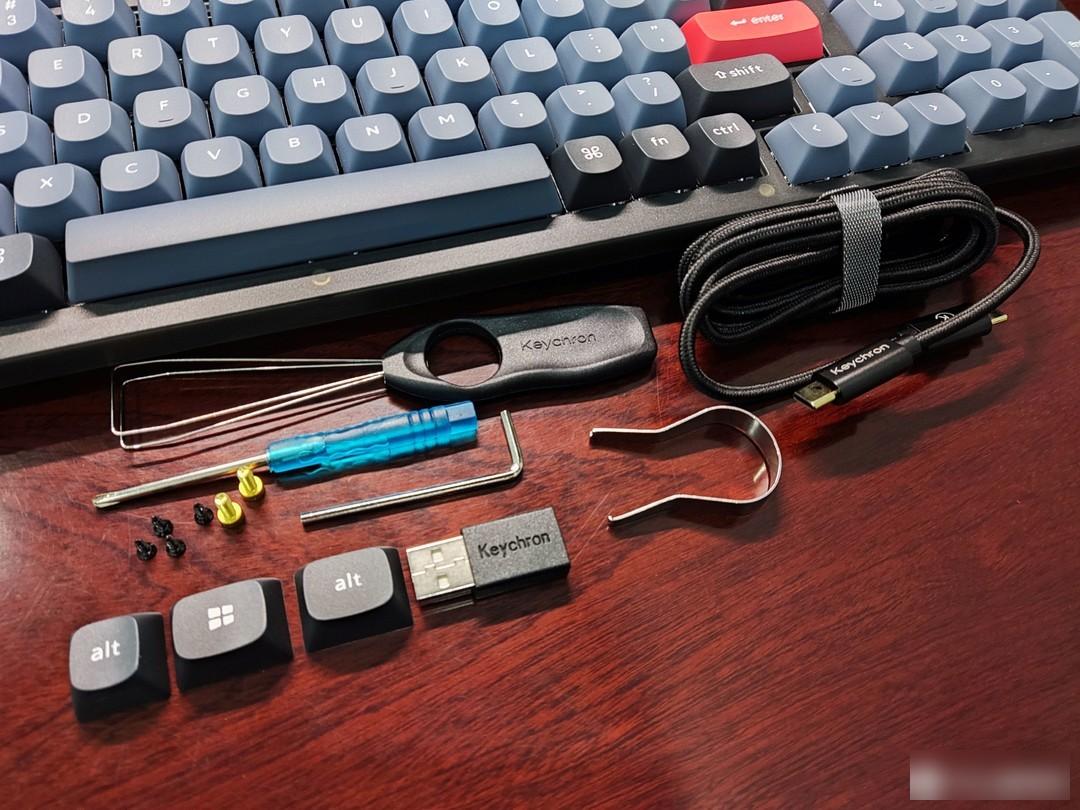

In terms of accessories, in addition to the common manual, the same-color C-port cable for the keyboard, USB to Type-C interface, key puller, and shaft puller, there are also additional hexagonal screwdrivers, mac/win replacement keycaps, and a bunch of golden screws. Bits and pieces, it's fairly rich.

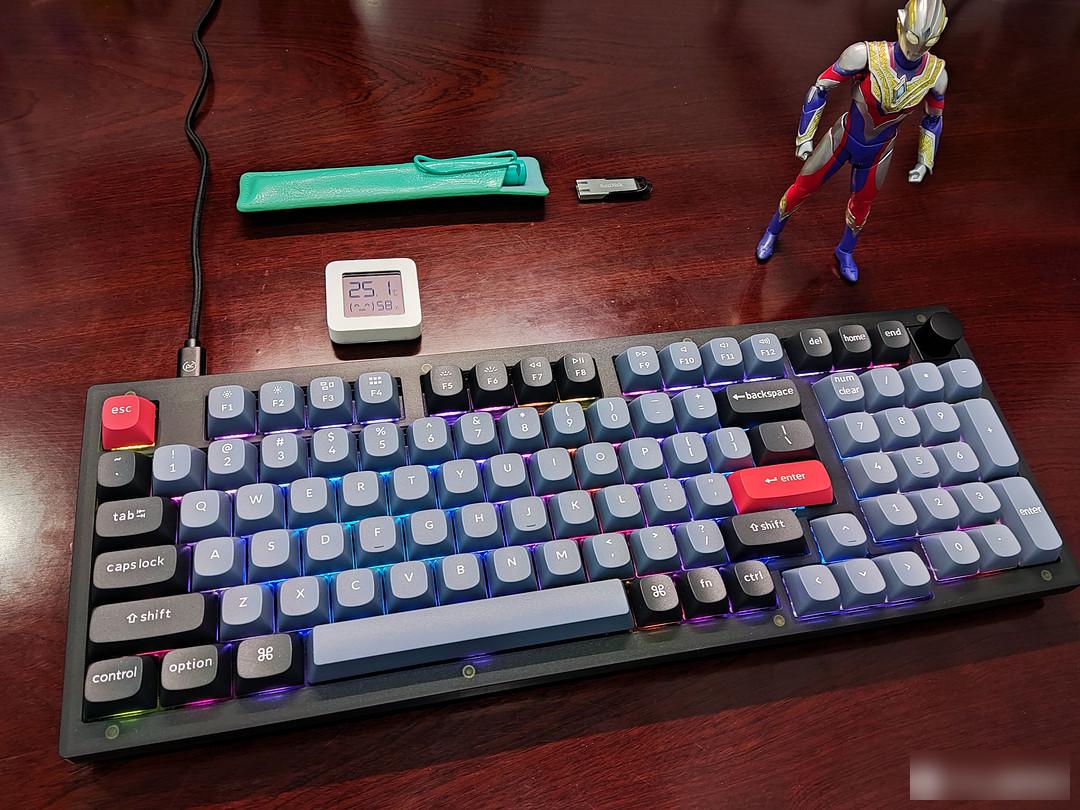

V5采用 98% 的布局、全塑外壳和双垫圈设计，外着眼于个性化体验的同时，最大程度上保障打字舒适度。右侧还保留了数字区和一部分功能键，这对于我这种需要大量输入数据的用户来说，太贴心了。V5还支持QMK&VIA开源改键，后期可以根据自身需求更改功能键设置。

This V5 keyboard uses an all-plastic shell with a frosted surface, which is very delicate in appearance and touch, and feels very comfortable to the touch.

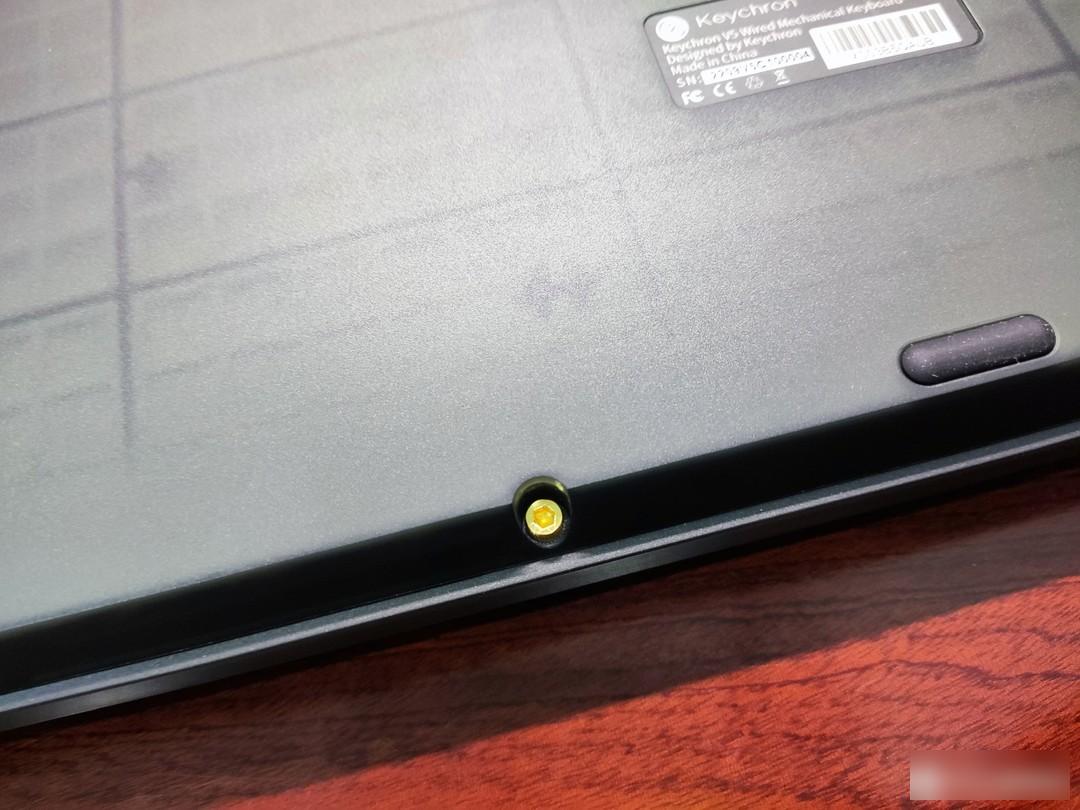

On the back of the keyboard, you can see 8 gold-plated screws and 5 foot pads, because the translucent black material is used, and the whole white silicone pad can be seen from the bottom.

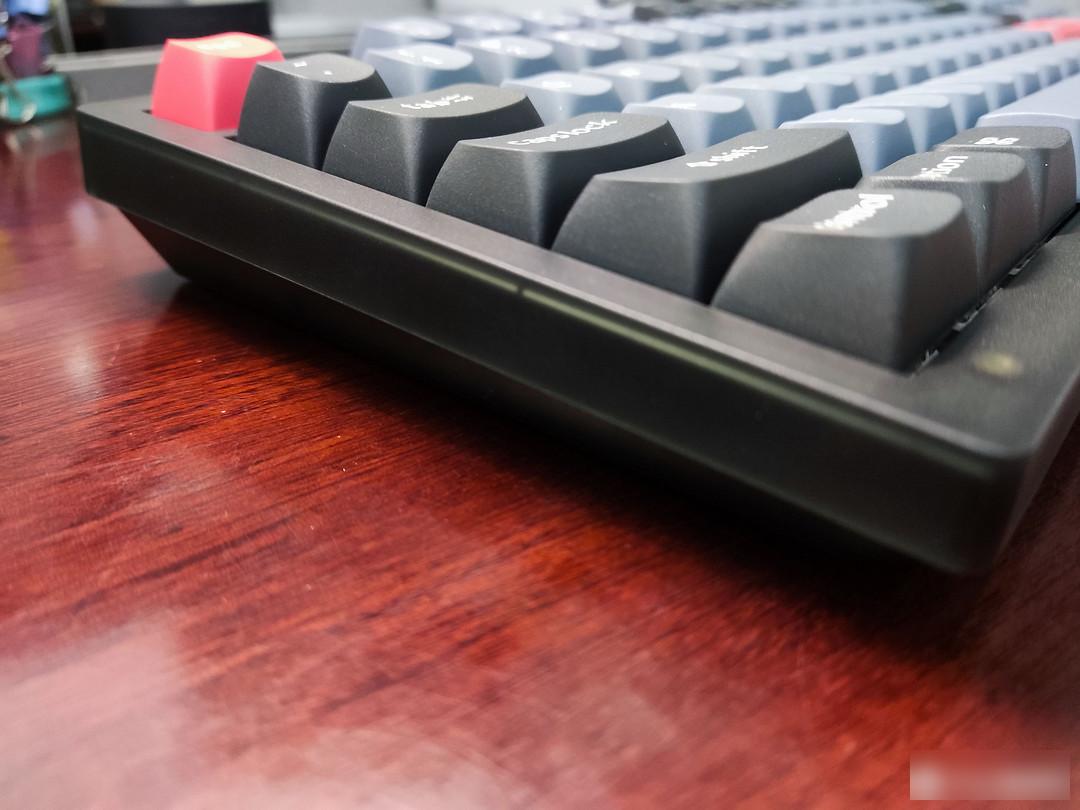

There is a certain input angle on the side of the keyboard, which conforms to ergonomics. Even if you don’t use the feet, you can achieve a very comfortable typing feel, and you won’t feel sore wrists after long-term use.

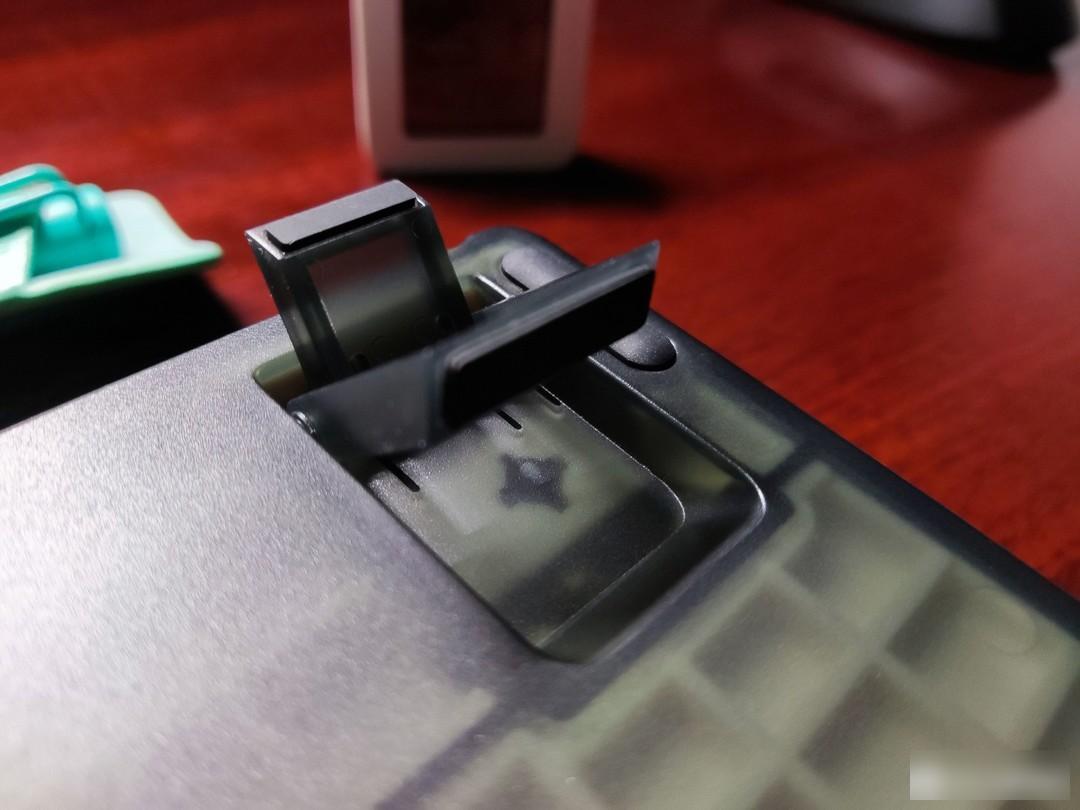

There are two foot supports for the feet, and users can adjust them according to their own needs. Personally, I usually switch to the second foot support when typing at high frequency.

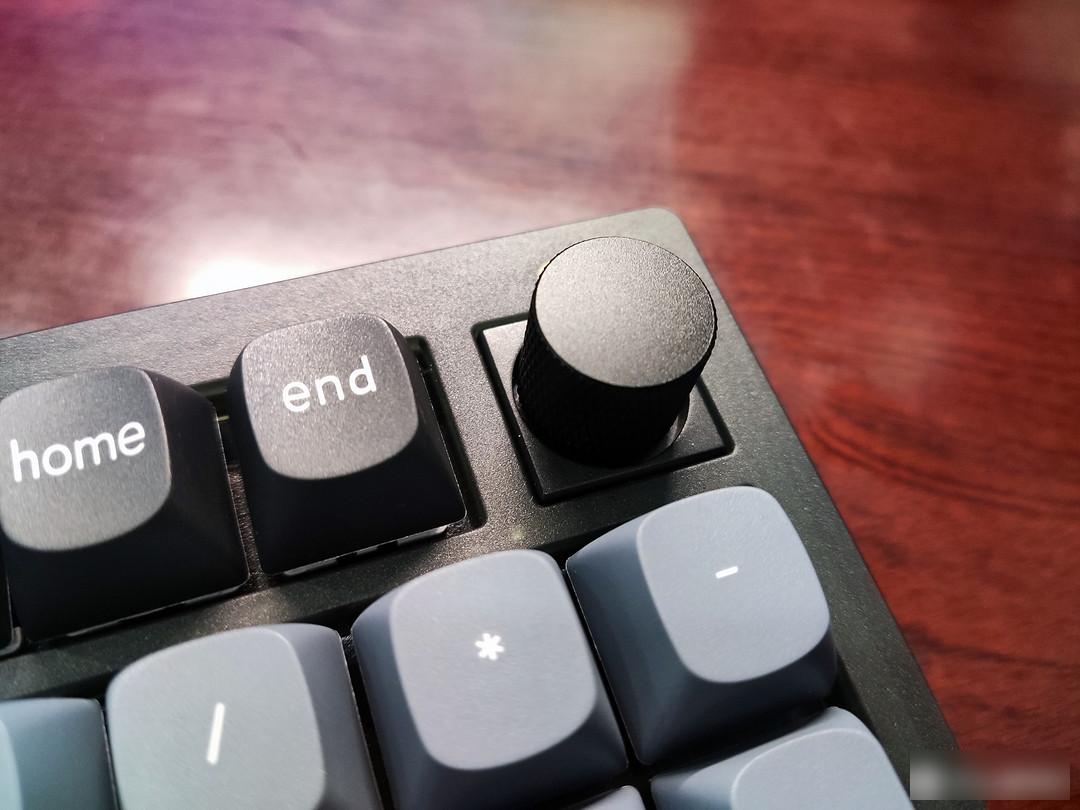

The knob design in the upper right corner is also a very trendy setting in this year's mechanical keyboard circle. You can quickly adjust the volume when using it. Press the knob directly to mute the sound. The knob body uses the same color as the keyboard, which looks absolutely unexpected.

The stepless knob also feels good in the hand, whether it is damping or pressing, you can get a relatively comfortable feedback.

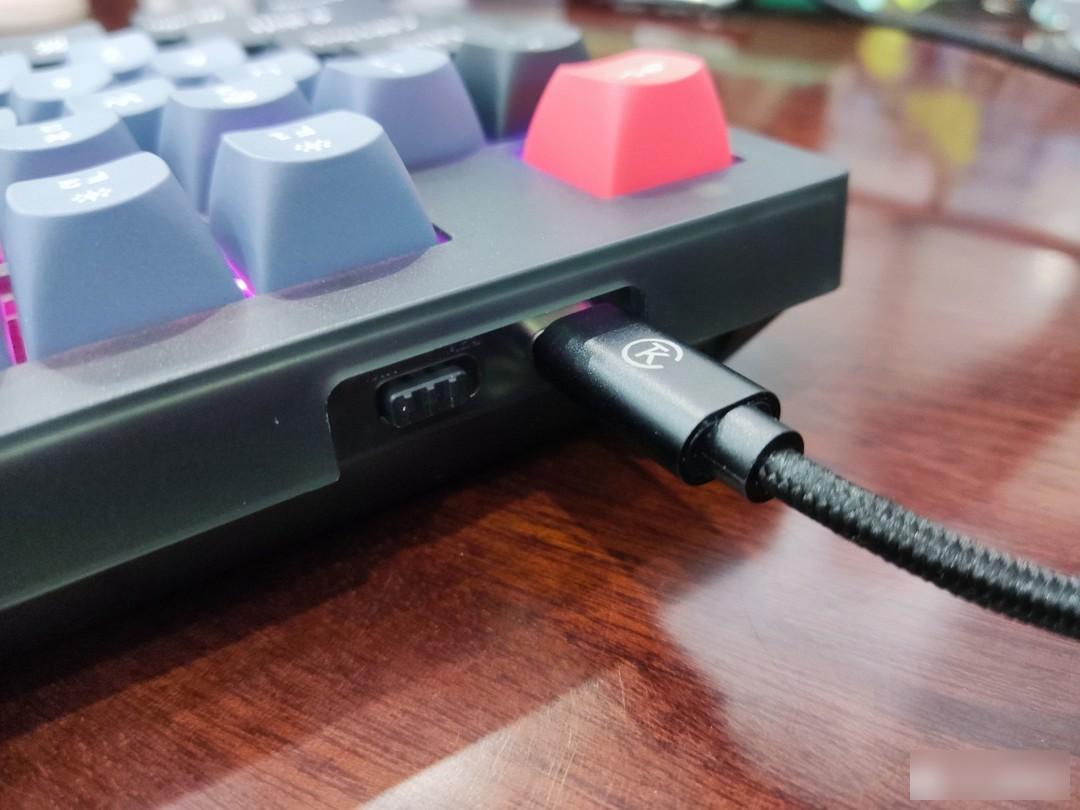

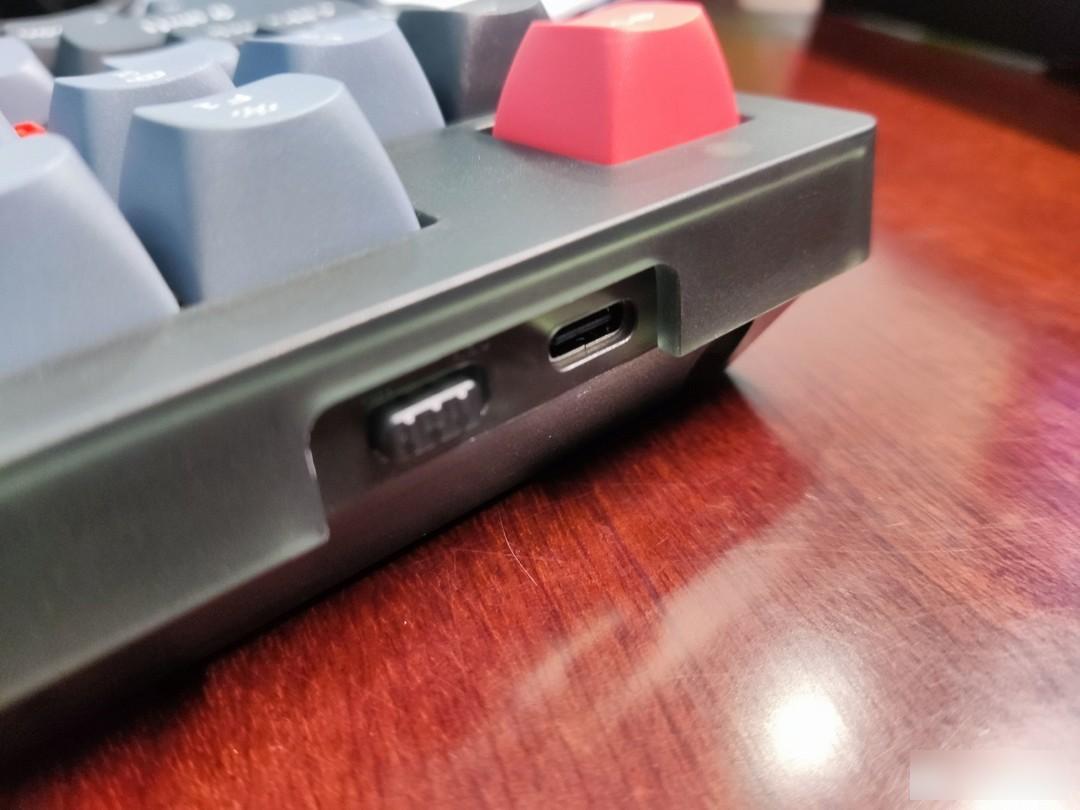

There is a Type-C interface and a wave switch in the upper left corner, which is very convenient for one-key Win/Mac switching.

One-button switch, combined with the included MAC system keycap and dual-use keyboard, is very friendly to many dual-wielding users. After all, the external peripherals have a higher feel than the native keyboard that comes with the notebook. I don’t know where to go.

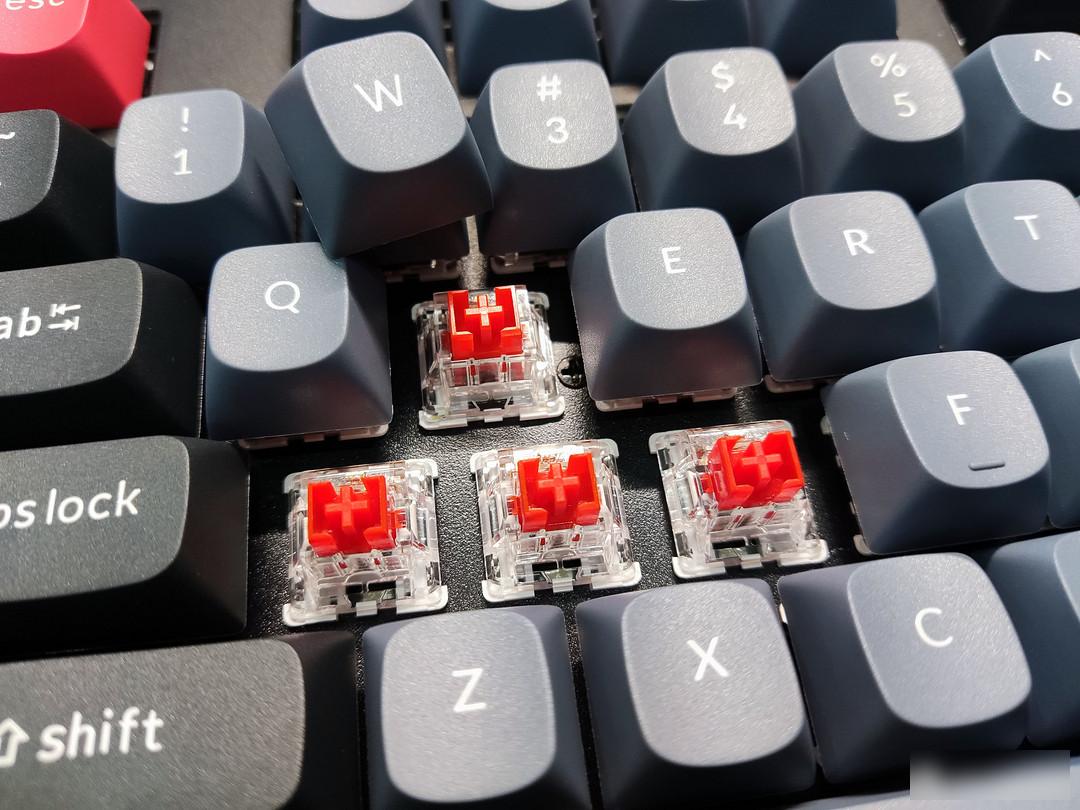

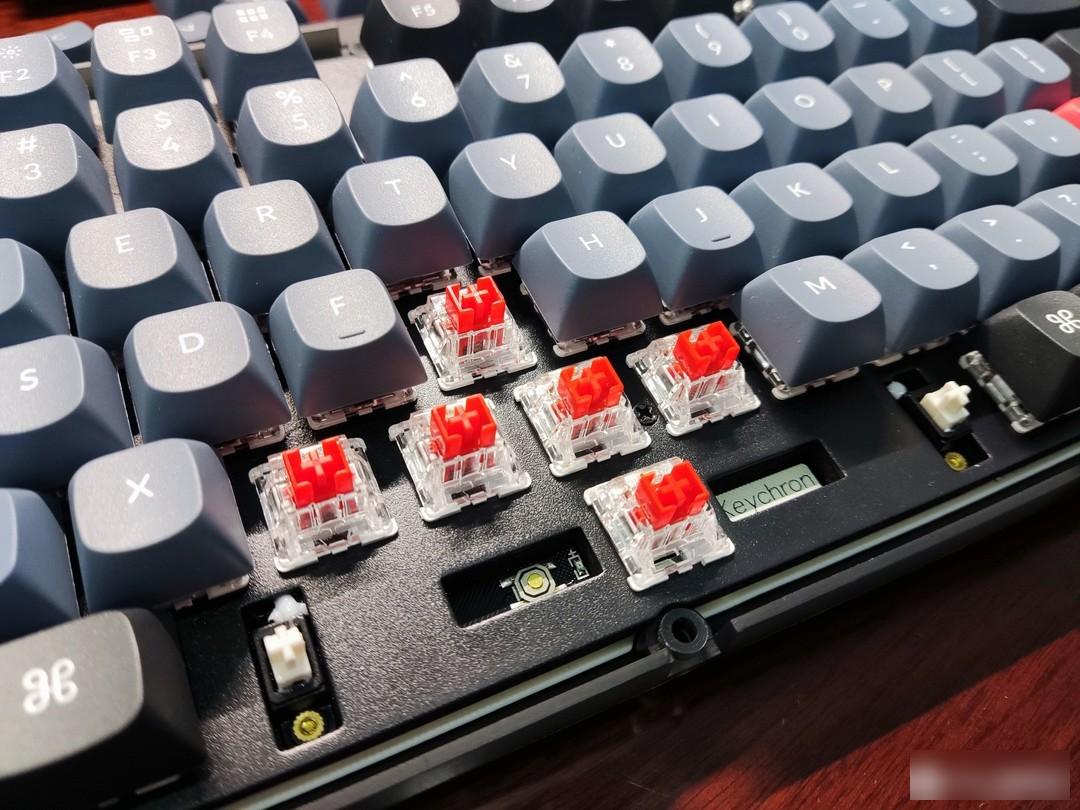

The switch body is convenient. The V5 comes standard with Keychron’s self-developed K-pro switch. There are three kinds of switch bodies in red, green and tea, which basically cover the needs of most current players. This time I chose the K-pro red switch, the trigger force is 45gf, the trigger stroke is 2mm, and the total stroke is 4mm. At the same time, the transparent shaft cover can also reserve better performance space for RGB.

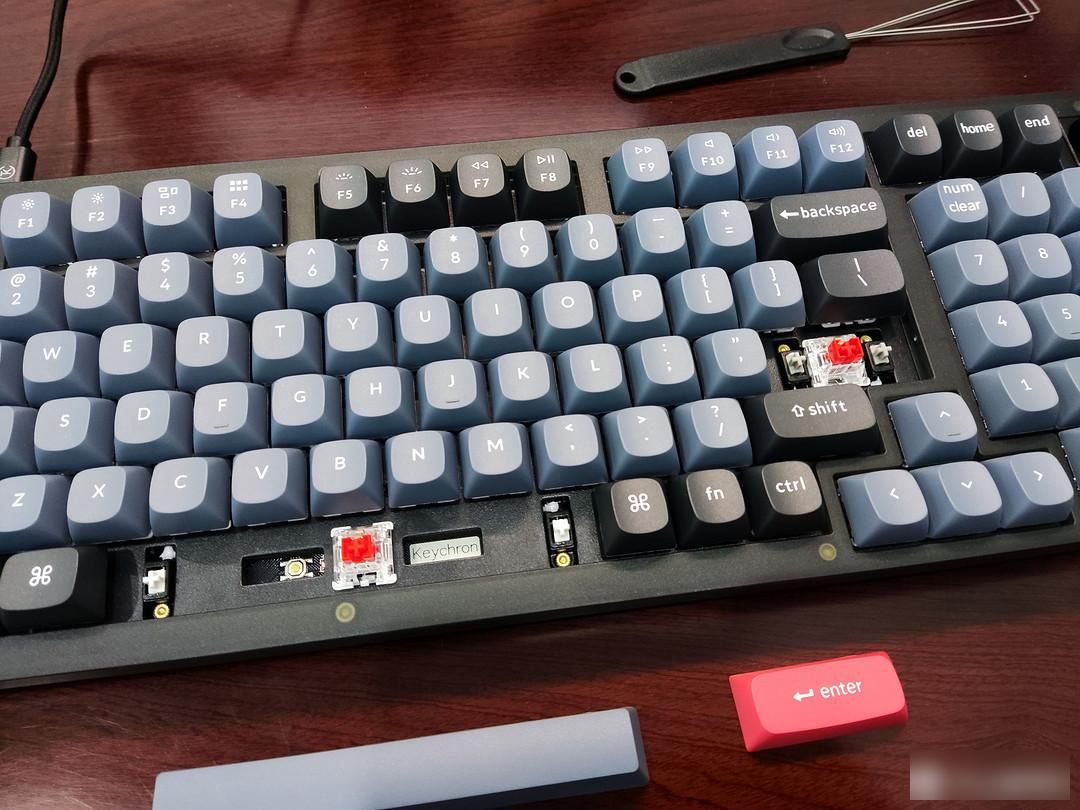

The full keyboard has a total of 5 PCB satellite axes, and they are installed with screws, which not only increases stability, but also helps users to adjust themselves. The most difficult thing to handle in the keyboard is the few big keys. The performance of the V5's big keys is still very good, and it is definitely at a level that can be used at hand.

Since it is a customized keyboard, it is not easy to disassemble it. Use the included hex wrench to unscrew the 8 golden screws.

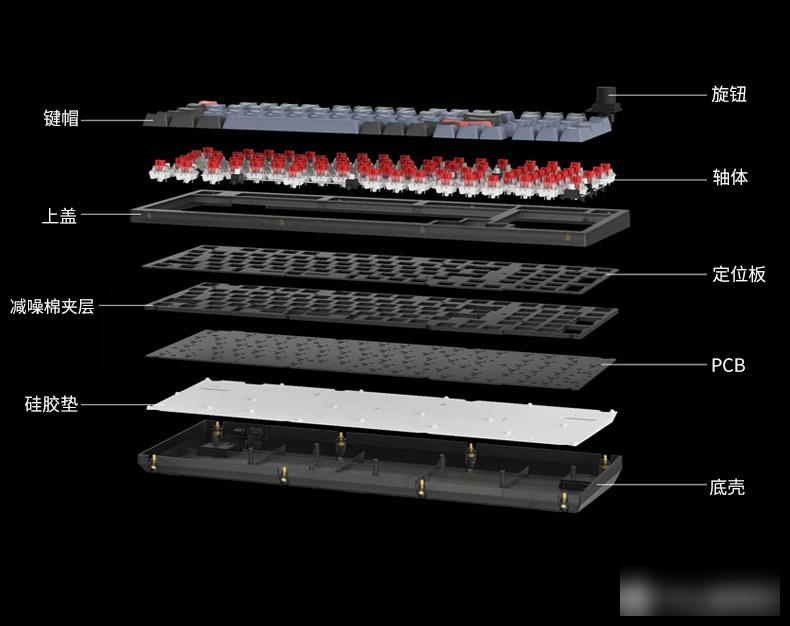

Take a look at the structural order of the keyboard while removing it. From top to bottom, there are knobs, keycaps, shafts, upper covers, positioning plates, noise-reducing cotton interlayers, PCB boards, silicone pads, and bottom shells. Each part can be Adjust according to your own habits. If you need more sinking deformation, you can remove the bottom silicone pad.

After disassembling the top cover, you can see that the keyboard uses a Gasket structure inside. There is no rigid connection to the inner tank. Screws are used to fix the upper and lower covers. The interior is fixed by ears + Poron sliver + slotted soft support.

The biggest advantage of using the Gasket structure is that it has a certain degree of deformation inside, and it can also effectively reduce the shell resonance noise caused by typing on the keyboard.

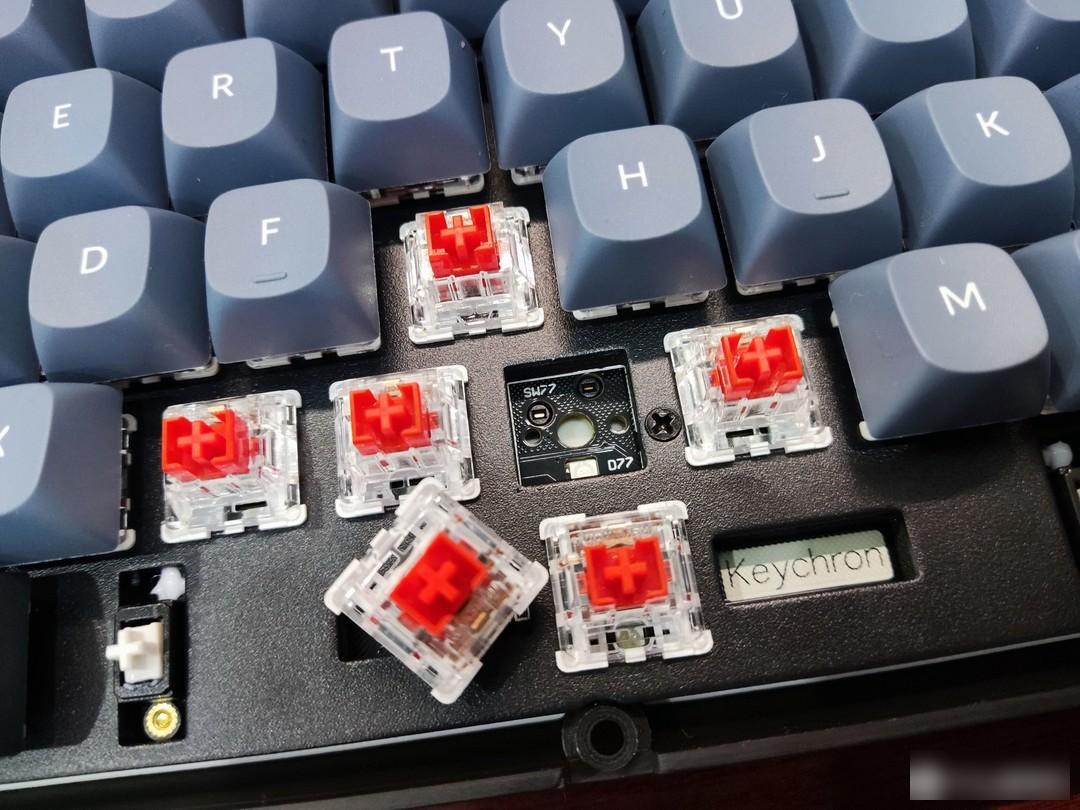

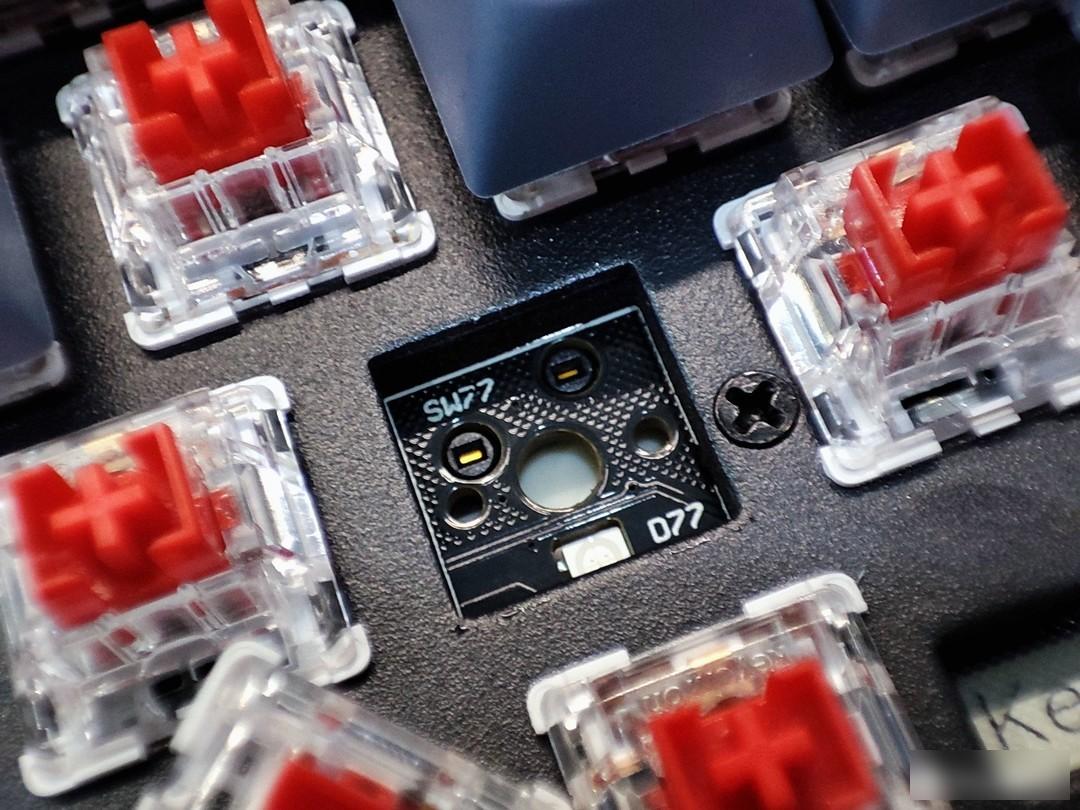

Pull out the shaft body, and you can see the PCB board underneath. There is nothing fancy on the PCB. The RGB design of the lower light position is compatible with tripod shafts and five-pin shafts. Combined with hot-swappable, it can provide users with richer customization options. .

Plug in the data cable and start to experience the keyboard formally.

V5 is a keyboard that supports RGB, and the operation is relatively simple. Press the Fn and Tab keys at the same time to turn on the RGB lighting effect.

The overall RGB lighting effect is still very comfortable, and the default is this kind of faint RGB light when it is turned on.

If you don't like it, the V5 comes with 13 RGB lighting effects, and you can switch the lighting effects by pressing the Fn and Q keys at the same time.

There are 13 kinds of lighting effects that come with it. If you don’t want to toss too much, in fact, so many options are enough. Let’s choose a few to show.

Of course, since it is a user who chooses a customized keyboard, it is natural to focus on tossing. The V5 keyboard supports QMK and VIA, and can custom program each key on the keyboard, from the keyboard layout to shortcut keys and backlight effects. All can be customized, very playable.

Generally speaking, the V5 is an entry-level customized mechanical keyboard with excellent appearance and internal quality. In terms of appearance, Keychron's designers are always online. As for the switch body, for new users with little experience, It can be used without adjustment, which is very suitable for beginners who are interested in customized keyboards.
