It can be disassembled with bare hands! The Gasket structure is upgraded again to create a soft and soft touch, and the experience of Dareu A81 wired mechanical keyboard

Mechanical keyboards have become the mainstream at present. Whether it is e-sports games or code word office, mechanical keyboards are everyone's first choice. In recent years, the mechanical keyboard industry has experienced a lot of introversion. Not only has the keycap shell become transparent, but major manufacturers have also launched mechanical keyboards with a new structure such as Gasket. As an old domestic brand, Dareu was the first to mass-produce the Gasket mechanical keyboard. Now it has innovated and launched the mechanical keyboard A81 with the Gasket structure of the elastic arm. What surprises will it bring us this time? Let's take a look together.

Let's start with the packaging. The packaging box of Dareu A81 adopts a bright silver color, which gives people a very clear feeling. The cover is printed with the line drawing of the A81 keyboard, the product model, the brand LOGO and the big letter on the left. Elastic Gasket stands out. The back of the package briefly introduces the basic parameters of this keyboard.

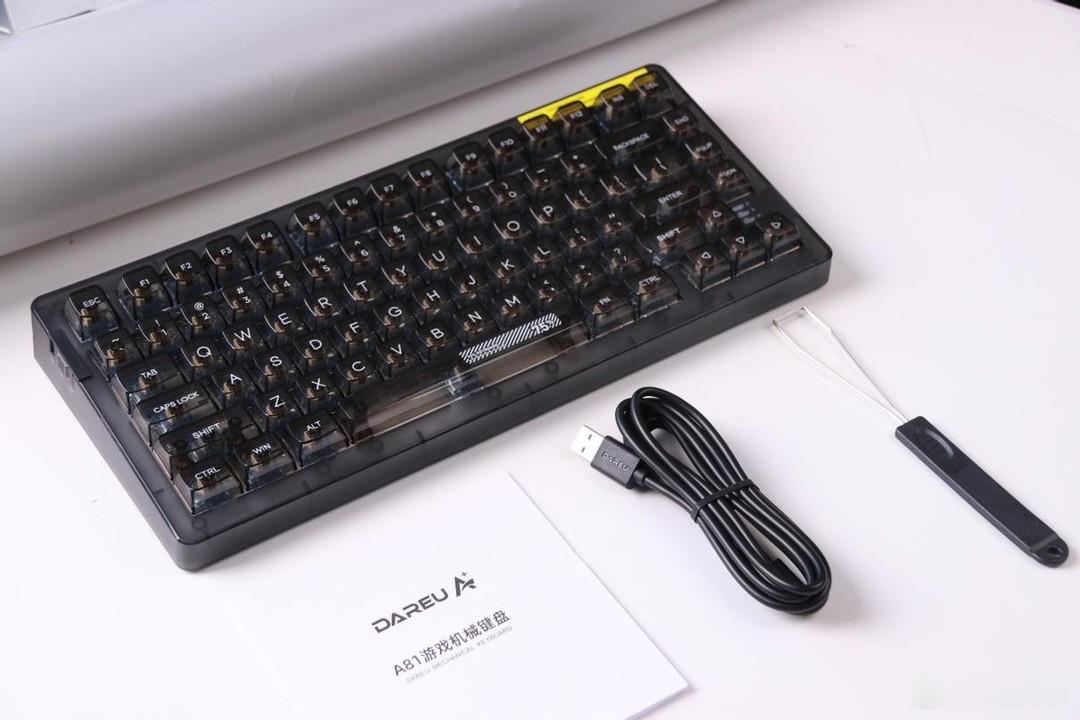

I was attracted by this keyboard when I opened the package. Let’s take a look at the accessories. In addition to the A81 keyboard body, the accessories provide a transparent dust cover, USB Type-C cable, shaft puller, and manual. .

The A81 keyboard adopts 75% of the layout, retains the commonly used functions, and simplifies to the extreme. Its measurements are 328mm×150mm×44mm, which is moderate in size and suitable for small desktop users. This keyboard is available in two color options, black diamond version and Haoshi version, and the switch body is available in purple gold switch Pro and sky switch V3. The one I bought is the Black Diamond version + Sky Axis V3 version.

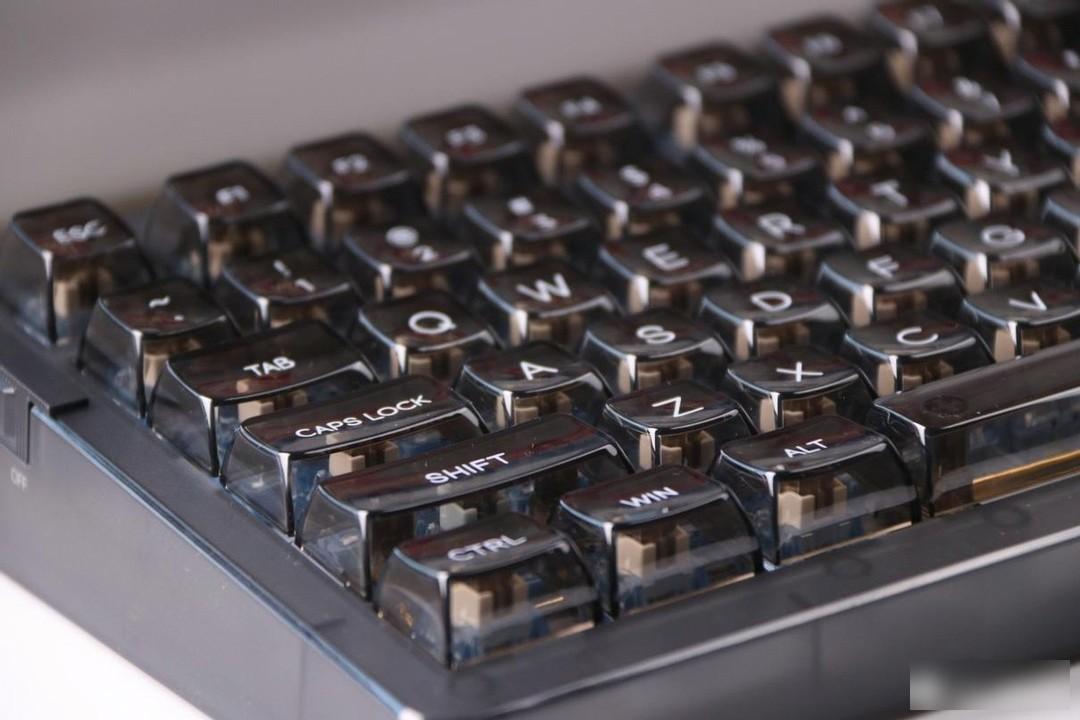

The upper and lower covers of the keyboard are treated with a semi-transparent frosting process, which is not easy to be contaminated with fingerprints. The keycap is all black and transparent design, using PC material, which is much better than ABS and PBT, and the overall feel of the keycap is also very smooth, with strong wear resistance.

Through the transparent keycap, the internal switch body and the satellite switch of the large key can be seen clearly. Such a transparent design really gives people a new visual experience. Especially looking at the keycaps under the light, it feels like crystal clear. Of course, there are also shortcomings, that is, the keycaps are easy to get fingerprints, but it is not easy to detect if you don't look sideways.

The letters on the keycaps are designed in white for easy identification by users. I started with the V3 version of the sky axis. What are the benefits of this axis? The sky axis is a linear axis, straight up and down, with a clear sense of paragraph, smooth to use, and has a good mute effect. The life of this type of axis can reach 80 million times, and I personally like this type of axis.

Viewed from the side, except for the space bar, it adopts a micro-arc design, which can better fit our fingers and make it more comfortable to use.

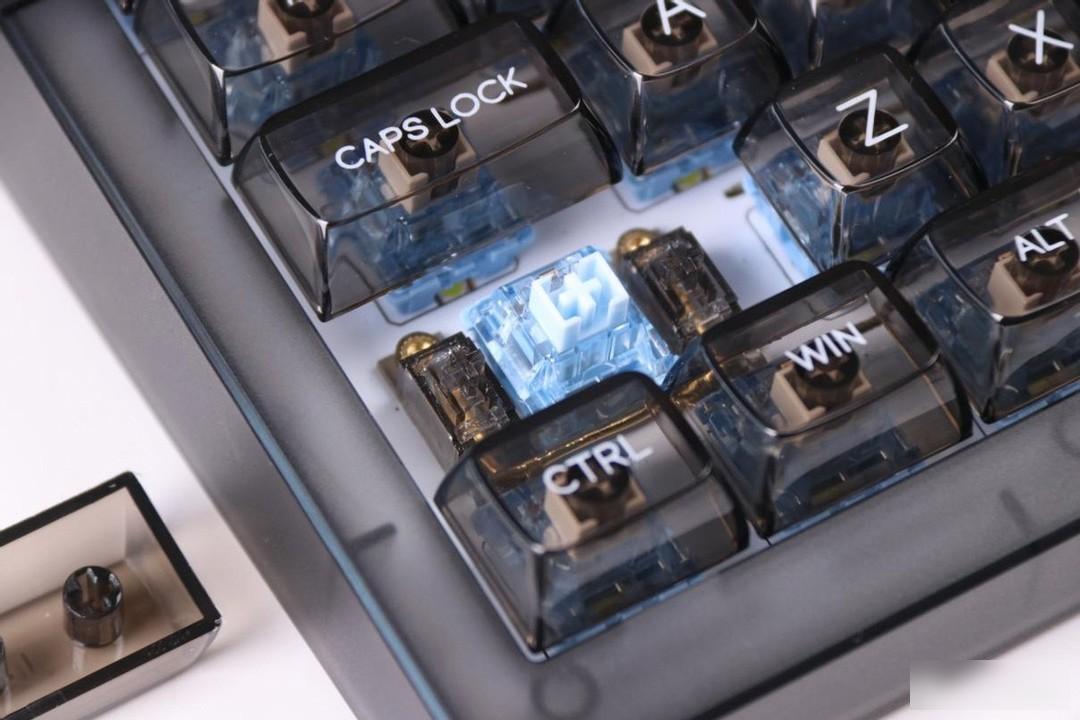

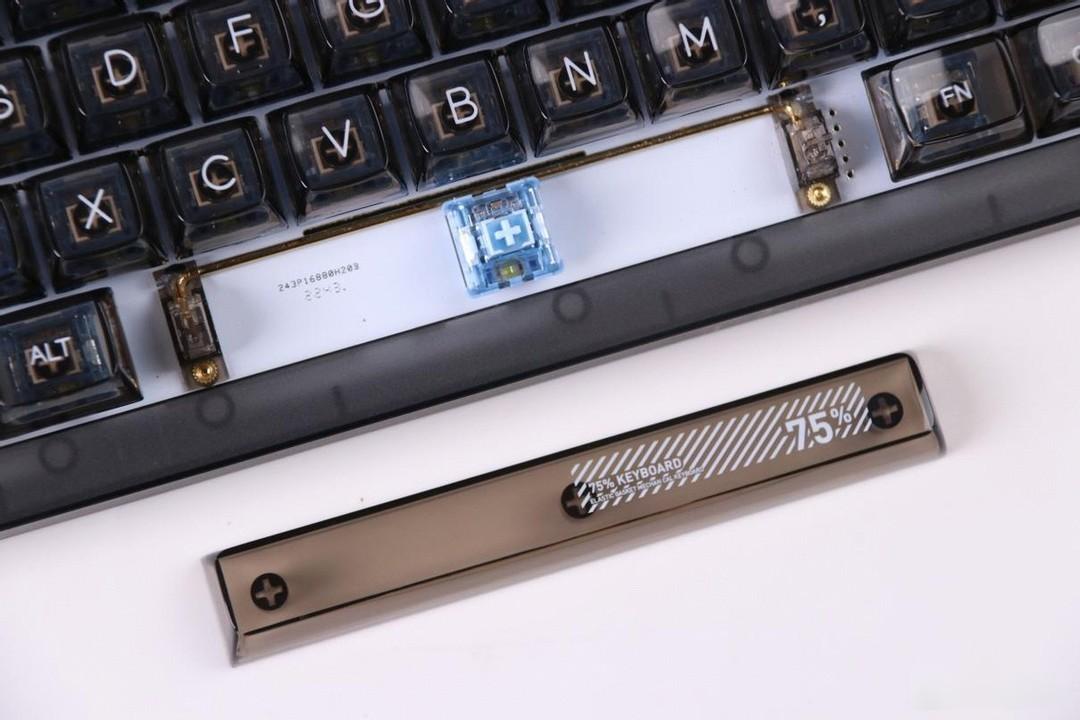

For the space bar, shift, and enter, the structure design of the satellite axis is adopted. The satellite axis of the large key position here is quite different from what we usually see, and the materials used are conscience. It uses a custom-made PCB gold-plated satellite shaft, which is fixed by a special screw lock. It is very stable to use. For a large key such as a space, press one side alone with your hand, and the key does not tilt at all.

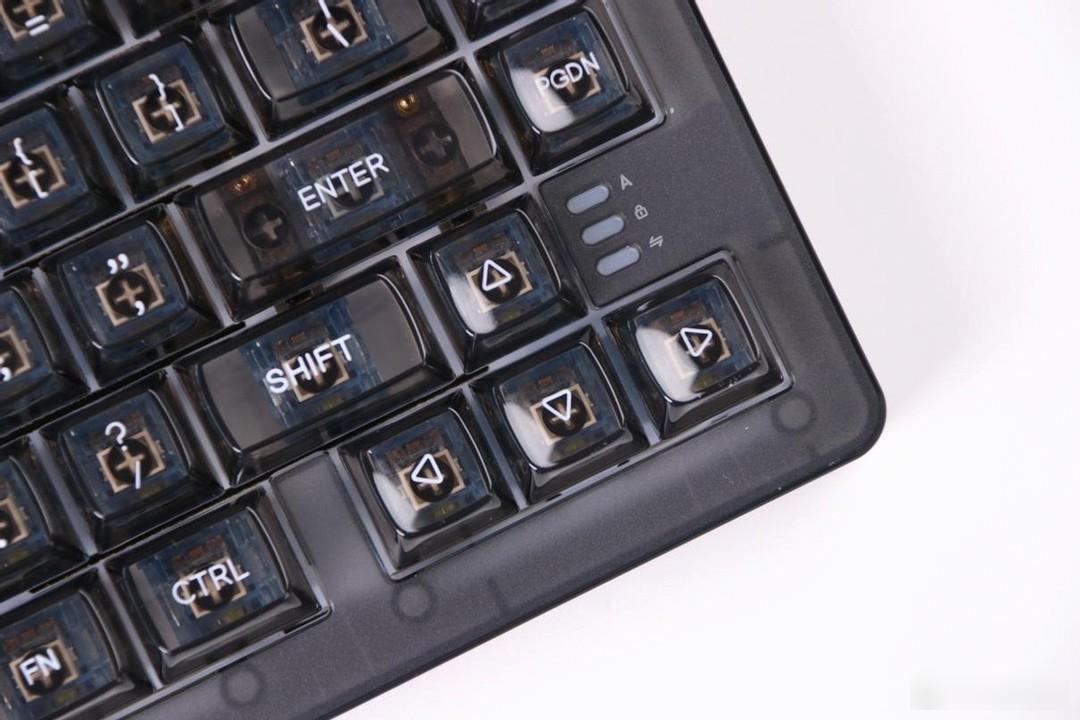

75% of them are equipped with 81 keys, and the intervals between the keys are very small and compact. The arrow keys on the right still adopt an independent partition design, which greatly improves the comfort of operation. On the right side of the arrow keys, three indicator lights are also designed, from top to bottom are uppercase and lowercase, WIN key lock, and Win and Mac switching indicators. In addition to the regular editing functions, the function keys on the right can also use the Fn+ key combination to achieve more operations, such as switching lighting modes, adjusting lighting brightness, multimedia control, etc., are all achievable.

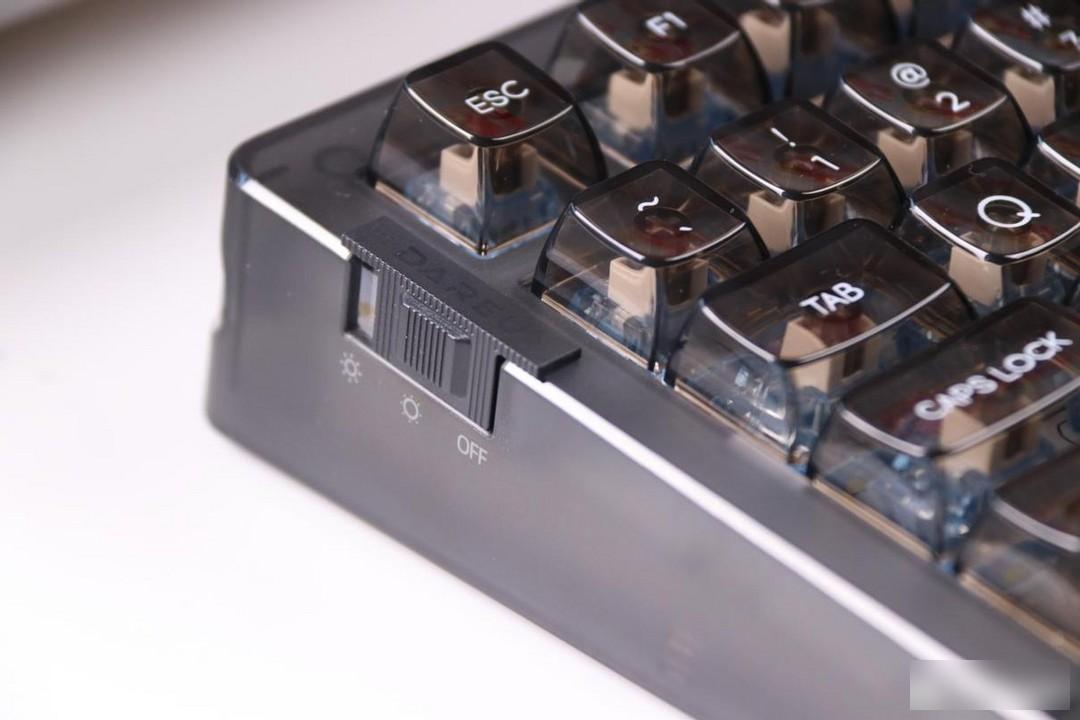

A three-stage switch is designed on the upper left side of the keyboard, which can quickly adjust the lighting mode, corresponding to three types: constant light, breathing and off. Next to the top position of the light adjustment switch, there is a Type-C power supply port and a switch button for Win and Mac systems. It is very easy to operate in use, and can be completed with one left hand. In addition, on the side of the power supply port, a black bright strip is designed as a decoration, which adds a lot of texture, but it is easy to get fingerprints.

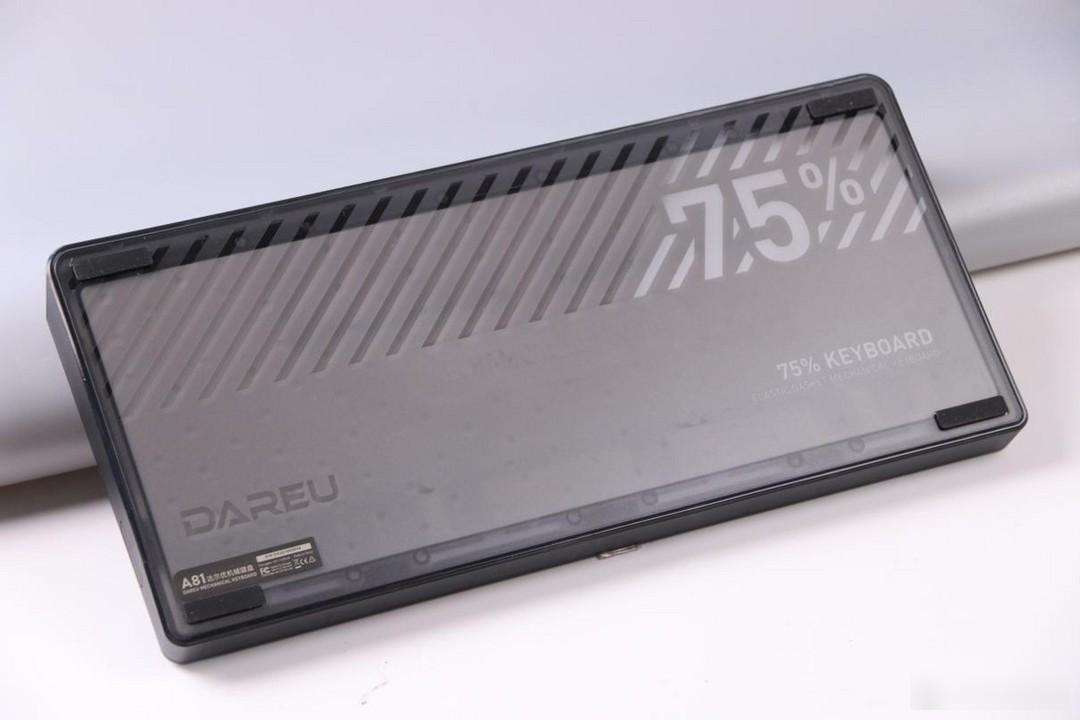

The back of the keyboard is a pure flat design, with a textured decoration of diagonal lines, a brand LOGO, and a very conspicuous 75% logo. The white padding inside the keyboard just acts as a background, combined with the frosted translucent lower cover, it also adds a lot of value. The four corners are designed with non-slip foot pads, which are very stable on the table.

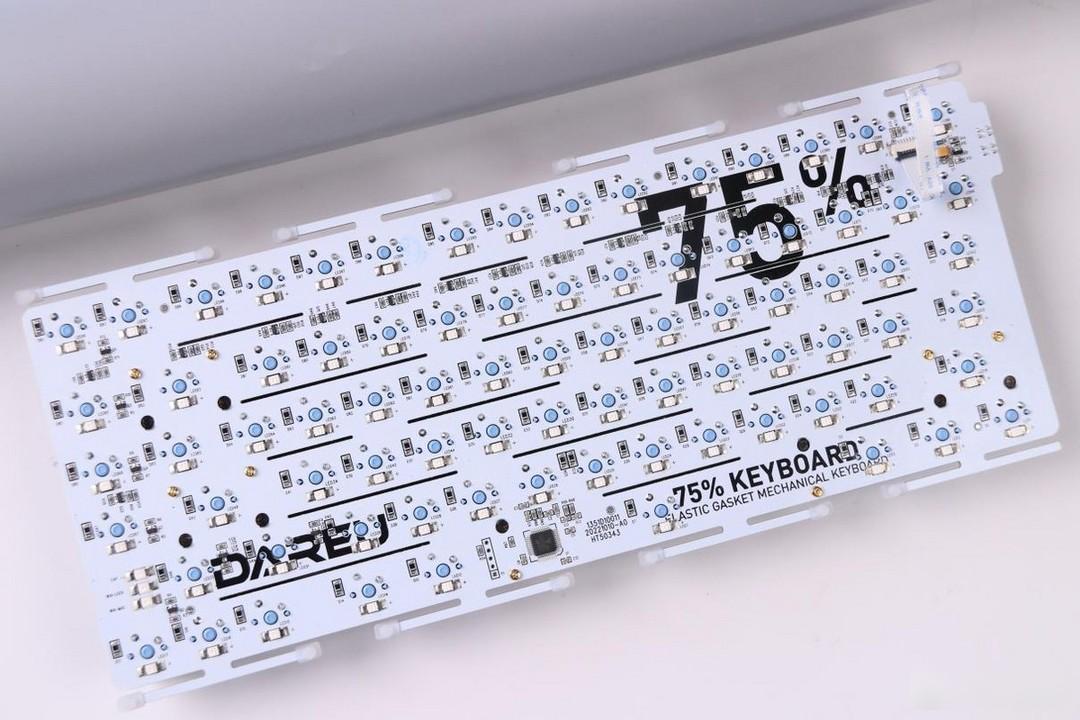

This keyboard adopts a steel-free structure, so it is relatively simple to disassemble. There are no screws and only buckles, but the upper and lower covers fit very tightly. There is no positioning plate inside the keyboard, so the shaft body is welded on the PCB board. After looking at the solder joints, it is not difficult to replace the shaft body.

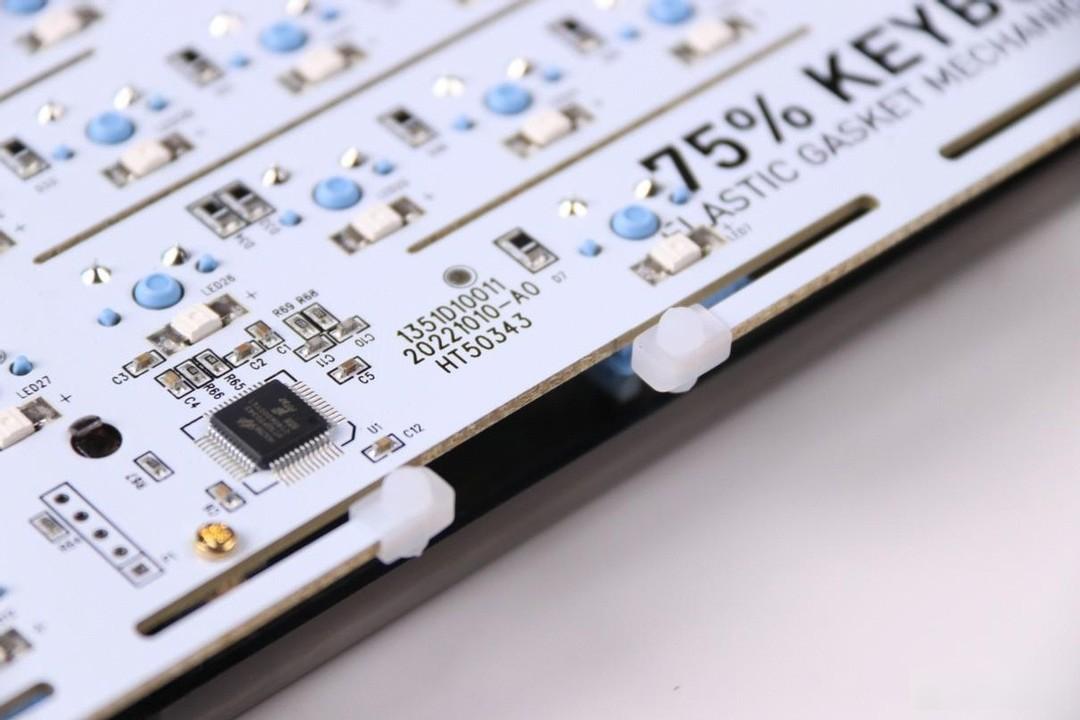

On the upper and lower sides of the PCB board, a number of T-shaped support arms are designed, and the two sides of the support arms are covered with silicone caps. This is what Dareu calls the elastic arm structure. It can replace the traditional Gasket gasket, and the design of the Gasket keyboard on the market is still somewhat different. The silicone cap snaps into the corresponding groove, which can also play a limiting role, making the feedback elasticity softer.

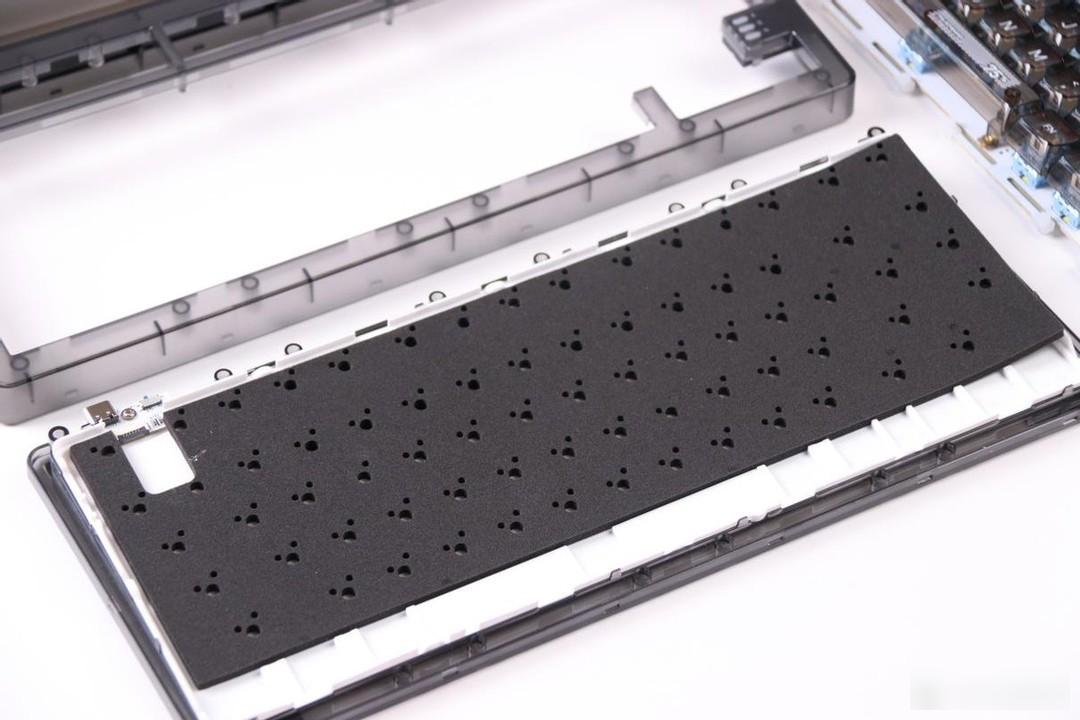

Under the PCB board, there are two gaskets, one is a white silicone gasket, the other is a Poron cotton gasket, the silicone gasket is used to fill the excess space and eliminate the cavity sound, and the Poron is is the buffer layer. Coupled with the support arm structure in the PCB class, it has indeed achieved a soft and soft touch in terms of hand feel. After talking about the details and design, let's take a look at its lighting effects.

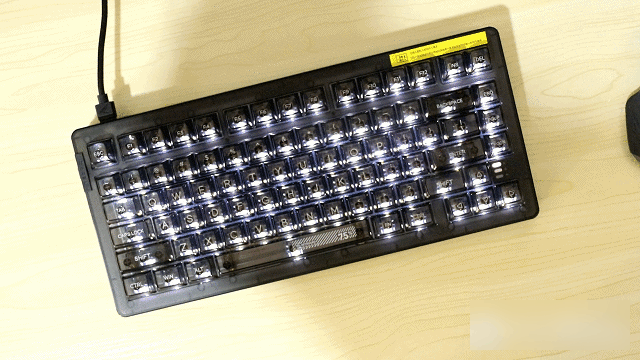

Lighting is essential, especially for this kind of fully transparent mechanical keyboard. Only when it is lit can you know how beautiful the transparent keycaps are. But the lighting is only monochromatic white light, isn't it a bit regrettable? With the strength of Dareu, it is really unreasonable not to use the whole RGB lighting effect version. However, the white lighting is in line with my aesthetic needs, low-key and not fancy.

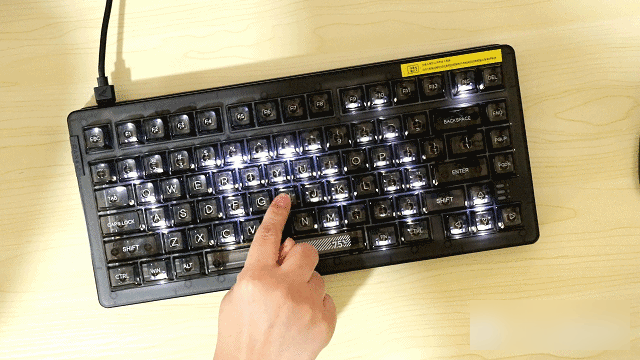

Although it is a single-mode white backlight design, it still provides a variety of lighting effect modes. In addition to using the left light adjustment button to switch, you can also use the shortcut key Fn+[ to switch the lighting effect, providing 8 backlight lighting effects, such as wave mode, ripple mode, fading mode with pressing, horse racing mode, etc. It can meet the needs of different users for lighting effects. If you want to adjust the brightness, you can also use Fn+Space to achieve it.

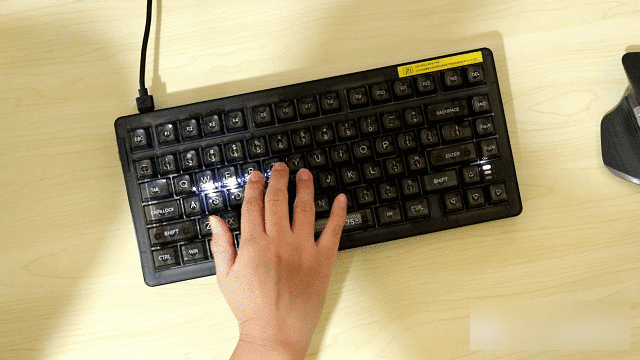

The connection mode of this Dareu A81 is a single-mode wired connection. Although it does not support wireless connection, the wired connection can achieve zero delay and supports a full-key conflict-free solution. It can handle both games and offices. In the experience, I found that the keys feel very light and soft. With the Gasket structure design of the elastic arm scheme, the keys rebound very quickly and smoothly when they are struck. The double pad inside the keyboard Designed to further reduce the noise generated by various percussions.

The above is the experience sharing about this Dareu A81, and finally a brief summary.

Write at the end:

At present, I have been using Dareu A81 mechanical keyboard for a while. The new elastic arm Gasket structure design is really impressive. I didn’t expect the mechanical keyboard to be like this. In terms of appearance, the semi-transparent shell and the fully transparent keycap give people a refreshing feeling. In terms of materials, it is also very kind. Except that the lighting is not RGB lighting, this Dareu A81 wired mechanical keyboard has almost no shortcomings. Friends who like it can get in the car.
