Key Words Key Words Chapter 57: The layout is open, a school of its own, Miwu ART Z980 ultra-detailed dismantling evaluation.

The most indispensable thing in this year's mechanical keyboard market is the roll king, especially around Double Eleven, all the companies are crazy about it, and the main battlefield of the price war is the 98 series. Many products have almost achieved the ultimate in the pursuit of better shafts and lower prices.

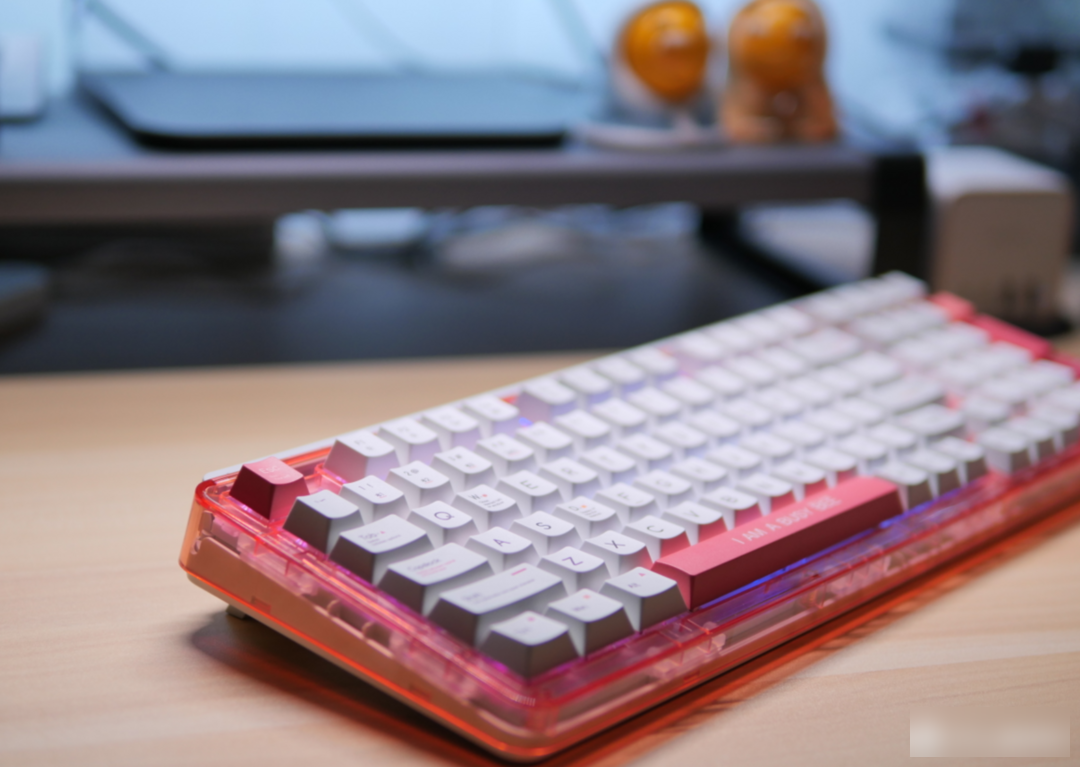

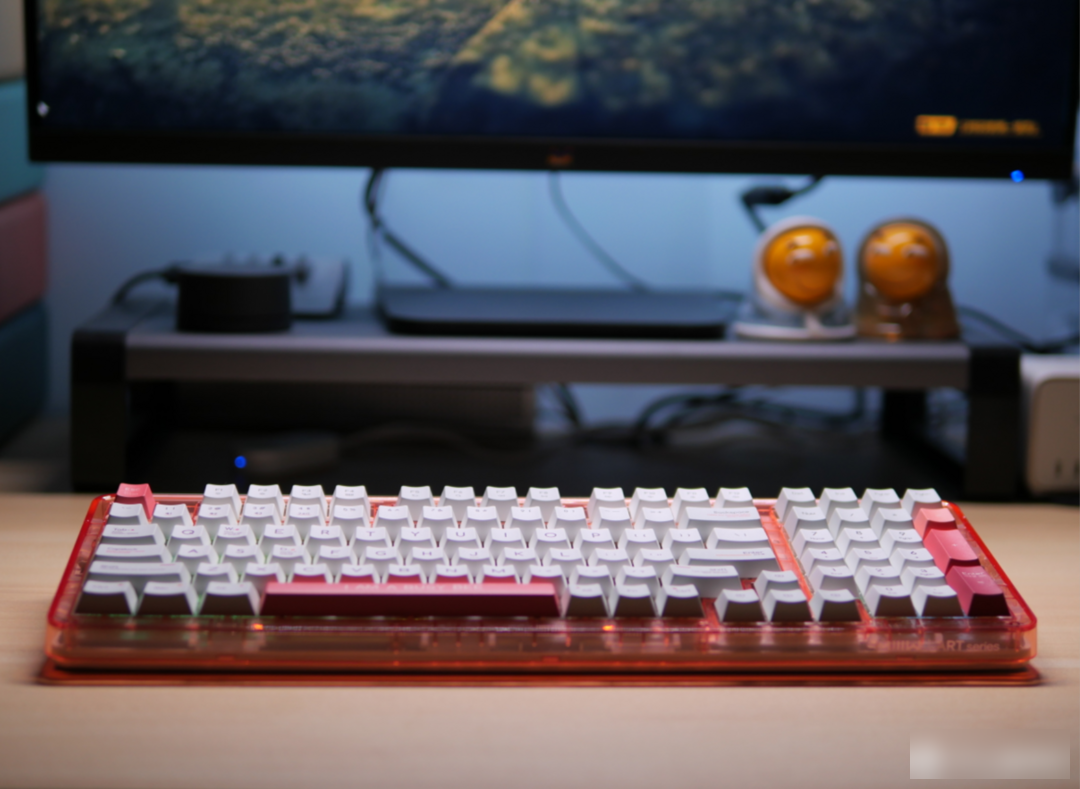

Miwu probably started to enter the mechanical keyboard market last year, and its idea of ​​making keyboards is obviously different from that of traditional peripheral manufacturers. The latest Miwu ART Z980 received today is a product inherited from the Miwu style. The transparent top cover made of red PC material (there is also a green version) is its most prominent appearance feature, but in detail , there are still many special features.

So, this time I decided to change the previous evaluation mode, start from the configuration, cooperate with the dismantling, and show you the whole picture and interesting features of this handset little by little.

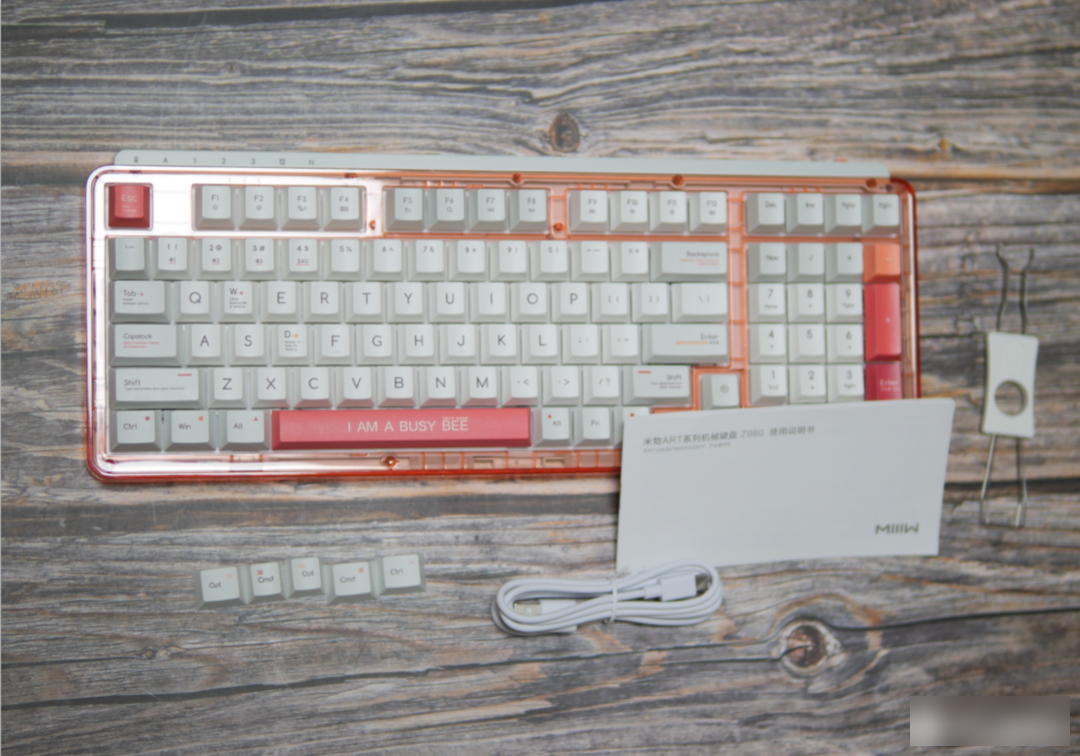

I still have to talk about the accessories, which are the conventional ones, the shaft puller, the data cable, and the other five replacement keycaps are mainly for the Mac system.

The main configuration and selling points of this keyboard are as follows:

Gasket structure, transparent top cover, Jiadalong G yellow pro switch body, three-mode, PBT sublimation keycap, full-key hot-swappable, 4000mAh battery, and support visual customization software.

The keyboard itself has 18 built-in lighting effects. Through the above driver software, you can also freely adjust the lighting effects and set macros.

Judging from the above configurations, it is the mainstream configuration in the domestic mechanical keyboard market this year. The switch body is not outstanding, but Jiadalong G Huang Pro is a classic smooth and durable switch body, which is commonly found in keyboards priced at 300~500 yuan. The transparent top cover and sublimation keycaps are its main features.

Seeing this, I suddenly thought of a question, this keyboard is actually a standard 98 configuration.

There has never been a shortage of roll kings in the domestic mechanical keyboard market. I counted them. This year, the recognized roll kings of domestic mechanical keyboards have changed at least 3 generations, and there are countless small roll kings. But a keyboard with a design and a whimsy is more precious. If the price can be controlled with a unique design, it will be the best.

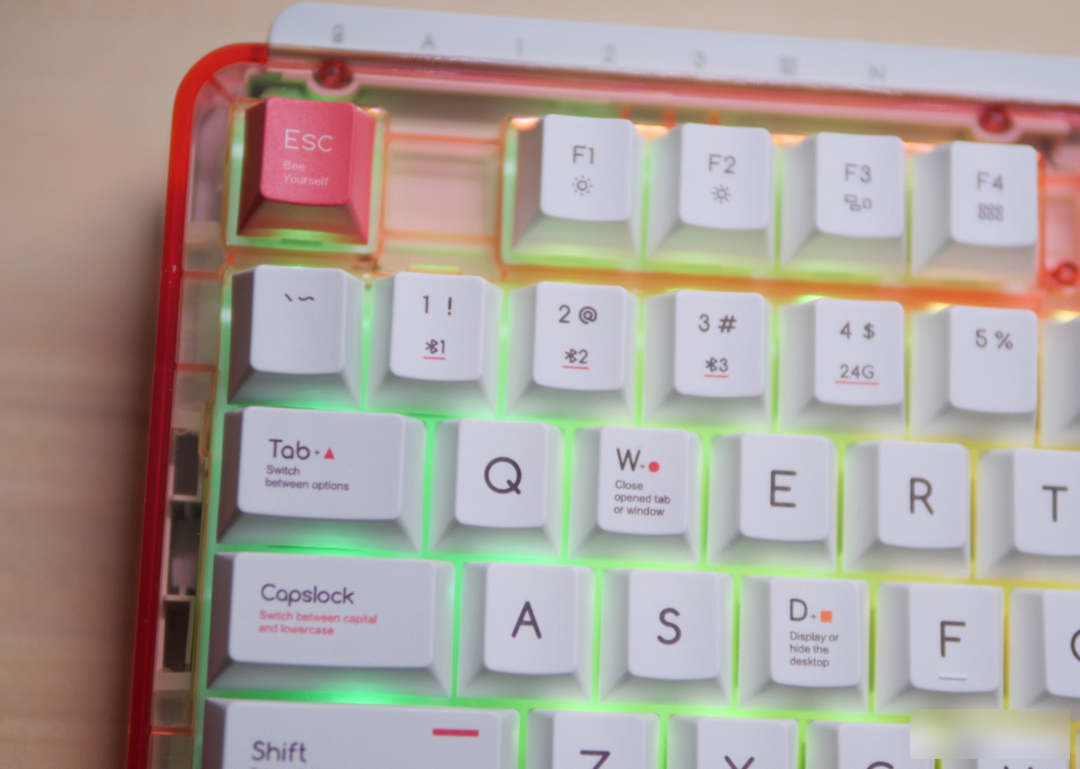

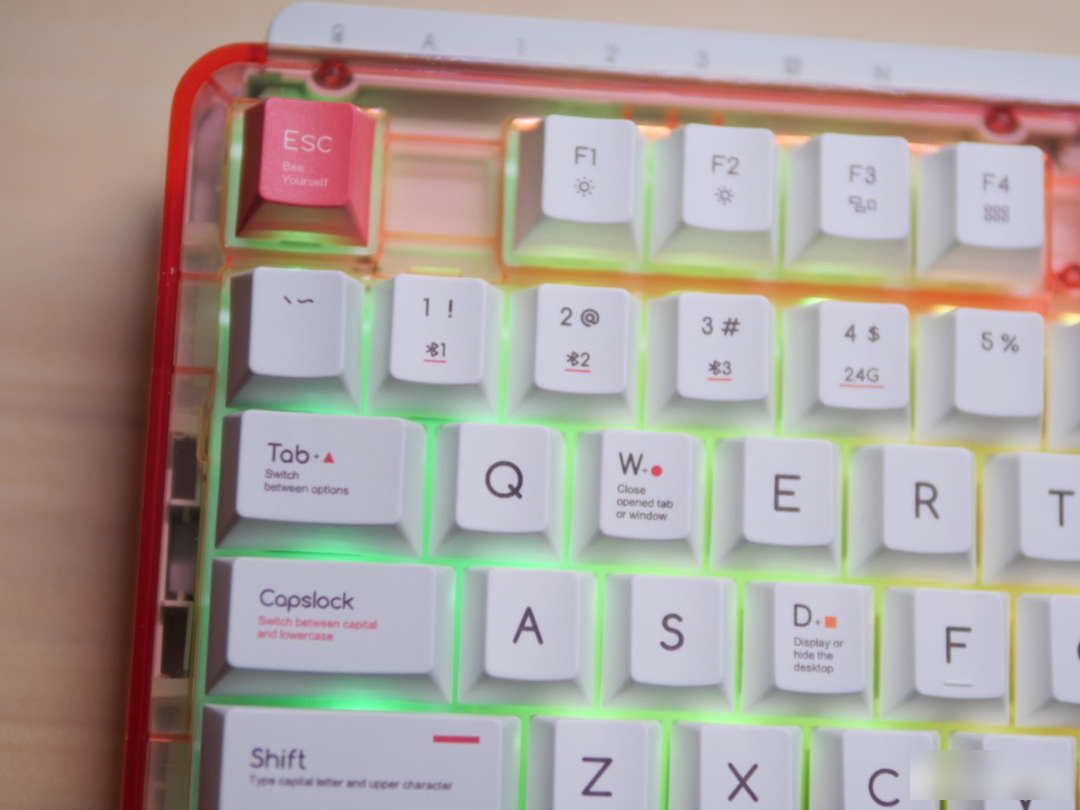

ART Z980 continues the forehead design of the Miwu keyboard family. There is a small white paint forehead on the front of the transparent cover. The finish is smooth and of a good standard. There are six indicator lights arranged in the upper left corner. Due to the relatively compact arrangement of the 98, each company used to put the indicator light in the only blank space, such as the left side of the digital area or the right side of the ESC. The forehead indicator light of ART Z980 is obviously superior in overall aesthetics.

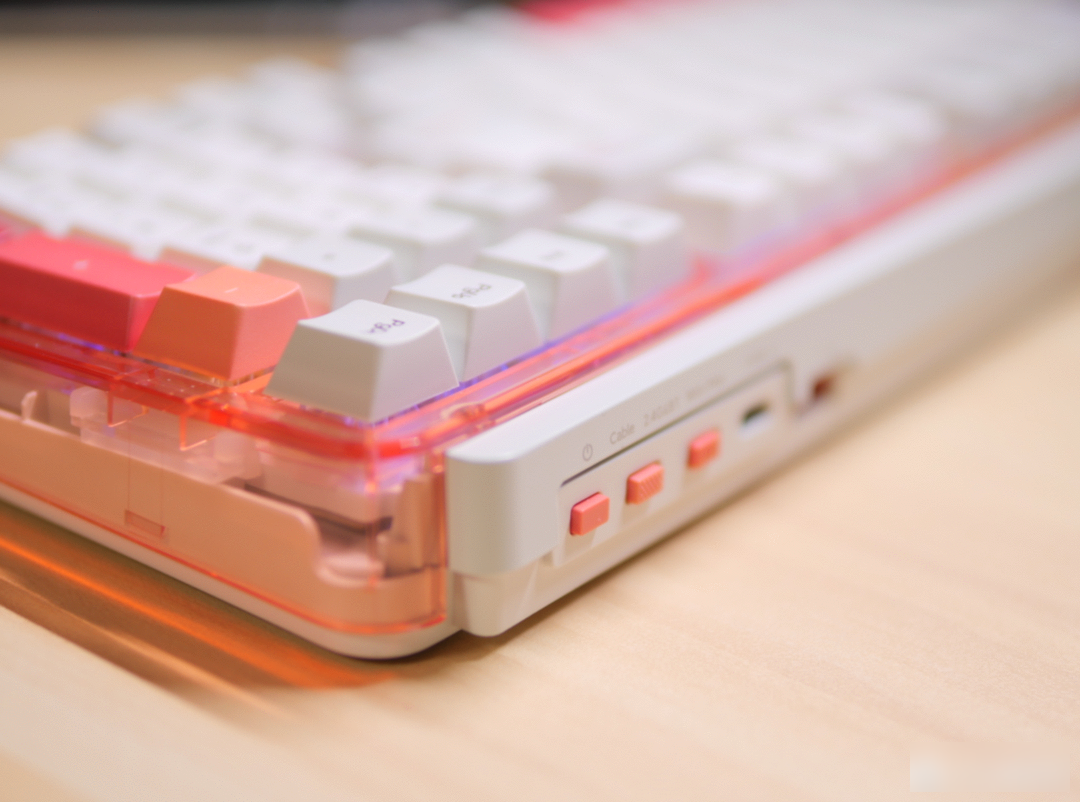

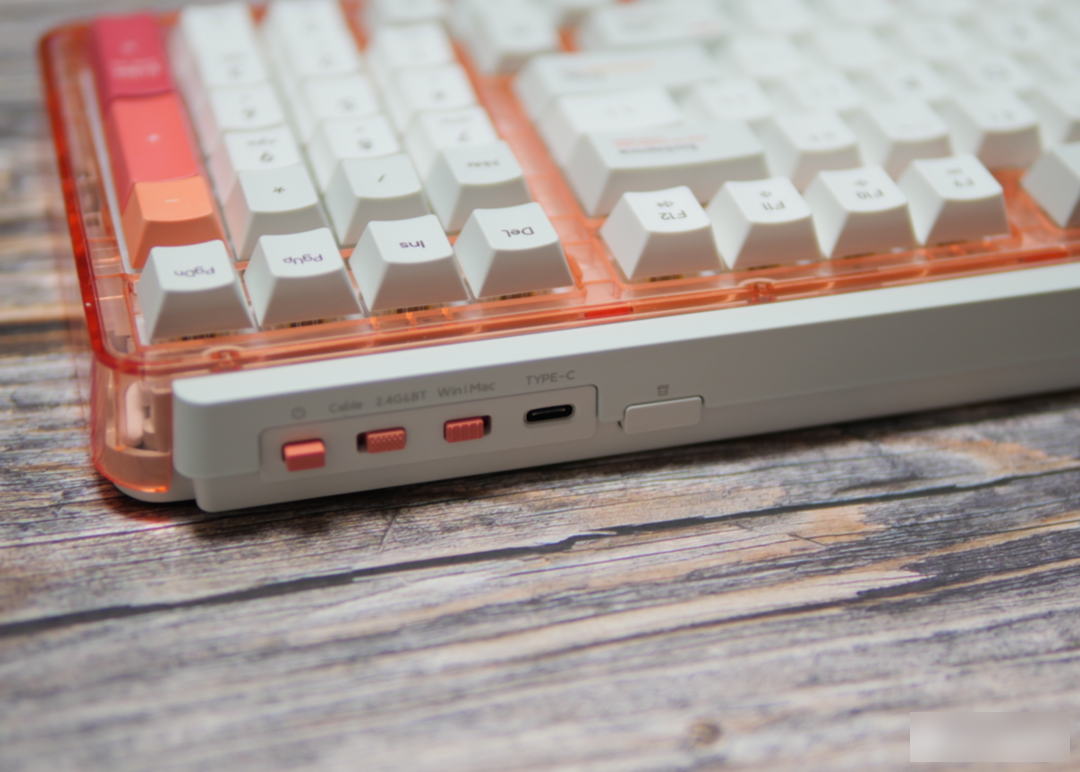

Another feature of Miwu is the button switch, the toggle win/mac adjustment, and the toggle Bluetooth/2.4G adjustment. The entire forehead is actually almost exactly the same as the previous ART Z830. Moreover, it is very practical, and the paragraphs of buttons and fluctuation buttons are clear.

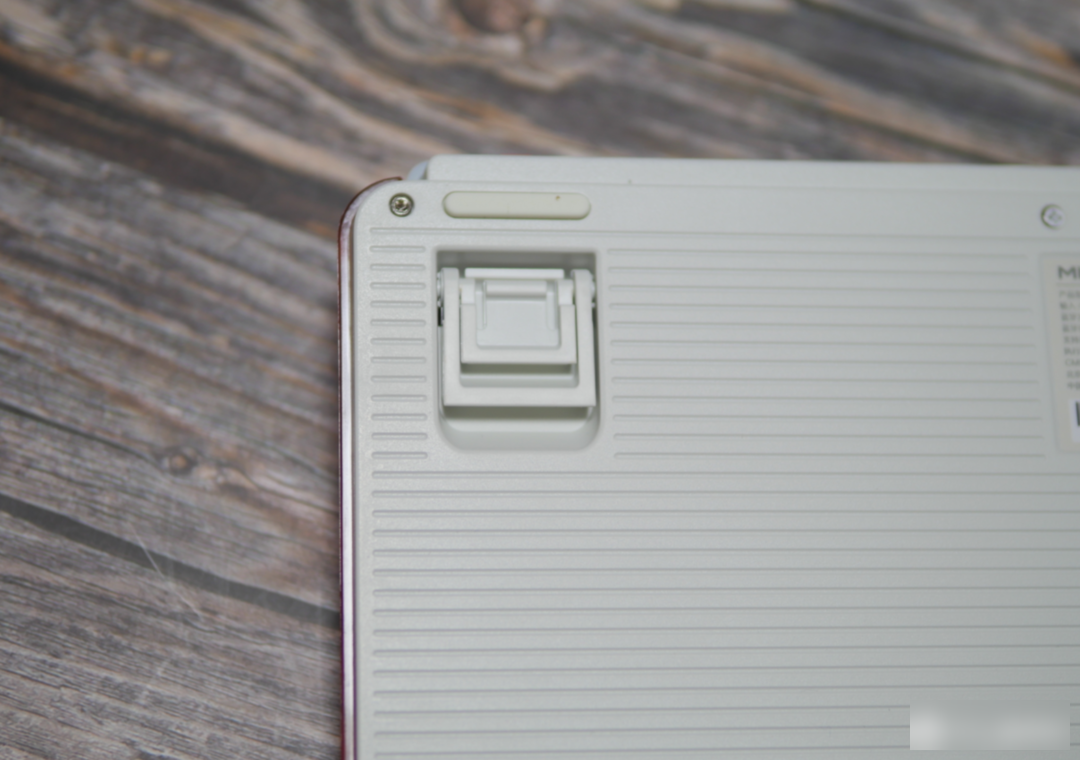

The horizontal strip design on the back is also a feature of Miwu. The anti-slip rubber strips are all arc-shaped, and the bottom is specially grooved for the rubber strips, which is a very detailed design. By analogy, many products are directly pasted with a piece of square rubber.

It is obviously a good thing for a brand to have its own unique design style, which is conducive to the development of the brand itself. For consumers, it is inevitable to be bored with the stereotyped male model keyboard, and a keyboard with a design is more pleasing to the eye.

So here is a small suggestion by the way, it is best to print the brand on the 2.4G receiver, so as to prevent people with many devices like me from confusing the receiver.

By the way, although it is not written on the product page, the top cover should be made of PC material, and the light transmission effect is good.

I have seen the comments below the reviews that have been sent out so far. Someone suggested that the Jiadalong G yellow pro switch body used in this keyboard is not outstanding at this price.

Regarding this issue, we analyze it from two angles.

①How about the Jiadalong G yellow pro shaft itself?

②Where is the material of Miwu’s ART Z980 added?

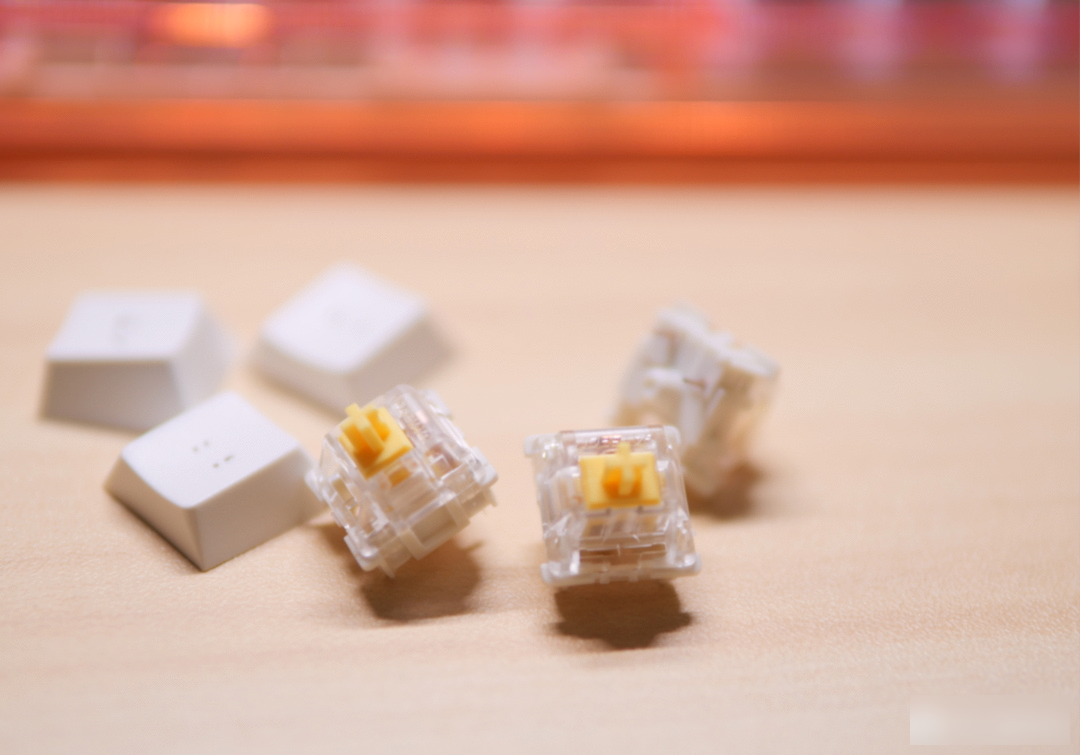

Answer ① first, Jiadalong G yellow pro is called a 1-axis goalkeeper, the initial pressure of 50g is 5g heavier than the standard red axis, and 10g lighter than the standard black axis, which brings more rebound and firmness Feel, especially the game experience will be better. But if you type a lot every day for a long time, fatigue will come faster. For friends who have such needs, I recommend choosing a light pressure shaft with a pressure of less than 40g.

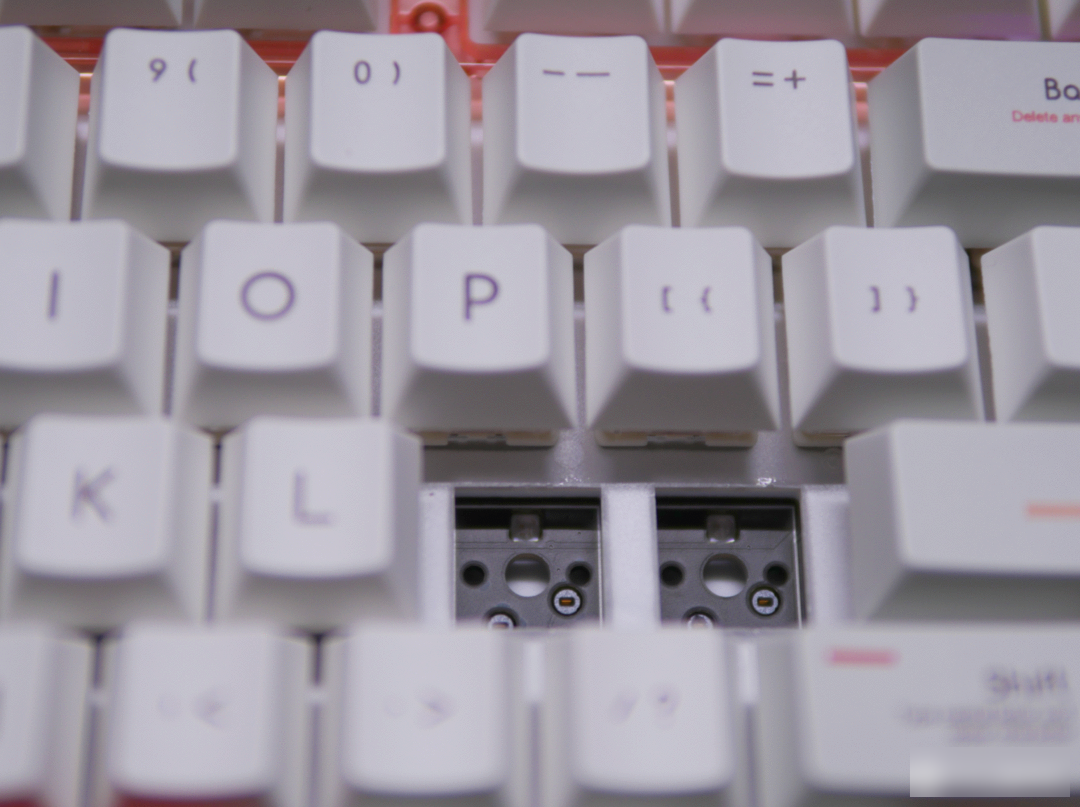

Compared with the three mainstream manufacturers with the same price switches, G Huang Pro has the best sound performance and is most suitable for matching with a mahjong-sound keyboard. The disadvantage is that because there is no fence, the stability of the shaft center is not outstanding, and because grease is added when the factory is lubricated, some batches may have oil leakage. I deliberately pulled out a few shafts for this rice product. It was clean, no trace of oil leakage was found.

To sum up, the G Huang Pro itself is a good switch body, and it is reasonable to match it with a keyboard at this price. Of course, it is not rolly enough.

②, Miwu rolls on a keyboard in the early 400s with a set of very good original height PBT sublimation keycaps.

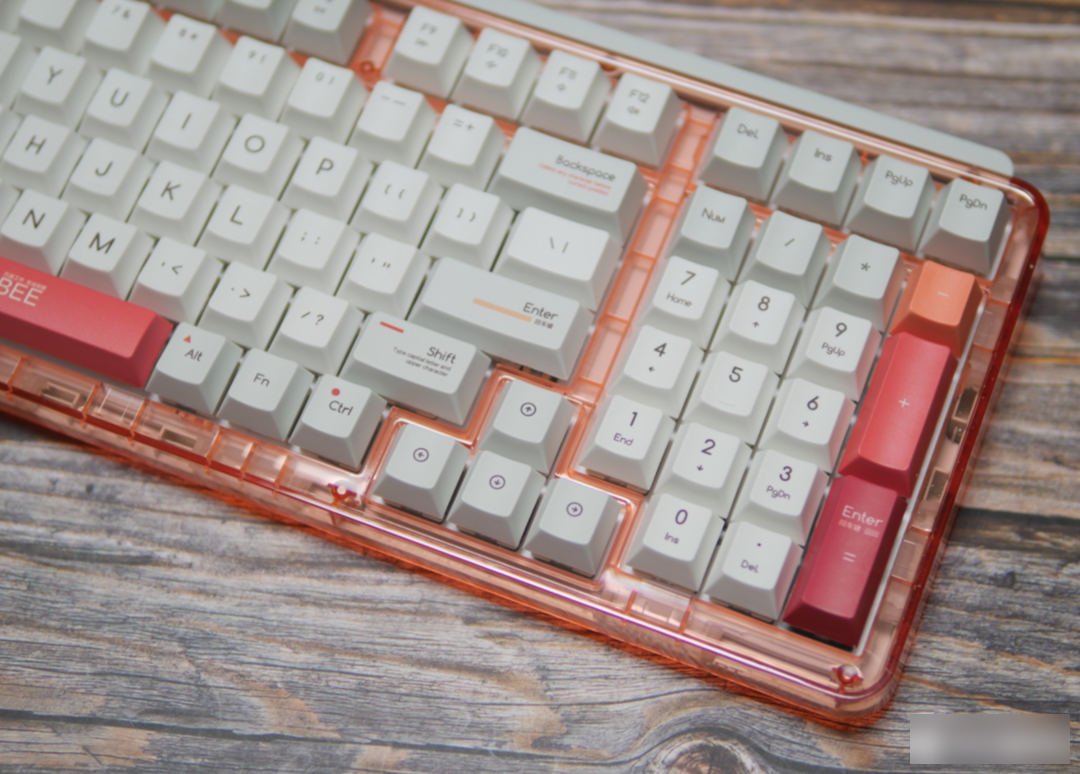

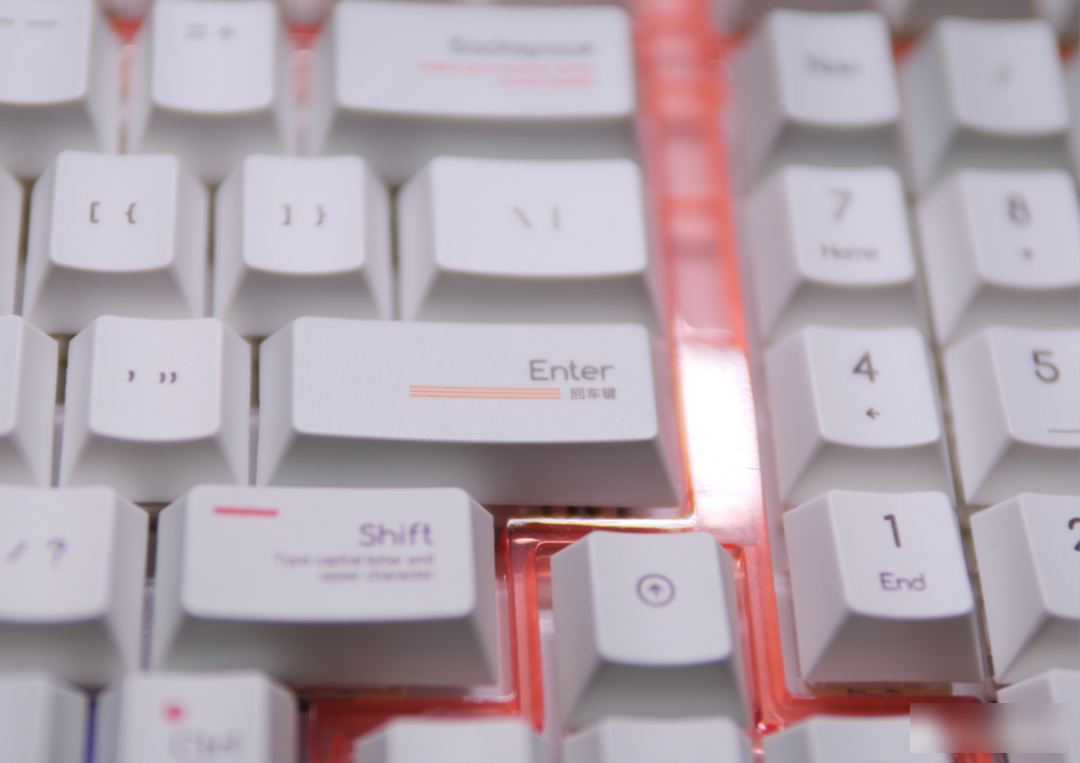

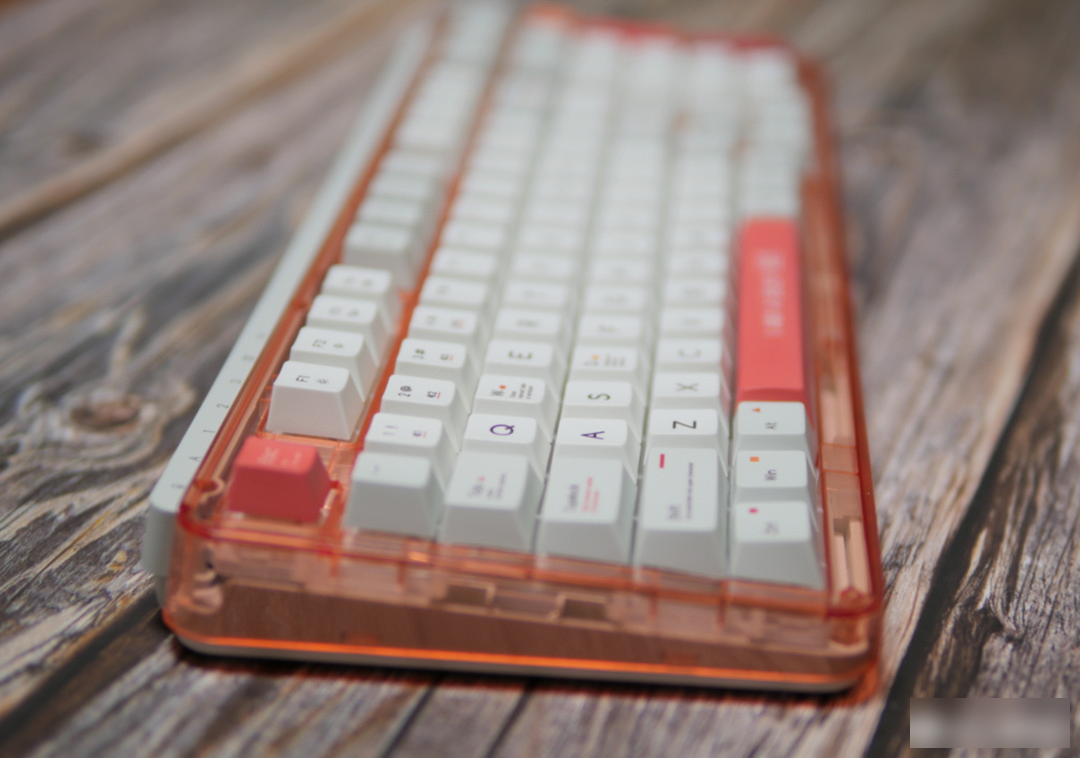

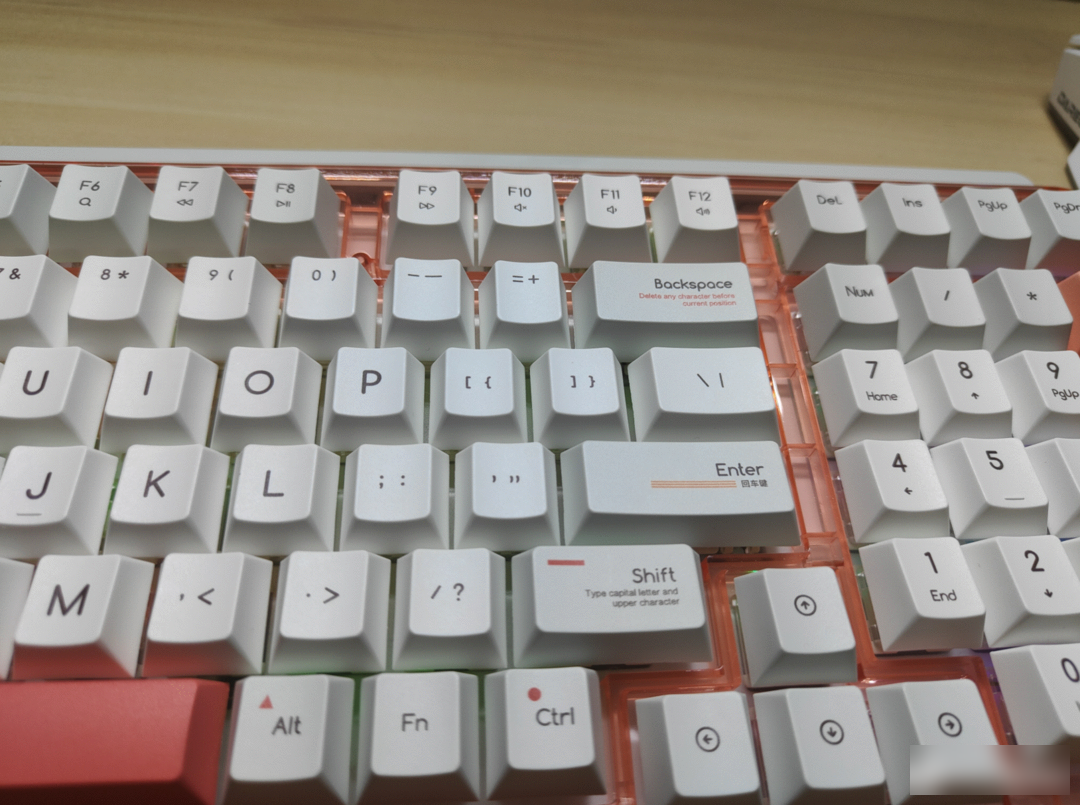

The main key area of ​​this set of keycaps is designed with large characters. Other keys such as backspace and carriage return have many small characters or patterns. It can be seen that the sublimation process of this set of keycaps is very good.

Although it doesn't look stunning at first glance, it looks quite charming. Among the keyboards at the same price, I don't seem to have thought of any keyboard with better keycaps than this one. The fine frosted texture on the surface of the keycap is very comfortable to the touch, and the sublimation process is destined to have a very high PBT content, so there is no need to worry about wear resistance.

Although the Gasket structure has become very common this year, each company has different implementation methods and different internal designs, so it is still necessary to dismantle it. Of course, dismantling will void the warranty.

First of all, make sure that the two pieces of sound insulation cotton in the middle and bottom are made of EVA. The cost is limited and reasonable, and the effect is enough. The shaft seat is high-tech.

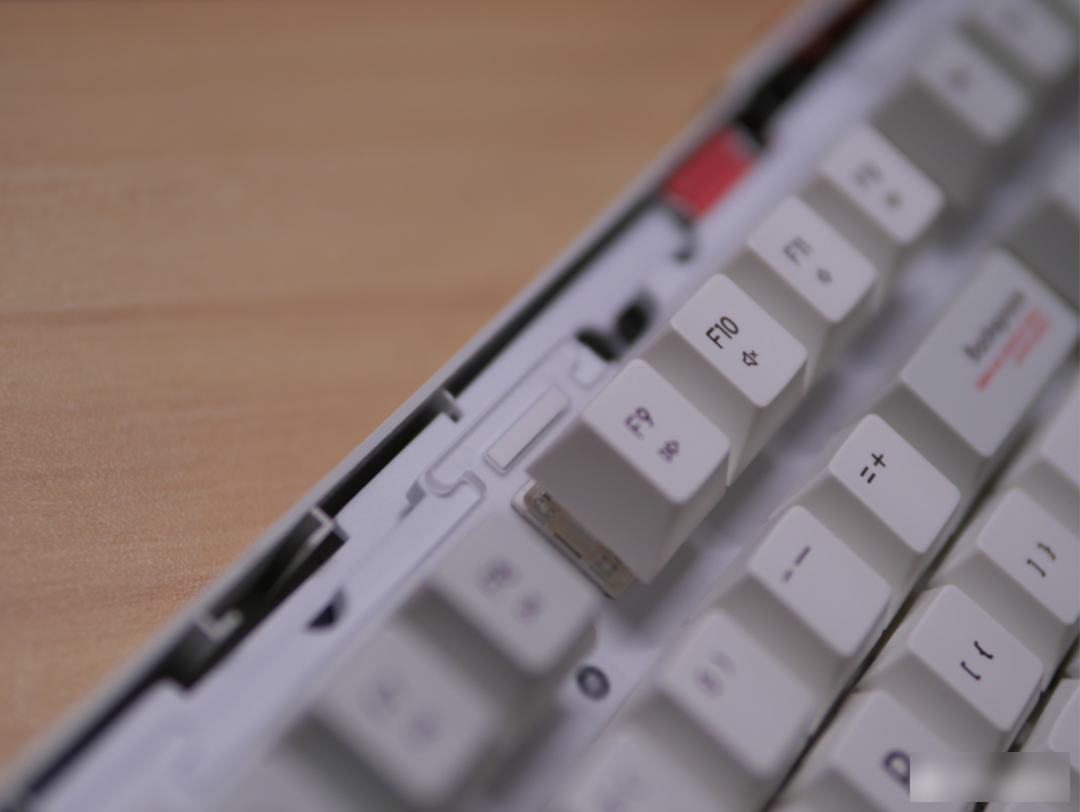

The suspension of the positioning plate is made of silicone material, but it is not a common silicone sleeve in mass production, but a strip of silicone on the bottom and two silicone feet on the top, but it seems that the silicone feet do not have obvious contact with the upper cover. The silicone strip at the bottom is very thick, and the deformation is obvious when pressed down.

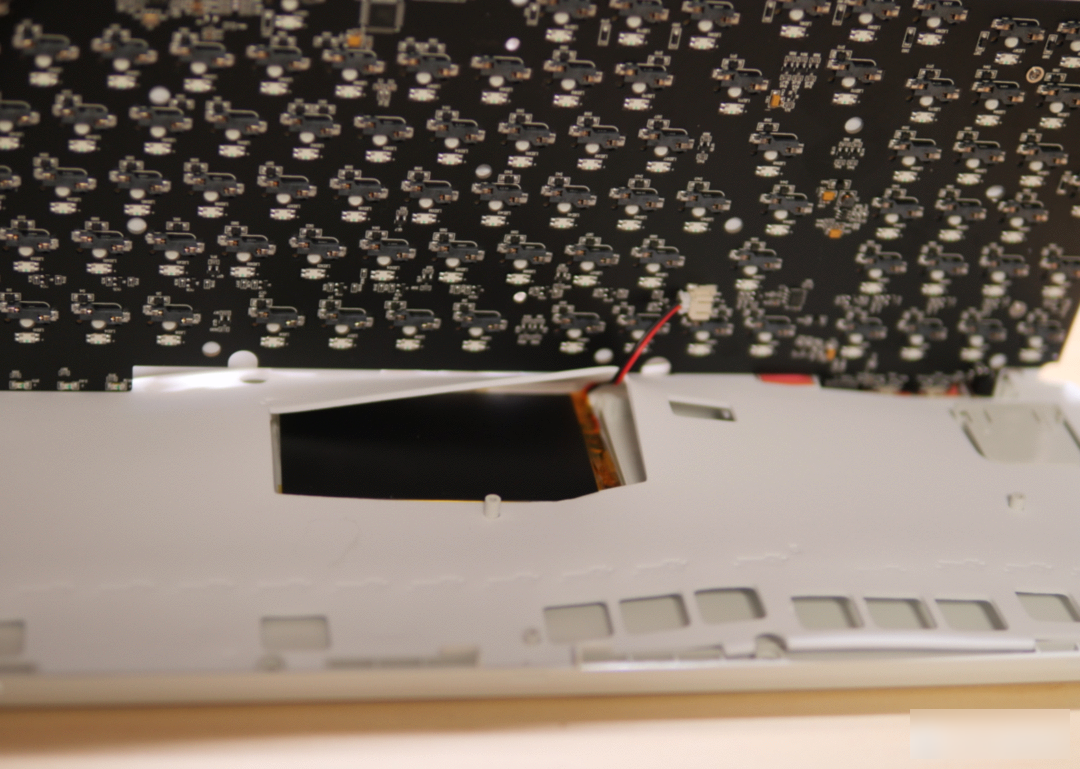

Did you pay attention to the picture just now? There are studs at the bottom of it, but there are no screws. At this time, there are a bunch of question marks in your head. Take a closer look, because there is a hole on the PCB (the red circle of the finger in the picture), so the studs It just corresponds to the cavity and does not work as a support. This stud is actually just a decoration...so it will not affect the sound of the Gasket structure and the sinking space.

There is no cushioning on the top, and the two positions reserved for the silicone sleeve in the middle are suspended. I forgot to take pictures on the left and right sides. They are the indicator light and the switch module. There is an extra PCB, so it is hard-wired to the bottom case. It is a sacrifice made for the forehead design. However, most of the tooling kit Gasket at this price cannot withstand scrutiny after disassembly. Various reinforcements, battery compartments, and sinking caused by the upper and lower edges abound. Hard connections are the category that has the least impact on the user experience of the entire structure.

As far as the actual effect is concerned, the main input area and the number area of ​​this keyboard have obvious depressions, and the typing sound is better, which is a muffled mahjong sound. The keys in the F area and the bottom are not found when they are tapped. resonance, so although this structure is not perfect, it is worthy of praise.

Transparent PC positioning board with holes punched in some positions. For example, the two sides of each group of keys in the F area and the middle of the main key area and the number area.

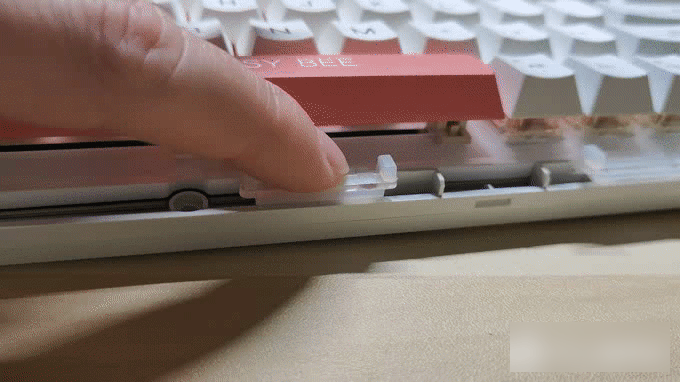

Finally, with a big key, it can be praised, but it is not perfect. The quality of the satellite axis is very good. After factory adjustment, there is a slight noise when listening to the carriage return carefully. I don’t know if it is an exception. The space and backspace experience is quite good.

Non-male model design with family style, transparent colored top cover, unobtrusive but practical switch body, relatively good Gasket structure at the same price, and the most important thing is a set of high-level PBT sublimation keycaps. The pre-sale price before December 28 is 419 yuan, which I think is a very sincere price.

Mechanical keyboards should not be simply stacked and configured. The final user experience of the product is the result of the joint influence of various factors. Mechanical keyboard manufacturers want to survive and develop by working hard on appearance, design and consumer final user experience. The ultimate way to break the game.

A keyboard always has its own advantages and disadvantages, there is no perfect keyboard, only the most suitable keyboard for you.
