Key Words Key Words Chapter 63: I built a green translucent 98 keyboard, how would you rate this appearance?

In the beginning, I actually just fell in love with this kit called Bingdian on Pinduoduo. To be honest, the price is not cheap. After using up some coupons, I still need about 200. I can buy a lot of kits with better quality. There is a whole set of keyboards too.

But the important thing is to play, as long as the price is not outrageous, what you like is the best. So after buying this kit, I built such a keyboard based on it, and the entire configuration is listed below.

Kit: Bingdian KN980 201 yuan

轴体：MXRSKEY & CANDY 102.8元（105颗）

Satellite axis: MXRSKEY

Keycap: colorful summer solstice 167.22 yuan (deductible with gold coins)

Let's talk about the above one by one.

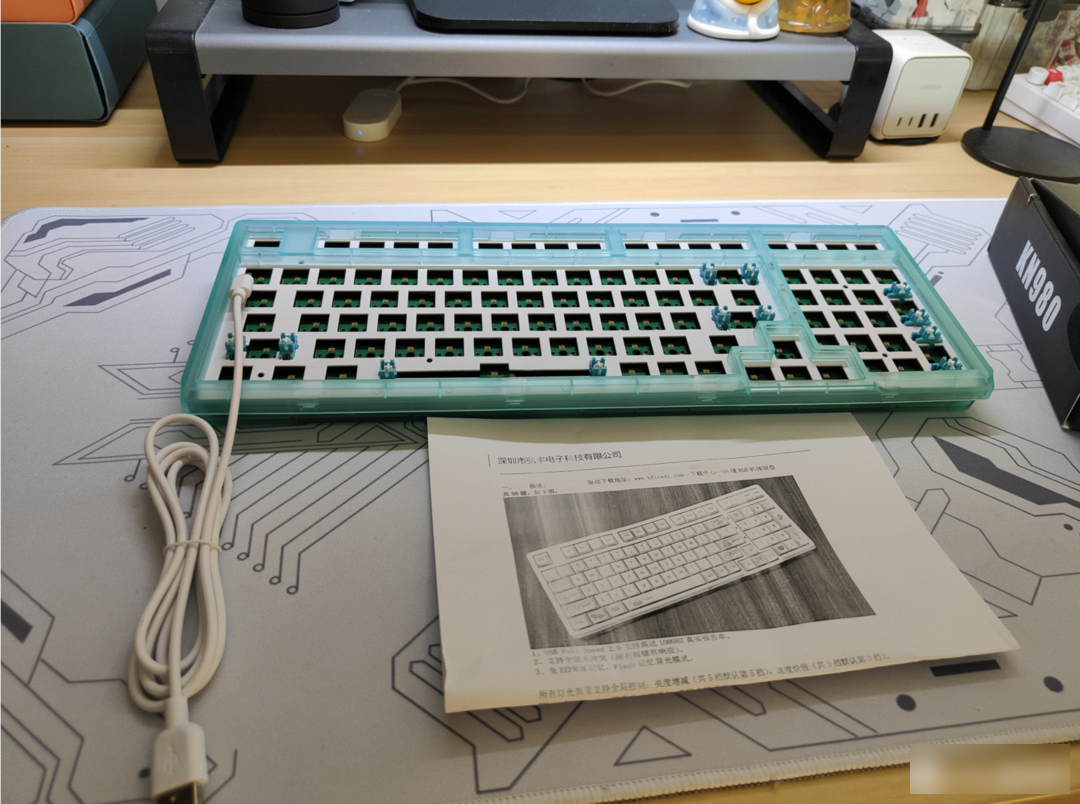

If it weren't for the design of the frosted translucent cover, this kit would not be worth 200 yuan anyway. The instruction manual is even a piece of A4 paper, and there is even a little ink shortage when printing...

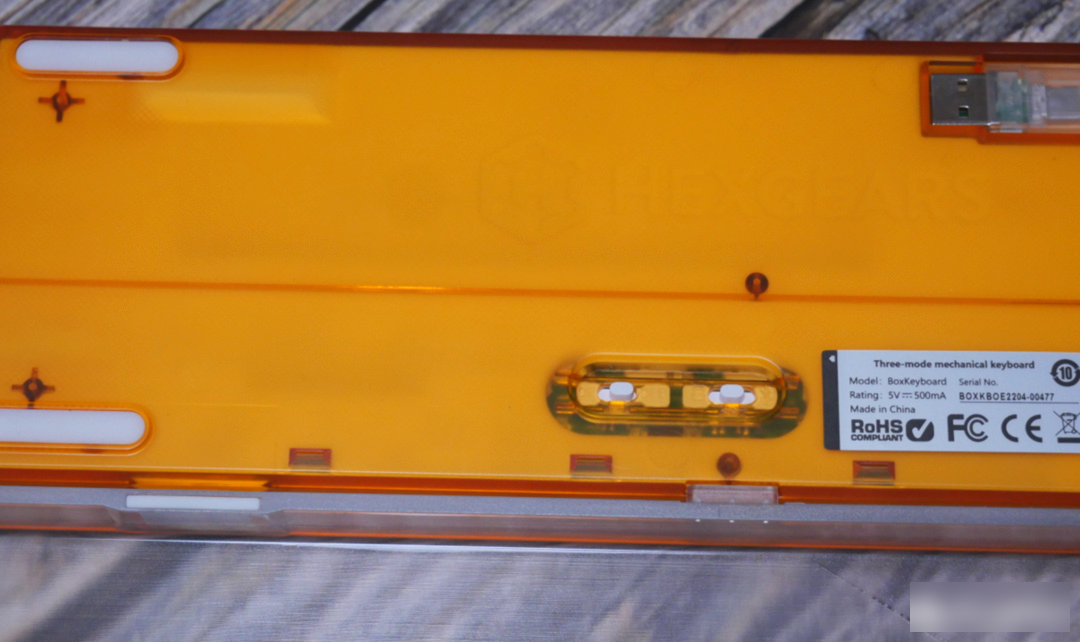

The thickness of the plastic is not bad, the two-section foot support, there is no RGB light on the back, but it is a bit unappetizing to get a piece of black foam liquid. I have used the transparent Xinmeng X75 and the frosted transparent black canyon SODA before, and the solution to the bottom filling is to use a large thick white silicone pad without exception. And all of them have their own brand LOGO engraved on the bottom.

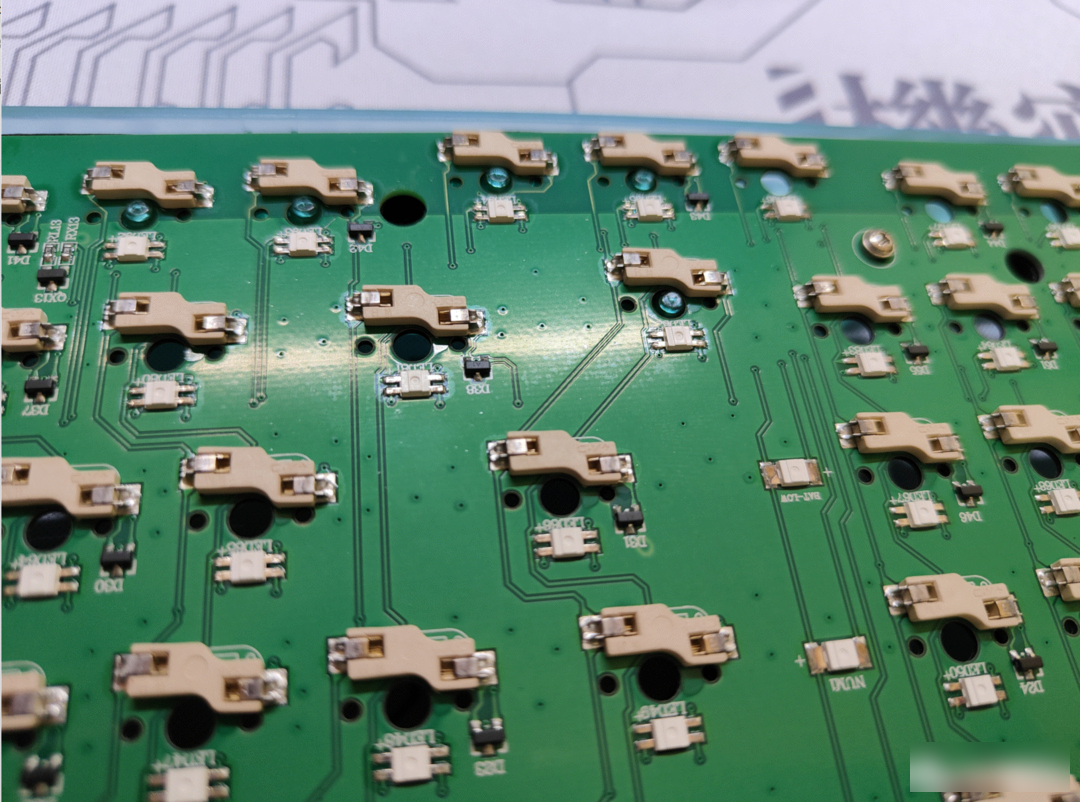

The sandwich cotton is also this kind of black foam, which is as loose as the bottom, and there is an obvious gap between the PCB and the positioning board. This kit is not a Gasket structure. It has studs but no screws. It relies on the extrusion of the upper and lower covers to fix the positioning plate.

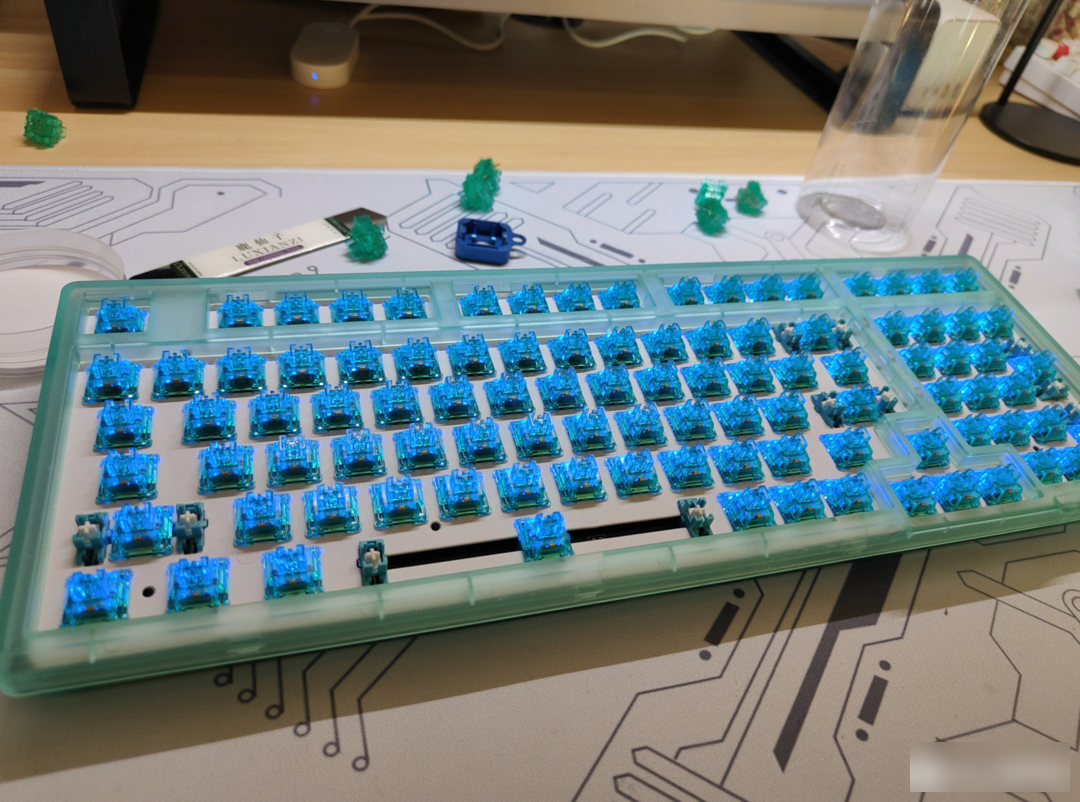

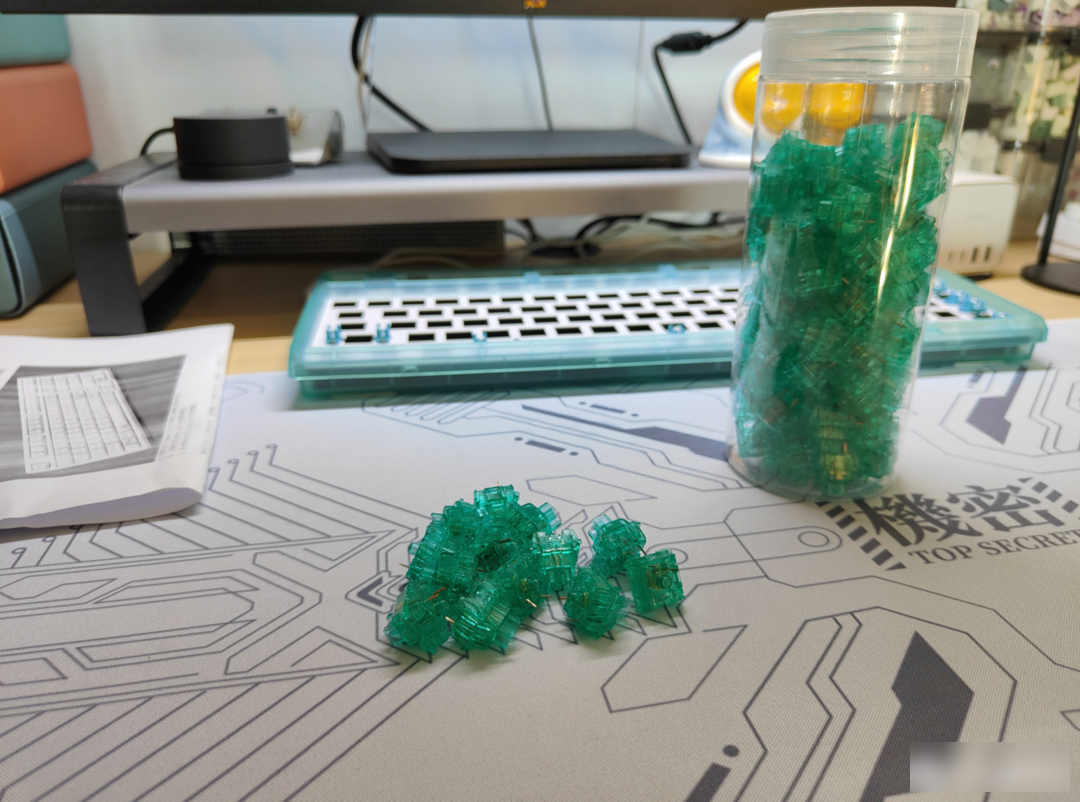

A shaft that my friend got is the same brand as the three-mode 75% aluminum kit I reviewed earlier. Including the colorless and transparent version, there are a total of eight colors to choose from, which is really a colorful gourd doll axis.

Because this axis body was not sent for testing, I bought it from the store on the day it was first launched. At that time, the price was 102.8 yuan for 105 axes after including the discount of gold coins. Now it costs 110 yuan without shipping. It is basically a 1-axis body. The shaft foundry is unknown.

Everyone should understand at a glance that this shaft is mainly colorful, and the shaft itself is made of nylon, so the cost should not be low. I took it apart and looked at it, except that the axis seemed to be slightly lubricated, and there was no trace of lubrication in other places.

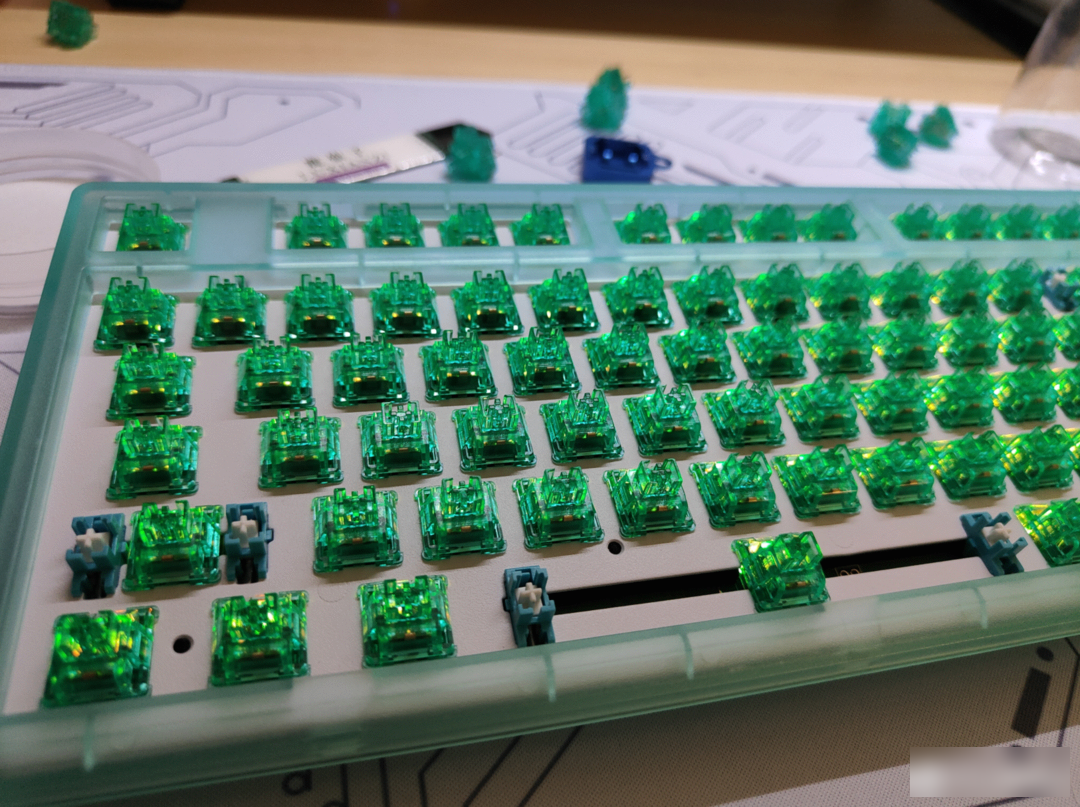

In the actual experience, the smoothness is not bad, not that kind of refreshing slippery (it is another story for thick and moist), but it is considered a good level in the 1 yuan axis. The stability of the axis is acceptable, basically on the same level as Cream Rose, and better than the old BOX Red V1, but the positioning plate of this kit itself has a large tolerance, resulting in mediocre stability after the keycap is finally installed.

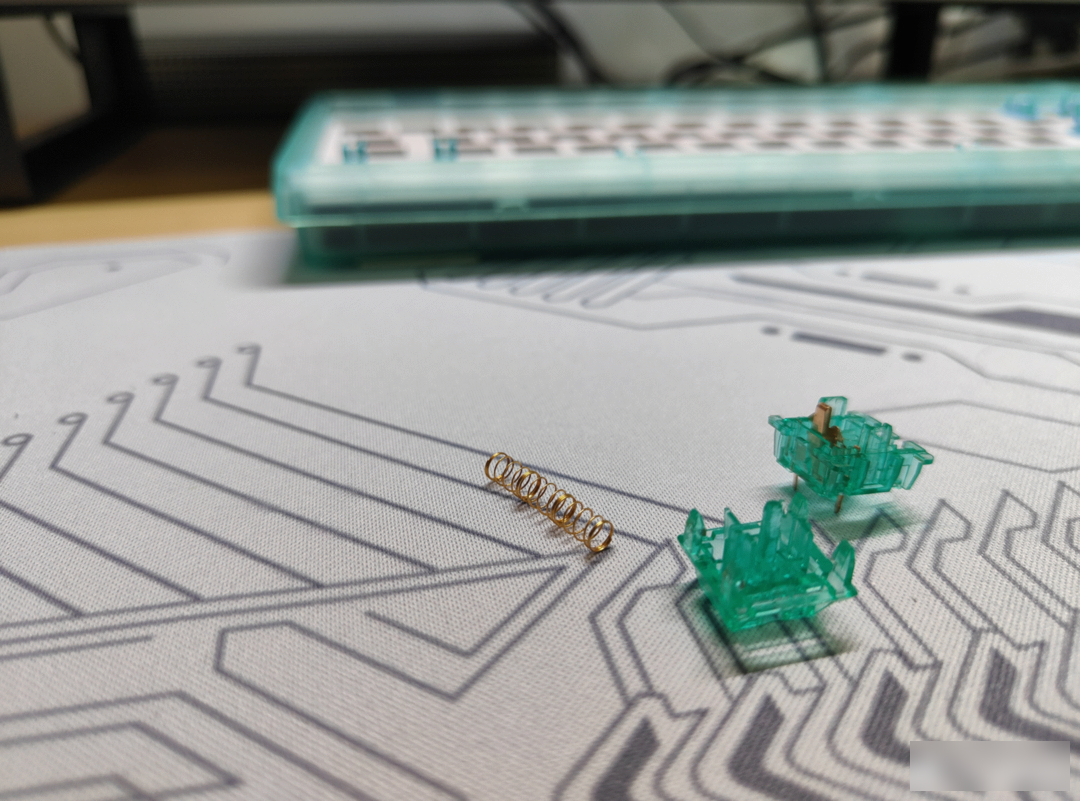

This shaft uses a three-stage thick spring with a relatively small number of spring coils. This kind of spring is quite rare in the shaft body. The initial pressure is 45g and the bottoming pressure is 60g, so I feel that the bottoming pressure of this shaft is not small, and the rebound is very handy. It has the feeling of TTC Flame Red, but it does not feel as smooth as Flame Red.

The disadvantage is that this version seems to be able to press down after the keycap is installed normally. At this time, it is not a problem if it is not pressed. After pressing down hard, there will be a small paragraph progress. It's really hard to take it off the body! Hope to solve this problem in the future.

The original satellite switch of Bingdian is a little bit beyond my expectation, and it is quite good, but the other big keys are moistened, but the space is not moistened, this... MXRSKEY sent a set of the latest satellite switch, just to replace it See how.

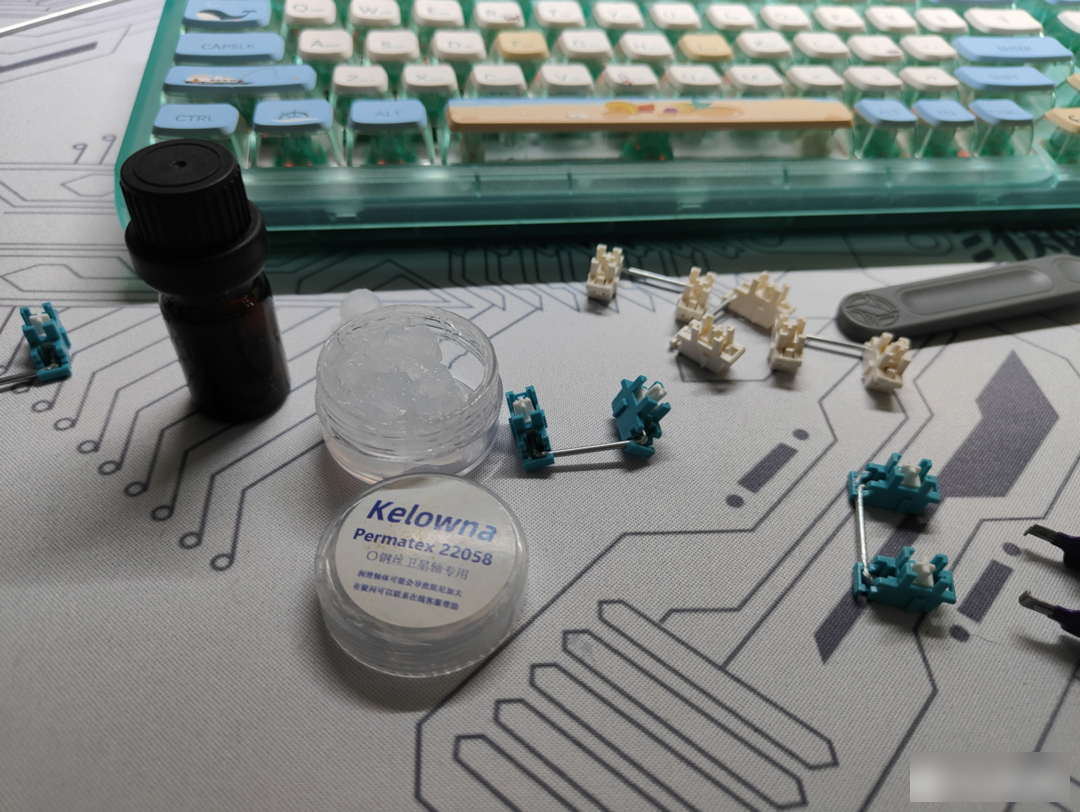

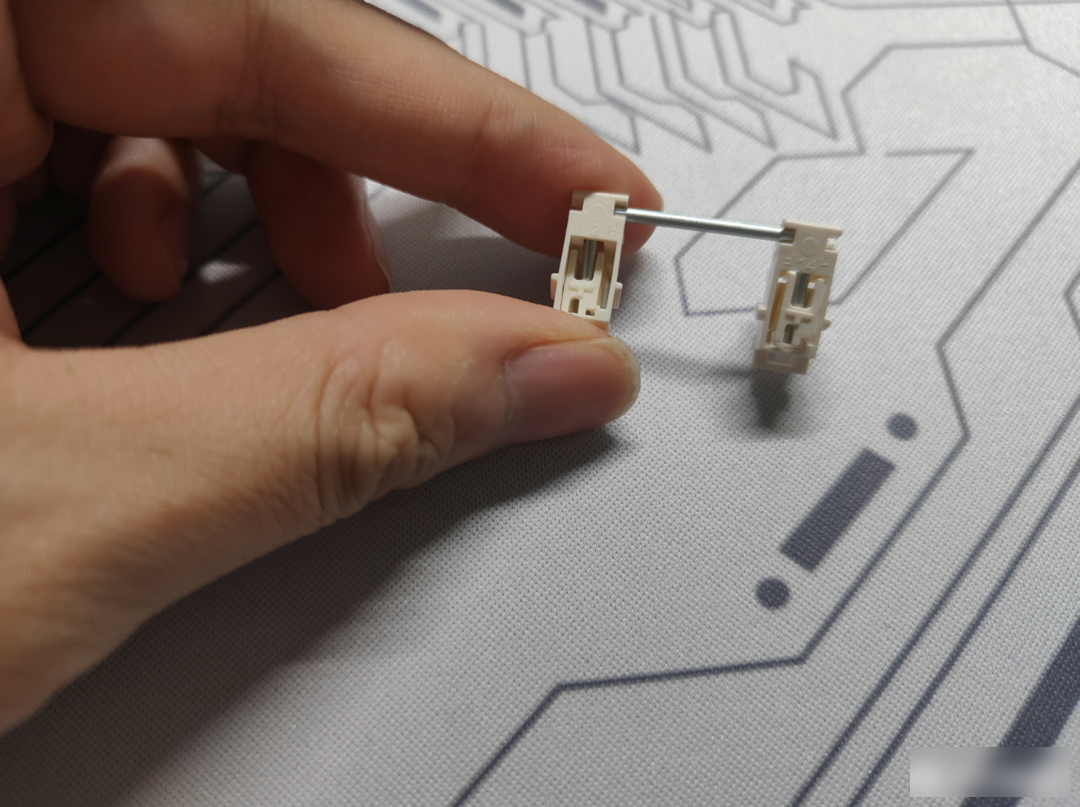

MXRSKEY’s satellite shafts are packaged very delicately. There are a total of 7 2U satellite shafts, 1 7U satellite shaft, a bottle of grease, 1 shaft-running pen, and a foam packaging box to protect the dummy shaft and steel wire. The most important thing is the steel wire. A slight bend in the satellite shaft wire is a sound disaster. In fact, I tried it on the machine. The self-contained grease should be the kind that is commonly used in many mass-produced keyboards. Decided to use my own 22058.

After changing to 22058, the whole world is better, there is no noise, the rebound is crisp and neat, the outer side of the satellite axis and the positioning plate are fixed relatively firmly, but it is not difficult to disassemble, and the tolerance of the mold is well controlled.

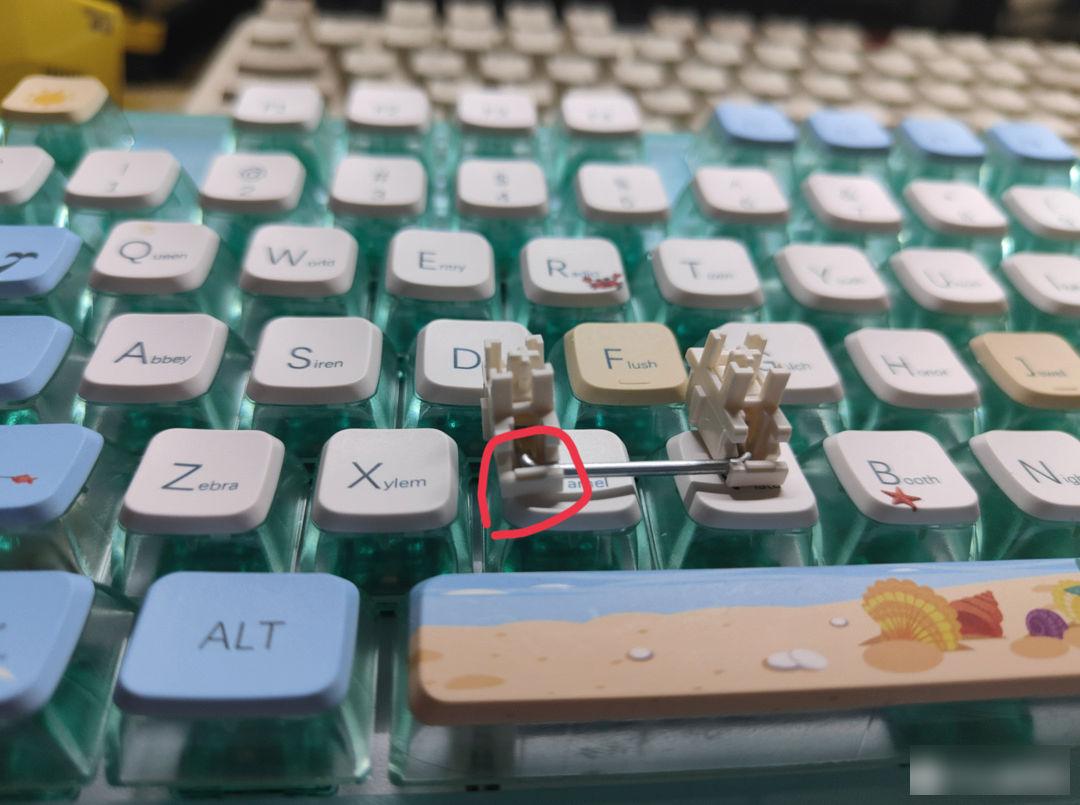

The bottom of the satellite shaft is not flat, but has a T-shaped protrusion, which can prevent the grease from leaking down and cause the bottom to feel sticky.

There is a small bump on the plastic behind the spring, which allows the satellite axis and positioning to be locked more tightly.

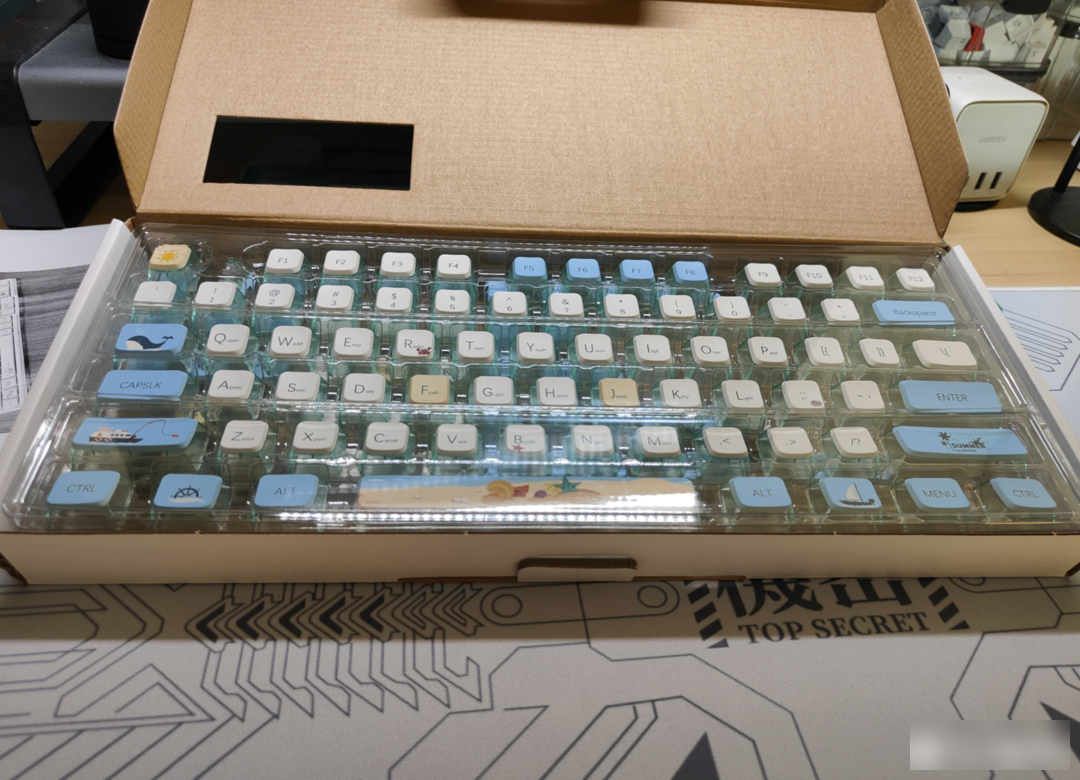

Originally I was going to buy Italian pigeons with white, blue or green letters, mainly because it was cheap, but when I placed the order, their default express delivery could not reach my city, so I had to go to someone else’s house, and after shopping around, I found this colorful summer solstice . It should be said that the fit between this keycap and the Bingdian kit is much higher than that of Yige. Moreover, the design of double skin milk ensures a positive feel.

The disadvantage is that it is expensive, and the price is almost the same as that of the kit. After all, this is a set of sublimation keycaps. Many keys have patterns of summer seaside, ships and lighthouses on the sea. The feeling of summer is really overwhelming.

The transparent part is also frosted and semi-transparent and green. Although it cannot be said to be exactly the same color as the kit, the color difference is already very small. Coupled with this shaft body, the overall sense of consistency is really invincible.

The frosted particles on the surface of the keycaps are very, very very fine, but considering the excellent wear resistance of the sublimation keycaps, there is no need to worry about oiling in a short time. There are a lot of small problems in the transparent part, especially the injection molding traces of the large keys. However, this keyboard is usually used to turn on the light, and nothing can be seen.

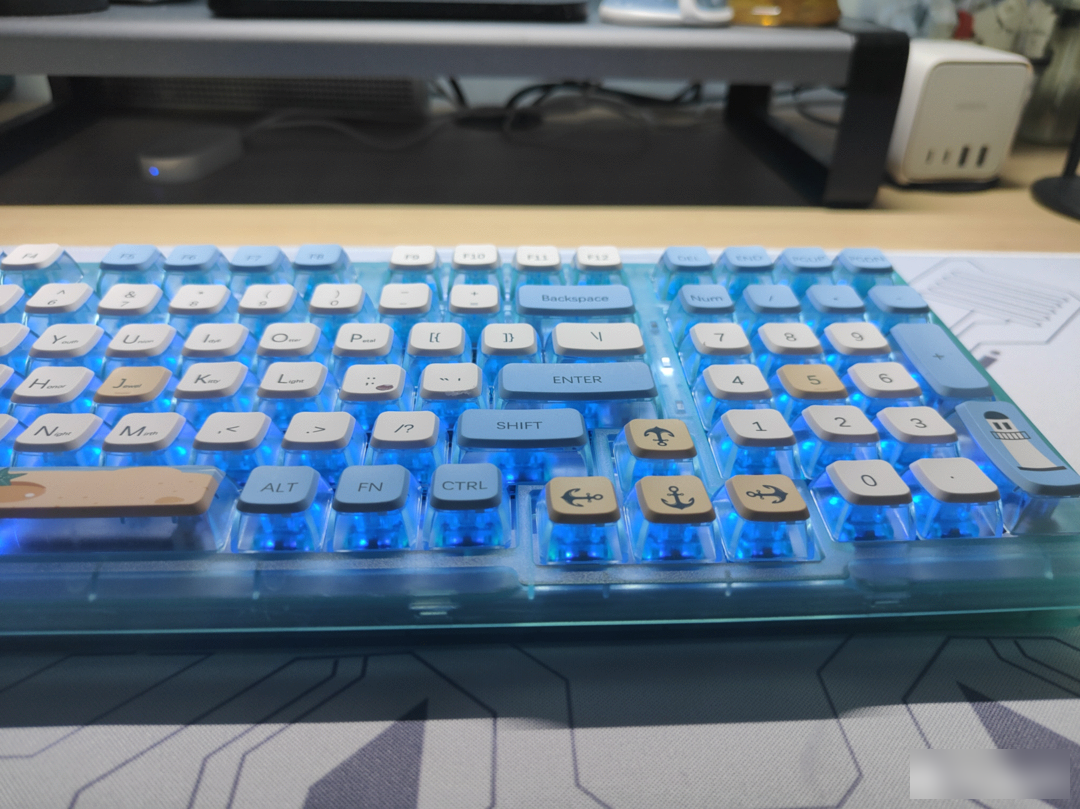

The visual consistency of the final keyboard is still very strong. The keycaps, shafts, and kits are all cyan. Although the materials of the kit are average, I think the final product feels good, including the sound. Well enough. It may be because the bottoming pressure of the shaft body is relatively large, so the unexpected feeling of firmness when typing is very good.

Finally, two pictures to call it a day.
