Late but cost-effective 75 three-mode, HELLO GANSS HS75T mechanical keyboard sharing

I remember that when HELLO GANSS's first product, HS108T, was first launched, it still adopted the welded shaft design, and did not add "customized" configurations such as sandwich cotton. However, the domestic market is too crowded. In order to meet the needs of the majority of players, hot plugs, sandwich cotton, shaft pads, and bottom cotton will be arranged one by one in the next upgraded version soon. The most popular in 2022 is the 75 series. The HS75T of HELLO GANSS is a long time coming. It was not officially launched until a few days ago. Added some unique little designs.

Skip the outer packaging, the accessories are very rich: dust cover, two bags of supplementary keycaps, key cover (which can change the key layout), solid color knob cover + knob, data cable, adapter, two five No. battery, key puller, shaft puller, and manual.

The naming habits of the keyboard arrangement are actually quite interesting. For example, 104/108, 98, 87, 84, 68, and 61 are the actual number of keys, but 96 and 75 become percentages, so the HS75T is actually an 80-key keyboard. keyboard.

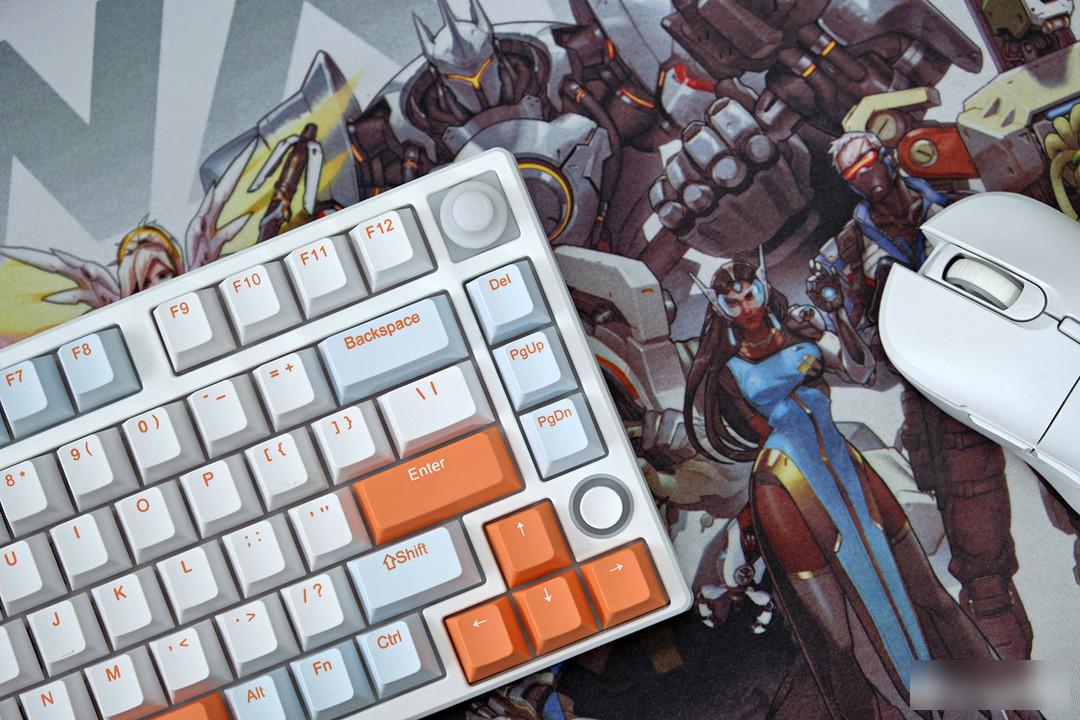

In addition to the popular 75 series this year, the knob is also very popular, and the knob can be seen on the new models of many brands. In addition to adding a knob in the upper right corner, the HS75T also adds a five-way joystick to the right of the direction area.

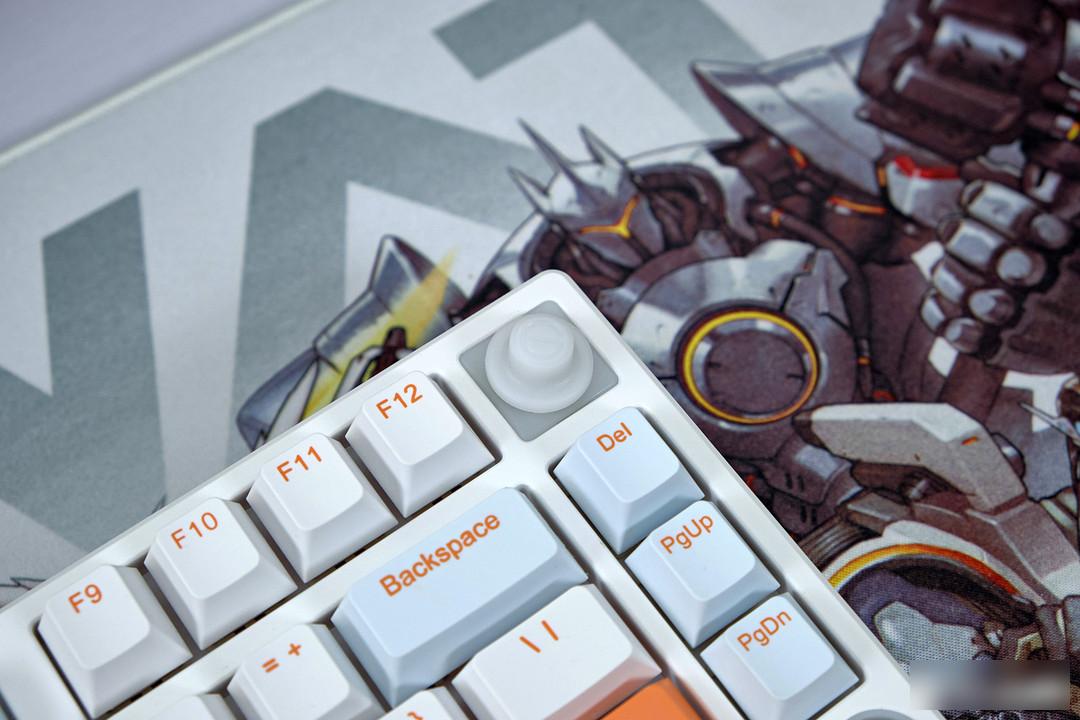

The knob in the upper right corner is made of plastic and relatively small in size. It needs to be adjusted with two fingers, similar to the operation method of old-fashioned radio frequency tuning. Rotate to adjust the volume, press a button to mute, it is very convenient to use.

This knob just occupies the position of a key, the scale of the encoder is clear, and there is an LED light bead in each of the four corners of the PCB.

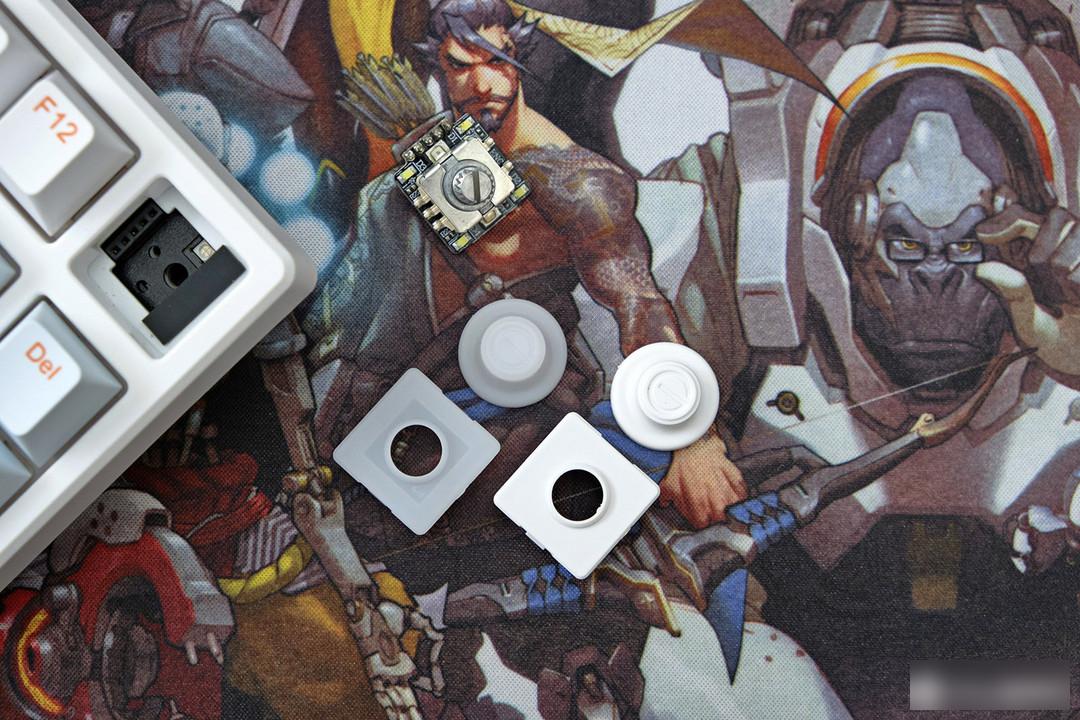

The encoder can be pulled up directly, and a hot-swappable shaft is reserved at the bottom. If you don't like the knob, you can directly replace it with a shaft for use.

A set of opaque knob covers are included in the accessories for replacement.

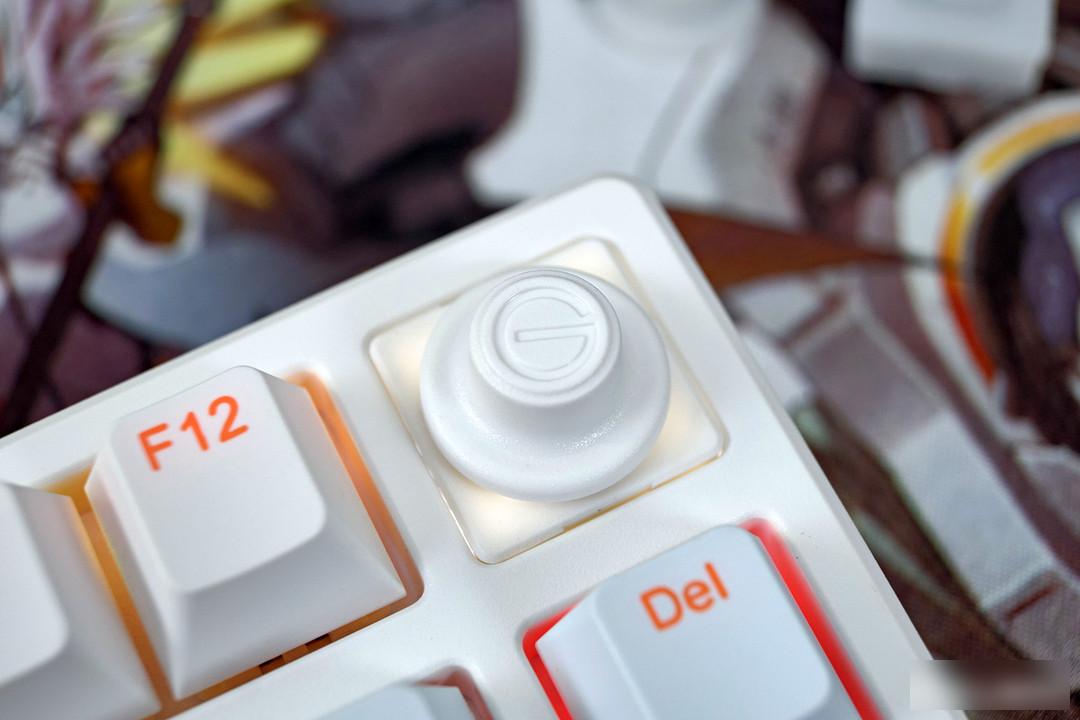

After replacing the opaque knob cover, the light can hardly see through, and only a little bit of light can be seen faintly.

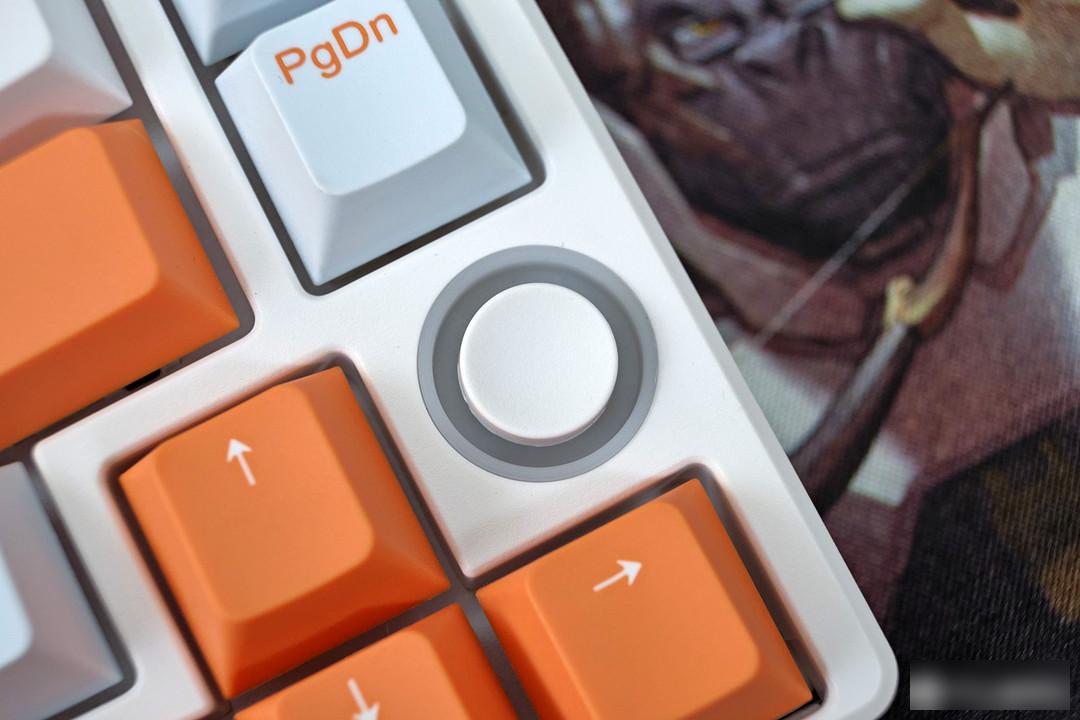

The five-way rocker can be moved up, down, left, and right, and pressed down from directly above, with a total of 5 functions. The default function is to toggle up and down to adjust the brightness of the backlight, and toggle left and right to adjust the speed of the lighting effect. You can also customize the five functions in the driver.

The light transmission around the circle is also RGB lighting effect, which is quite technological.

The light transmission effect of the knob and rocker is more eye-catching than the overflowing ambient light effect between the keycaps, and is highly recognizable.

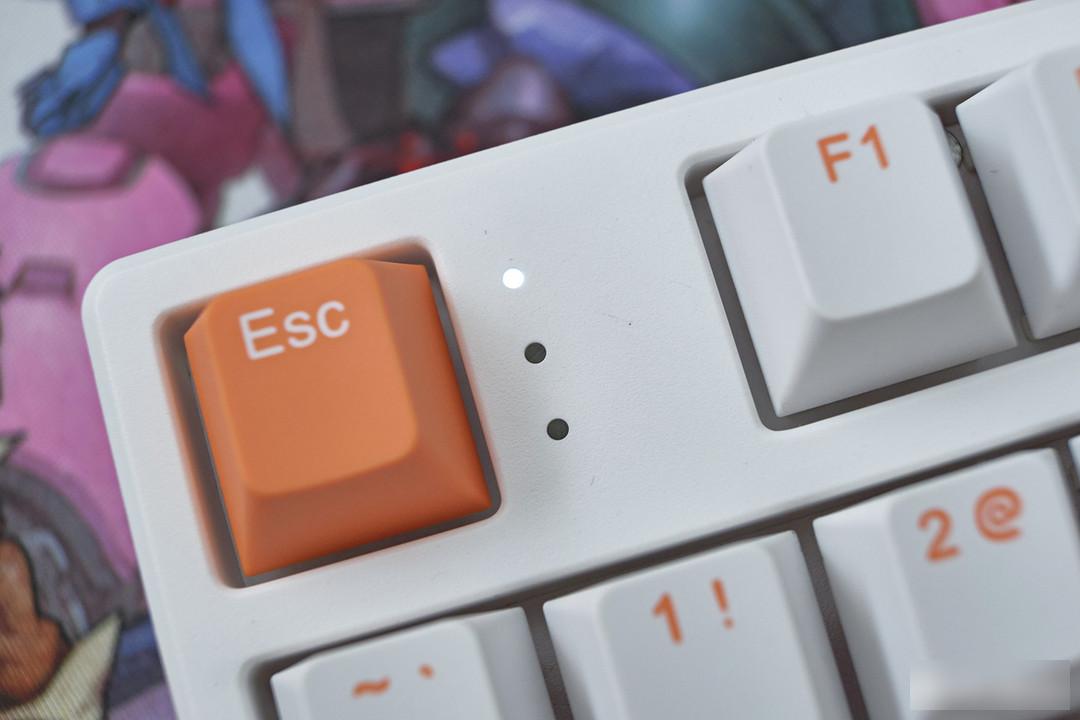

The right side of the ESC is still the pinhole indicator light of the HS series.

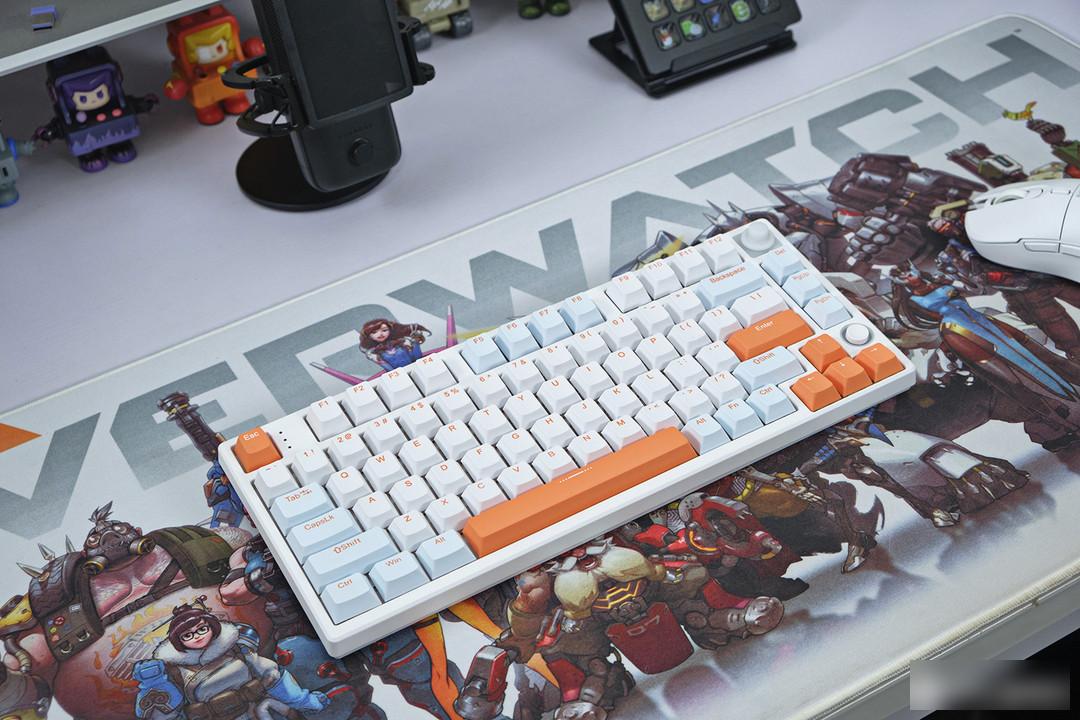

The more common 84-key arrangement in the past two years is actually a compact 75-key keyboard, and the new generation of 75-arrangement keyboard represented by HS75T has made the F area, direction area, and several commonly used function keys that were too compact in layout. In this way, the primary key area basically does not change, but the difficulty of getting started is greatly reduced.

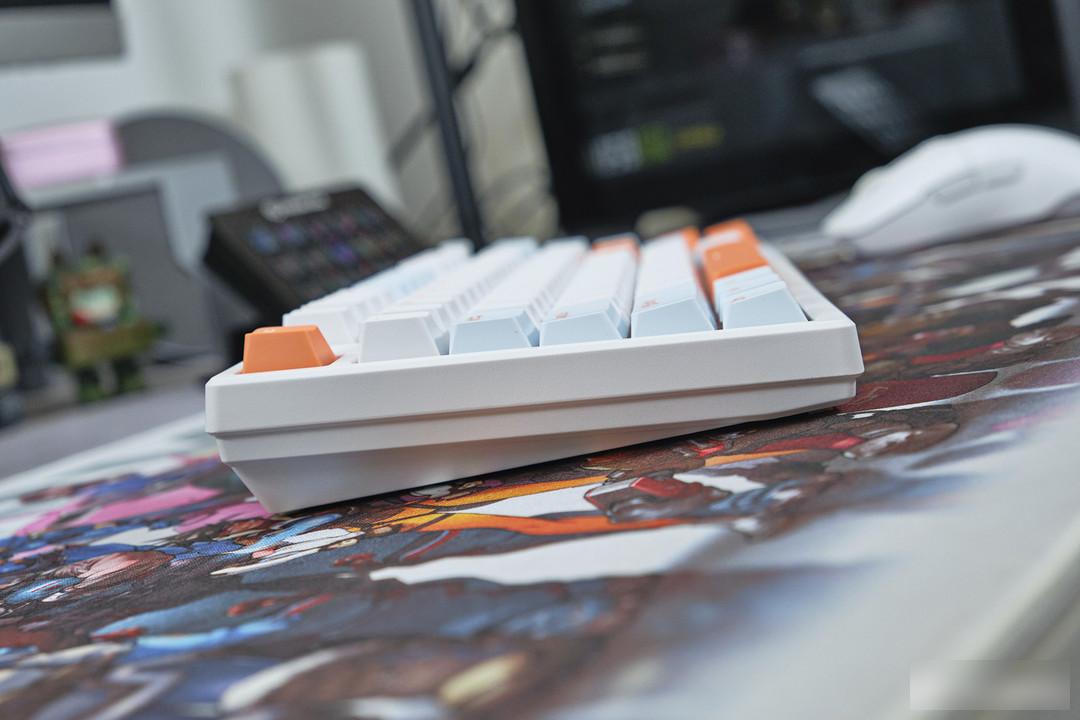

The corners of the HS75T have been trimmed and chamfered, and the bottom case has a stepped inward design, which has a rich sense of hierarchy.

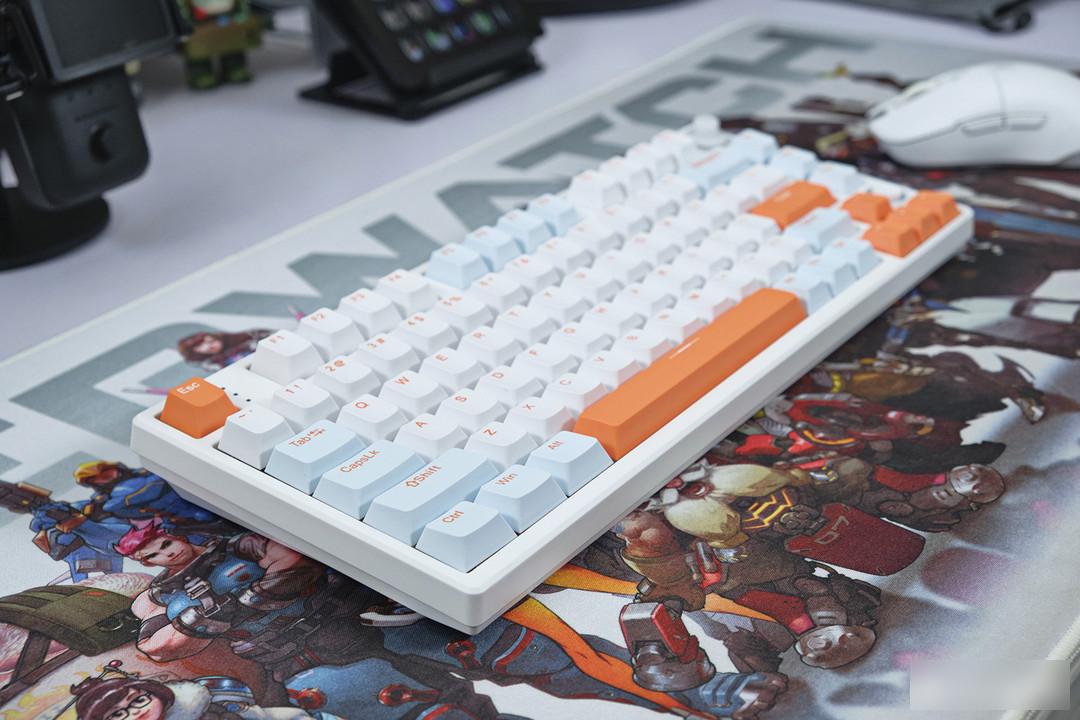

My HS75T is matched with a set of original height PBT two-color keycaps by default, and the color is called White Feather. Of course, if you don’t like it, you can change it at any time, and the price of the GC series keycaps is also very cheap.

There are three paddle switches and TYPE-C interface for switching the keyboard mode on the back side of the keyboard, and the brand logo is also on this side.

It is said that it is the tenth generation satellite axis. I don’t know how to divide it, but this time the satellite axis is really not boring, and the consistency is also very good. I must give it a thumbs up~!

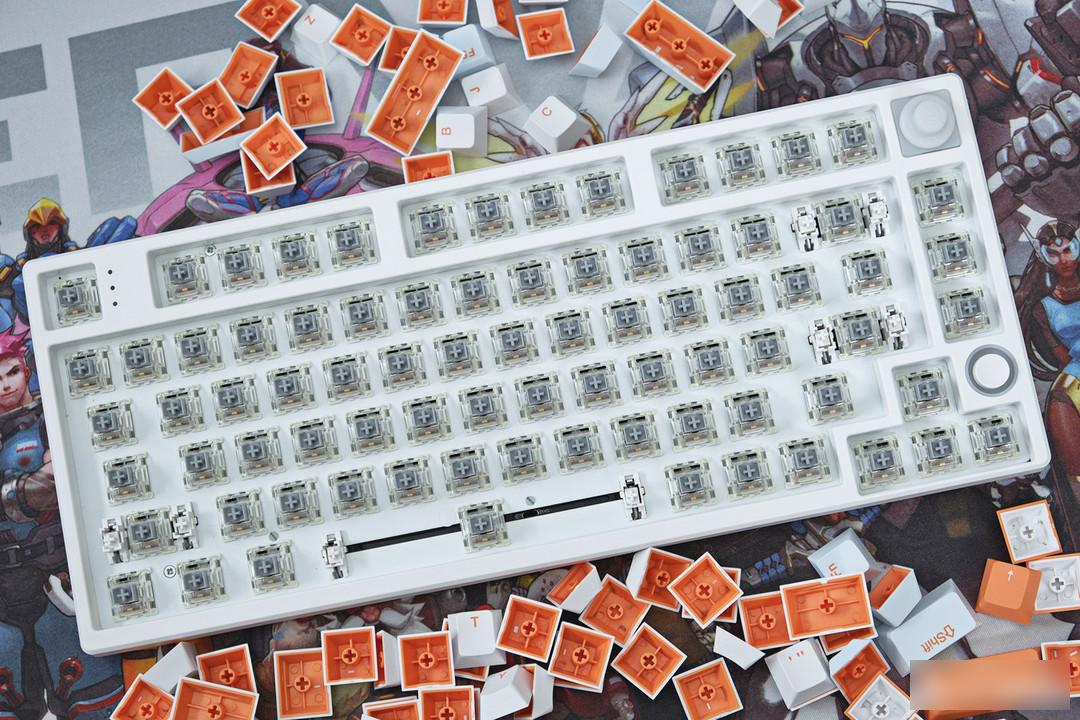

I am equipped with Jiadalong G Silver Pro, with a dust-proof wall on the axis, small shaking and good stability, and a trigger pressure of 43 grams. The shaft body has its own factory lubricant, and the operation process is smooth without noise. It is a relatively mature and popular linear shaft.

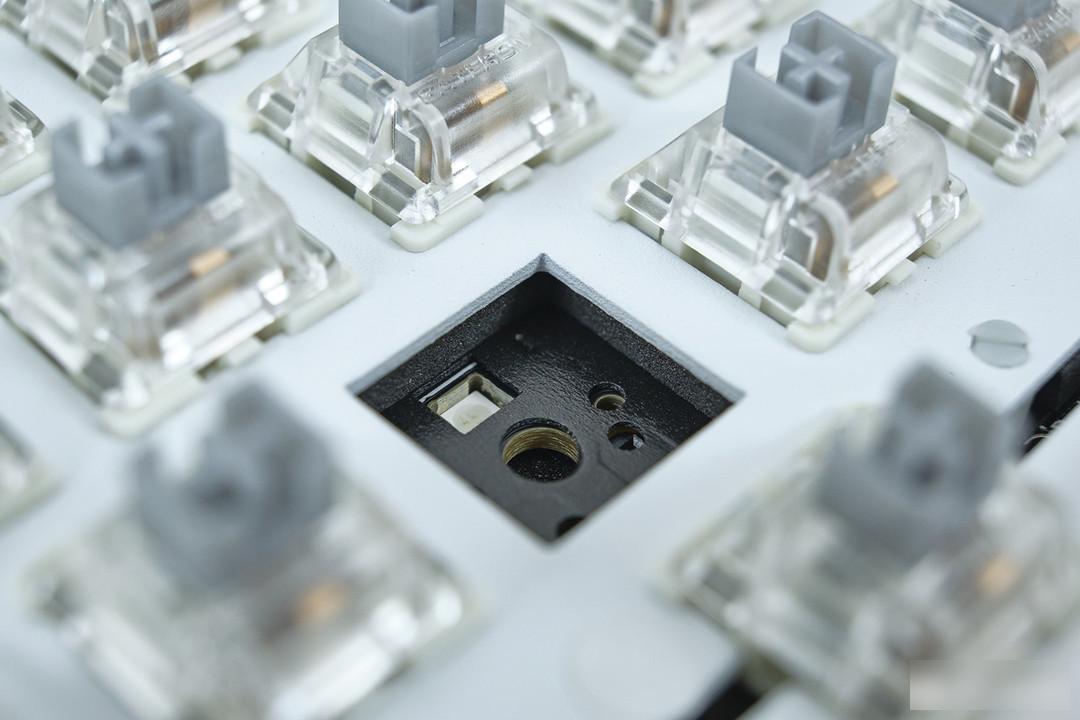

The PCB is compatible with the five-pin axis, and the position of the lamp bead is slightly lower than the surface of the PCB board, which is very compatible with the axis body with a condenser.

The sandwich cotton, under-shaft pad, and bottom cotton are all equipped this time, and the problem of cavity sound has been greatly improved.

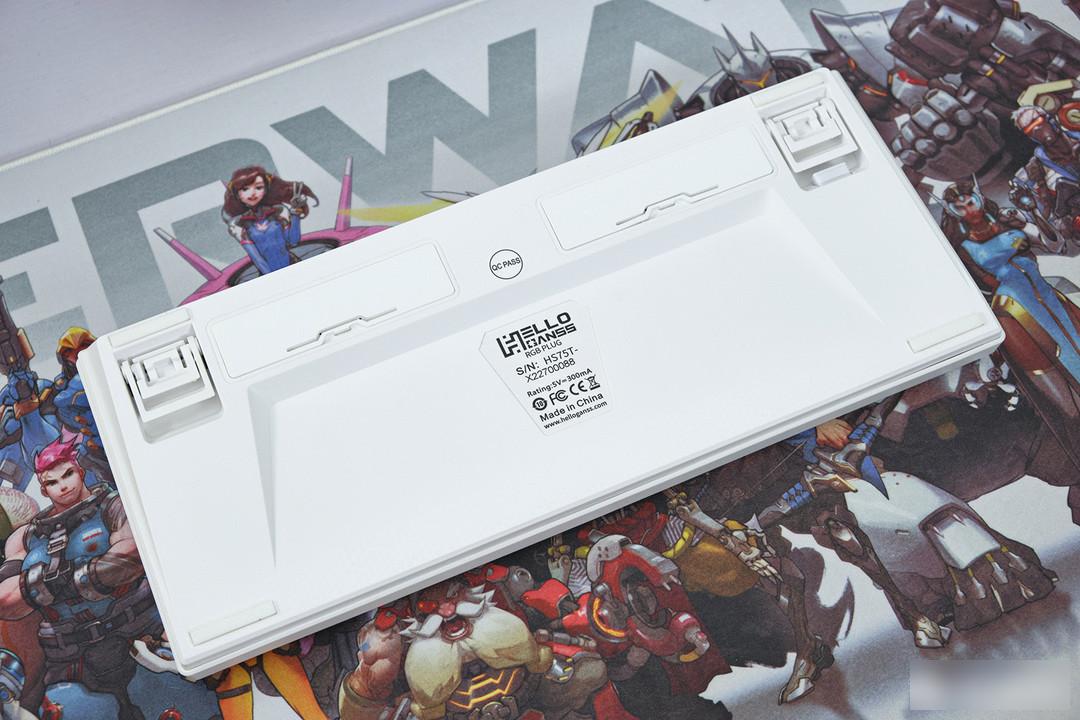

The design of the bottom shell is similar to that of the HS series. The dry battery version can’t turn on the light by default in the wireless state. You can upgrade the firmware to the light-on mode, or you can change it back at any time by flashing the firmware. There is also a lithium battery version to choose from. .

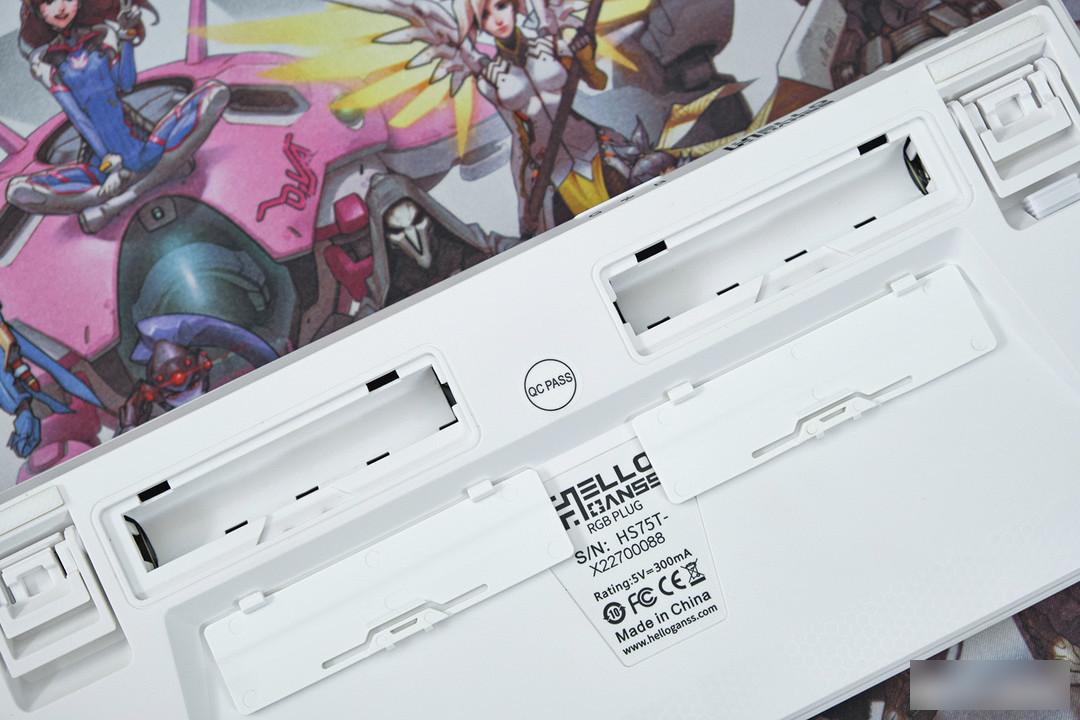

You read that right, the HS75T has two battery compartments, each of which can install two AA batteries. The two battery compartments should be connected in parallel to power the keyboard, that is to say, only two batteries need to be installed in any one of the battery compartments to make the keyboard work normally. According to the official information, four dry batteries can last for about 4 months without turning on the lights. At present, the use time is still short, but the battery life is also related to factors such as battery capacity and the stability of the wireless environment. This requires Validation will take several months.

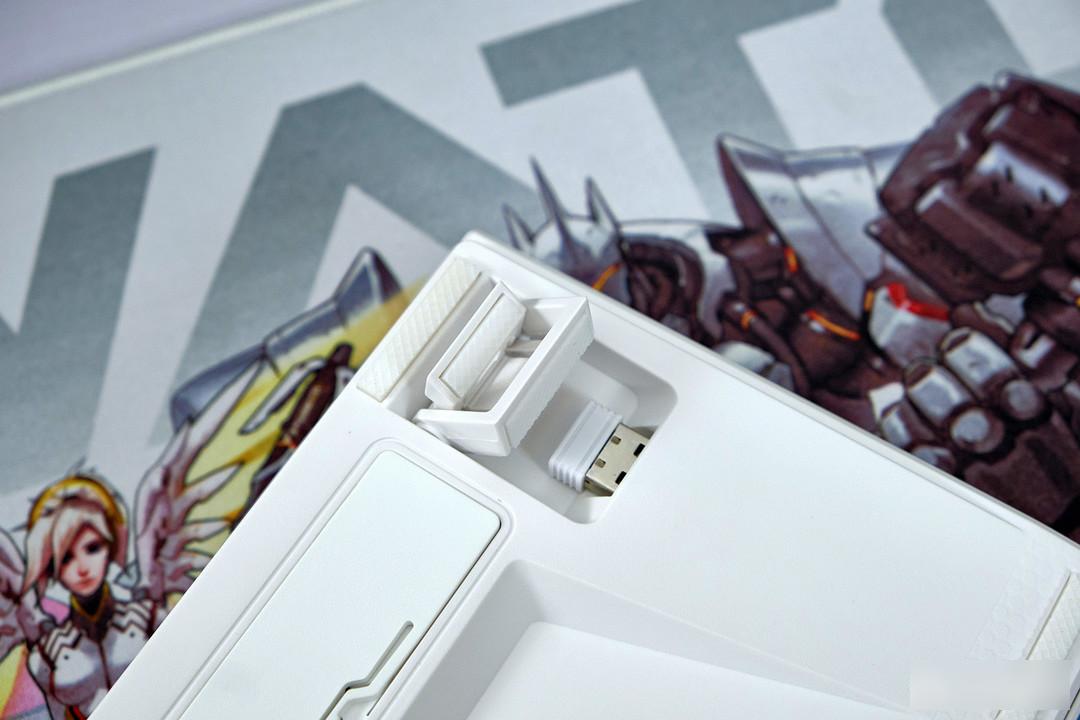

Two-stage foot support, the wireless receiver storage compartment is still in the front of the foot support.

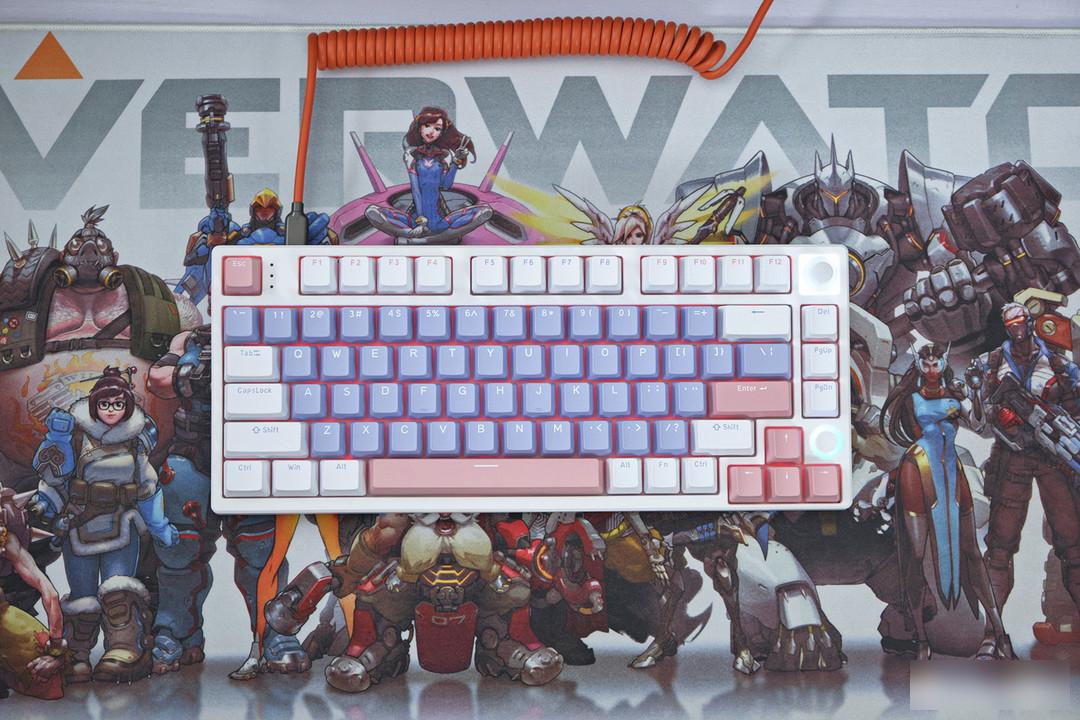

I changed it to a set of OEM height keycaps, which is the smoke cloud purple color of the GC series under HELLO GANSS.

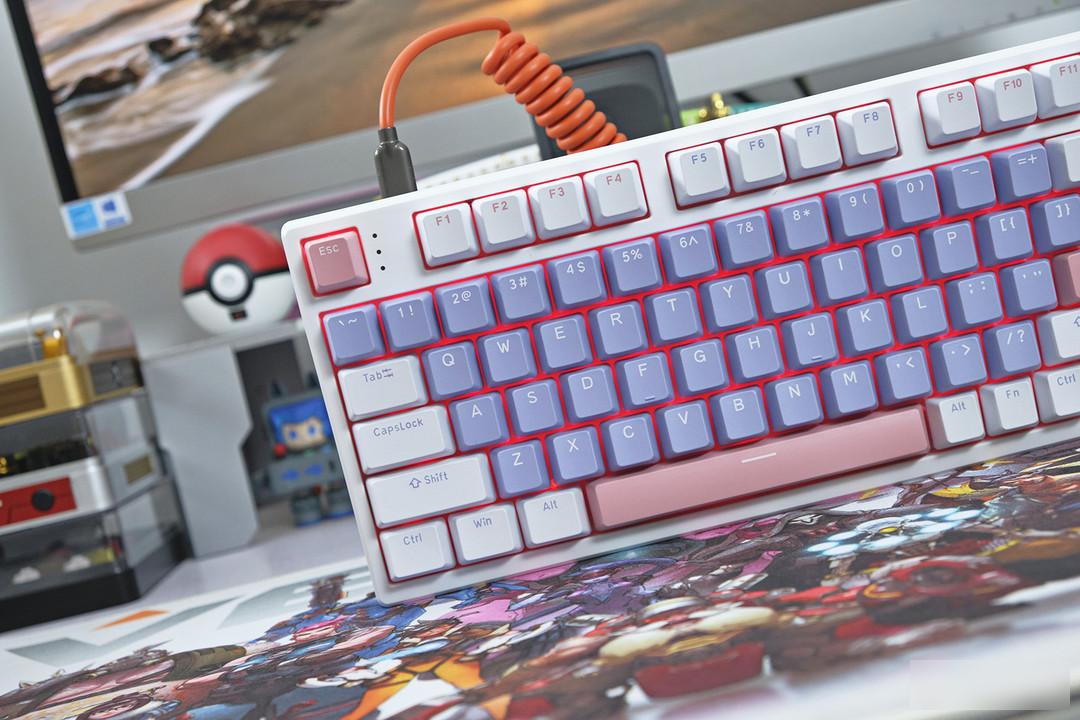

The keyboard backlight is RGB, but in order to match the keycap theme, I deliberately adjusted it to the pink and purple monochrome in the picture. Because the keycaps are opaque, the backlight mainly provides an ambient light effect. Coupled with the reflection of the white positioning board, the uniformity and brightness are not bad.

HELLO GANSS is relatively late in launching a 75-arrangement keyboard among domestic peripheral brands, but it finally came and brought some different new designs. The five-way joystick and dual battery compartments are all designs that have never appeared in the circle, and all the popular mainstream "customization" elements that can be added are also added in one go. Except that it is not a Gasket structure, everything that can be given is given. Moreover, the price of this keyboard is very attractive, and the price of the independent switch can be lowered to less than 300 yuan. It cannot but be admitted that it has a high cost performance. And there are many versions with different shafts, there is always one that suits you.
