Luankan Peripherals Chapter 76: The most customized mass-produced keyboard——Heijue Light Krypton AC067 Slag Gray Wireless Keyboard

Unknowingly, I have played with nearly a hundred mechanical keyboards before and after entering the pit of mechanical keyboards, but I have not experienced the charm of Altuotuo. I bought a full-textured Altuotuo before the Chinese New Year——Heijue Light Krypton AC067 Slag ash. Compared with AC067's classic Yuanfeng blue and the very individual cheese theme, the "slag gray" version is quite low-key and calm with the surface treatment of fine-mesh reflective particles, and has a unique taste.

Generally speaking, aluminum keyboards are basically "insulated" from wireless connections due to the metal body. The Heijue Light Krypton series to which AC067 belongs is an exception-this series realizes the metal body and wireless three-mode Connected harmonious coexistence. In addition to the metal body and wireless three-mode, the slag-gray version of AC067 in the hand also integrates features such as Gasket structure, MX ice cream switch, full-key hot-swappable, RGB backlight, etc., which has high playability.

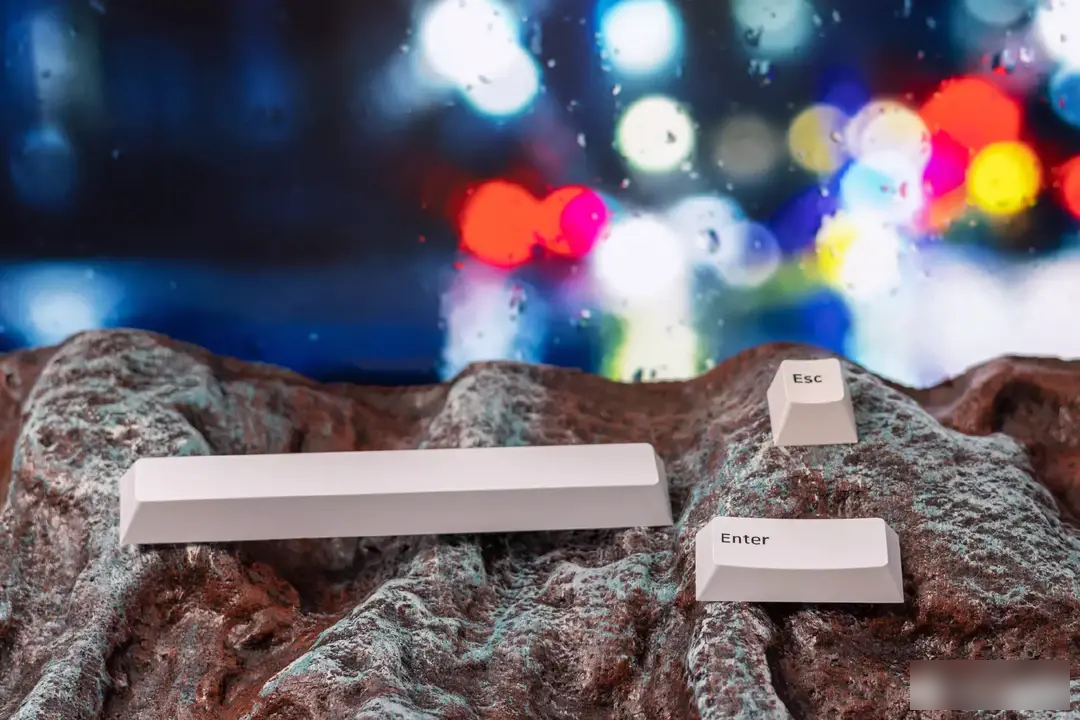

随渣渣灰键盘附送有USB-C数据线、2.4G无线接收器、六角扳手、二合一的拔轴&拔键器这些常规配件，此外还特别提供了三颗同键盘黑底白字颜色相反的反色增补（ESC、空格、回车），用来中和黑底白字的纯黑键帽可能带来的单调感。

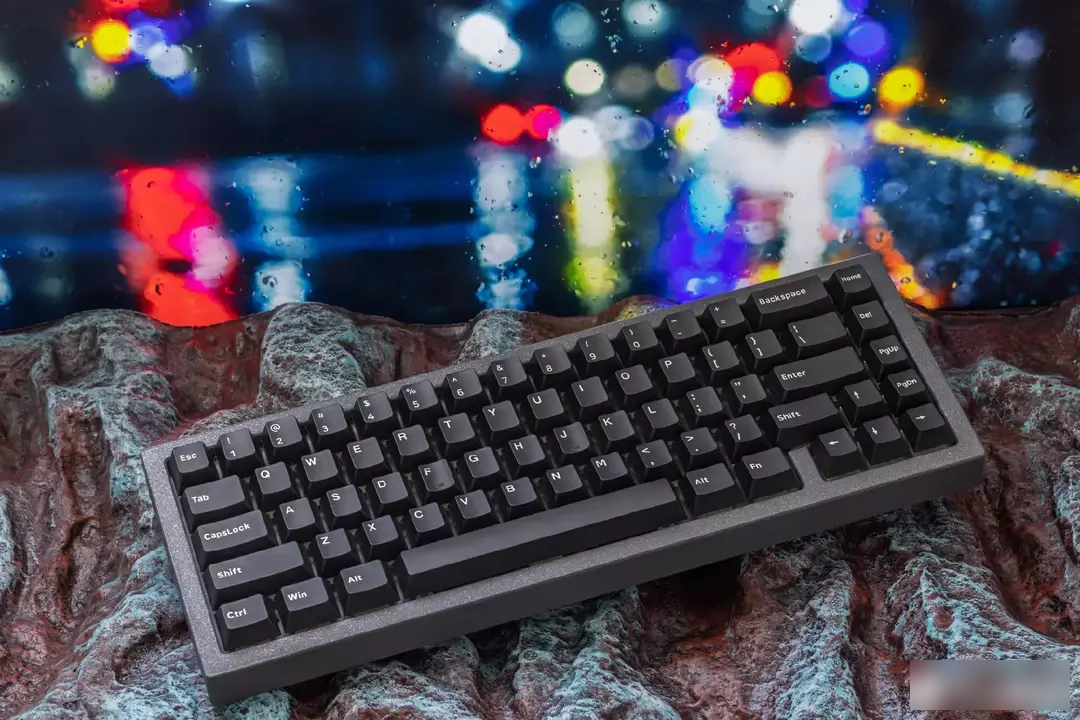

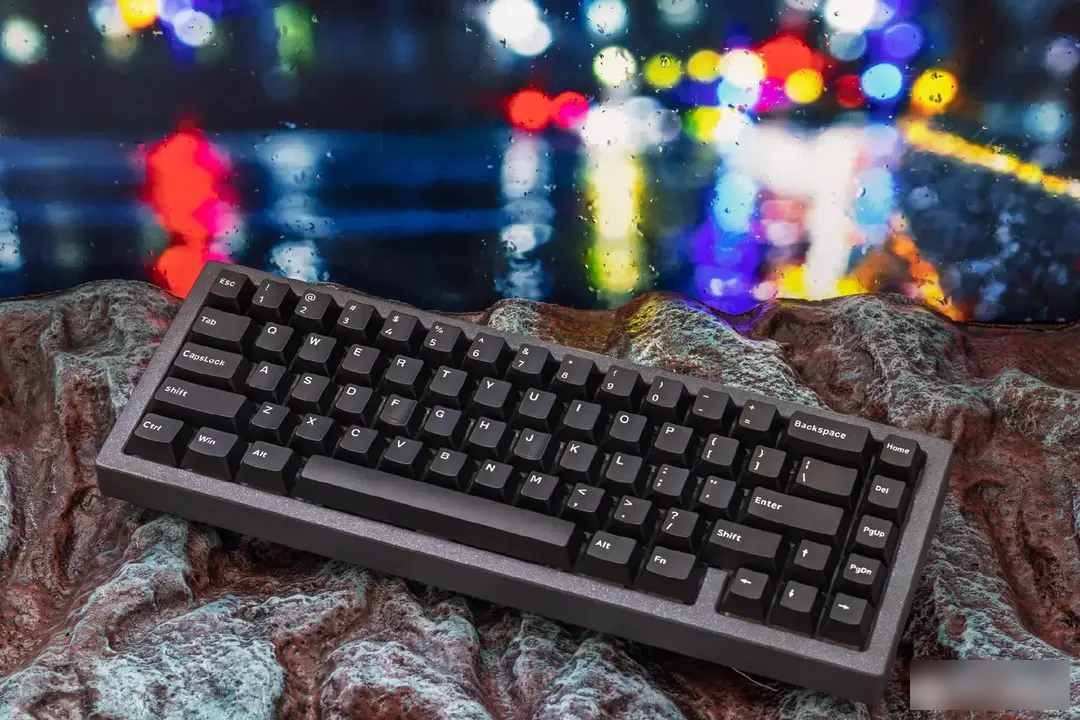

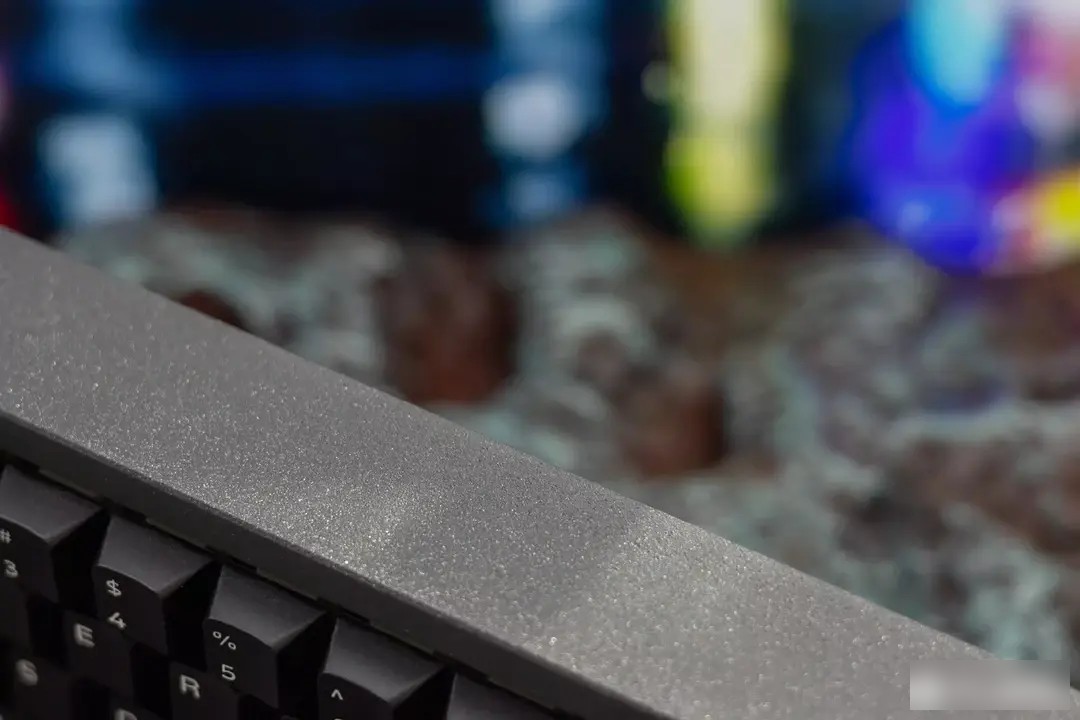

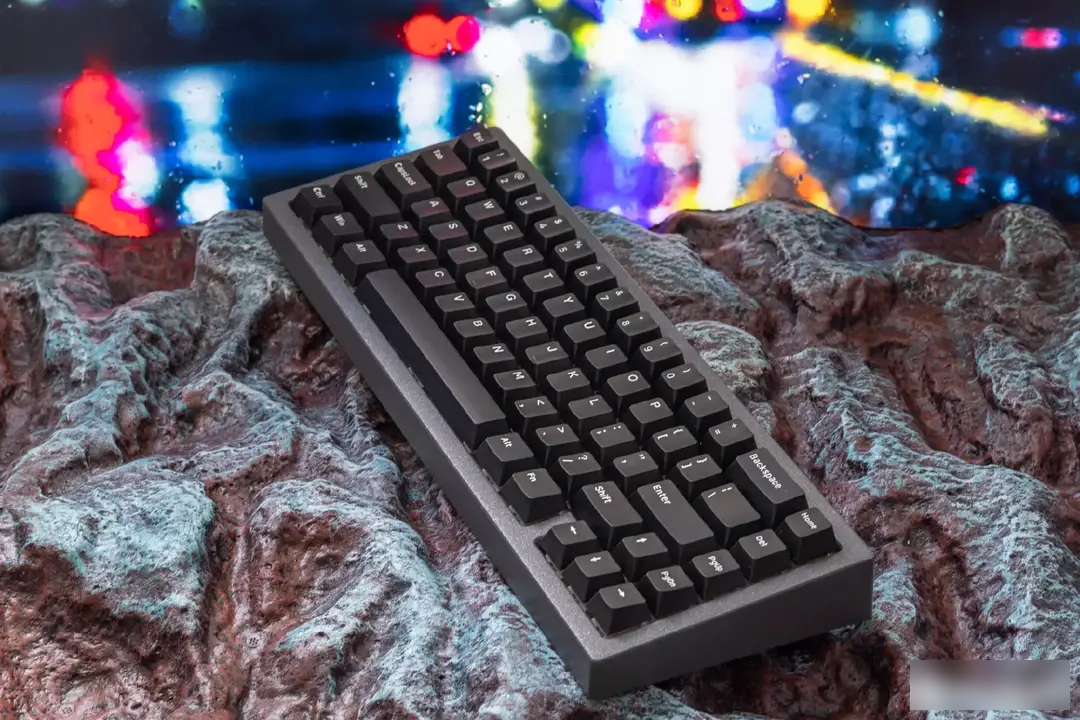

As you can see, Heijue AC067 continues the arrangement of 67 keys in the AC067 series, and the direction keys of the small incisor partitions reveal a breath of customization. The shell of the fuselage is made of aluminum alloy processed by CNC process, which is different from the delicate texture brought by the common anodizing process of aluminum alloy. The slag gray version adopts the surface treatment of electrostatic powder spraying process, and the shell is covered with fine flash powder to reflect light. Particles, so it presents a lively and bright gray texture.

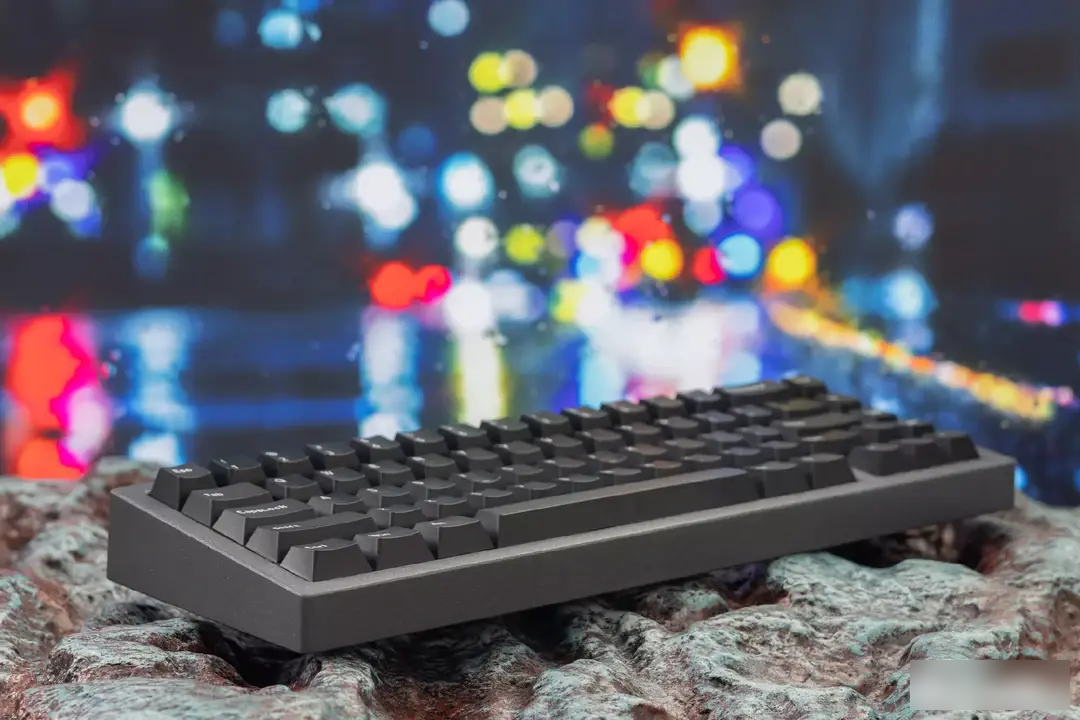

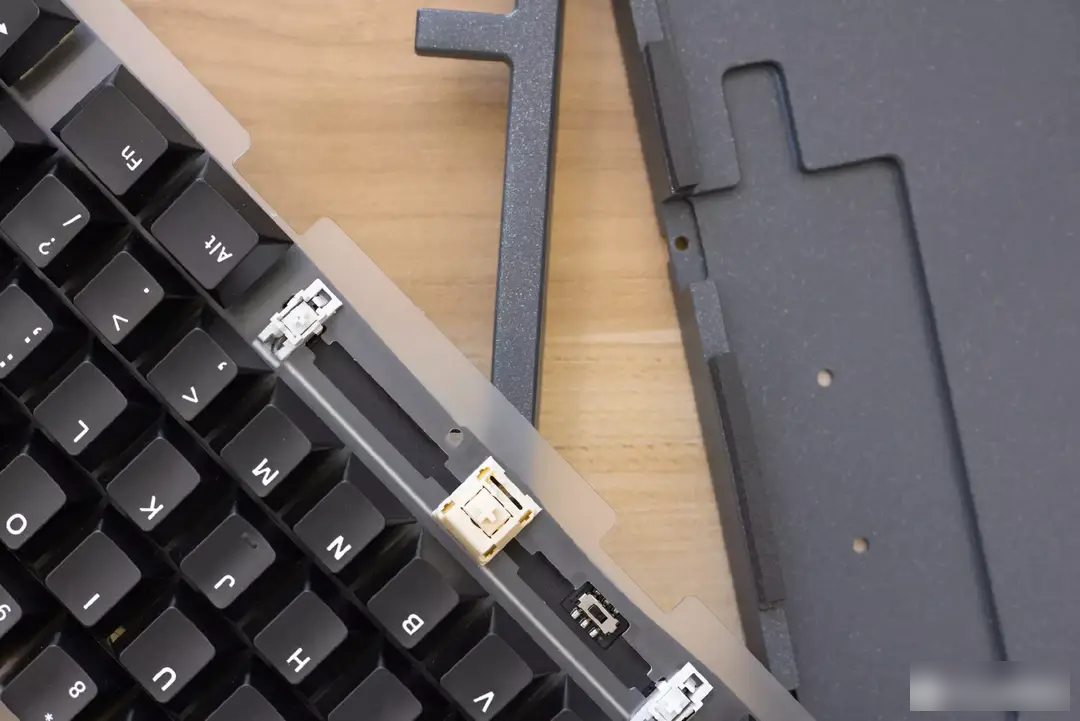

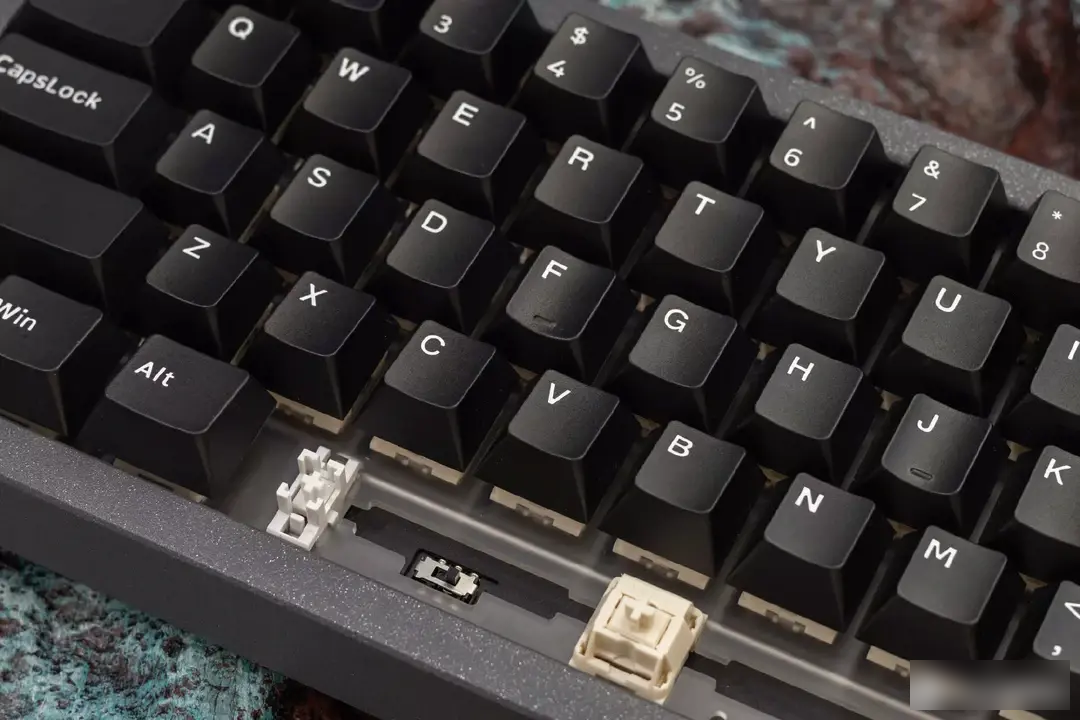

This keyboard is not designed with independent support feet, but uses the height difference of the fuselage to form a slope that is conducive to typing input. With the original height of the PBT two-color molded keycap, it still has quite good ergonomic performance. . The USB-C specification interface used to connect the keyboard and charge battery life is located on the left side of the top of the fuselage. The large circular opening design has good wire compatibility and can be easily adapted to various customized wires. In addition, the fuselage does not have any openings, so that the wireless switch is also hidden under the space bar.

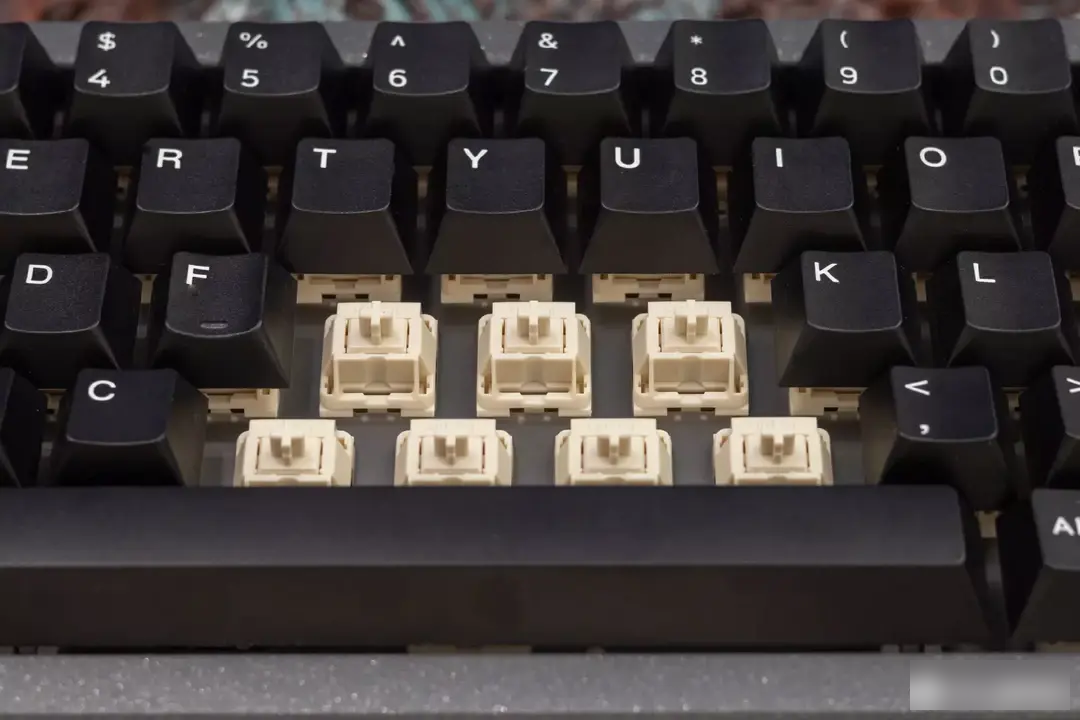

In terms of the shaft body, the slag gray keyboard is equipped with Kaihua MX ice cream shaft, with a trigger pressure of 55g, made of all POM material, with high hardness, high wear resistance, and self-lubricating characteristics, which can maintain a smooth feel for a longer period of time. With the blessing of PBT keycaps and Gasket structure, the pressing of the ice cream shaft is smooth and soft, and the slight rebound of the PC positioning plate is as soft and waxy as fingers eating ice cream. The satellite axis adjustment is also in place, several large keys feel the same, there is no unnecessary noise and the rebound is even.

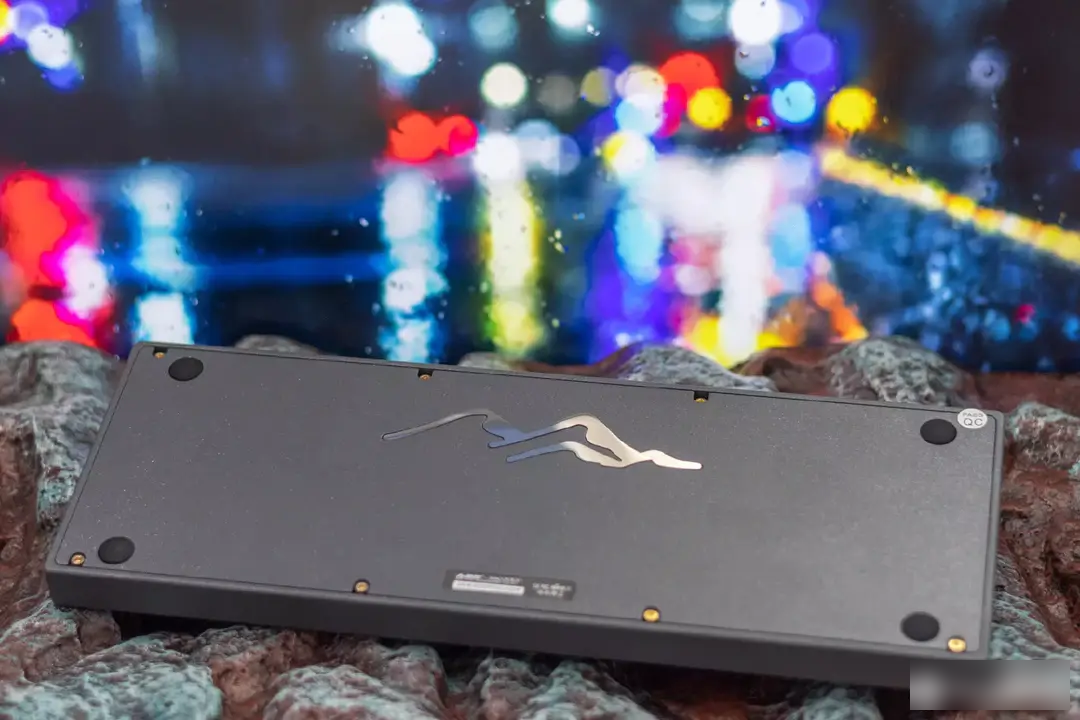

The only individual element of the keyboard is at the bottom - there is an inlaid "mountain" high-gloss texture decoration. This texture design is similar to the addition of personalized weights at the bottom of some customized keyboards. The four rubber pads distributed around are slightly raised, which can not only protect the wooden table top, but also prevent the bottom of the keyboard from being scratched. The 8 screws at the bottom can be unscrewed by using the hexagonal wrench in the accessory to realize the complete disassembly of the keyboard, so as to carry out the DIY transformation of the keyboard.

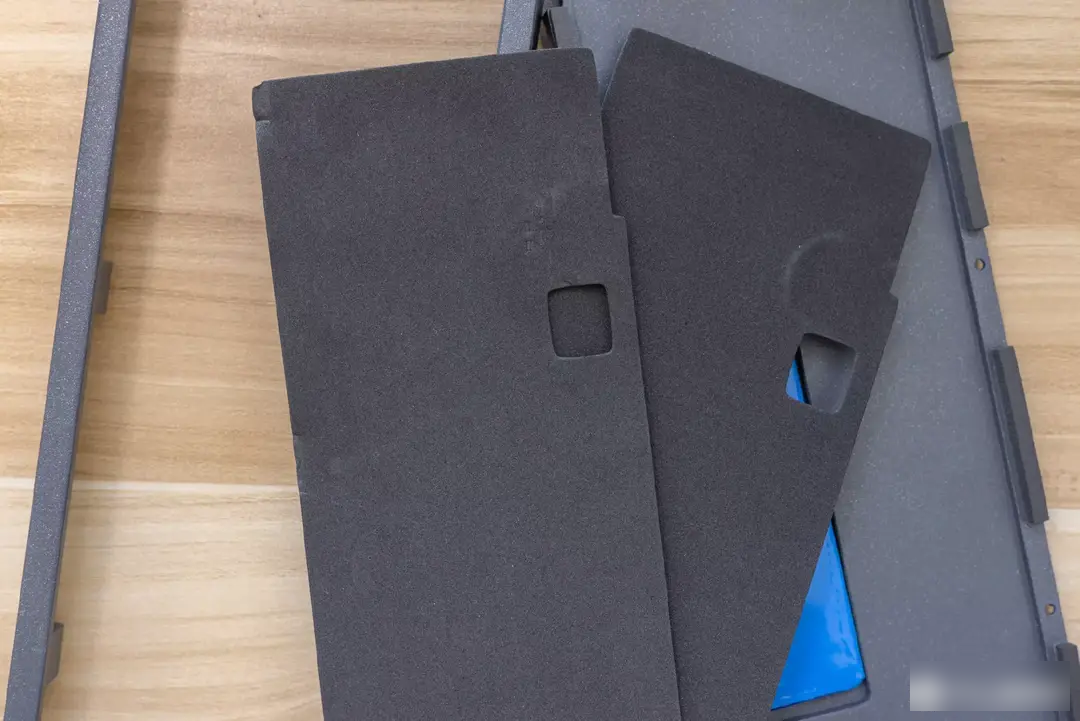

Through dismantling, it can be seen that the Gasket structure of the keyboard is composed of a PC material positioning plate and a Poron material gasket, and the overall feel is relatively soft and elastic. It is a pity that the slag-gray keyboard is somewhat conservative in sound processing-the choice is to match the sound bag with EVA sandwich cotton and two EVA bottom cotton, and there is no one-step selection of Poron material to directly fill the sound bag.

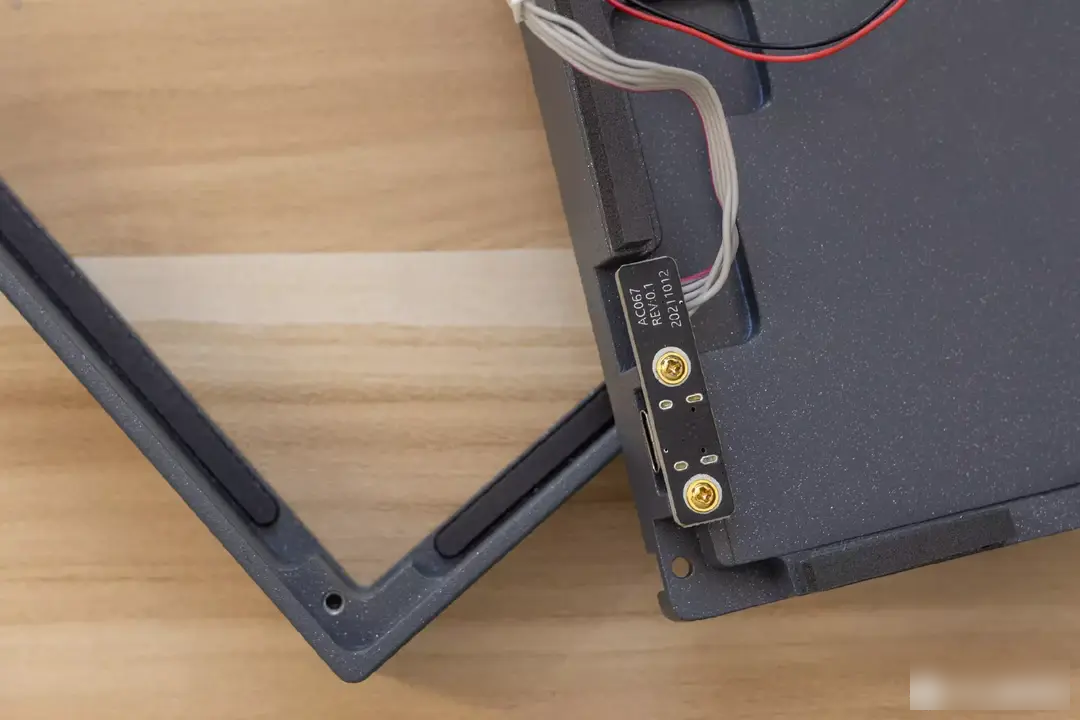

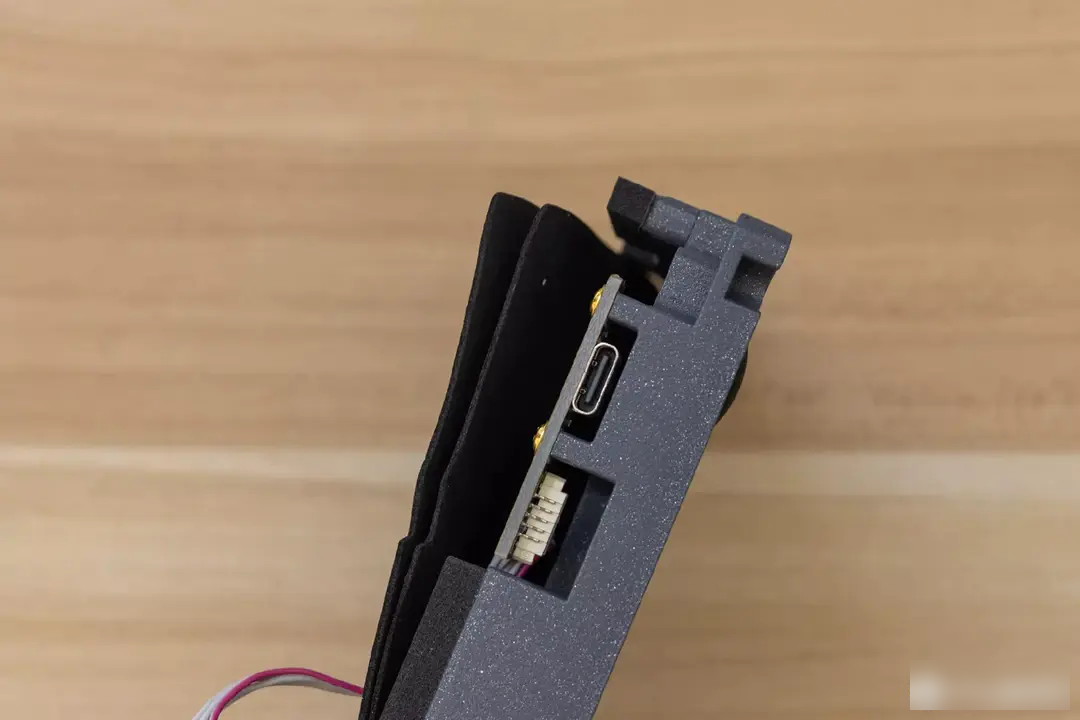

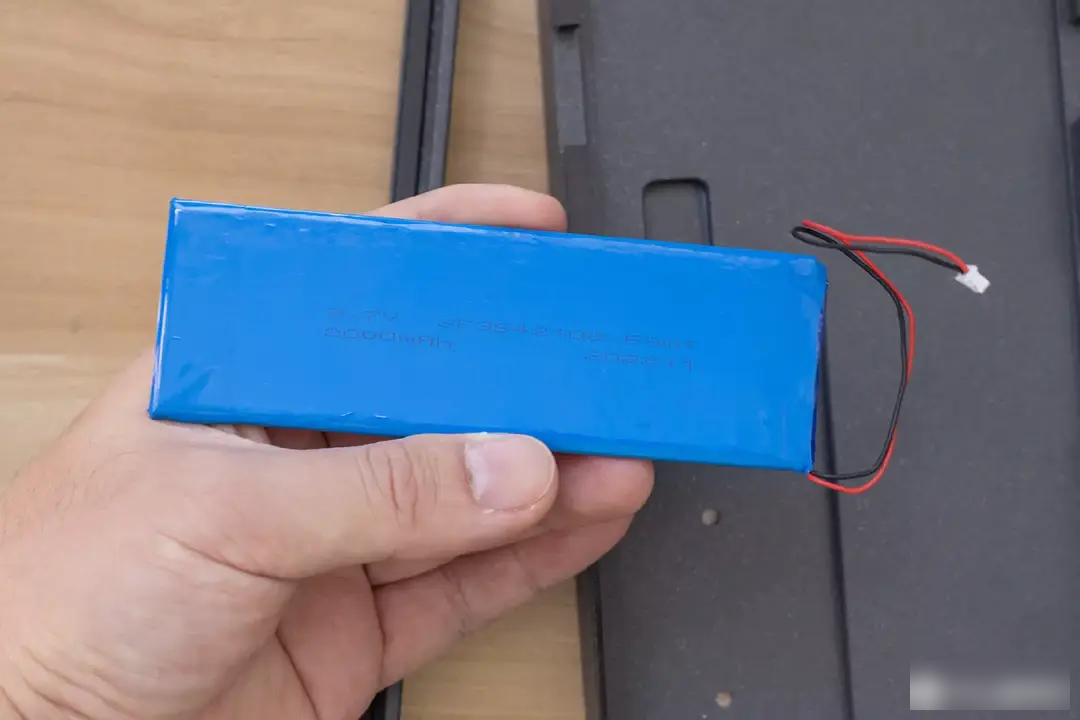

The USB-C interface module is fixed inside the shell alone, so it will not move with the sinking of the PCB liner, so the body shell and the interface are tightly fitted, which is very beautiful. The bottom of the fuselage is equipped with a 2000mAh lithium battery as standard. The official claims that the battery life can reach 100 hours when the backlight is turned off. In actual use, it takes about one week to charge, and it can be fully charged in about 4 hours after connecting to a computer.

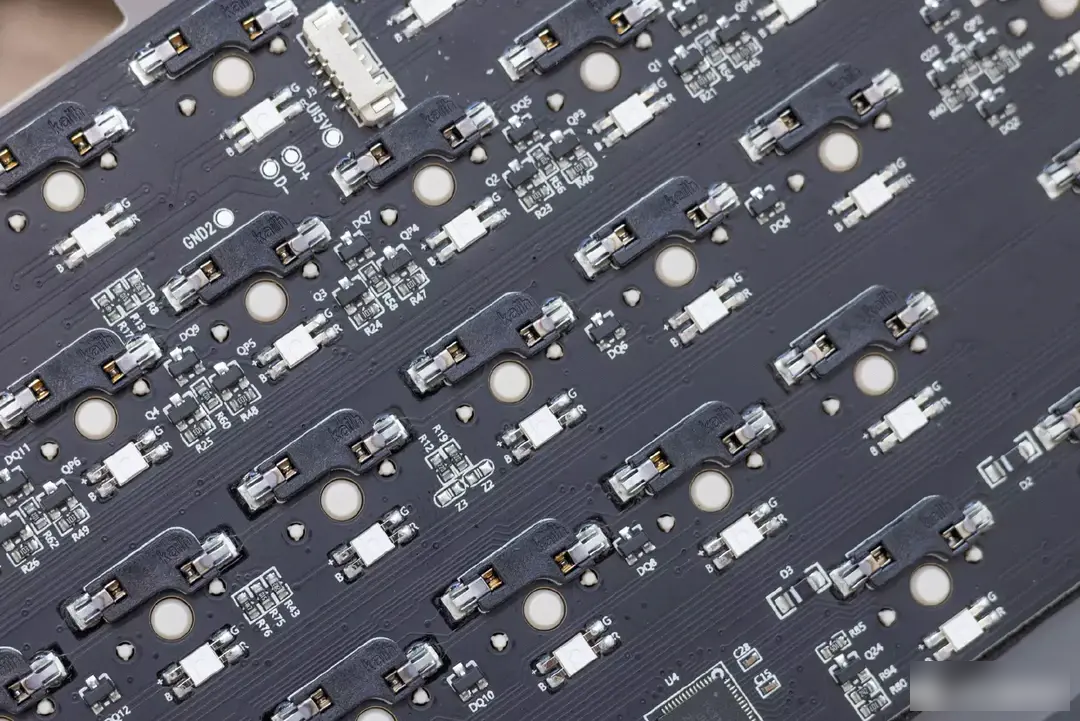

The hot-swappable shaft seat uses Kaihua's five-legged hot-swappable shaft seat, which is compatible with most five-legged and three-legged shafts on the market. The RGB backlight is provided by the light position under the patch, but because the ice cream shaft has no light guide column design, and the characteristics of the black shaft pad and sandwich cotton, the lighting brightness of the keyboard is slightly inferior, but if you replace the ice static shaft With a high-transparency body, I believe that the RGB backlight performance of the keyboard will definitely be improved to a higher level.

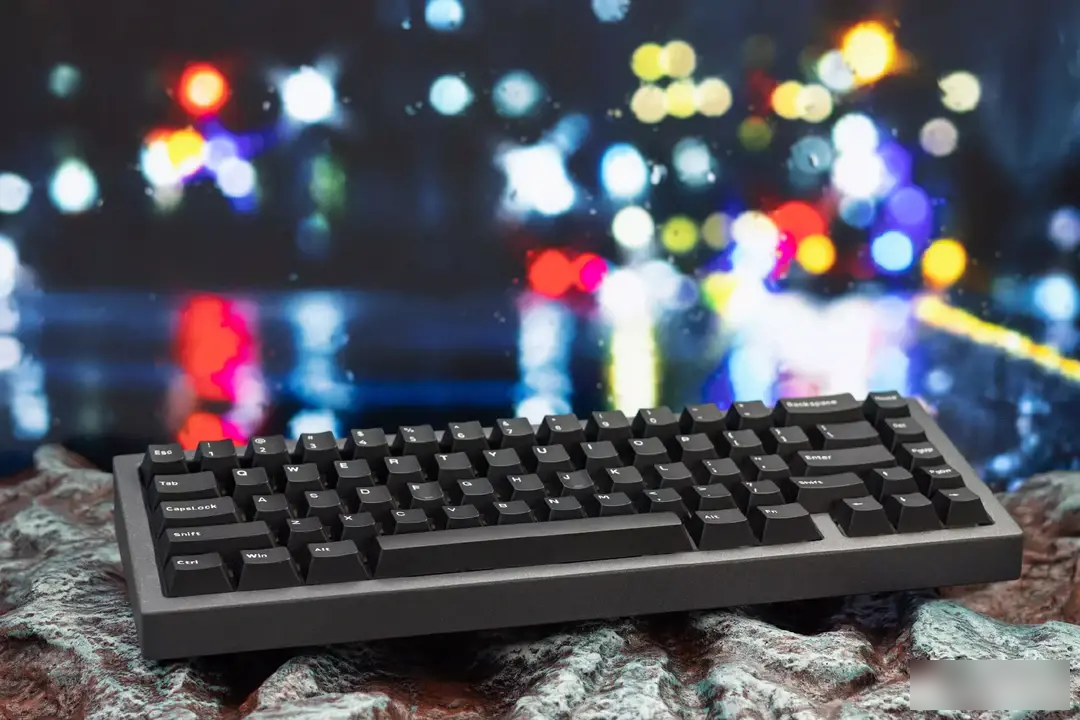

The unique flash gray shell of Heijue Qingkrypton AC067 slag gray keyboard has an outstanding texture, which can be said to be not inferior to some of the current customized mechanical keyboards; what is even more commendable is that the keyboard also supports three-mode wireless connections, which can be used on PCs and tablets. , The seamless switching on the notebook also makes the desktop environment more clean and tidy; the Gasket structure of the positioning plate made of PC material + the gasket made of Poron material brings a soft and comfortable feel. The fly in the ointment is that the sandwich cotton and bottom cotton are made of conservative EVA material, but it is still very fragrant at 699 yuan.

In general, Heijue Qingkrypton AC067 is an exciting Gasket structure metal aluminum mechanical keyboard.
