Magic Geek M1 display and modification suggestions

I have seen a lot of promotions by the magic geek Al Tuotuo on the platform, and it looks pretty good. disk it

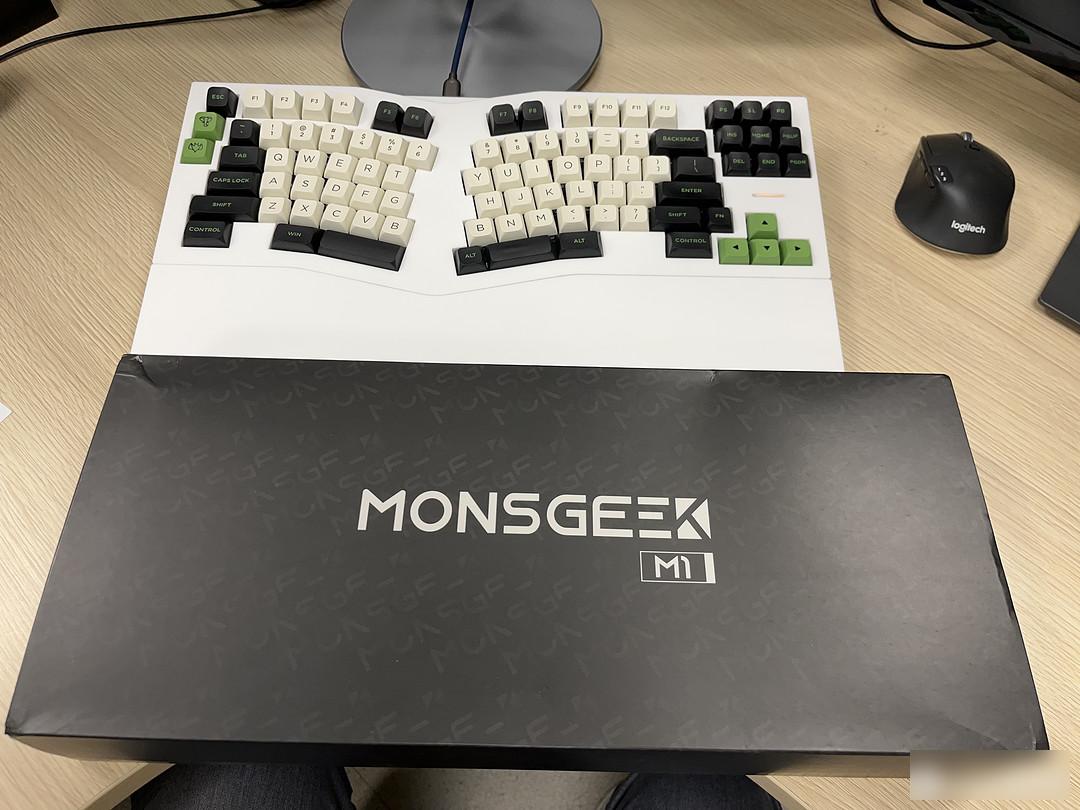

outer packaging

Arrived haha, but this Akko tape reveals the essence, hahaha

contents

Out of the box, the keyboard body, manual, elastic tpye-c cable, these three things, the contents are relatively simple. The black is an anodized process, and the color is quite good. The sound-absorbing cotton, the under-shaft pad, and the bottom cotton are all assembled in advance. Just prepare the shaft and cap yourself.

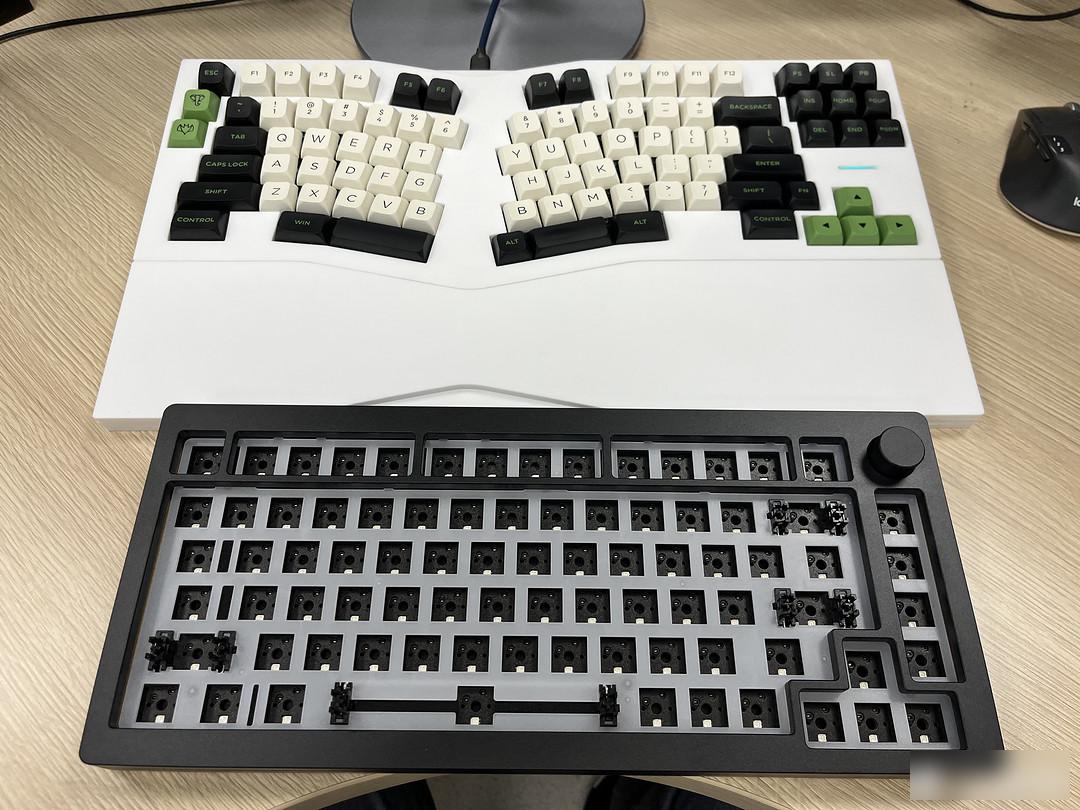

keyboard body

The white pc positioning board has good elasticity.

The shaft body I use is the Constant wine red shaft, the double-segment spring is 53g, thick and smooth. The keycaps are transparent black PC keycaps.

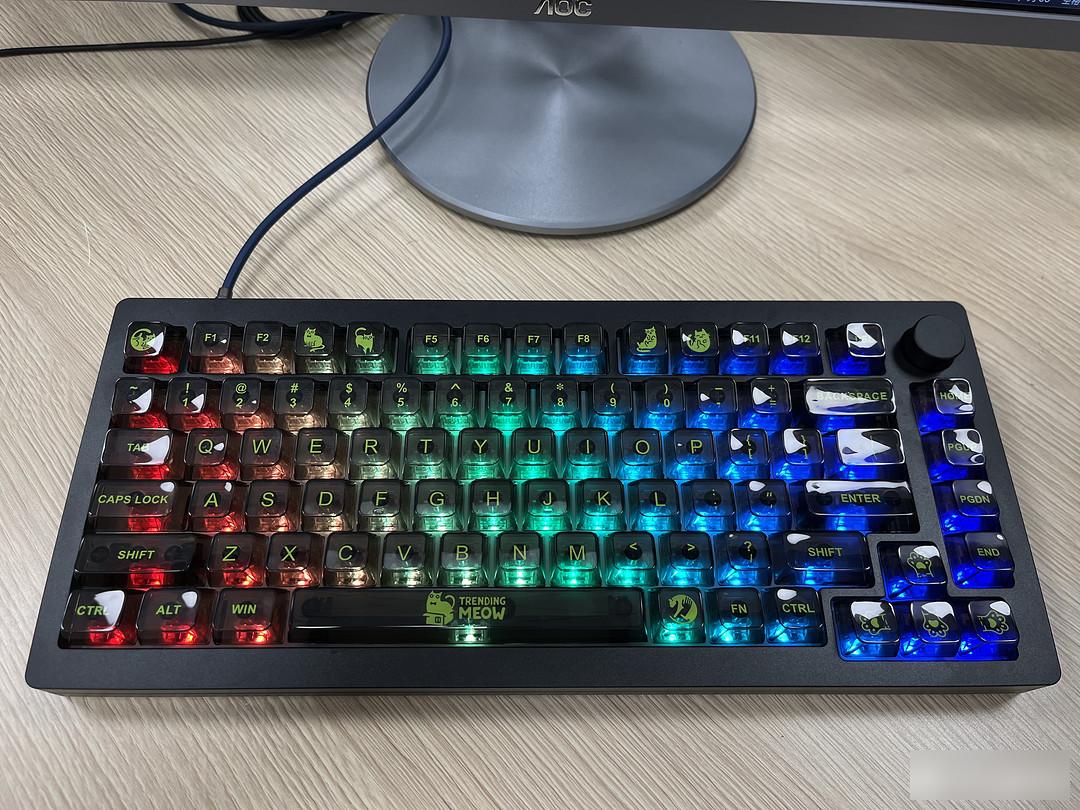

finished product

Assembled! It's still pretty. The knob switches between the two functions of light adjustment and sound adjustment by pressing. The rotation feels moderate, but there will be friction between the shell and the shell. [Modification point 1: Put a circle of Teflon tape on the edge of the shell at the knob to avoid friction]

The sound of keyboard tapping is full and full, but this thing is also relatively subjective, so I won't describe it much. However, there is a problem. Because the PC positioning board is too soft and the filling under the PCB is not tight enough, the range of movement of the edge is too large, so that when the edge key is pressed, such as ESC, the sound will become like a drum. It can only be improved through later modification. [Modification point 2: Increase the thickness of the bottom filling cotton, you can buy poron foam of about 2mm separately for filling, the effect should be good]

To sum up, the keyboard is made of solid materials, and the gasket structure sounds very comfortable. Although there are slight flaws, it is already very good for a 399 mass-produced kit. After the follow-up modification, if the improvement is particularly obvious, I will come back and share it with you~~

Bye bye, flowers~~
