Maozhaichat Peripherals Chapter 13: TTC Bingjing Axis V2 Evolution of Silence, Let You Be a Quiet and Beautiful Man

Last year, I tried the TTC Ice Quiet Switch. I liked the feel and the mute effect very much. In the end, I directly replaced the keyboard used by the company with the Ice Quiet Switch. No one would feel noisy even when typing codes during lunch break. Last month, TTC finally upgraded the ice static shaft, bringing the ice static shaft V2, which uses a fully transparent shell + dust-proof shaft, upgraded the silent design, silver springs + silver reeds to make the shaft more transparent visually, and Added condenser lens design; 39g trigger pressure feels light; 3.0mm total stroke, 2.0mm trigger stroke, 50 million trigger life.

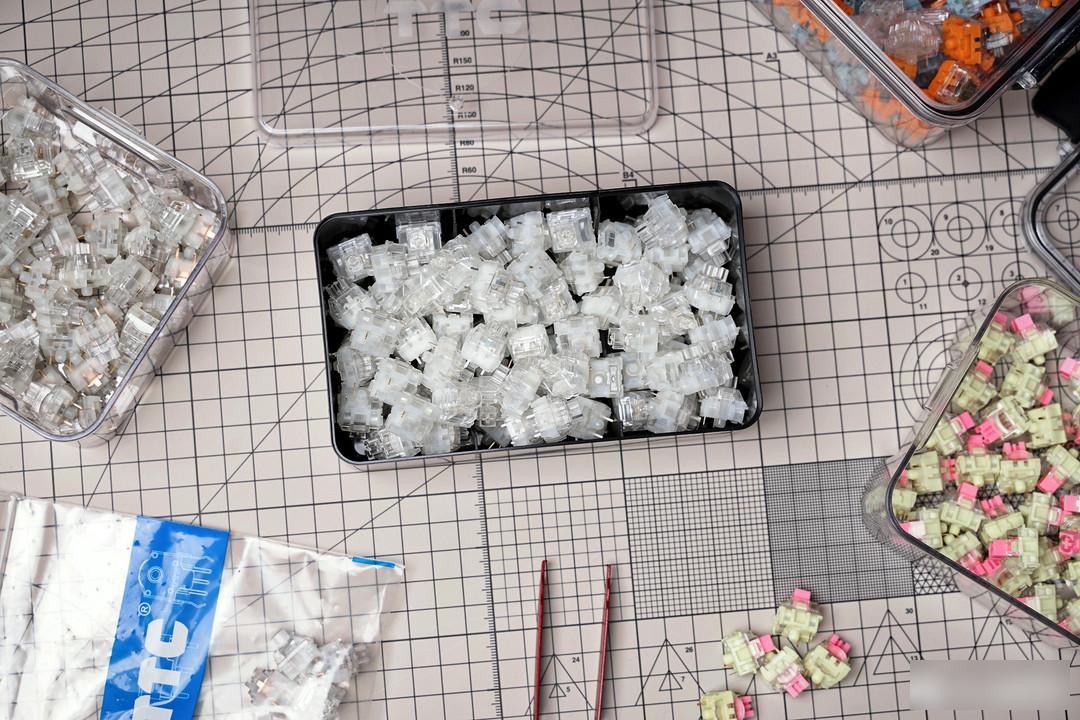

This time the switch is mainly for the daily use of code words, so I also bought a whole box. At present, except for the orange box of the tiger axis, most of them are designed with this black box and a transparent cover.

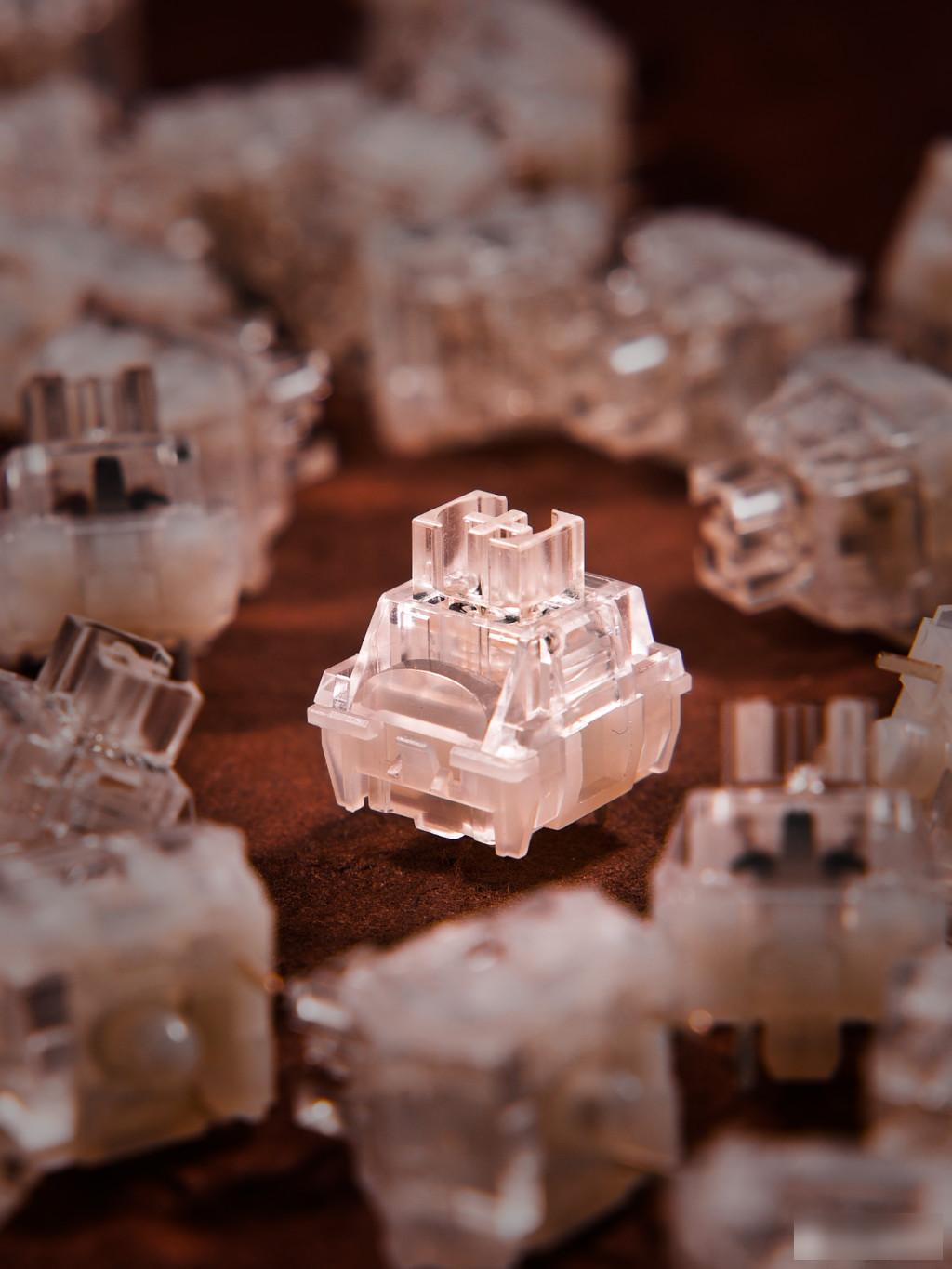

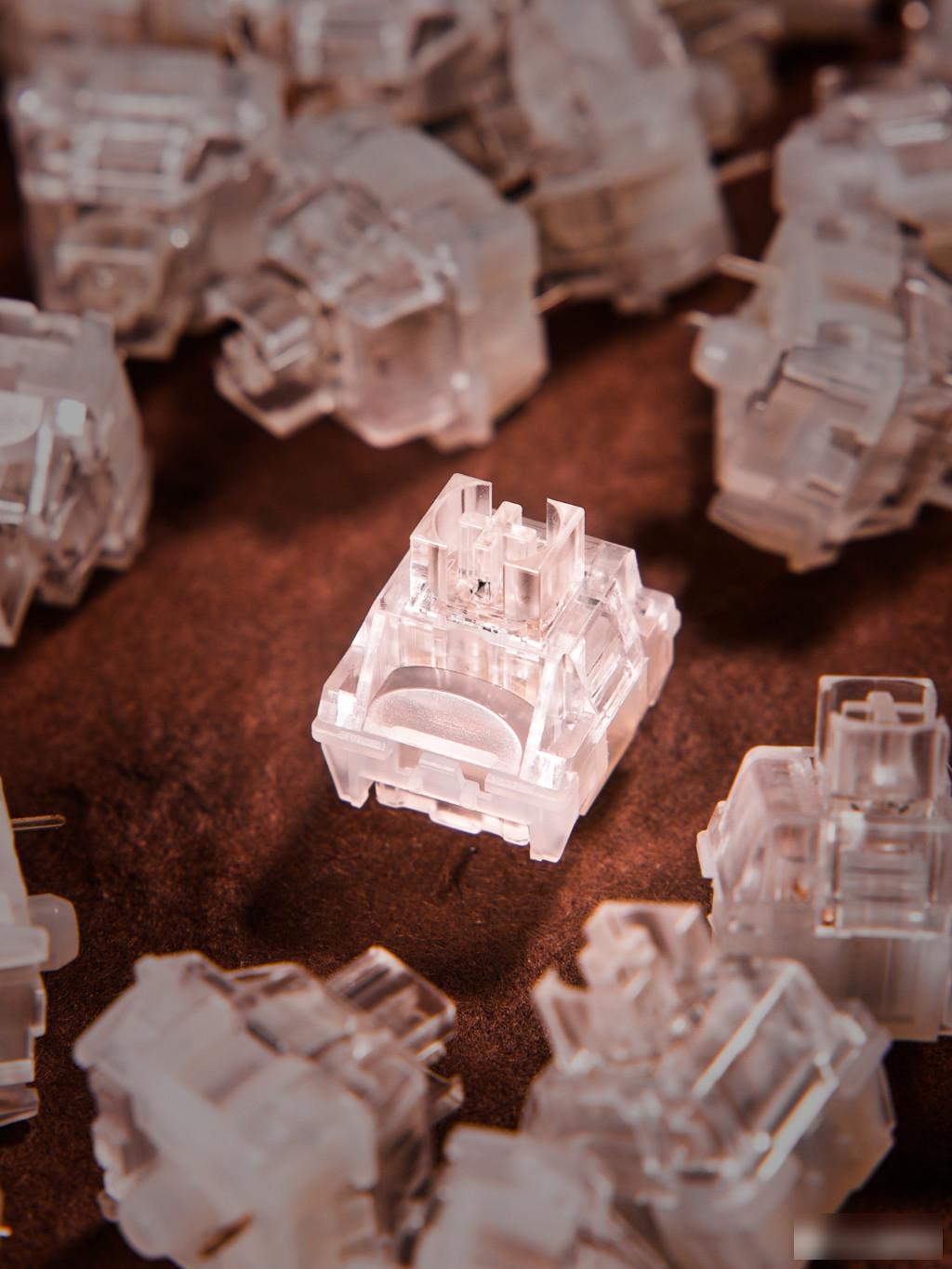

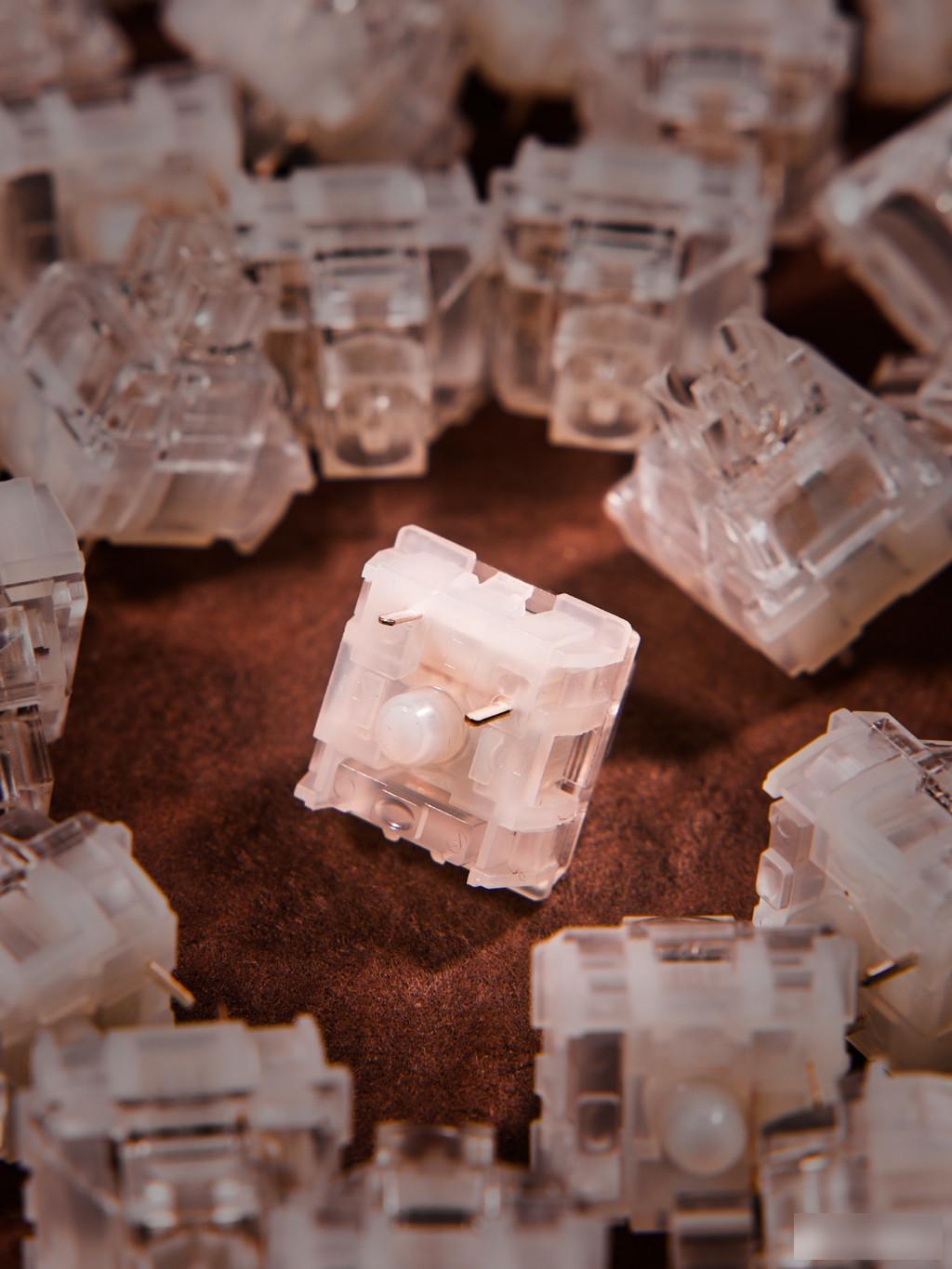

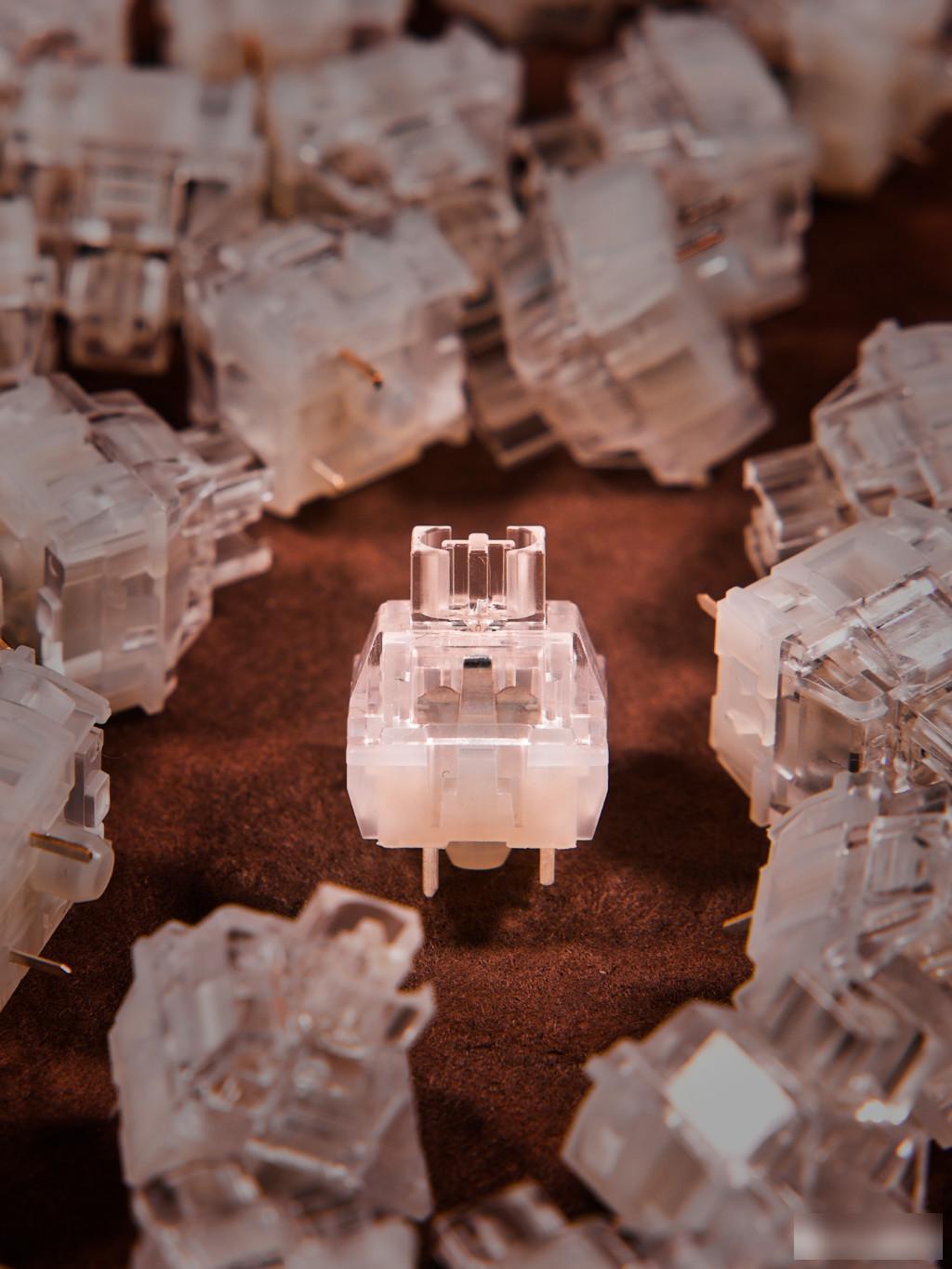

Let's take a look at the appearance of the Ice Static Axis V2 through a few high-definition photos. Although it uses the same transparent material as the previous generation, it is visually whiter and brighter.

Visually, I feel that the first generation of ice static shaft is more transparent, but in fact there is no obvious difference in the transparency of the upper cover, which can be seen in the dismantling part later, and the key to the difference is the change in the internal design. of.

(Left V1, Right V2)

(Left V1, Right V2)

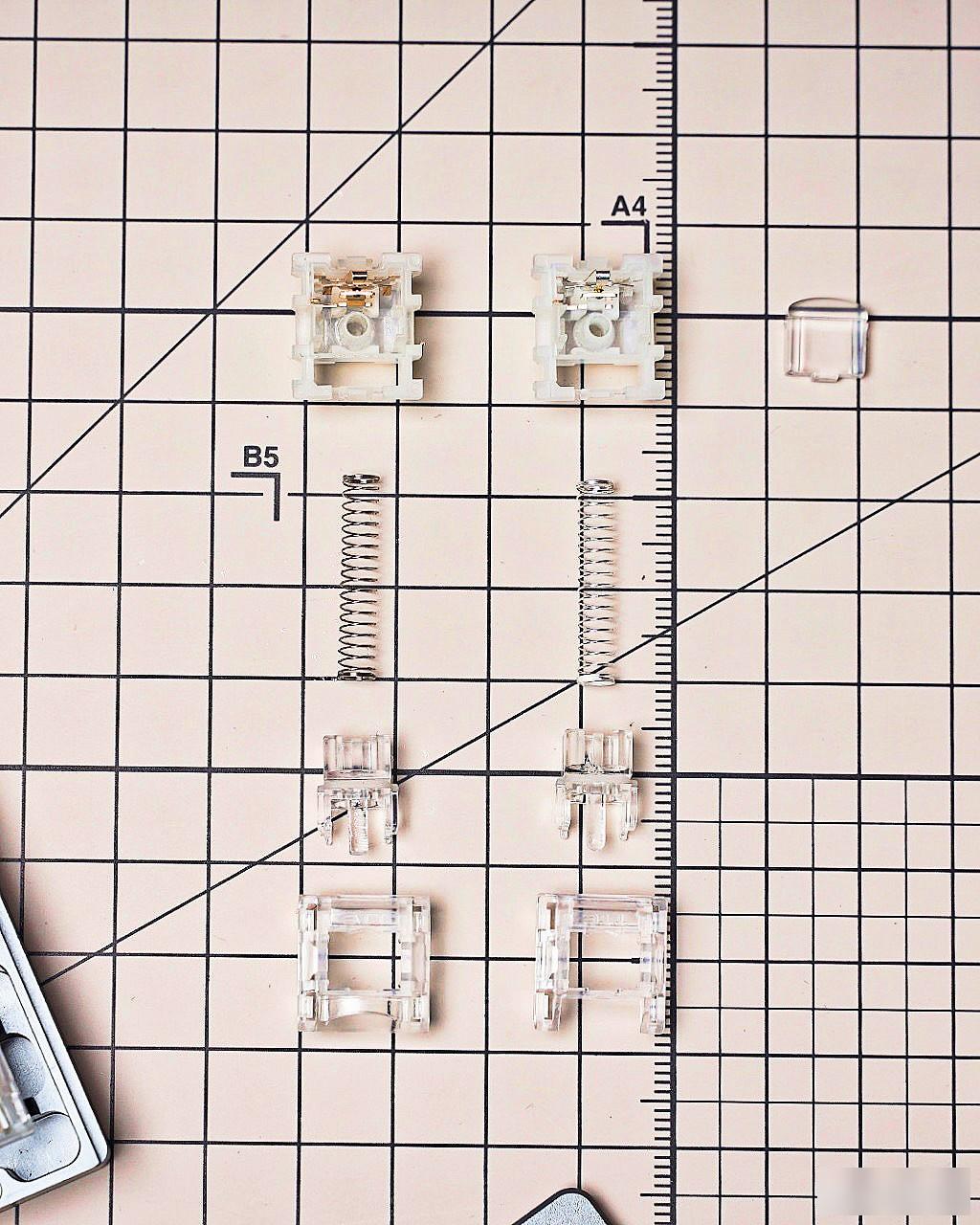

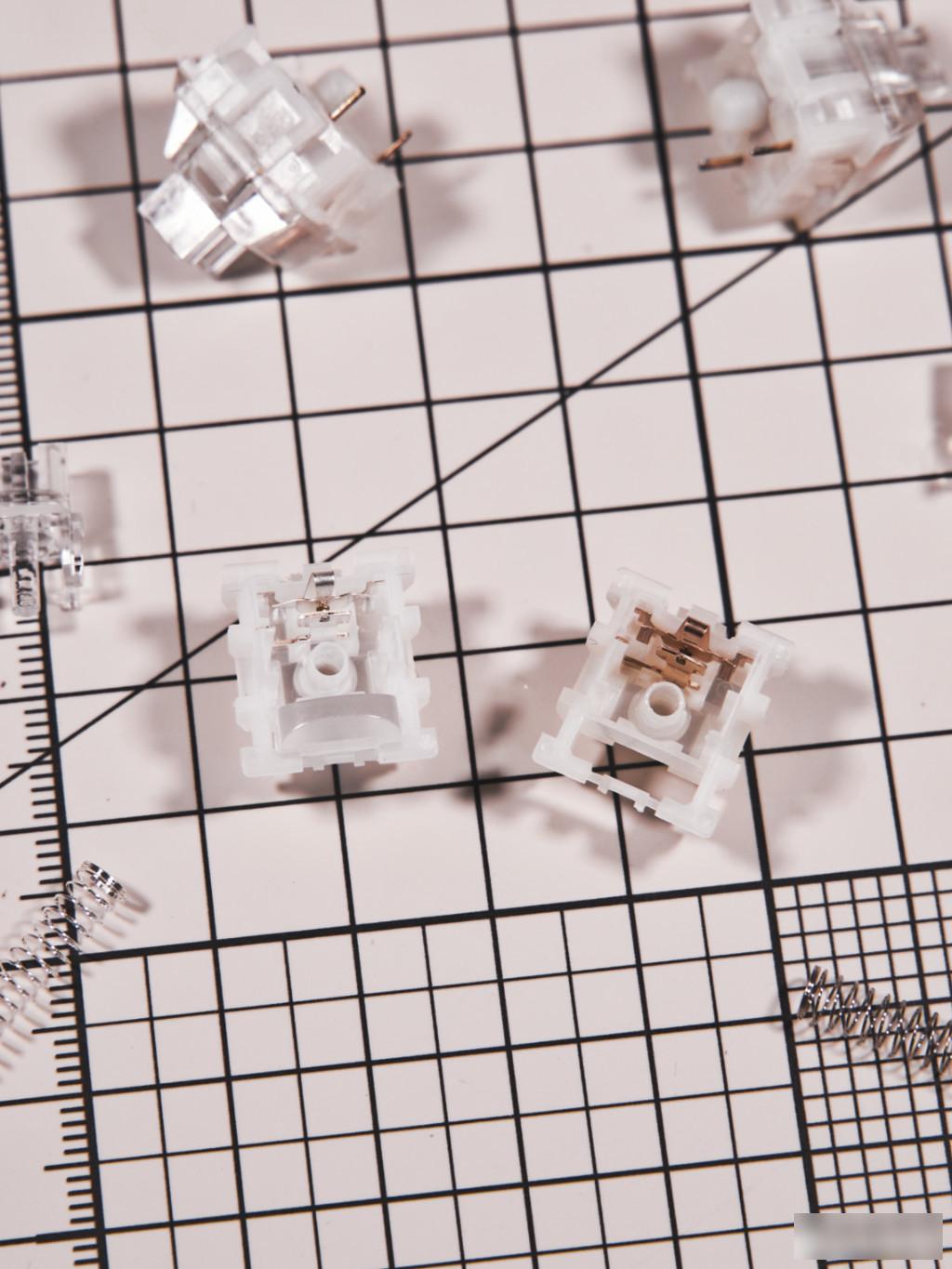

Disassemble the shafts of the two generations, and you can clearly see the difference between the two shafts. The biggest difference is the new condenser lens assembly of Bingjing V2. Before that, I have used several TTC shafts with condensers. This time, the condenser lens of Ice Static Axis V2 has also been optimized.

(Left V1, Right V2)

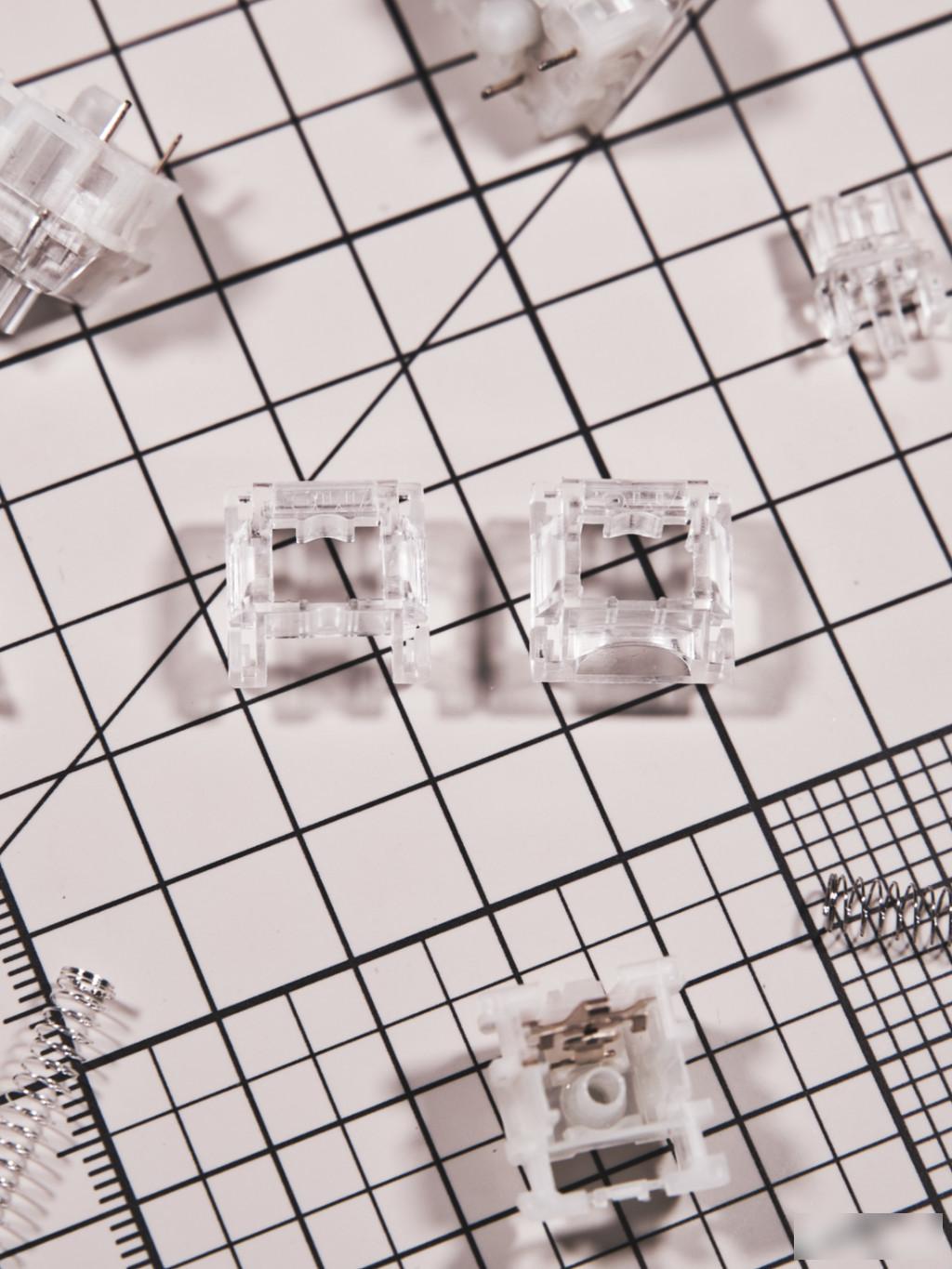

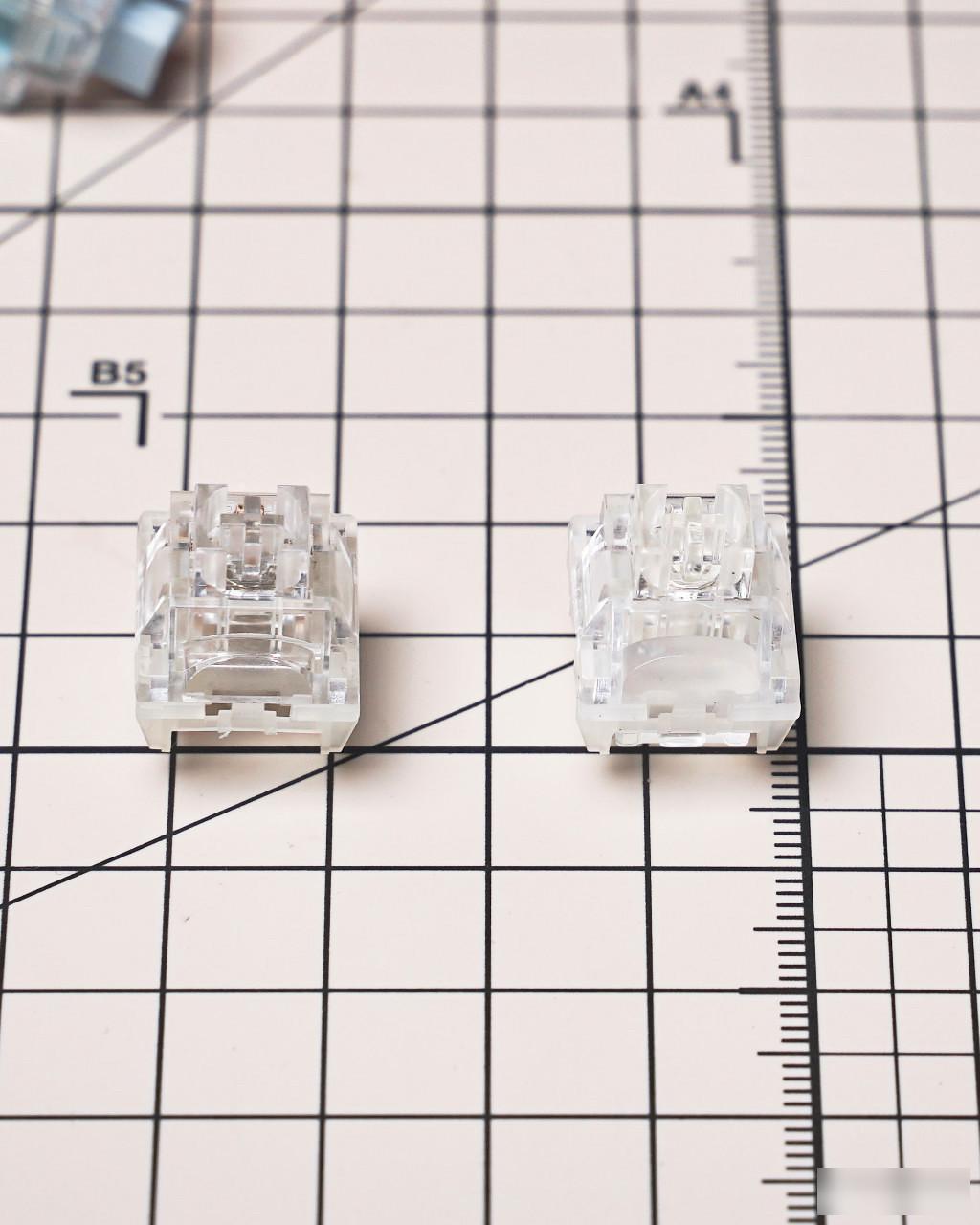

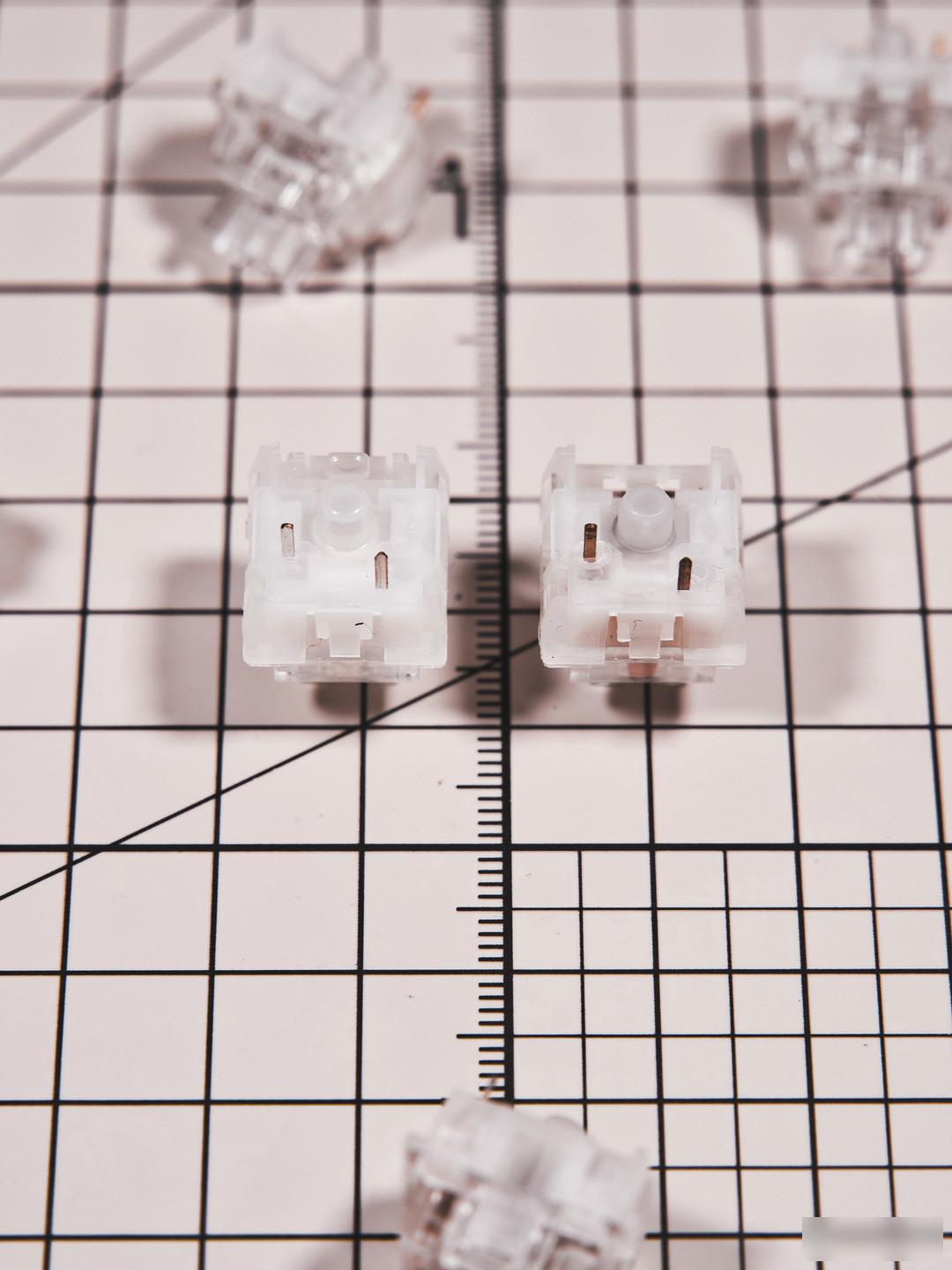

The transparency of the upper cover of the two generations of shafts is basically the same, the only difference is the vacant piece after upgrading to a condenser.

(Left V2, Right V1)

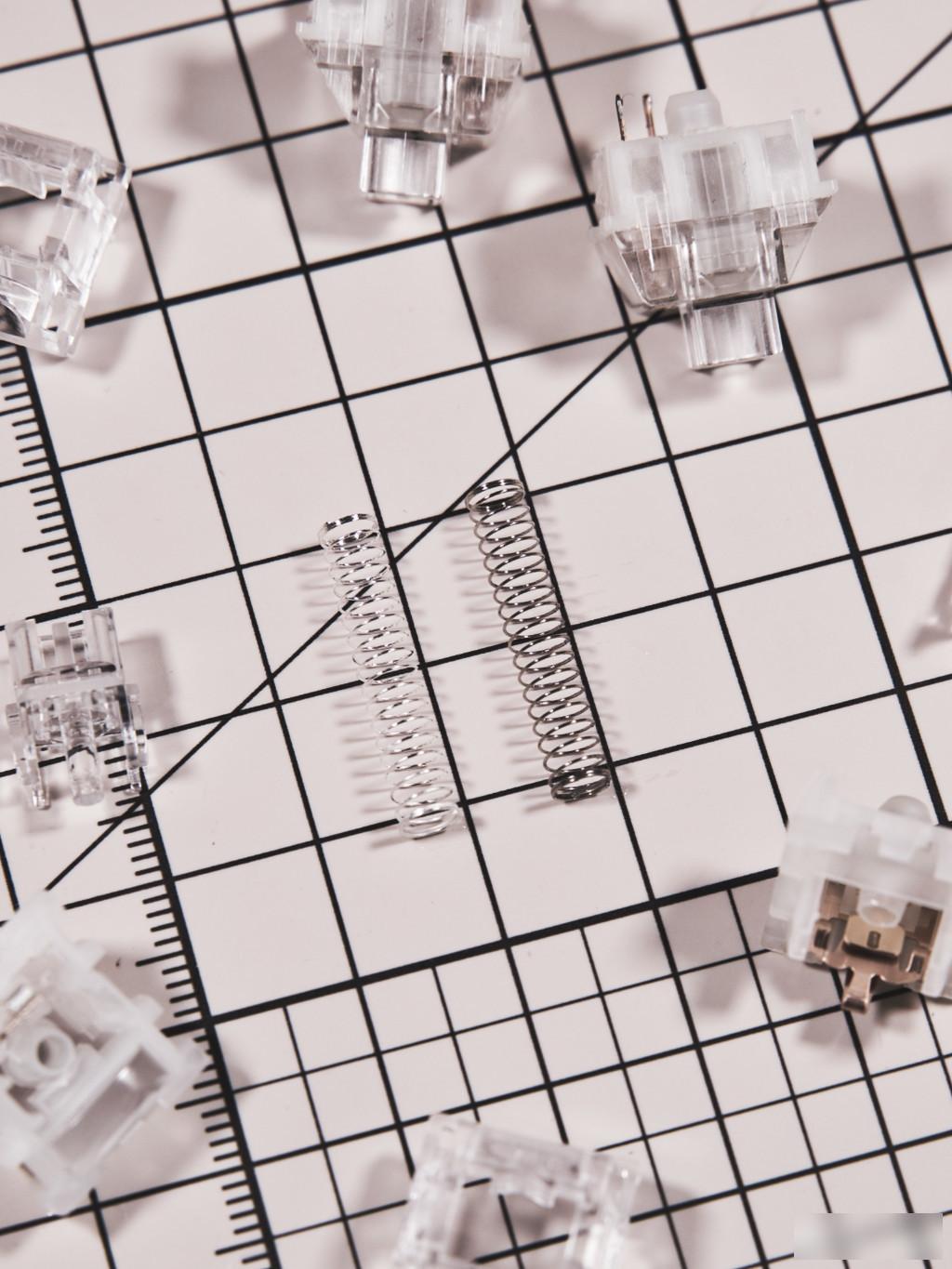

The original dark color of the spring has been changed to silver-white, and the new spring is visually thinner. In addition, the spring is still coated with grease.

(Left V2, Right V1)

The internal structure is still the same, but the metal reed has become silvery white, but the gold-plated treatment can be faintly seen at the electric contact position of the reed.

(Left V2, Right V1)

The metal pins at the bottom of the Ice Static Axis V2 are all silver, and this change is quite thorough.

(Left V2, Right V1)

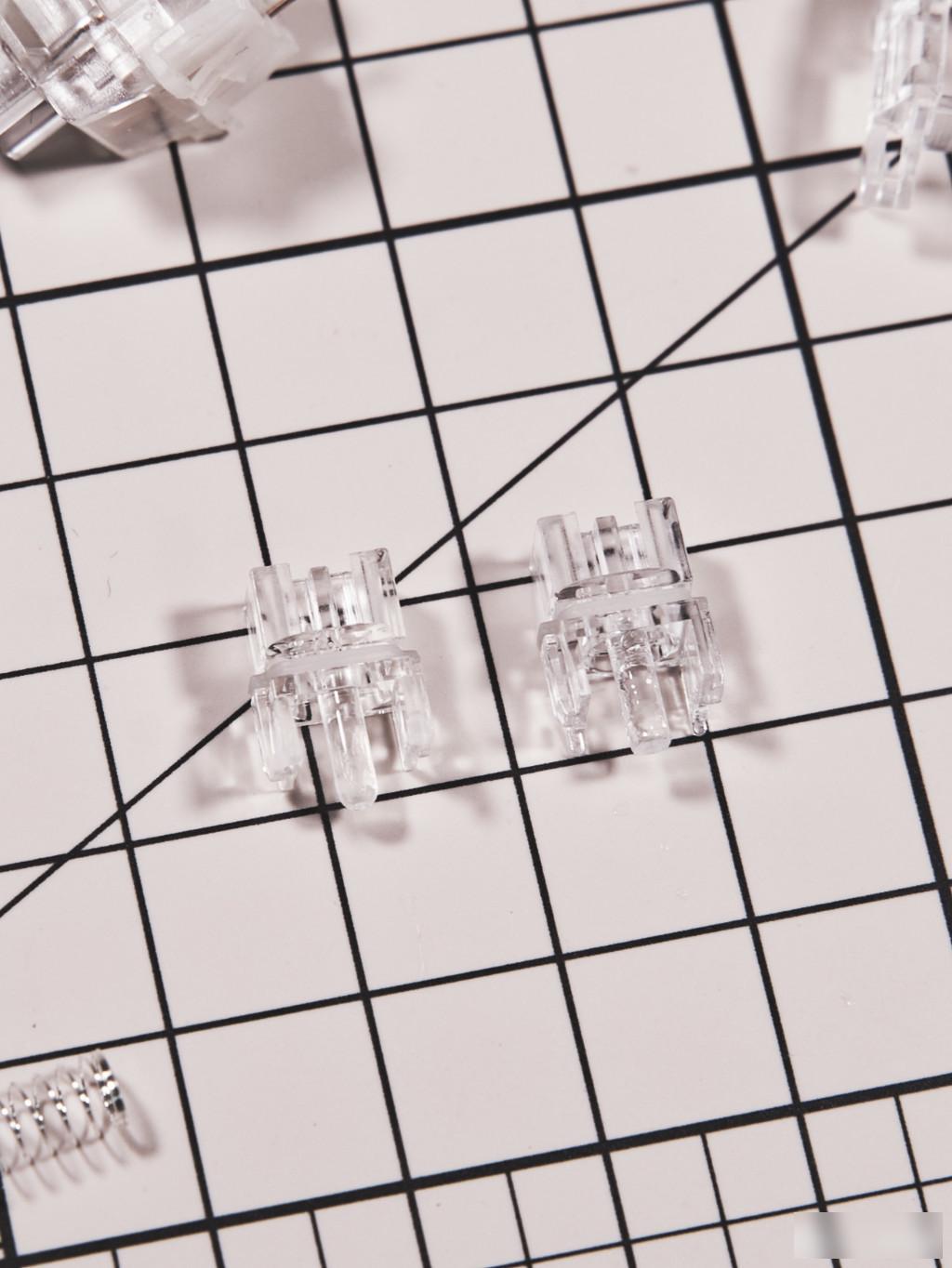

A white noise reduction ring can be seen in the middle of the shaft, which can reduce the sound of the collision between the shaft and the shaft cover when the rebound occurs. The bottom sound will be smaller. At the same time, the axis has also been upgraded to a new type of transparent material that is more wear-resistant and has a lower coefficient of dynamic friction.

(Left V2, Right V1)

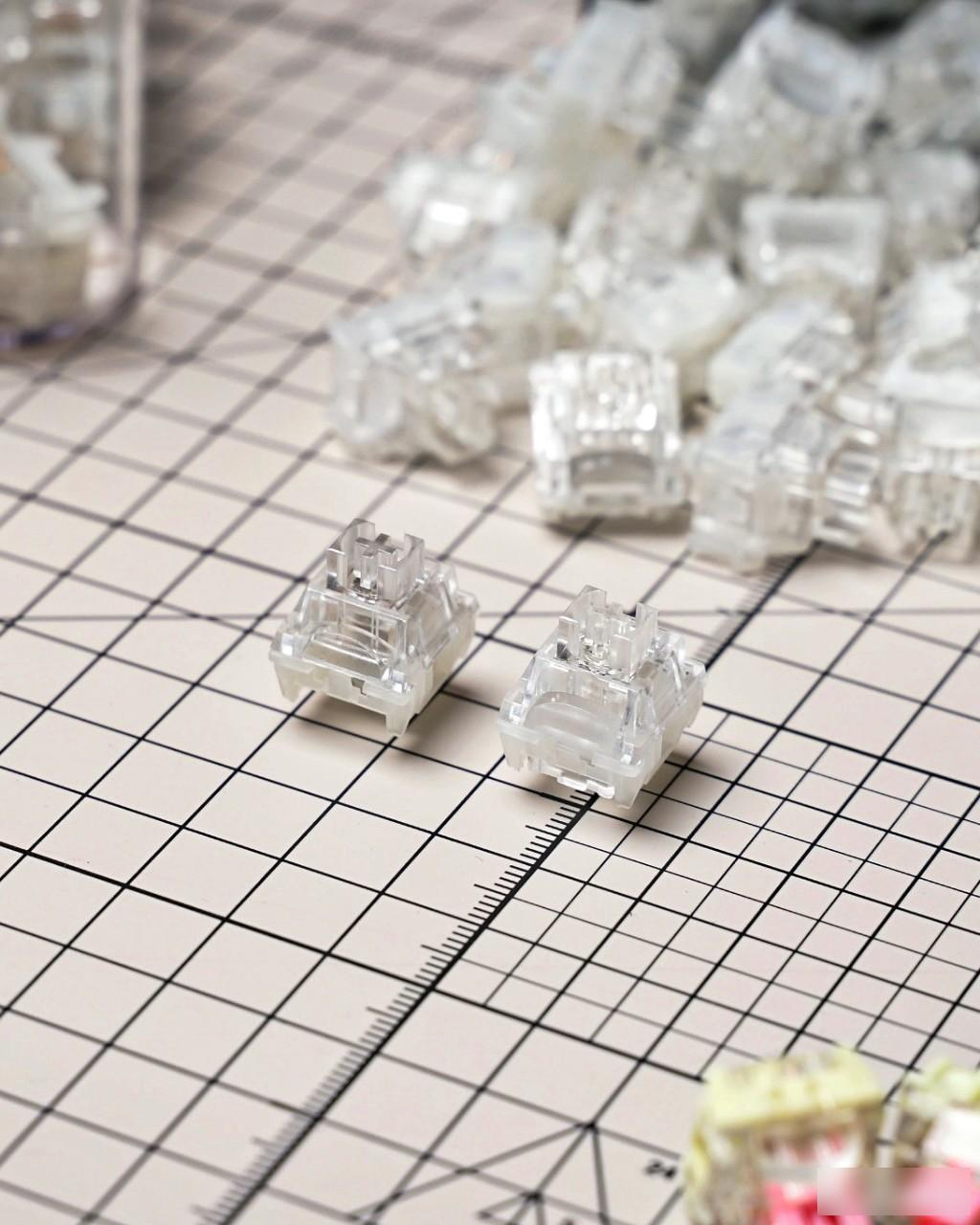

Visually, the difference between the two generations of switches is quite obvious. The V2 is whiter and brighter, and the V1 can clearly see the golden reed through the upper cover.

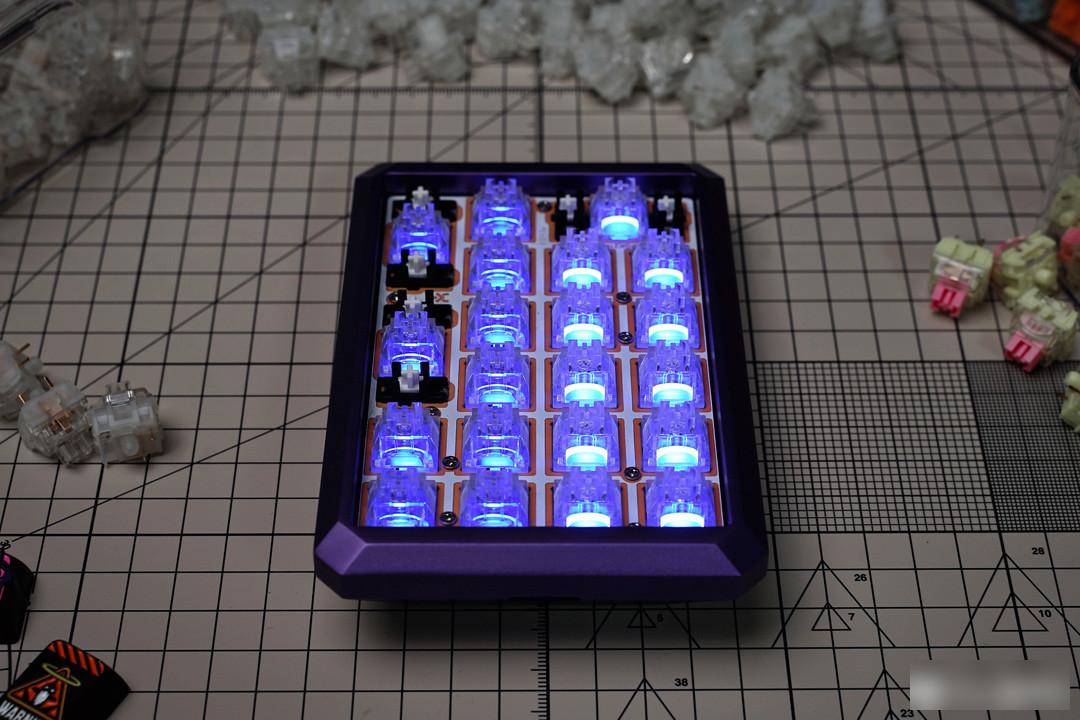

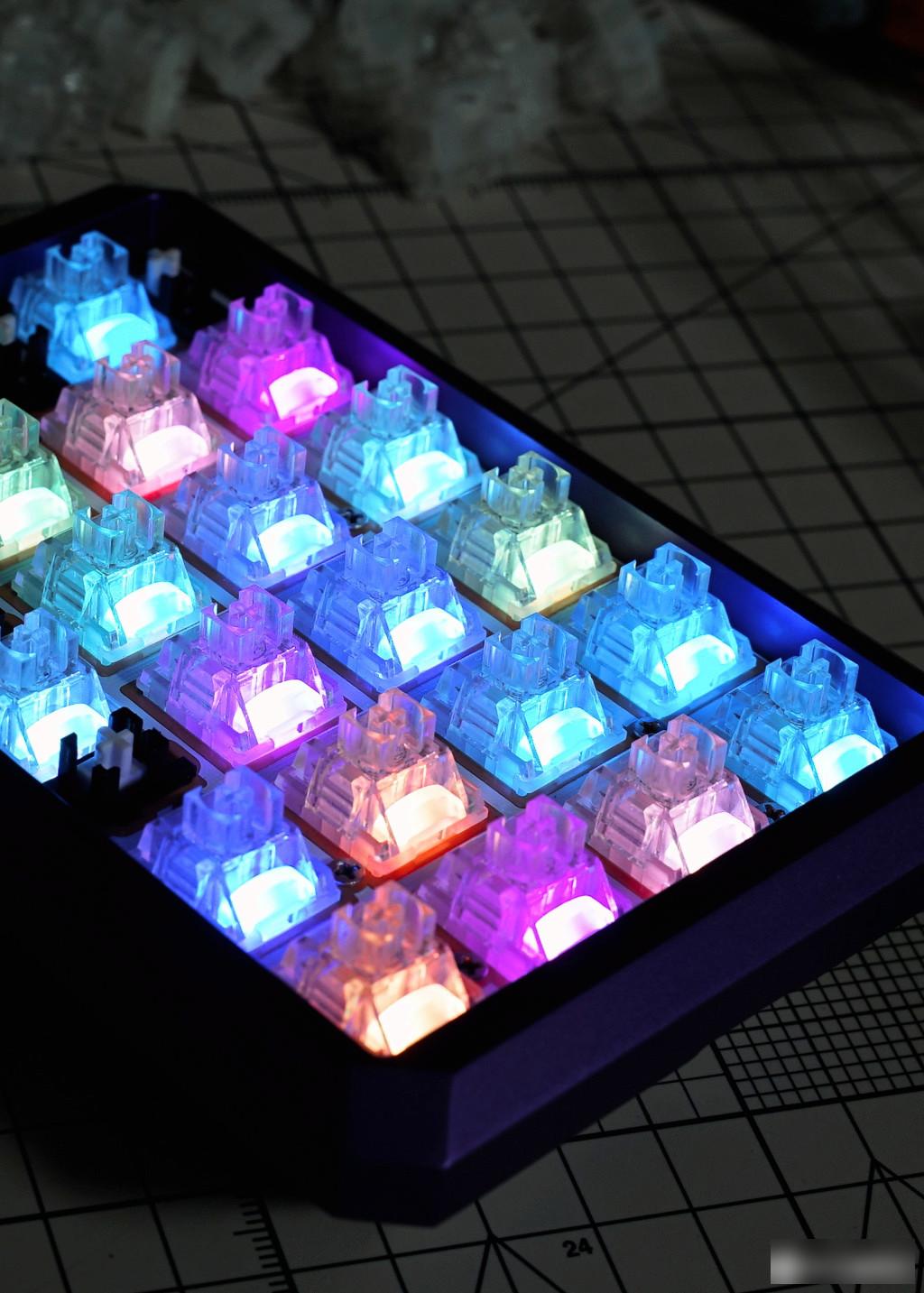

When the lights are turned on, the difference in the lighting effects of the two shafts is not small. Because of the blessing of the condenser, the lights of the Bingjing V2 are more concentrated and brighter.

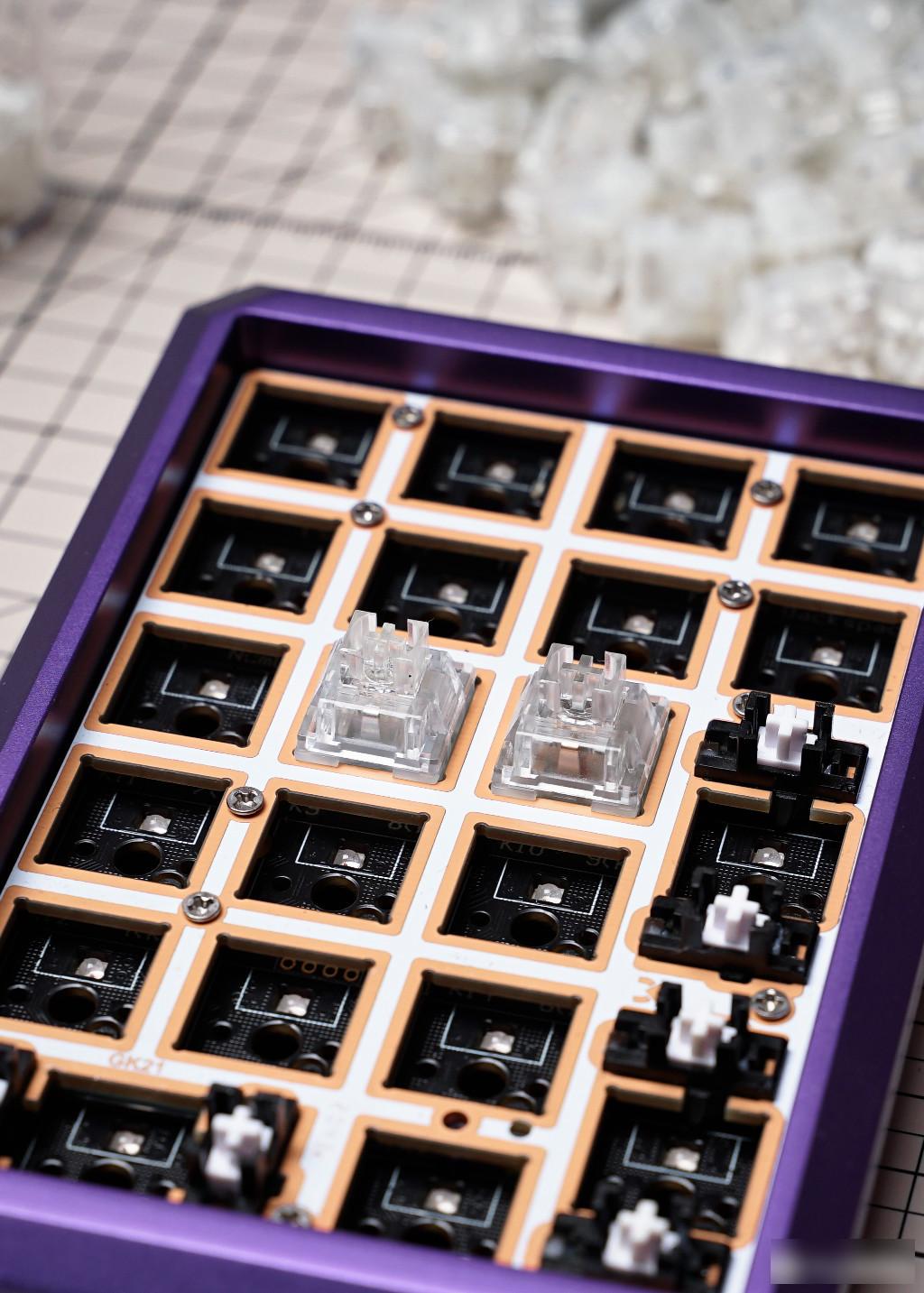

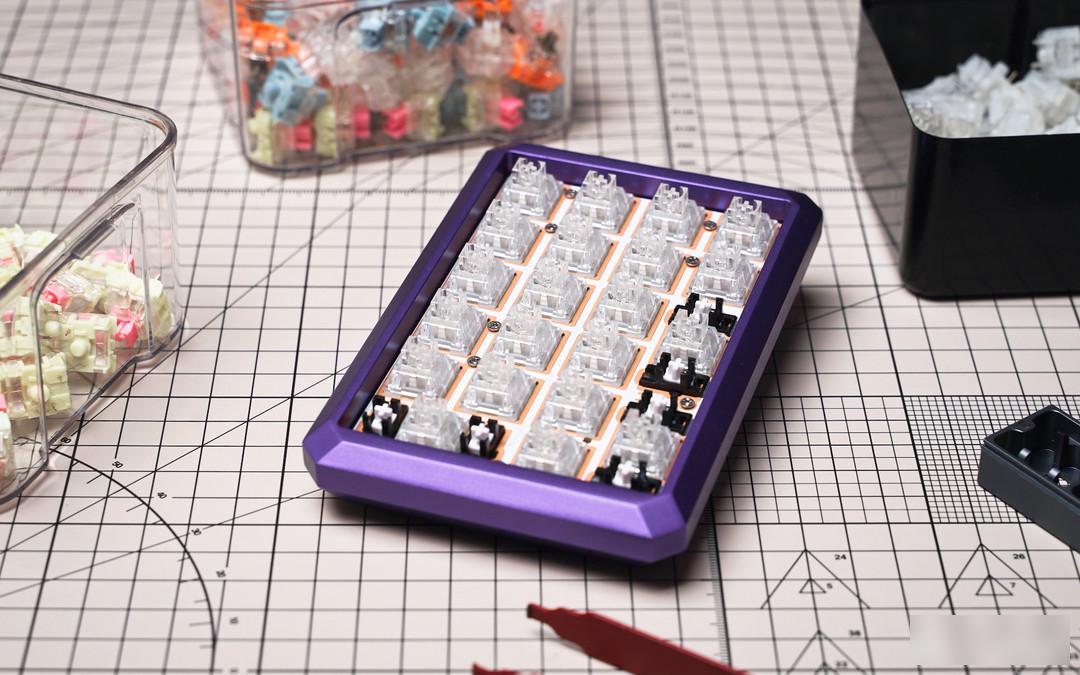

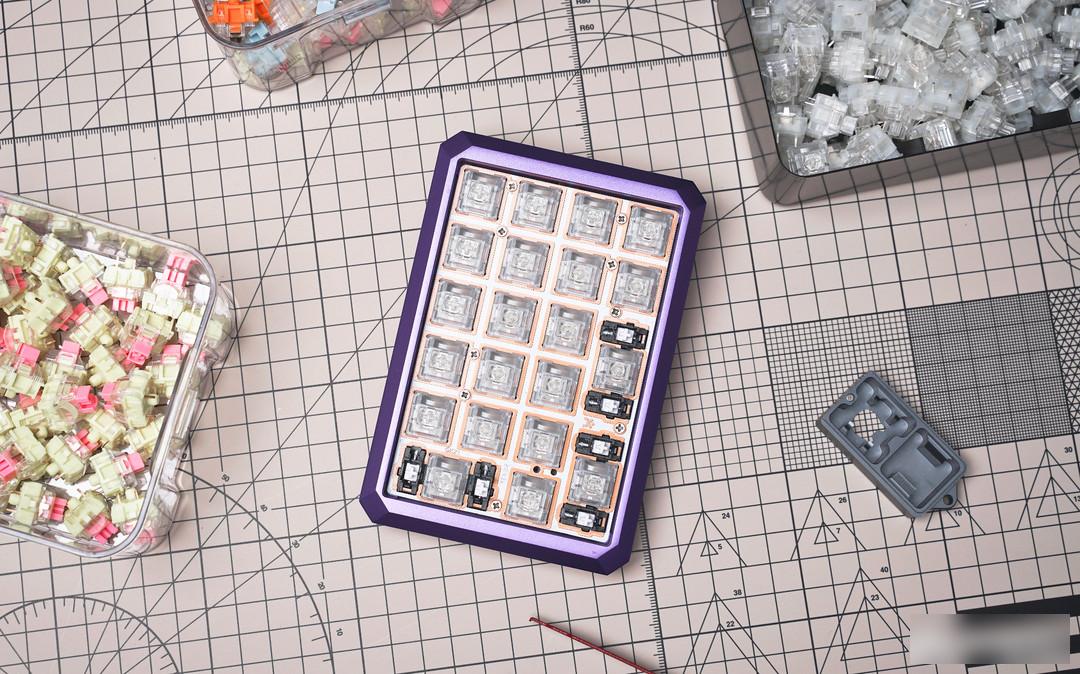

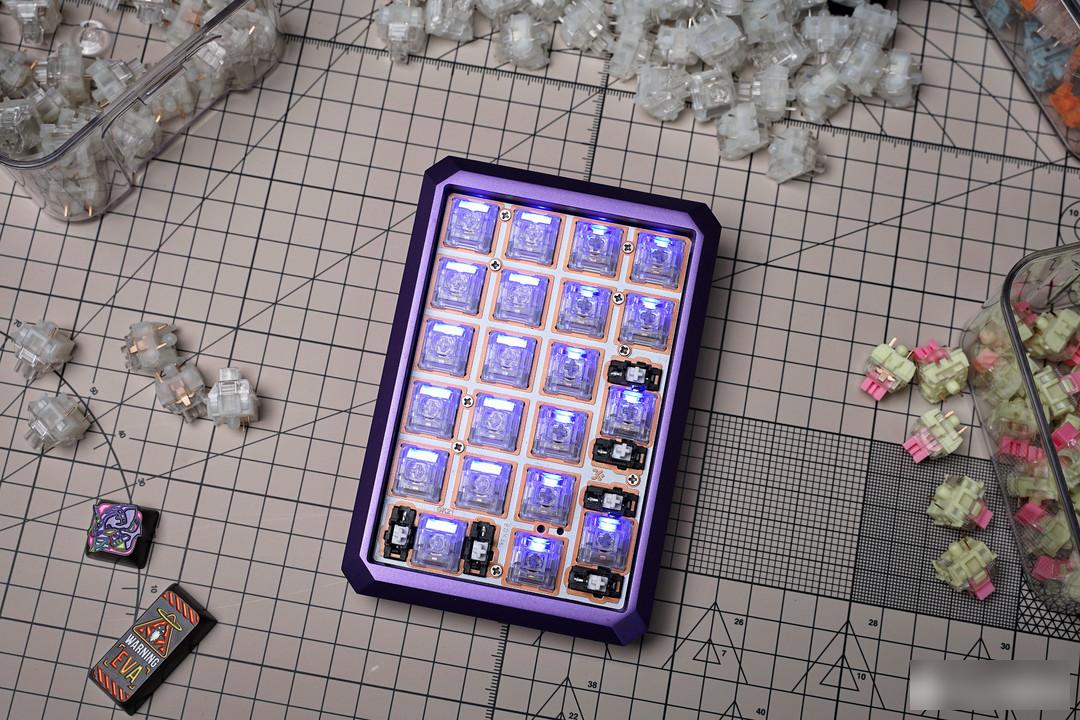

Then replace them all with Ice Static Axis V2 to try the feel and complete lighting effect. The mute effect of V2 is really good. Even in the middle of the night, you can only hear a subtle sound when coding. The axis is stable without obvious shaking, and the pressure is smooth. The rebound is also very crisp. Although there is no sound, the percussion feedback is still very clear.

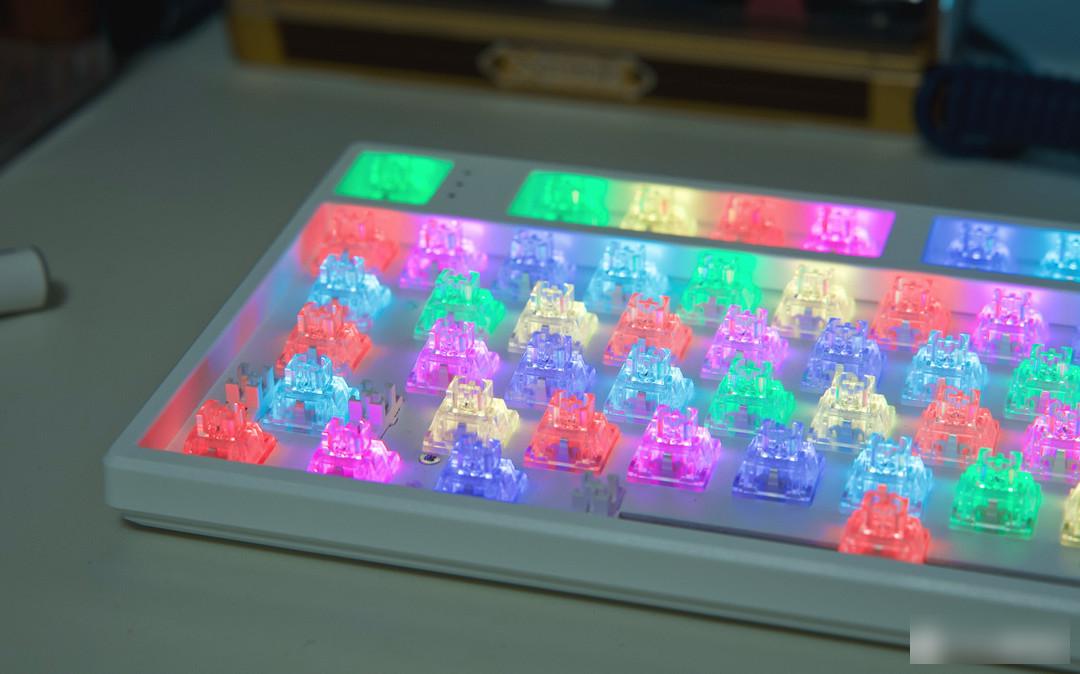

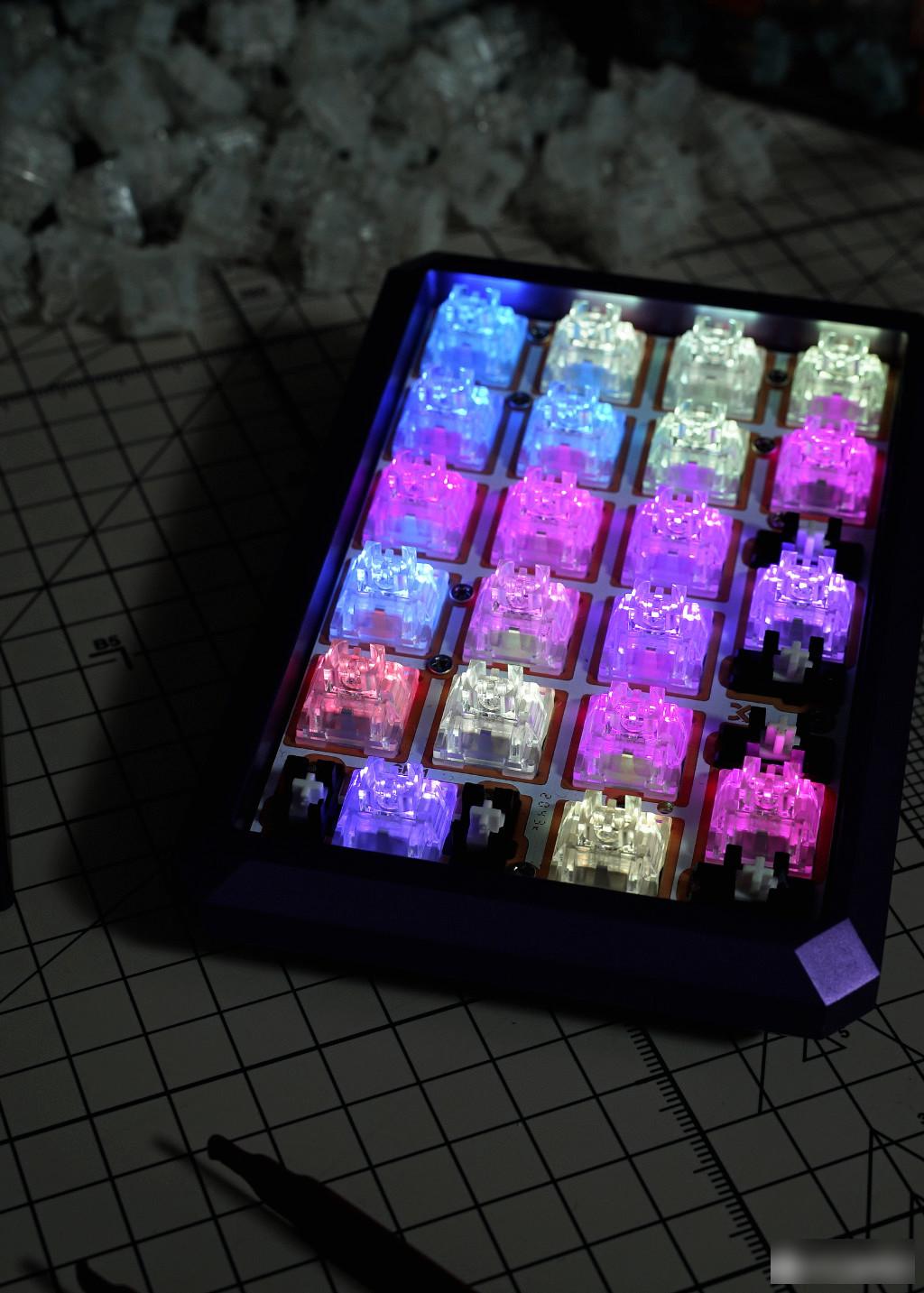

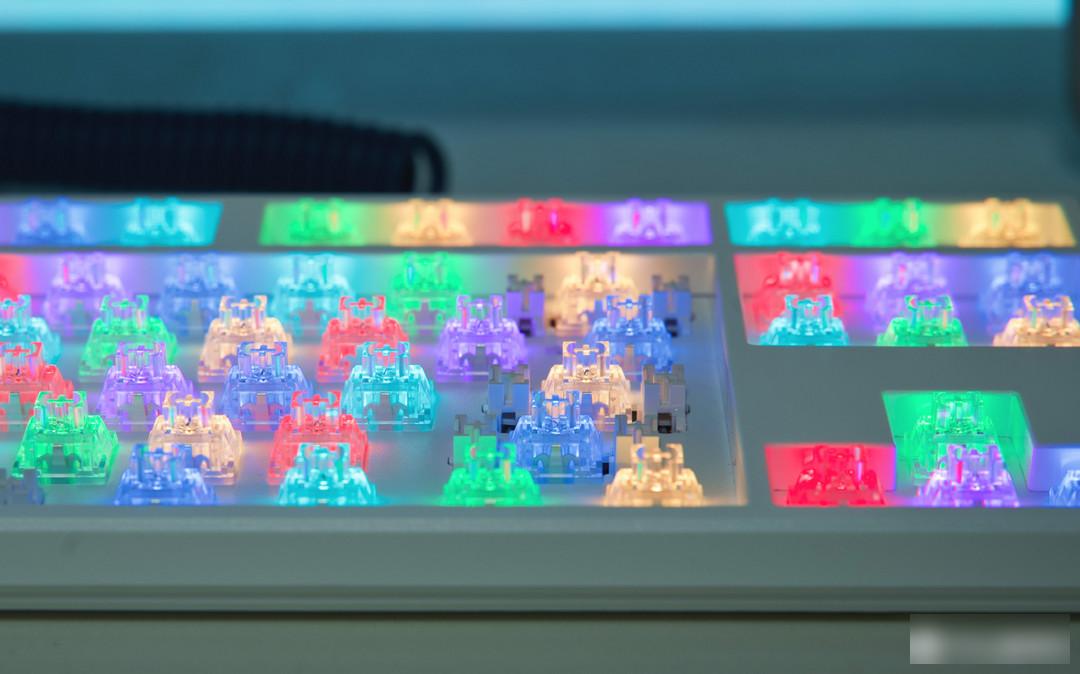

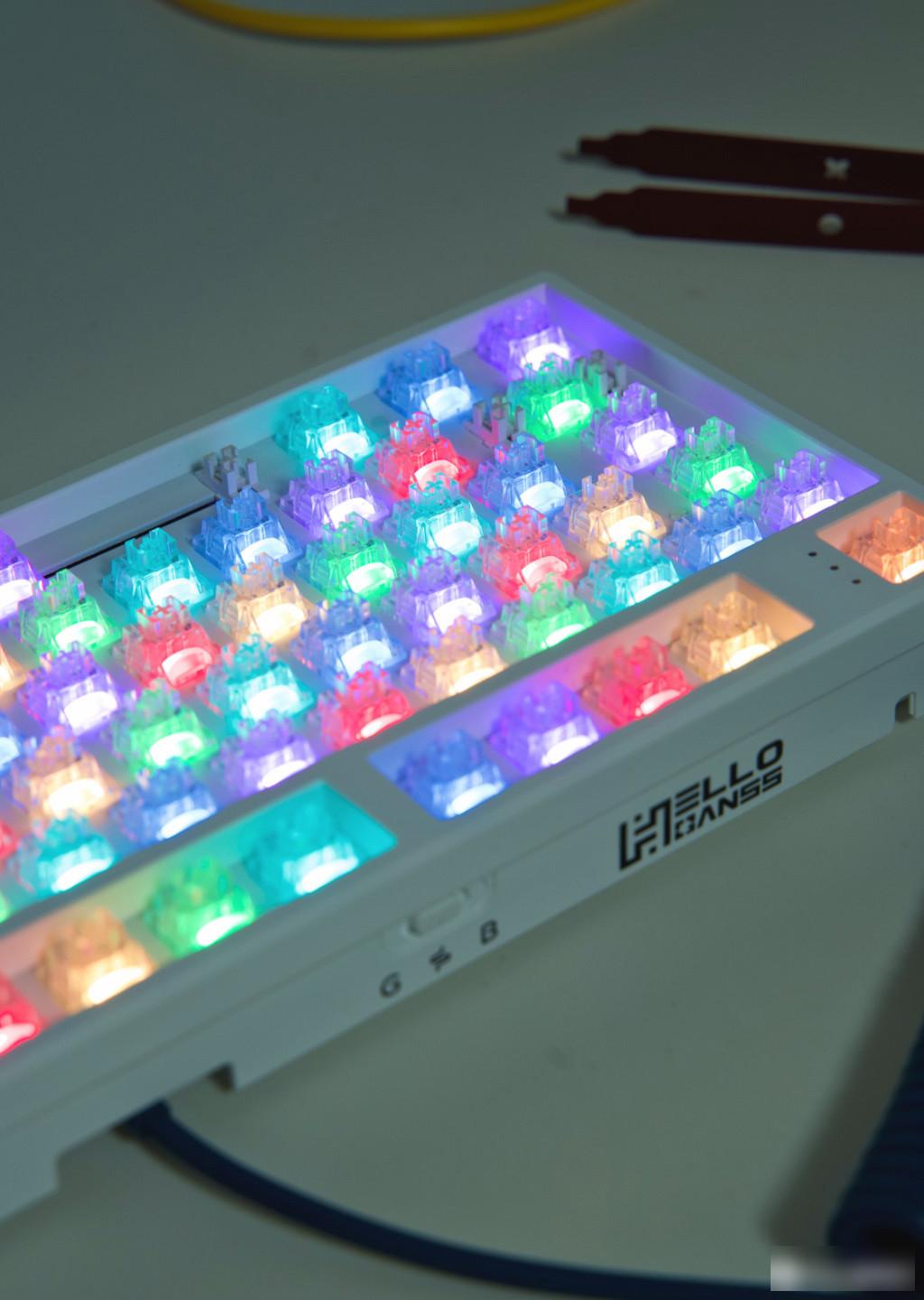

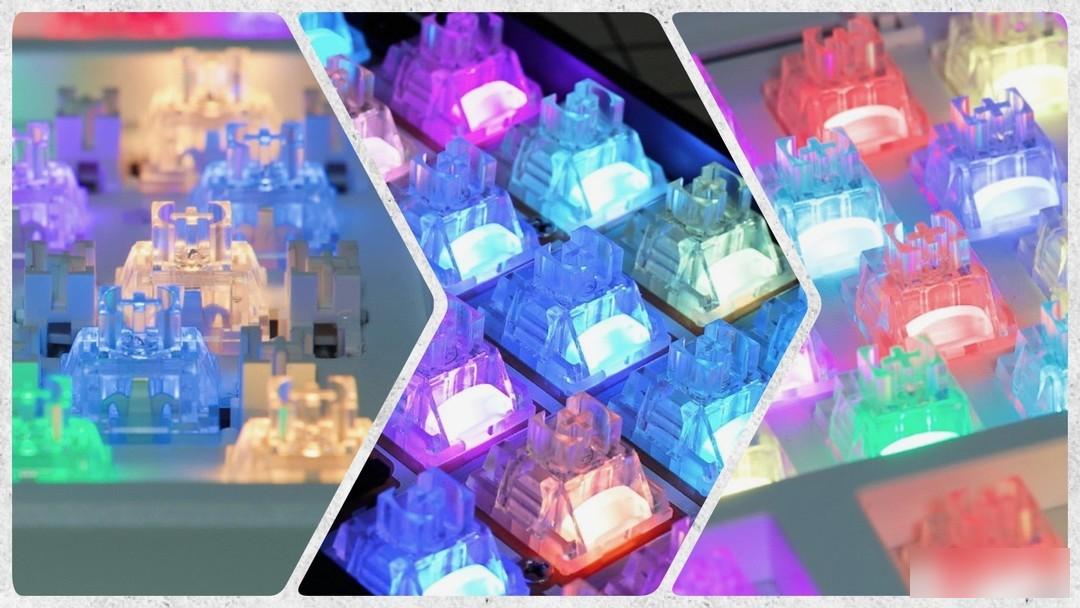

Take a look at the full version of the lighting effects, one word "beautiful"!

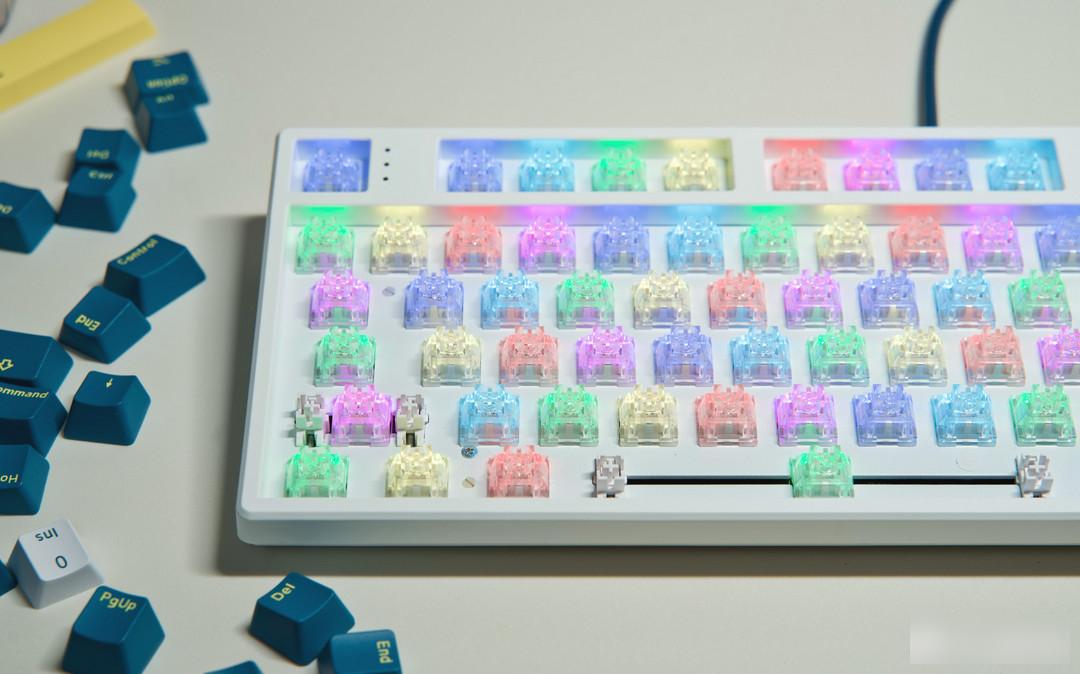

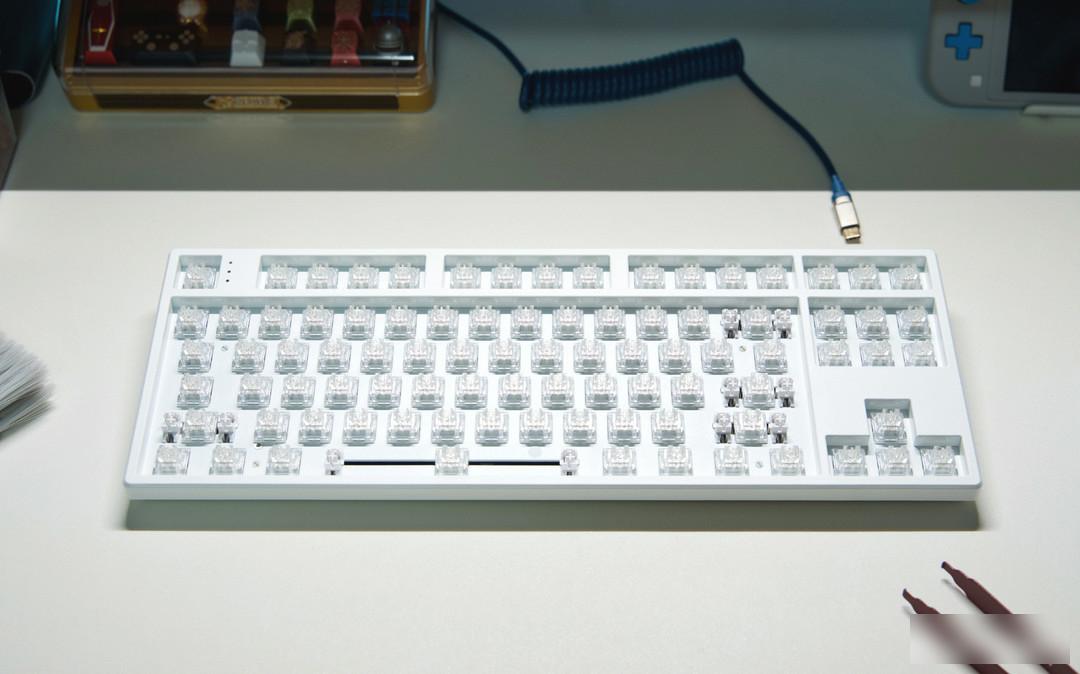

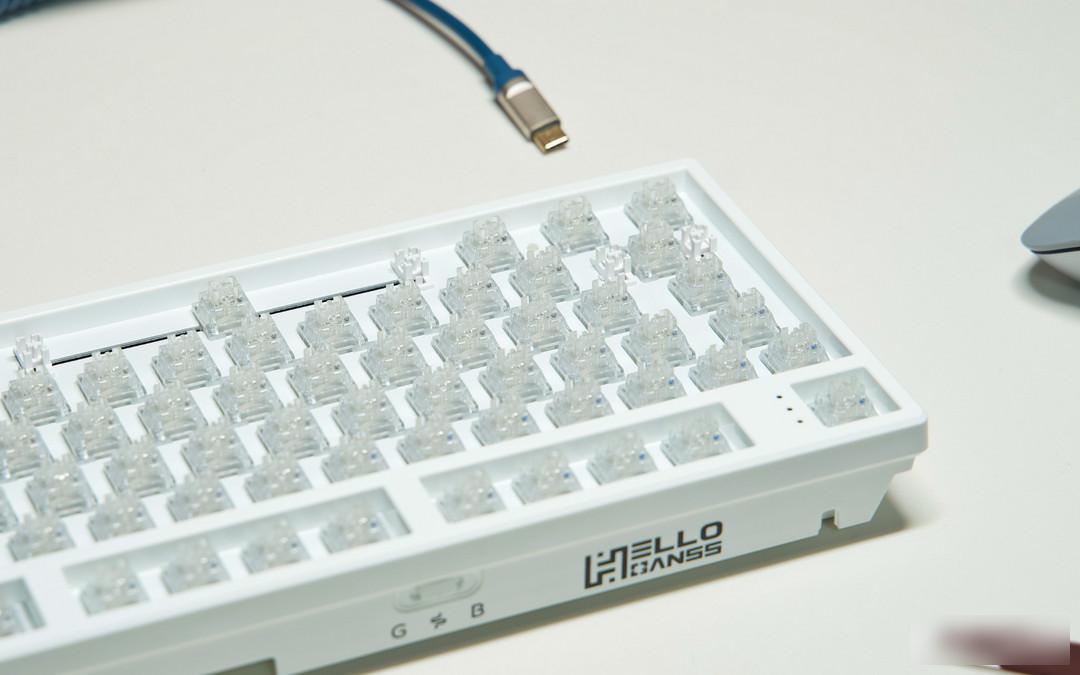

An 87 keyboard is installed on the remaining shaft body. It looks better with this white keyboard than the purple Pad above, and it looks very transparent.

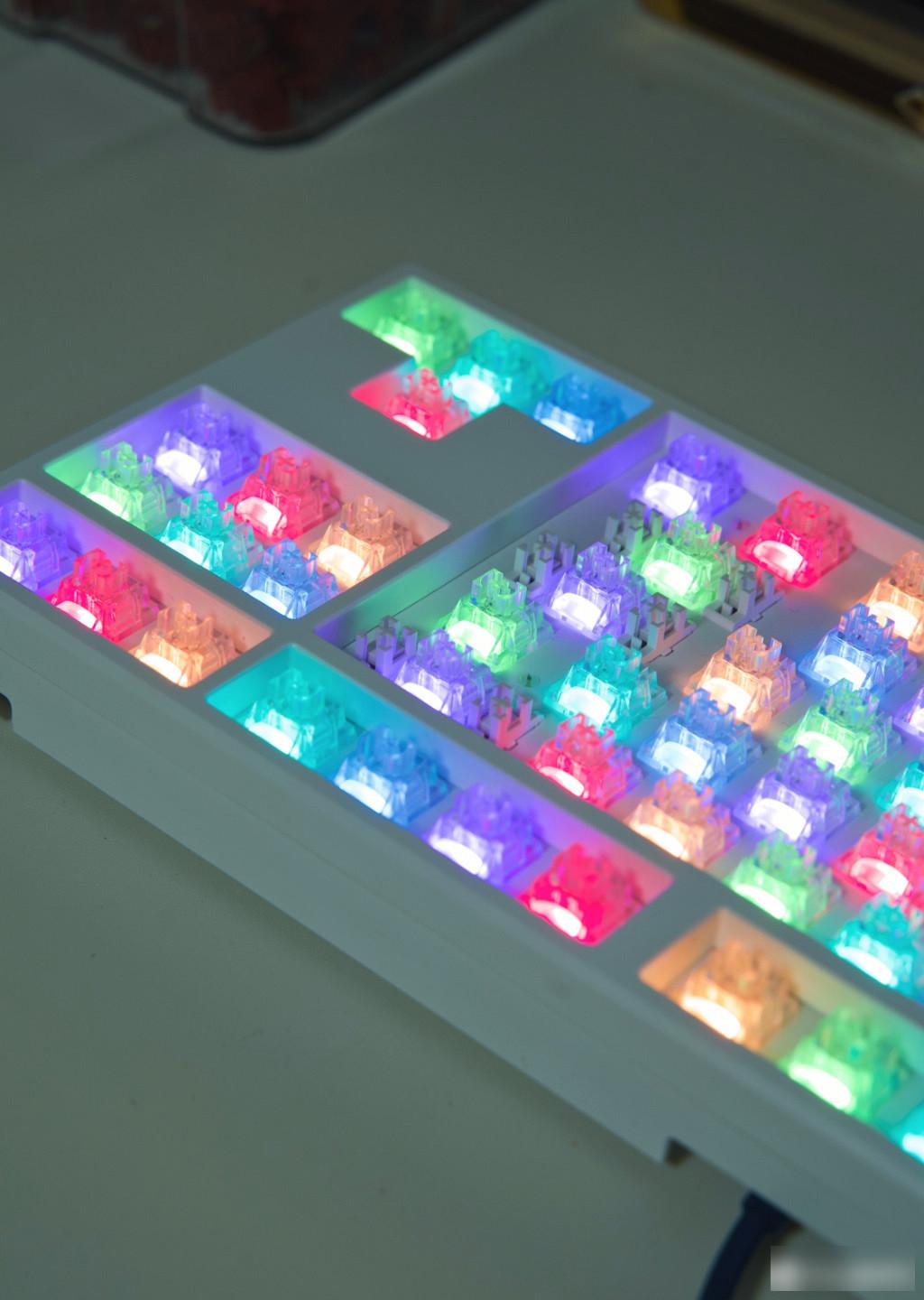

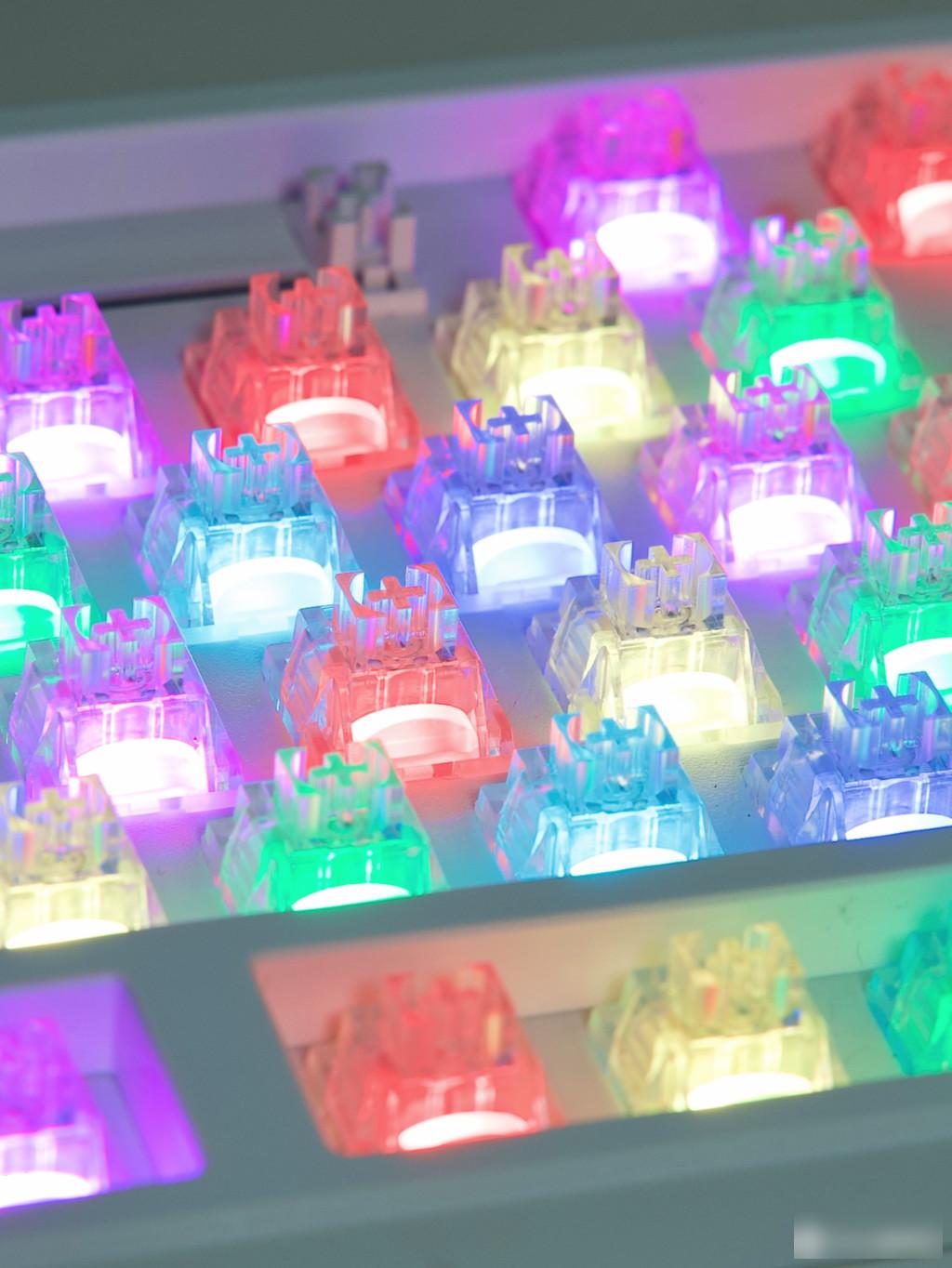

See the effect directly! ! Thanks to the highly transparent top cover, the light of the Ice Static Axis V2 feels very bright, even when the ambient light is very bright, it can be clearly seen.

The upgrade of TTC Ice Static Axis V2 is quite obvious. Firstly, the color of each component is optimized, which looks more transparent and pure, especially after turning on the light effect, the color is more pure, and the condenser also makes the light more concentrated and brighter; in addition, the axis The upgrade of the core is also great. The spherical design at the bottom of the axis makes the bottoming sound smaller and the feel is softer, while the material that is more wear-resistant and has a lower coefficient of dynamic friction makes the pressing feel smoother, while reducing friction and wear. , which is more durable and has a longer lifespan.
