Maozhaichat Peripherals Chapter 19: I want all office games, TTC flame purple switch & flame snow switch experience

所谓“分久必合，合久必分”，这句话放到如今的机械轴体上好像也说的通，为了满足用户对极致的追求，比如为了满足游戏玩家而推出的快银轴，为了满足办公码字用户退出的金粉轴；不过有些时候键盘的功能区分没有这么明确，就像上半年在家封闭的时候办公、游戏的界限就变得模糊。也许是为了满足这部分用户的需求，TTC 推出了结合快银、金粉优点的烈焰紫轴&烈焰雪轴，两款轴体的技术参数是一致，区别主要是壳体的颜色。

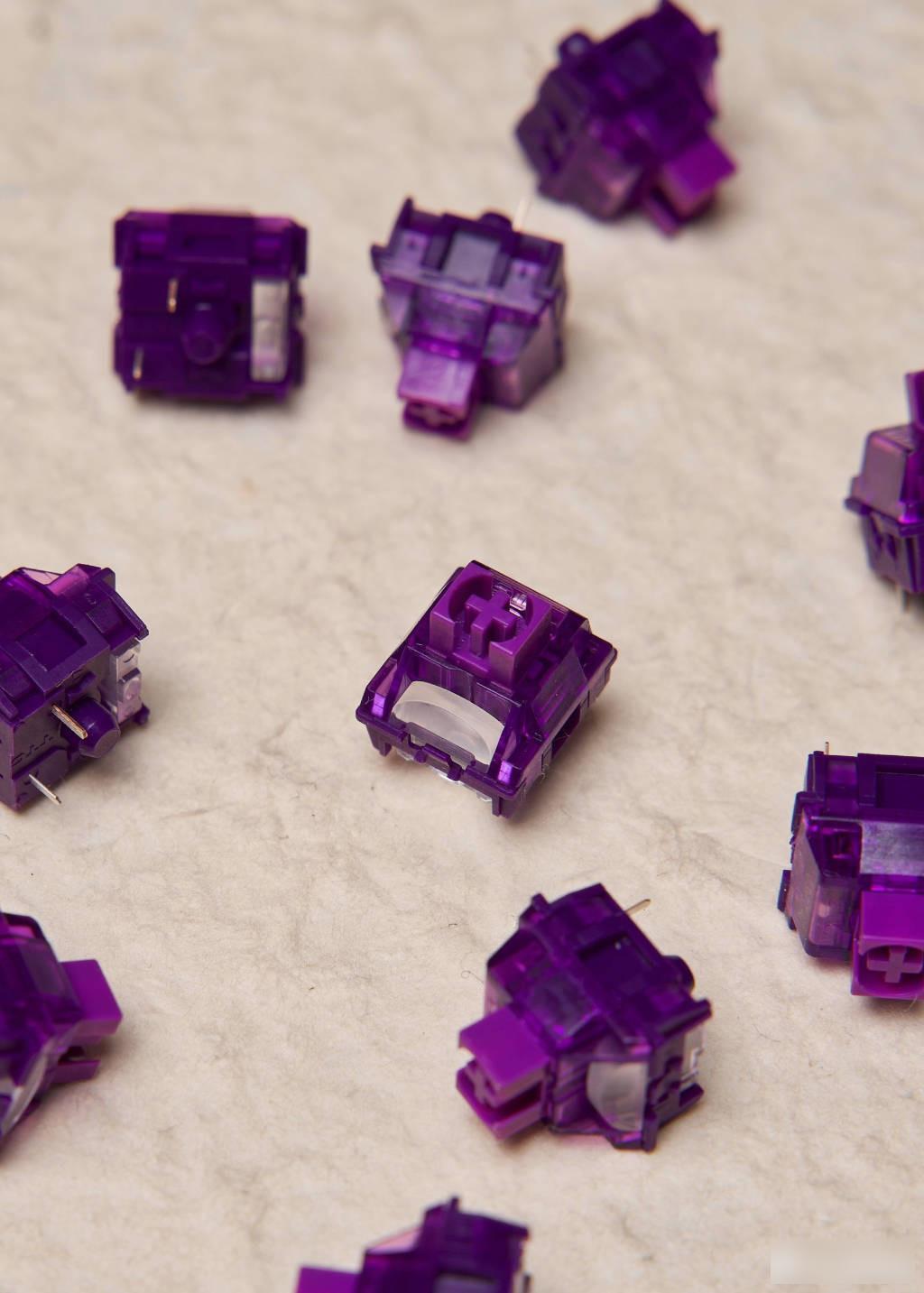

Because the technical parameters of the two switches are the same, I mainly chose the flame purple switch, and I only got a few less flame snow switches to try.

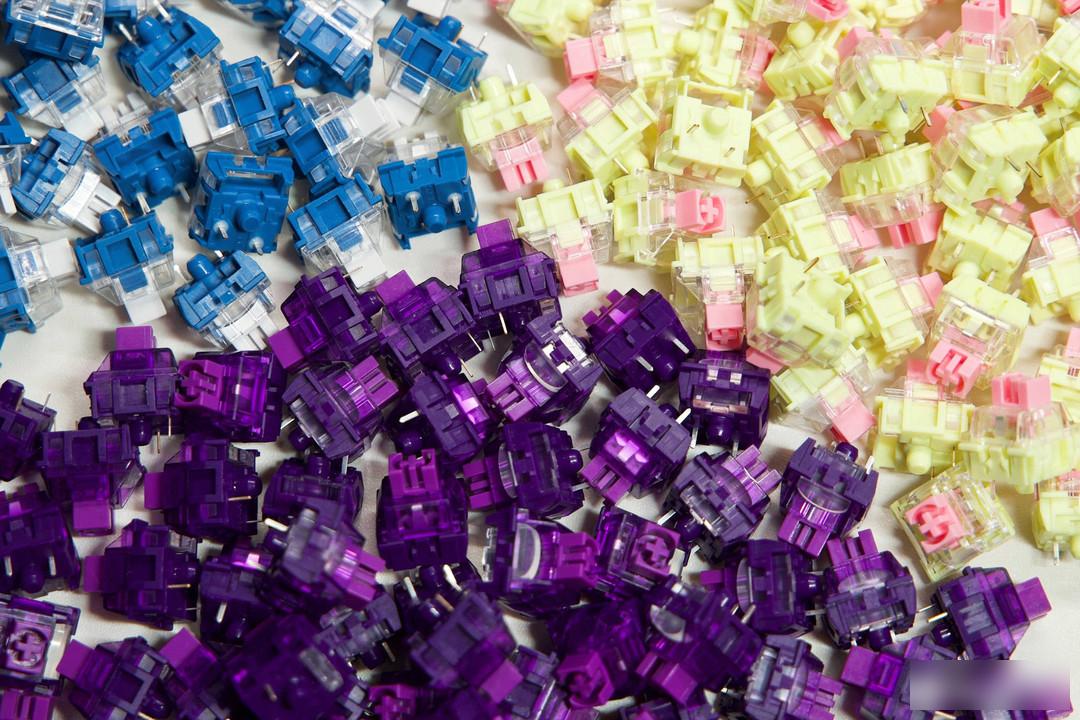

TTC’s Kuaiyin V2 and Gold Powder V2 have already been experienced. Starting from daily office work, the trigger of the gold powder switch is very gentle, and the rebound is easy to follow. It is not easy to get tired after a long time of coding; but when the interest of the game comes, you can change it at home. It is not very convenient to get on Kuaiyin, so judging from the parameters of the flame purple axis, it still meets my requirements.

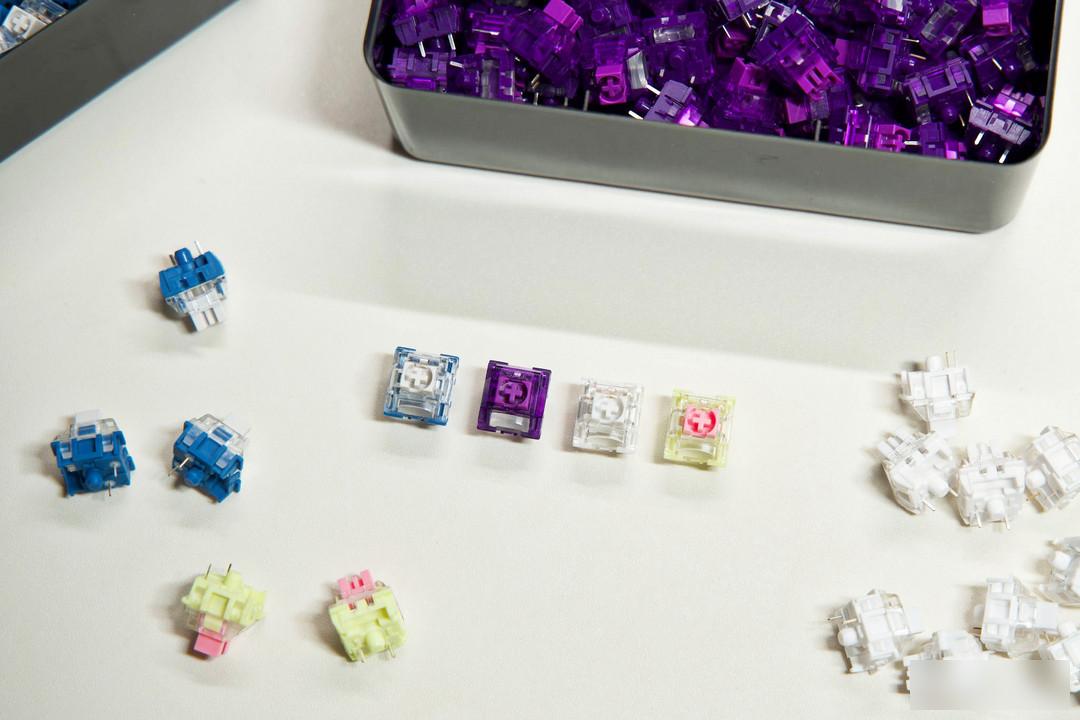

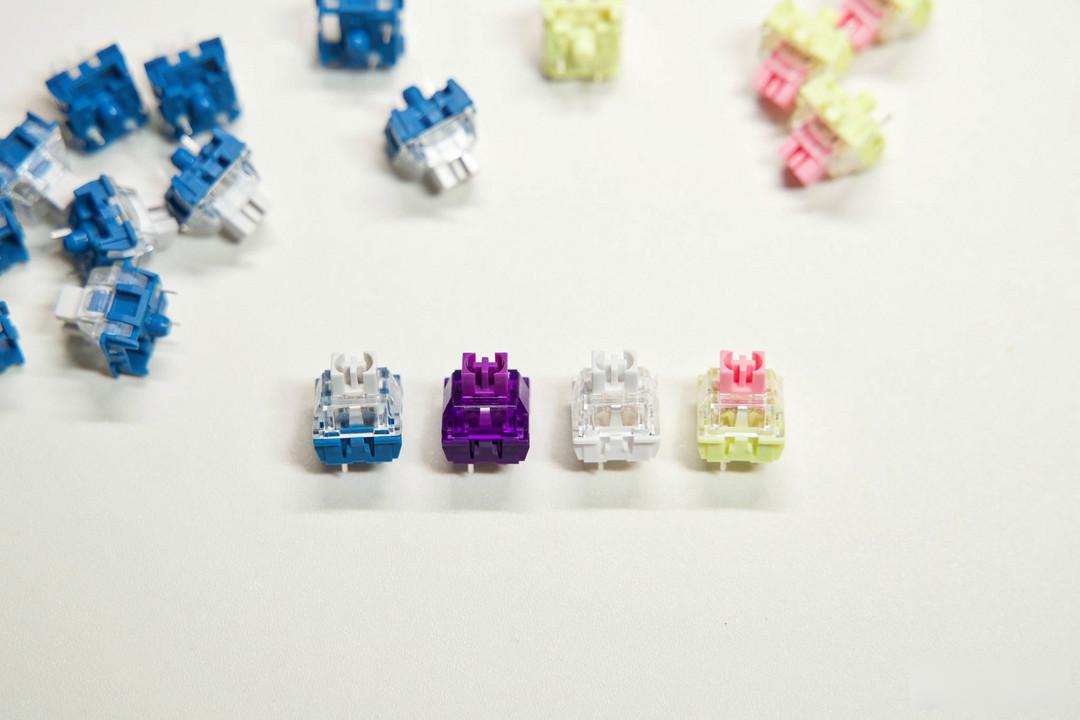

Apart from the difference in color between the two switches in appearance, another major difference is the light-transmitting design. The flame purple switch adopts an upgraded condenser lens structure, while the flame snow switch is a common curved lens. According to past experience, the flame purple switch The light effect will be more concentrated.

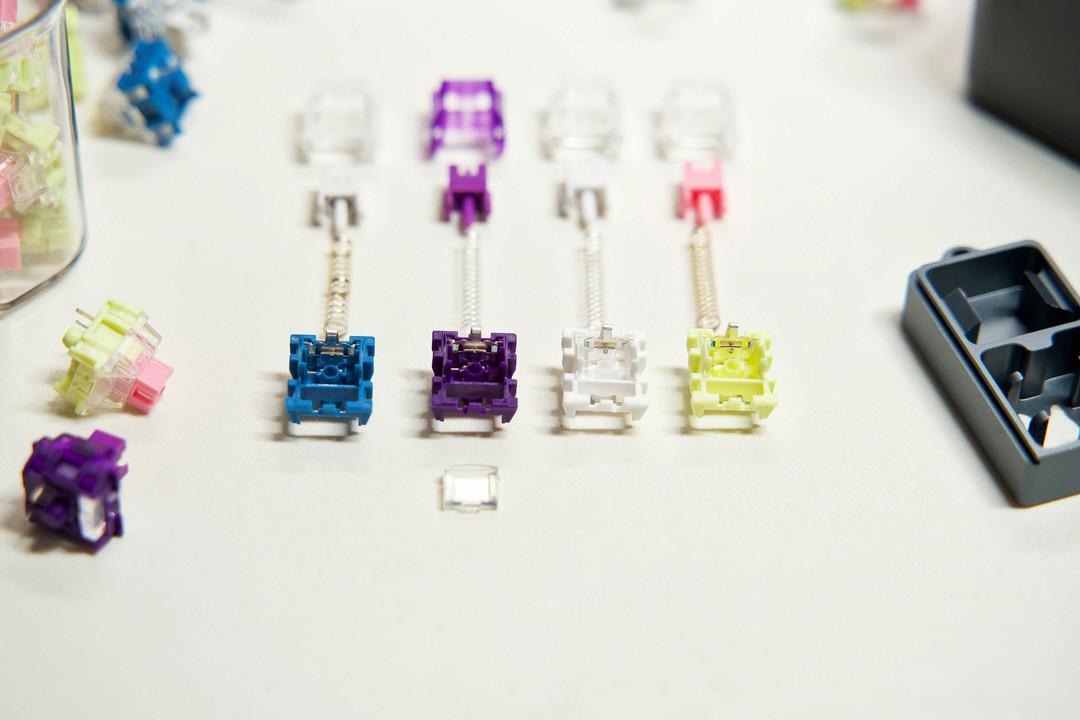

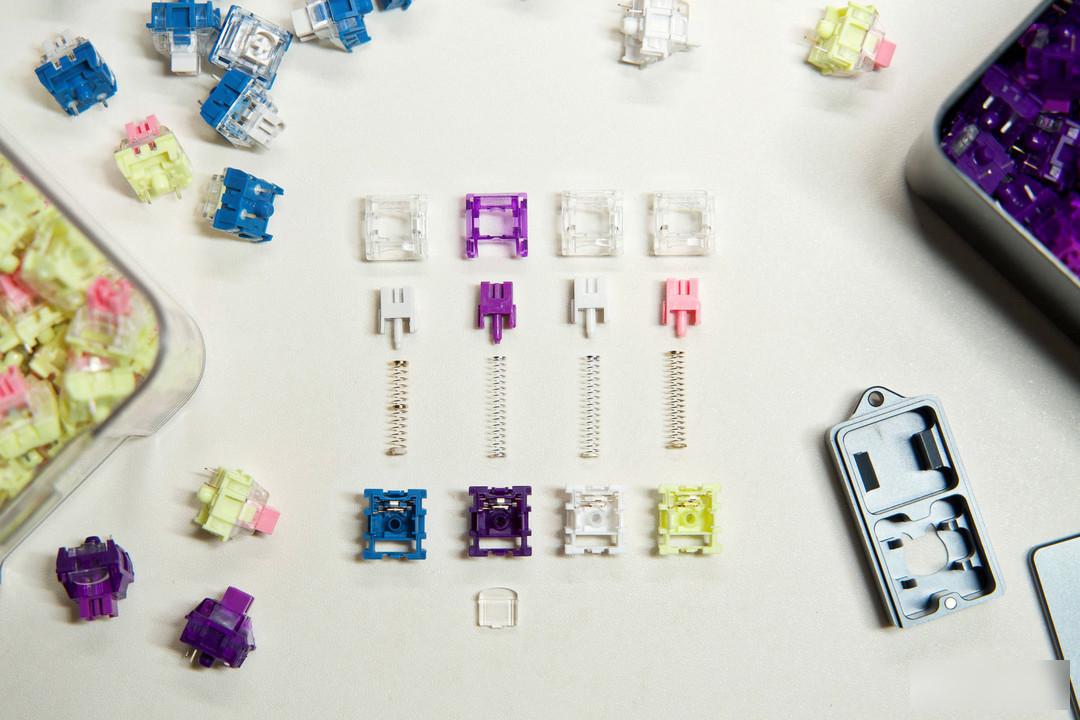

Except for the difference in color and light-transmitting structure, the other mechanisms of the two shafts are basically the same, and they both adopt the three-legged design commonly used by TTC, so that it will be more adaptable to customized PCB design.

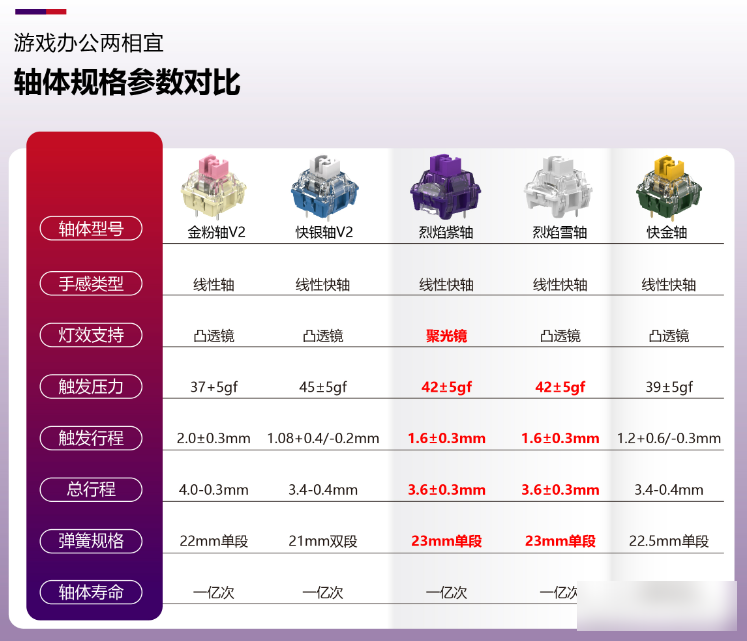

Although the flame purple axis and the flame snow axis are a combination of quick silver and gold powder, they are not a simple addition of the two. It is not difficult to see from the official parameter comparison chart that, except for the slightly longer spring, other key parameters are Comparing the compromise, the actuation pressure of Lieyan Purple and Lieyanxue switches is 42±5gf, the actuation stroke is 1.6±0.3mm, and the total stroke is 3.6±0.3mm. A 23mm single-segment spring is used, and the life of the shaft body is 100 million times.

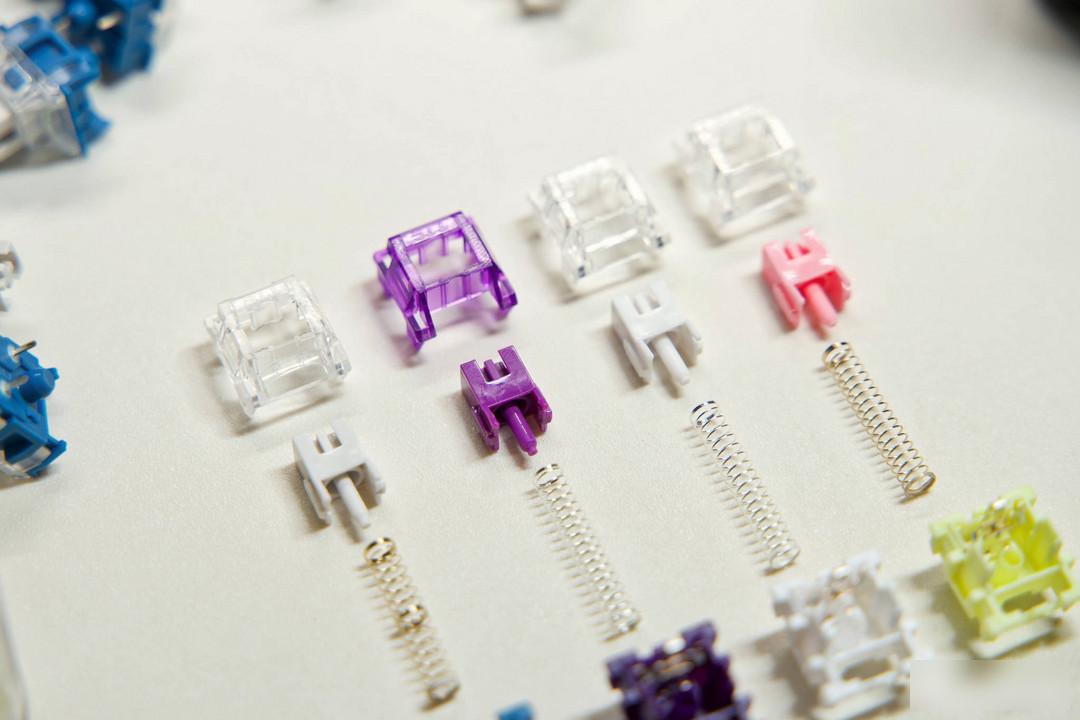

The bottom shell of the flame purple switch and the flame snow switch is made of PA material, and the switch cover is made of PC material, except that one is color transparent and the other is high transparent, and the center of the switch is made of POK material. At the same time, it adopts a family-style dust-proof wall design, which has the functions of dust-proof and improving stability.

The 23mm single-segment long spring can be distinguished by the naked eye, which can bring fast and powerful rebound.

The shafts of the two shafts have been lengthened. The advantage of this design is faster triggering. In addition, the structure at the bottom of the shaft is optimized to bring clearer sound and a sense of confirmation. At the same time, there are obvious lubrication treatments on both sides of the shaft, and the pressing is smooth without noise.

In addition, the trigger shrapnel and metal ends of the TTC shaft that I have used during this period are more silver-plated to provide anti-oxidation ability and avoid blackening, thereby improving the service life of the shaft and looking more beautiful.

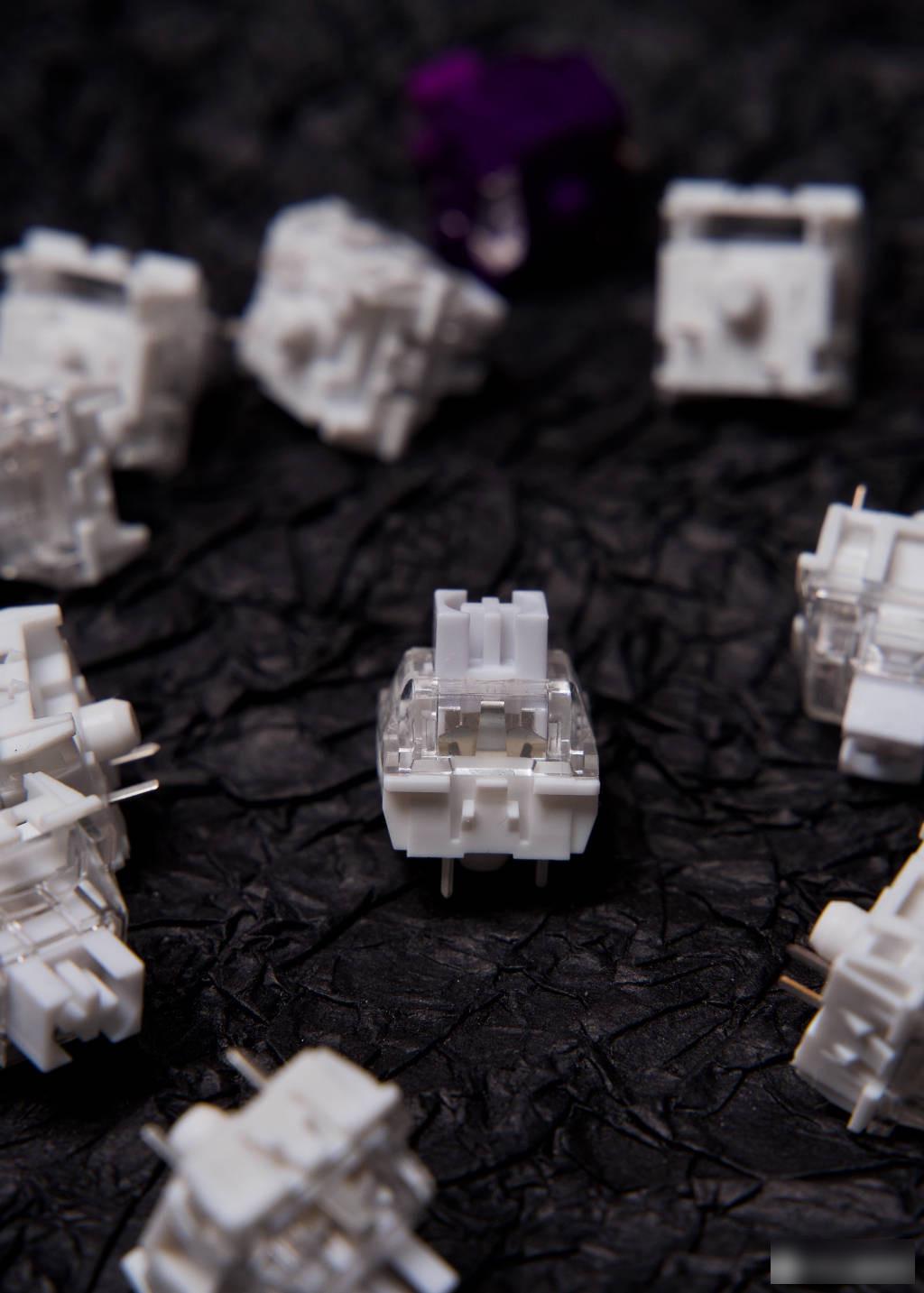

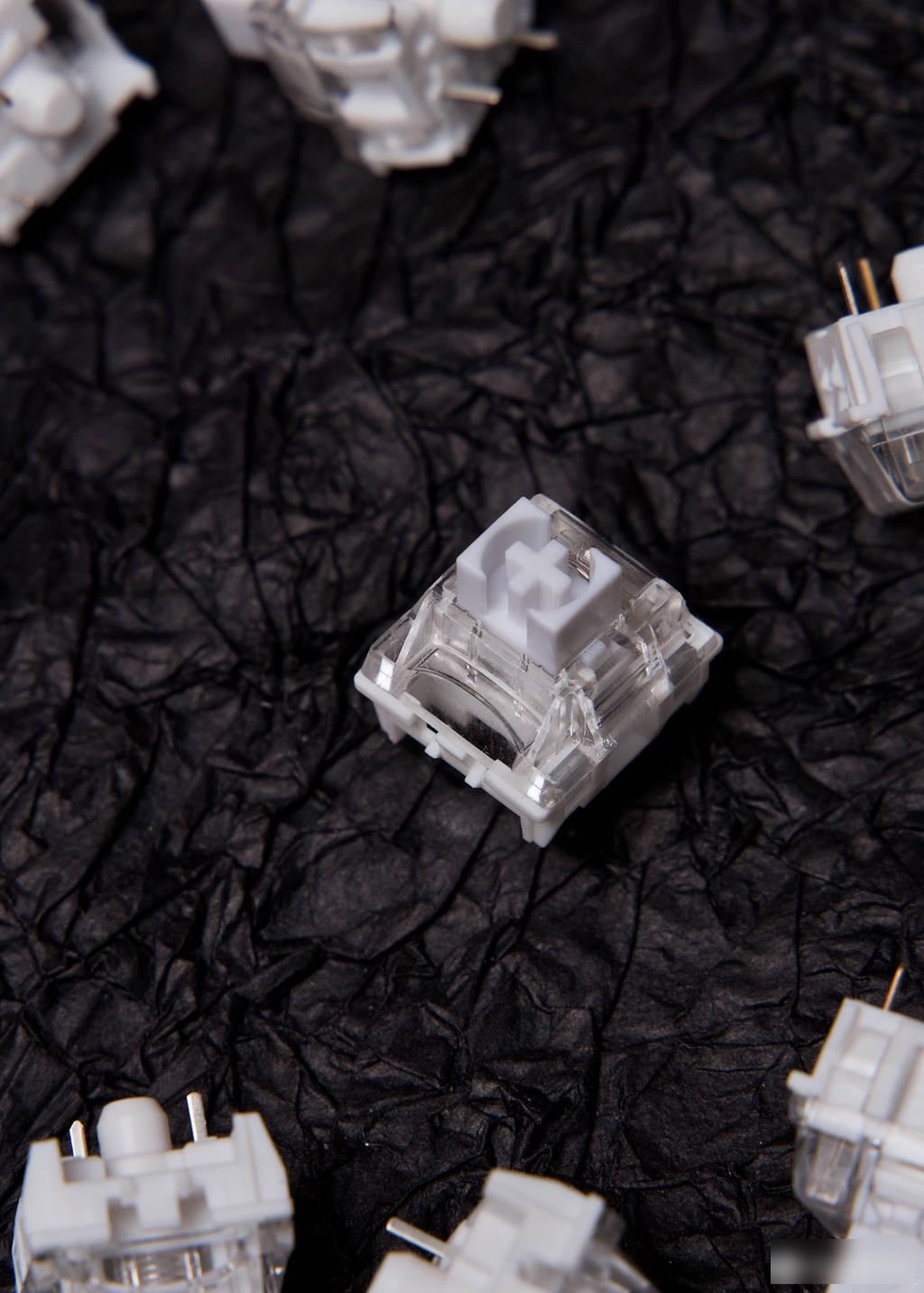

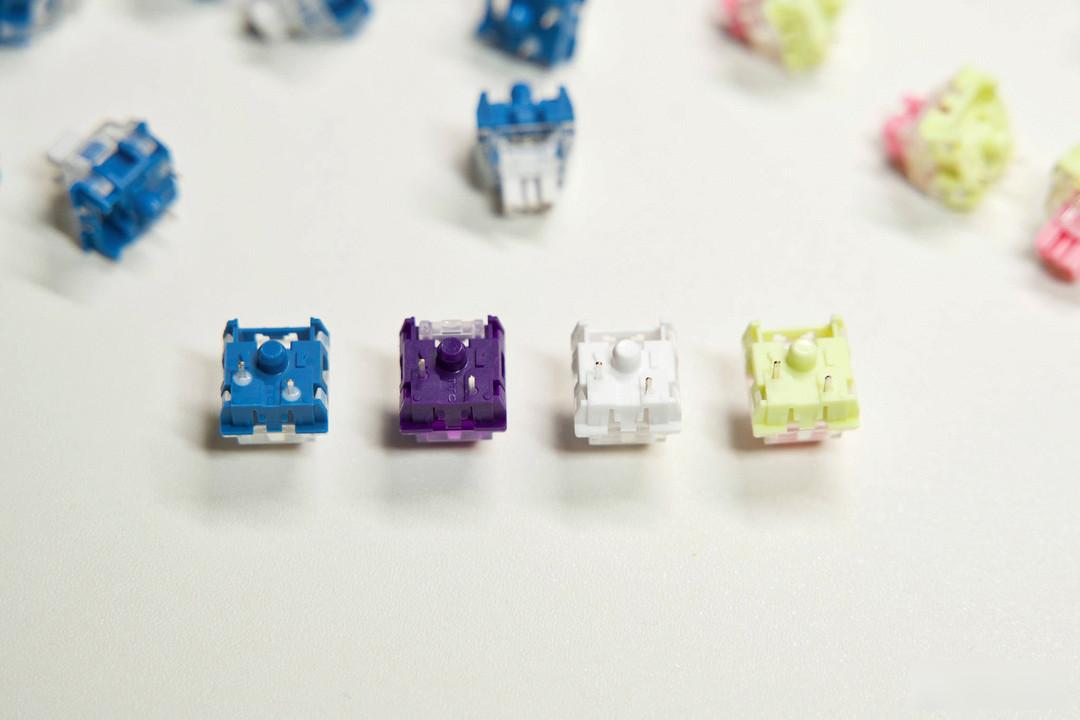

Let’s look at a wave of pictures of the two shafts

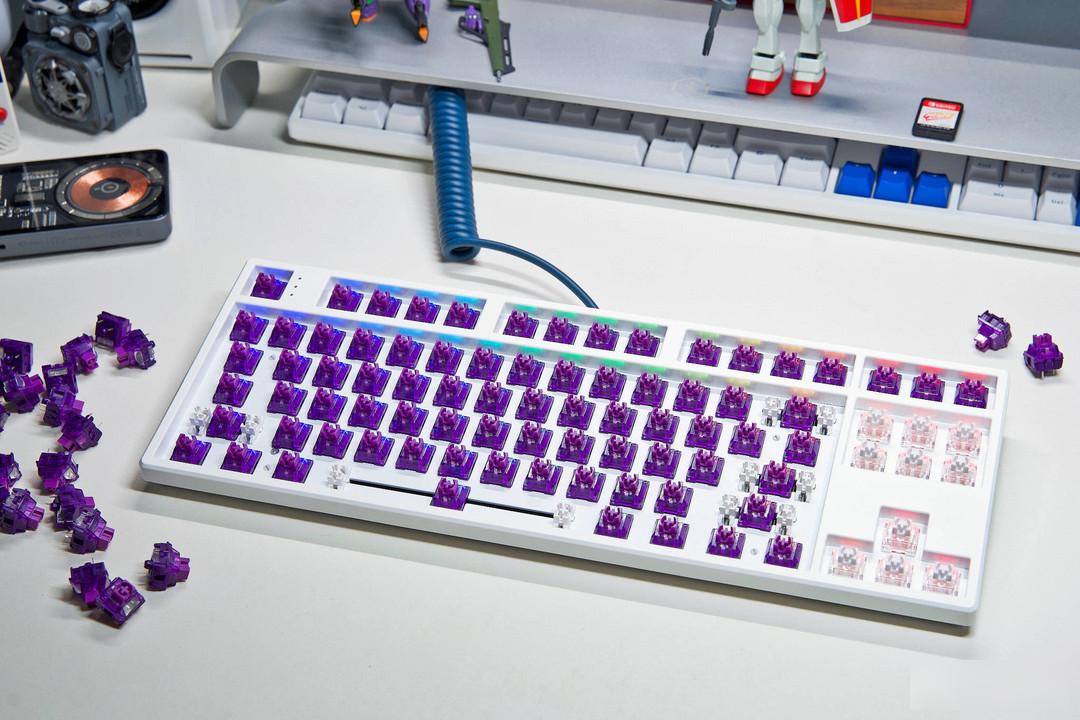

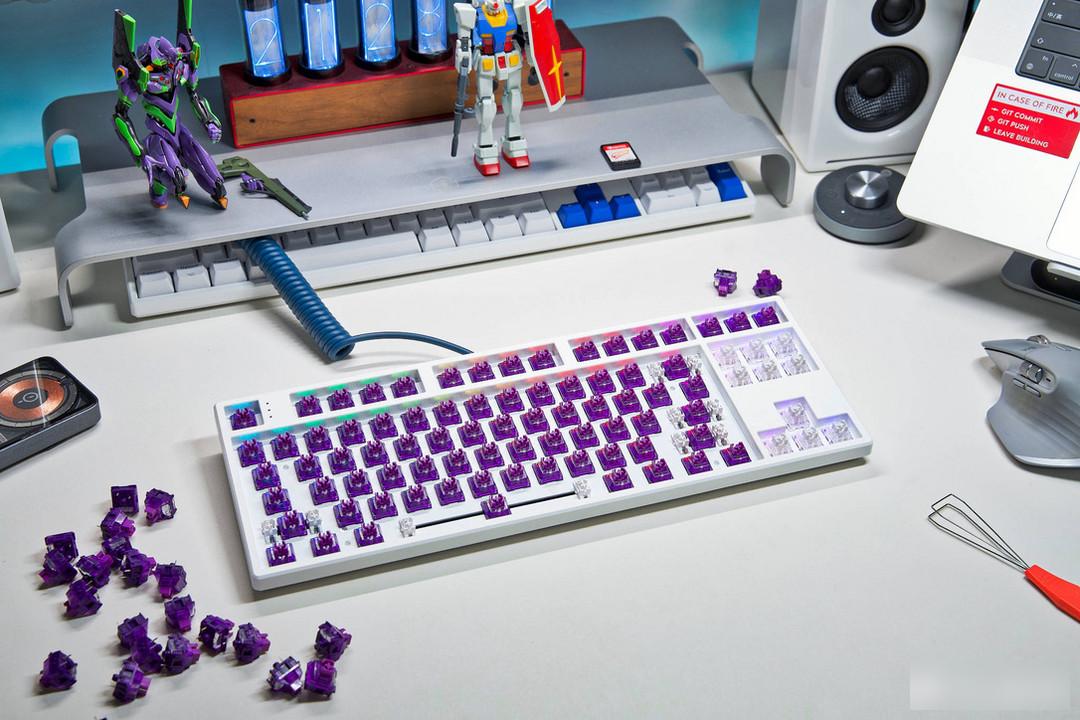

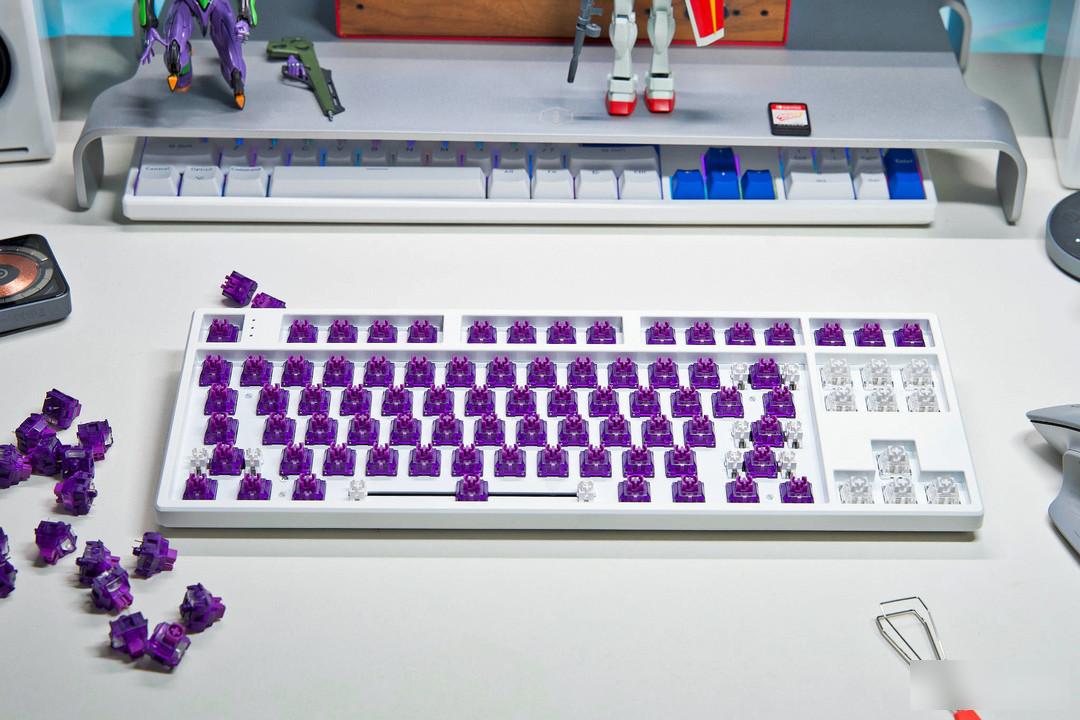

This time I used HELLOGANSS HS87T to experience it. This version of HS87T has a middle layer of sound-absorbing sandwich cotton, a sound-absorbing shaft underpad, and a bottom-layer sound-absorbing cotton, which can greatly reduce unnecessary noise.

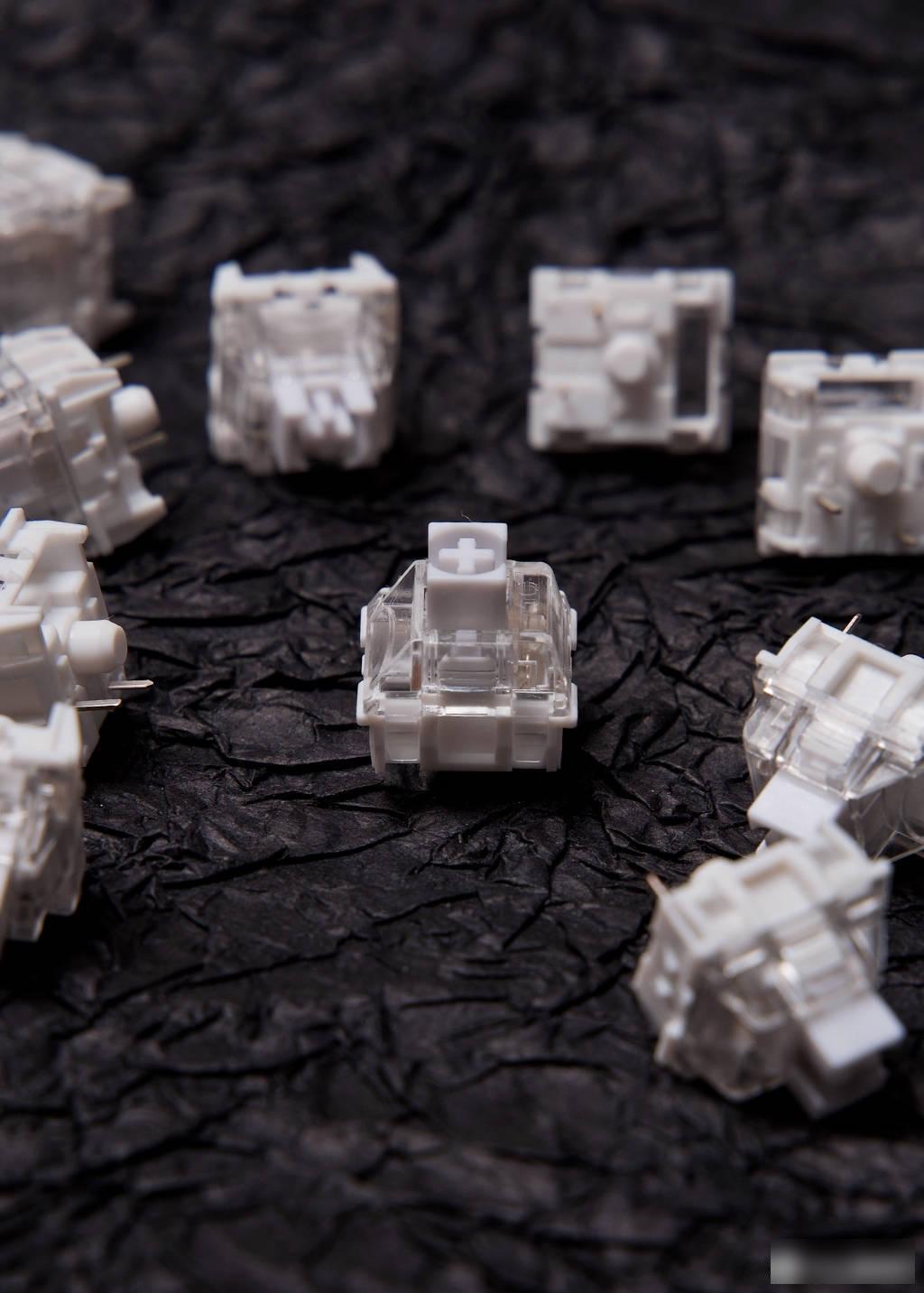

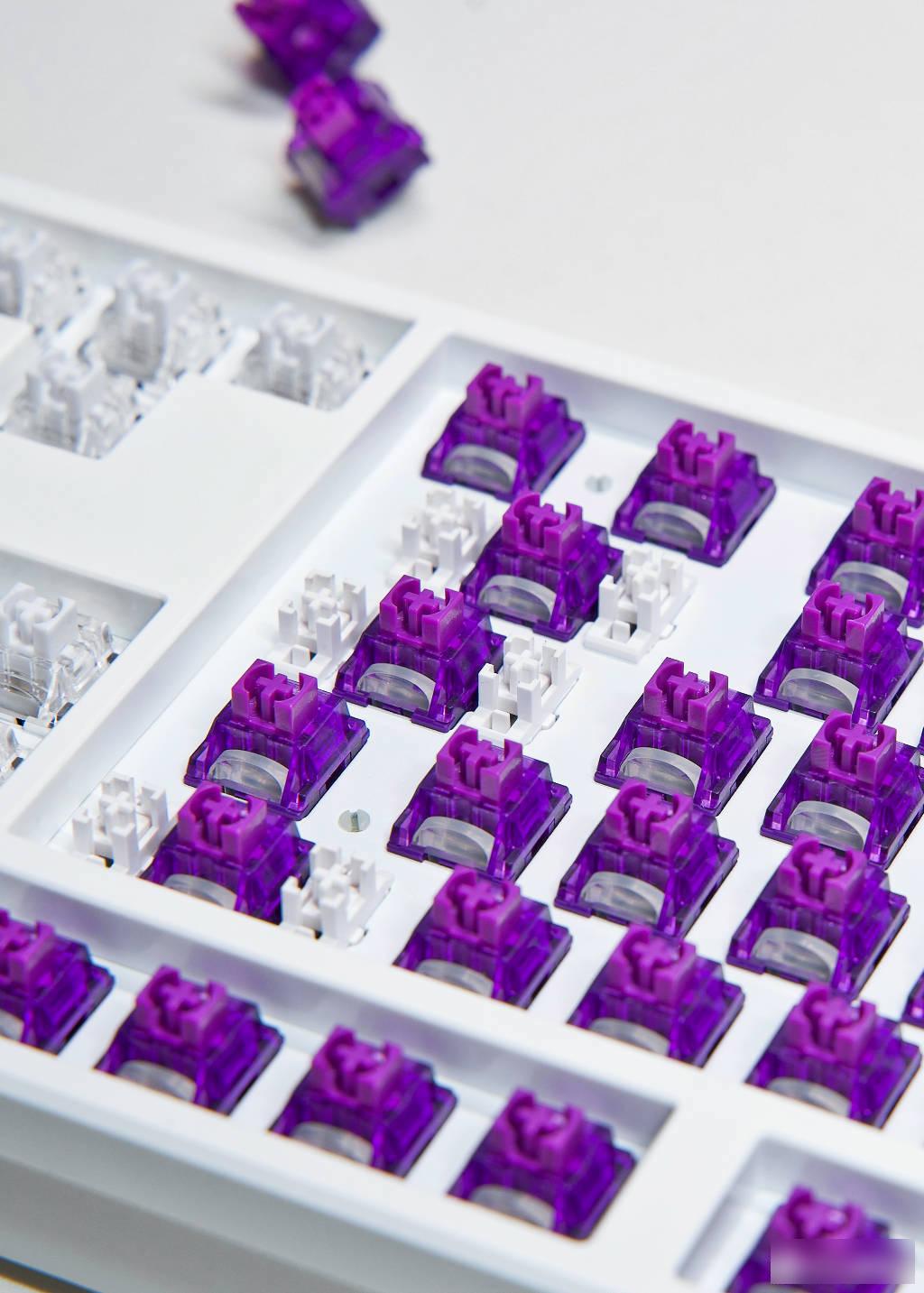

Although the flame purple axis is enough, but for the experience, the flame snow axis is also installed.

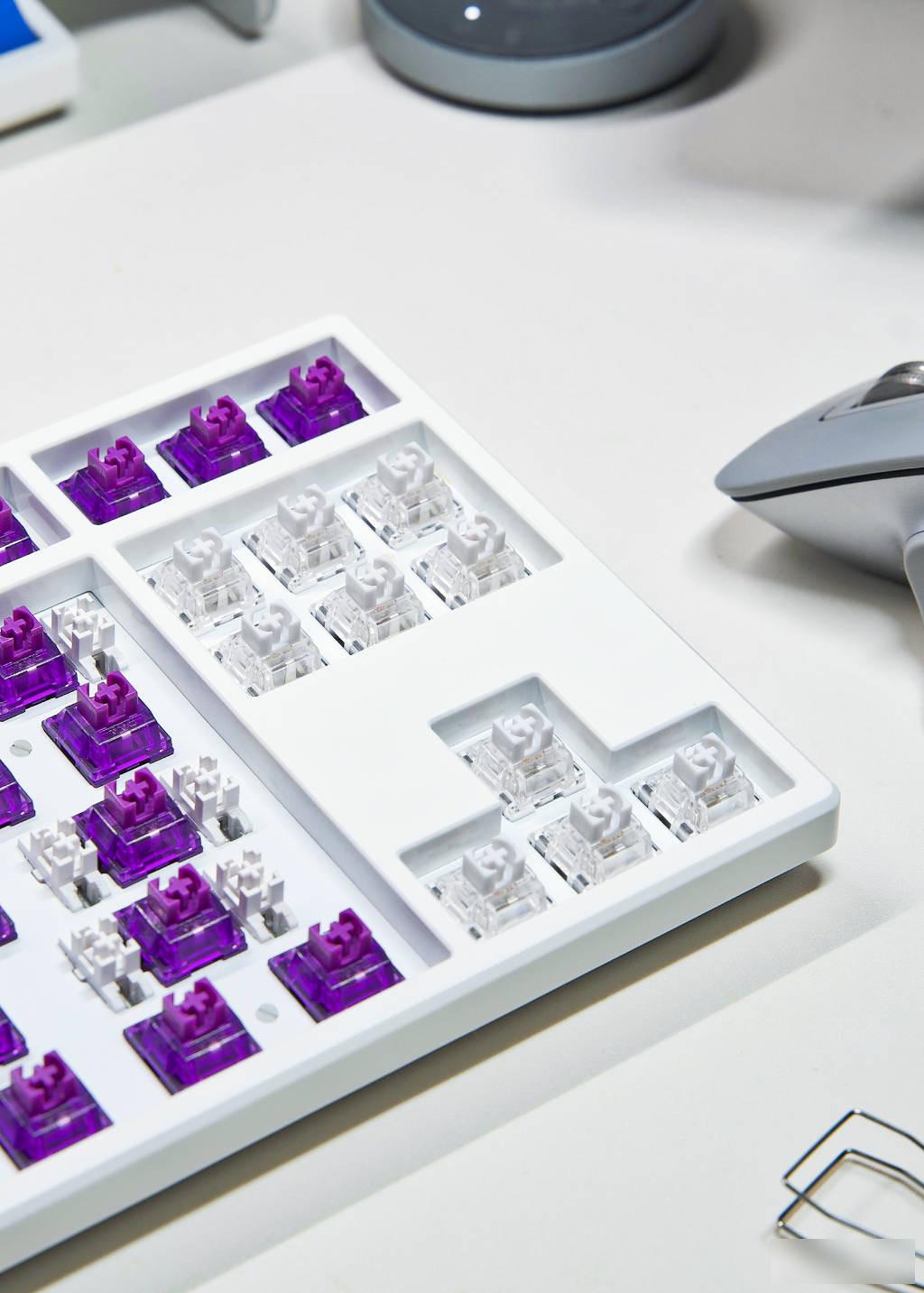

First, let’s take a look at the appearance without the lights on.

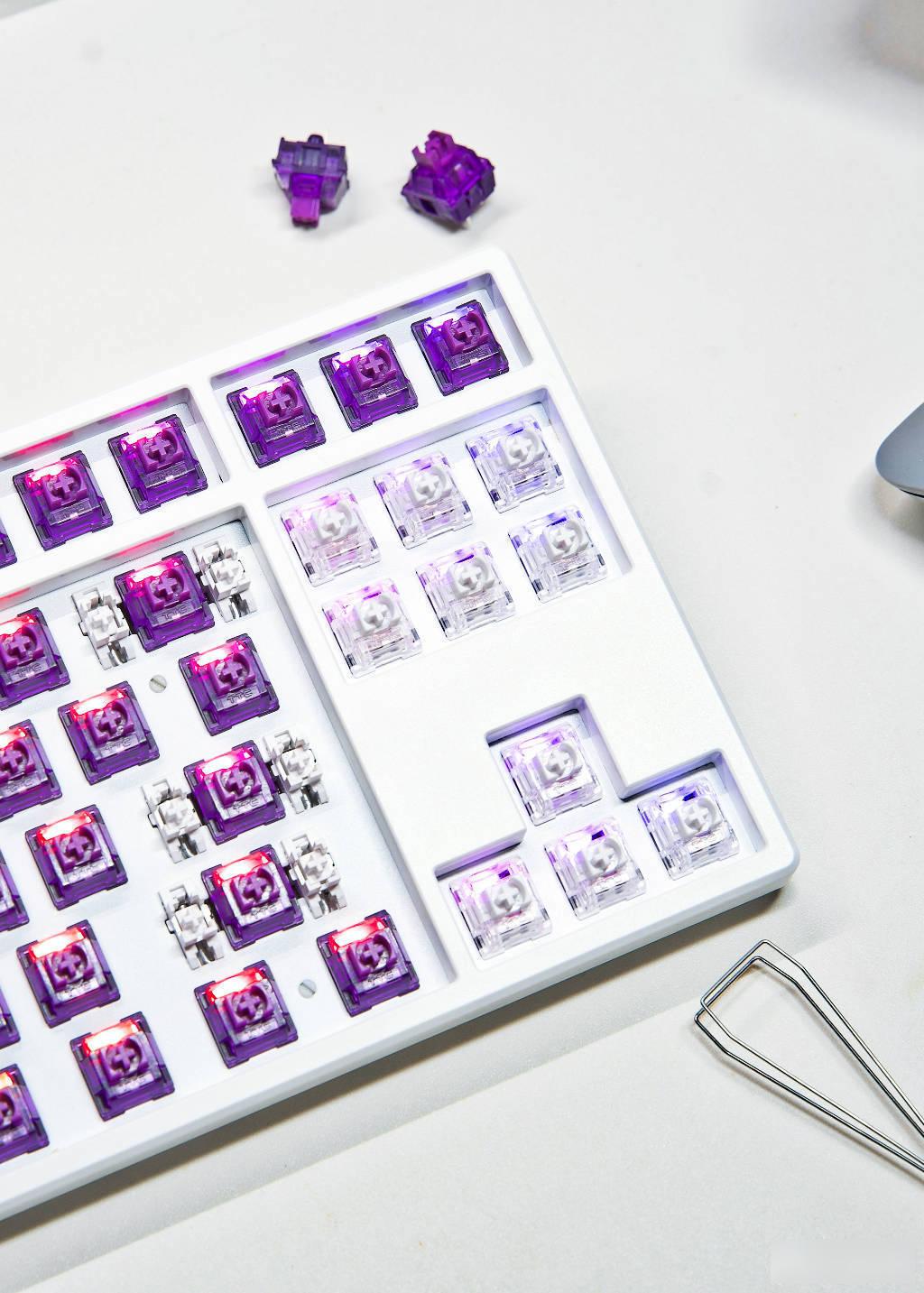

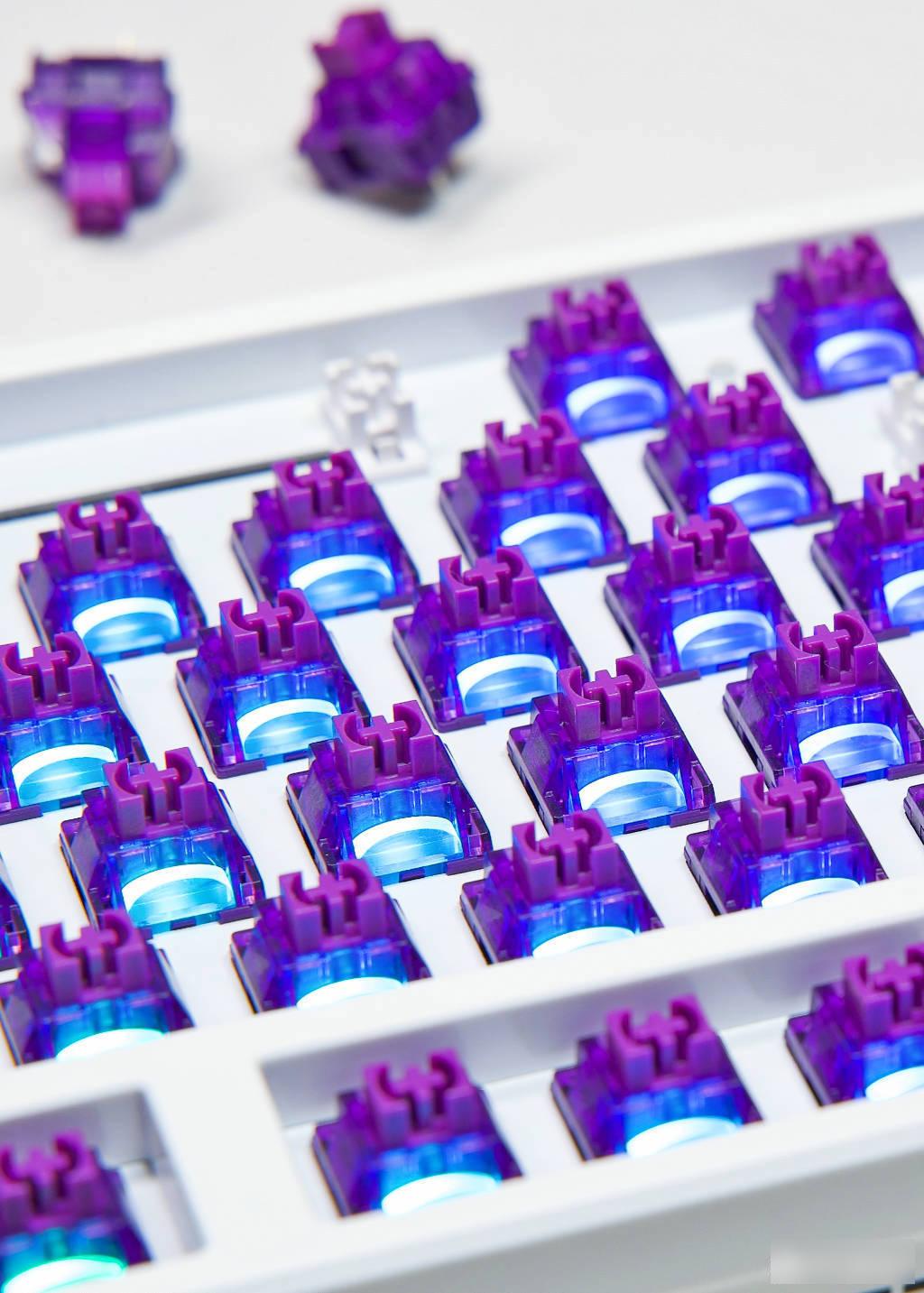

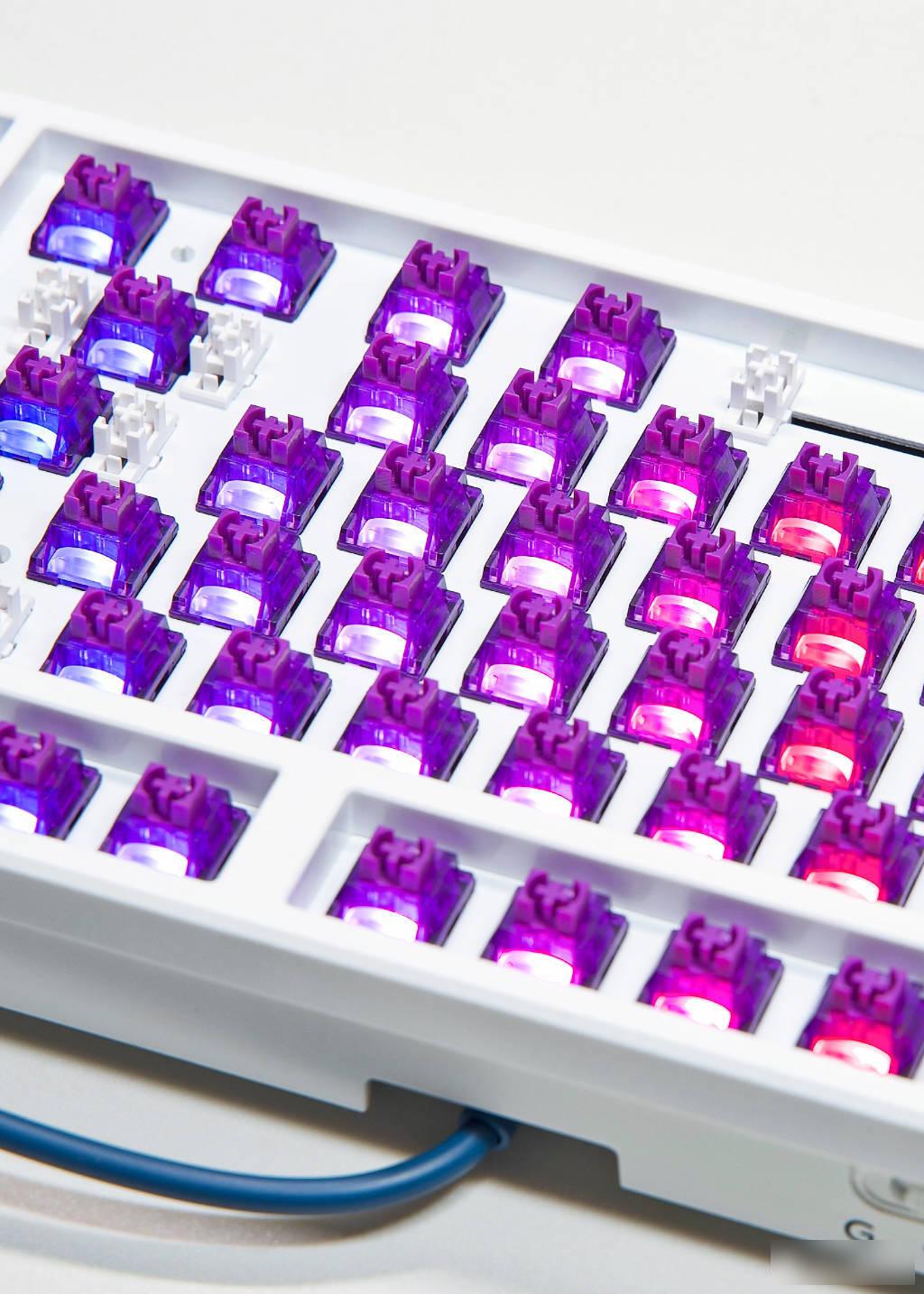

Next, turn on the light effect and take a look. The effect of the condenser is still as concentrated as before, the light is brighter and more concentrated, and there is almost no light transmission in other places; because the flame snow shaft is a high-transmission shaft cover, it has extremely strong transmission. Light, the whole axis looks more transparent, but the light is more scattered and naturally it will be less dark (compared to the condenser).

Finally, let’s talk about the actual use experience. Although the stroke is a little longer, the trigger pressure has also been reduced, so the experience of playing games is closer to that of Kuaiyin; Not as strong as the Kuaiyin shaft, but it has a Q-bomb feel; the overall feeling is between Kuaiyin and gold powder. For users who only play games occasionally and need to work more time, the Flame Purple Switch or the Flame Snow Switch is a good choice. It has a gaming experience close to that of Kuaiyin, and it is not too tiring to code for a long time.
