Peripheral Sharing Article 126: 75 New Reports with Columns—HELLO GANSS HS75T Three-mode Mechanical Keyboard Sharing

HELLO GANSS, as a high-end terminal brand of Goss, has been focusing on higher-end and more fun designs since its birth, such as some of the previous configurations 87, 98, 108, which are familiar to everyone, but there will be attached to the keyboard. Some modules that allow the keyboard to be arranged in a variable manner are given away, so that the keyboard arrangement can be freely combined. And in view of the current preference for special arrangements, HELLO GANSS also quickly launched a new 75 arrangement product——HS 75T. Besides the new arrangement, is there anything interesting about this keyboard? Follow me Come and see.

The packaging is still the family style of the HS keyboard series, but there are quite a lot of accessories for the keyboard

In addition to the previously mentioned modules that allow the keyboard to be configured for self-adjustment, it seems that a small knob module is also included.

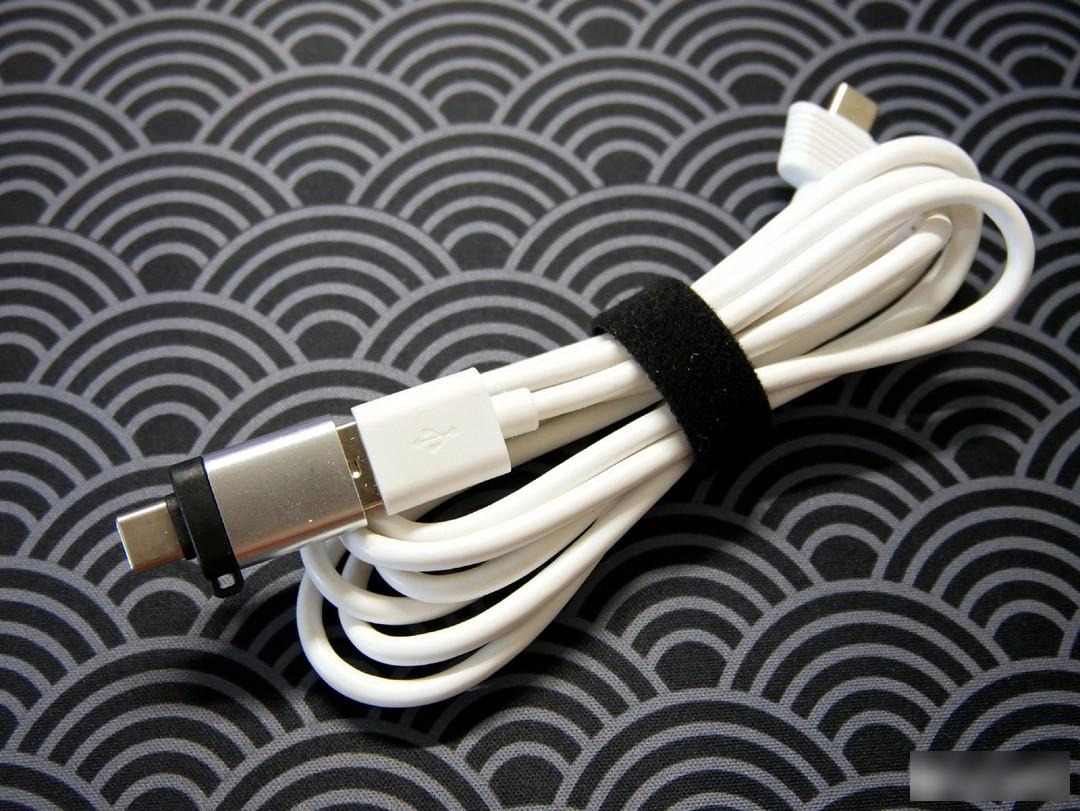

The data cable only uses the type-c interface design, and it also comes with a type-c to type-a interface. In addition to common computer interfaces, it can also be directly connected to interfaces such as notebooks. Of course, This keyboard supports wireless, and I don't think everyone will use it. In addition, it also comes with a dust cover, which is quite practical.

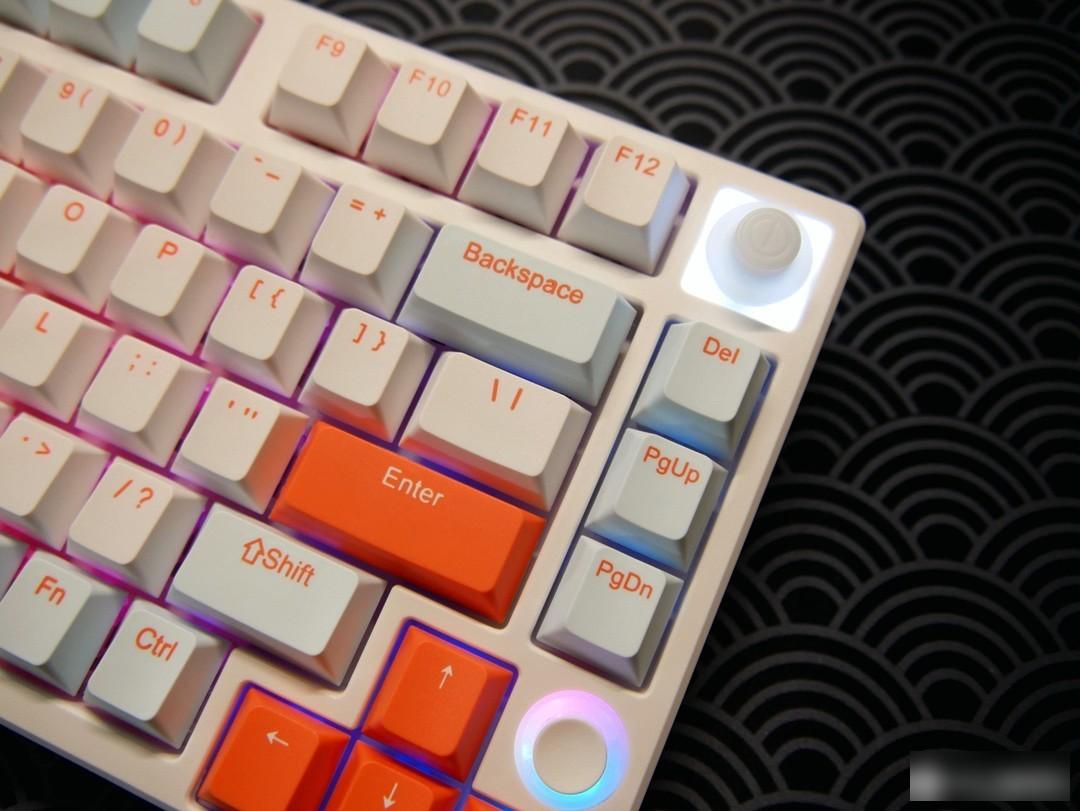

In terms of the appearance of the keyboard, the familiar 75-key arrangement is familiar at first glance, but I believe you will also notice two different designs of the keyboard, one is the knob module in the upper right corner of the keyboard, and the other is the joystick in the lower right part of the keyboard. Module (except for the little red dot keyboard, which other company has a joystick on the keyboard)

Seeing this translucent rocker part, you will think of the solid-color replacement rocker part in the attachment, which can be regarded as a considerate replacement part, and compared with the rocker part, you will have nothing to play with

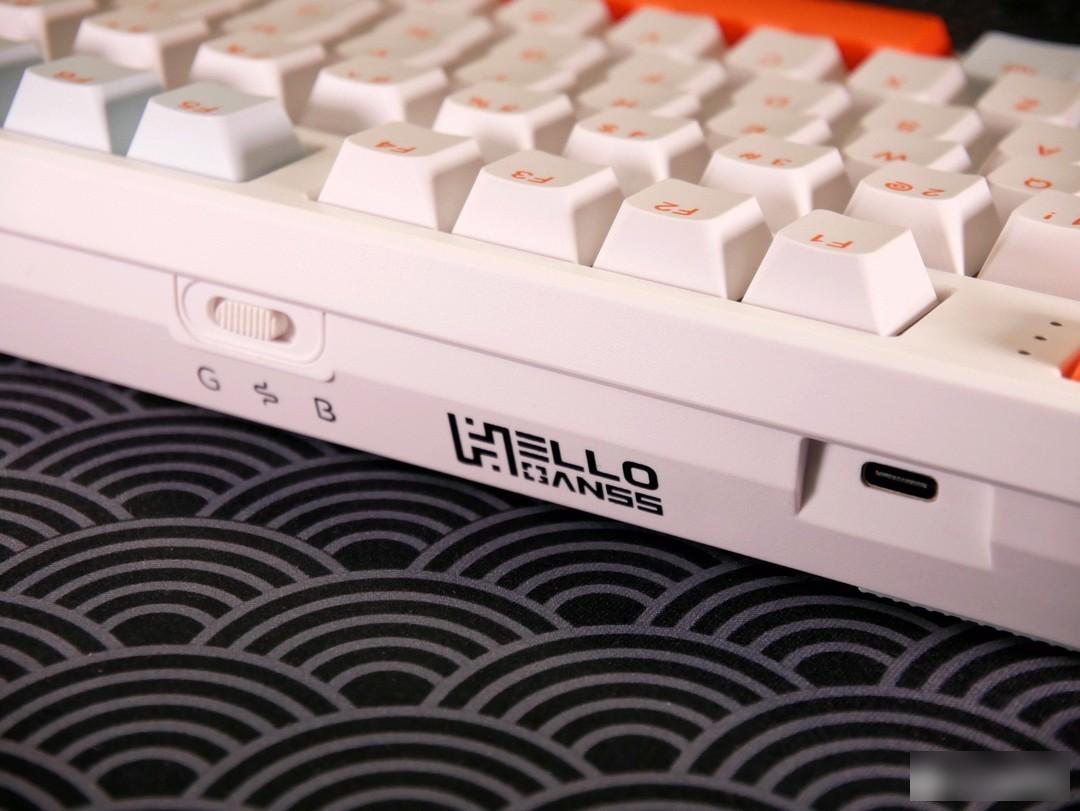

The switch part of the keyboard is set at the top of the upper left corner of the keyboard. The type-c data cable interface with a large opening is easier to adapt to various data cables. At the same time, there are also the placement of the HELLO GANSS logo on the keyboard, and the three-mode wireless switch on the keyboard. , the center is wired mode, G stands for 2.4G wireless connection, B stands for Bluetooth connection mode, in Bluetooth mode, up to 5 groups of different Bluetooth devices can be memorized, and different devices can be switched through FN+QWERT.

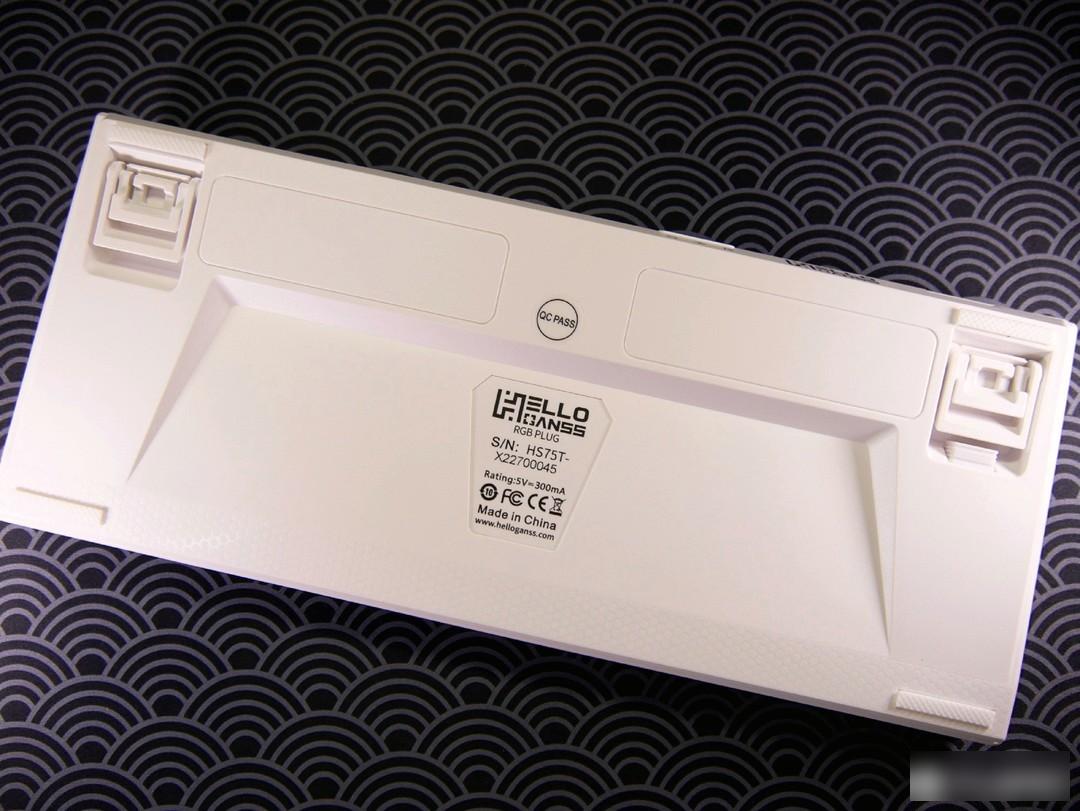

The back is a conventional two-stage foot support design, but this time, in addition to the dry battery version of the previous HS series, the HS75T also added a lithium battery version. For example, there is no hole design on the back of the hand, which is the lithium battery version. . The HS75T puts the storage position of the 2.4G receiver on the foot support, which is quite convenient to carry.

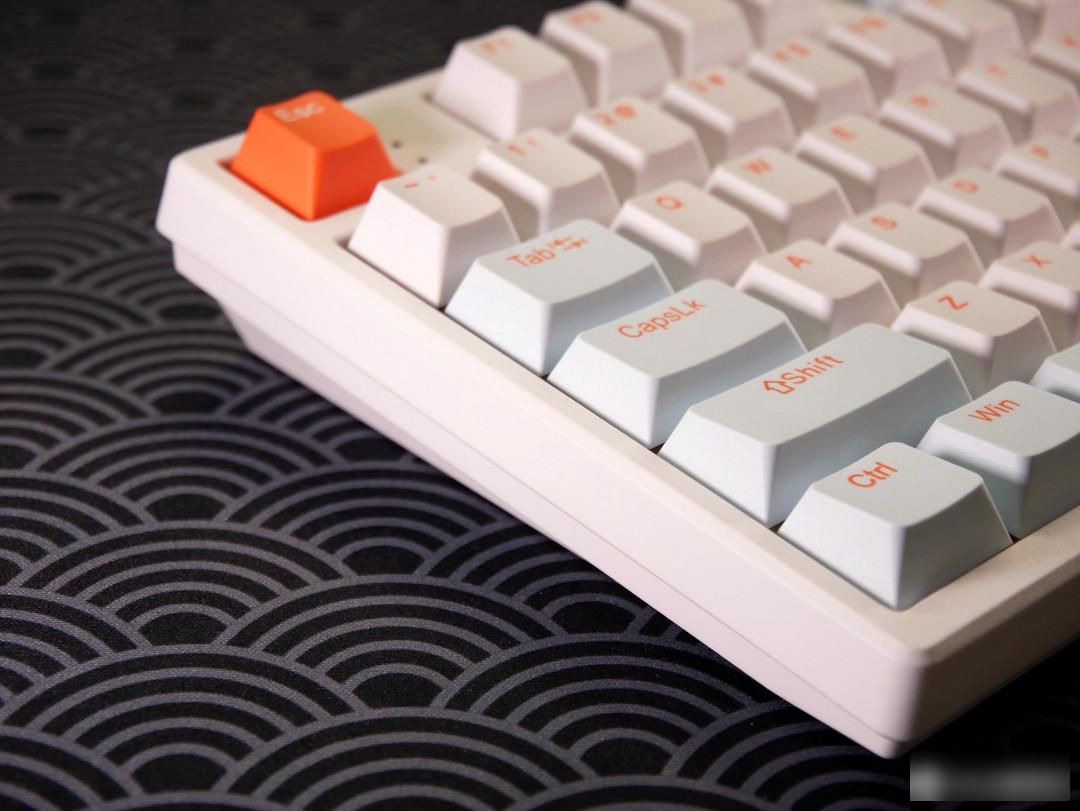

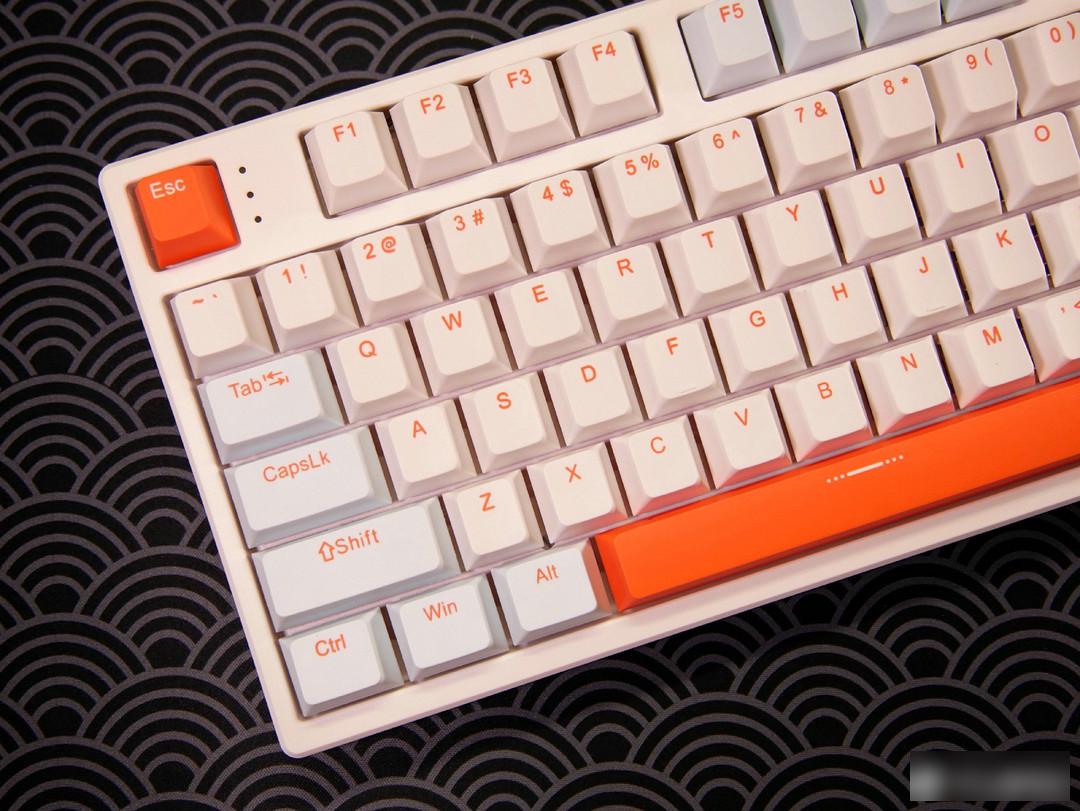

For the keycap part, the white feather color of the original factory height that I started with, the overall PBT two-color design method, the closed characters on the keycap, and the designed font are also my favorite. At the same time, the nozzle and rib design of the keycap It reflects HELLO GANSS's pursuit of product details, and the overall performance is good.

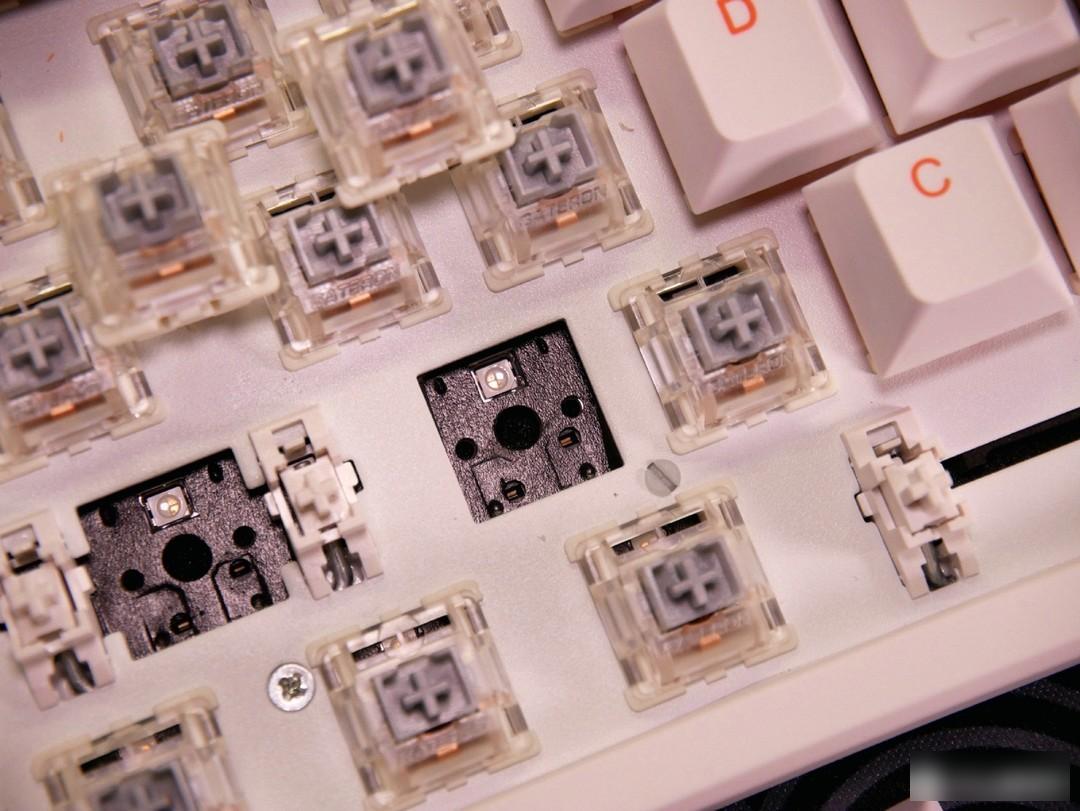

The switch body of the keyboard adopts Jiadalong’s G silver PRO switch body, which triggers quickly and has little trigger pressure, allowing players to have faster operation performance in daily use. It is a switch that is more suitable for games. Body, but the shaft part of the matter of opinion, you can choose what you like, and the keyboard supports hot swap, it is very convenient to replace. At the same time, the satellite shaft part adopts a brand-new design, which feels crisp and consistent. I recommend you to experience it yourself.

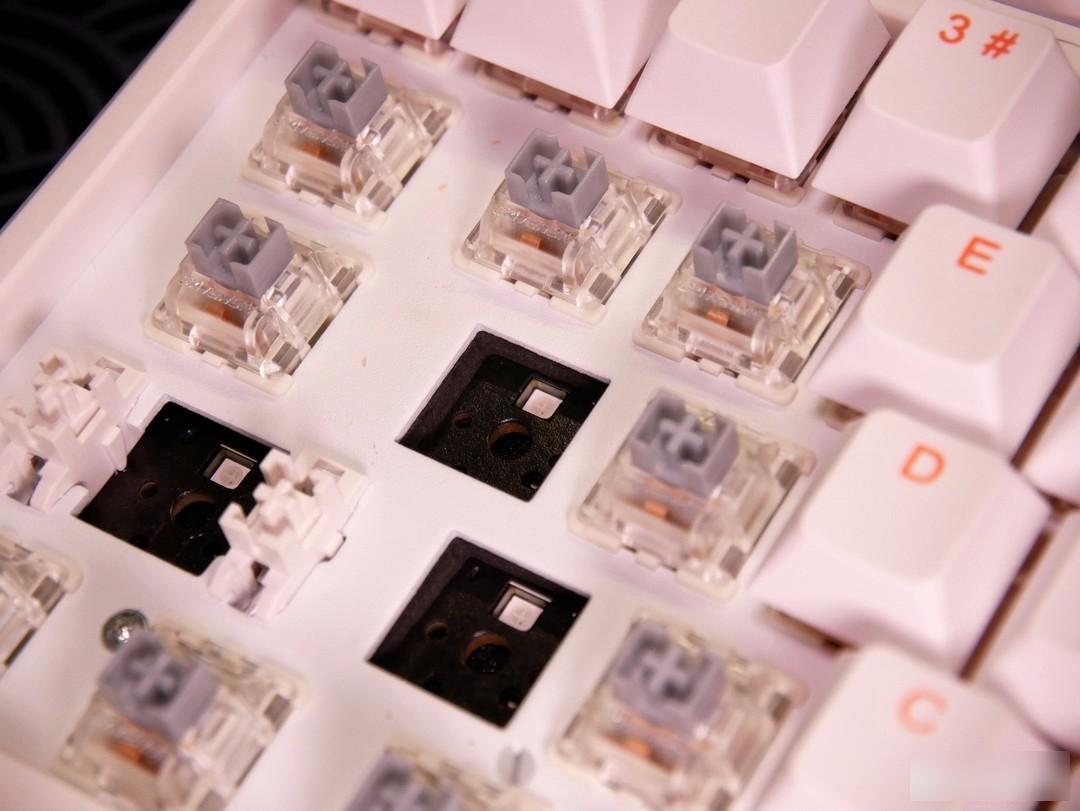

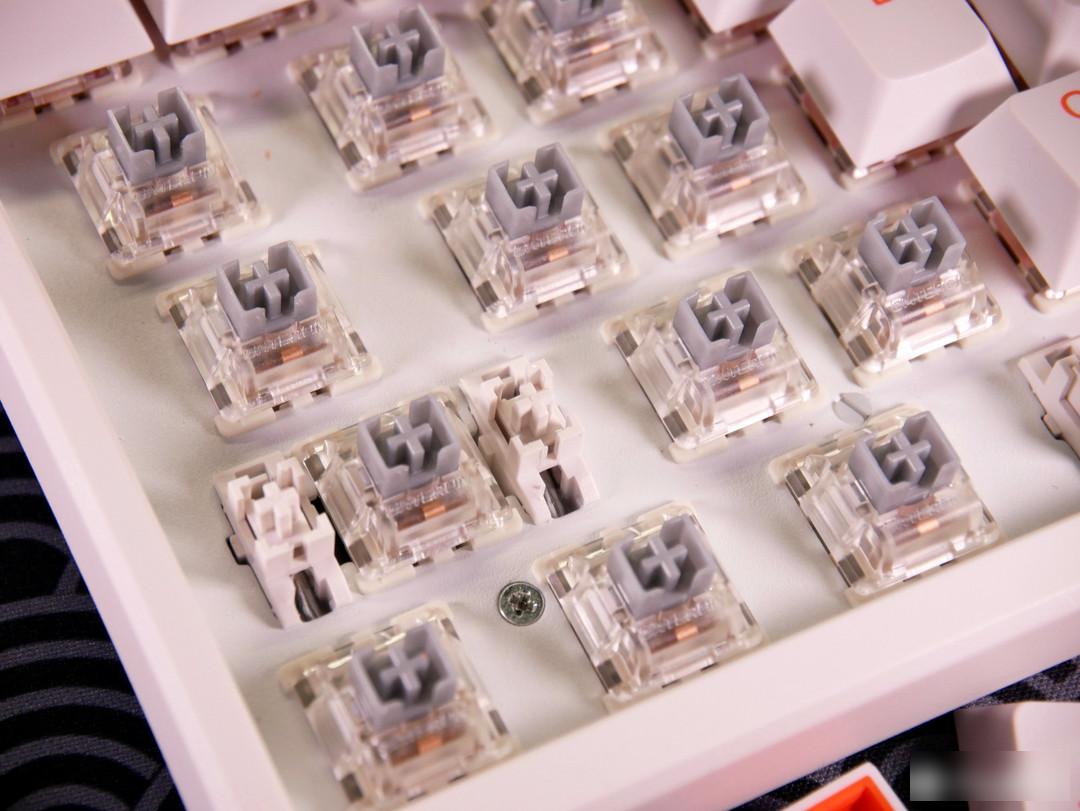

At the same time, as for the highest high-end terminal brand, HELLO GANSS will certainly not forget about the sound processing package of the keyboard recently. After disassembling the shaft body, you can find that the keyboard has an under-shaft pad at the same time, and a sandwich is added between the positioning board and the PCB. Cotton, at the same time, there is also added noise-cancelling cotton on the bottom layer, all to let everyone experience a more HIFI keyboard sound, with sweet treble, accurate mid-range, and deep bass are no longer a dream.

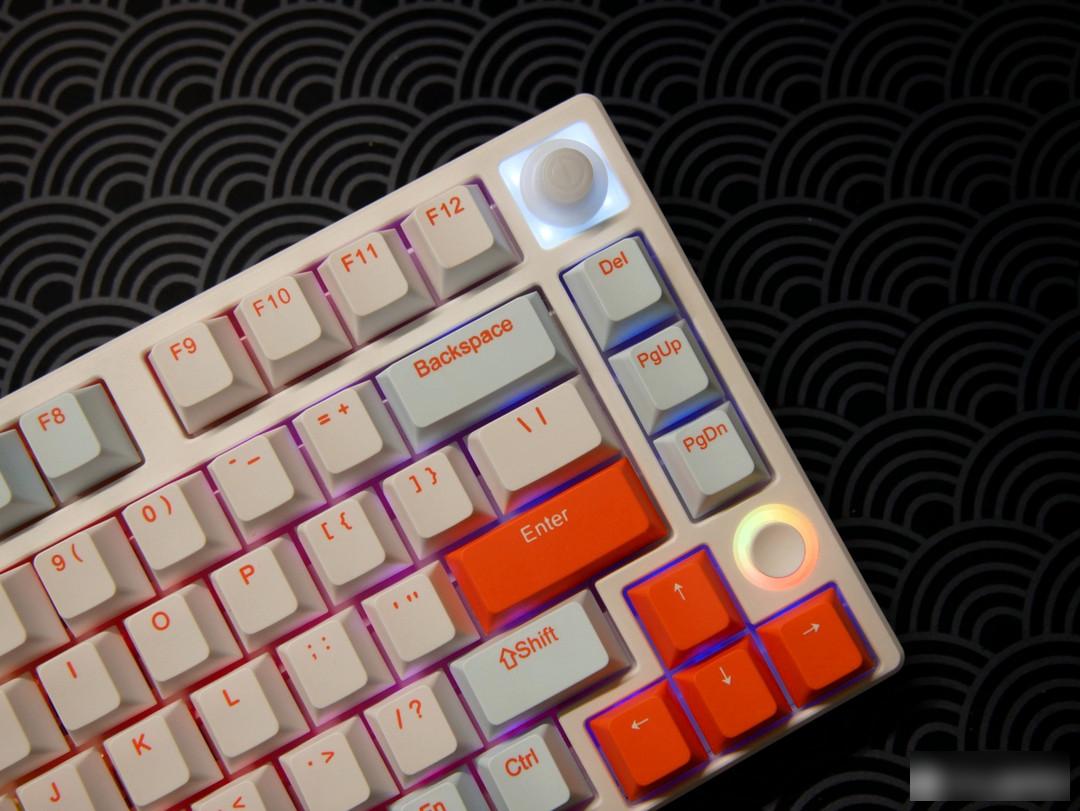

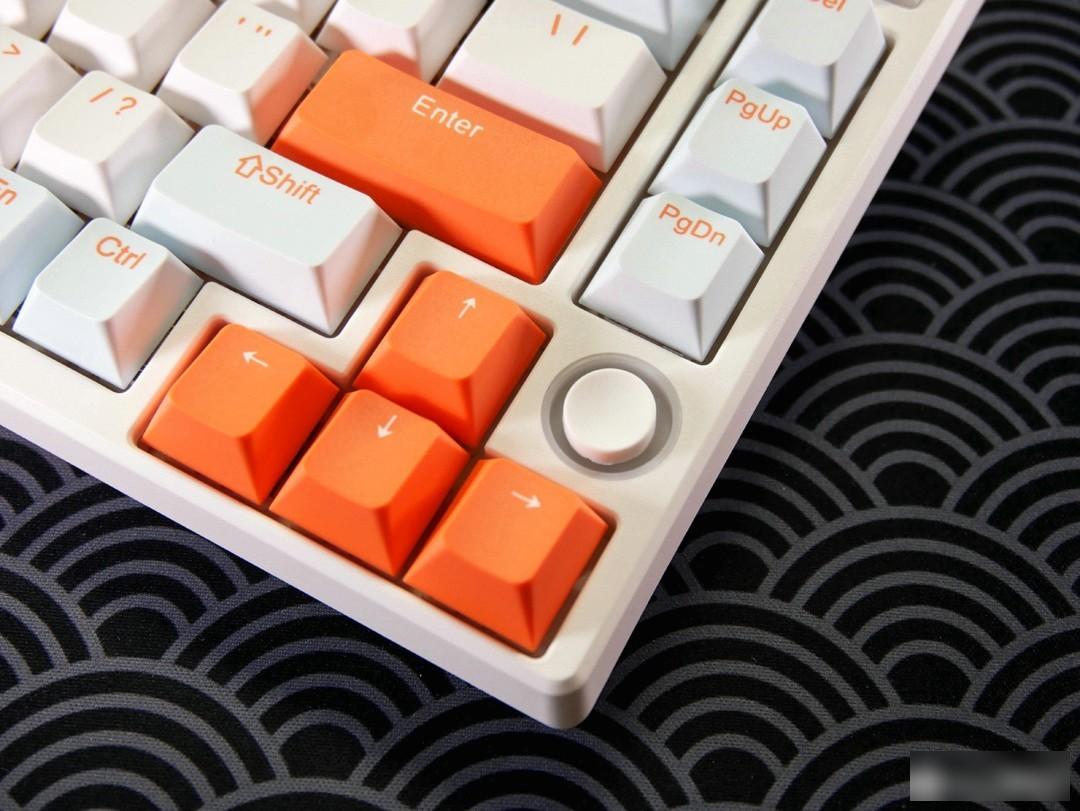

The HS75T in my hand is a lithium battery version, which can realize RGB light display in wireless mode. If it is a dry battery version, the wireless light mode cannot be turned on by default, but it can be turned on wirelessly by flashing the firmware later, but If you like lights, it is recommended to choose a lithium battery directly. The battery part is 4000mAh, and the battery life should be okay. It is a little regrettable that the knob part only has white lights, while the rocker part has RGB effects, and there are multiple lighting modes to switch, and the knob part only has two types: constant light and breathing. At the same time, the newly added five-way joystick also supports custom drive settings, and the playability is quite high. The control of the joystick is limited, and only four-way selection and pressing operations are possible, avoiding the omnidirectional joystick. The problem of triggering different key positions of the stick.

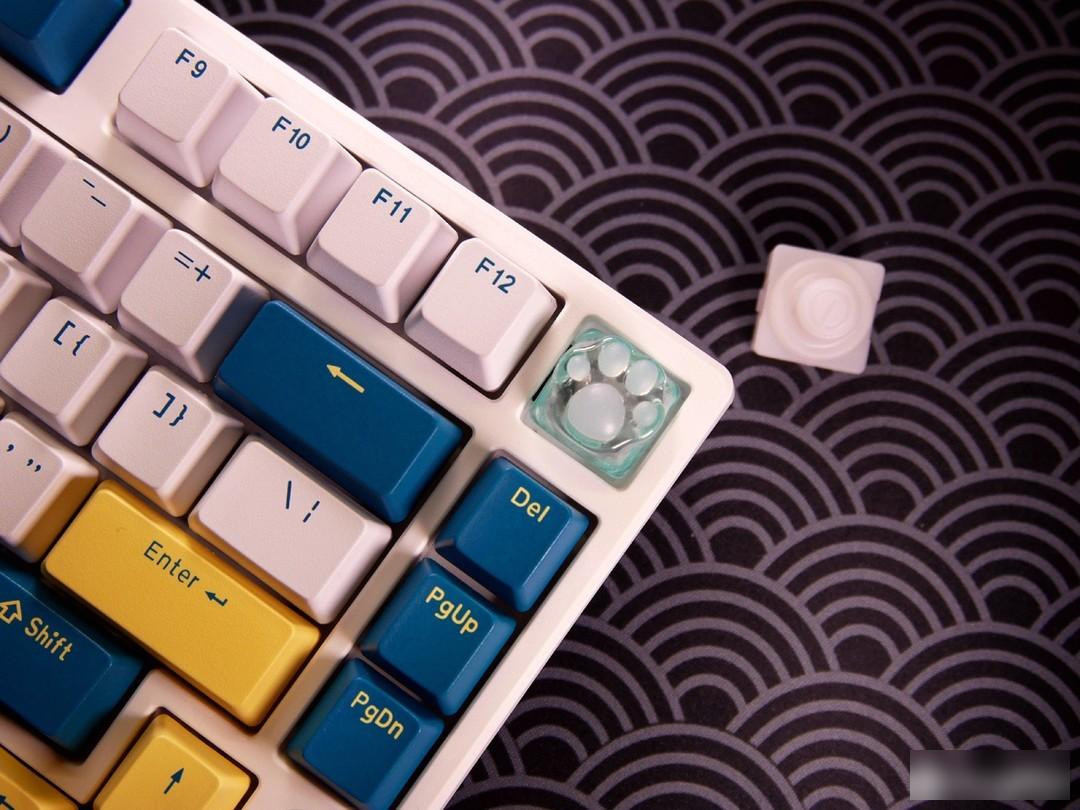

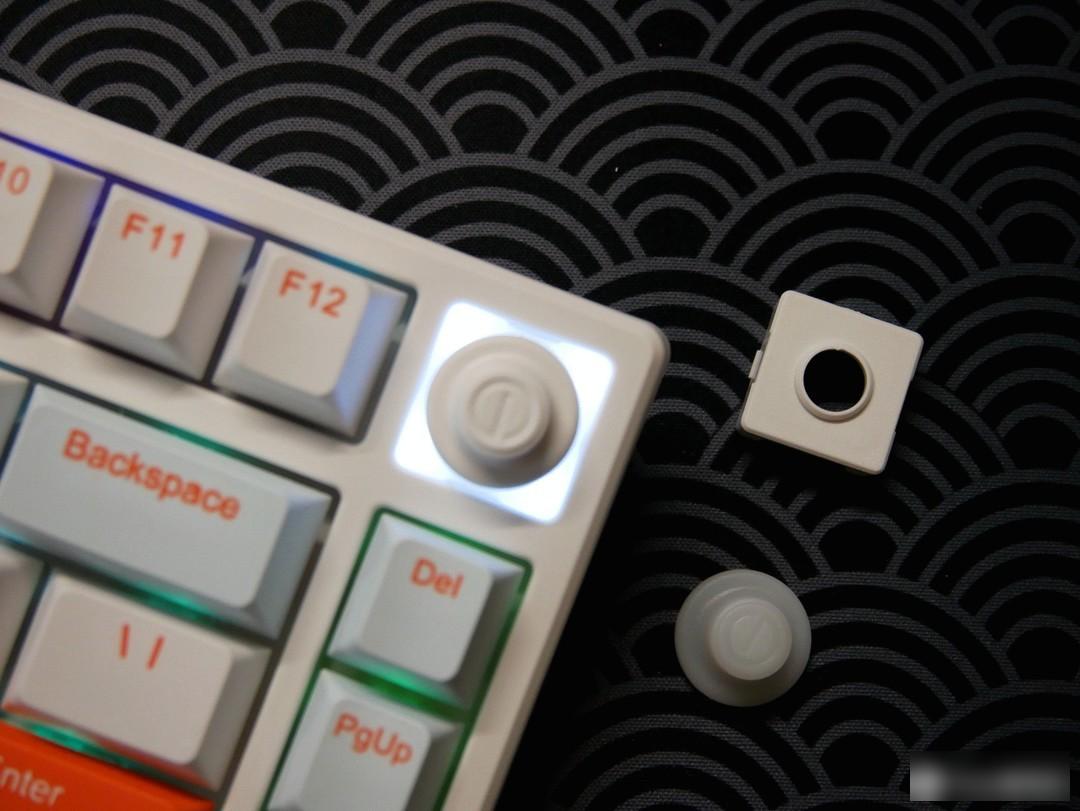

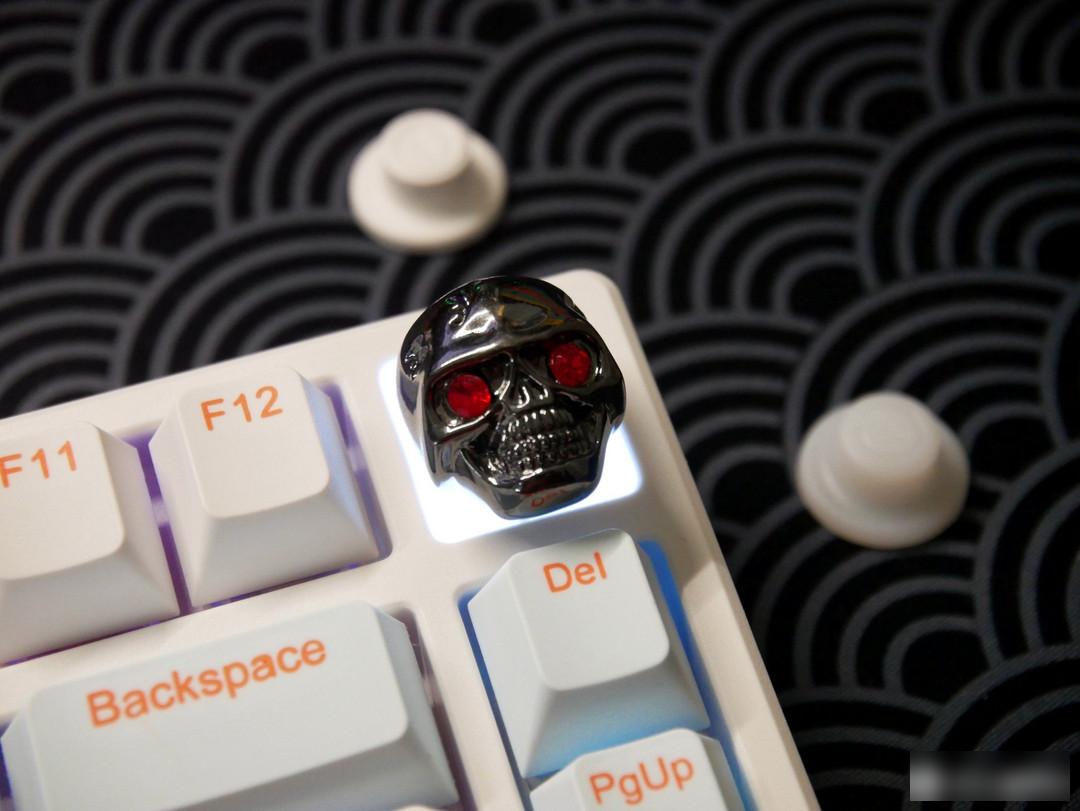

Of course, in addition to the fun joystick part, don’t think that the knob part only has simple knob functions. This part is still quite playable. In addition to the solid color and translucent two sets of knobs that can be replaced, you can buy them yourself. A knob cap with an inner diameter of about 6mm can complete your own personalized knob replacement. At the same time, this part also supports the entire removal. Inside is a standard hot-swappable PCB part. You can install the shaft body by yourself and directly become a standard keyboard button. You can replace the placeholders that come with it, or you can 3D print the replaceable parts yourself, which is quite fun overall

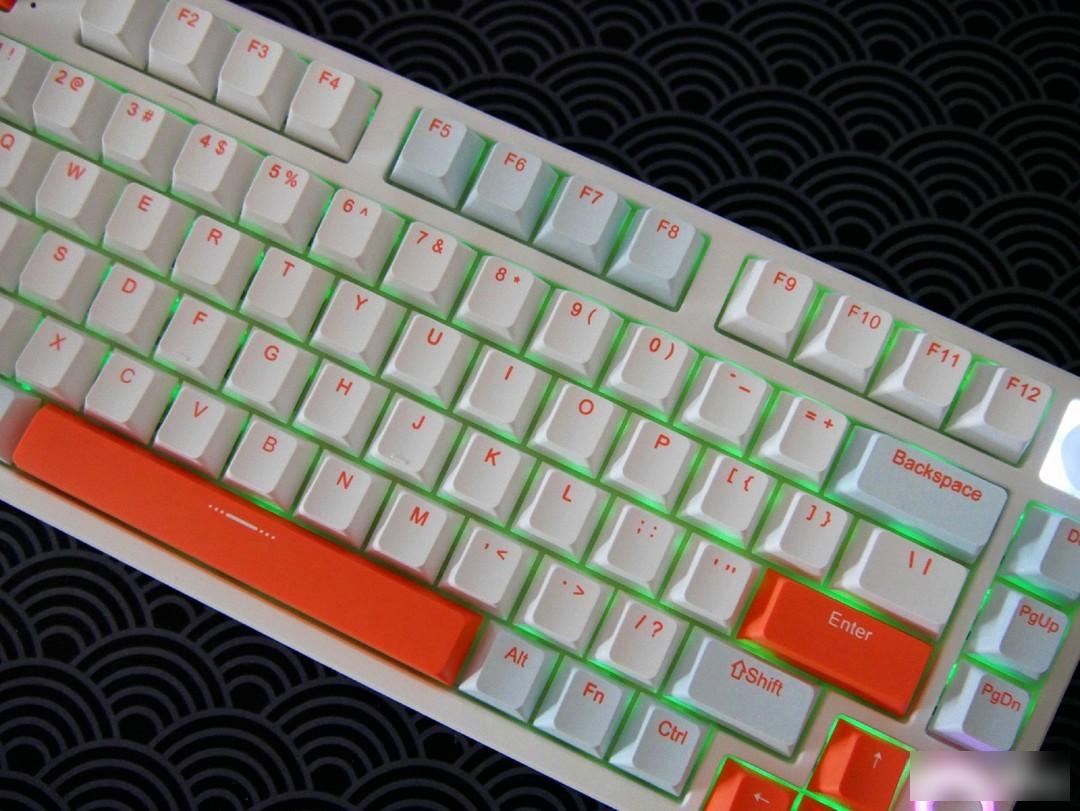

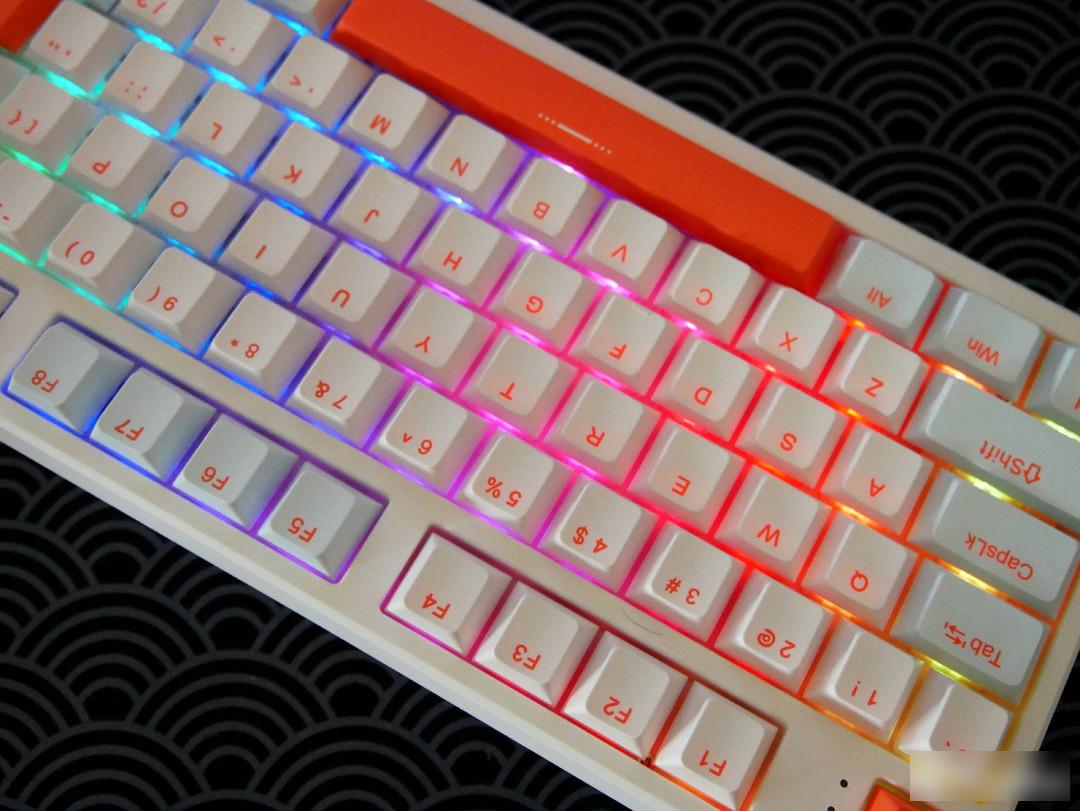

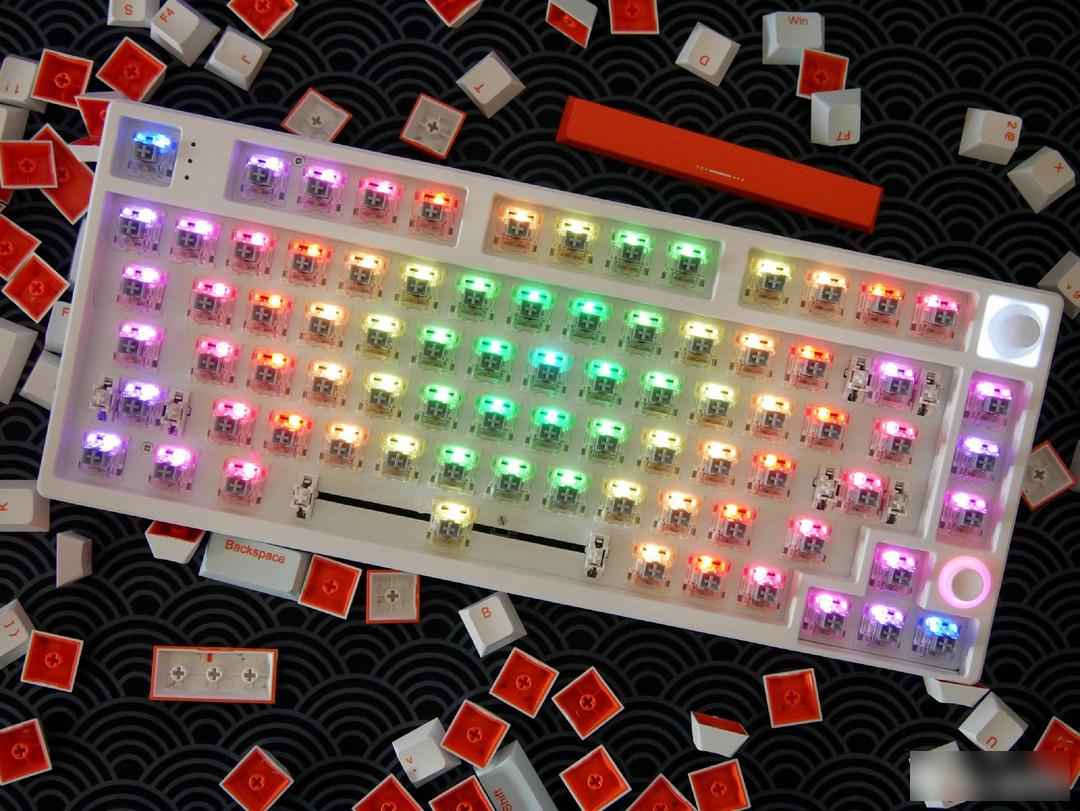

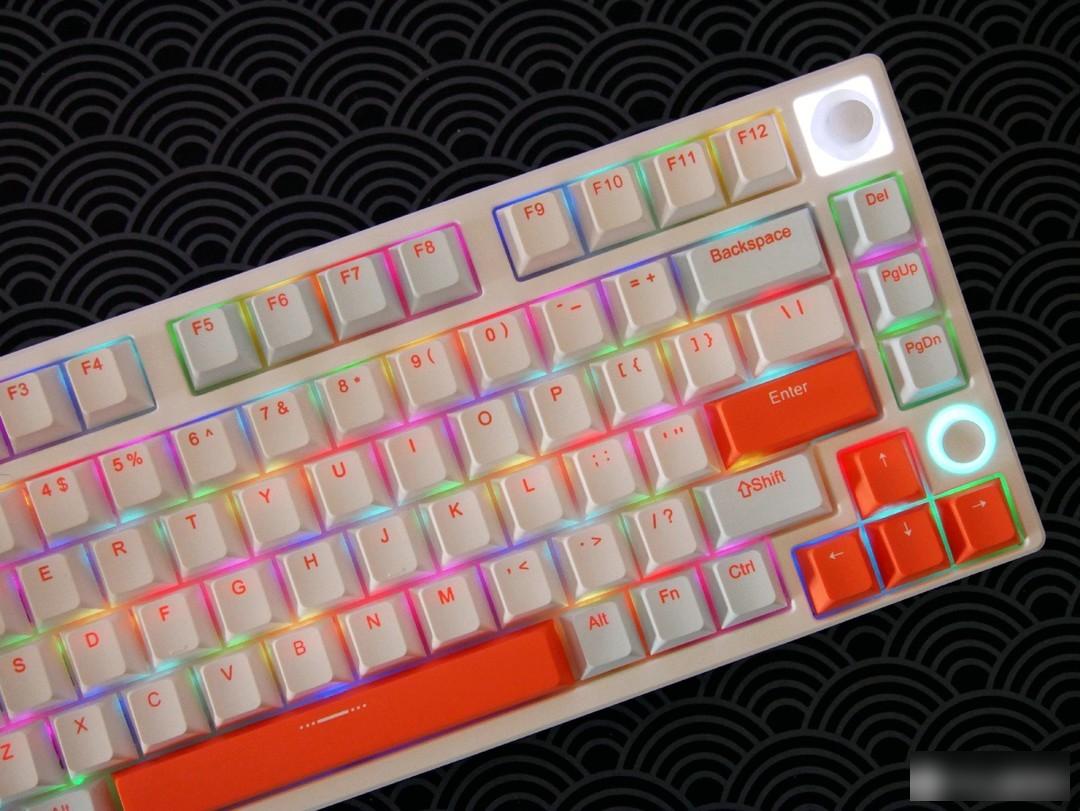

The lighting brightness of the HS75T keyboard is relatively average. After all, for the sake of wireless power saving, the overall performance is quite good against the background of the white positioning board. In the keyboard free mode, FN+1-6 can select different lighting modes. , and each number corresponds to N different lighting effects, FN+7 can switch the light color in each different mode, FN+8-0 can also switch custom modes (you can also customize Definition), the playability is relatively high

However, for mechanical keyboards, in addition to replacing different shafts to experience different feel, there are still many people who prefer to replace their keyboards with various keycaps to experience different design styles. I'll give HS75T a replacement as soon as possible.

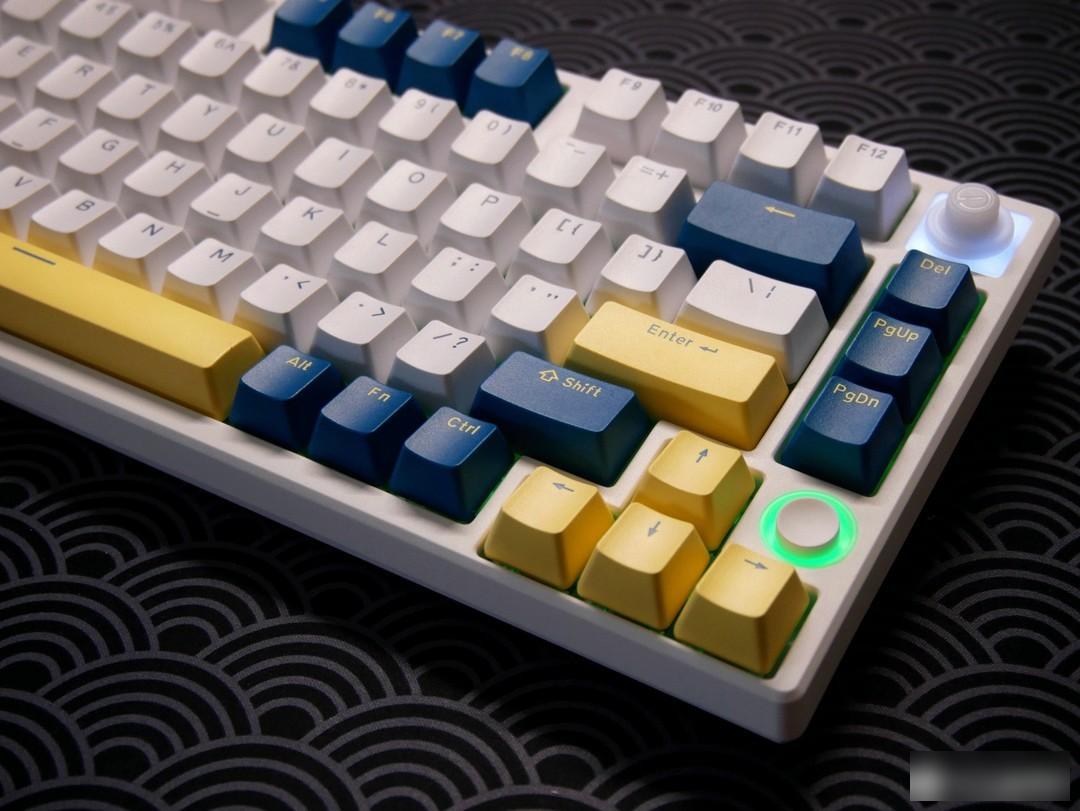

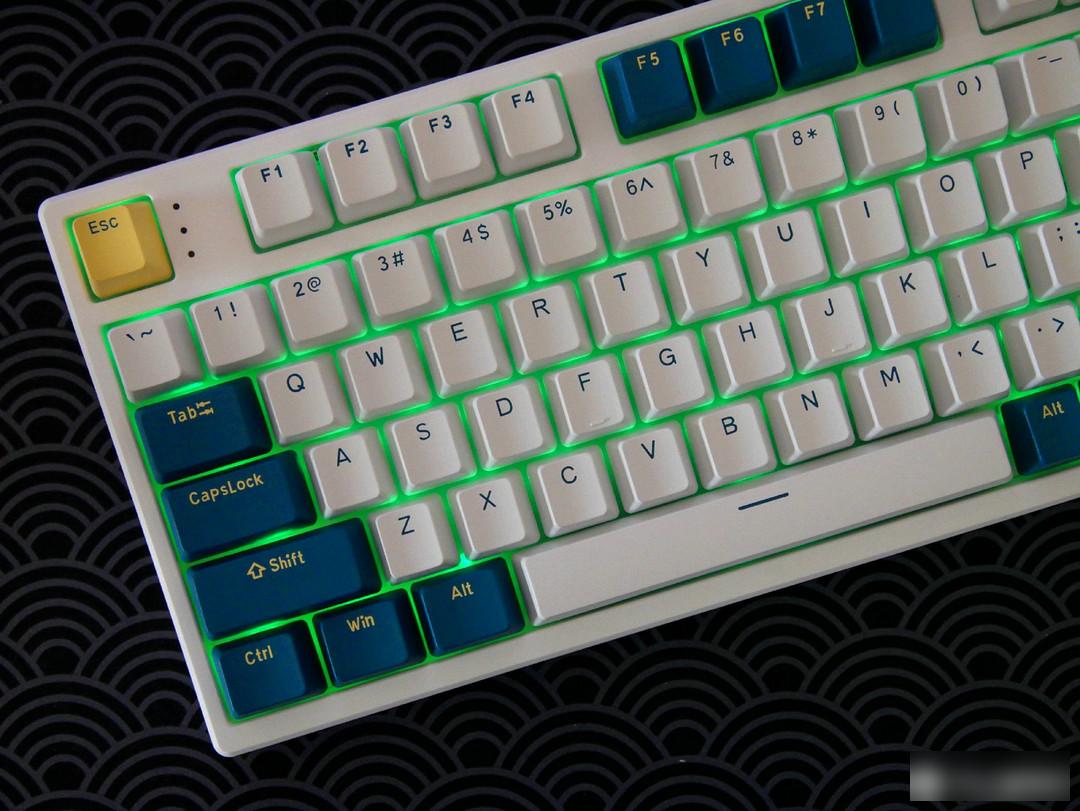

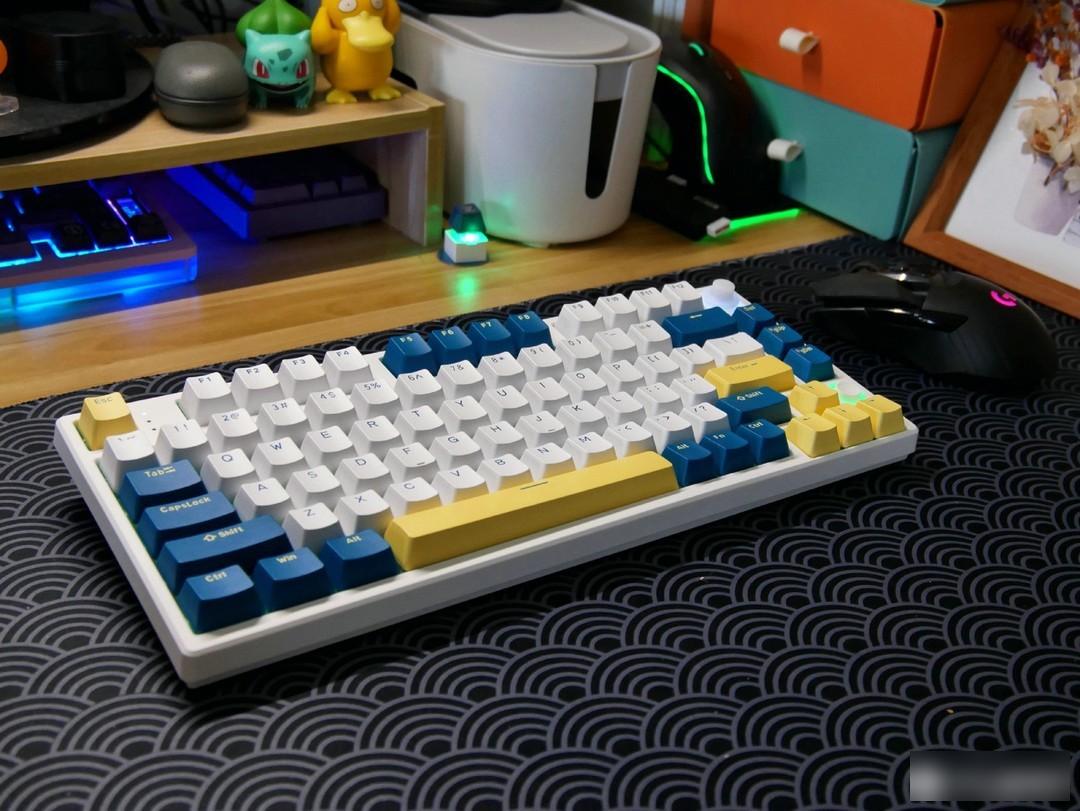

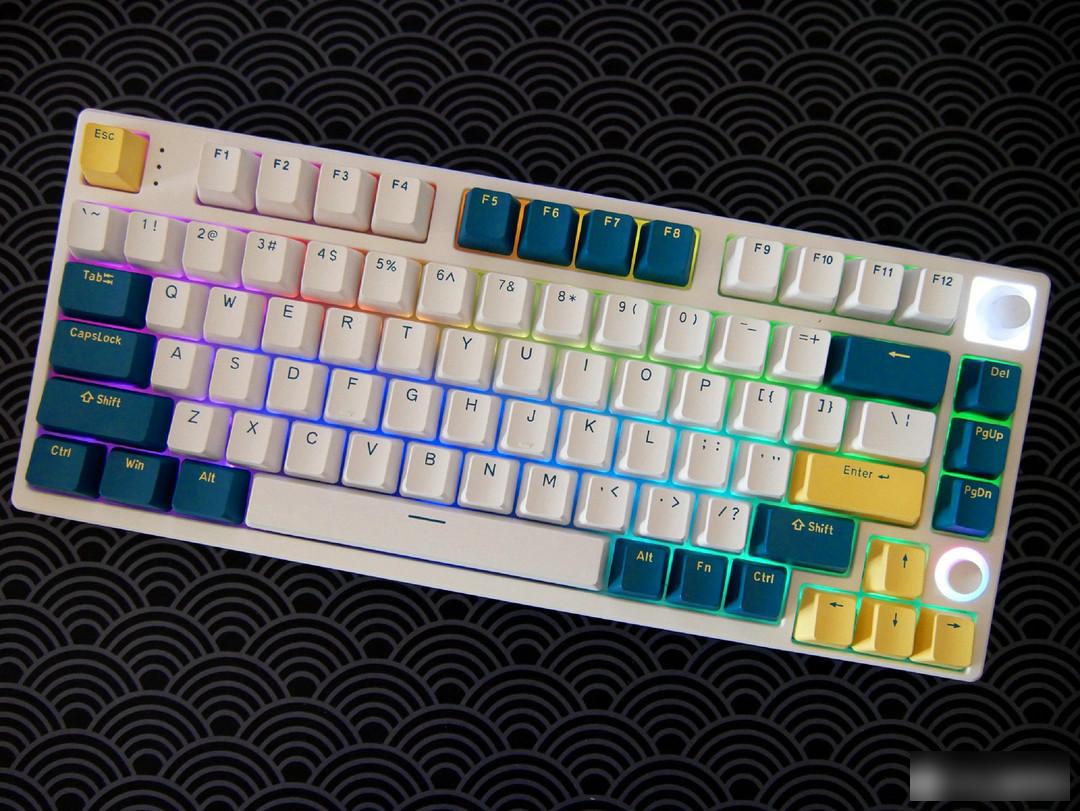

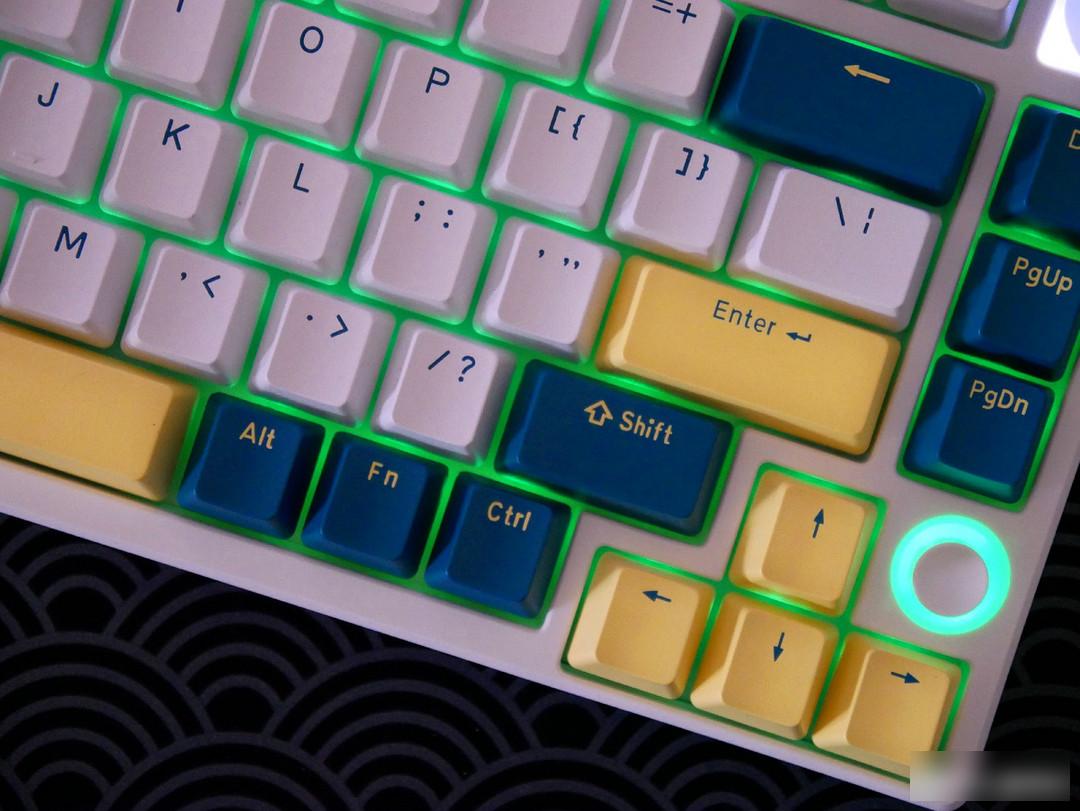

This set of replacement keycaps is Qianshancui color from HELLO GANSS (I don’t know if it’s similar to BYD’s color scheme). The overall tone is mainly white, with some additional yellow and dark green keycaps for embellishment, the effect is still very good of.

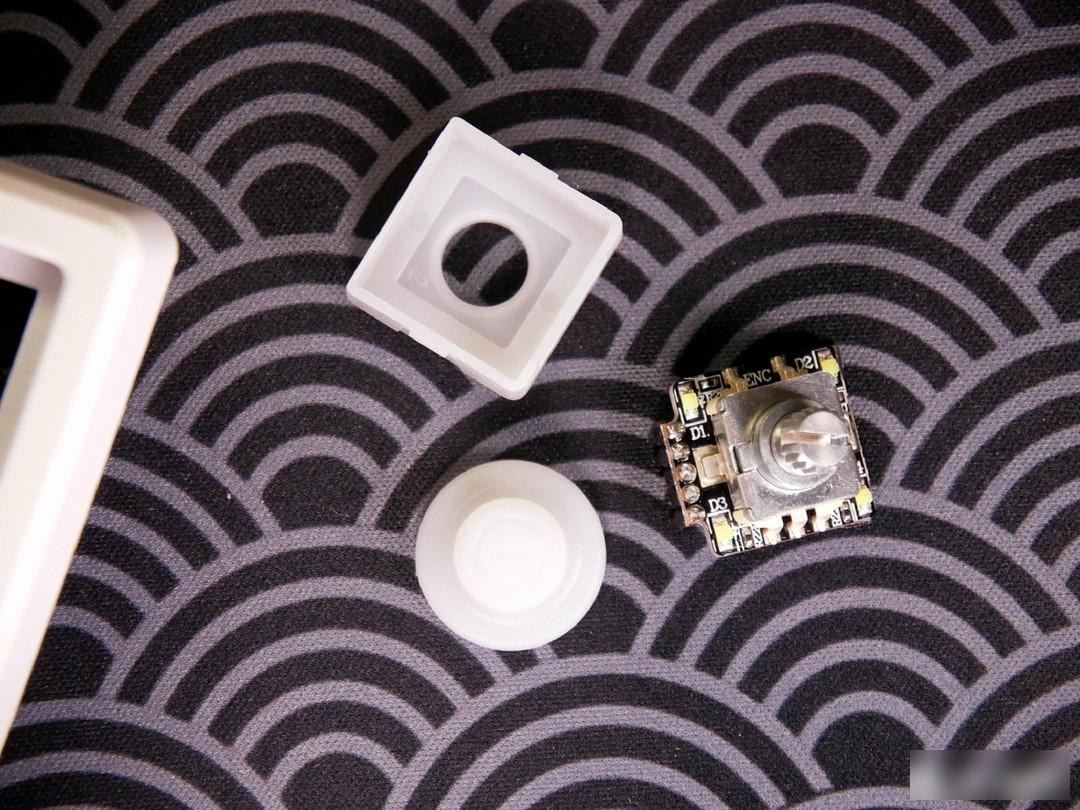

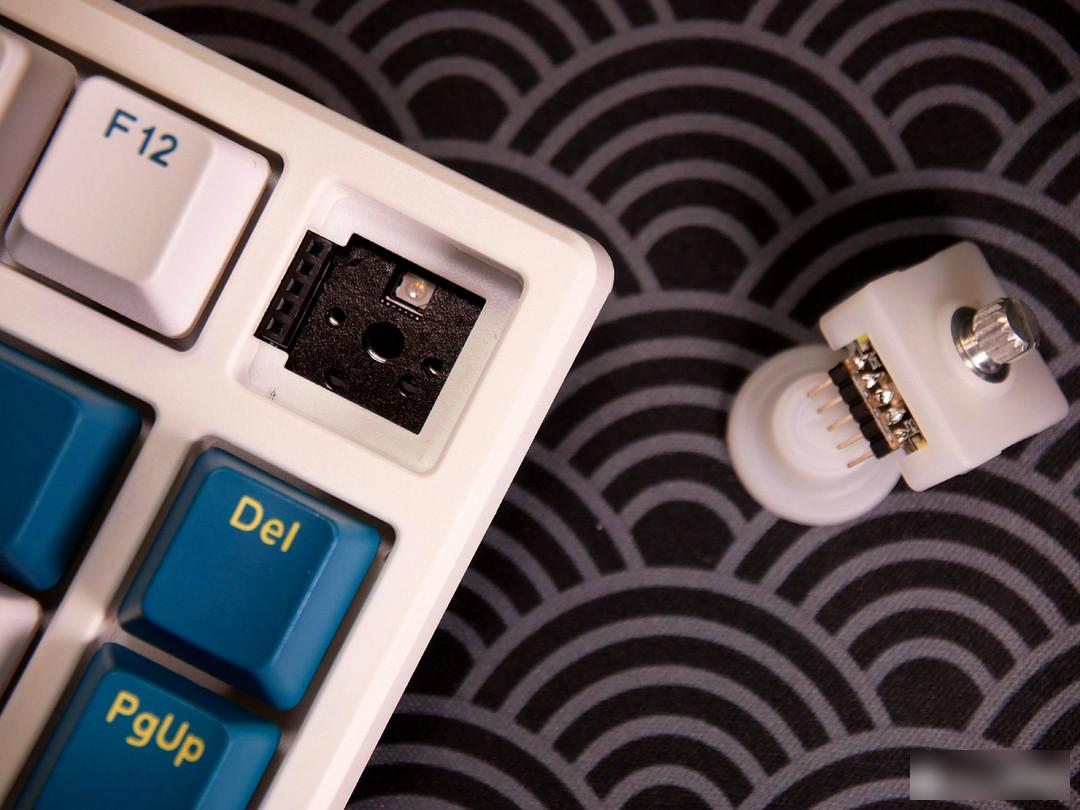

At the same time, after continuous attempts, I found that the knob module is easy to disassemble. After removing the knob, you can easily remove the knob module by pinching the knob and lifting it up. You will find that the knob module is also composed of 5 pins. , and then similar to the hot-swappable design, the bottom is also a normal shaft seat, and the knob module can also be freely replaced with a solid-color or translucent shell module. You can easily change the keyboard to your liking by replacing the shaft body, filling the module, or designing the 3D printing module yourself.

The HS 75T keyboard from HELLO GANSS, in addition to the recently popular 75 hot-swappable array, has brought a freely variable knob module, a five-way rocker that can be customized and programmed, and multiple versions of lithium battery and dry battery power supply Choice, three-mode wireless connection, sound package processing of various sandwich cotton shaft underpads, and a variety of good keycap color options, it can be said to be full of sincerity, the overall quality of the keyboard is very good, so you can use it directly with peace of mind myself.
