Peripheral Sharing Article 132: It’s always cool to buy a keyboard——Heijue AC067 three-mode kit assembly

Since I installed Heijue's AC064 kit before, I feel that the way of playing with the kit is quite comfortable, and I can enjoy the fun of doing it myself, so I bought a Heijue's AC067 kit while I was driving, but Since I haven't had much time to install it, I have kept it on. Recently, I picked a leisurely afternoon to install and play.

The Heijue AC067 kit has actually been on the market for a long time. Many people have all kinds of installation experience videos, this article will briefly describe some of these assembly steps.

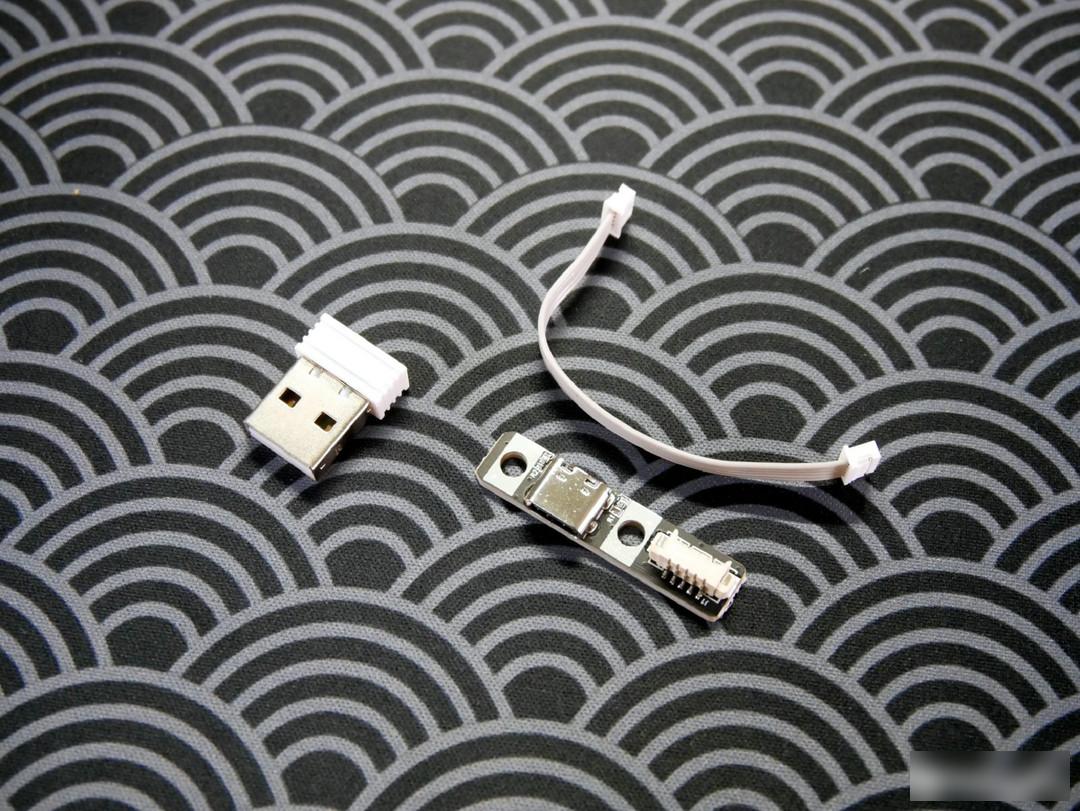

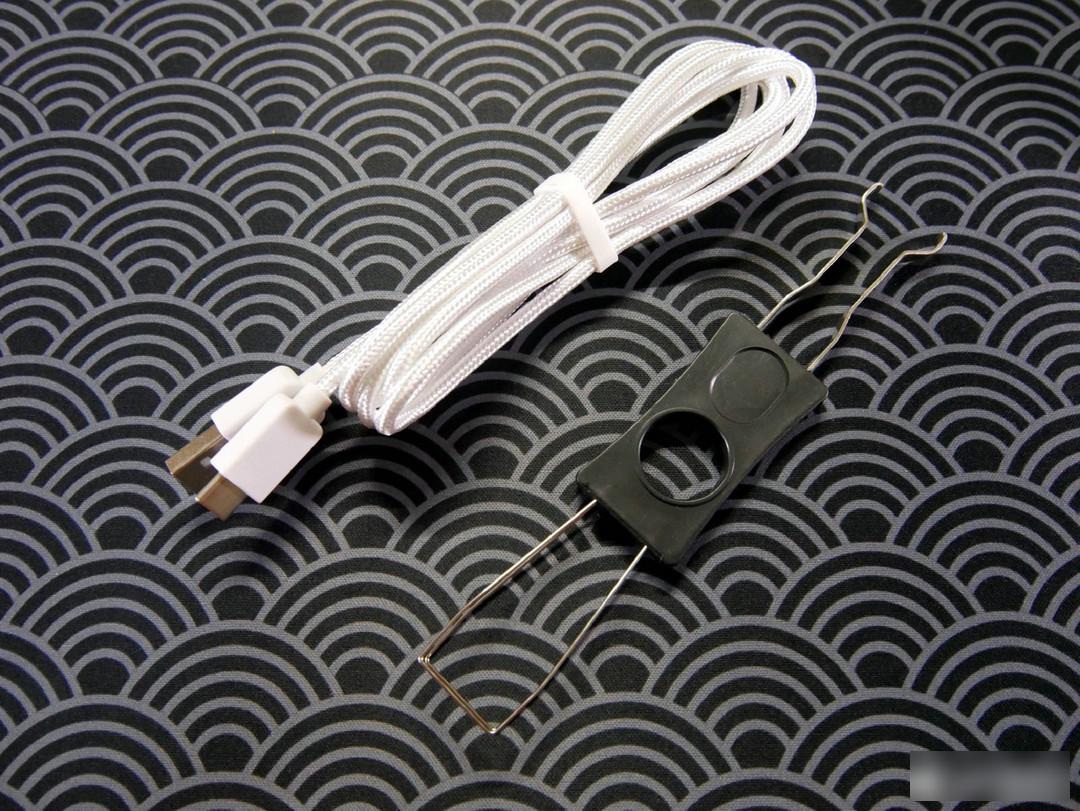

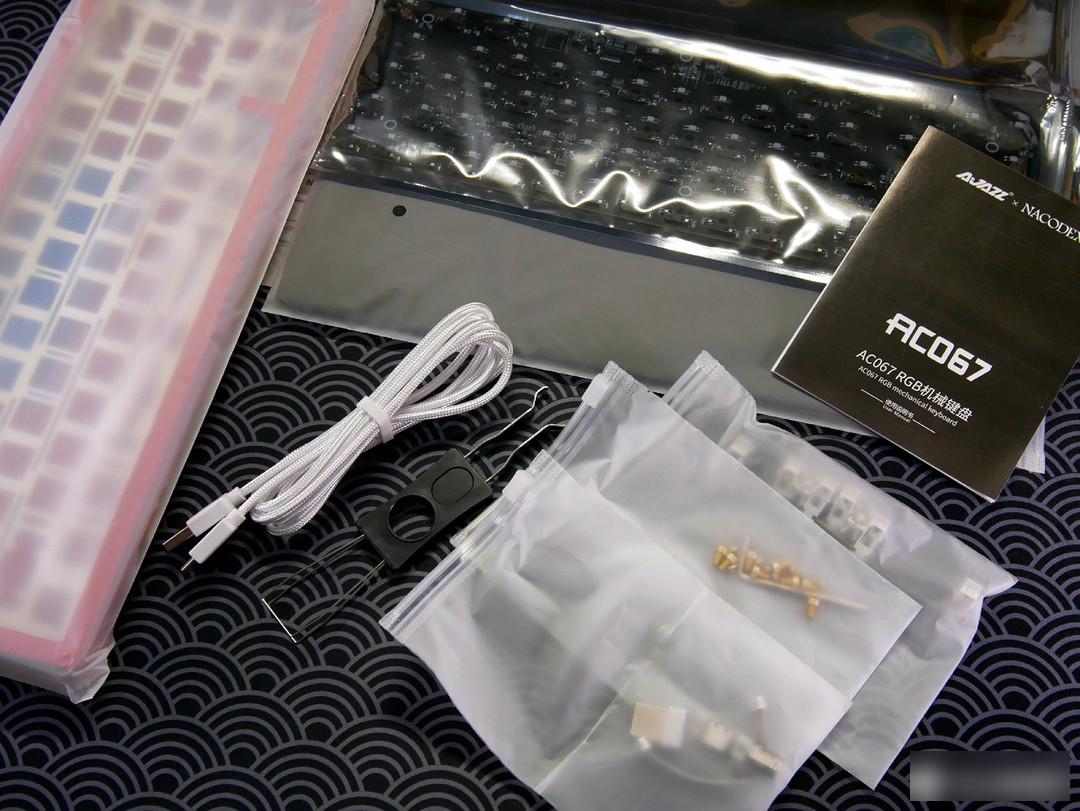

The overall package of the kit is still very good. Various accessories are placed in different categories, small bag packaging, data cables, integrated design of the top shaft puller, separate type-c small board, connecting cable, 2.4G receiver, installed The positioning board satellite axis and so on.

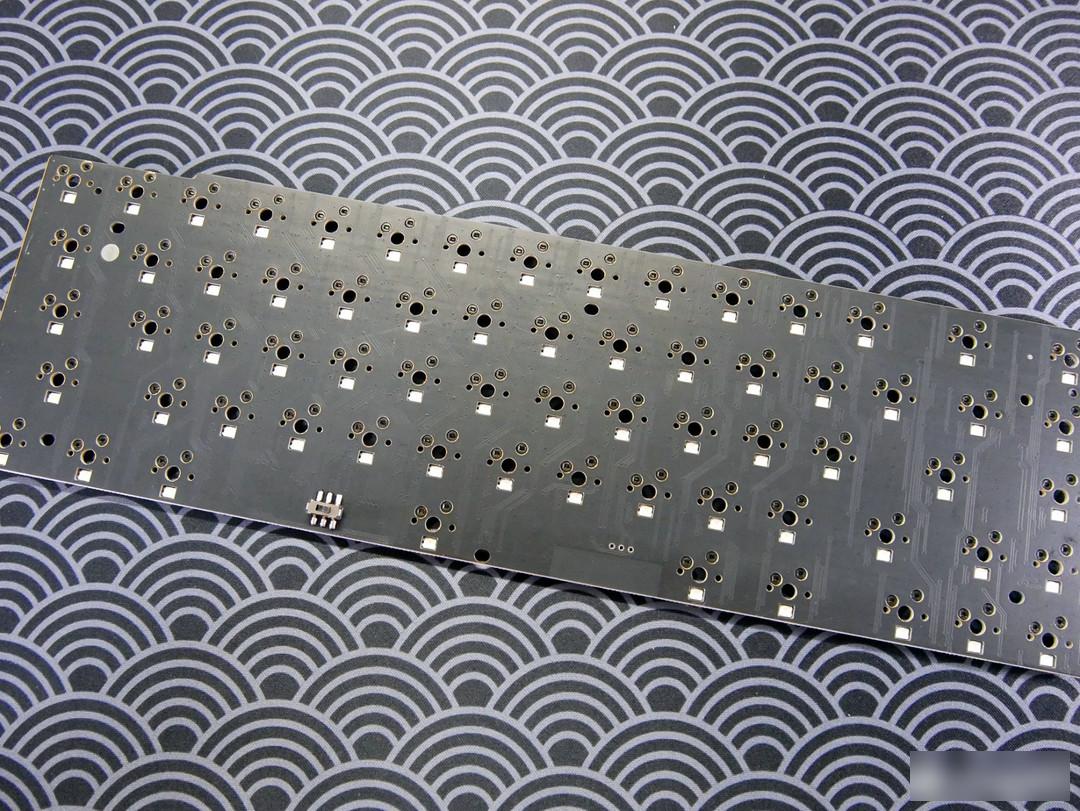

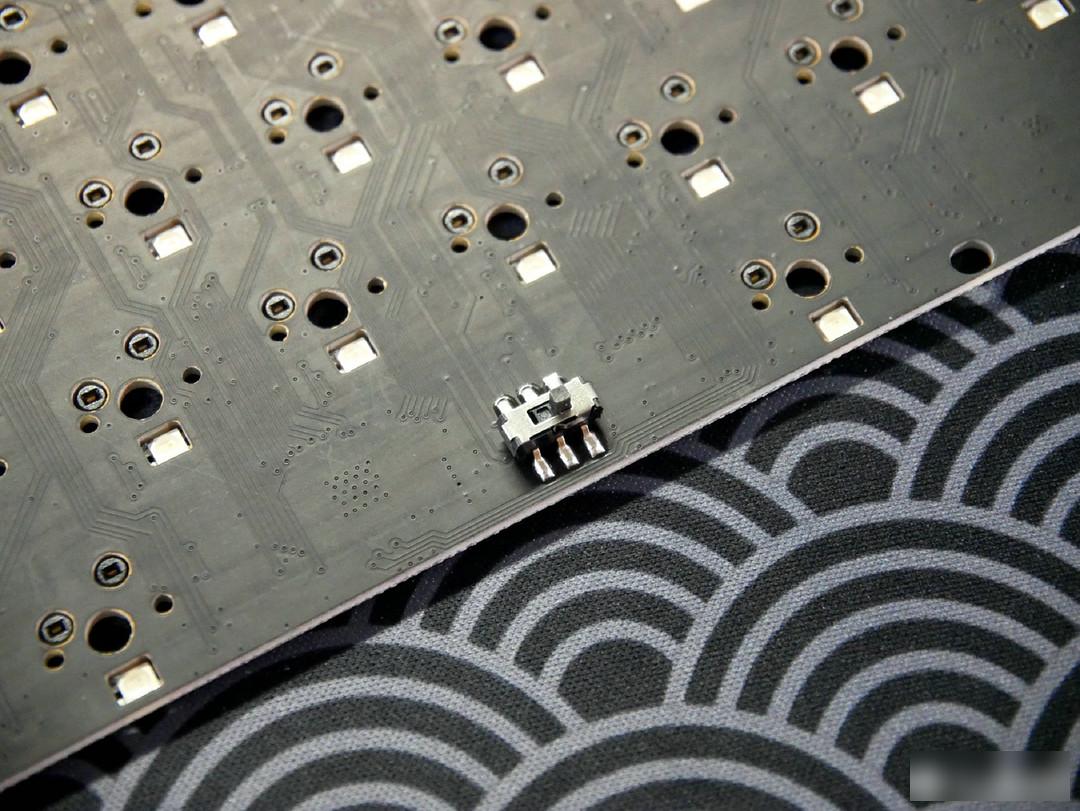

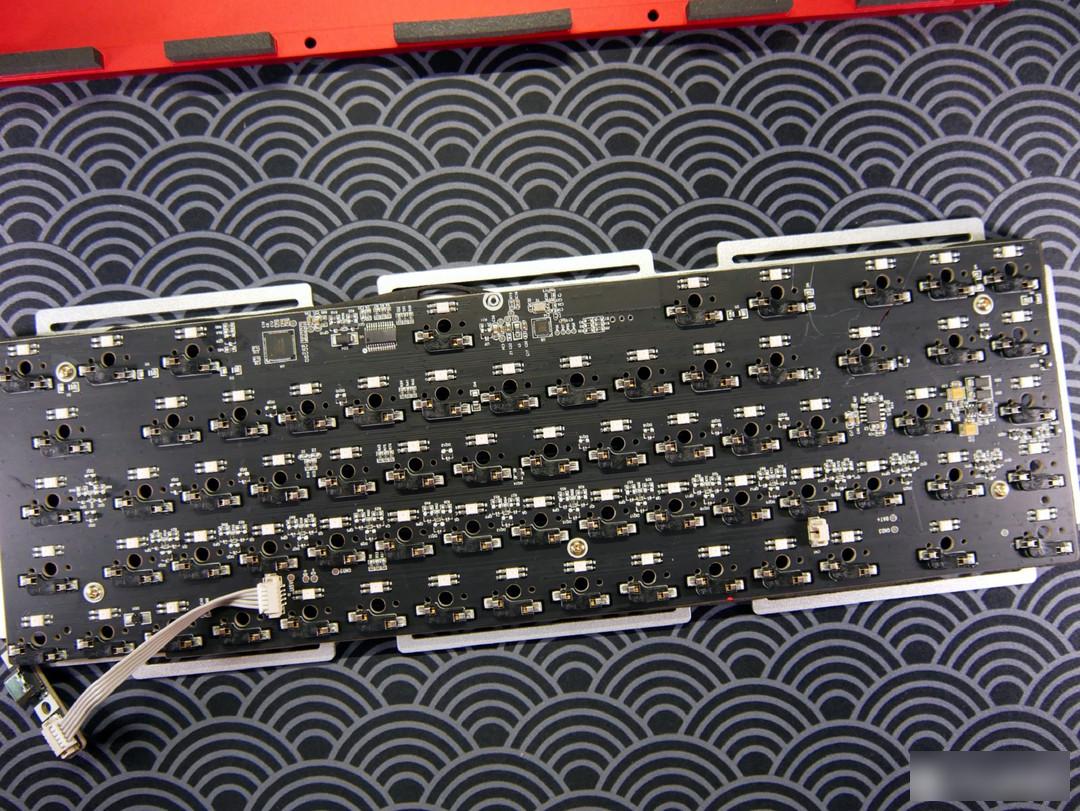

The PCB part that supports hot-swapping uses Kaihua's shaft seat, and it is a formal shaft design. The RGB light is the lower light position. Students who don't like it should pay attention. What's even more weird is that the wireless switch of the keyboard is designed in the blank part, that is to say, when it is not in use, it needs to be unplugged to shut down the keyboard, which is very embarrassing.

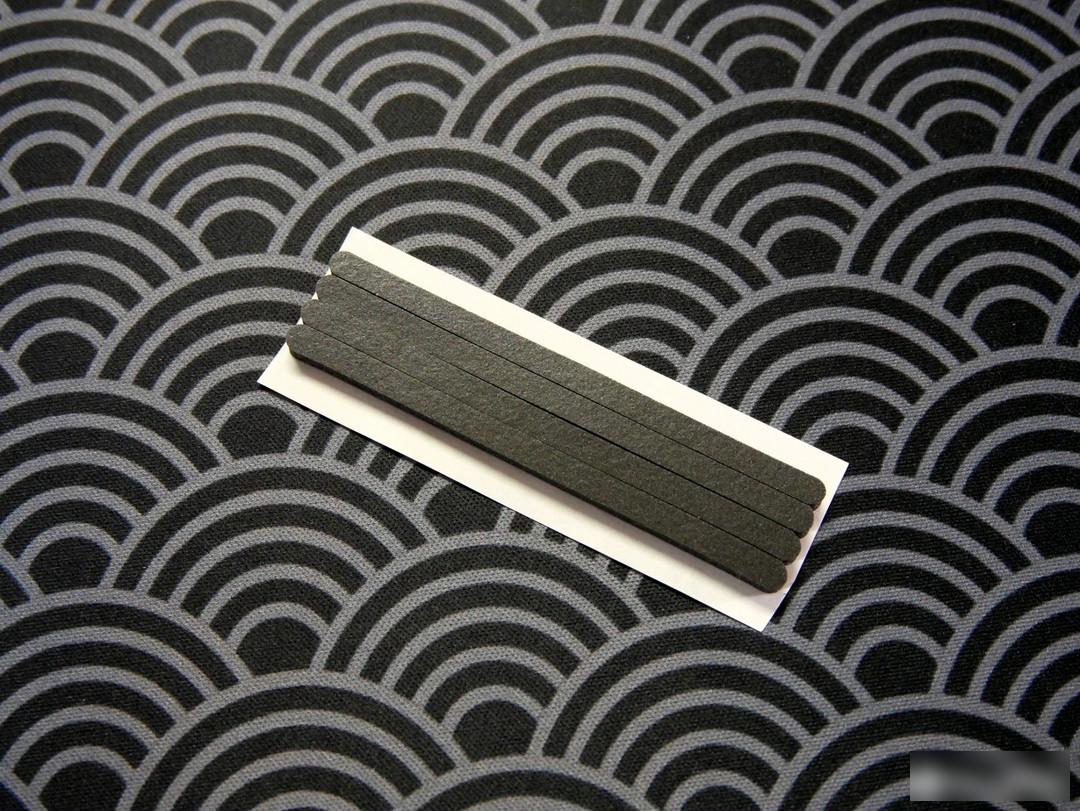

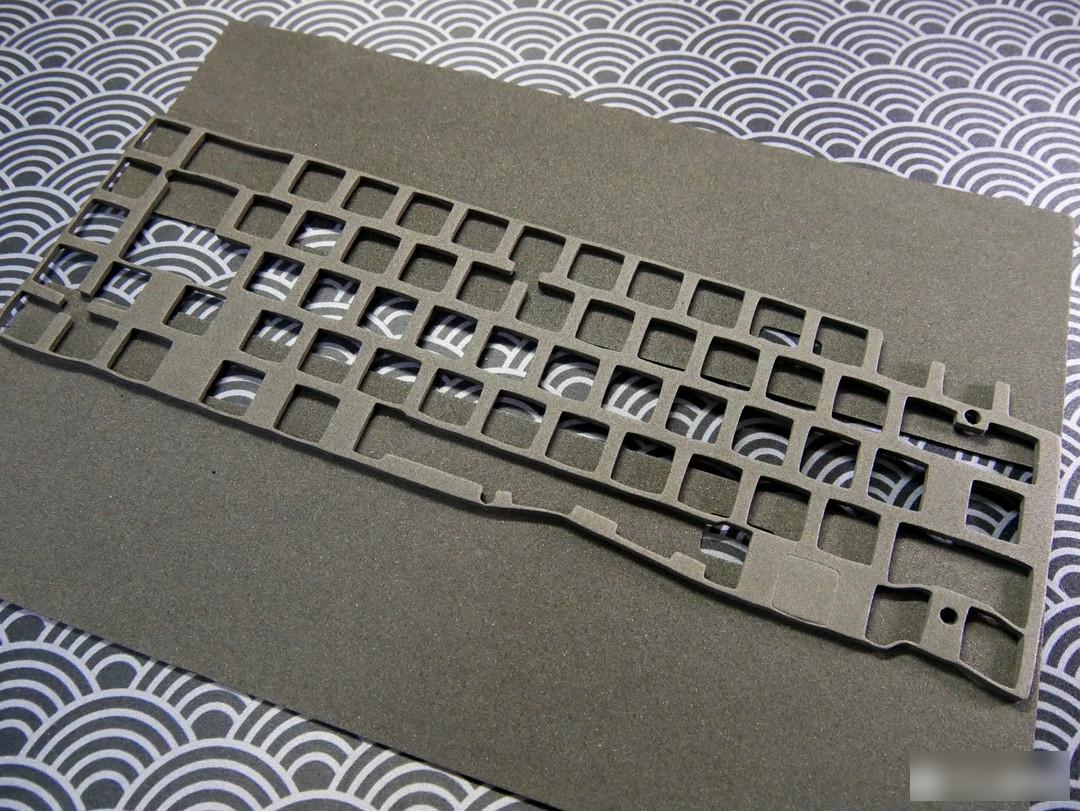

The packaging also comes with a sandwich cotton with a positioning board and a bottom layer of cotton. The supplied cotton feels a little less. If you are interested, you can also buy the sound pack online by yourself. Also comes with a Gasket spacer.

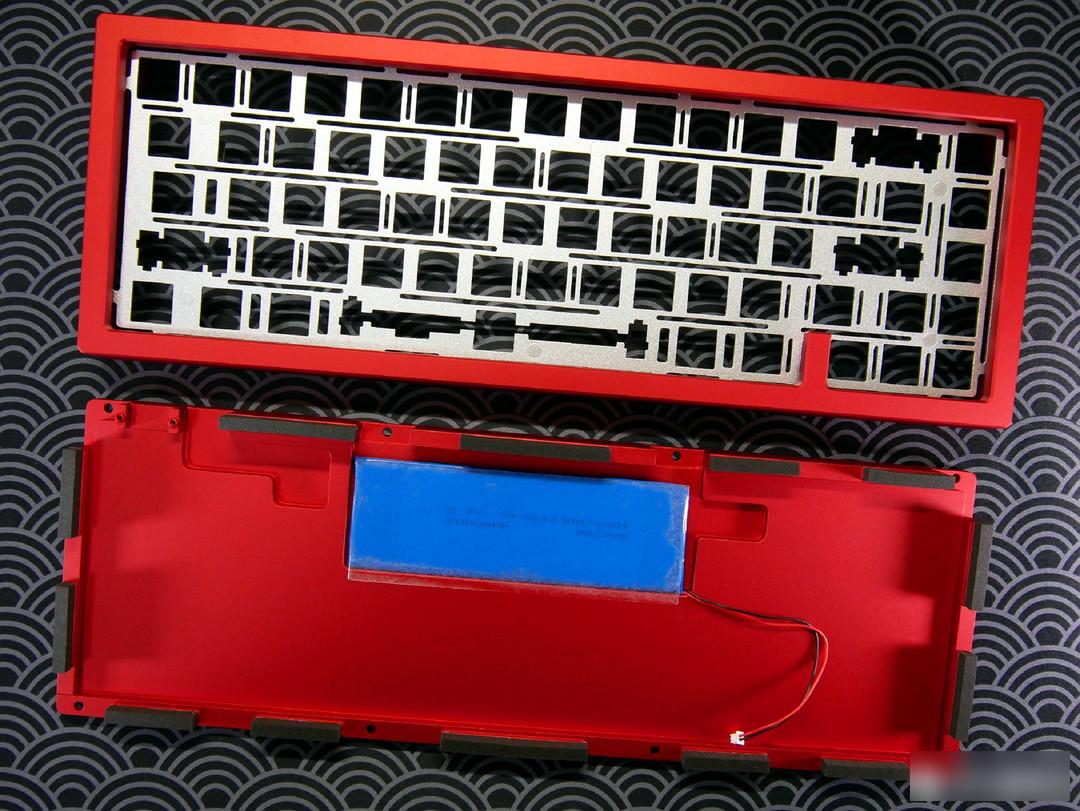

The main part of the keyboard is made of red anodized aluminum. The original positioning board is a slotted aluminum positioning board. Let’s see if you want to replace it with a PC positioning board later.

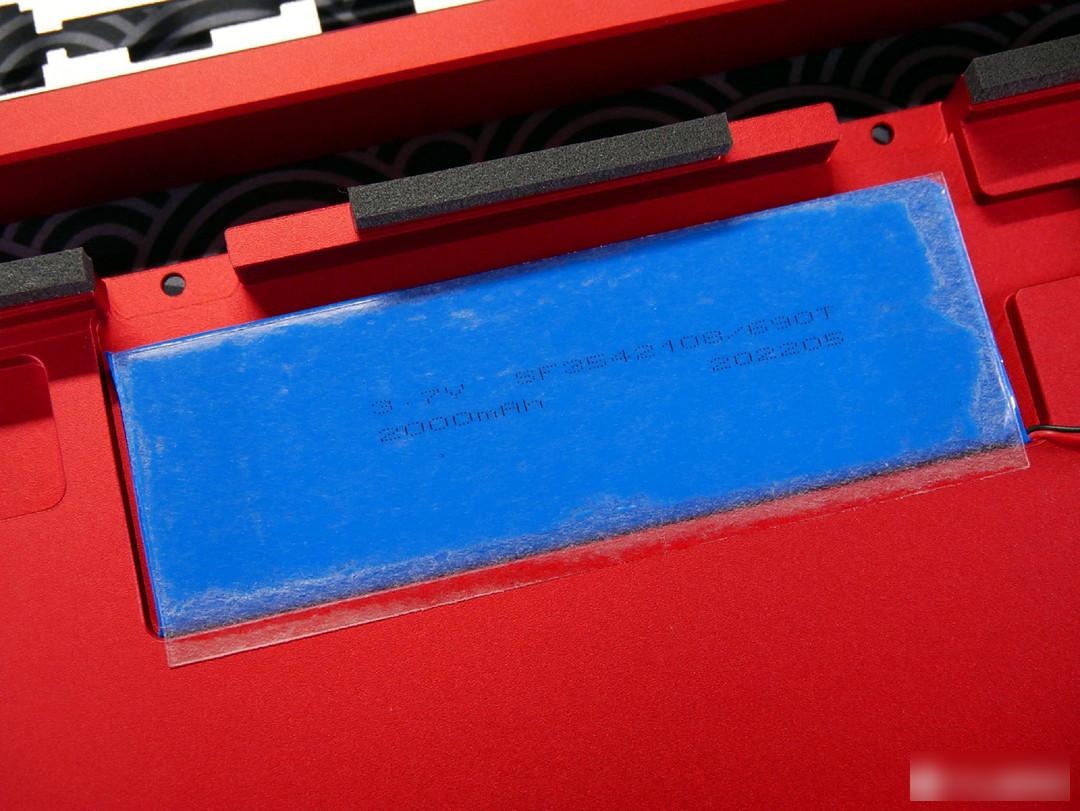

The anodized surface of the overall keyboard is quite good, the red is very bright, and some gaskets are preset on the upper and lower covers, so the attached gaskets are actually just for people to experience the joy of installation. Since the data line connection of the PCB part adopts a small board separation design, the position will not be affected by the deformation of the gasket, so the position of the USB connection port slotted on the back of the upper cover does not have a large opening.

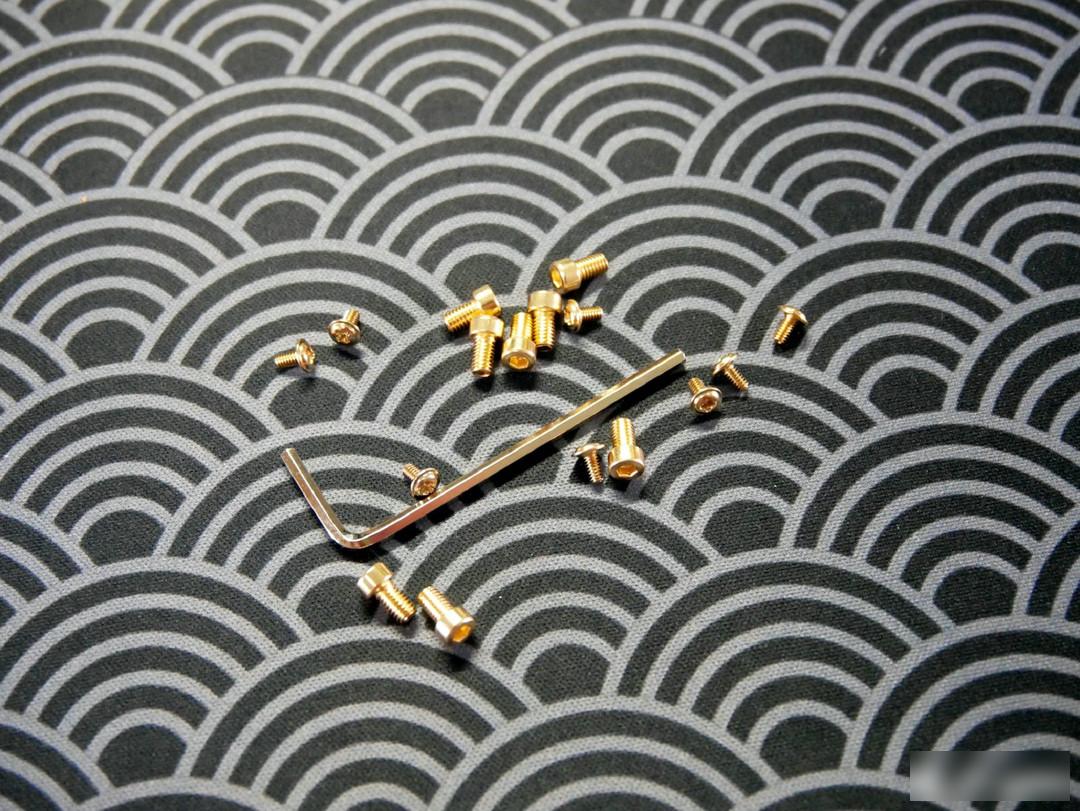

The overall keyboard installation is also very simple. After the sandwich cotton between the PCB and the positioning board is placed, fix the two directly through the attached screws. There are a total of six screw holes, just install it, and then through the cable After installing the PCB and the data line board, you can test the lighting part of the PCB first.

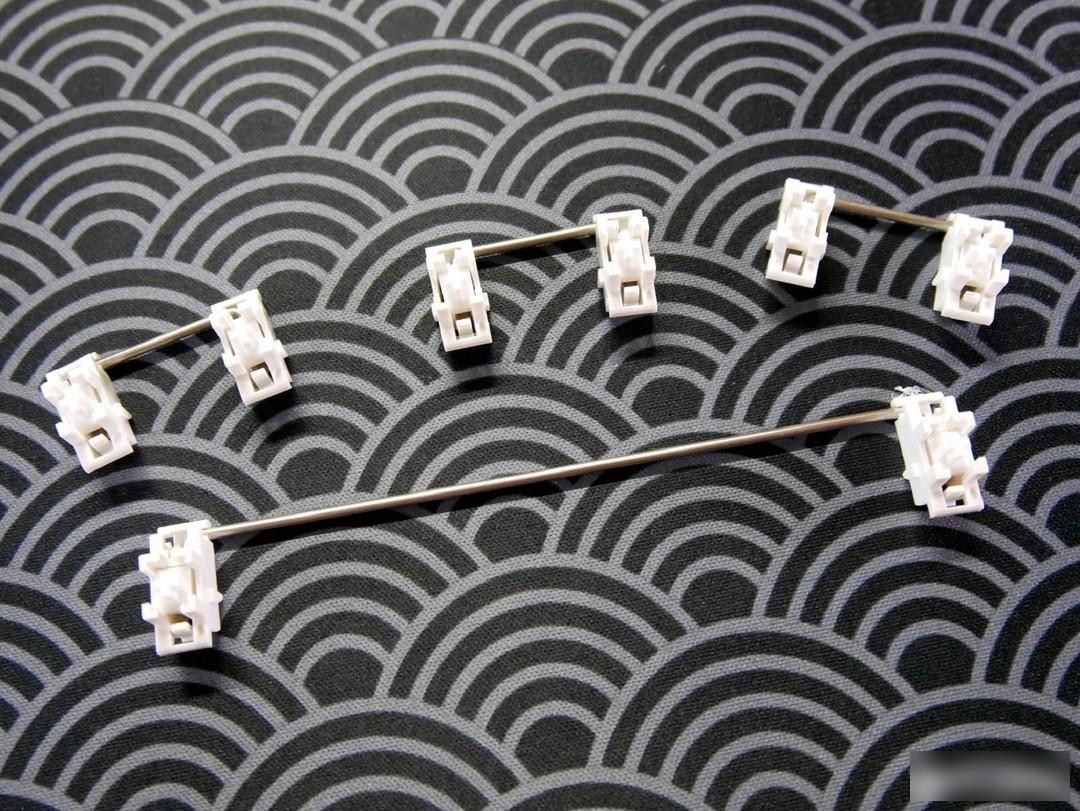

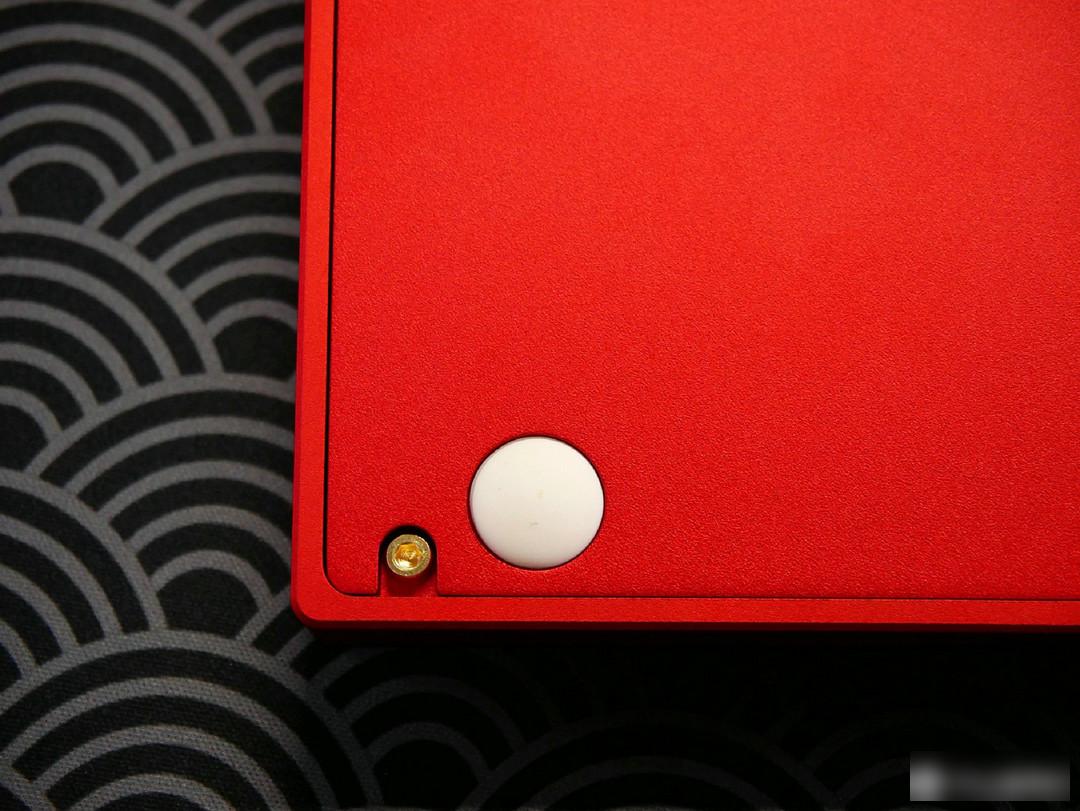

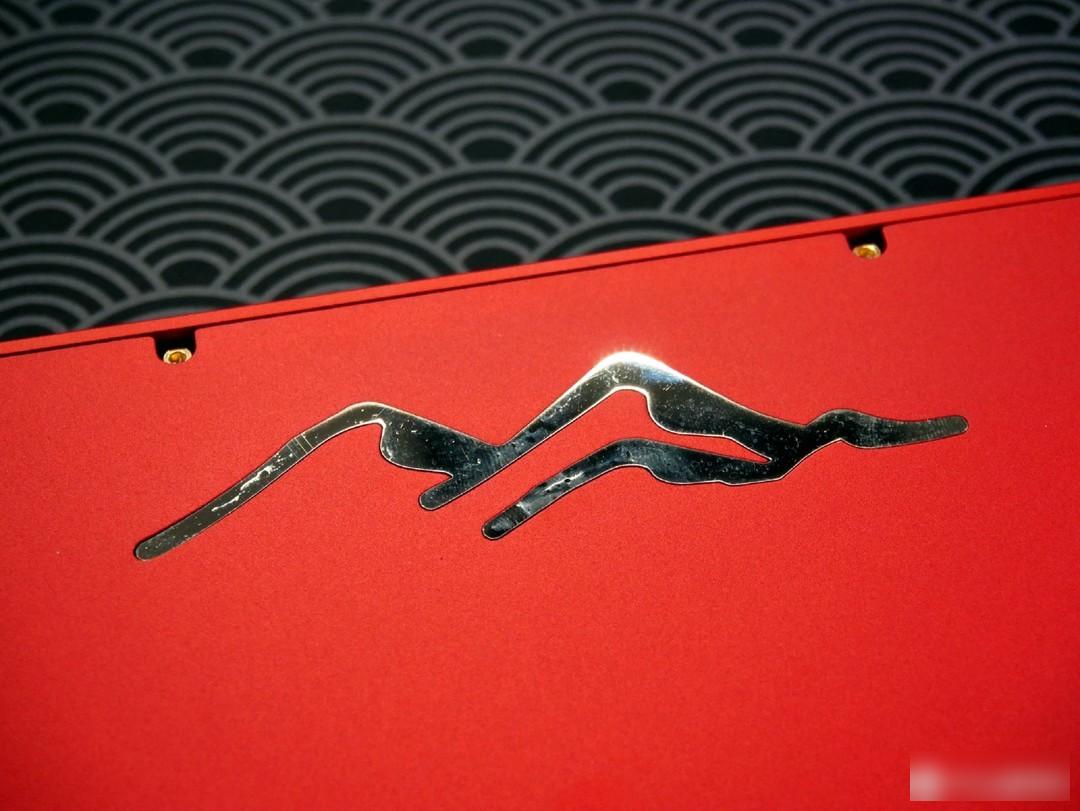

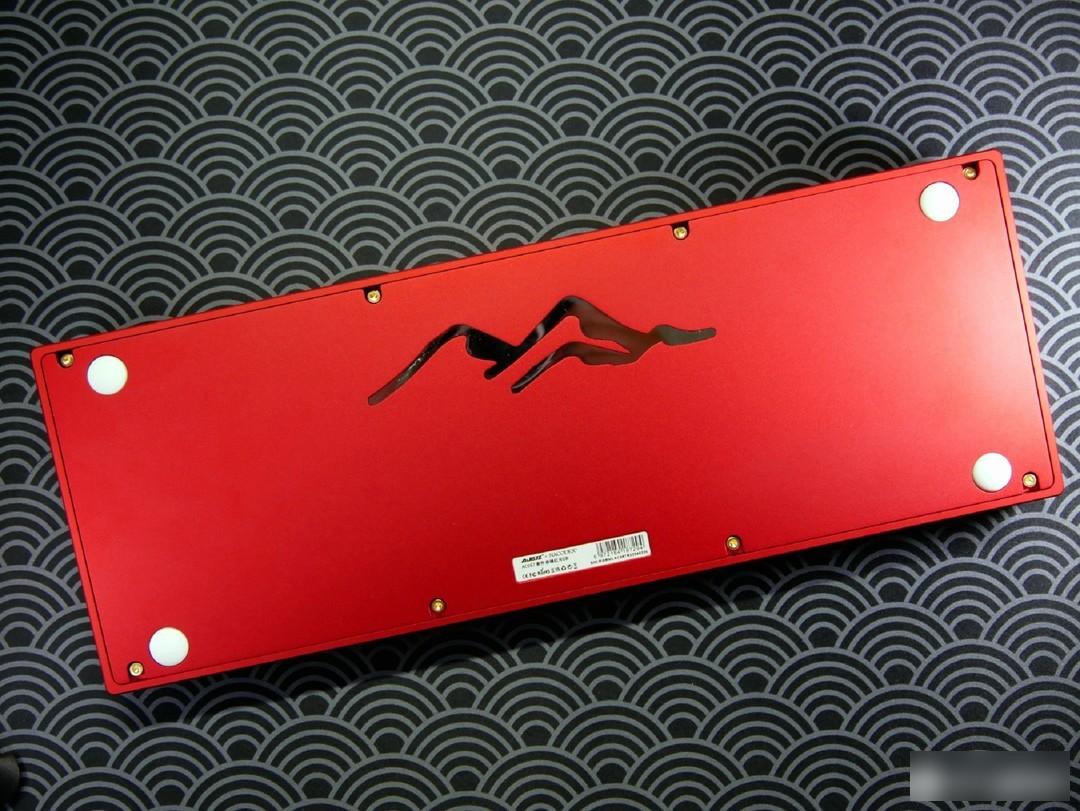

After the satellite axis is installed on the PCB, the PCB can be directly fixed inside the keyboard, and the screws on the back can be installed with the attached tool. You can see that the design of the overall back part is also very simple. A small nameplate design of a mountain was added, and four rubber discs were selected for the feet.

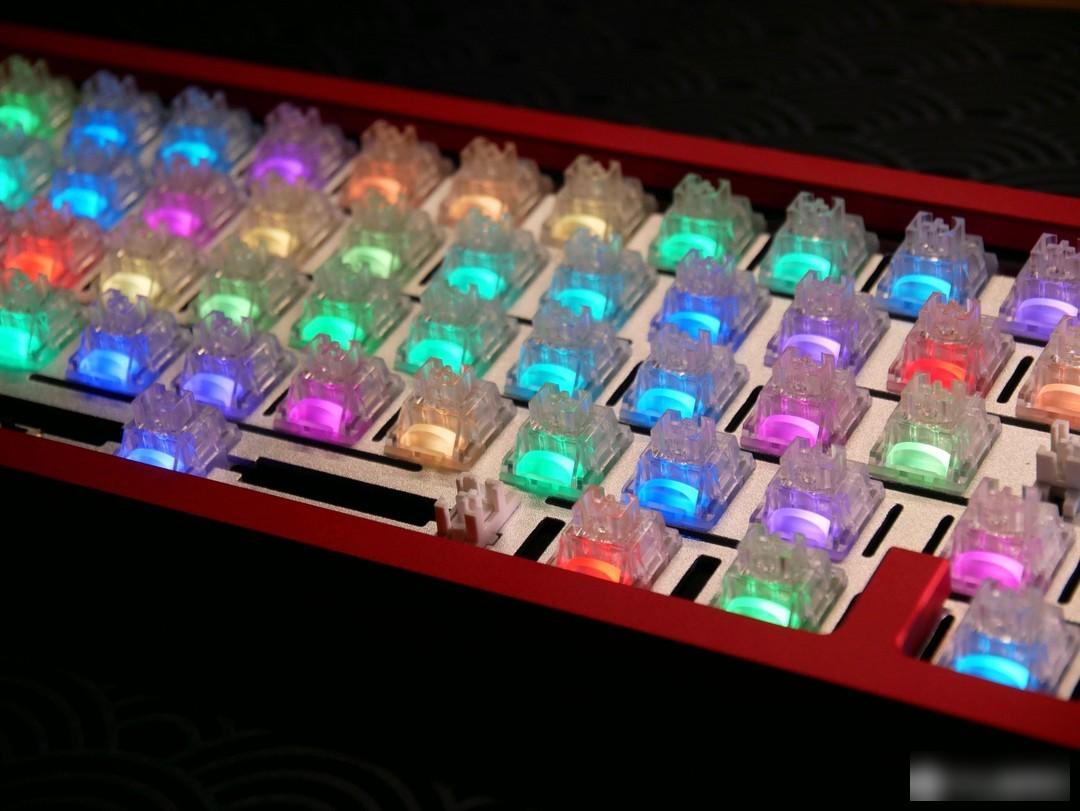

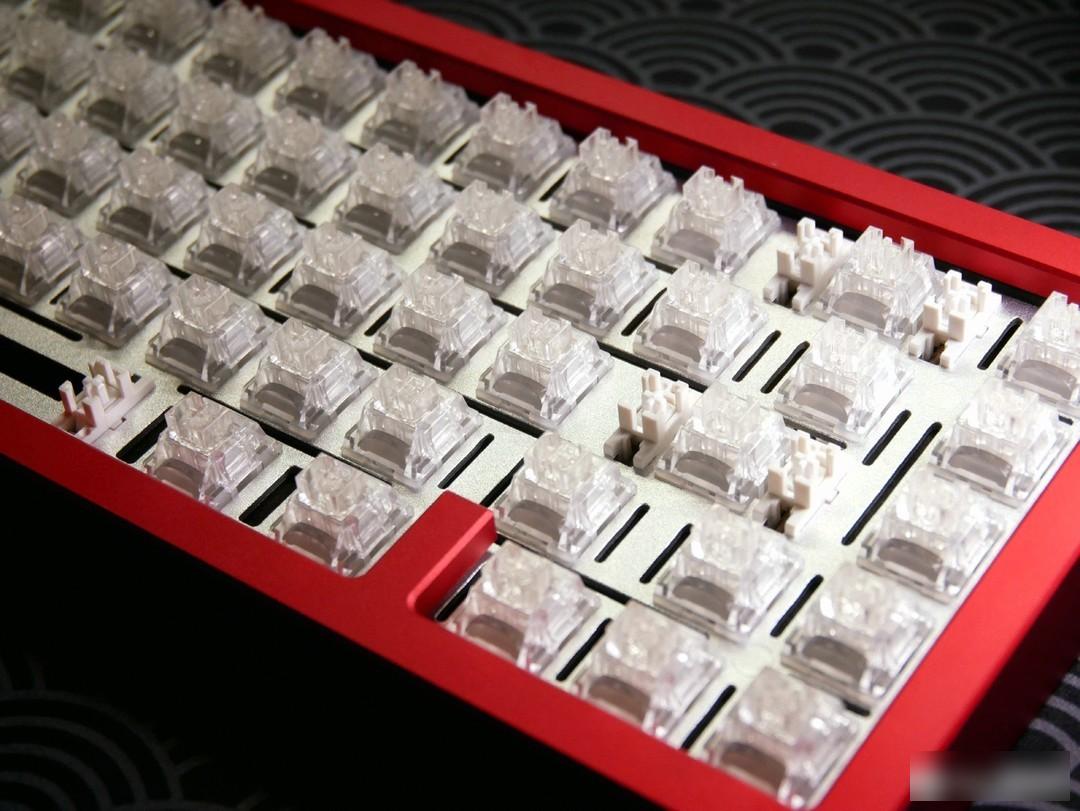

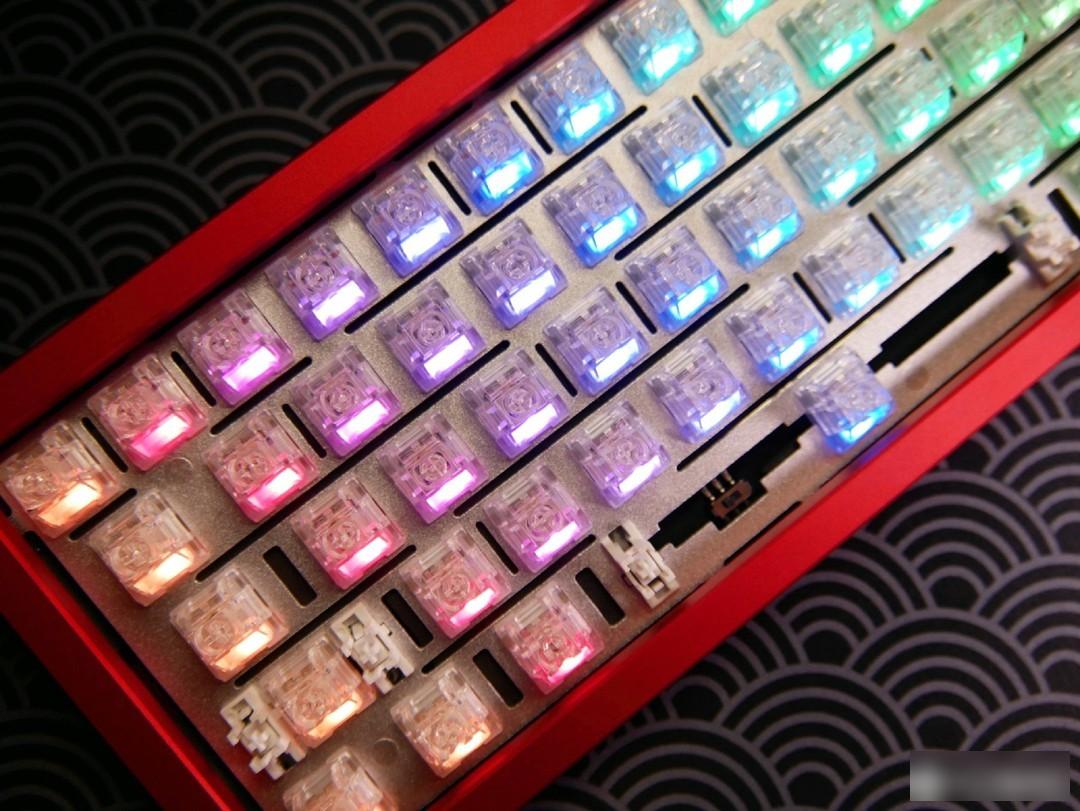

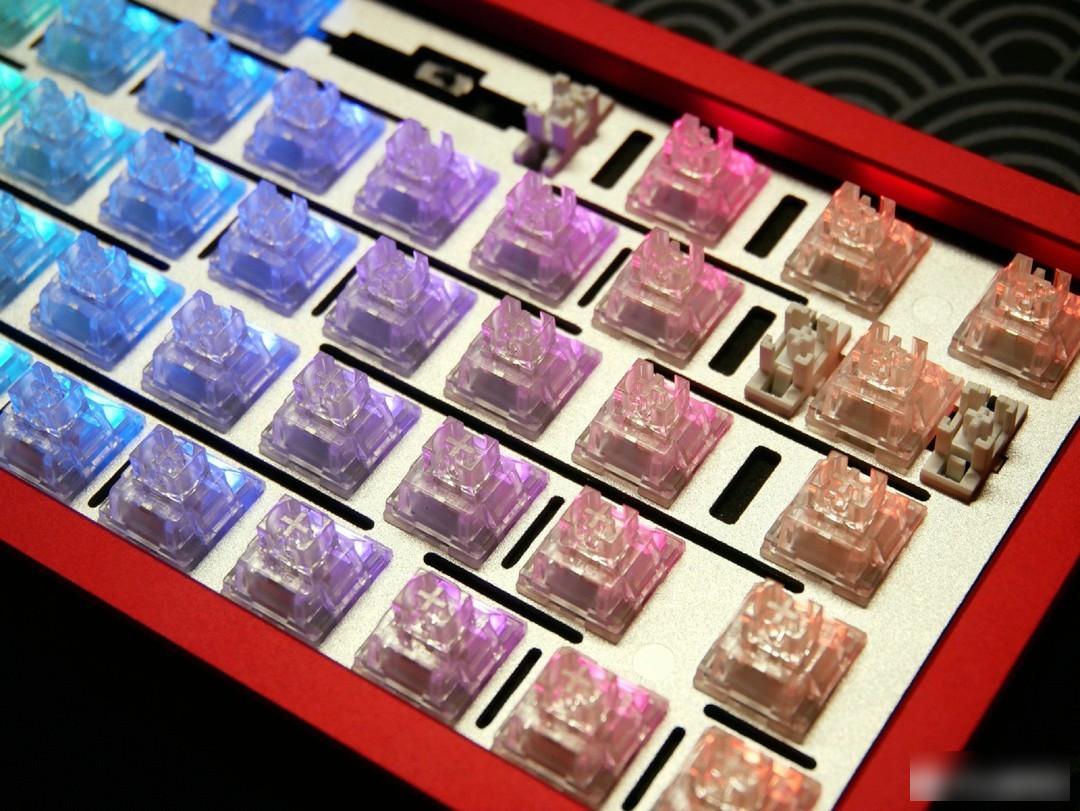

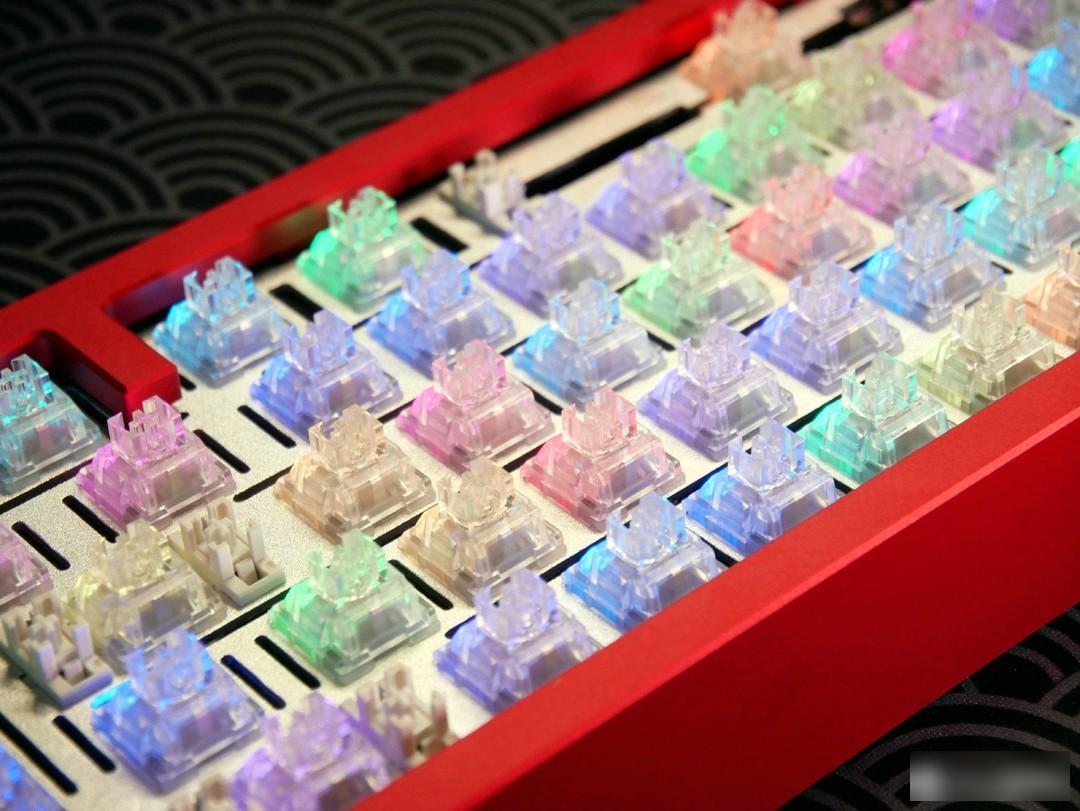

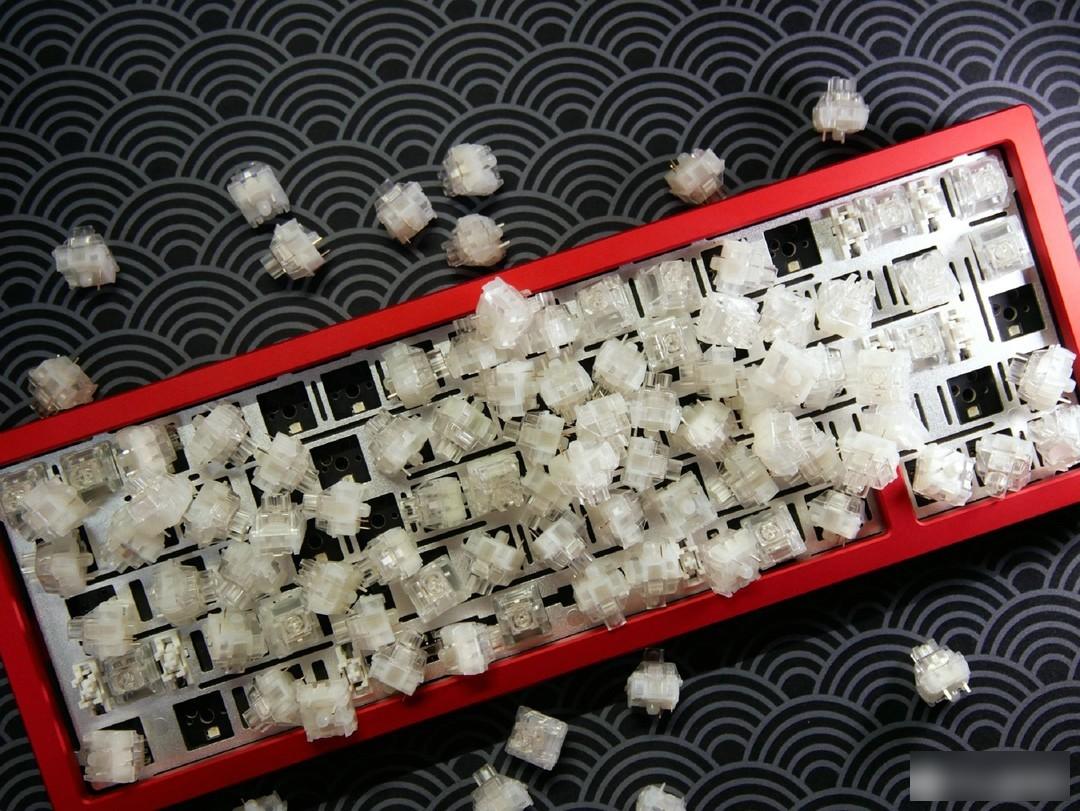

The shaft body directly uses my current favorite TTC ice static shaft, and it is an upgraded version of V2. A condenser design is added to the shaft body to make the light look more transparent and uniform.

The overall installation experience of the Heijue AC067 kit is still very simple, and it is easy to get started. This price provides three-mode wireless connection, RGB lighting, Gasket structure design, and the playability is still very high. If you don’t choose well, you will reach this level when you use sharing. It’s really hard to choose a keyboard with a red keyboard. Do you have any recommendations?
