Peripheral shooting record Part 74: HELLO GANSS HS75T wireless three-mode mechanical keyboard evaluation and sharing

The HS series mechanical keyboards under the HELLO GANSS brand have successively released HS108T, HS98T, HS98TPro and other models, all equipped with three-mode wireless, RGB backlight, hot-swappable shaft and other popular elements. With the popular 75% layout, HELLO GANSS is also launched The corresponding HS75T wireless three-mode mechanical keyboard is equipped with functions such as PBT keycaps, RGB backlight, hot-swappable shafts, volume knobs, and five-way paddles. Compared with the previous model HS75T, sandwich noise-reducing cotton is added inside the keyboard , the pad under the shaft and the sound-absorbing cotton at the bottom can be said to be fully equipped in terms of sound package. Participating in the evaluation this time are two HS75T keyboards equipped with KU center axis and KU segment axis. The KU axis is manufactured by KTT. The corresponding feel is linear and large paragraph respectively. Comment and share.

▲The participants in the evaluation are two HELLO GANSS HS75T white feather color matching keyboards equipped with KU center switch and KU segment switch respectively.

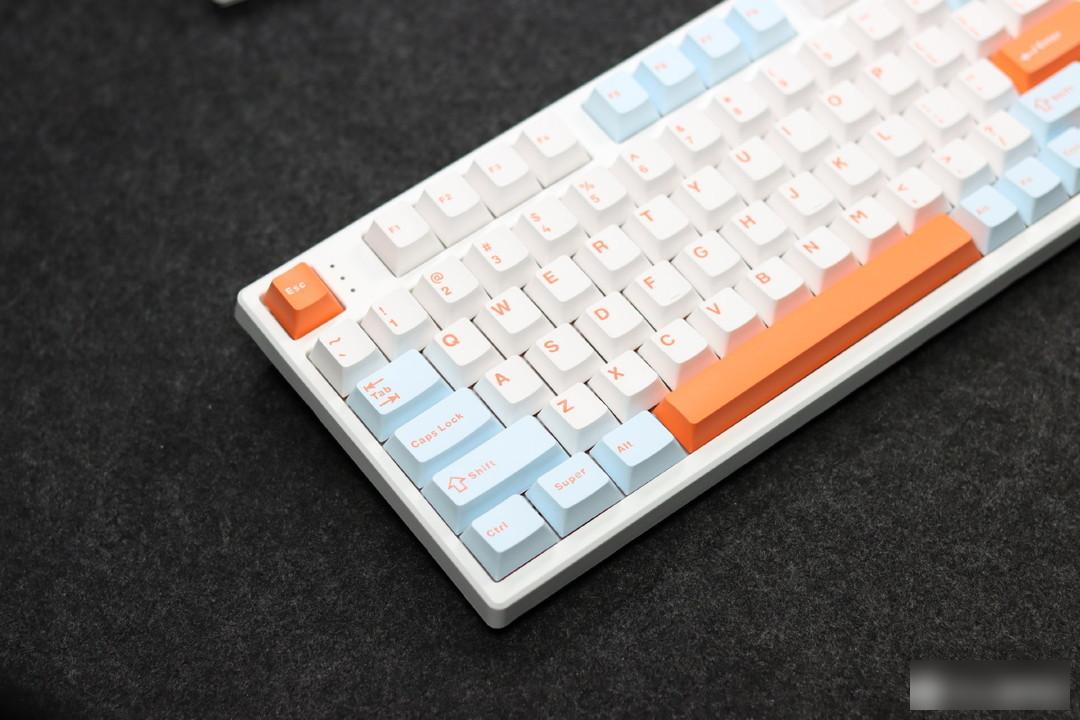

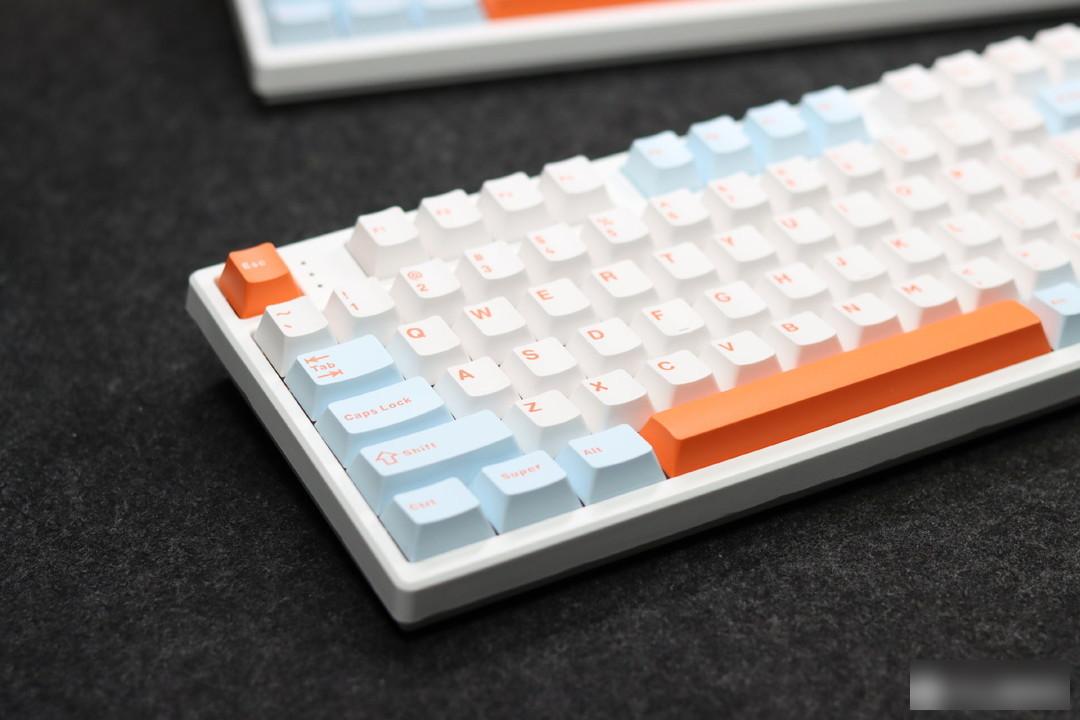

▲The white shell of the keyboard is matched with white feather color keycaps. The main input area uses orange characters. Some keys are embellished with orange keycaps. The overall color scheme is simple and fresh

▲The HS75T keyboard is similar to the common 75% key layout. The difference is that a volume knob is added in the upper right corner and a 5-way paddle is added above the arrow keys.

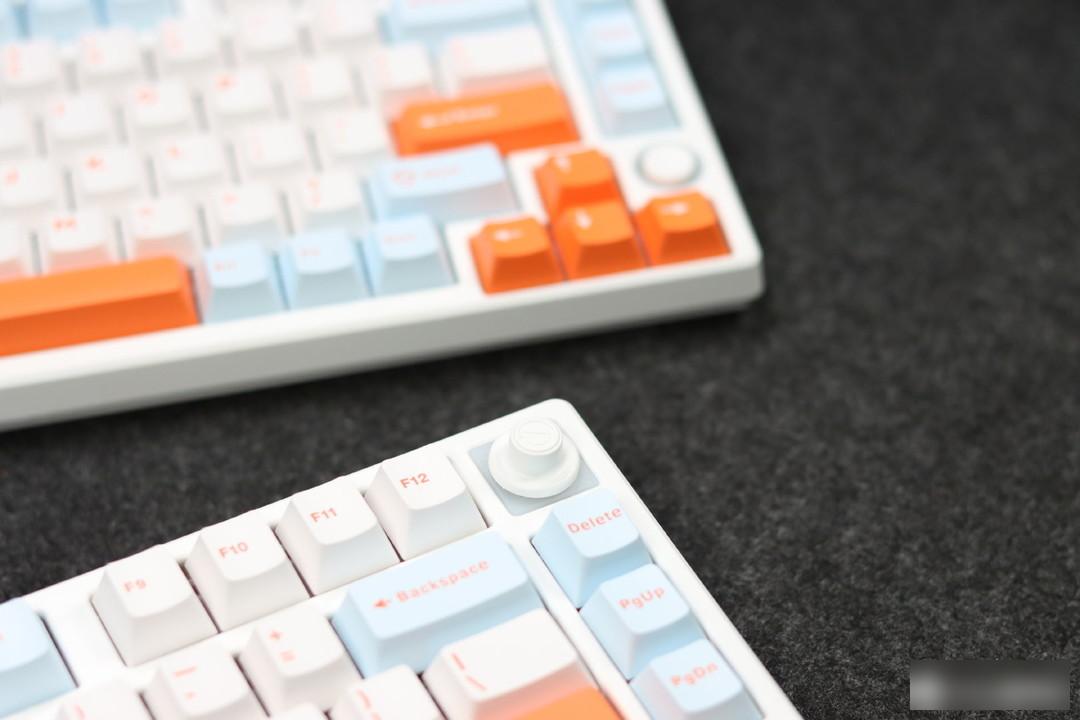

▲ Knob function: Turn counterclockwise to decrease the volume, turn clockwise to increase the volume, press to mute; the knob is detachable, and the accessories in the accessories can be used between the solid knob, the light-transmitting knob and the shaft. to switch

▲The lever function: toggle up to increase the brightness of the backlight, toggle down to decrease the brightness of the backlight, toggle to the left to slow down the dynamic backlight, and toggle to the right to accelerate the dynamic backlight

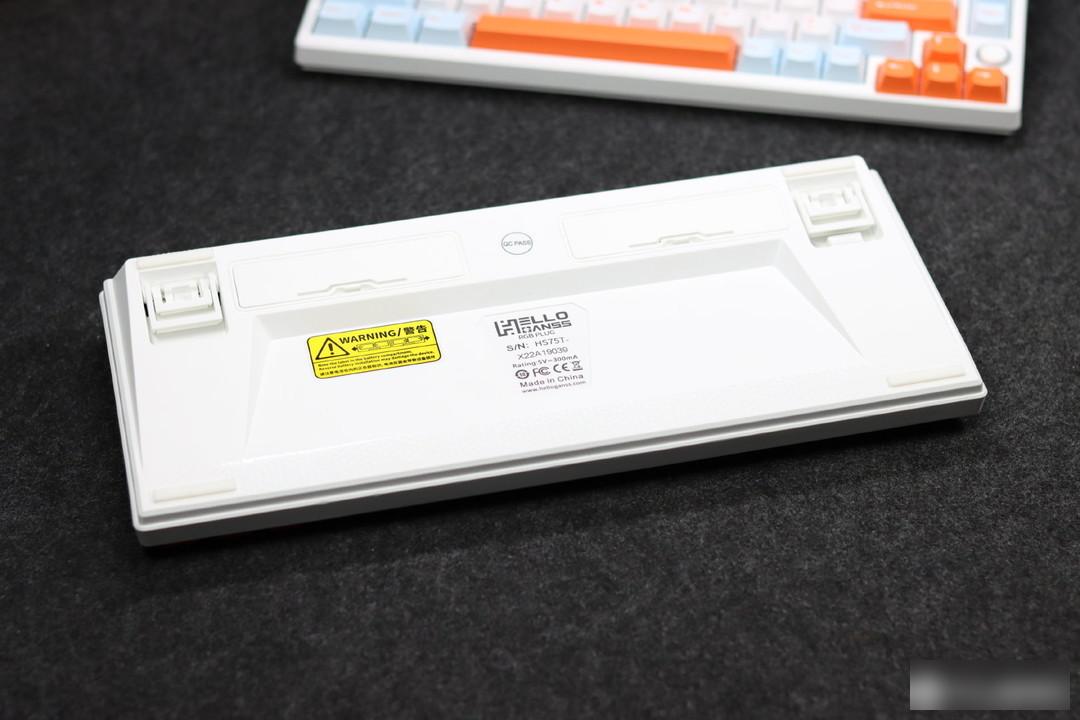

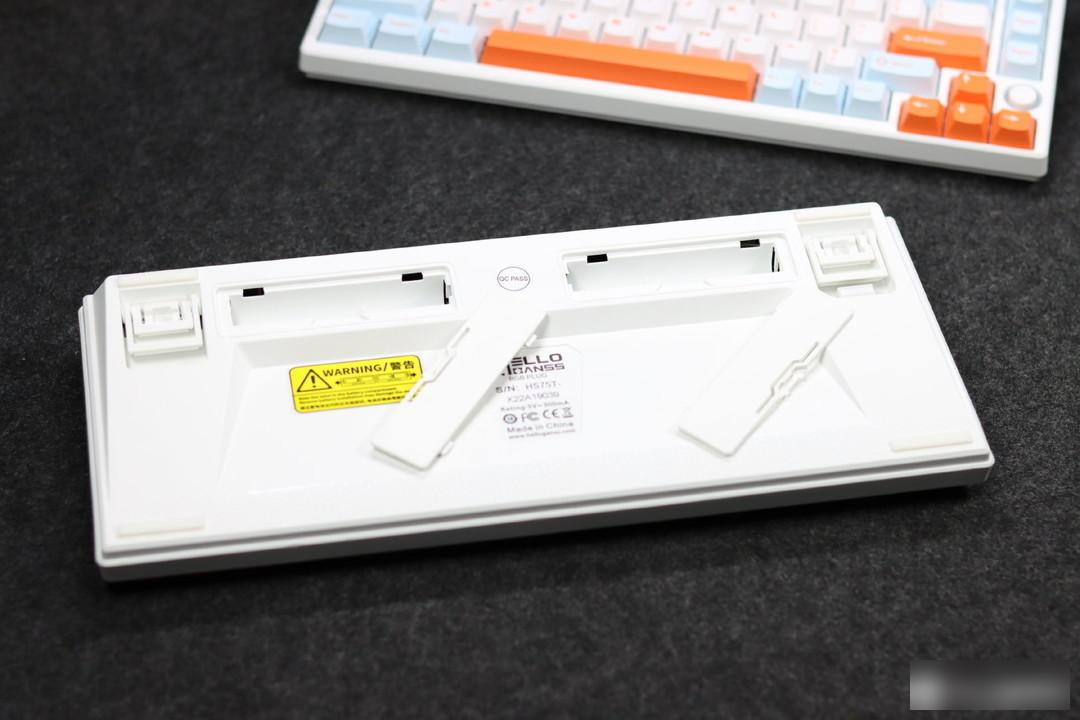

▲The bottom shell of the keyboard is equipped with four non-slip feet, and the measured anti-slip performance is very good

▲The keyboard is powered by double dry battery compartments. When the backlight is turned off, 4 AA batteries can provide up to 600 hours of battery life

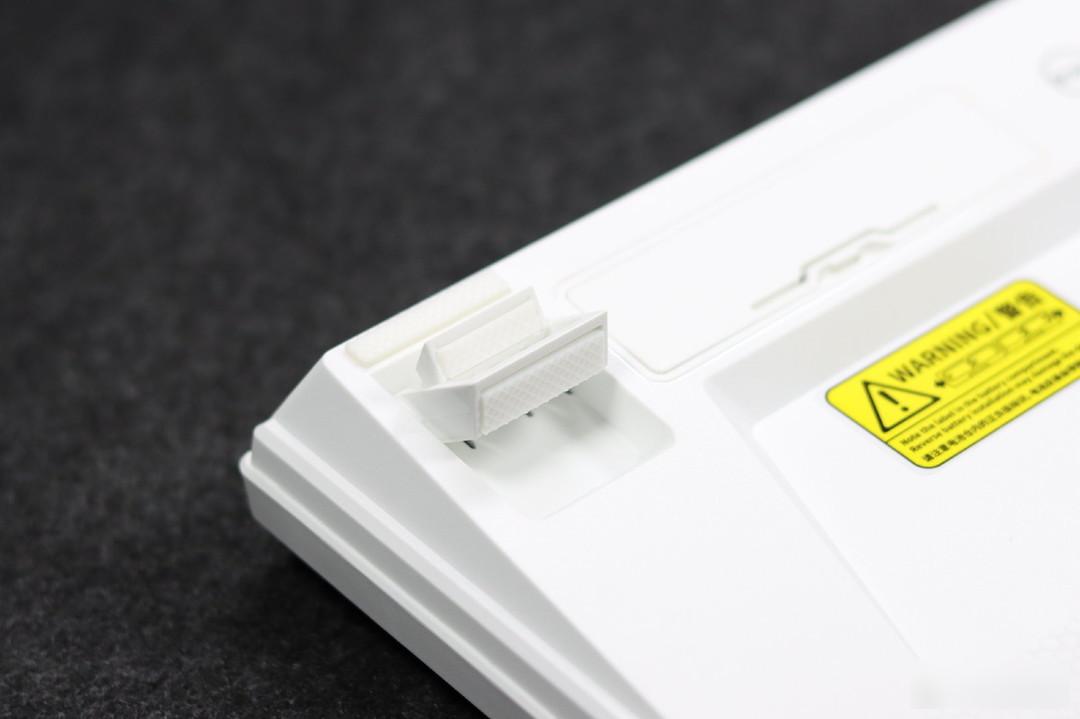

▲The keyboard is equipped with double-height non-slip feet, which can provide three different heights in total, and users can adjust it according to their usage habits and usage scenarios

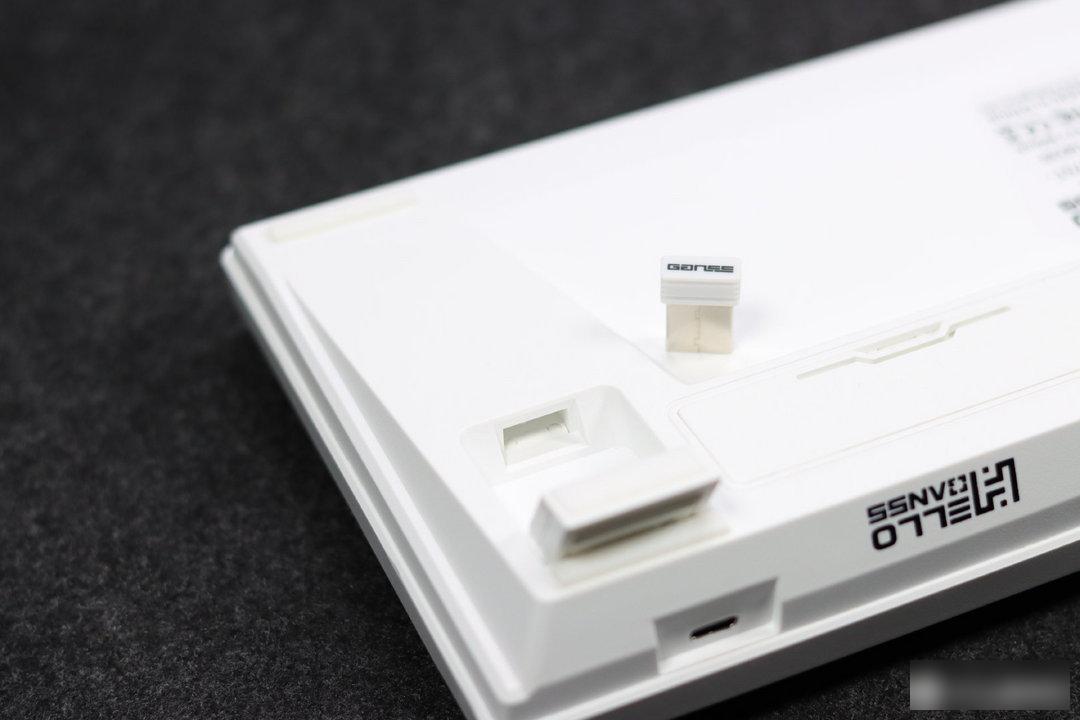

▲The hidden magnetic absorption storage compartment on the back can easily organize the 2.4G receiver

▲The keyboard is a wireless three-mode design. After plugging in the data cable and switching the switch to the wired mode, the keyboard can be used normally. When the switch is switched to 2.4G wireless mode, plug the 2.4G receiver into the PC device and the keyboard can be used normally. In bluetooth mode, the keyboard can connect up to 5 bluetooth devices, you can use FN+Q / W / E / R / T key combination to switch between different devices

▲The keyboard adopts Typc-C data interface, which is easy to plug and unplug and has a wide range of applications

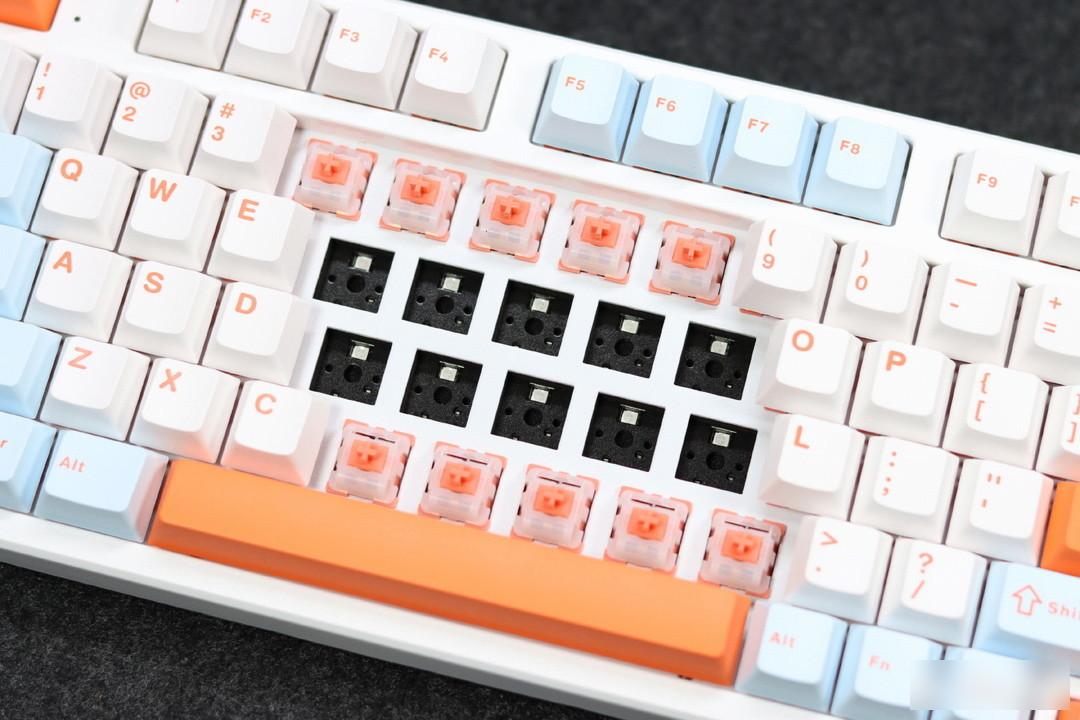

▲The keyboard supports hot-swapping of the full-key switch body. The upper light position is used to flip the switch body. It supports triangular switches and pentapod switches. The brightness of the RGB backlight can be adjusted up and down by FN+direction keys. Sandwich sound-absorbing cotton, under-shaft pad and bottom sound-absorbing cotton are added inside the keyboard, and the overall sound is cleaner and duller during use.

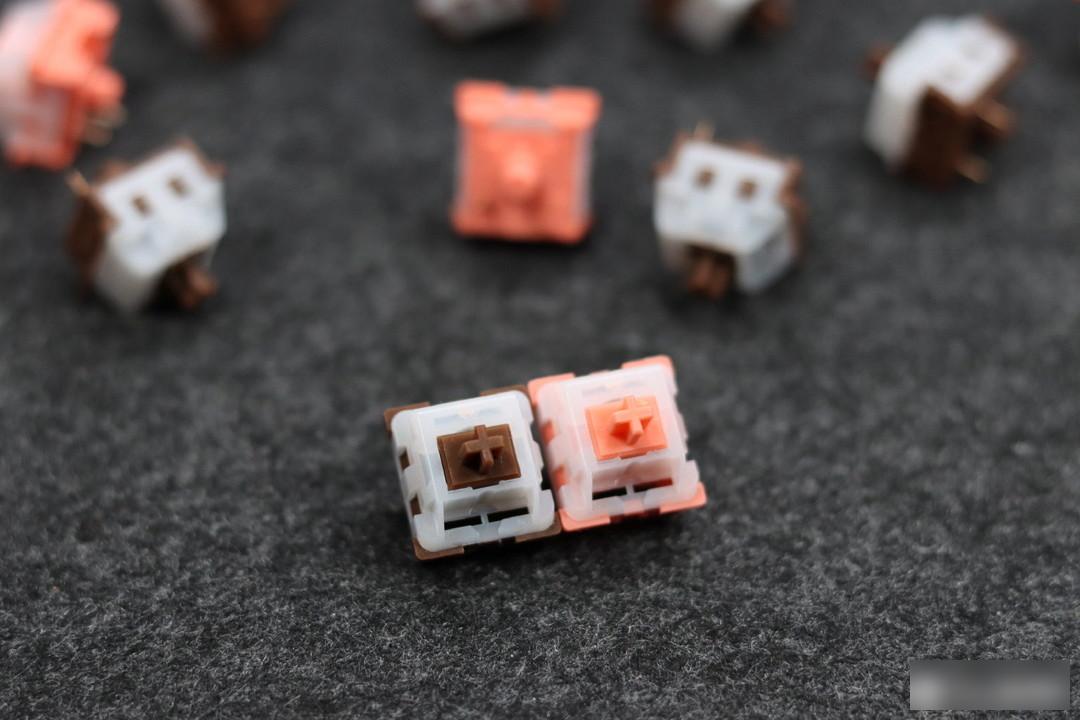

▲The axis of the KU series is the UP master of station B: Ni Prison. The customized model, the foundry KTT, in order to prevent the stroke stickiness caused by excessive machine lubrication, manual finishing is used to ensure the consistency of the hand feeling when leaving the factory. The fog-through shaft cover can ensure the projection effect of the RGB backlight. The main feature of these two switches is that the sound is "HIFI" while ensuring the feel.

▲The KU section shaft adopts dark brown shaft center and shaft seat, and the LOGO of the foundry "KTT" is printed on the shaft cover made of foggy PC material

▲The KU section shaft is made of POM material with an extended shaft center design. The hand feeling of the large paragraph is made in advance. You can see the traces of manual lubrication. The grease is applied evenly and appropriately. 0.5mm

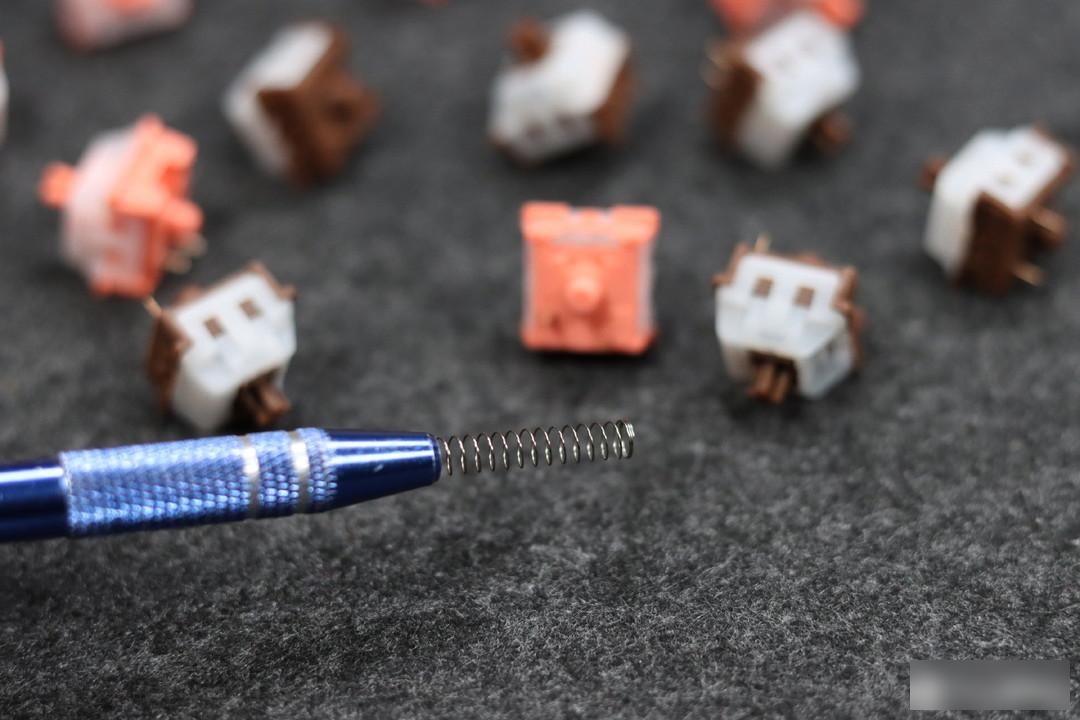

▲The 22mm extended single-stage spring rebounds quickly, the trigger pressure is 36g, and the stage pressure is 55g

▲The dark brown shaft seat is made of PA66 nylon material, and the gold-plated shrapnel and contacts have a certain life expectancy

▲The KU center shaft adopts the pink shaft center and shaft seat design, and the "KTT" brand LOGO is also printed on the PC shaft cover

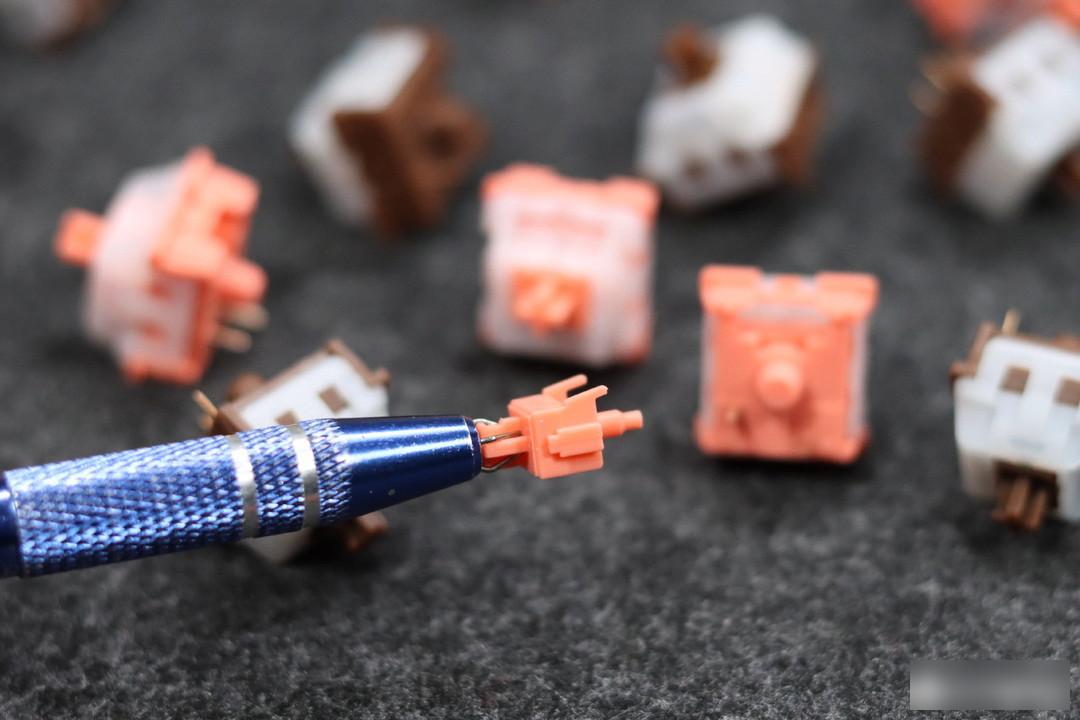

▲The central axis of the KU is a linear axis, with a 13.5mm extended axis. It is manually lubricated at the factory. The trigger stroke is 1.8mm and the bottom stroke is 3.5mm. It feels solid and compact, and the sound is concentrated and not loose

▲The 22mm extended spring has a neat stroke and a quick rebound. The trigger pressure is 45g and the bottoming pressure is 48g.

▲The pink shaft seat is also made of PA66 nylon material, and the shrapnel and contacts are gold-plated to improve the service life of the shaft body

75% is the popular key layout style in 2022. The design of F-zone keys and arrow keys is retained to adapt to more usage scenarios and people. HS75T is equipped with "mass-produced and fully equipped" hardware configurations such as: three-mode wireless , hot-swappable, RGB, sound-absorbing cotton, etc. are more in line with the current players' requirements for mass-produced keyboards. Compared with ABS material, PBT keycaps are anti-oil and wear-resistant, and their service life is greatly improved. As a part that is in contact with fingers for a long time, there is no need to worry about oil and wear; the addition of KU two shafts makes the keyboard feel and "sound". Further improvement, manual fine lubrication at the factory is easier to control than machine lubrication, and the amount of grease applied will not appear too much or too little, making the lubrication more comprehensive. If there are players who are looking for a cost-effective 75% keyboard in the near future, you may wish to pay attention~
