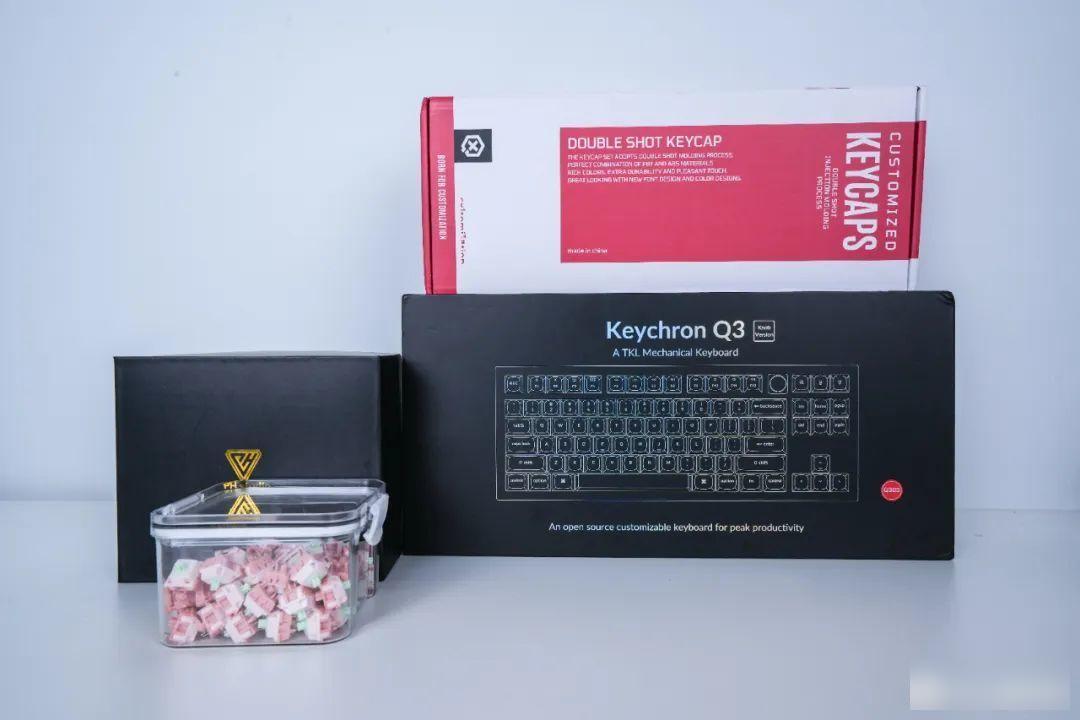

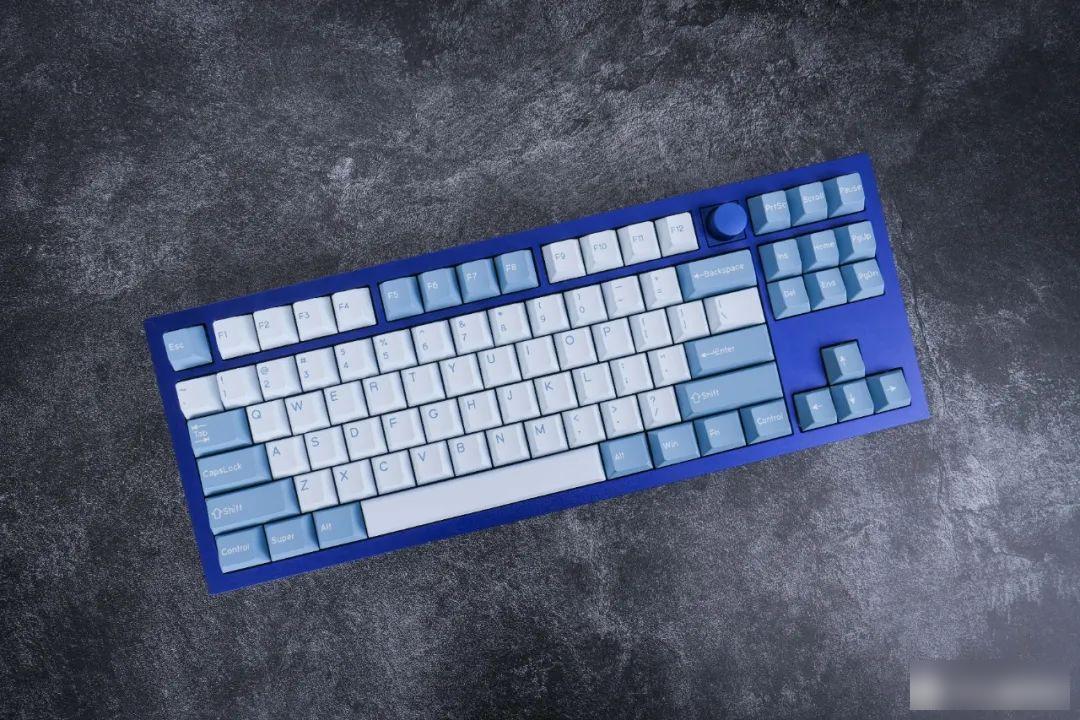

The kit shared today is Keychron Q3B3 blue all-metal 80%, TKL layout customized mechanical keyboard (knob volume adjustment version), the shaft assembled with this kit is Aniya (Arnia), and the keycap is Smile OEM whistle.

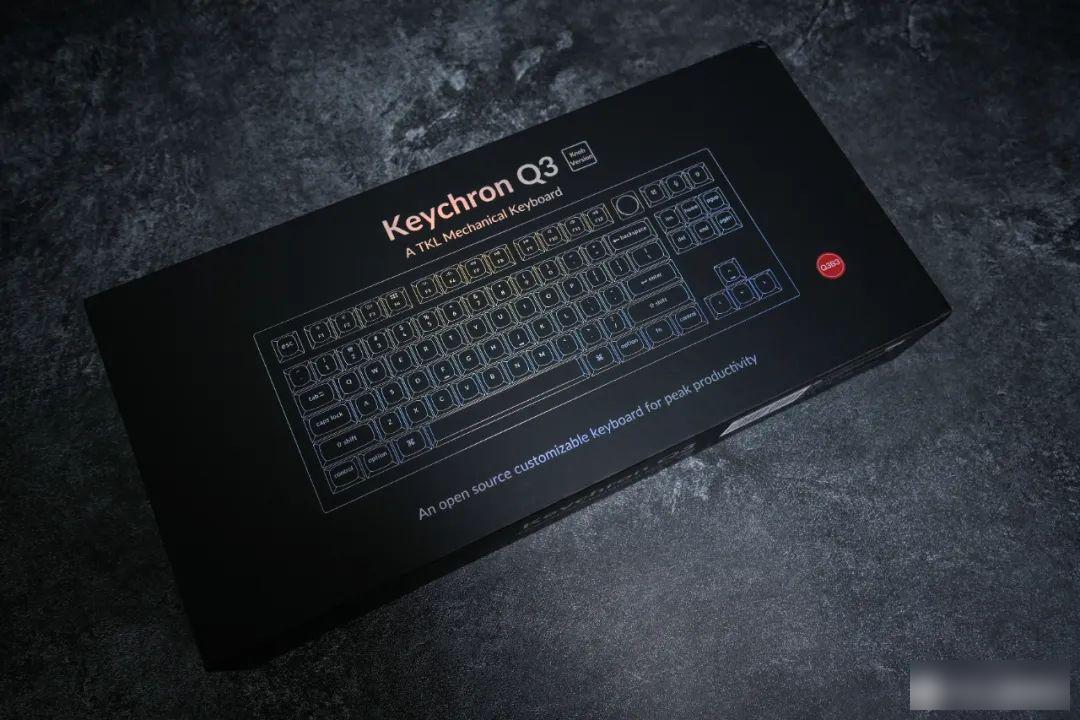

▲Keychron Q3B3 kit package is printed with brand, model, keyboard layout and other information on the front, black background and white characters, with color polarized light

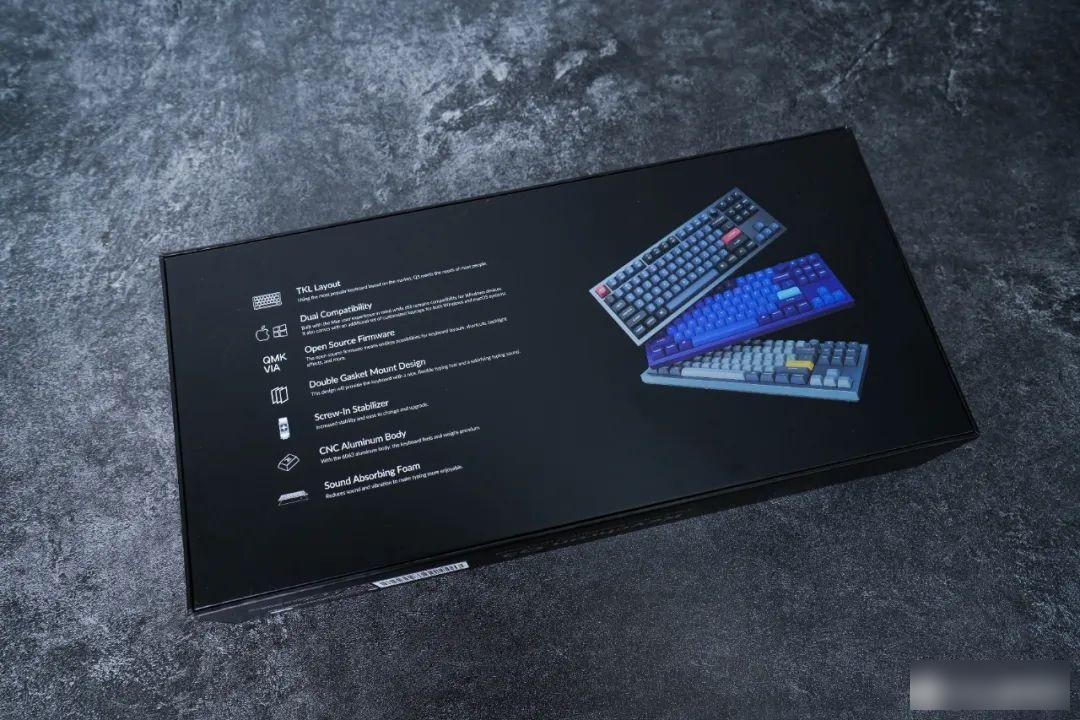

▲The selling points of the product are marked on the left side of the back of the package, and the picture on the right shows three completely assembled versions of Keychron Q3 keyboards in different colors, which is convenient for users to quickly understand the product.

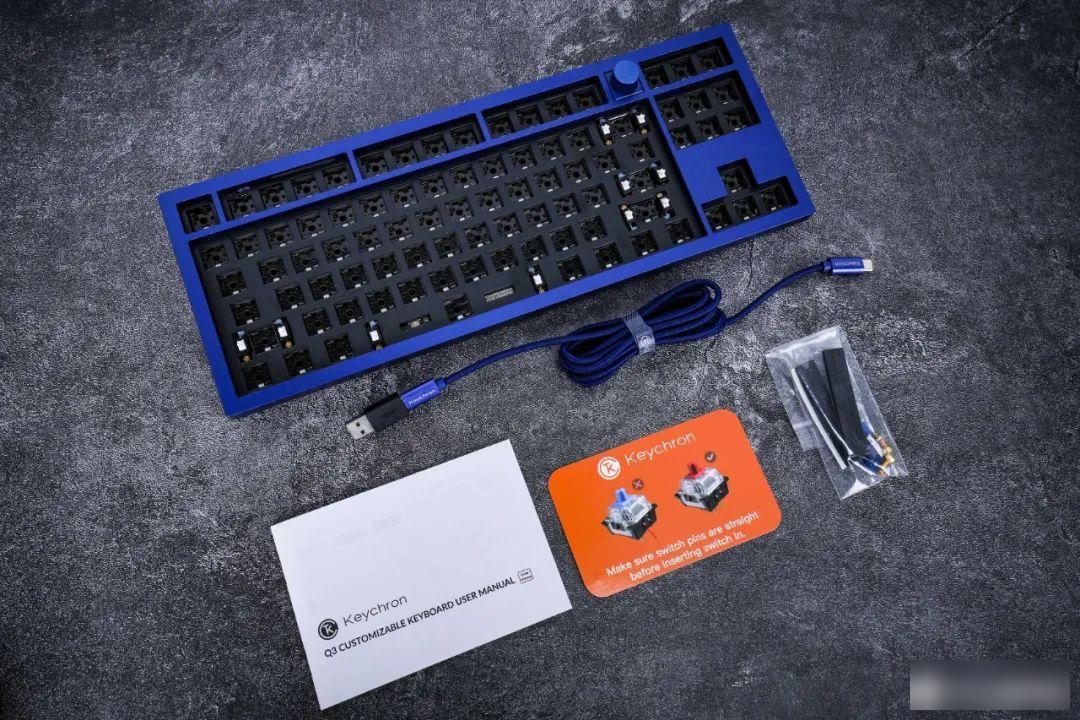

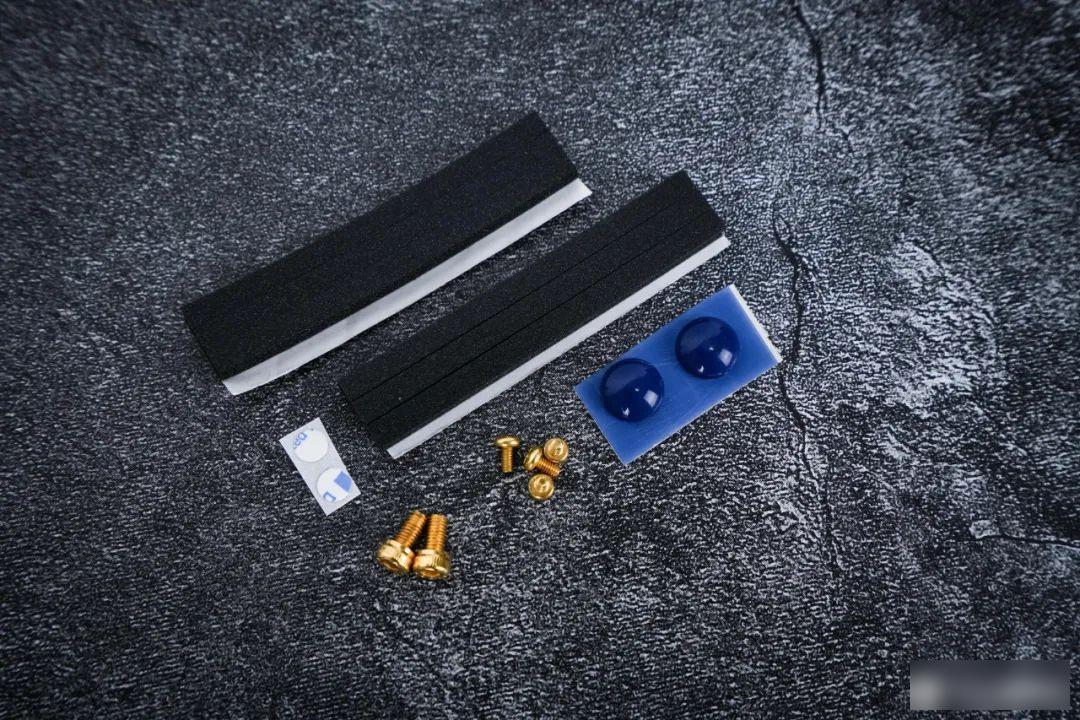

▲Q3B3 kit accessories include: user manual*1, shaft inserting reminder card*1, instruction card*1, Type-C data cable*1, Type-A adapter*1, shaft puller*1, key puller* 1. Phillips screwdriver*1, inner hexagonal screwdriver*1; spare shell screws*2, spare screws inside the kit*4, buffer pads*6, foot pads that can be pasted*2

▲套件尺寸：365.1x137x19.7mm，重量：2000g+20g。采用TKL 87键设计，靠右上方设有音量调节旋钮，gasket结构，兼容Mac/Win系统，支持Type-C有线单模，支持QMK&VIA开源改键

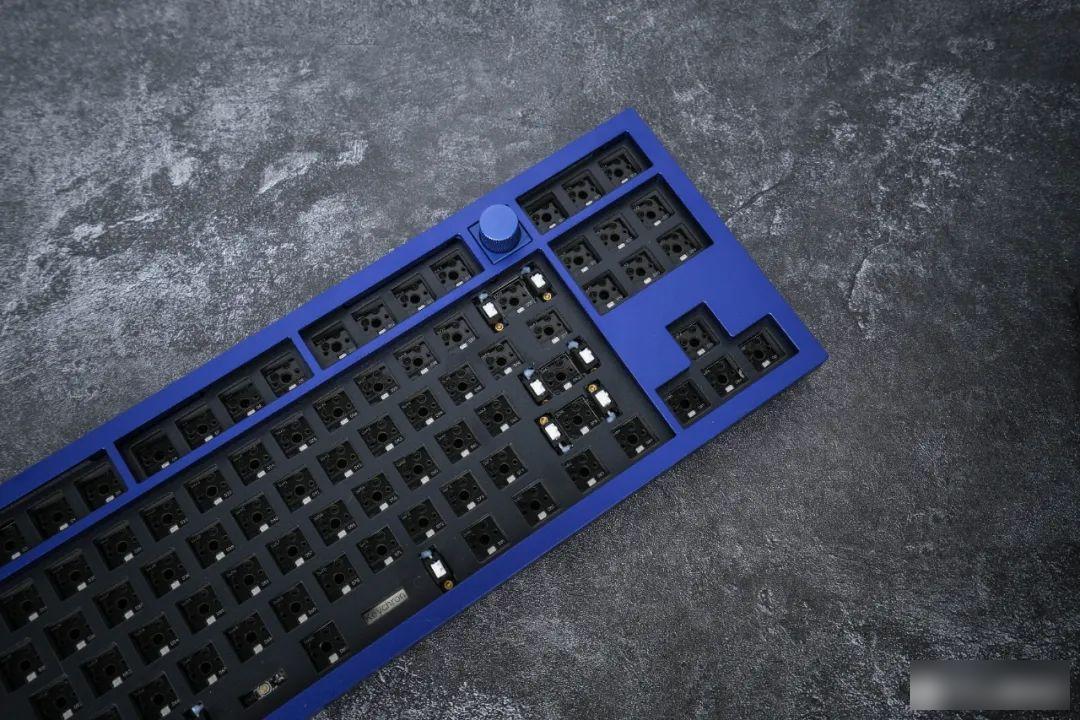

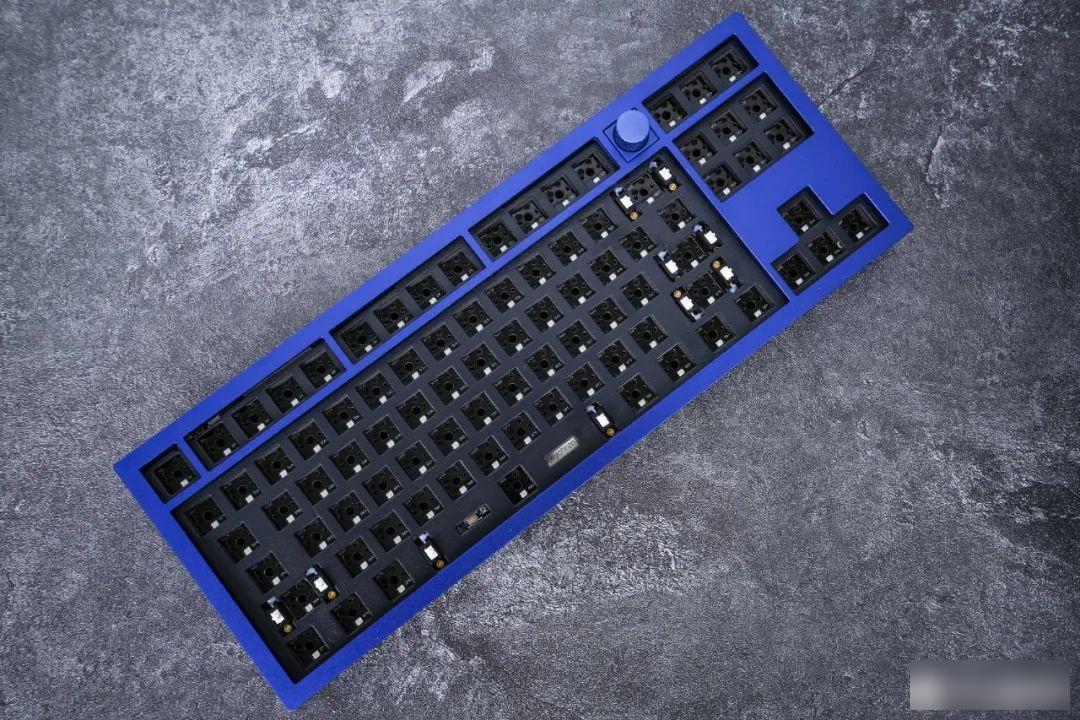

▲The body of the Keychron Q3B3 kit is made of 6063 all-aluminum, with CNC integrated engraving technology, the body is stable and heavy, and the metal texture presented is relatively delicate. No matter the front or back of the overall body, it highlights the sense of simple lines, and there is no redundant and complicated design.

▲The volume knob has a good damping feeling, and the design of the diamond pattern on the outside of the knob improves the texture and increases the adjustment feel.

▲键盘左上角的Mac/Windows系统切换拨片&Type-C接口

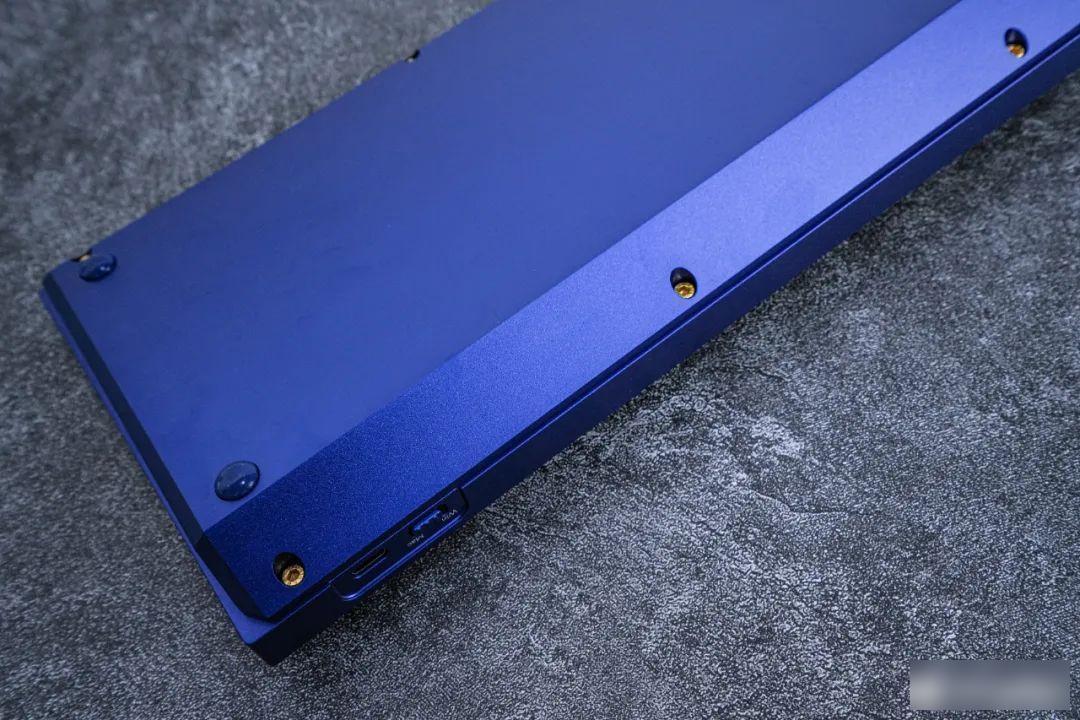

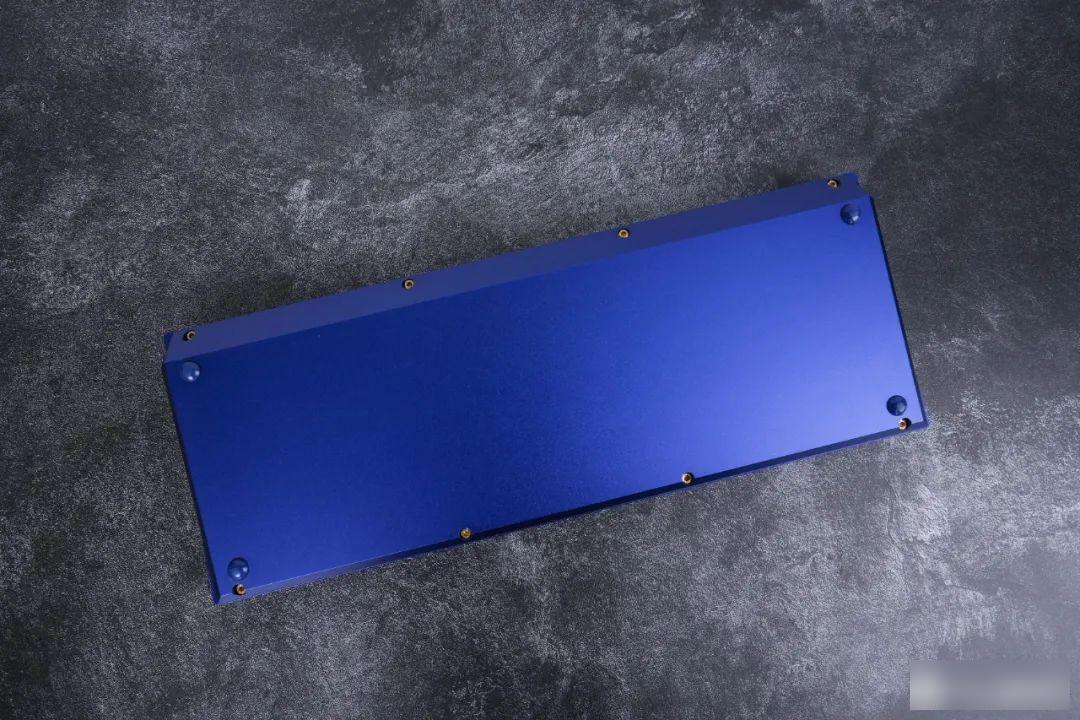

▲Four round non-slip foot stickers are installed by default on the back of the fuselage, and the foot stickers in the accessories can also be added by yourself

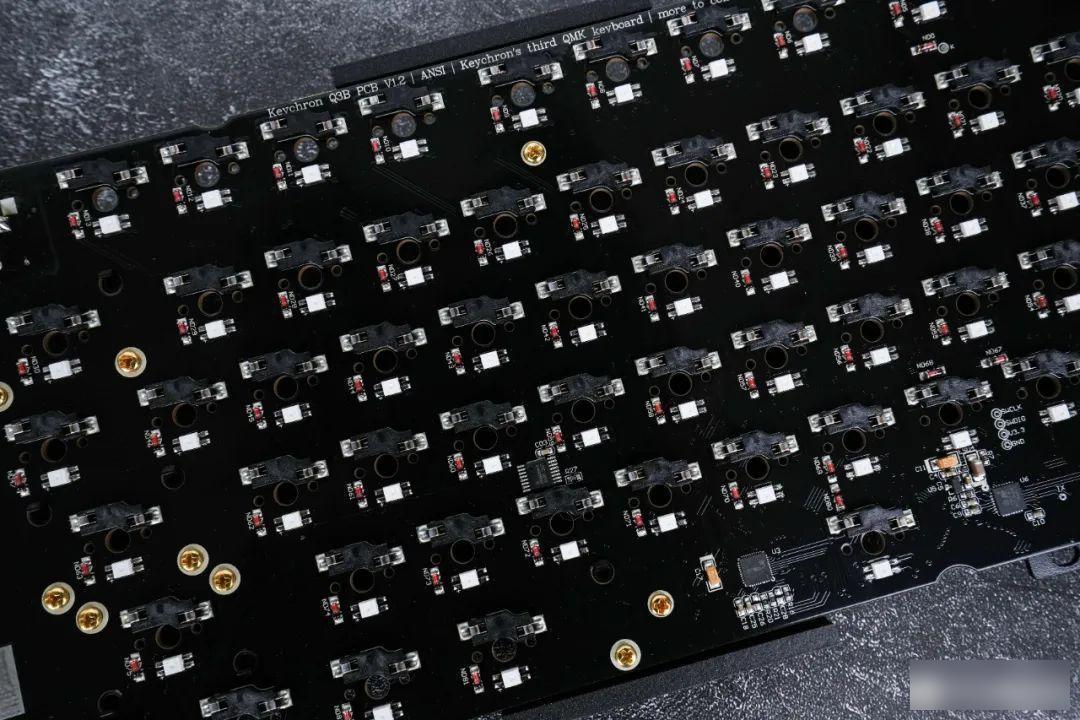

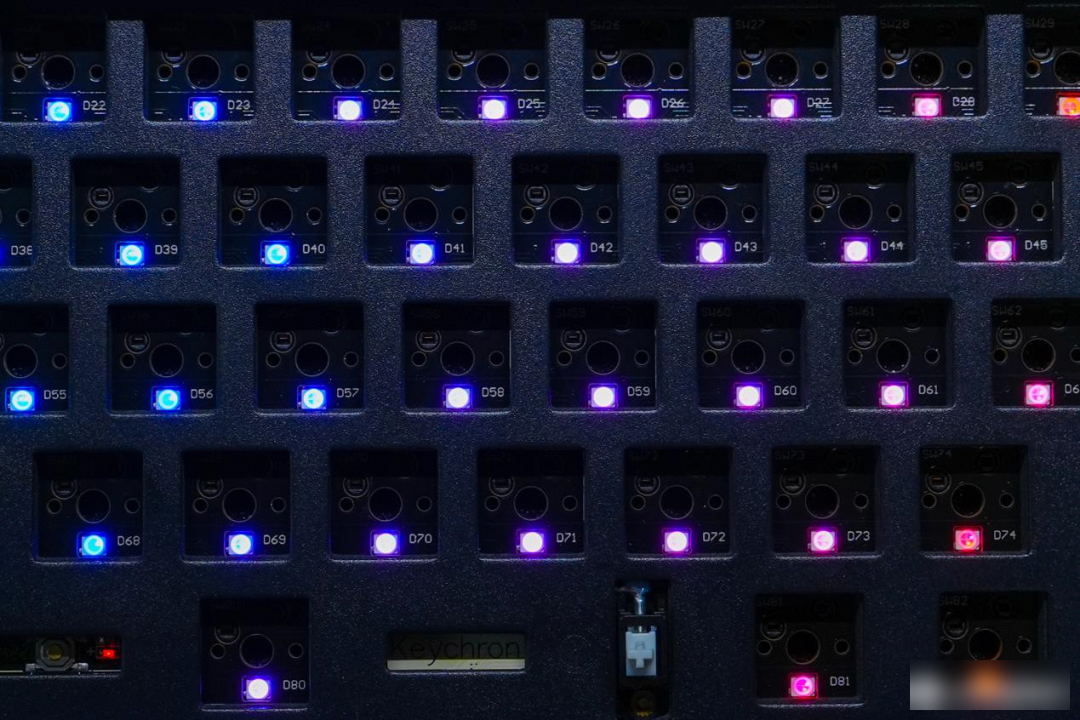

▲Built-in south-facing RGB SMD LED lights, with a total of 13 lighting effects

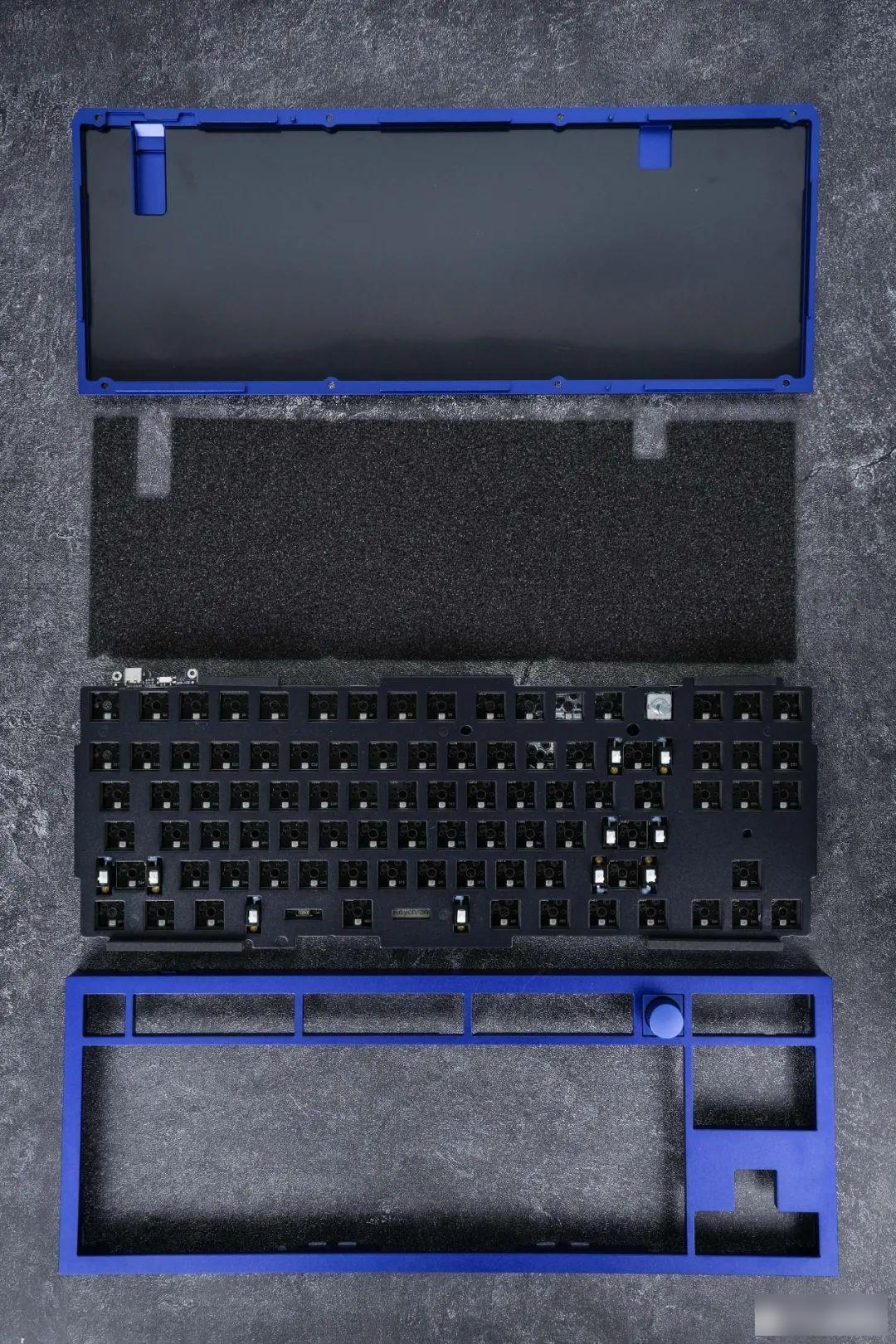

▲ Kit components: aluminum alloy bottom case; bottom noise reduction cotton; hot-swappable PCB, noise reduction cotton interlayer, iron positioning plate, Gaskets buffer gasket; aluminum alloy top case

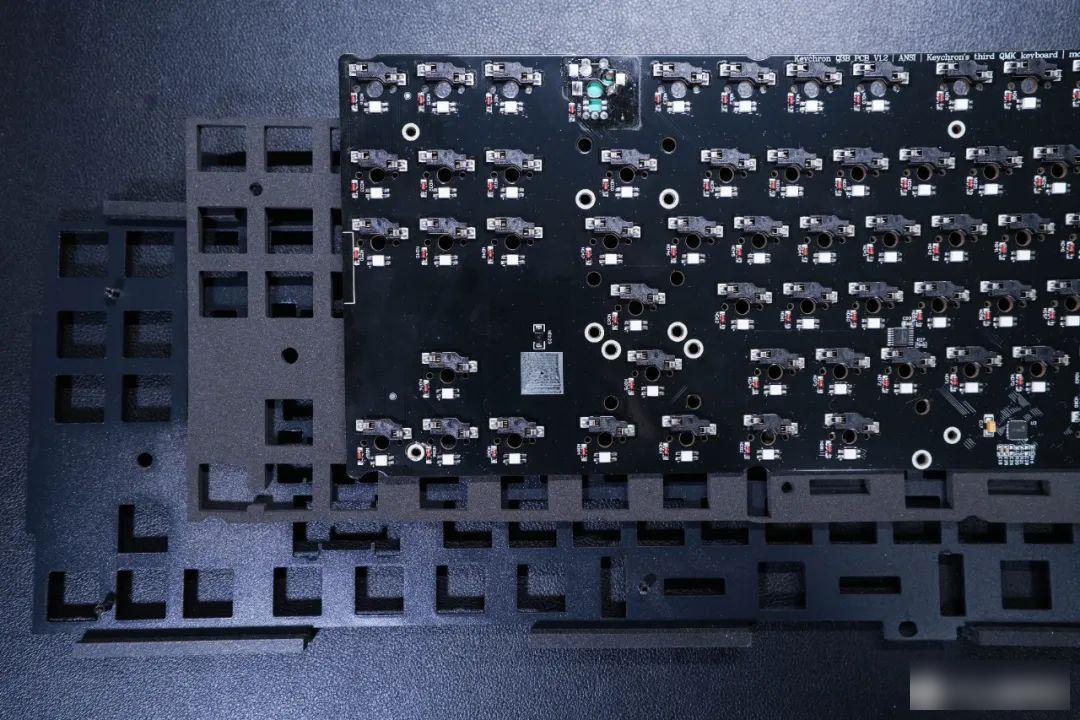

▲Iron positioning board, sandwich noise reduction foam, hot-swappable PCB

▲Using screw-in PBC satellite shaft, supporting 3-pin/5-pin shaft body

▲ Use Jiadalong shaft seat

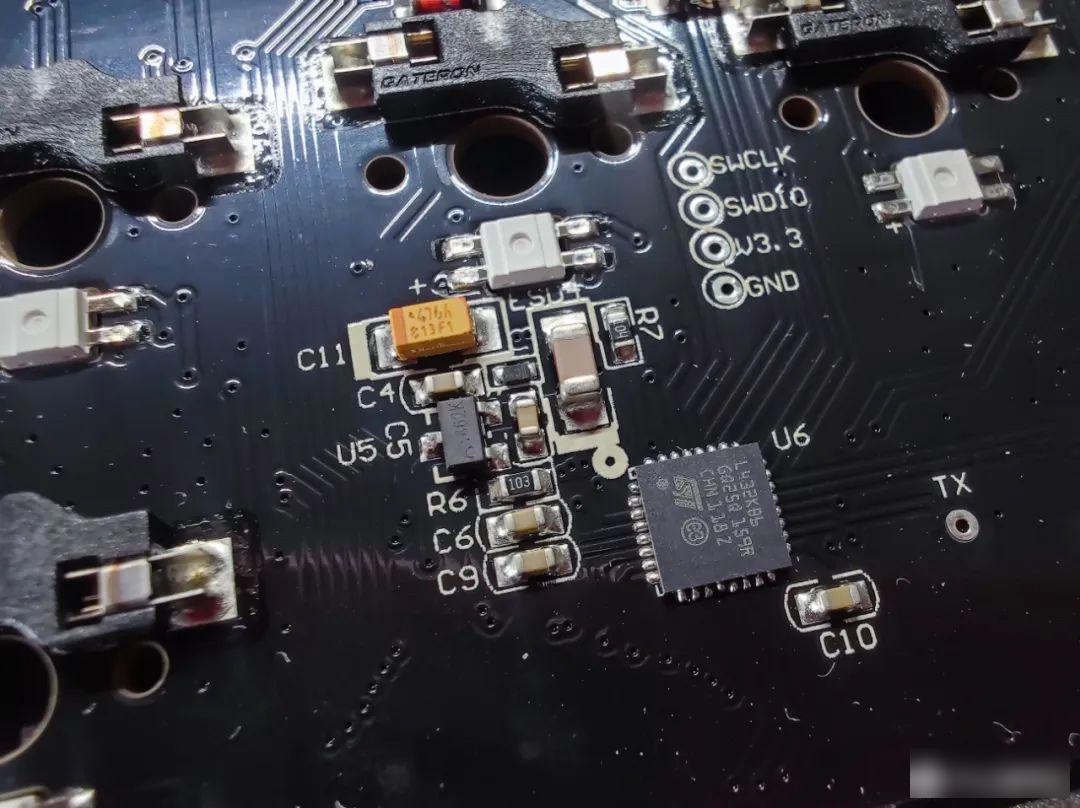

▲The physical map of the main control can be known as L432KB6

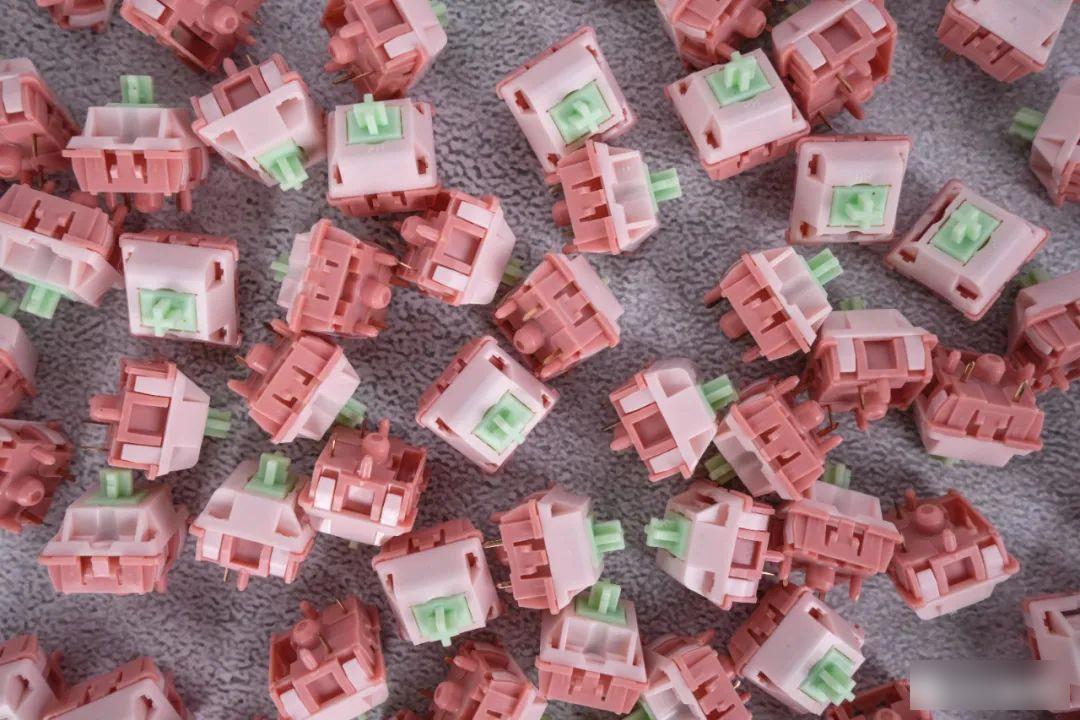

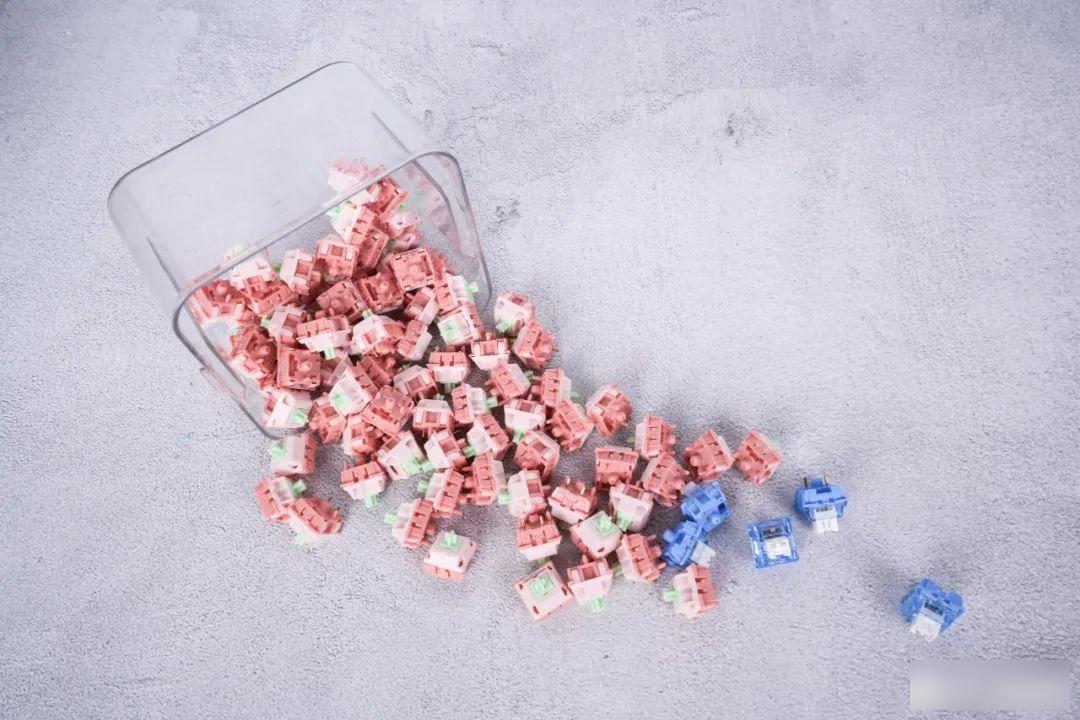

▲Aniya (Aniya) has 82 axes, linear pentagram axes, and the color matching refers to Aniya in "Spy Playing House". The pink axis seat, light pink axis cover, and light green axis respectively correspond to Aniya's hair color , skin color and eyes; trigger stroke 2.0mm total stroke 3.2mm trigger pressure 42g bottoming pressure 50g

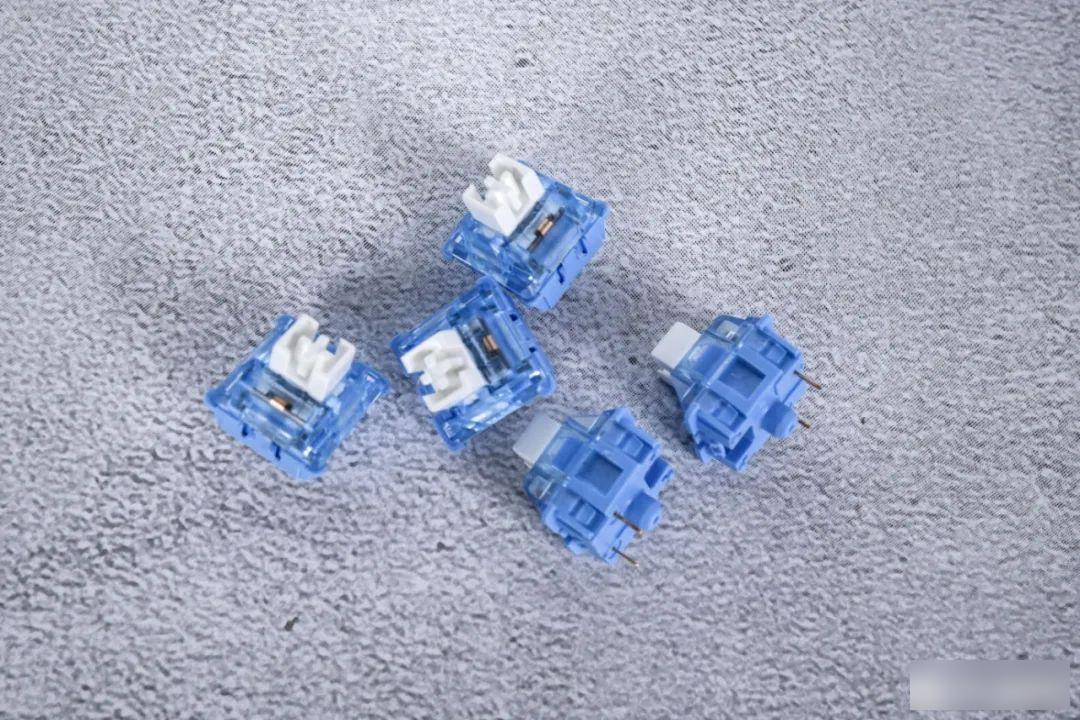

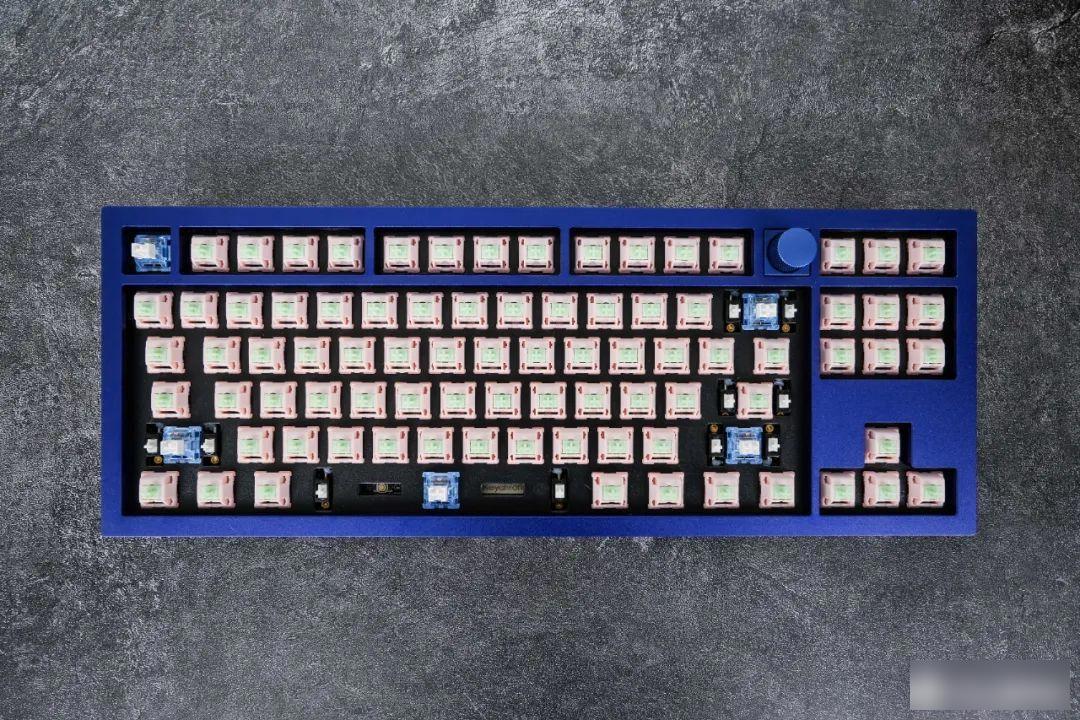

▲Dareu Sky V3 version 5 pieces, linear triangular shaft, blue shaft seat, blue transparent top cover, white shaft center, trigger stroke 2.0mm, total stroke 4.0mm, trigger pressure 40g, inserted in the common key position

▲The aluminum shell + iron positioning plate + gasket structure makes the sound of these two shafts a little harder than PC, FR4 and other positioning plates, with a slightly metallic sound, which is closer to my personal preference. If you mind Metal sounds can continue to be modified and add sound packs

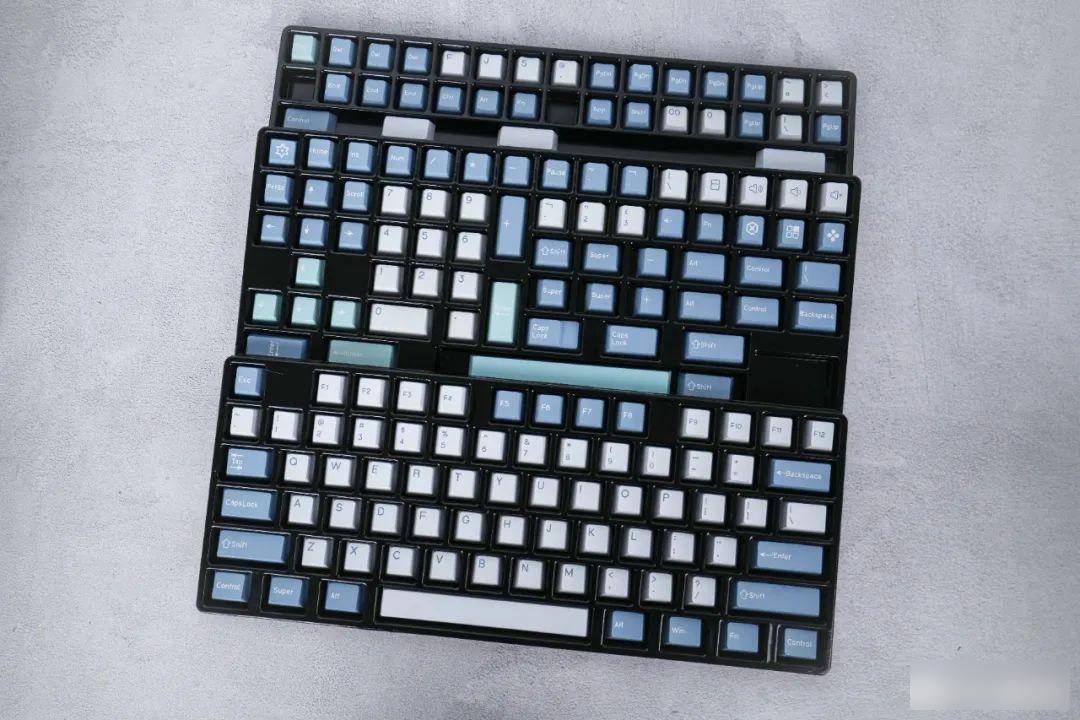

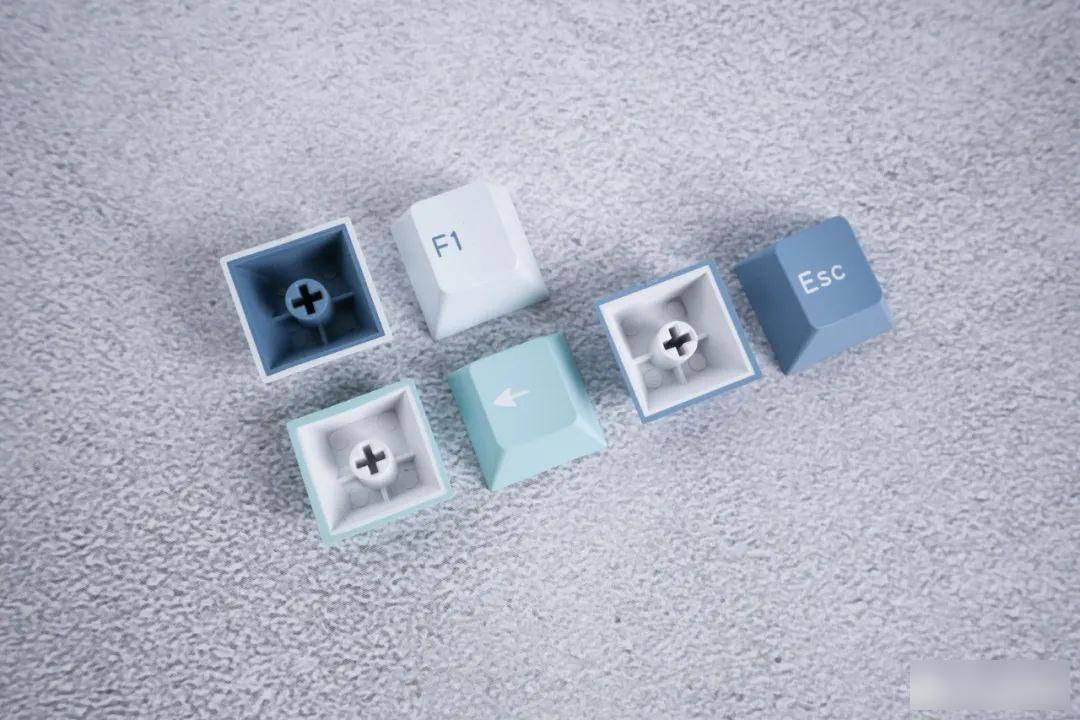

▲The keycap is a whistle manufactured by Smile

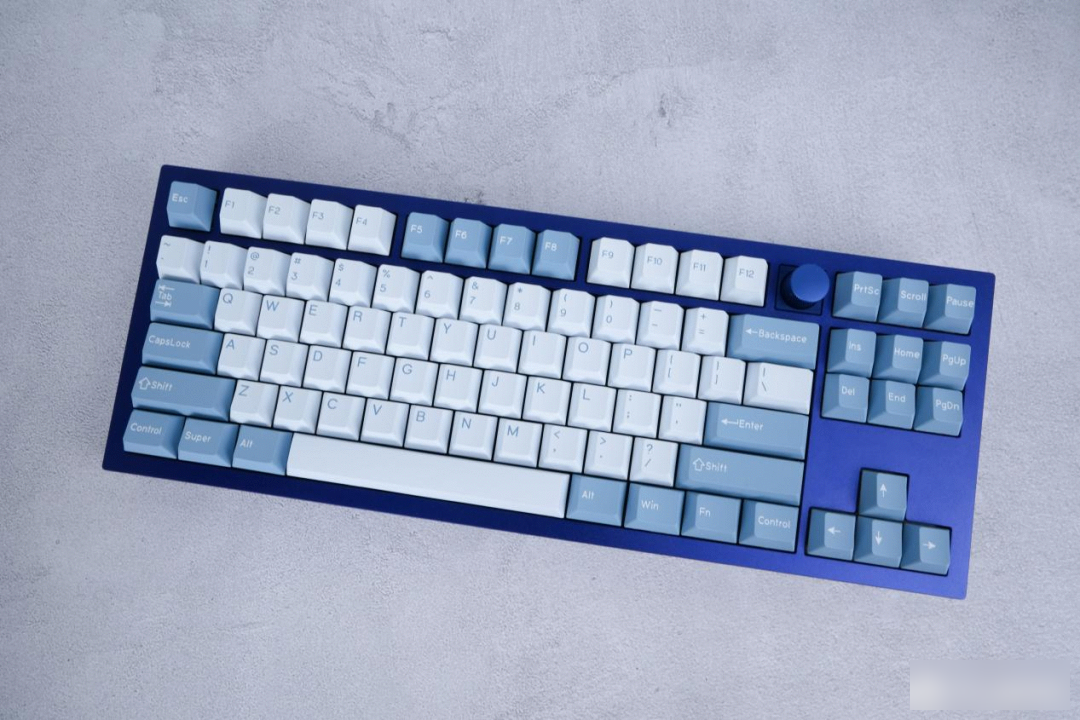

▲The color of this set of keycaps is more versatile, and the color matching is fresh and clean

▲The color matching of the three-color keycaps is comfortable, the saturation of blue and mint green is not high, and the seemingly white keycaps have also been slightly adjusted, slightly blue-gray, and the overall look is more attractive
