Peripherals Show Chapter 108: You can have both, games and office work, hands-on experience with the TTC Flame Snow Switch

Nowadays, among the mechanical switches, the cherry switches have long gone, and the domestic switches have risen one after another, and a hundred flowers are blooming, and a hundred schools of thought are contending. There are so many versions of the shaft body, it is inevitable that people will become more and more attractive, and many novices often find it difficult to choose. In fact, it is not difficult to figure out the axis body. Grasping the three elements of the mechanical axis, you can gradually understand which axis is suitable for you.

Generally speaking, there are three elements of a mechanical axis: feel, pressure, and stroke. The feel is divided into linear axis and segmental axis, such as red axis, linear axis body, straight up and down, no paragraph, green axis, segmental axis body, crisp sound and sense of rhythm powerful. If it is further subdivided, the paragraph axis also has a slight paragraph tea axis, an advanced paragraph axis that combines paragraph and linear axis, etc.; pressure is divided into light feel axis and heavy feel axis, such as the 37gf TTC gold powder axis, the feel The soft, 60cN cherry black switch feels heavy, and users are often referred to as the powerful diamond finger; the stroke is divided into short stroke and long stroke, such as the TTC fast silver switch with a trigger stroke of only 1.08mm, which can be activated quickly and quickly. One step, the cherry green switch that strengthens the feel of the paragraph, the trigger stroke reaches 2.2mm. After the three elements are clarified, you have to choose according to your use and preferences. For example, if you mainly play FPS shooting games, you can choose the TTC quick silver switch with fast trigger and linear feel, and so on.

With the popularity of e-sports games, the popularity of linear switches is getting higher and higher. A hot-selling mechanical keyboard often has linear switches that are often sold out. The short-stroke shaft brings the pleasure of extremely fast triggering to the game, but it is too fast for daily code words. Some people think it will be triggered by mistake, and some people think it will poke their fingertips. There are different opinions. Generally speaking, very few people prepare a keyboard with two types of switches for gaming and office work. Not to mention the high cost, it also takes up space. Can't have both fish and bear's paw? The answer is no. Recently, TTC has released two new linear axes: the flame purple axis and the flame snow axis. A compromise solution is adopted. The trigger pressure and stroke are between the two types of axes, taking into account both games and office work. Let me tell you Share these two new axes.

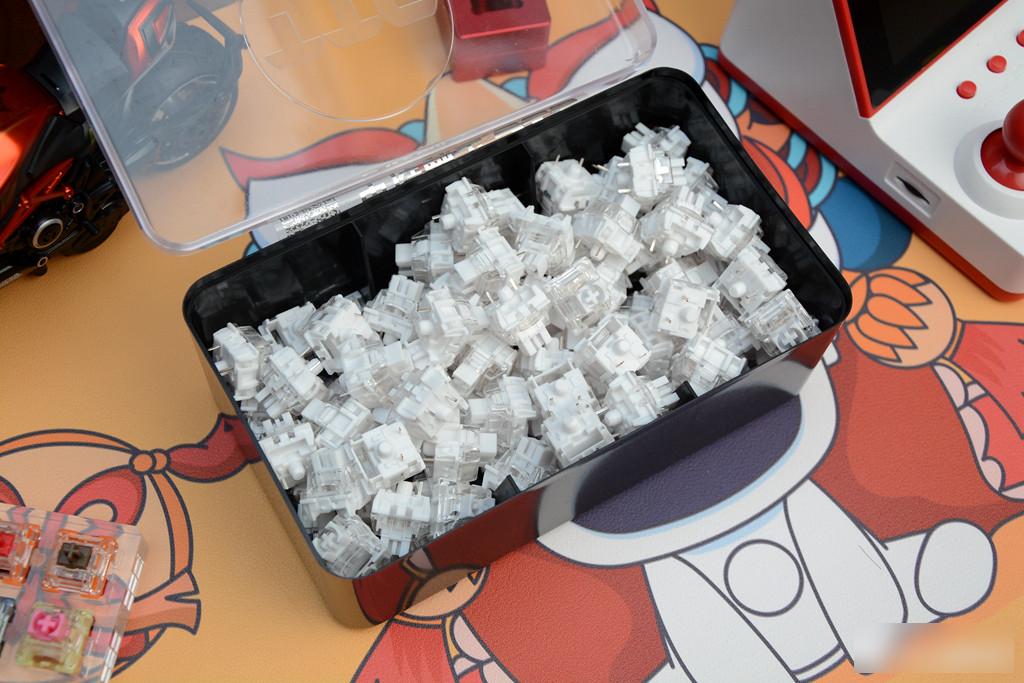

At present, two shafts have been sold in the official self-operated store of TTC Genuine Science and Technology. The price is the same as that of the TTC flagship axis currently on sale.

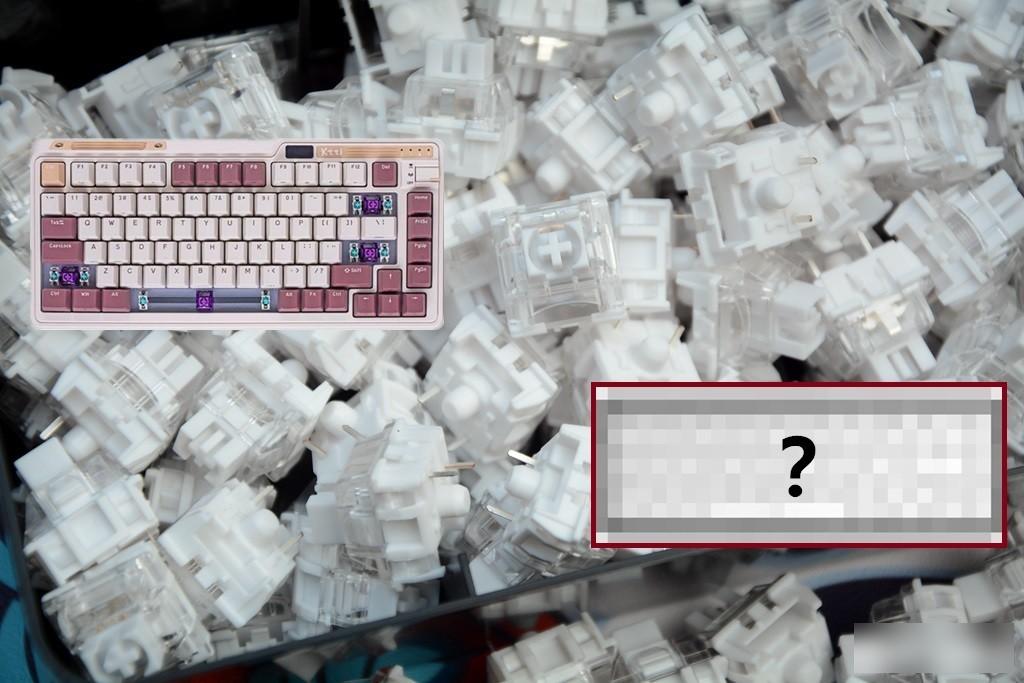

In terms of mass-produced keyboards, the TTC flame purple switch was launched on September 1st with Kezhi K75, and the TTC flame snow switch is expected to be launched on November 1st with Thor. Which one will it be?

TTC Flame Snow Switch and TTC Flame Purple Switch belong to the same style but different colors, the basic parameters are the same, but the color and light transmission are different. All adopt semi-open fence shaft core and tripod shaft.

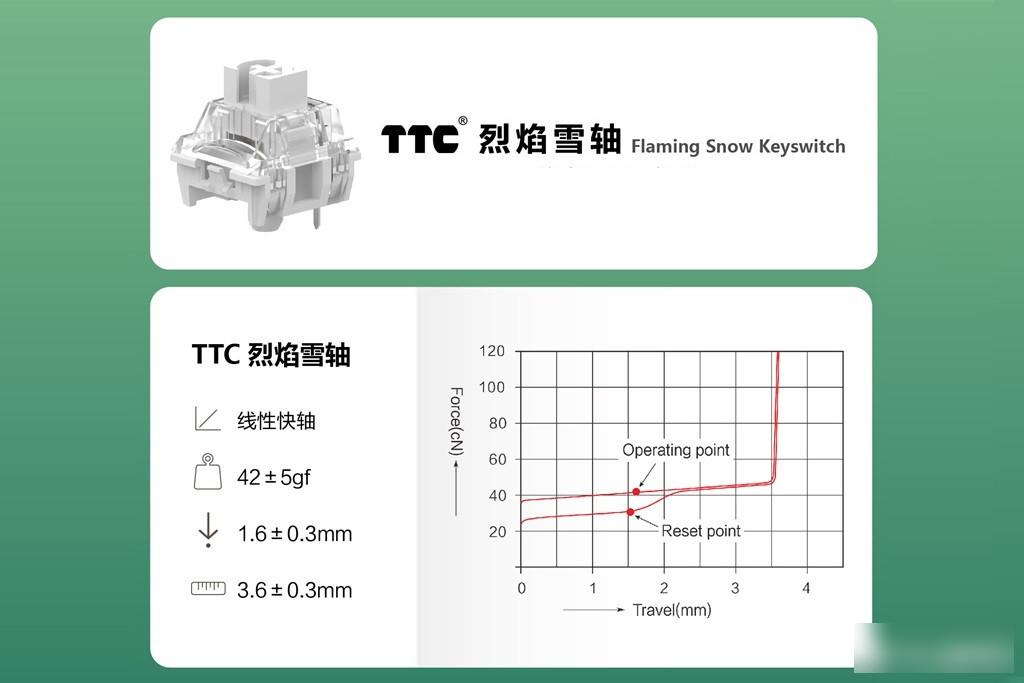

Basic parameters of the shaft body: linear shaft body, trigger pressure 42±5gf, trigger stroke 1.6±0.3mm, total stroke 3.6±0.3mm.

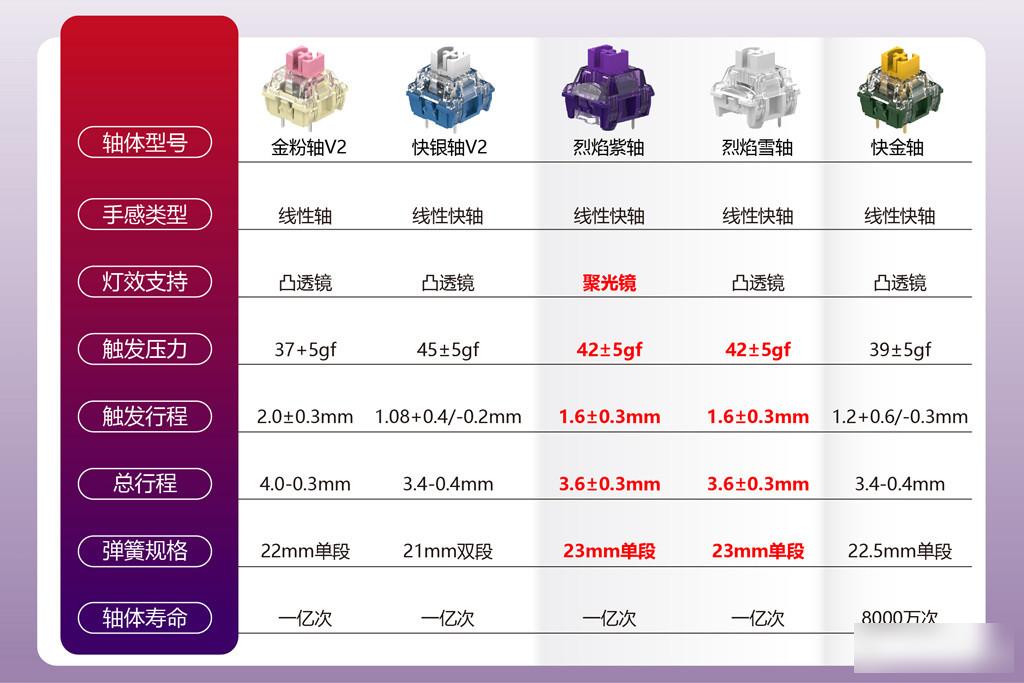

Compared with other TTC switches, the trigger pressure of the TTC flame snow switch and flame purple switch is 42±5gf, which is between the gold powder switch V2 and the fast silver switch V2, and the same is true for the trigger stroke and total stroke. The two switches adopt a compromise between fast and light, with a lighter feel and a shorter stroke, so as to take into account both gaming and office work.

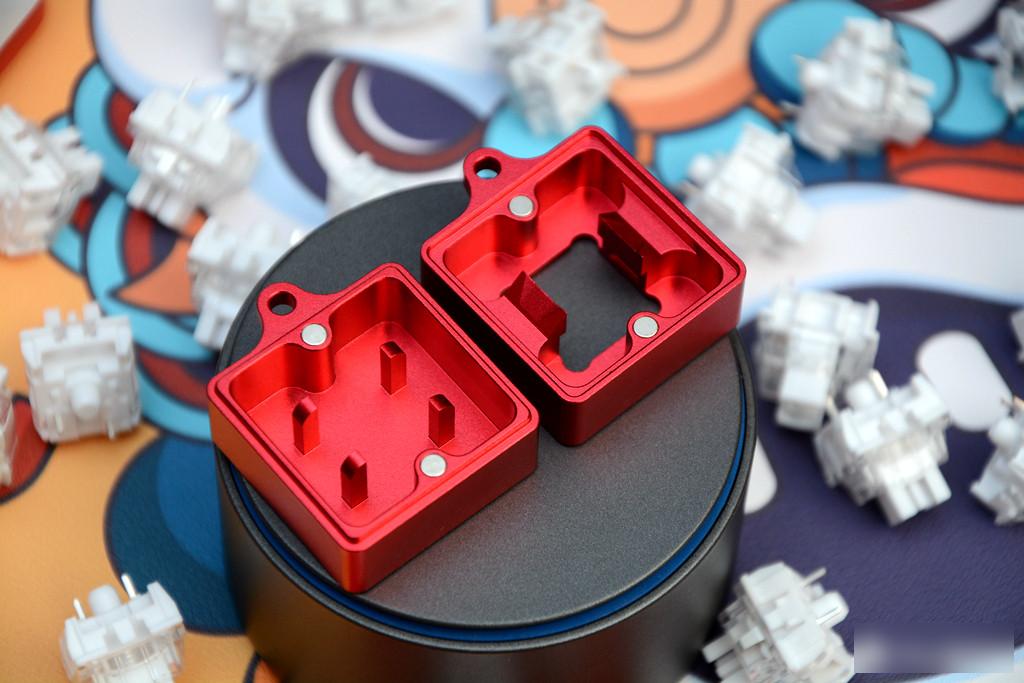

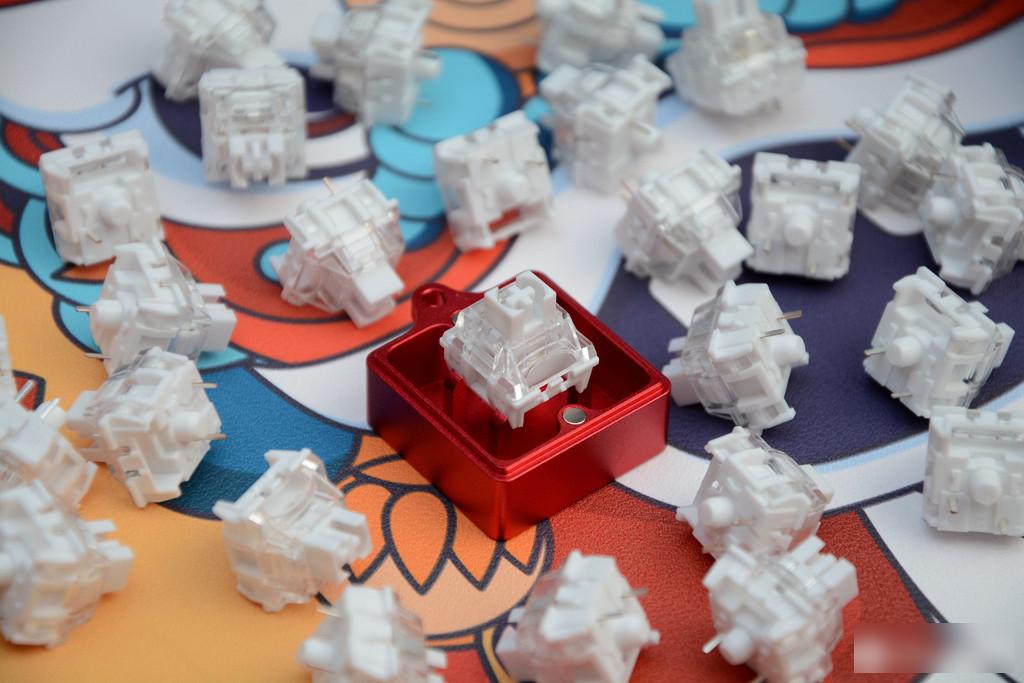

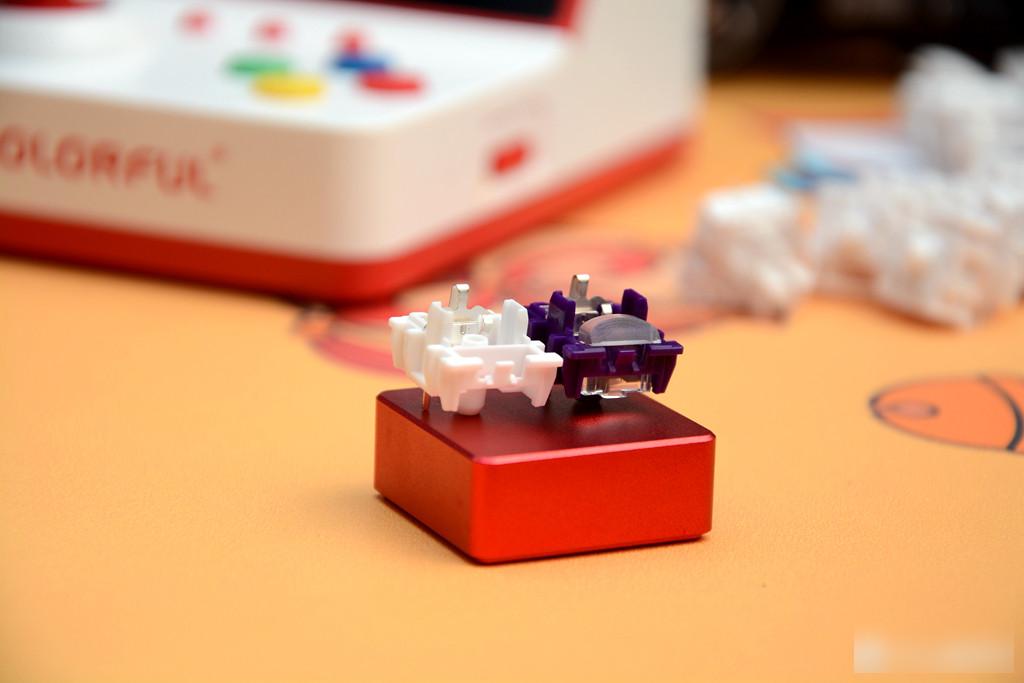

A shaft opener of one or two hundred is too expensive, and a small metal box worth more than ten yuan is also good. Two types of shafts can be opened, the magnetic suction design can also be used as a shaft tester.

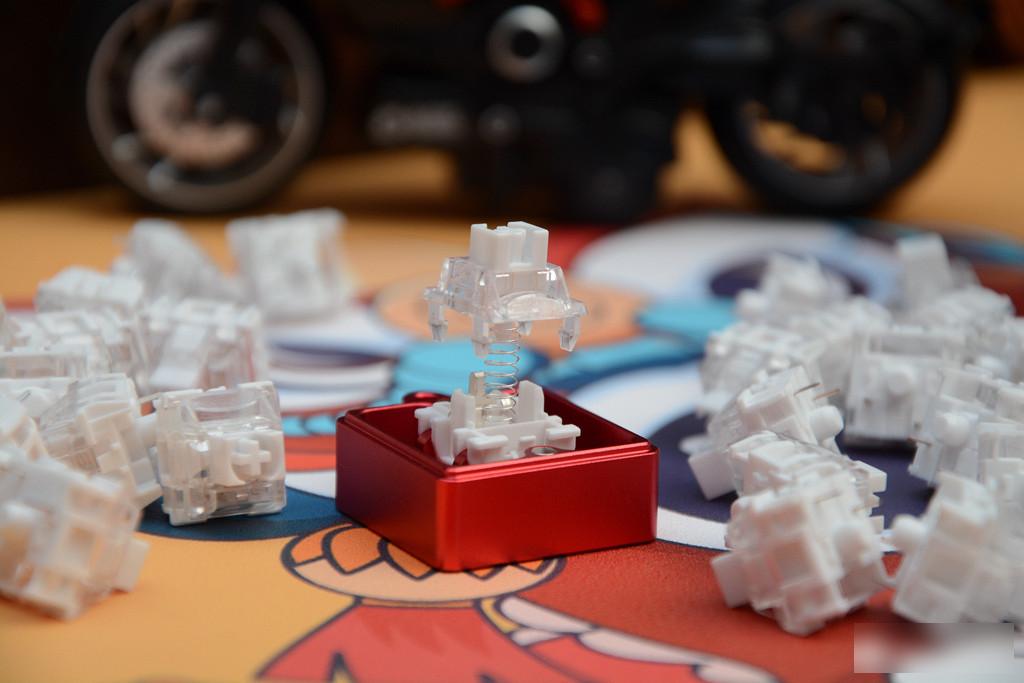

The TTC flame snow switch and flame purple switch belong to this kind of four-corner open cover switch body, and the switch body can be opened by pressing down after alignment.

The opening of the shaft cannot be a miracle. If you can't press it, you have to see if the four corners are aligned.

After mastering the skills, it is convenient to disassemble. For those who like to DIY shafts, this is a must-have skill. After all, hundreds of shafts need to be disassembled at once, and each one costs more than 3 yuan. It cannot be disassembled.

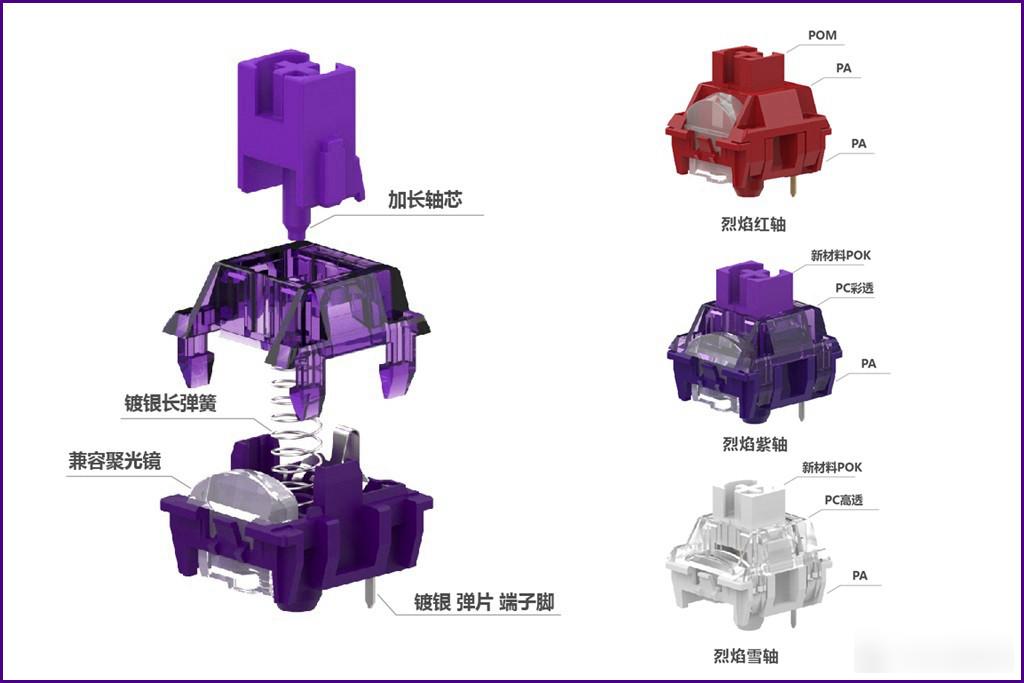

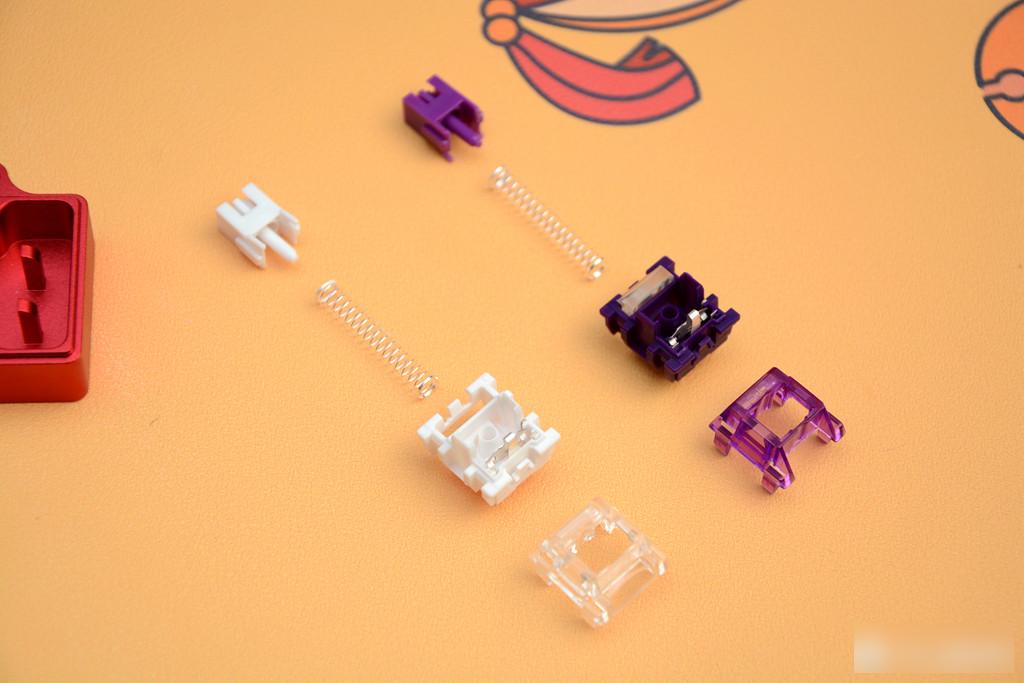

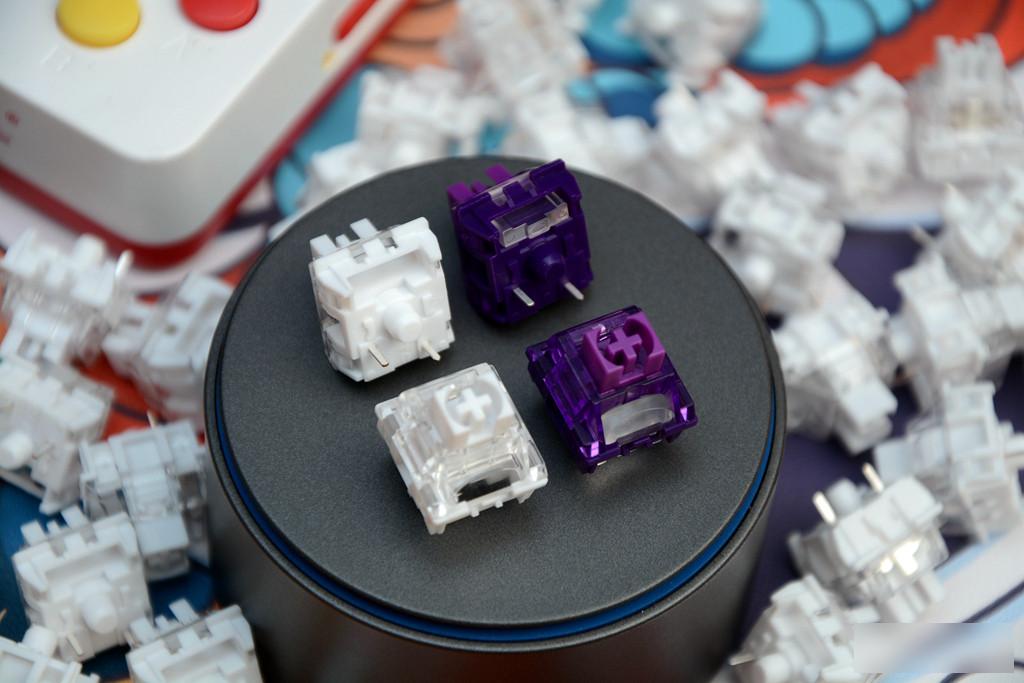

As mentioned earlier, the basic parameters of the two shafts are the same, but the color and light transmission are different. The TTC flame series currently has three models: red switch, purple switch, and snow switch. We only talk about the appearance. The bottom shells of the three switches are made of PA material, and the upper cover is made of PA material. The shaft adopts PC with high transparency, the shaft core, the flame red shaft adopts POM, the flame purple shaft and the flame snow shaft adopt new material POK.

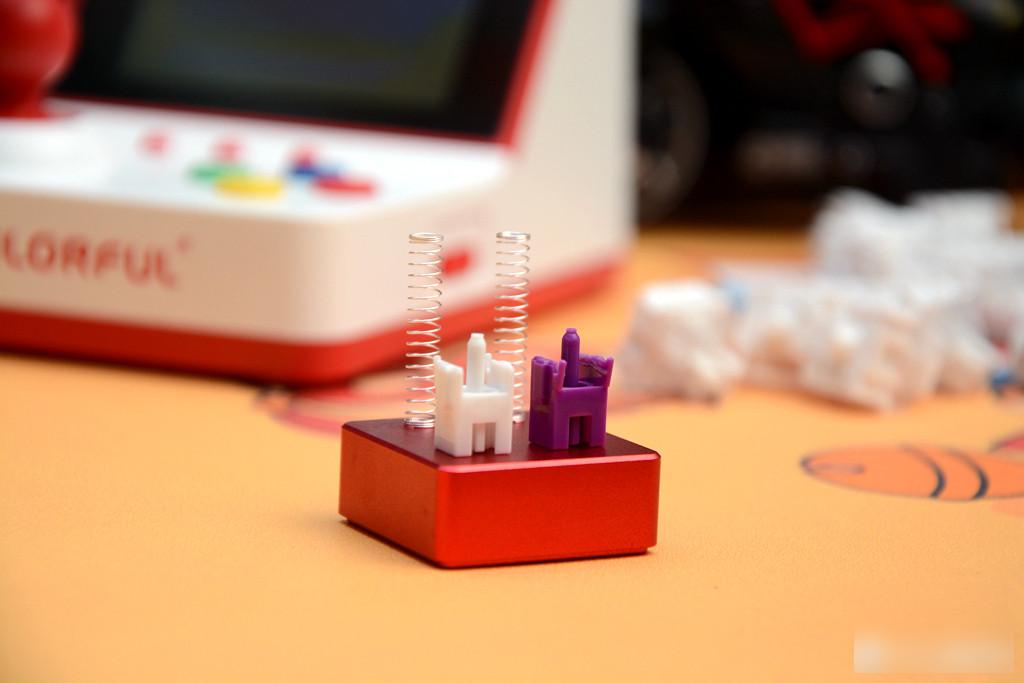

POK, full name Polyketone, chemical name polyketone, engineering plastics, has the characteristics of impact resistance, chemical resistance and wear resistance. POK has higher wear resistance than POM, and stronger impact strength than PA and PBT. The flame purple switch and the flame snow switch are designed with an extended shaft core, and the shaft core column touches the bottom for positioning, precise triggering, and a "da da" sound at the same time. The shaft core has been lubricated before leaving the factory, and a 23mm long spring is used at the same time, with balanced force and strong rebound.

The spring, shrapnel and terminal feet of the shaft body are all silver-plated to improve electrical conduction performance, and the metal terminal feet are anti-blackening, anti-oxidation and durable. At the same time, after silver plating, the color inside the shaft body will be more pure.

The TTC flame purple axis adopts the light-transmitting design of the condenser lens, and the flame snow axis adopts the light-transmitting design of the convex lens.

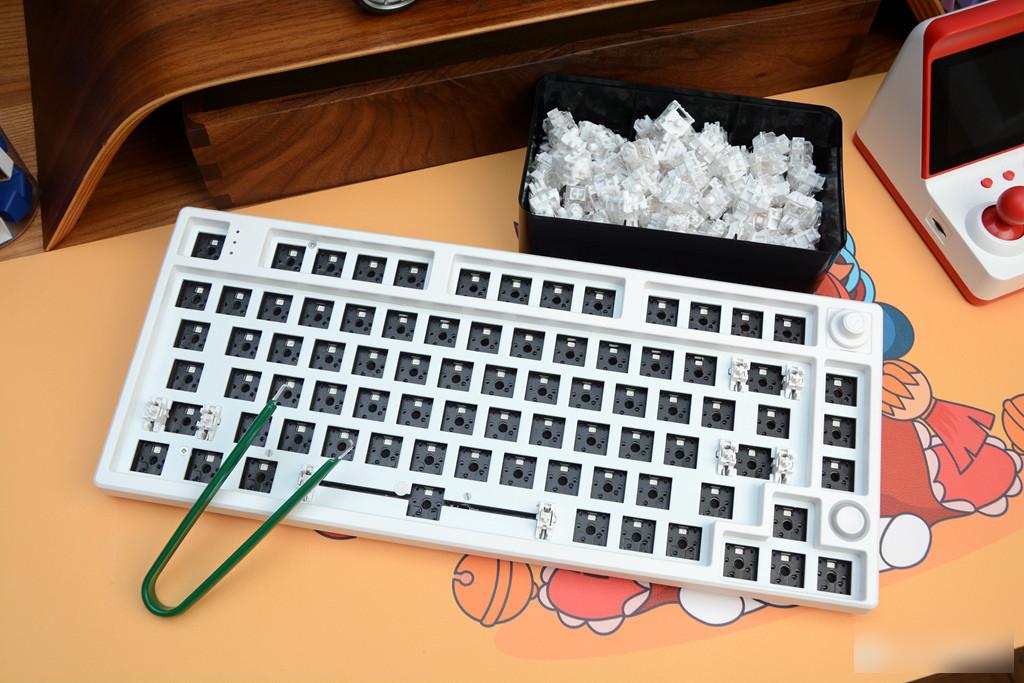

Pulling the shaft is a physical effort. The keyboard is the HELLO GANSS HS75T that I shared with you a few days ago. It has 80 keys, which can be tight or loose. This shaft puller is better than the keyboard, but the material is too stretchy. will deform.

After unplugging the shaft body, first look at the effect of the PCB lamp bead. In order to make way for hot plugging, PCB SMD lamp beads have become standard, and the brightness is naturally not as strong as the on-axis lamp beads. Therefore, it needs to be adjusted through the design of the light guide, light concentration, and light uniformity of the shaft body.

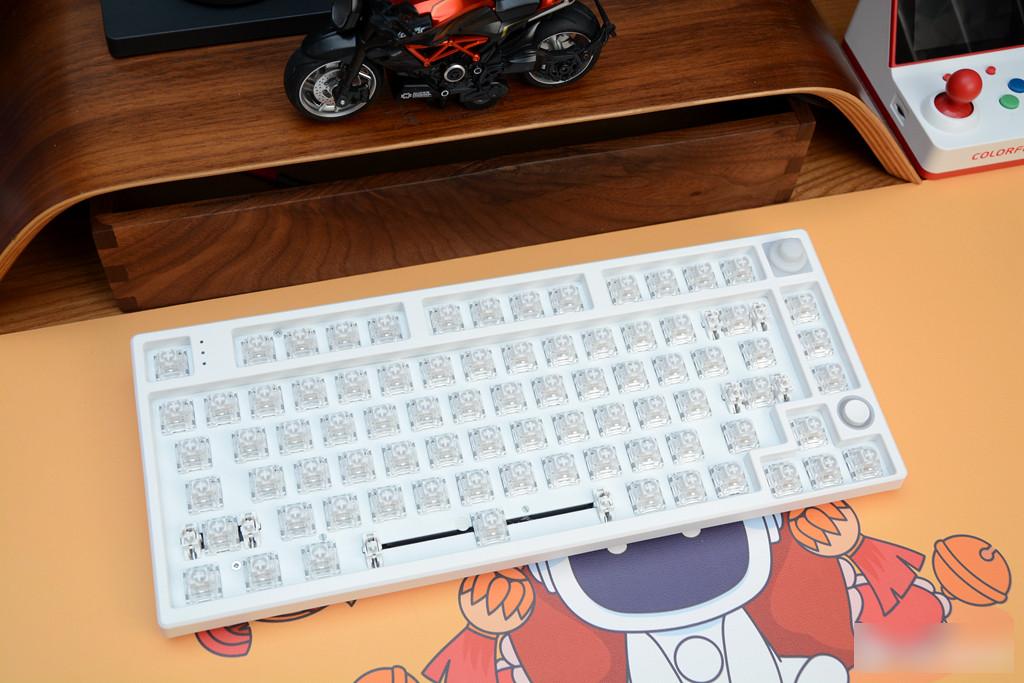

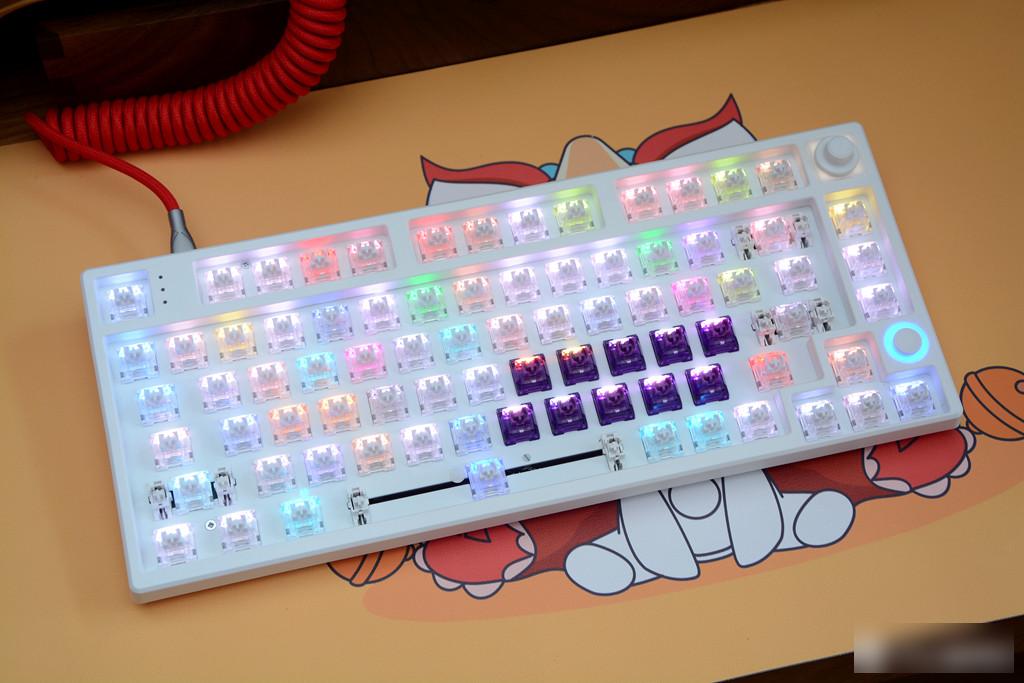

Install the two switches at the same time. Obviously, for white and light-colored keyboards, the flame snow switch is more suitable, and the flame purple switch can be used on darker keyboards.

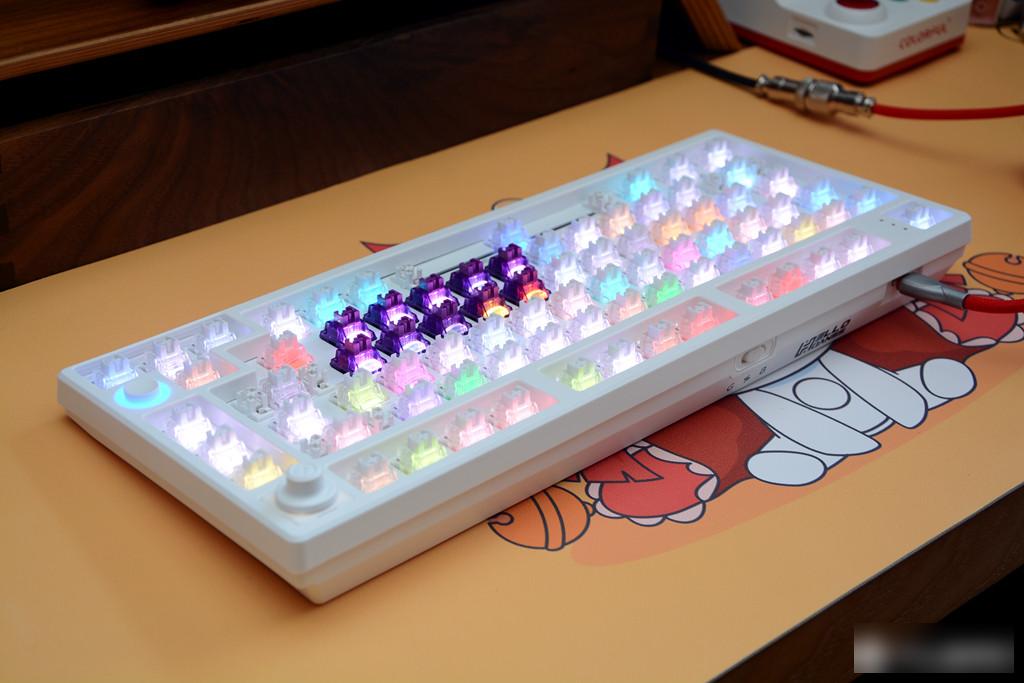

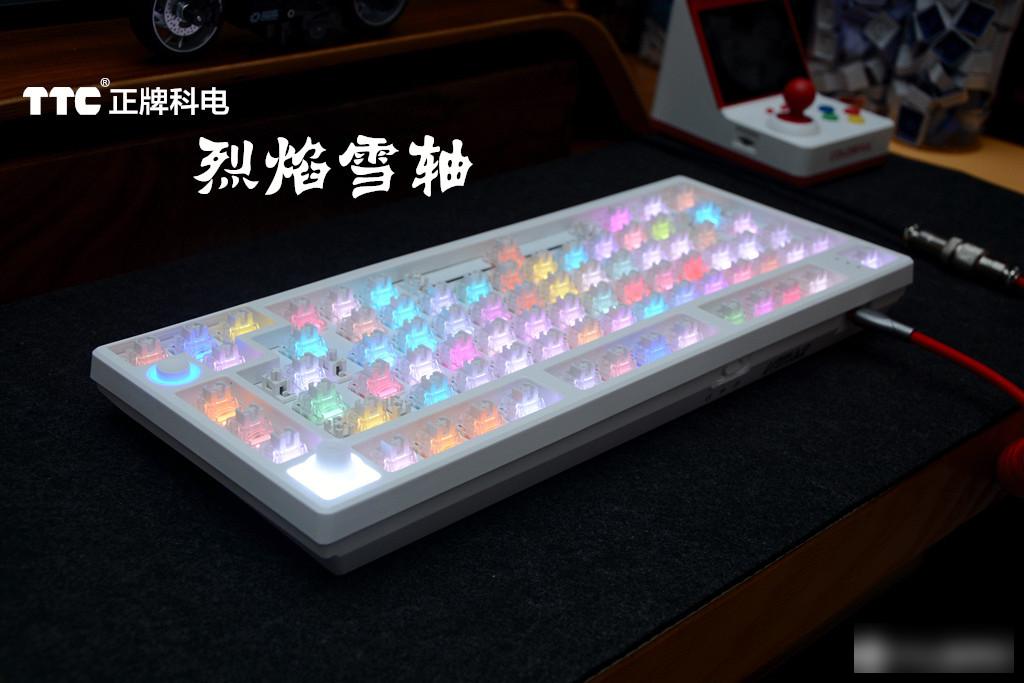

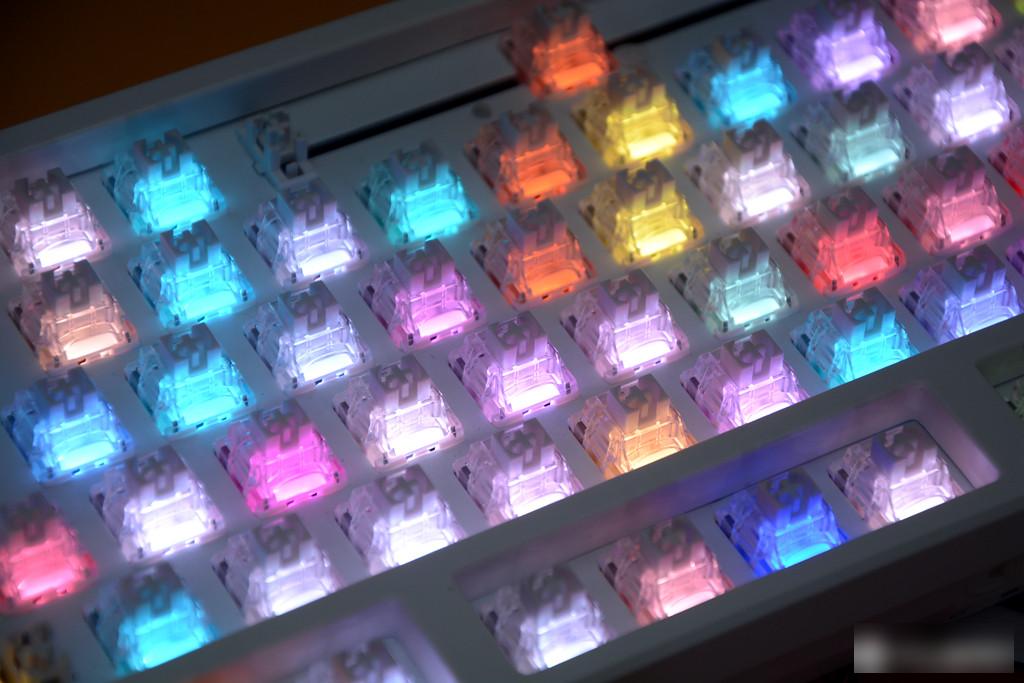

Turn on the backlight and look at the effect. The high-transparency upper cover of the flame snow switch is more translucent than the color transparent cover of the flame purple switch. The brightness is stronger.

This angle is even more obvious, the flame snow axis is like a grain of fructose, and the flame purple axis is more like a spotlight in front of it.

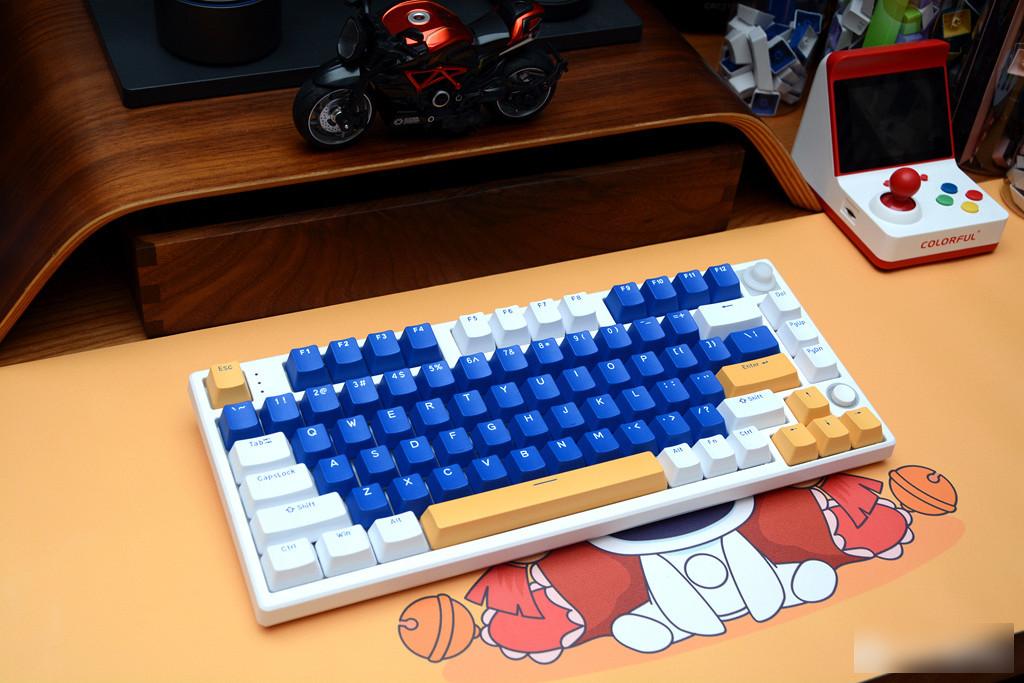

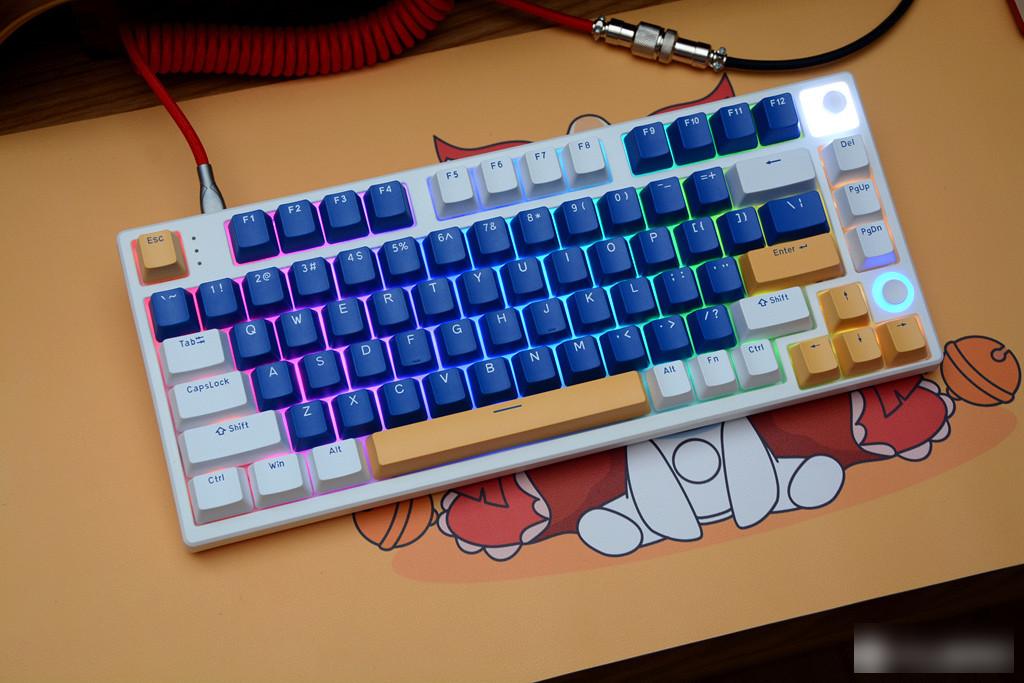

Put on the "clothes" and look at the effect. When I shared this keyboard, many friends privately asked me why I couldn't find the same keycap keyboard. What I want to explain here is that there is currently no Cangqiu blue mass-produced version of the HS75T, and you need to buy a set of Cangqiu blue keycaps separately to replace it, 99 yuan a set.

Since the Cangqiu blue keycap is opaque, the backlight can be considered to have an atmosphere effect. It can be seen that when paired with opaque keycaps, there is no difference between the flame purple switch and the flame snow switch, and the brightness of the surrounding light is basically the same. Of course, if it is matched with transparent or translucent keycaps, the difference in lighting effects will be obvious. For example, the crystal keyboard that was a little popular some time ago, the translucency of the fully transparent keycap on the shaft body is quite a test.

Although the feel and backlight effect are similar, but as a Virgo, you can't bear the inconsistency of the axis body, so let's change it back to the flame snow axis.

After switching back, is the effect better? Is there a feeling of Bling Bling? Is there a taste of QQ fudge?

Of course, for the overall light transmittance, the effect of the TTC ice static shaft may be better, after all, the shaft core of the ice static shaft is also made of transparent material. If it is a transparent keycap, you can choose the flame purple switch; if it is a fully transparent keycap, you can choose the flame snow switch; if it is an opaque keycap, both switches are fine.

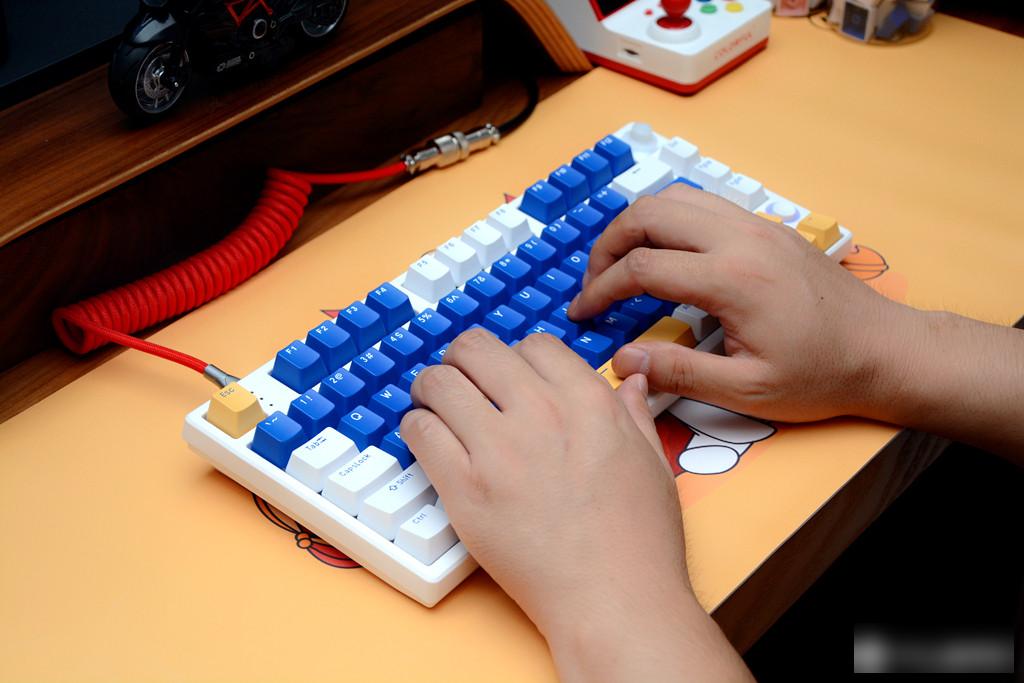

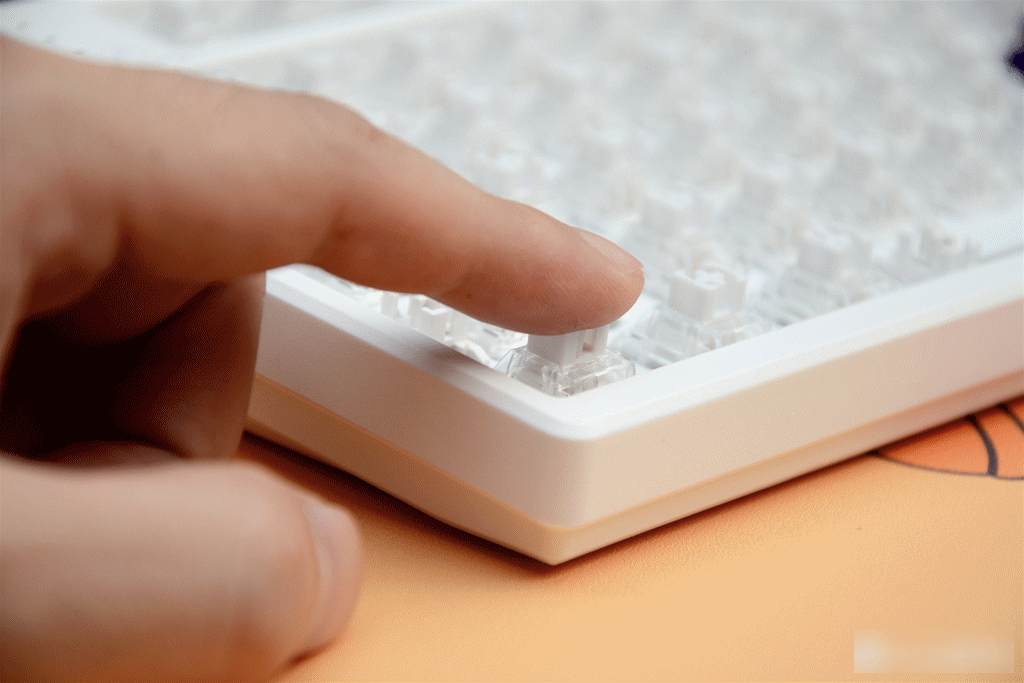

Try the feel again, TTC flame snow switch, linear switch body, straight up and down, the experience of a single switch body is not bad, and at the same time, compare and experience the gold powder switch, the feel will be a little heavier when triggered, but it will touch the bottom faster.

Xu Fengnian in "Fighting Swords in the Snow", in the finale, fused the "two-sleeved green snake" of the sword god Li Chungang with Deng Atai's "twelve natal flying swords" to kill the enemy Han Diaosi. TTC flame snow switch and flame purple switch, just like this Xu Fengnian, integrates TTC gold powder switch and TTC fast silver switch, chooses a suitable trigger pressure and stroke, so as to achieve compatibility with games and office, as the saying goes, fish and bear's paw are also You can have both.

At present, home office has become the norm. It is good to have a keyboard with this type of switch at home. It has a good hand feeling when coding at work and playing games at leisure. At present, these two shafts have been put on the shelves in the official store, and the price is 3.6-3.9 yuan. You can also buy Kezhi K75 directly, 499 yuan, and 82 shafts cost 319 yuan. The switch is hard to find, many people just buy the keyboard directly, interested friends can try it.
