Rabbit Q | Brief Comments on TTC Rabbit Axis, Venus Axis and Neptune Axis

It has been nearly a year since the pit was abandoned again, and no one knows about Han, regardless of Wei and Jin.

On the eve of the Chinese New Year in the Year of the Rabbit, I was lucky enough to get a prize—three small gift packages of TTC’s newly released axes, namely the Rabbit axis, the Venus axis and the Neptune axis. Among them, the Rabbit switch is this year’s TTC zodiac commemorative switch body, which adopts the same Lego structure as last year’s Tiger switch; the Venus switch and Neptune switch are the high-speed rail structure switches that just came into the market a few years ago, and are currently available in the new products of a few keyboard manufacturers. On the piggyback starter. After I got it, I played with it a bit. Taking advantage of this year's Chinese New Year, I have a little more energy, and I will share my experience with the landlord. I have the right to give a brief comment.

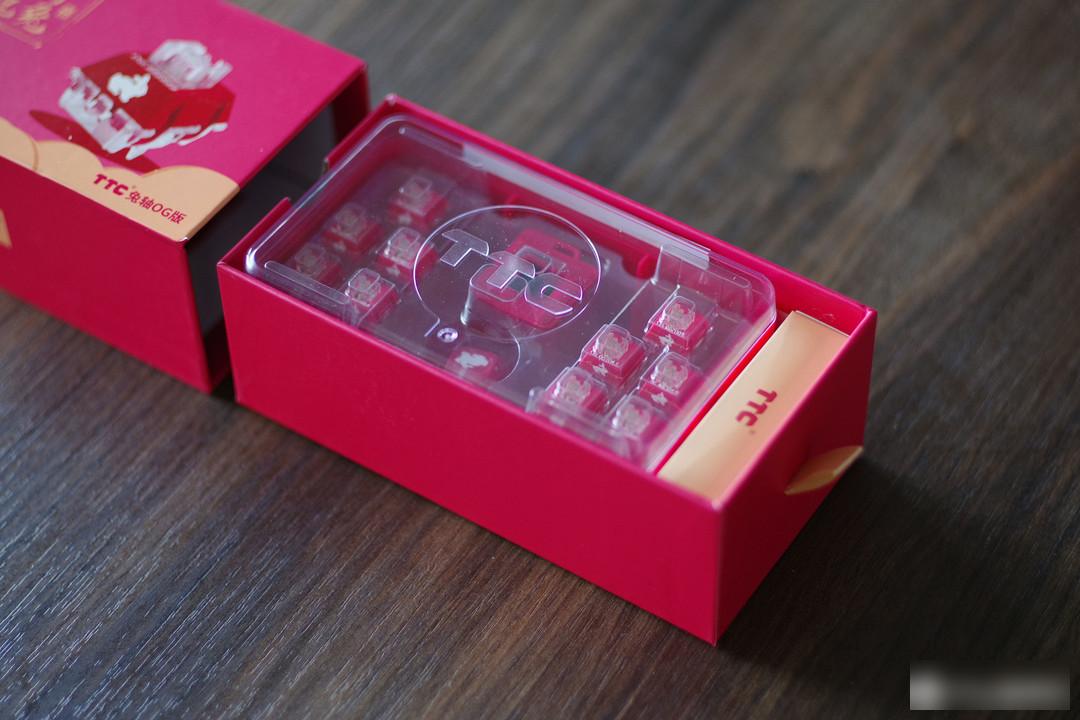

Rabbit axis "blessing set". Pull-out veneer paper box, PC liner box, including 10 rabbit switches OG version, 1 rabbit year keycap and 1 rabbit year switch tester.

The so-called OG version, the host speculates that it probably means the initial version of Origin, and the RGB version of the rabbit shaft is also on sale.

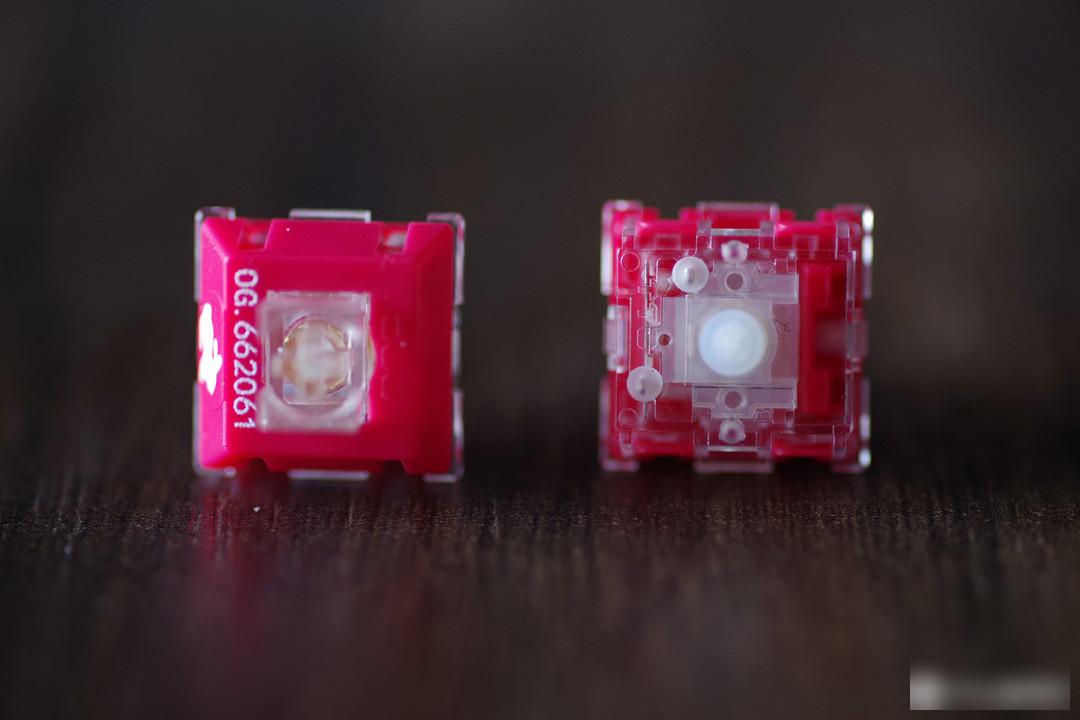

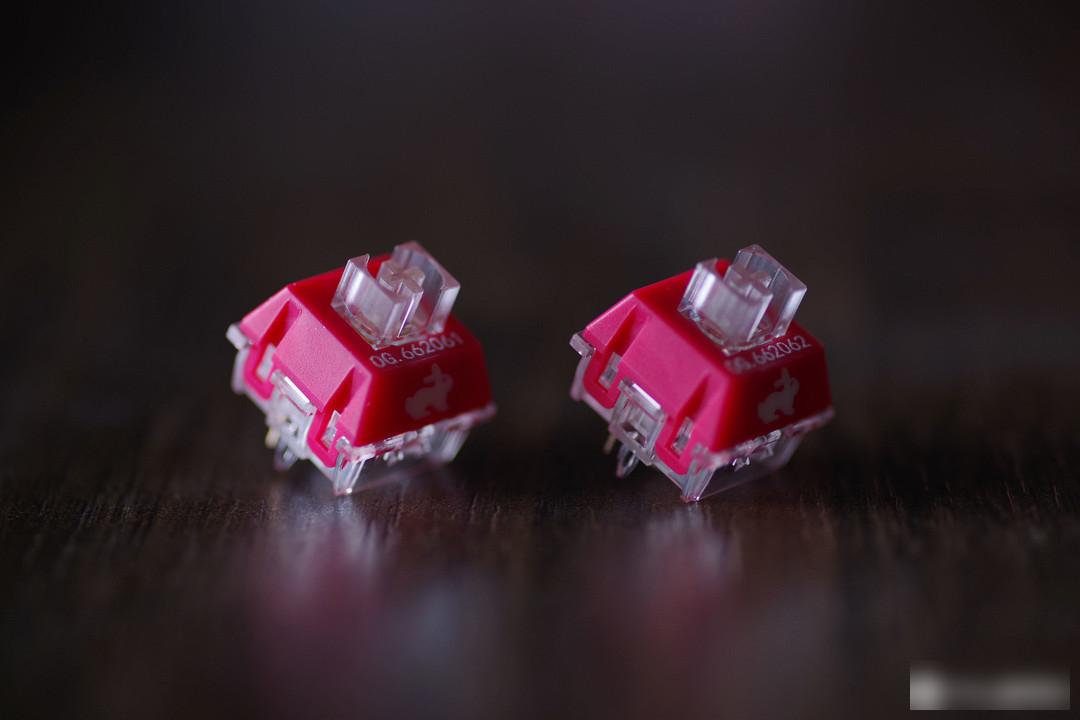

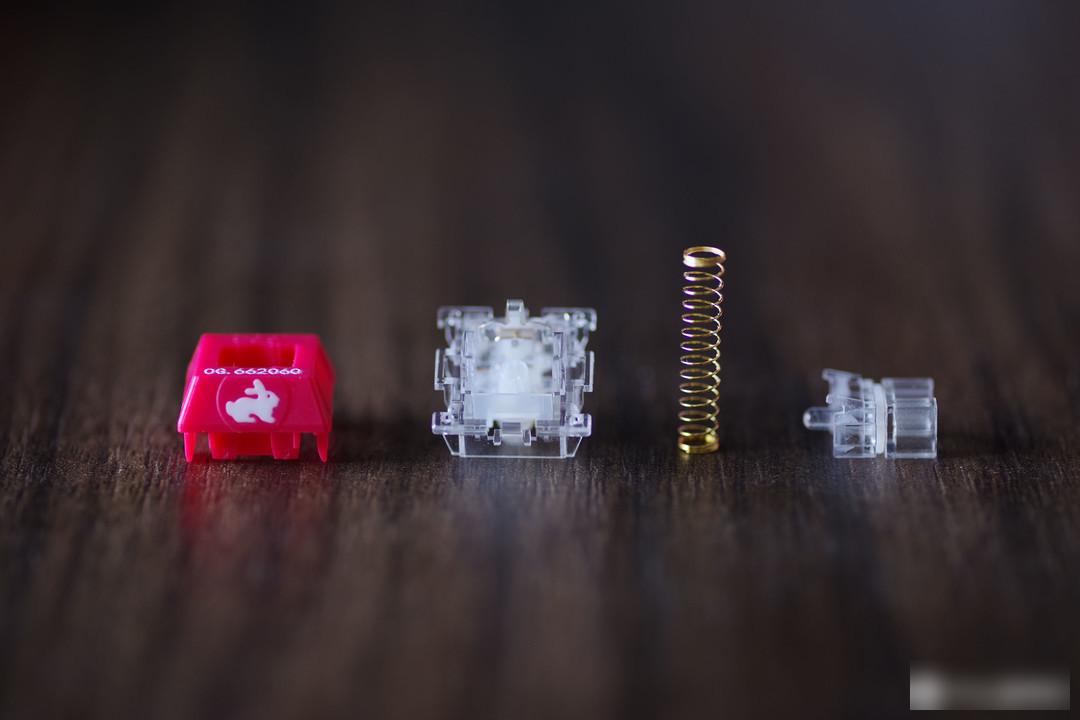

LEGO-like structure shaft. In terms of structure, the rabbit shaft can be roughly divided into the following seven components: high-transparency dust-proof shaft core, shaft core silencer ring, theme color shaft upper cover, gold-plated long spring, "wearing gold and silver" process terminal shrapnel, high-transparency base, Nylon guide posts and bottom axle silencer pads. The upper cover of the shaft is marked with a non-repeating product code, and one code corresponds to one shaft.

usage. Linear shaft type, trigger pressure 42gf (the pressure when the button is triggered, 42gf is in the range of light pressure axis), trigger stroke 1.2mm (shorter than the traditional 2mm, faster trigger), independent noise reduction design for shaft core and shaft bottom, which belongs to linear mute The light pressure fast axis caters to the current mainstream demand direction, and has a bit of talent in games and office use.

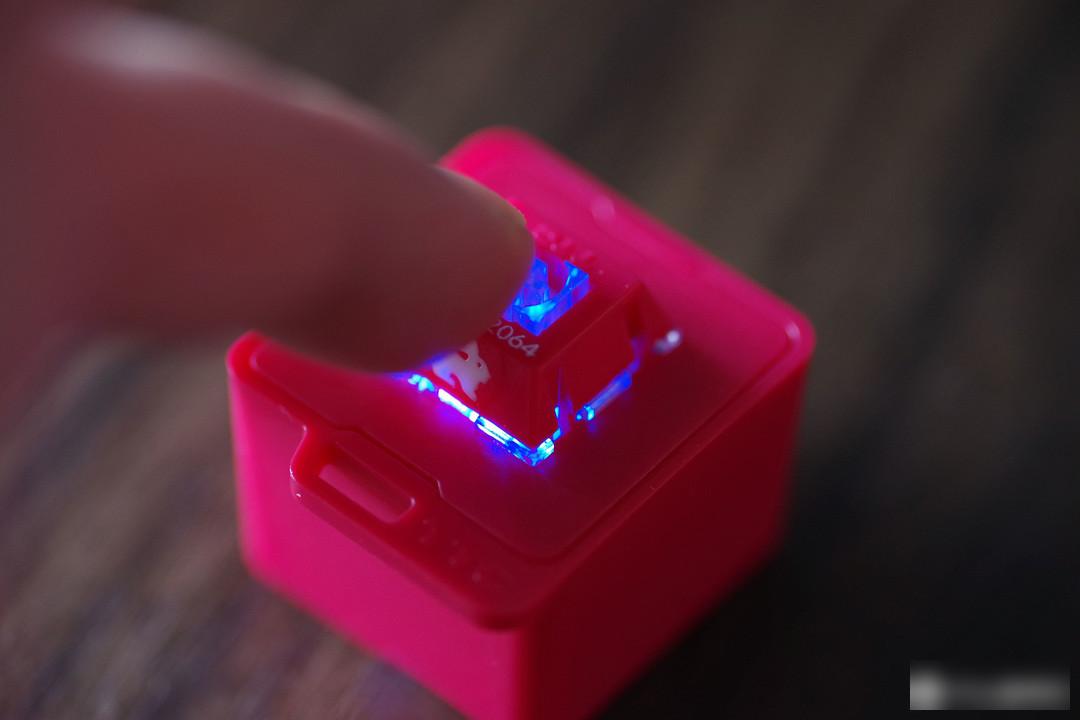

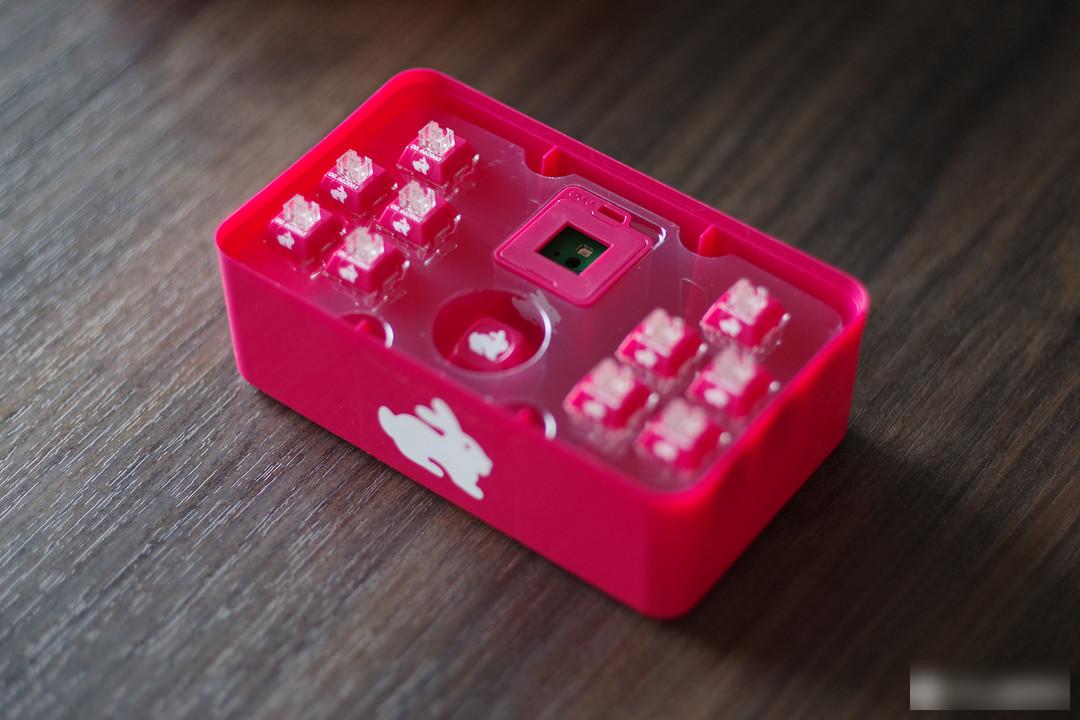

The blessing cover also comes with a tester for the Year of the Rabbit. There is a light-emitting circuit and a button battery under the shaft seat. Press it with a backlight effect, which is quite relaxing.

The Venus axis and the Neptune axis are both high-speed rail-type structural axes, so let’s talk about them together.

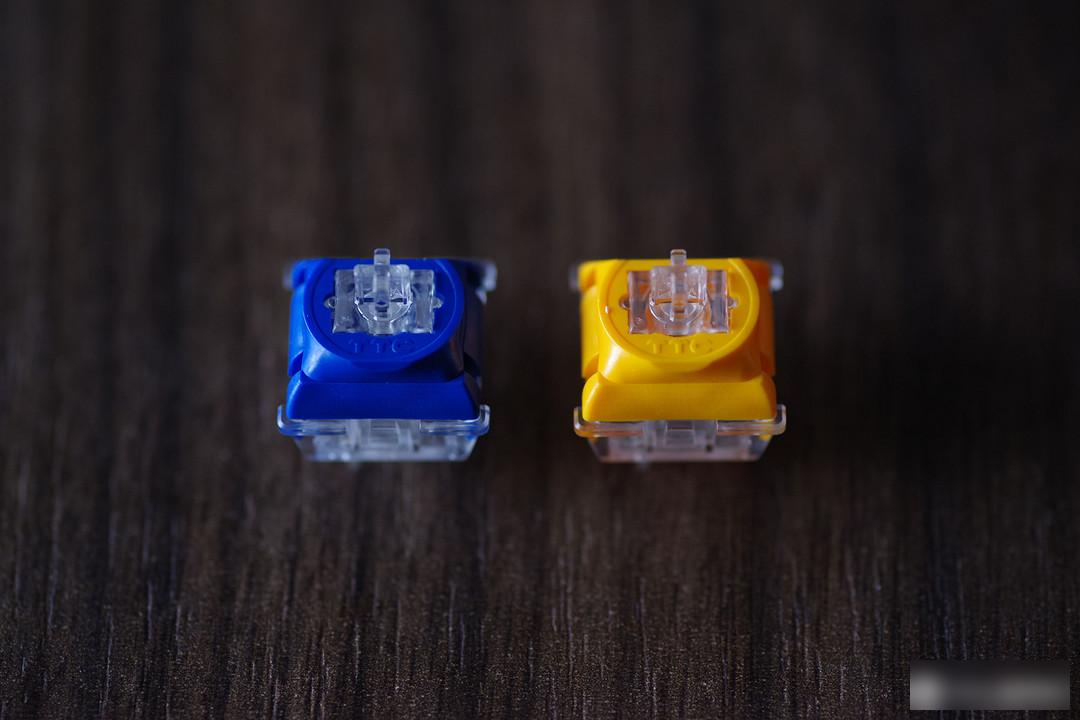

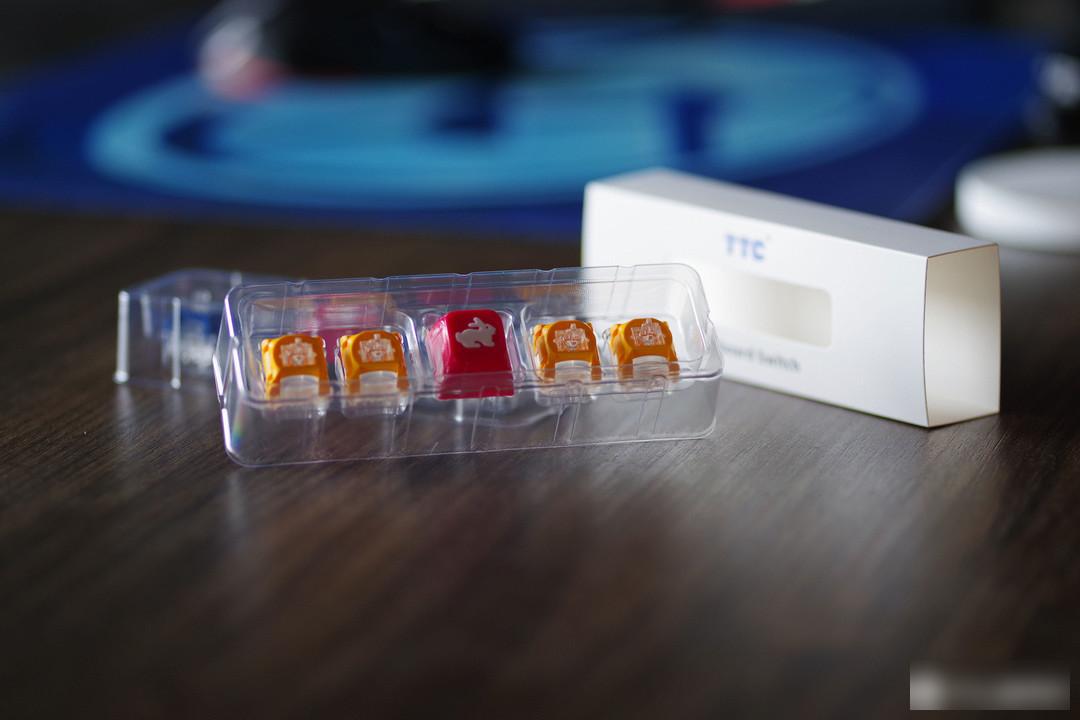

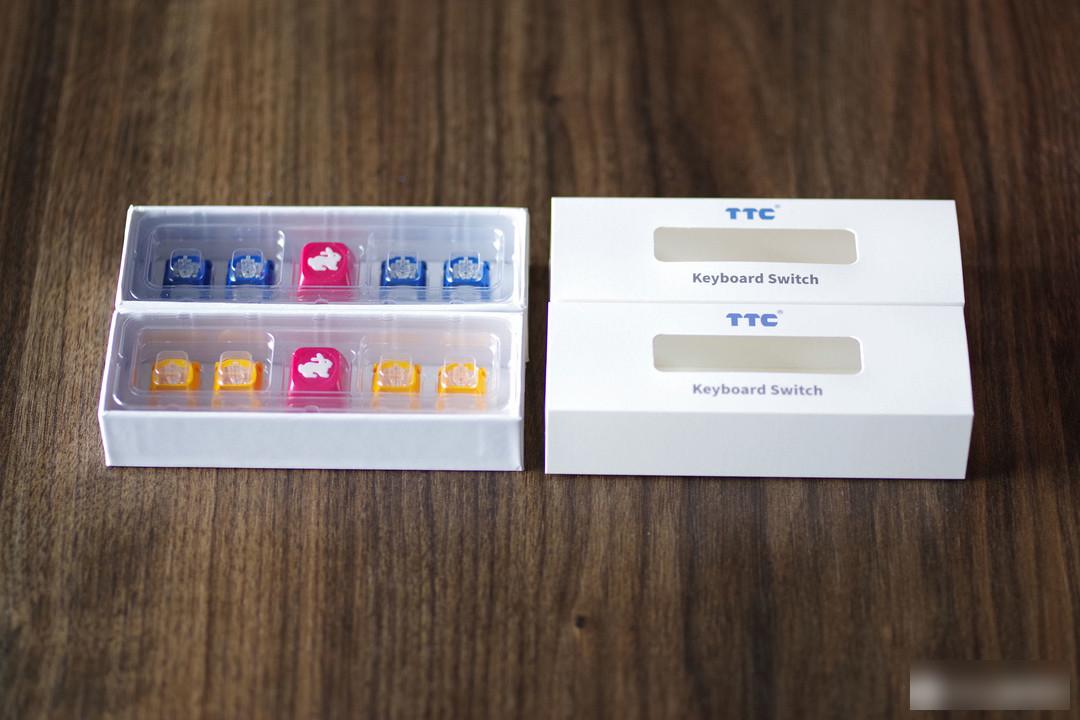

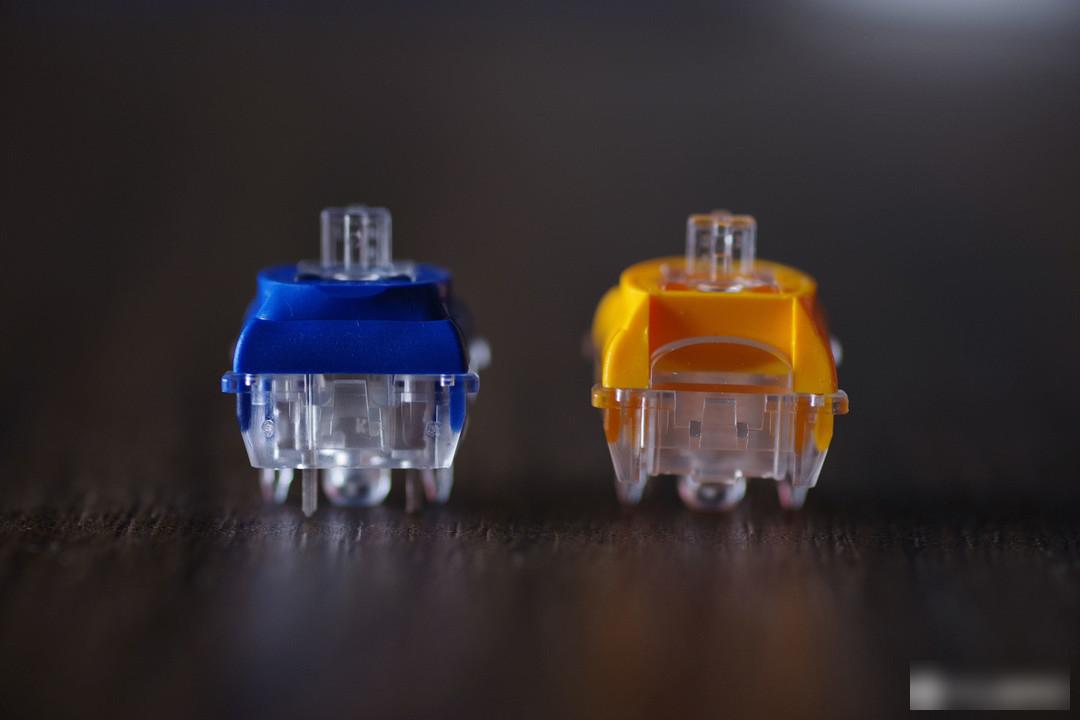

4+1 "Surprise Set", each containing 4 switches and 1 Year of the Rabbit keycap. The novelty and interestingness visible to the naked eye on the shape of the two shafts are both based on the design inspiration of "sky round place". The upper cover of the shaft is made into a square bottom and dome shape, which is highly recognizable.

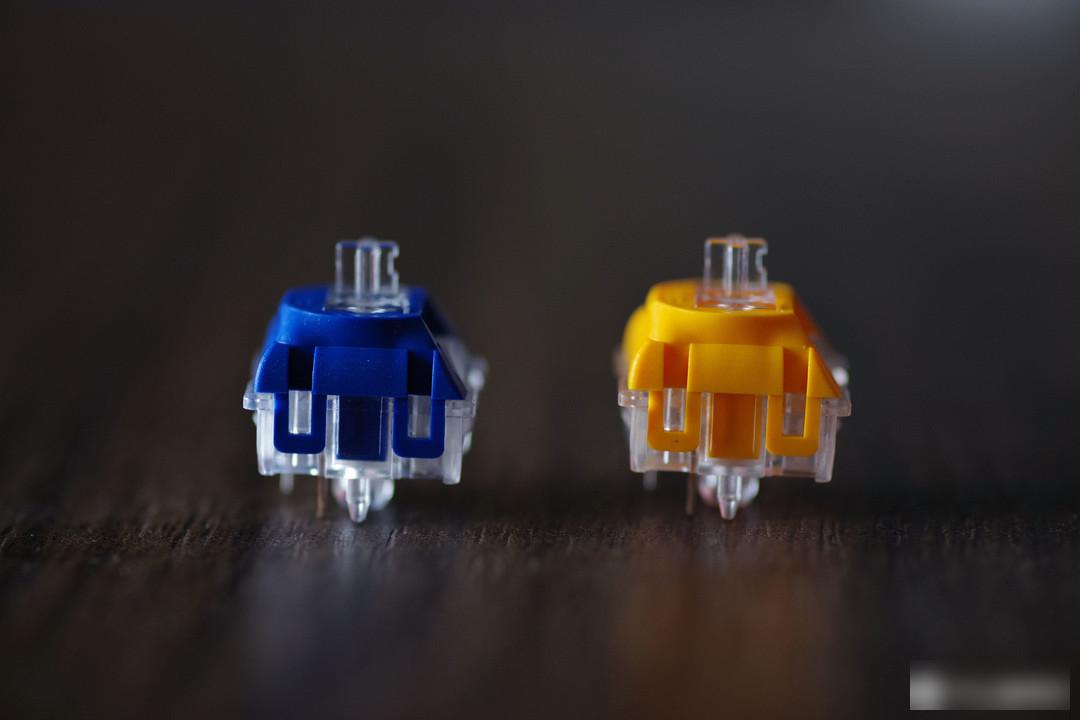

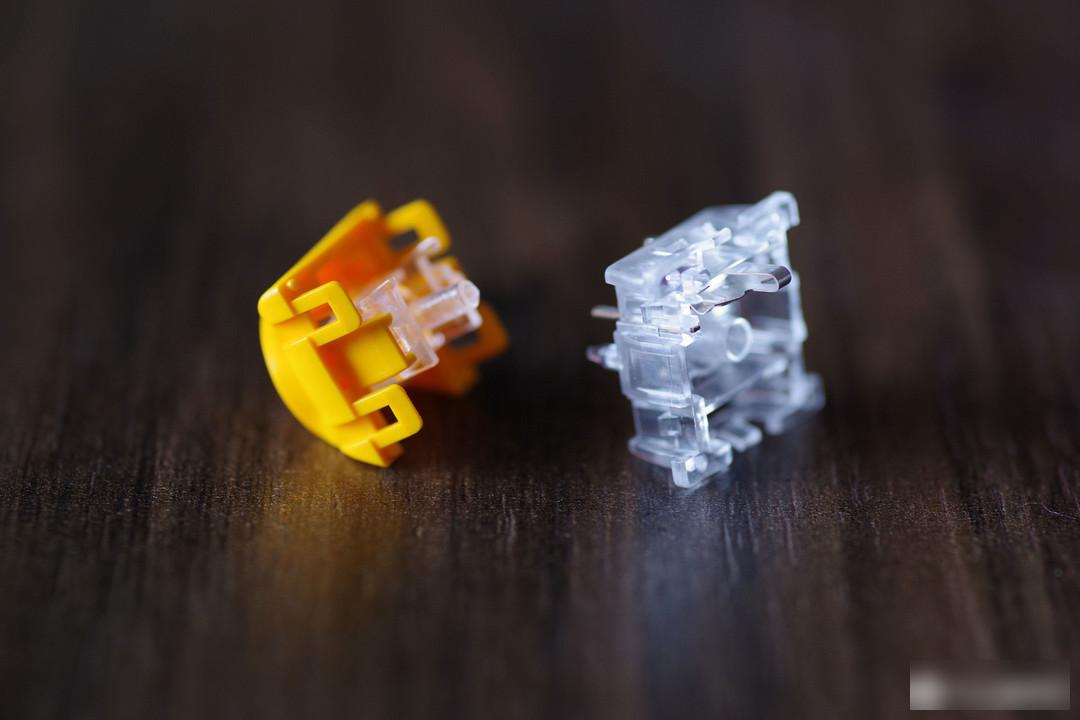

The so-called "high-speed rail" structure requires both high-speed trains and high-speed rail tracks. The TTC's high-speed rail structure axis is such a principle and concept. Structurally, it is divided into six components: high-transparency shaft core, "integrated long track" type shaft cover, silver-plated spring, silver-plated terminal shrapnel, condenser mirror, and high-transparency shaft base. Among them, the long track structure attached to the shaft cover, combined with the new shaft core designed by the slider, forms a nested motion pattern similar to a high-speed rail train and track, which fundamentally solves the shaft core shaking problem similar to C-MX shafts, and produces It has a unique feel that is officially called "hot knife cutting butter", which is also the origin of the name "high-speed rail structure shaft".

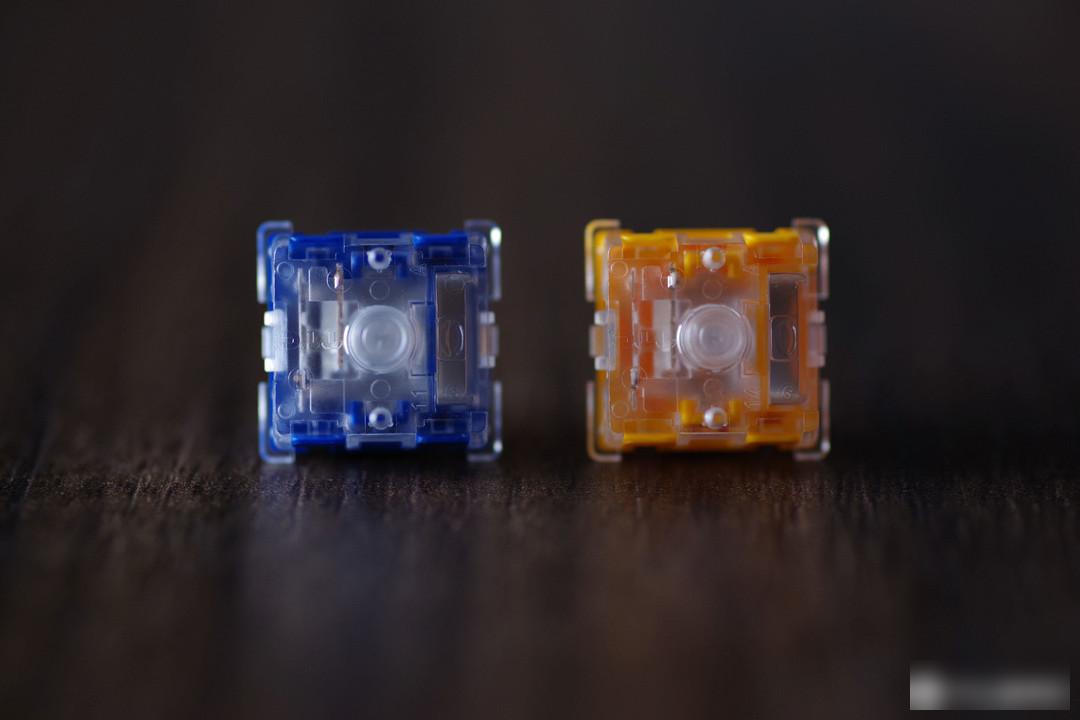

usage. Although the Venus axis and the Neptune axis are linear axes of the same structure, the parameters are slightly different. The trigger pressure of the Venus switch is 45gf, and the trigger travel is 1.8mm, while the Neptune switch is 41gf and 2.0mm. At the same time, the initial and bottoming pressures of the two are almost the same, and the feel is actually very close. The small difference from the trigger pressure and trigger stroke causes the Venus axis to be faster and the feedback is slightly stronger, while the Neptune axis is slightly softer. If you have to say it, the Venus axis will be more solid when playing games, and the Neptune axis will be more comfortable. TTC condenser + high-transmittance shaft core base "light-transmitting dual-channel" design, the existence of the condenser allows the light of the shaft bottom lamp to be transmitted to the position of the top cover of the shaft and radiated out, making up for the natural short board of the shaft bottom lamp, high transmission shaft The bottom-up conduction structure formed by the core and the base also effectively supplements the overall light effect.

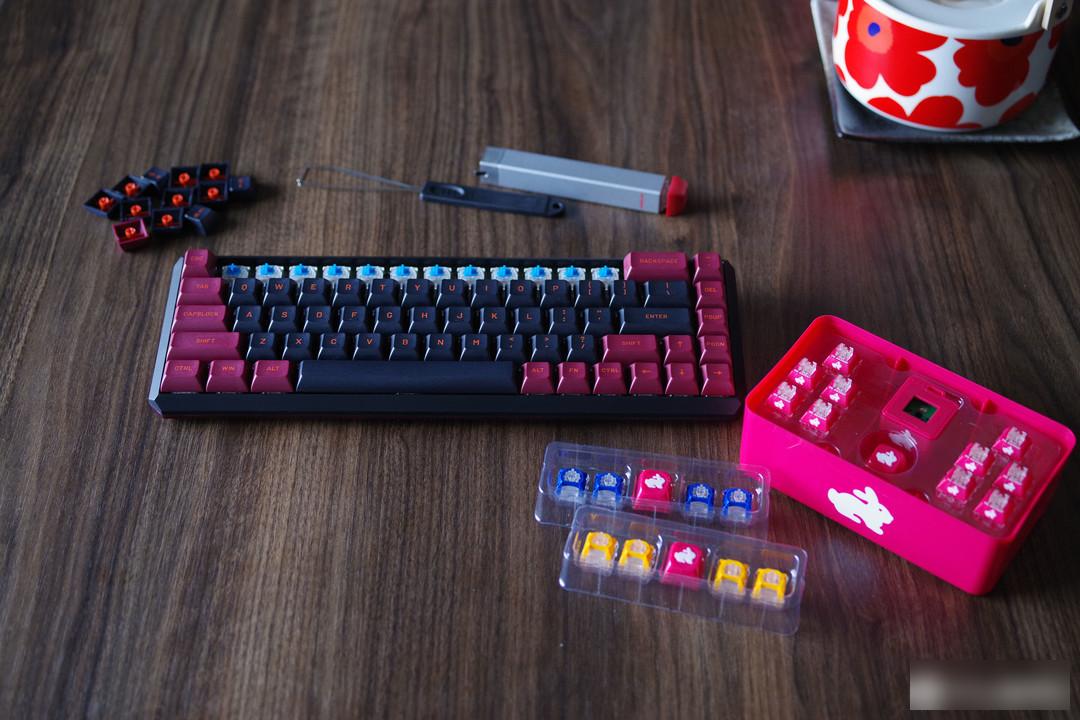

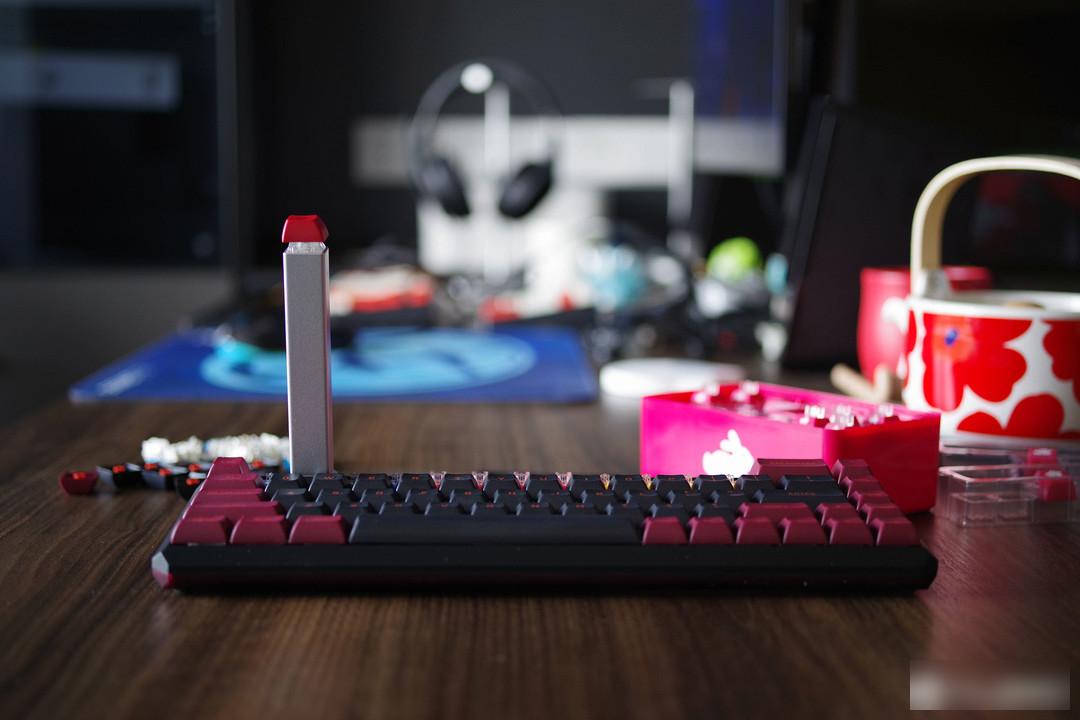

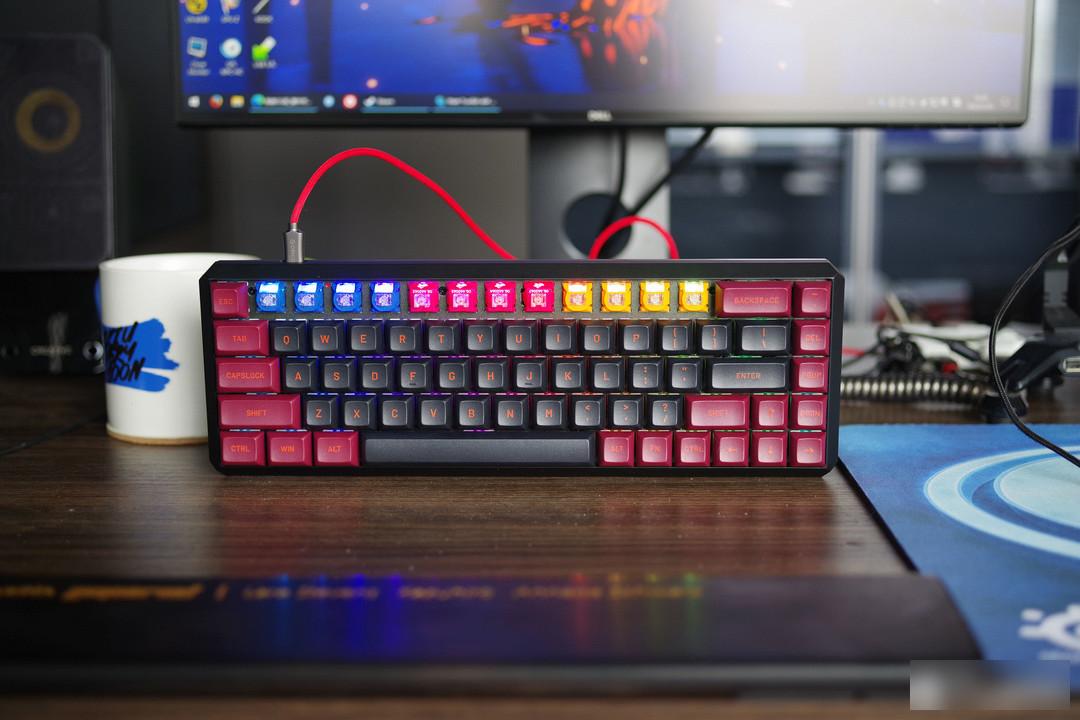

Next, enter the upper keyboard link. The selected Madou is Darmoshark K5 black and red. This one was originally replaced with a TTC love switch as the main driver. Practice has once again proved that there is no keyboard in the F area. In the owner’s hands, it can only be a large test switch. Put it here The occasion is just right.

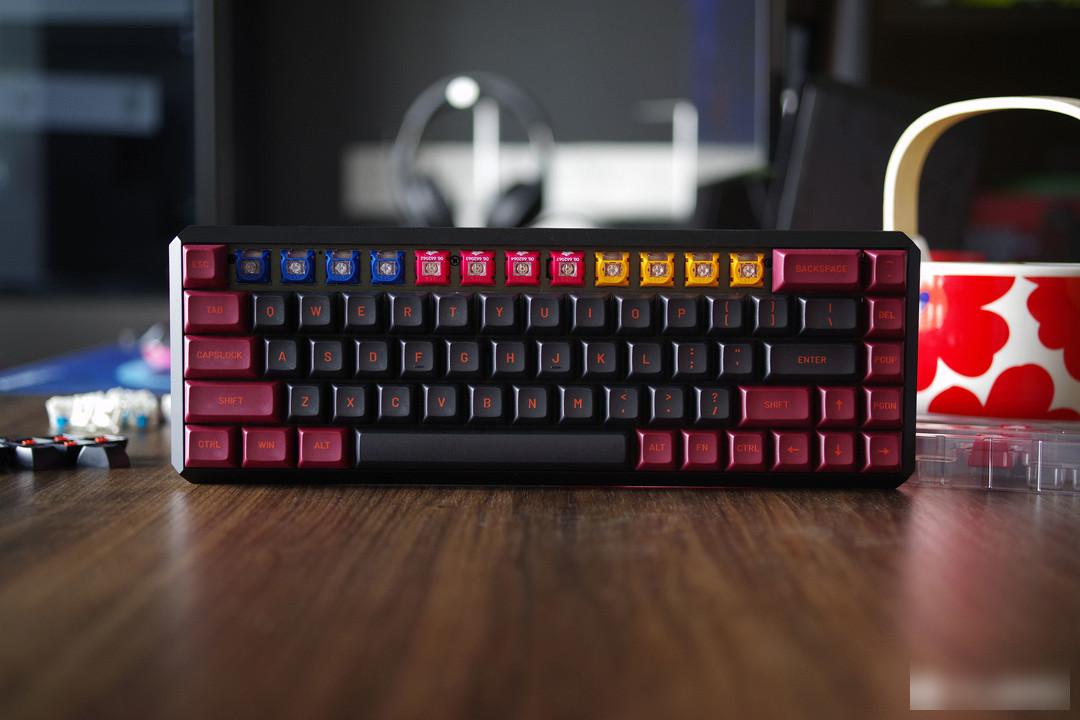

The value of the face is not stamped. In terms of appearance alone, compared to the Rabbit Axis, which is exquisite and unique and requires a closer look to see things, the host still prefers Venus Axis and Neptune Axis, which are highly recognizable and colorful. . By the way, the shaft removal is also very convenient, compatible with most shaft pullers.

After electrification, the "light-transmitting dual channels" of the Venus switch and the Neptune switch are naturally tulle. It can only be said that the OG of the rabbit switch is not here. If it is the RGB version of the rabbit switch, it will definitely be a battle.

Too cute, above.
