Solve the problem that the Microsoft Bluetooth numeric keyboard cannot input or input garbled characters on the Mac

Use Karabiner, replace the [keypad_num_lock] command with [vk_none]

as non-senior Video post-production personnel will need to use the mouse and numeric keyboard synchronously for a lot of time, so they always feel that placing the small keyboard on the right is anti-human, so they gritted their teeth and bought the Microsoft numeric keyboard that has been planted for a long time.

All values ​​entered in AE and Blender will have some garbled characters, and each key press in the calculator will clear the previous numbers. Could it be that the 250 keyboard can only end up as a return?

Scene recurrence

but as Non-professional Desktop operation and maintenance personnel, I don't think we can just give up.

Traversing domestic and foreign websites (search engines), I found that some friends at home and abroad also encountered the same problem, but there was no solution.

Foreign netizens asked the same question

Apple's official user manual is also useless

what is this official manual

But I found the reason from a comment under this question:

The gods in the comment area solve the doubts. . . half

Check the key commands through the software Key Codes, and found that because the Mac system does not have the NumLock function, the keypad will send two commands every time a key is pressed, one is a normal number, and the other is Code71, and Code71 is the Clear function of the keypad under Mac .

First of all, I tried the so-called method of turning on the Mac NumLock function on the Internet, but it didn't work.

Another way of thinking, if Numlock cannot be turned on, I just need to prevent the computer from recognizing the Clear command.

Here I use the free open source Karabiner , Karabiner is a relatively well-known key remapping tool under the Mac platform. It supports separate configuration of each keyboard device. In this way, if I set the Clear command of the small keyboard to be empty, it will not affect the normal Clear button of the large keyboard.

Connect the keypad, open Karabiner, all in English but don't panic, we just create a simple mapping, map [keypad_num_lock] to [vk_none],

Follow the steps first this and then that

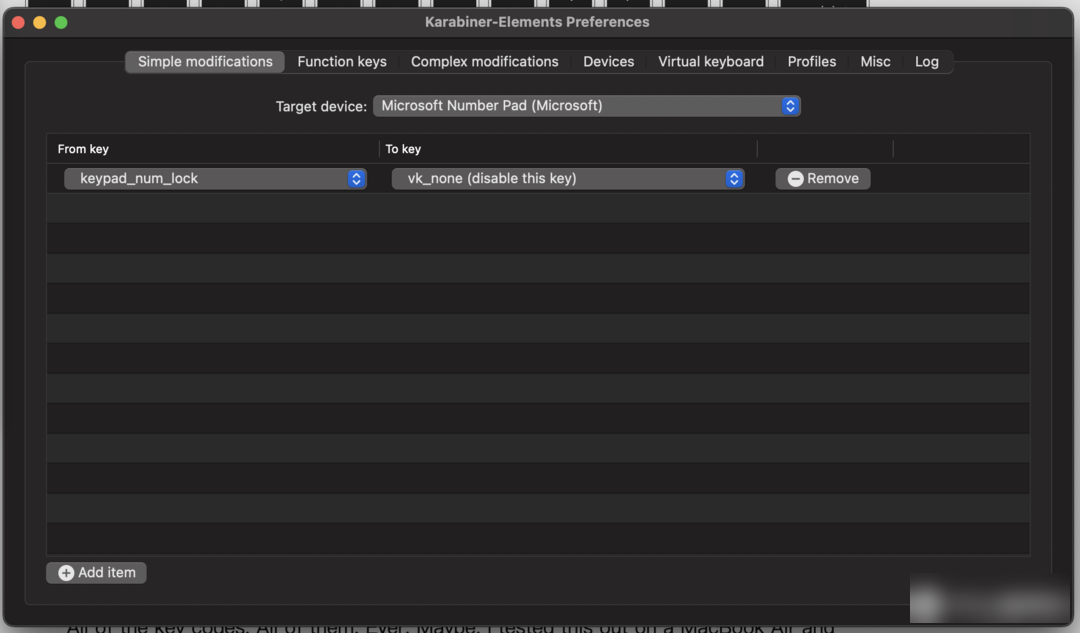

Open Karabiner's Preference, under the Simple Modifications tab, click Add item, select [keypad_num_lock] from the drop-down menu on the left, select [vk_none] on the right, save and exit.

Tested, perfect!

PS. Mapping [keypad_enter] to [return_or_enter] can effectively improve the success rate of entering in different web pages or software.

----------

> Karabiner official website: https://karabiner-elements.pqrs.org

> Source of clue: https://apple.stackexchange.com/questions/422982/microsoft-windows-keyboard-number-pad-with-macos/434494#434494
