The boy who slays the dragon finally becomes a demon——MK98

Hello everyone, this is Little Star of Beechburg Pai, today I will continue to bring you the recommendation of 98 keyboards. As for why I have been recommending mass production recently, I just want to say: It’s not that you lazy people say to you. If you think it’s troublesome if you promote customization, then I’ll find mass production for you and recommend it to you. The protagonist of this issue is a new member from the Smelter's family - MK98, the price is more than 450 yuan

unpack

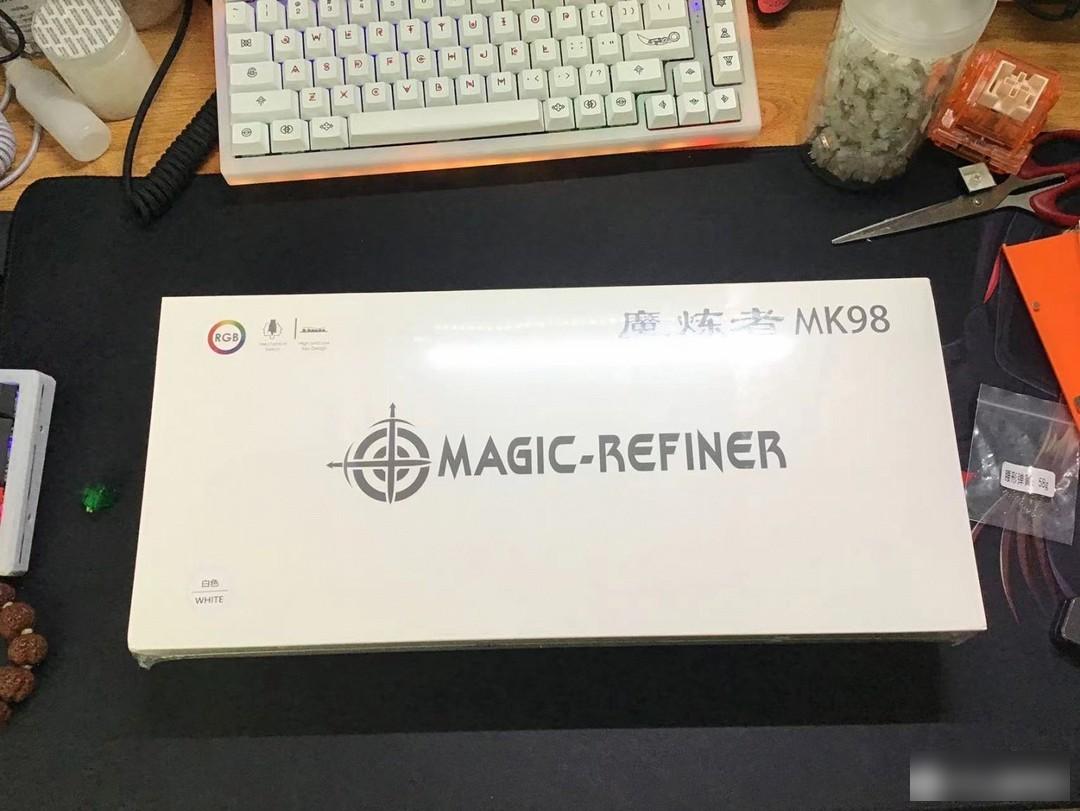

Let's take a look at the outer packaging first, it really can only be described as concise.

Open the outer package and take out all the accessories, we can see: one MK98 keyboard, one manual, one warranty card, one key puller, two replacement shafts, one data cable. Here, this keyboard is equipped with three kinds of box v2 switches of Kaihua, which are box red v2, box tea v2, and box white v2. Then someone asked, is there any difference between this and v1? have! The price is expensive. . . . . . Ah no, the lubrication and stability are better, and the keycaps are made of pbt ball caps.

detail

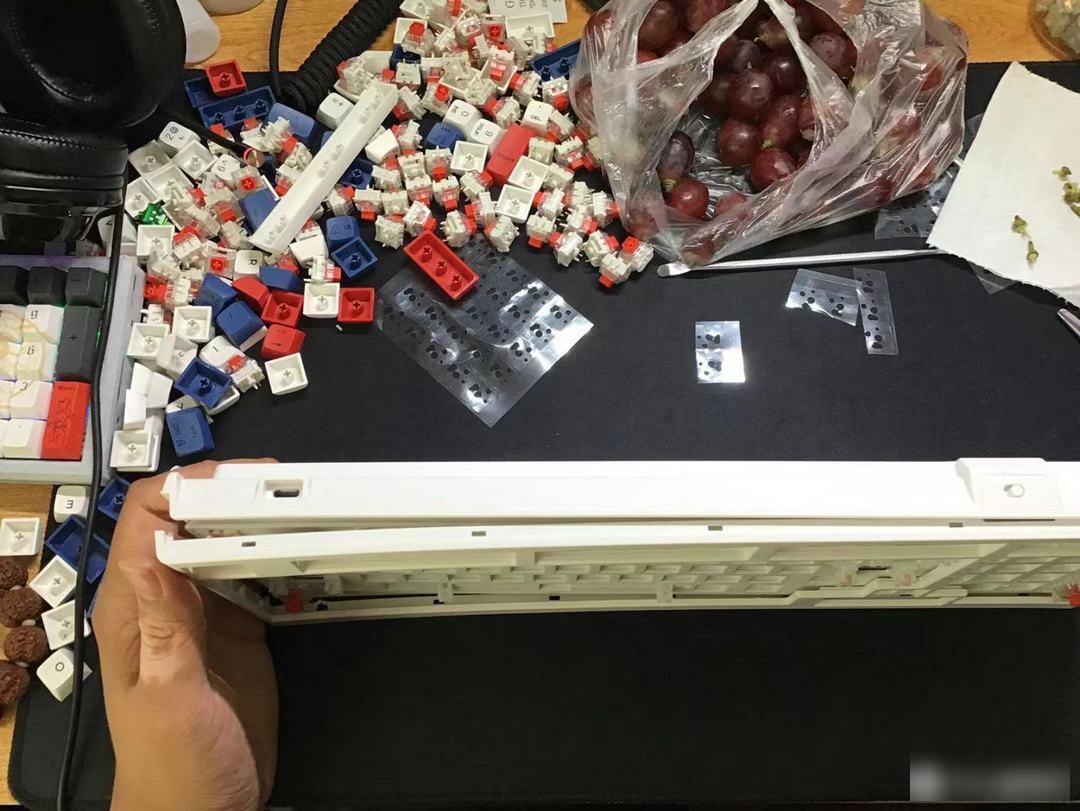

This keyboard shell is designed with a buckle and can be easily opened after prying one side with a crowbar.

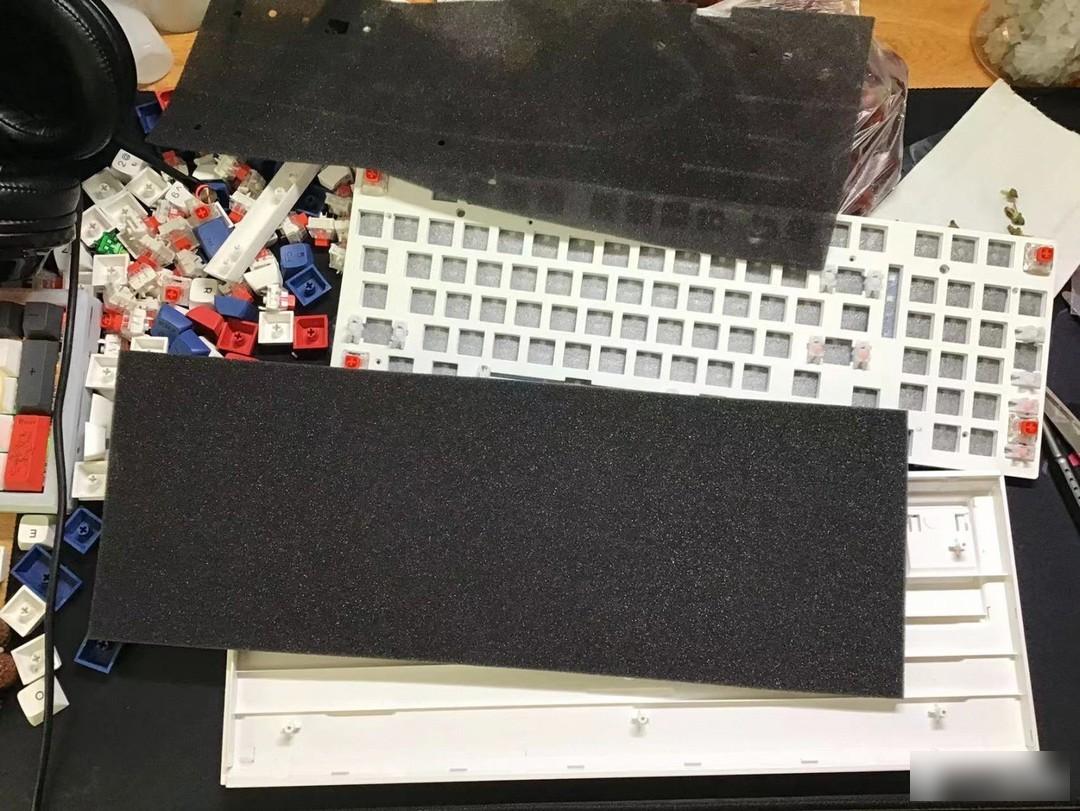

Disassemble the keyboard, we can see all of the keyboard, a bottom cotton that is better than nothing, a sandwich cotton, a 4000 mAh battery, a steel stator, a pcb, a bottom case, and a top cover

Be sure to pay attention here: don't dismantle it if there is nothing to do! Dismantling will void the warranty! I dismantle it because even if it breaks, I can fix it myself, so I can dismantle it. think

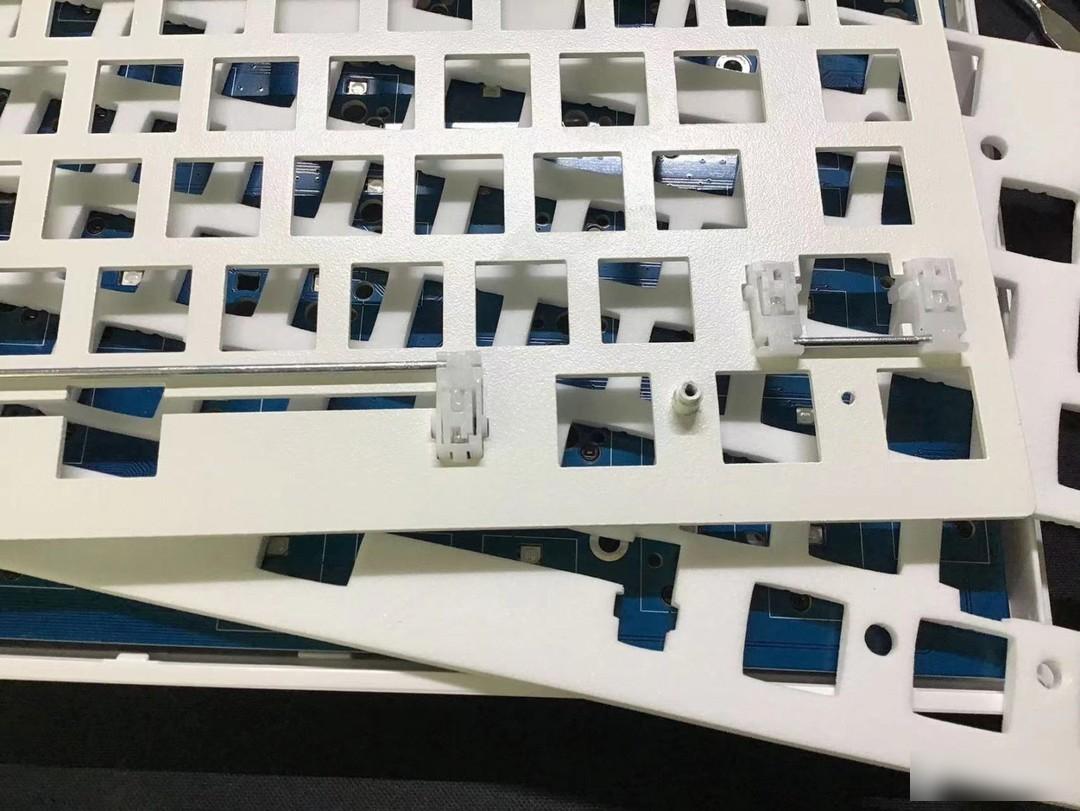

The large key satellite shaft is a very common one, and the lubrication is okay. Basically, it can be used without much need to adjust it after getting it. But if you say you insist on adjusting the big key, then you can read the manuscript at the end of the article.

For the shaft body, Kaihua’s box v2 series is selected. I choose box red here, because I want to use it in the office, so I will not choose some noisy ones.

Here I want to talk about the shortcomings of this keyboard. You can look at the picture. The color of the keycap has been blurred to the satellite axis. I don’t know what’s going on. Can you tell me xd

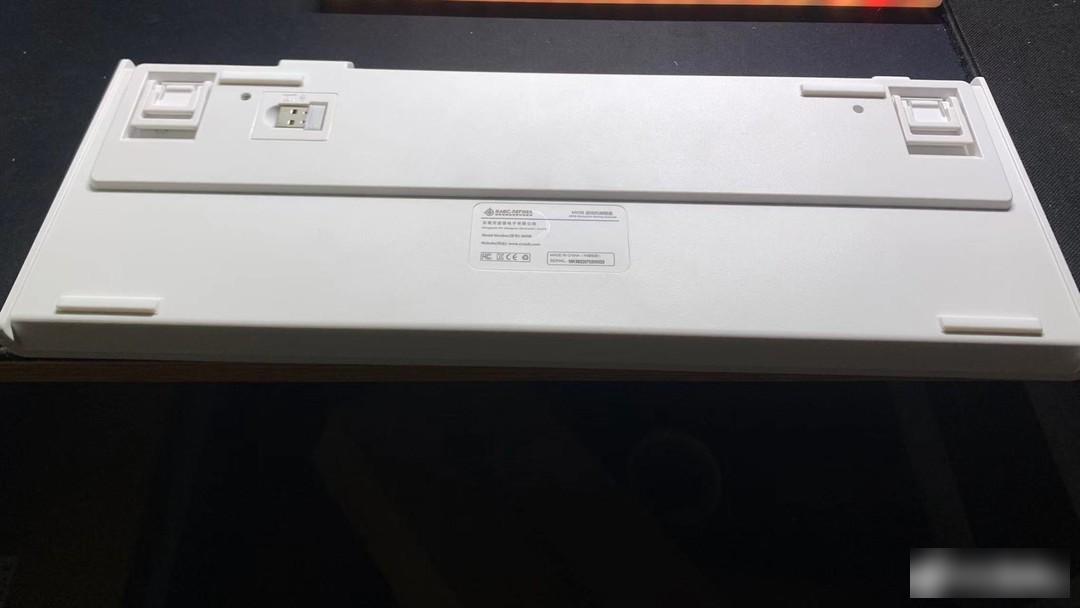

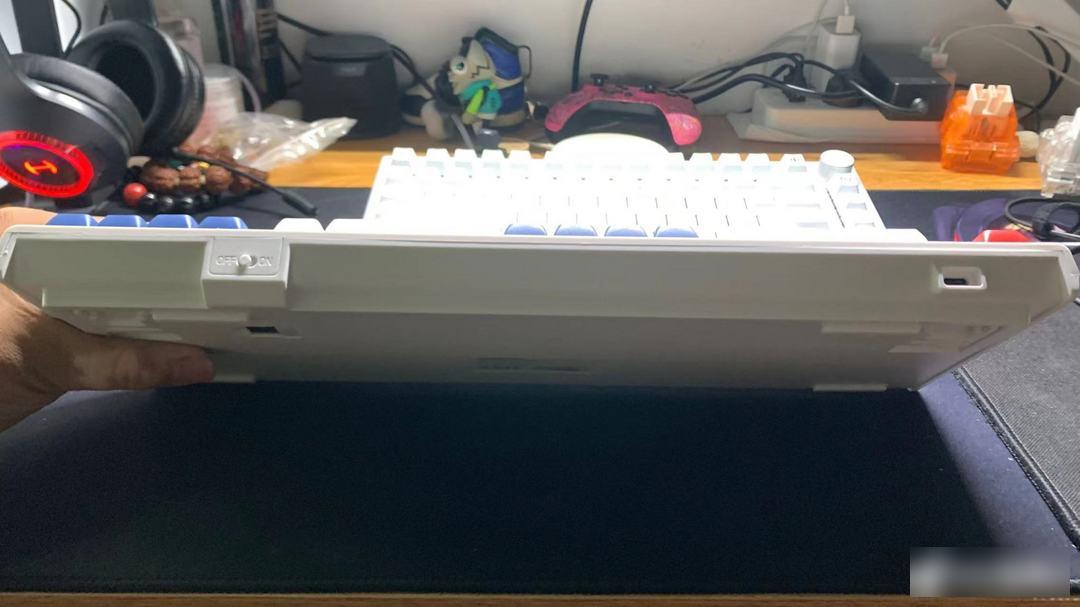

On the back, we can design a two-stage adjustable tutorial for the 2.4g receiver, one with four anti-slip stickers, and I don’t quite understand the slots on both sides, maybe it’s for cable management?

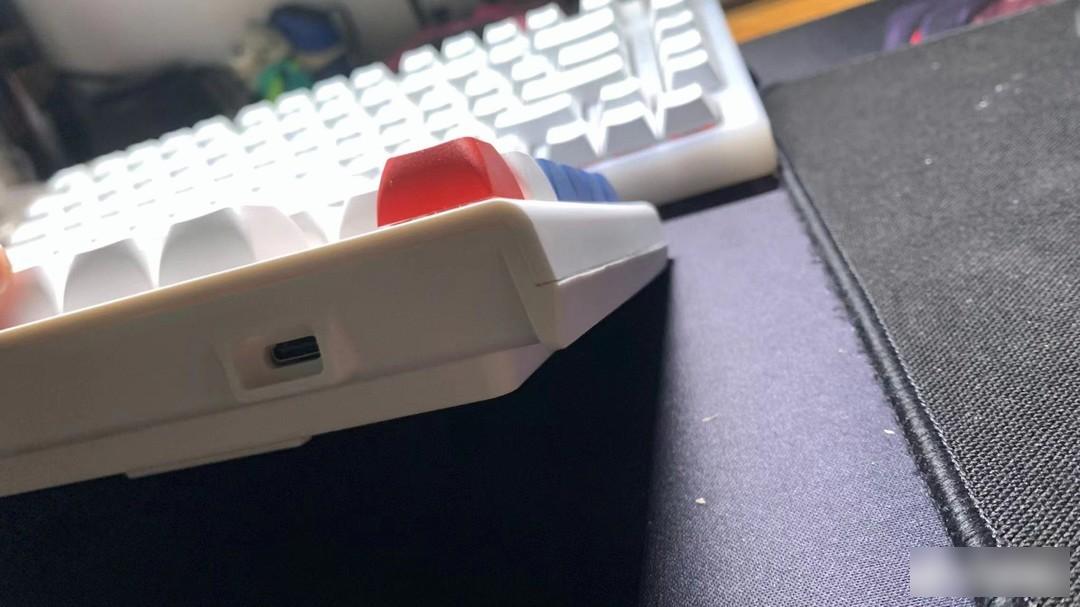

The switch is on the right side of the keyboard, only on and off. When it is turned off, it automatically defaults to a wired connection. When it is turned on, it can perform 2.4g and Bluetooth connections. The design is pretty fun, to be honest.

There are a little handles at the four corners, so let's take a look here.

1. Adjust the key

What is a big key? Large keys generally refer to the key positions on the mechanical keyboard that use the satellite axis, such as space, delete, shift, etc.; then how to adjust the large keys, and what should be paid attention to? Before answering these questions, let's first take a look at what is in the big key we are talking about.

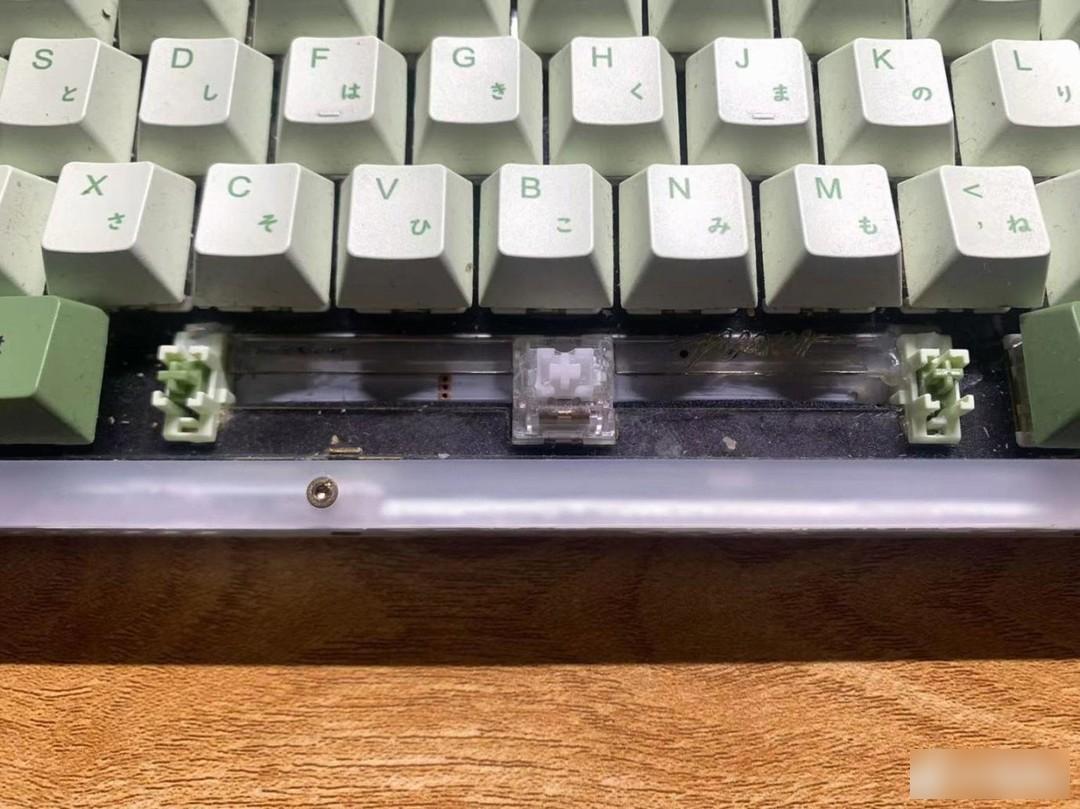

Take my zuoer68 as an example. After disassembling the space, you can see the satellite shafts on the left and right sides. The key to adjust the key is mainly to adjust the shaking degree of the steel wire in the satellite shaft. After that, let’s see what materials we need to prepare.

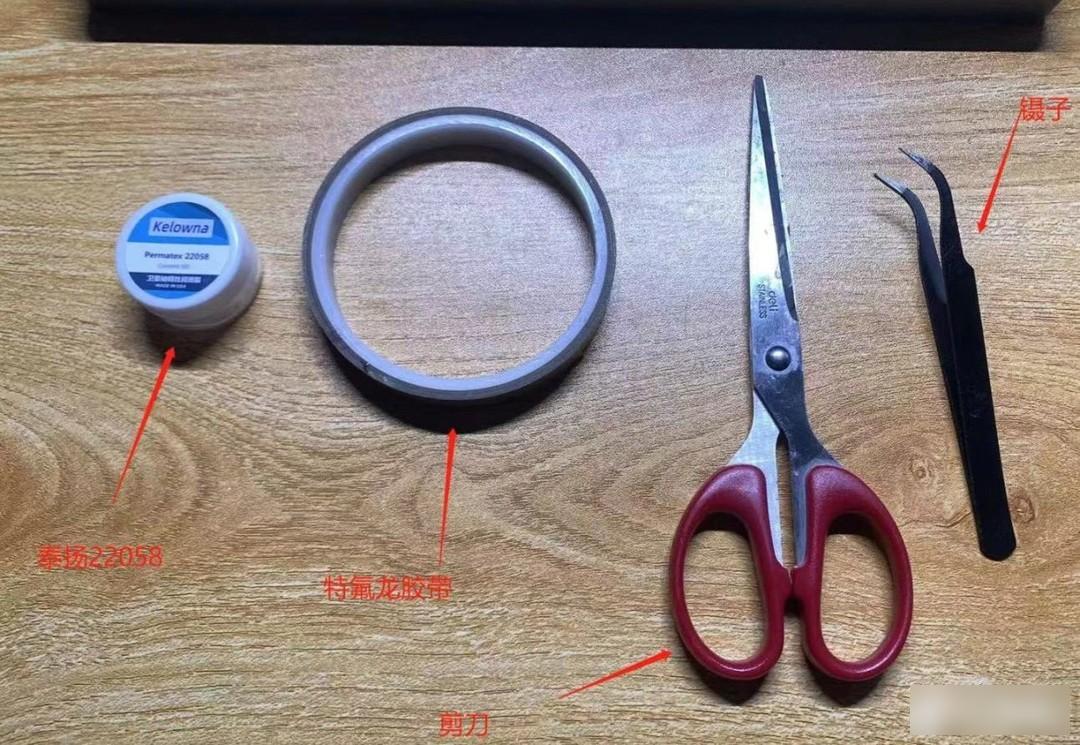

There are labels on the pictures, and then go directly to the picture

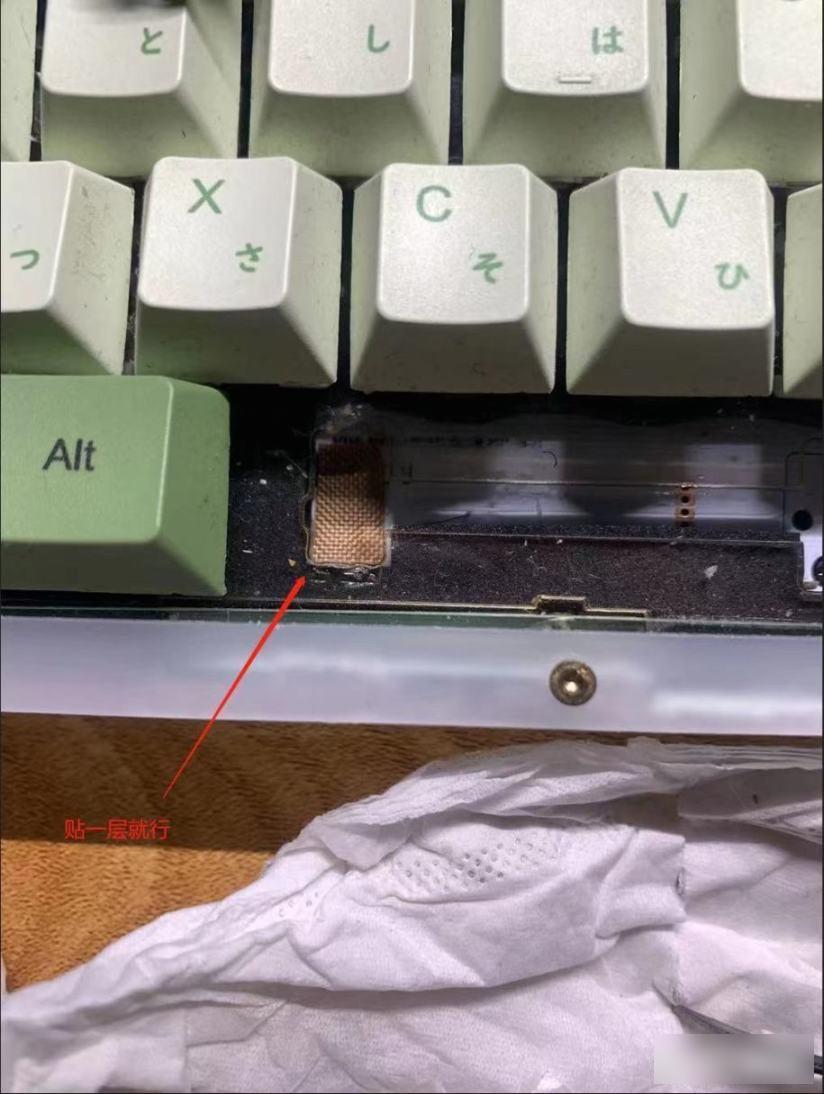

First cut a little Teflon tape with scissors, and then use tweezers to stick it on the pcb under the dummy shaft of the big key. This step is to raise the satellite shaft, reduce the gap between the satellite shaft and the pcb, and protect the pcb from lubricating oil damage pcb

Put the steel wire on a horizontal surface, hold down one section of the steel wire with your hand, and lightly touch the position indicated by the arrow with the other hand at the other end. If there is no obvious sound of steel wire touching, it is qualified. If there is, you can use tools to remove it Straightening (I prefer to use hands) This step is to straighten the wire and avoid the wire sound caused by the bending of the wire

Then put Taiyang lubricating oil on the two ends of the steel wire as shown in the figure, then insert the dummy shaft, install it on the keyboard for debugging, and it will be correct

Everyone, the above is the tutorial on tuning the big key wire tone.

Turning up the key will cost dozens of dollars to find some merchants, learn to save 100% by yourself

Two, modification

Since this keyboard actually only has a layer of sandwich cotton, and there is no pad under the shaft, I will use the pad under the shaft here to pad it. Buffer so that its cavity is reduced and the noise is reduced. There are many kinds of materials, the simplest one can be pearl cotton, which is the packing cotton that is often sent when you buy a keyboard, or you can go to 1688 like me to see this kind of under-shaft pad that costs five cents a thousand. It's only fifty, and if normal people use it, it can last for a long, long time.

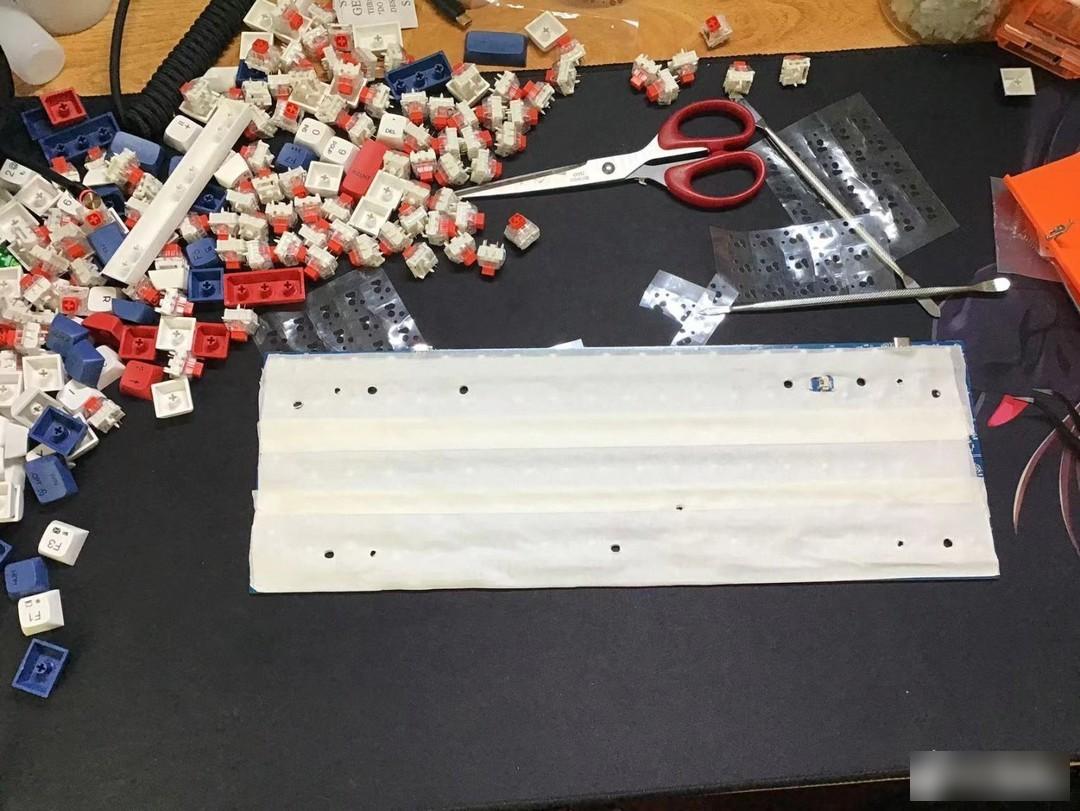

Everyone has also seen the bottom cotton that is better than nothing, and there is almost no bottom cotton. Here I have two plans. The first one is as shown in the picture. Two layers of masking paper are pasted on the bottom of the PCB. The price is five yuan A large roll with holes pierced in it for mounting.

Another method is to cut the cushioning cotton for packaging to a suitable size with a knife without any cost, stuff it in, and use it as the bottom cotton, but the effect will not be too obvious, after all, the cotton density is not high.

experience feelings:

It can be used for two or three days. Let’s talk about the advantages first. The battery life is good. For normal game play, a week is no problem at all, but if it is for office work. . . . . I don’t think I need this to go to the office, and the cavity is still there, but it’s not serious, and it can be eliminated after simple debugging. The performance of the big key is okay when it leaves the factory, and it’s quite satisfactory. Yes, I chose the b-red v2 switch body, which is enough for daily typing. If possible, my suggestion is to choose b-white, because b-white is the best sounding among the paragraph switches (like blue switches) in my opinion. Yes, 98 series layout, although there are many products now, but the cost performance and user experience of the magician are not bad. In addition, if you want this kit, you can also buy it separately. It seems to be 299? Recently, I saw this product from his house. It seems that the top 100 give away a burrow mouse. I happen to be in the top 100, hehehe.

Summarize:

advantage:

PBT keycaps, no oil, ball caps, look better, and feel better.

There is a 2.4g storage compartment and a two-stage adjustable foot support design, which is convenient for storing the receiver and adjusting the height according to your own habits.

The tuning of the big keys is not bad, and it can be used at the beginning. There are a few big keys with steel wire sound, and it will be fine after a little tuning.

It uses Kaihua's latest box shaft body, and the price is not bad.

The three-mode connection mode meets the wireless needs of the desktop.

Kaihua customized the v2 shaft body, now Kaihua's v2 has changed the color, and the demon has customized a translucent v2 shaft body, which is very good.

shortcoming:

Chamfered around the design, a little handle.

The 98 arrangement takes up too much space, and those with small desks can consider buying other arrangements.

Cavity sound, the bottom cotton is better than nothing, it is a bit useful, but not very big, here you can add two layers of textured paper or stuff the cotton in the box into the bottom shell for filling.

Summarize:

emmm. . . This keyboard, I can’t say how good it is, and I can’t say how bad it is. There are bright spots, and there are some unsatisfactory areas that need to be improved. Generally speaking, if you need a box for playing games and want to experience the box The mechanical keyboard of the v2 series axis, I think you can experience the magic trainer MK98
