Upstart & Kaihua joint Dailuo shaft review: the fourth type of feel

Upstart has recently launched GM780/GM980 three-mode hot-swappable keyboards, which adopt the popular Gasket structure scheme and bring users a recognizable appearance design and mainstream hardware matching. In addition, it has jointly launched the star switch and Dailuo switch with the well-known switch manufacturer Kaihua, which correspond to linear feel and segmental feel respectively, and also bring more feel choices for users. We have brought you a brief review of the star axis before, and today we will bring a brief review of this section of the axis body Dailuo axis.

Appearance design:

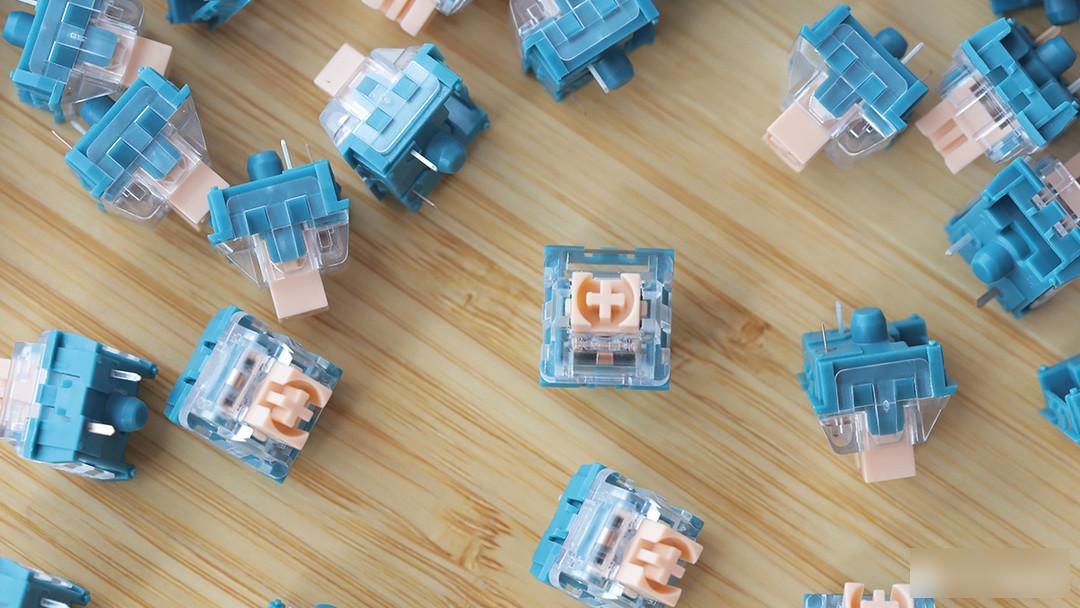

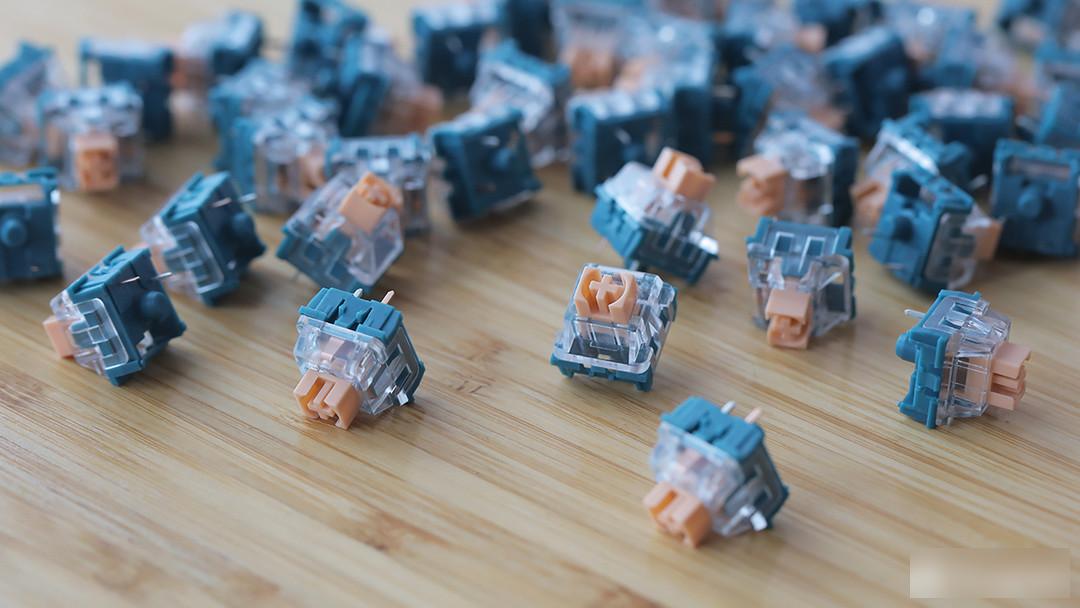

　　新贵&凯华联名款黛螺轴的整体采用由透明轴盖搭配黛绿色轴座的方案设计，轴心为浅粉色，整体色彩搭配还是较为协调的，颇有“黛绿慵挑，金粉羞调”的意味在里面。两种颜色的相互搭配，也呈现了更为自然协调的视觉观感，让轴体在颜值、辨识度上都有不错的表现。轴盖采用了高透的PC材质打造，能带来更高的透光性表现；轴座采用了尼龙材质，结实耐用还有着不错的韧性，让用户在拆装时都更加轻松省力；而浅粉色的轴心则采用了POM材质打造，带有自润滑特性的轴心材料，也让长时间使用下依旧拥有顺滑的按压表现。轴座底部采用了常见的三脚方案，对于当下绝大多数的热插拔键盘都有着良好的兼容性表现，对于用户来说更换轴体也更加方便，友好程度还是很不错的。

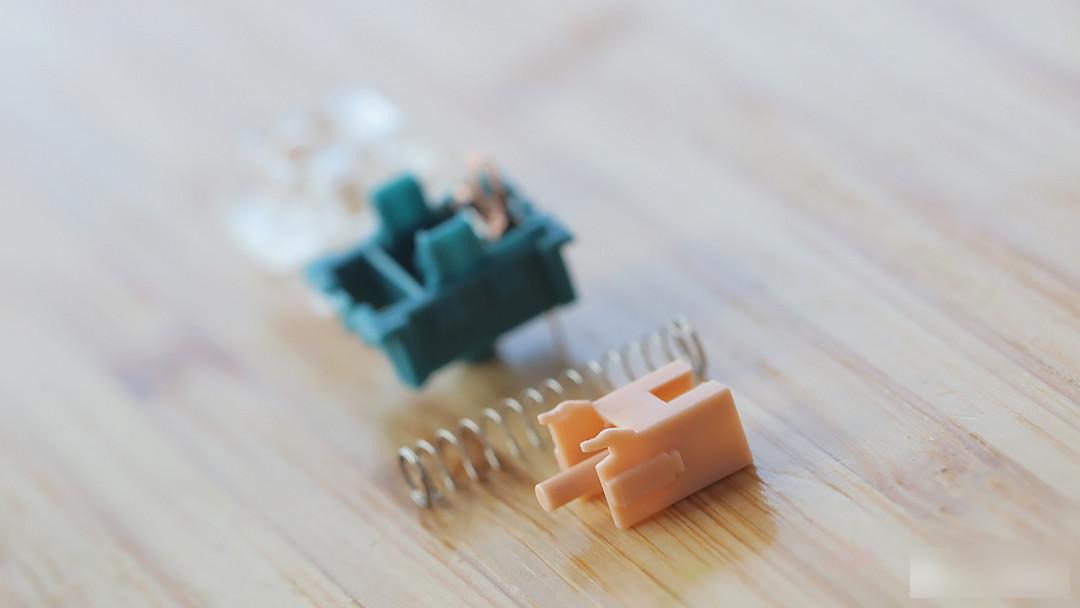

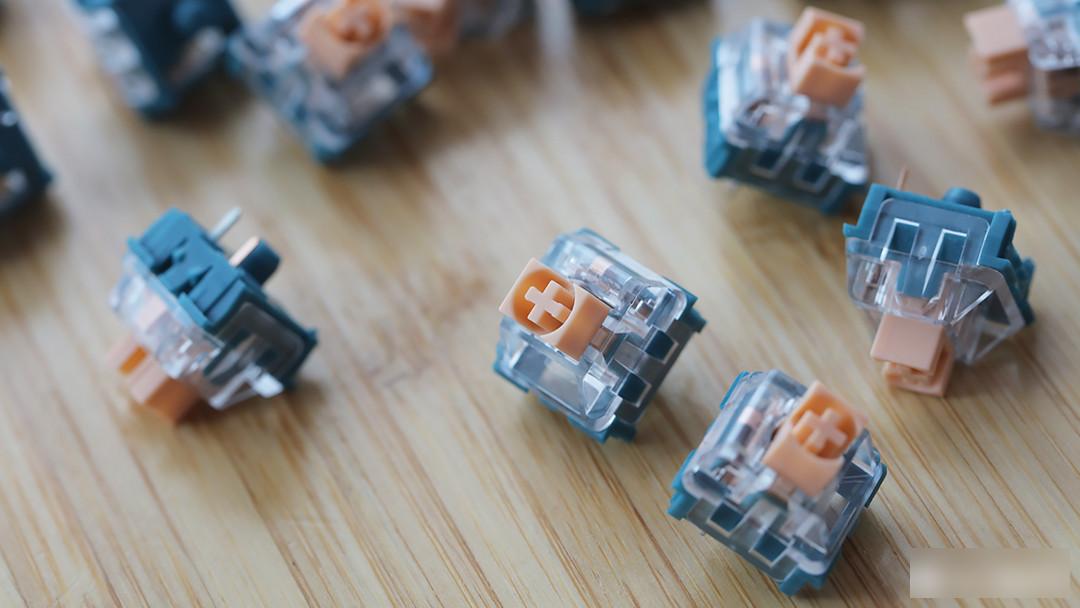

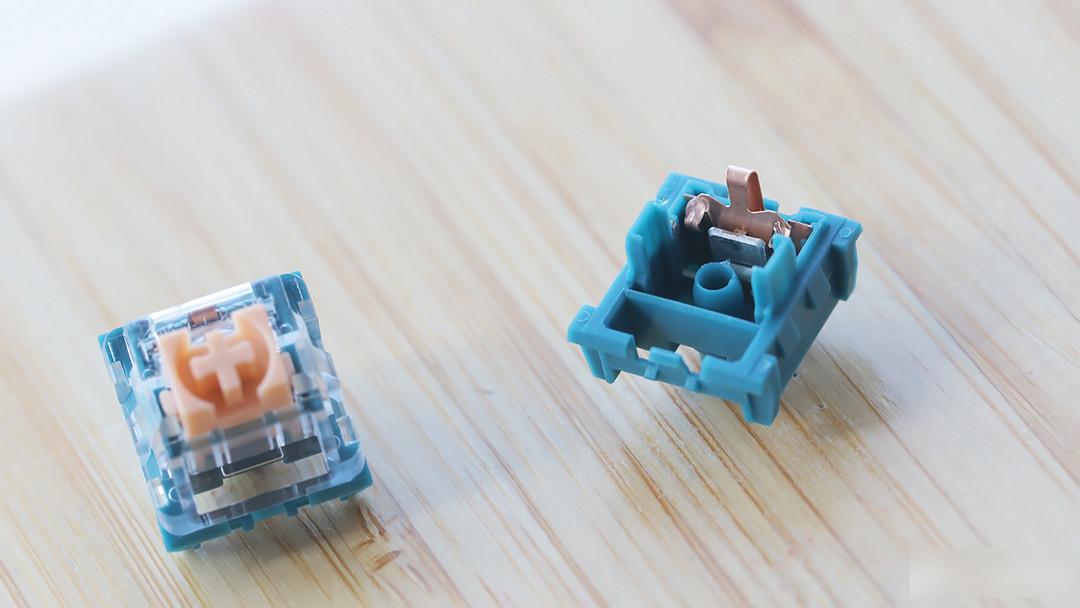

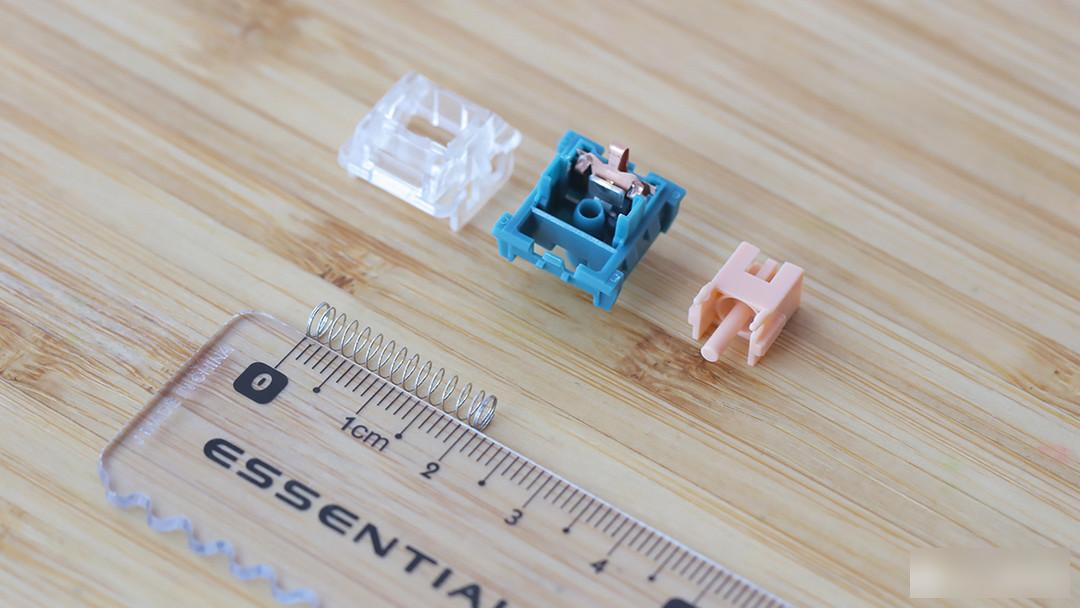

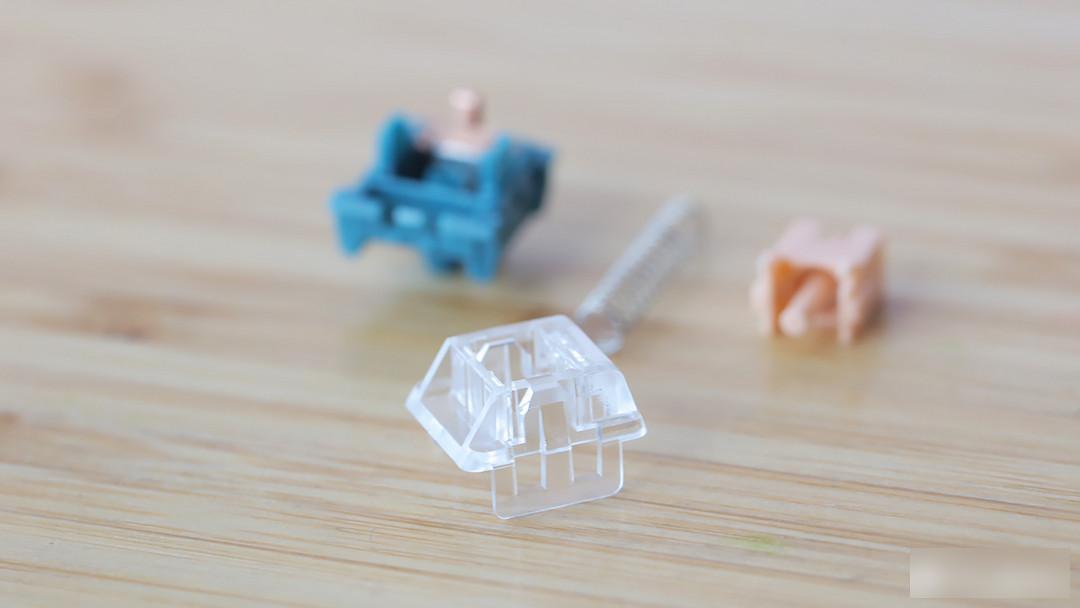

The Dailuo shaft adopts the popular MX structure, with an advanced paragraph feel scheme, which is also the "fourth type of feel" that is currently popular among users. The shaft cover adopts a large buckle scheme, which is closely connected with the shaft seat and fixed firmly. With the shaft center designed with a dust-proof wall, it can reduce the intrusion of dust and impurities into the shaft body, affecting the feel or life of the shaft body, and effectively improve the shaft body feel. Persistence and durability. The axis solution with dust-proof walls and guide rails also makes the pressing feel more stable, and reducing the shaking of the axis has greatly improved the user experience. At the same time, it has also been improved on the guide rail structure and the small feet of the axis. Thin, can improve the smoothness of pressing, reduce the noise of the shaft and internal noise. It uses a common single-section long spring inside, with a length of about 21mm, which makes the pressure more uniform and stable. The internal trigger metal sheet contacts are also gold-plated, which is more durable and brings more than 70 million to the shaft. click lifetime.

Implementation test:

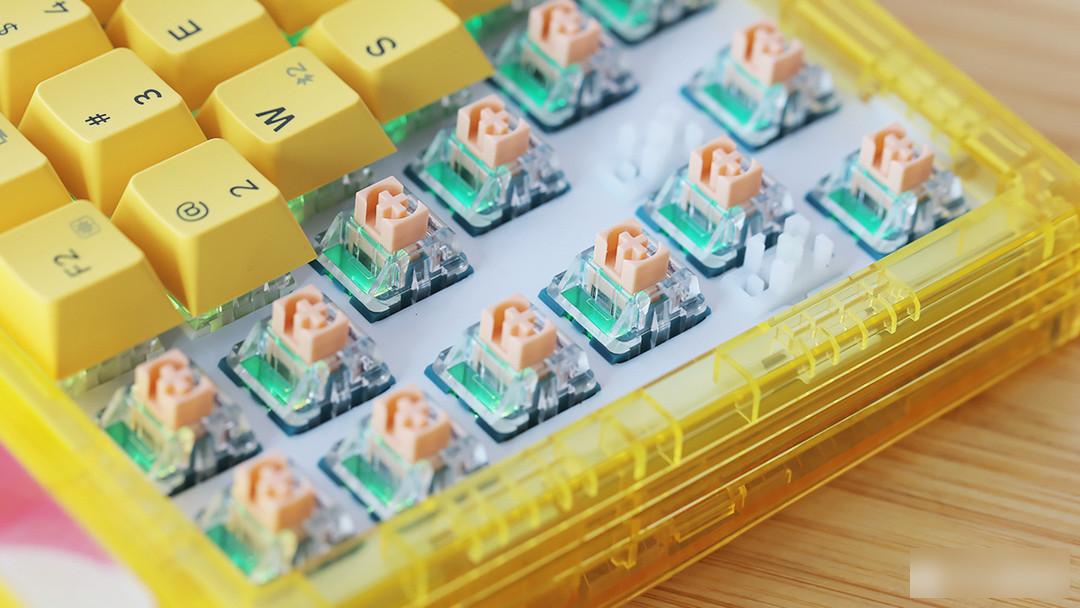

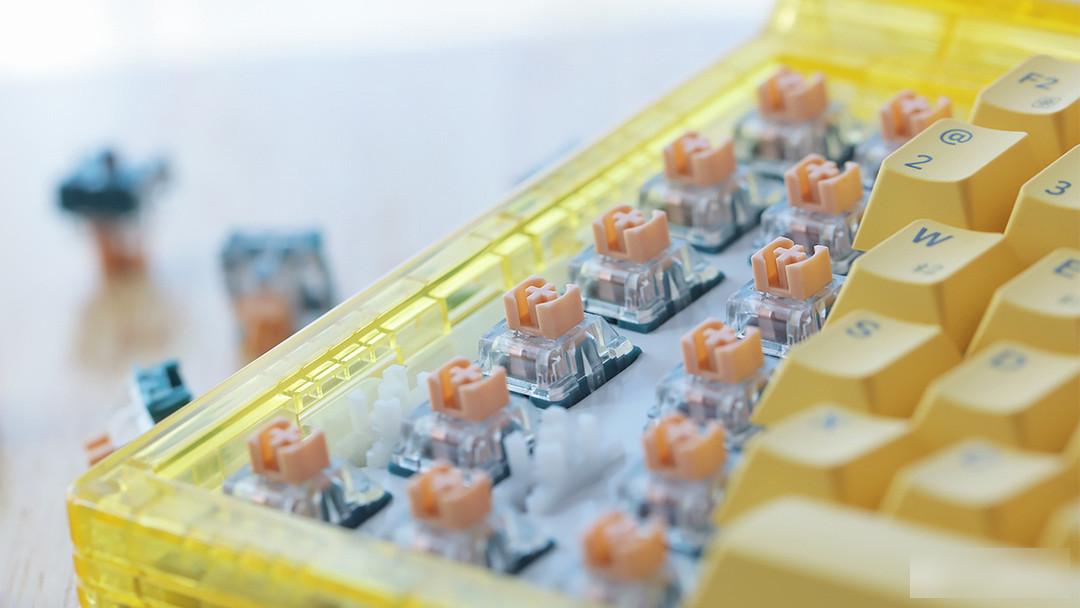

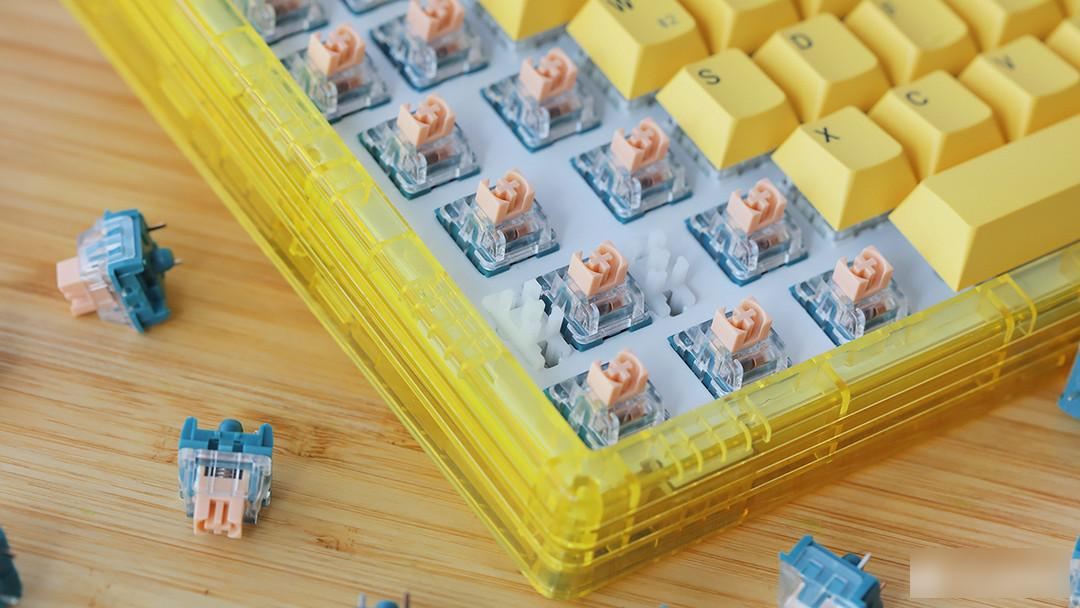

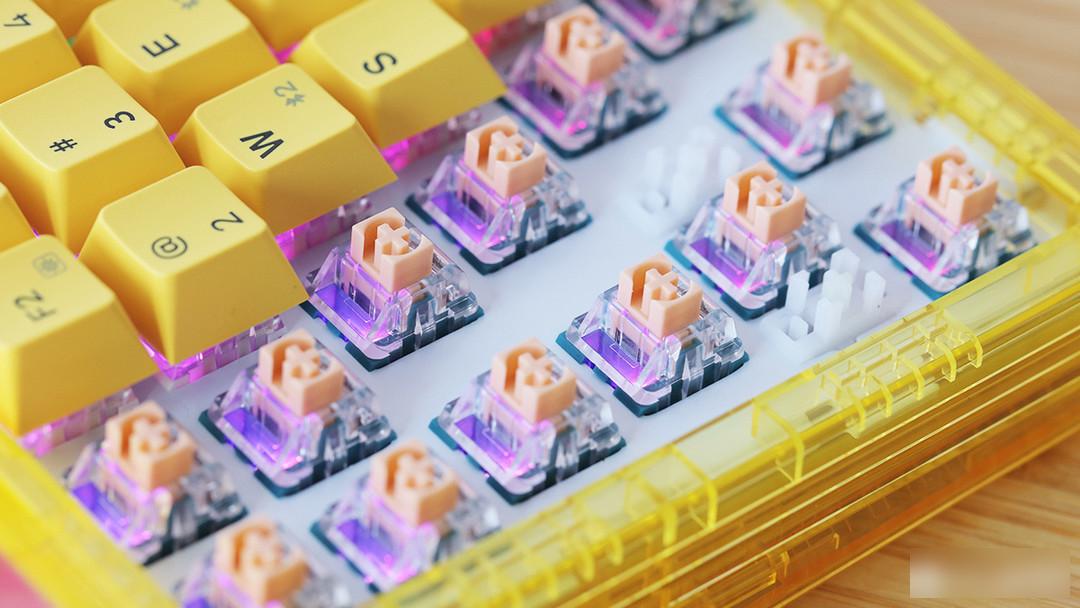

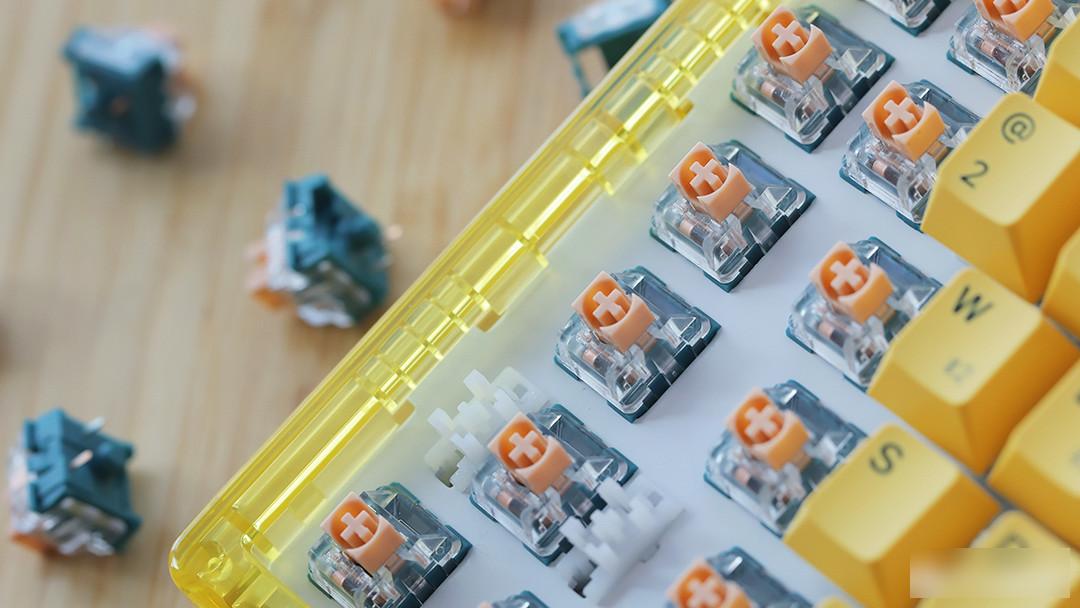

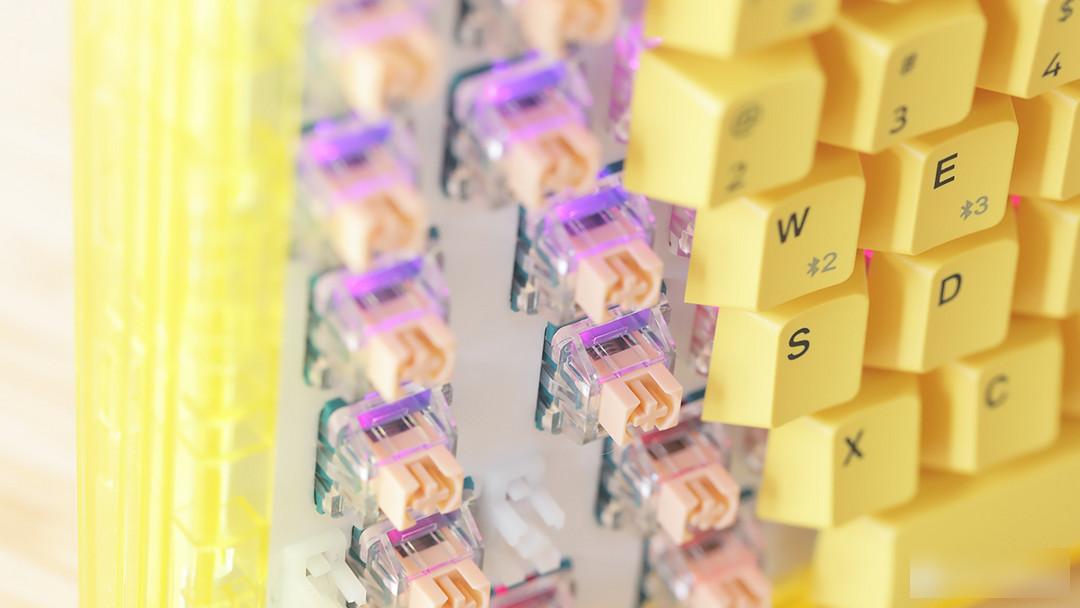

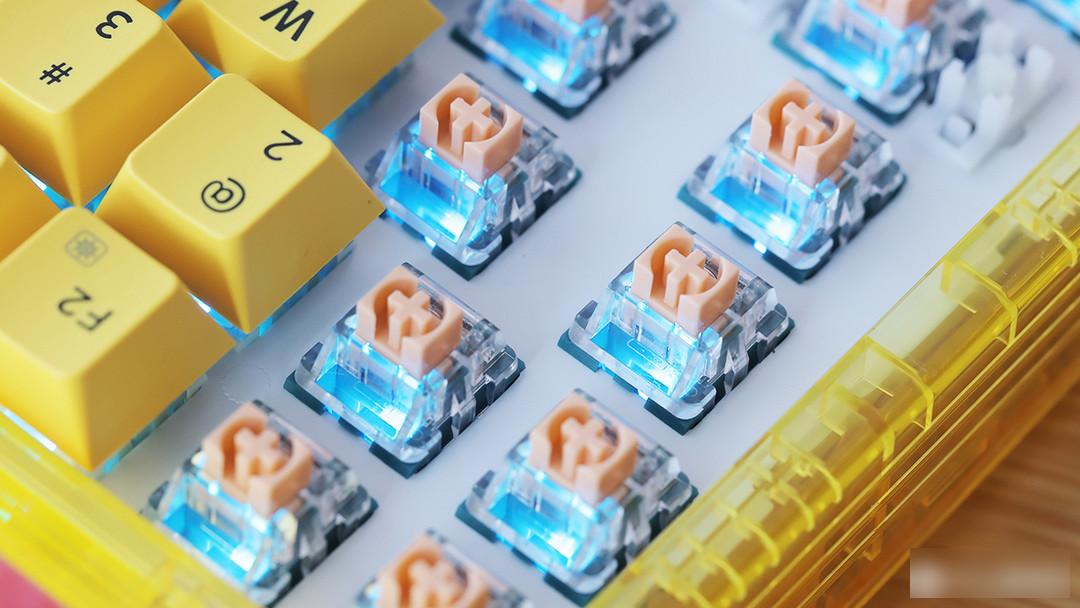

After being installed on the keyboard, the combination of the switch body and the white positioning plate still has a good appearance. The appearance is three-dimensional and full. The dark green bottom shell is looming through the crystal clear switch cover, which also brings a richer visual sense of hierarchy. . This shaft body adopts the structural scheme of the bridge cover, which is compatible with the current mainstream SMD LED lamp beads. The multi-angle and multi-layer transparent shaft cover can also achieve better light uniformity and light guide effects. Or RGB lighting can also bring better lighting atmosphere performance, which is very friendly to users who like lighting effects.

The Dailuo shaft adopts the early stage feel scheme, with a trigger pressure of 50g, a total stroke of 3.7mm, a trigger stroke of 2mm, and a trigger life of about 70 million times. The feel of the shaft body will have a more obvious sense of pause when it is just pressed, and it will have a heavier force to touch the bottom when it continues downward. When it rebounds, it will go straight up and down, which is closer to the linear shaft. In a shaft You can experience the pressing of the paragraph axis and the rebound of the linear axis on the body, and the feel experience is still very novel. The Dailuo shaft has a clear and clear sense of paragraph, the trigger sound is controlled properly, the rebound follows the hand, and the bottoming is stable. A false touch has occurred. It is very good for gamers who need precise operation or users who like a little heavier force and a clear sense of confirmation. However, the trigger force of 50g will still cause a certain sense of fatigue after long-term use. Ordinary users can place it on the big key. position, or key positions in the F area, etc., to avoid accidental touches and also provide a clear sense of confirmation during use.

Summarize:

　　新贵&凯华联名款黛螺轴在颜值上的表现还是很不错的，黛绿的轴座与浅粉色的轴心搭配也有着较高的辨识度，而提前段落的手感方案，也能为用户带来更加新鲜的手感体验，对于各类使用场景也能做到很好的兼顾，整体表现还是非常不错的。这款轴体将首发搭载在新贵GM780/GM980两款Gasket结构机械键盘上，喜欢的用户不妨多多关注一下。
