Whether the new Box axis can continue the classic, Kaihua Danxia, Cangling, Yanmo axis evaluation experience
Hello everyone, I am Taotie
When it comes to Kaihua's Box shaft, I think players of key rings should be familiar with it. In the era when everyone was busy imitating the Cherry MX shaft, the Kaihua Box shaft dared to find a new way and directly made subversive changes to the internal structure of the shaft, which also required a lot of courage and determination.
Through a series of innovations such as sealing the trigger switch, separating the sound unit, and changing to the Box shaft core, the Box shaft body has a distinctive experience and freshness, especially the Box white shaft, whose unique crisp sound is even more It has won unanimous praise from the majority of key circle players.

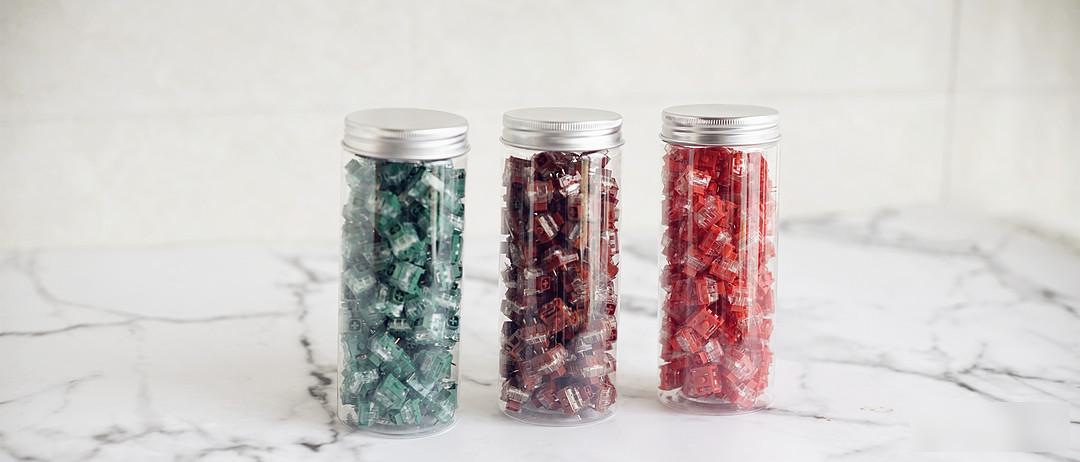

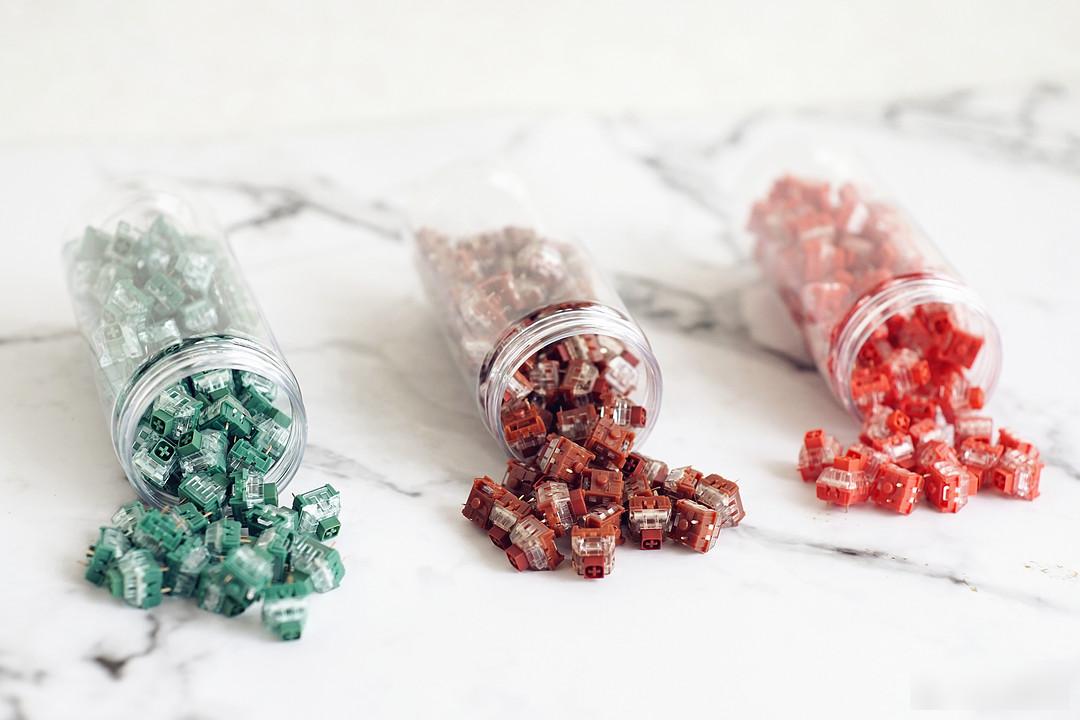

Then this time I got the latest Box large cargo shafts that are matched to the Black Canyon Y series, which are Danxia, Cangling and Yanmo shafts, each representing three different feels of linear, strong paragraph and early paragraph. Here I need to specifically mention the Cangling axis. After all, there are really fewer and fewer such axes with a strong paragraph feel. Perhaps as time goes by, only the "crispness" of the Box can awaken the youth. Keep the memory in your heart.

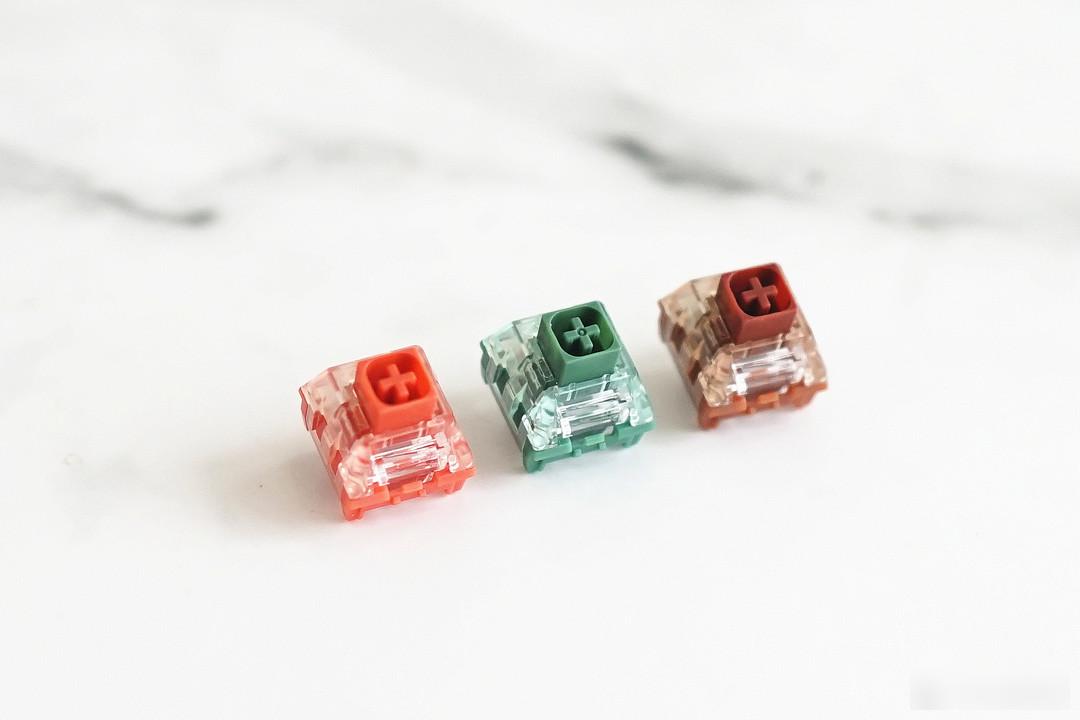

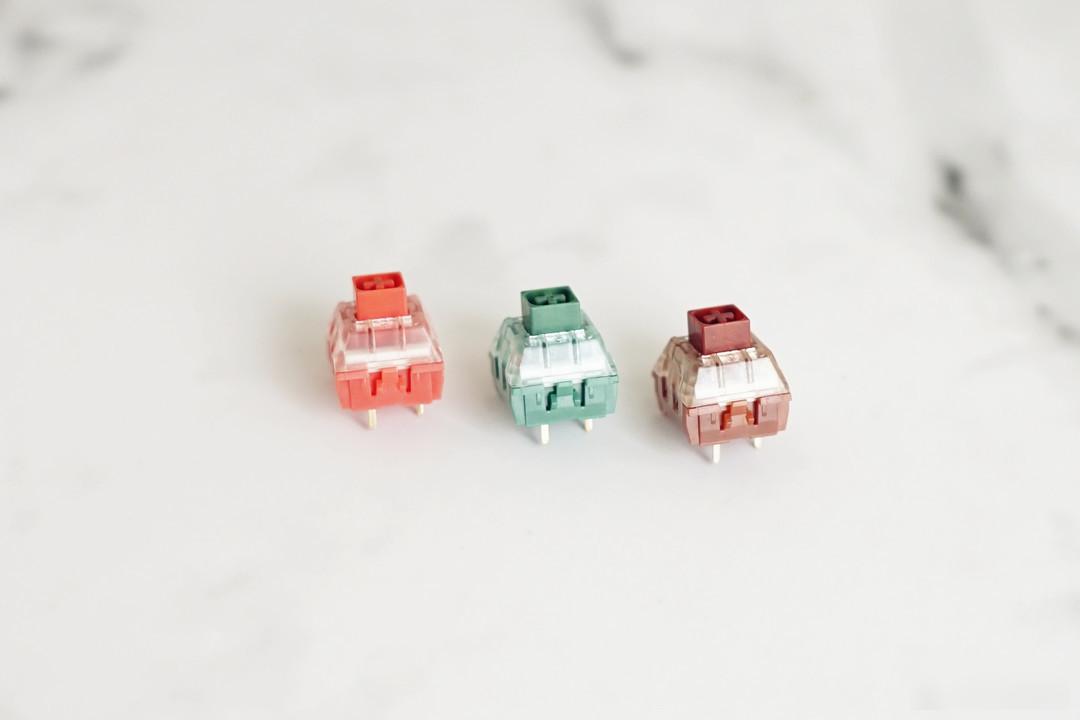

In terms of color matching, these three shafts match their themes one by one. Cangling corresponds to dark green, Yanmo corresponds to dark brown, and Danxia corresponds to light red.

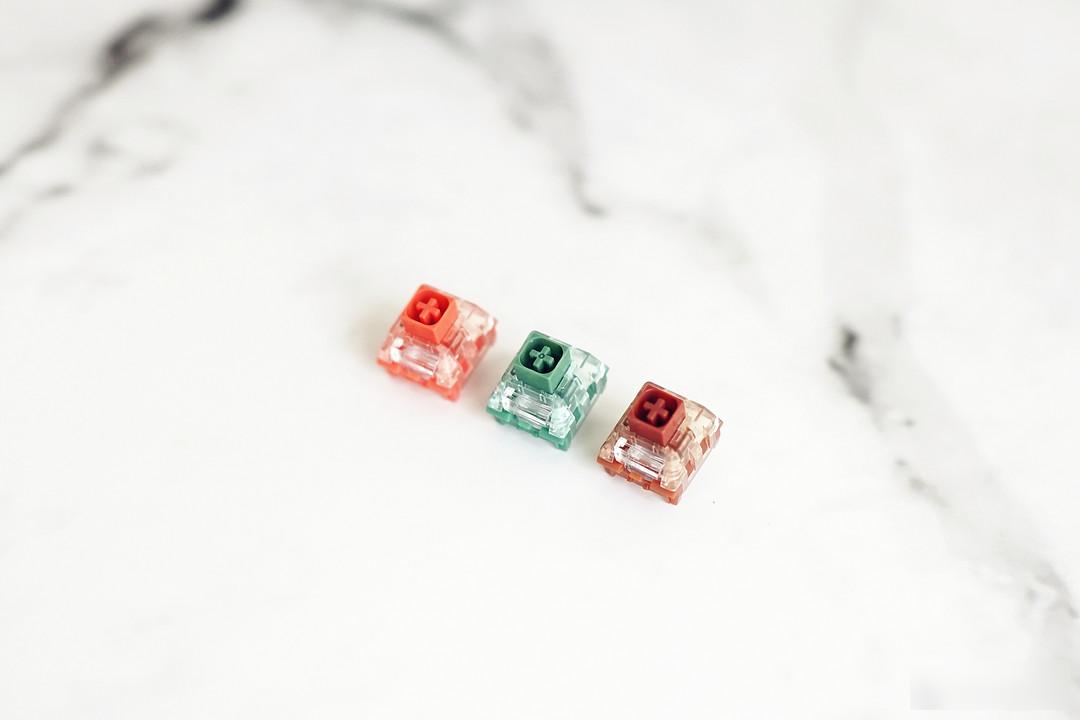

It can be seen that the shaft body adopts the same color matching of the shaft core and the bottom case, and the upper cover is made of transparent material.
In addition, you can see that a light guide column is added inside the shaft body, so that the light will be more concentrated when passing through the shaft body.
After all, most of the keyboards in mass production have a positioning plate structure, so the shaft body does not use a five-legged shaft, and there is no big problem in terms of stability.

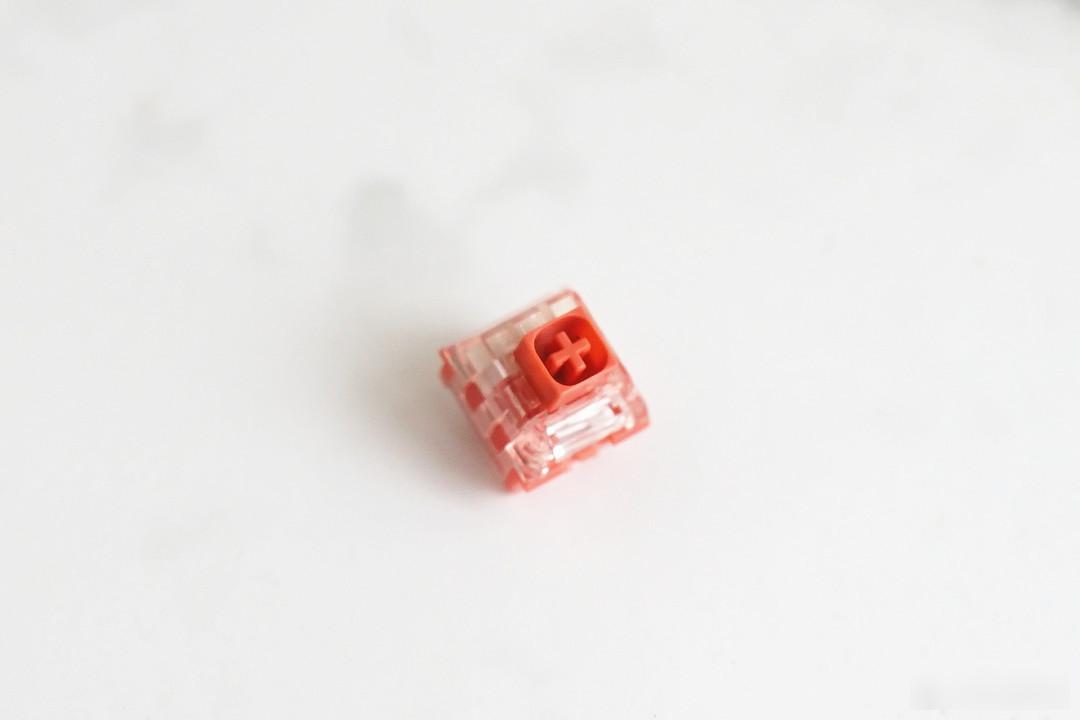

Then take a look at the basic parameters of this Danxia shaft.
Total stroke: 3.6±0.3mm
Conduction stroke: 1.3±0.4mm
Operating force: 45±10gf
It can be seen that compared with the red switch, the total stroke of this Danxia switch is shortened, coupled with the shorter trigger stroke, making its overall feel more like a silver switch. However, due to the structure of the Box itself, it will not be too tight when it is tapped.

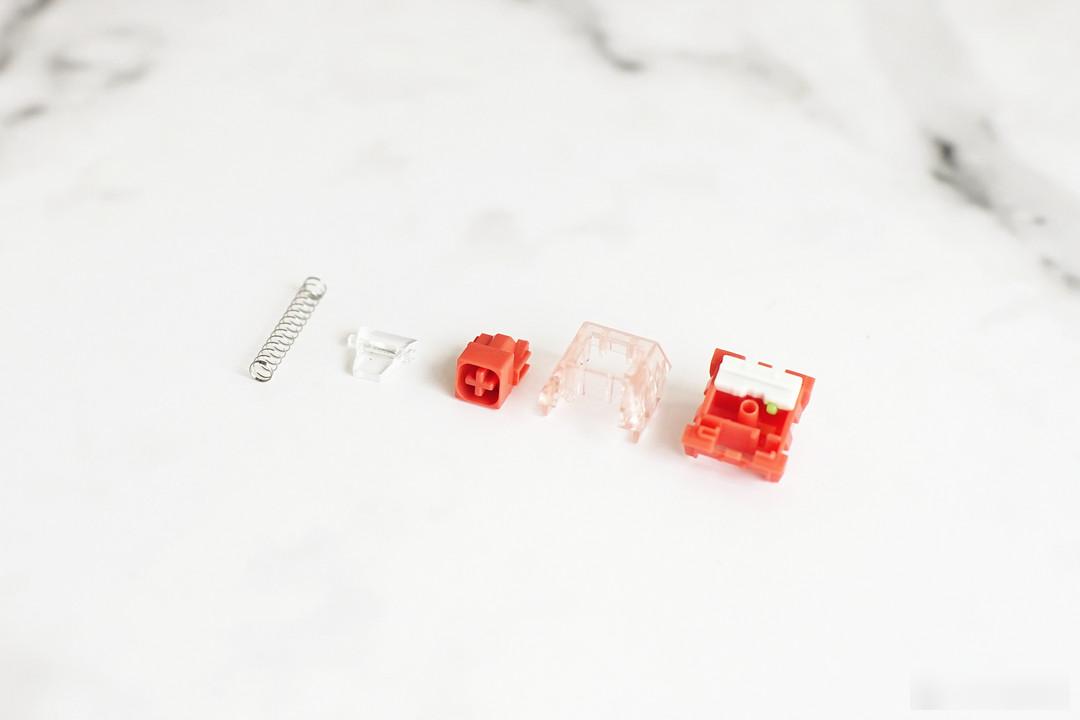

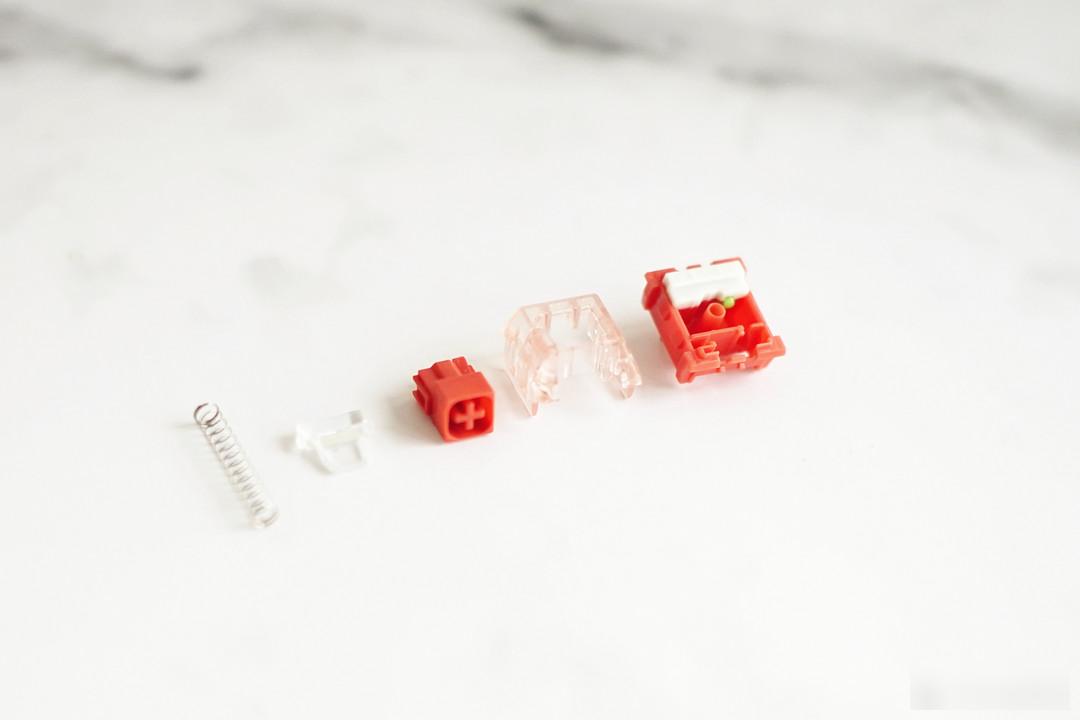

Through disassembly, it can be found that the shaft spring has been lengthened to a certain extent, which ensures the necessary heel feel. After trying it, the spring positions of the three shafts have been thinned, so the spring sound is well controlled, and the smoothness is also commendable.

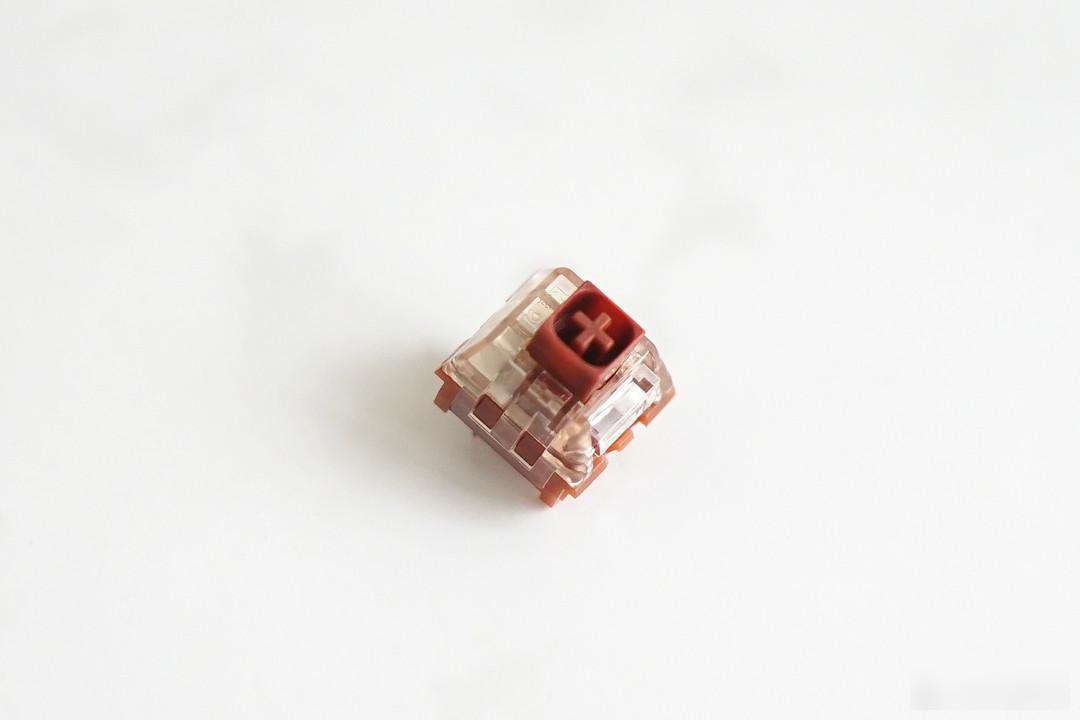

The basic parameters of the smoke desert axis are:
Total stroke: 3.6±0.3mm
Conduction stroke: 2.3±0.3mm
Contact force: 55±10gf
Operating force: 40±10gf
Resilience: 15gf
It can be seen that the trigger point of this Yanmo switch has been advanced to 2.3mm. As an advanced step switch, its overall feel is more comprehensive, and at the same time it is more tenacious, and the rebound follows the hand.

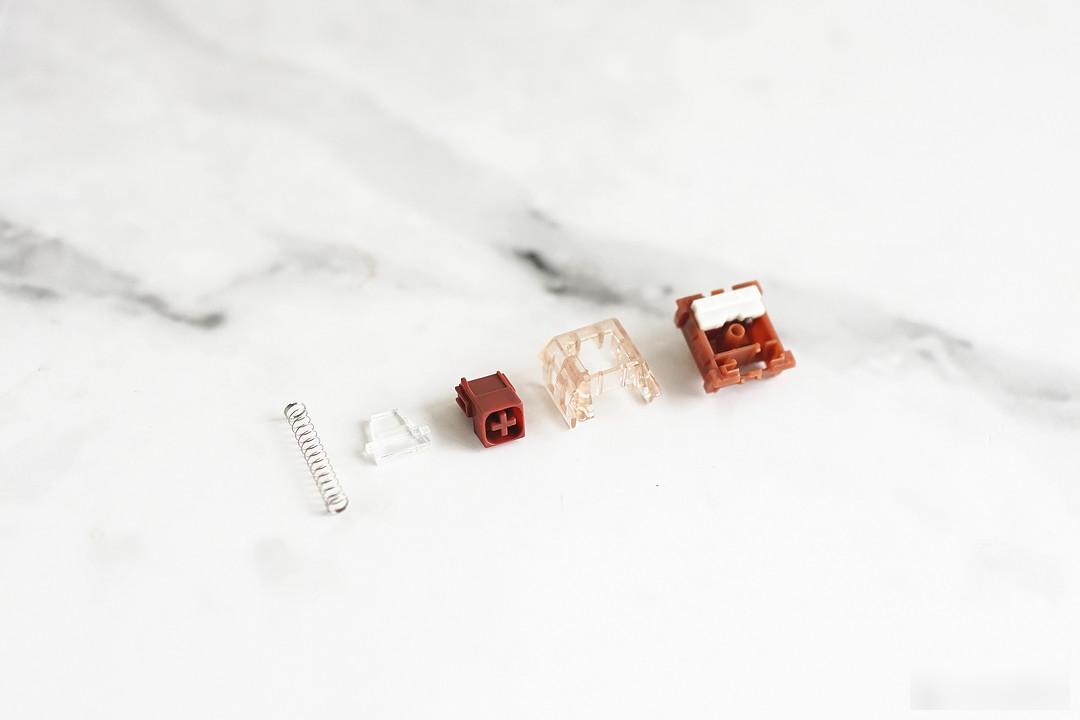

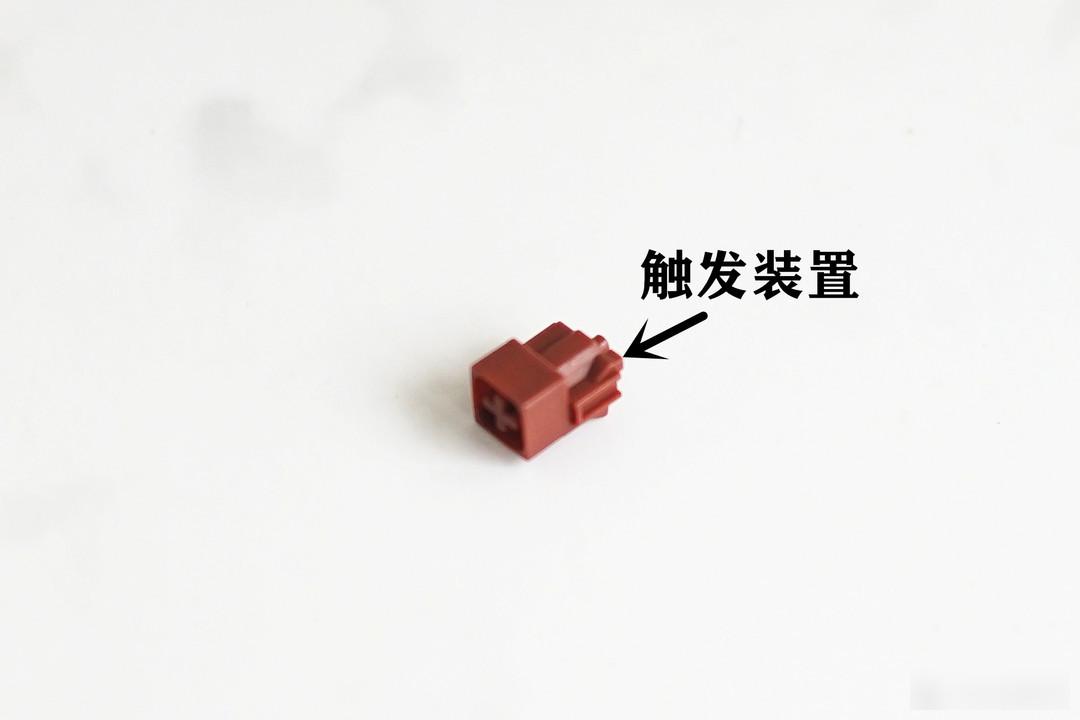

It can be seen that the trigger device on the shaft core has been specially designed to make the feel change when the shaft core is pressed down through a small arc.

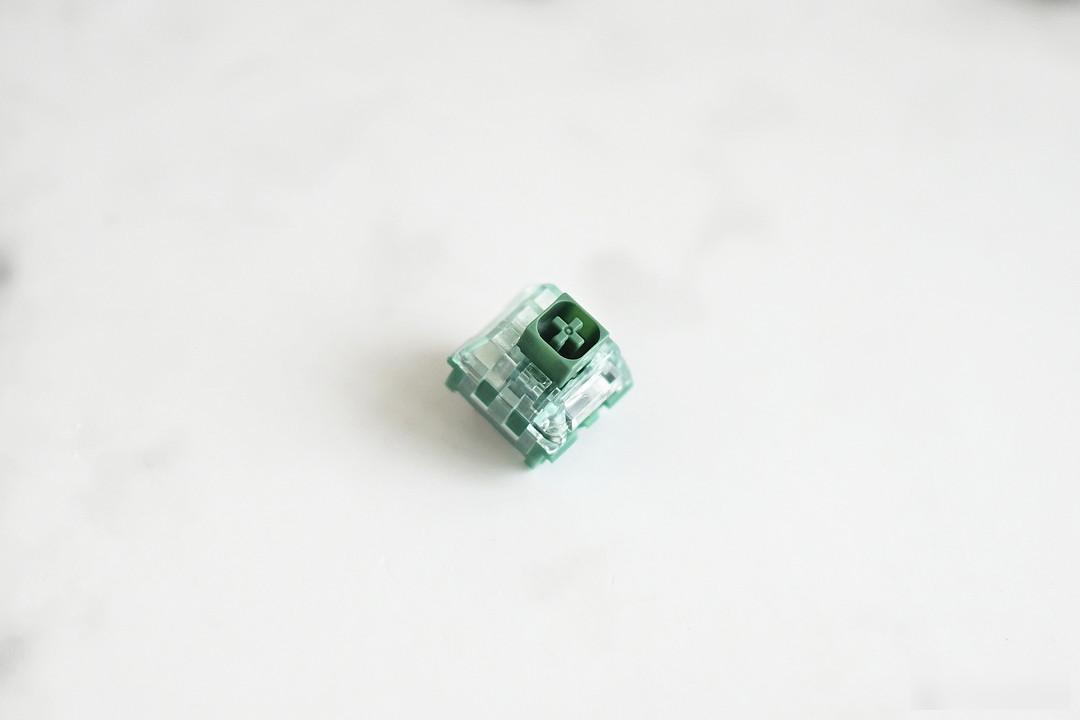

The basic parameters of Cangling axis are:
Total stroke: 3.6±0.3mm
Conduction stroke: 1.8±0.3mm
Contact force: 55±10gf
Operating force: 50±15gf
Resilience: 15gf
The Cangling axis should be regarded as the latest enhanced version of the Box White axis, but compared to the hysteresis of the previous Box White, the current Cangling axis rebounds faster, and the pressure is firmer, and the feeling of "click, click" will be more comfortable. .

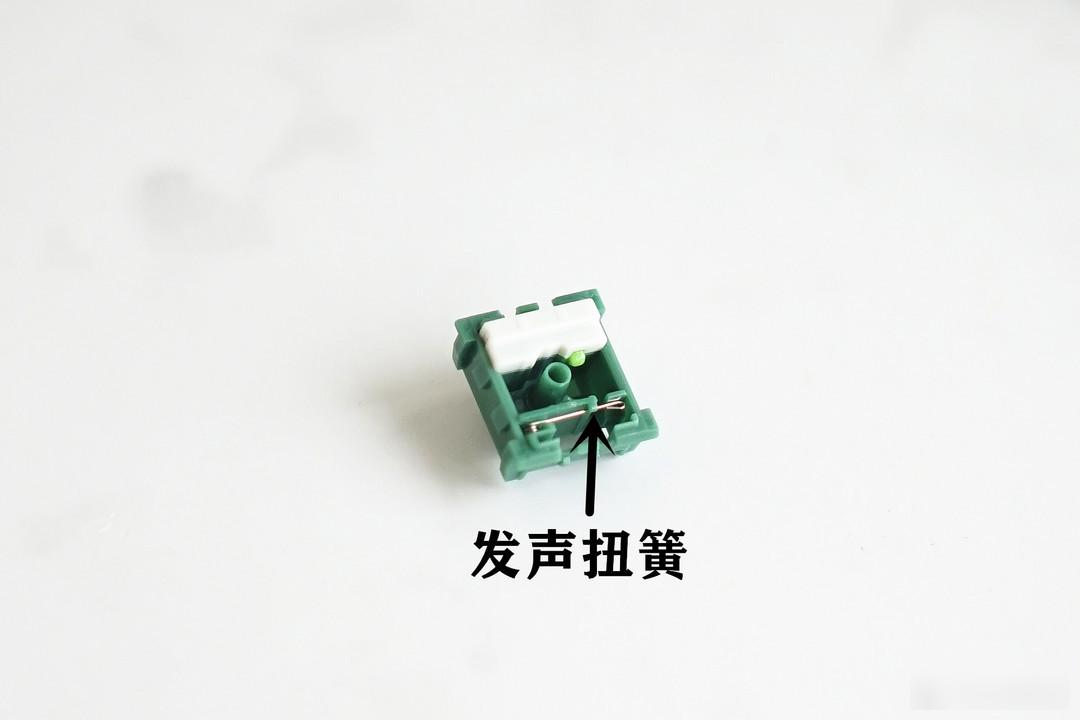

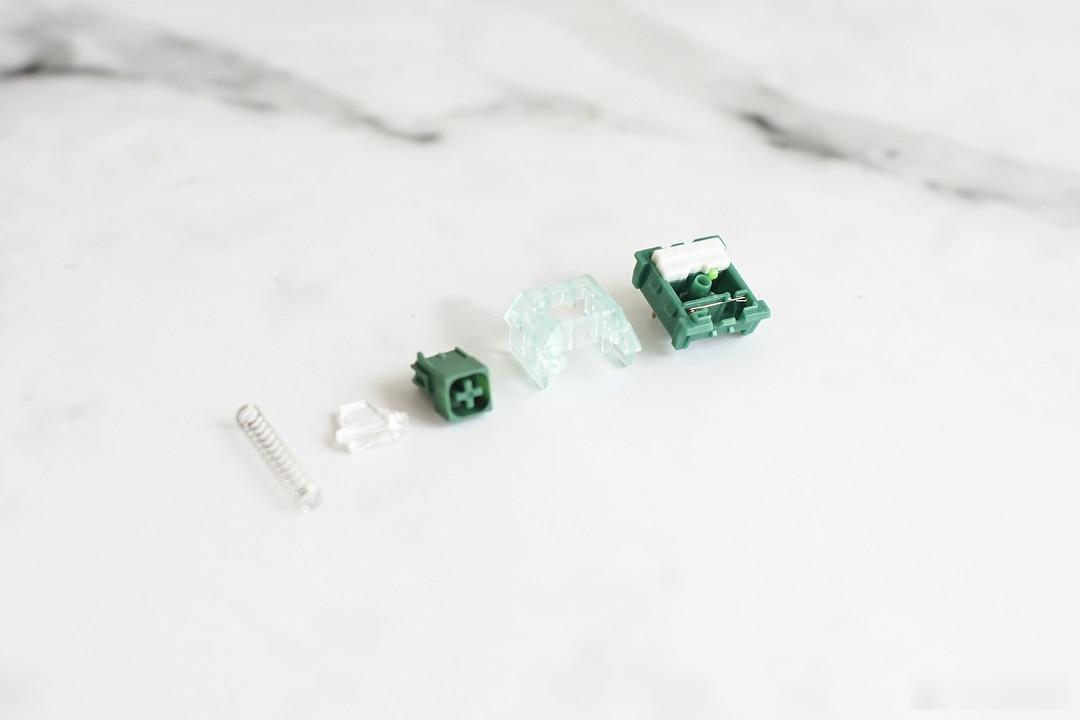

Inside the base, you can still see the sounding torsion spring structure and the independent sounding chamber.
Now that the shaft has been obtained, it is natural to experience it firsthand. Let's start to test the specific feel of these three shafts.
Through the use of these three switches, it can be found that the three new Box switches exclusive to Black Canyon this time, Danxia, Yanmo, and Cangling, all have their own unique aspects, and they are matched with the Gasket structure of the Black Canyon Y series keyboard. , so that the overall feel of the shaft body has been further improved.
So for friends who like mechanical keyboards, if you want to try the latest Box axis, Black Canyon’s Y series keyboards are definitely worth a try.
Well, the above is the whole content of this article, thank you for reading.
