[Worth buying for the first release] Xiaoxing new product evaluation —— Kezhi k68 unpacking and dismantling evaluation

Hello, everyone, this is Pai Xiaoxing. Today we will continue to bring you the review manuscript of new products. The product evaluated today is the new product Kezhi k68 that is currently on pre-sale at Kezhi Family, so we will not talk much. Let's take a look together.

In terms of the outer packaging, there is actually no change, it is still the same as the k75, the sketch appearance of the product and the brand name of the product

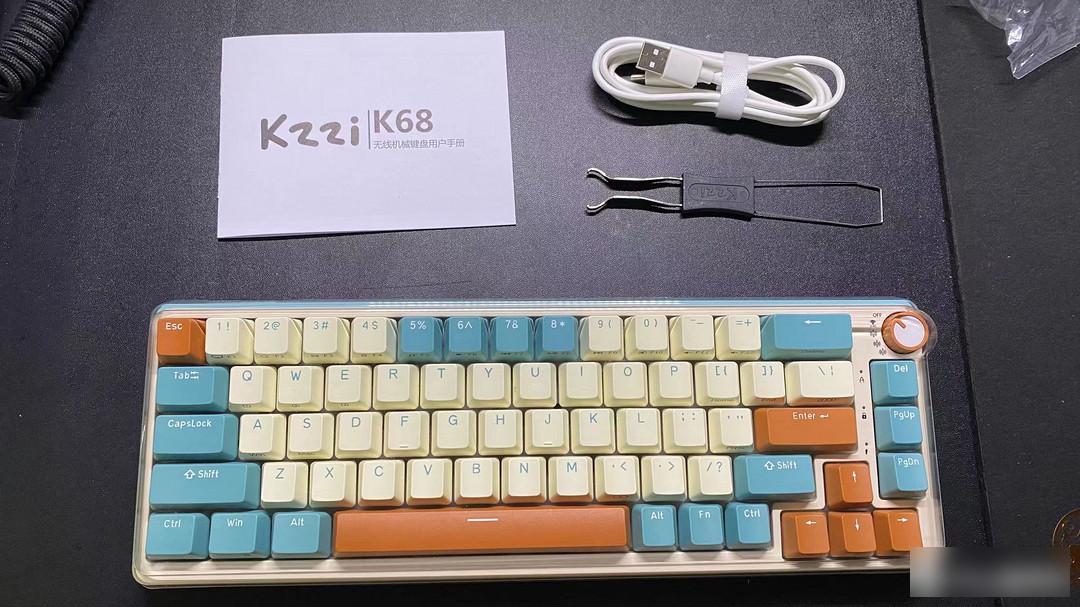

Open the outer package and take out everything to see all the items inside:

dust cover

keyboard body

Two-in-one key puller

manual

data line

As for the keycap, a two-color pbt keycap is used. The design that is not easy to oil is very good. The height of the keycap is the same as that of the original factory. Compared with the k75, the color is more vivid.

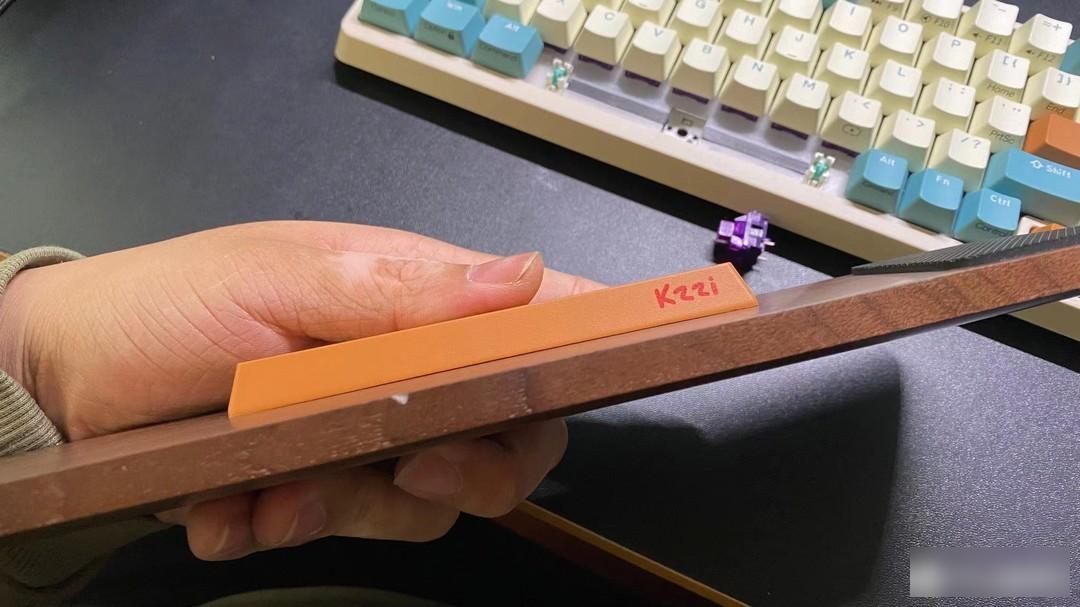

In terms of the balance of the large keys, the space can be seen, but there is no deformation, which also shows that the production process of the keycaps is actually very good.

K68 cancels the design of the small power display screen. There is a knob in the upper right corner. This knob is not a volume adjustment knob, but a mode switching knob. He still doesn't have the volume knob I'd love to have (whoooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo))

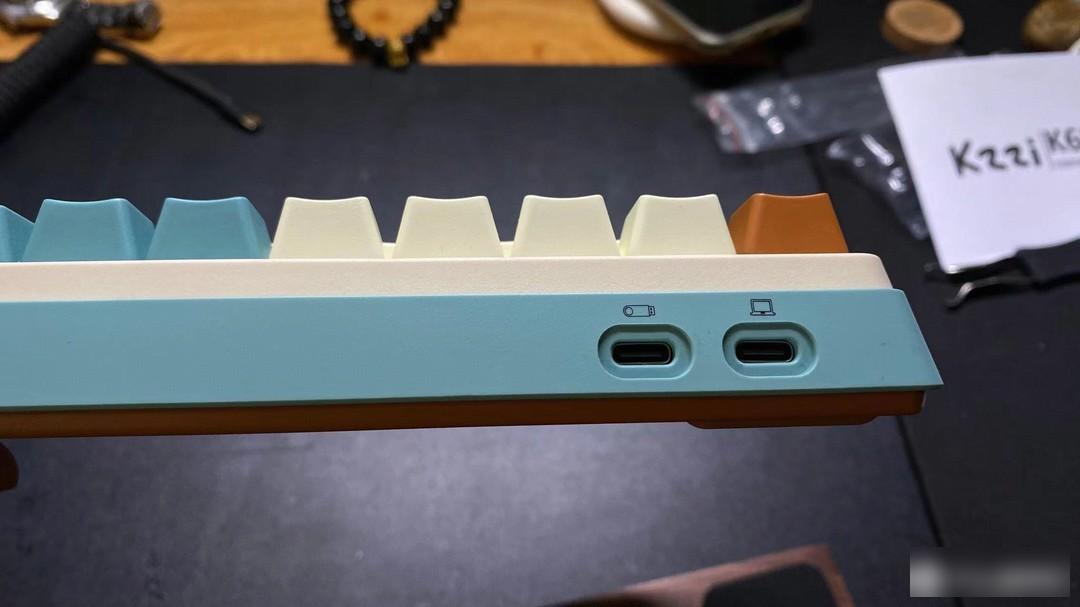

The left side of the keyboard is the charging port of the keyboard. This time, it can be seen that he actually canceled a usb expansion HUB port. This may be for the space inside.

The expanded HUB port allows us to connect another cable in the case of wired connection, or it is a good choice as a receiver card slot.

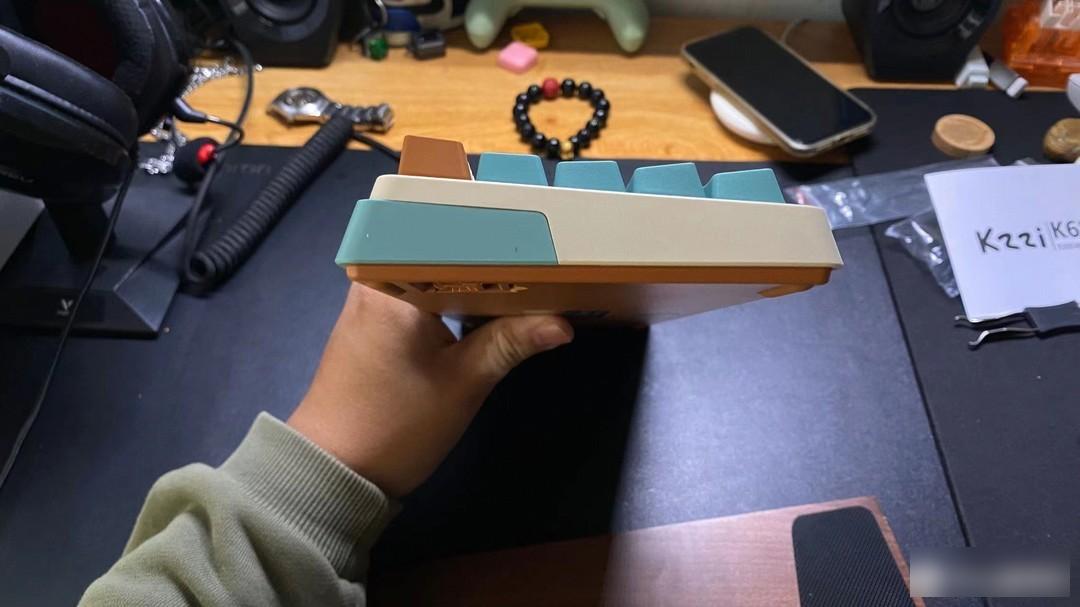

The side of the keyboard adopts a color matching design (in fact, the gap here is because I disassembled it and did not lock it tightly). This design is good and increases the overall appreciation of the keyboard.

The chamfering of the keyboard is designed with chamfering, and there is no handle. This is what I like very much. After all, I like to touch the four corners of the keyboard when I am idle.

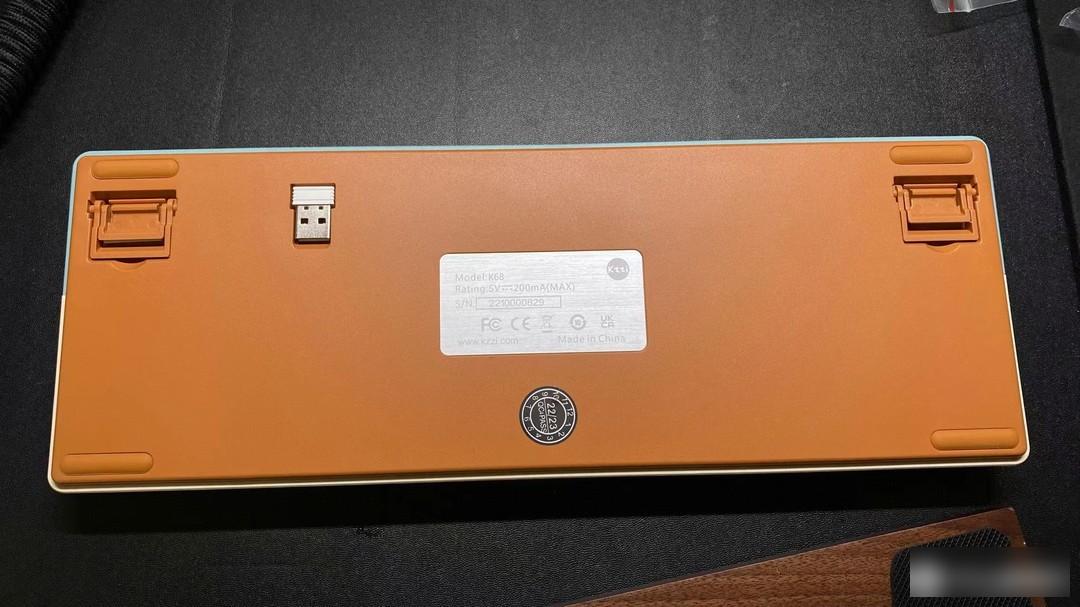

The back of the keyboard is still very simple, with a two-stage foot support, four non-slip foot stickers, and a 2.4g storage compartment design. This time, the industrial design of the k75 has been canceled on the back, maybe this is for consistency It may also be for cost (mainly because I personally feel that the fancy design on the back is actually useless. I use the keyboard instead of the back. Who is free to look at the back?)

After disassembling all the keyboards, we can get:

pile of screws

Seat cotton

Sandwich cotton

Bottom cotton

pcb

cover

lower lid

Battery

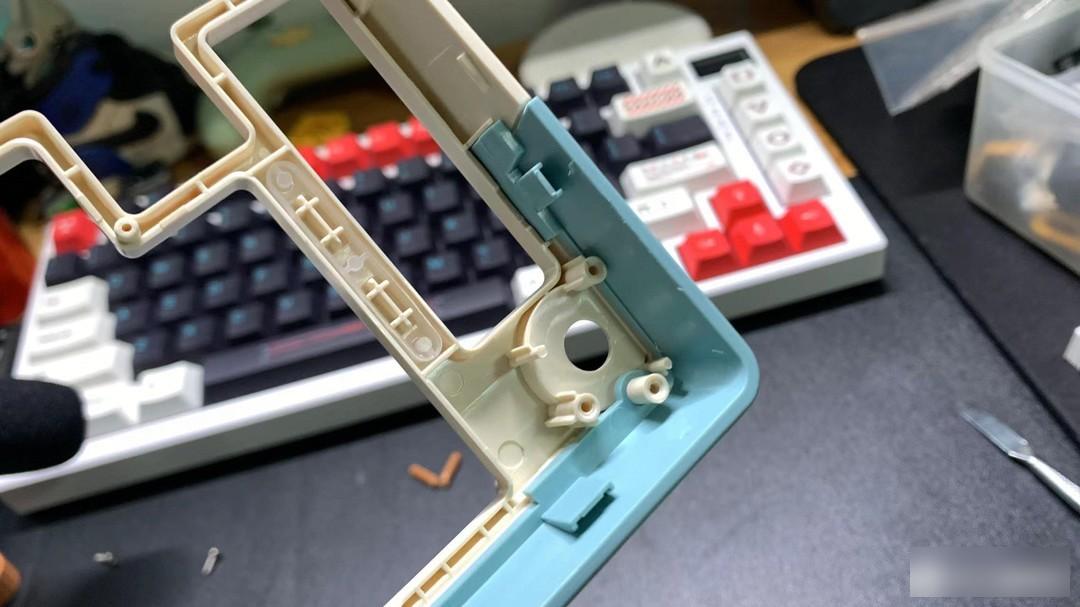

In fact, I would like to say something about the upper cover this time. The color matching shell is fixed on it by screws, so is there a possibility that I can draw the drawing of the color matching part of the upper cover, and then make some minor changes Finally, make a metal color-blocking decorative strip (but some processes are still very cumbersome and expensive)

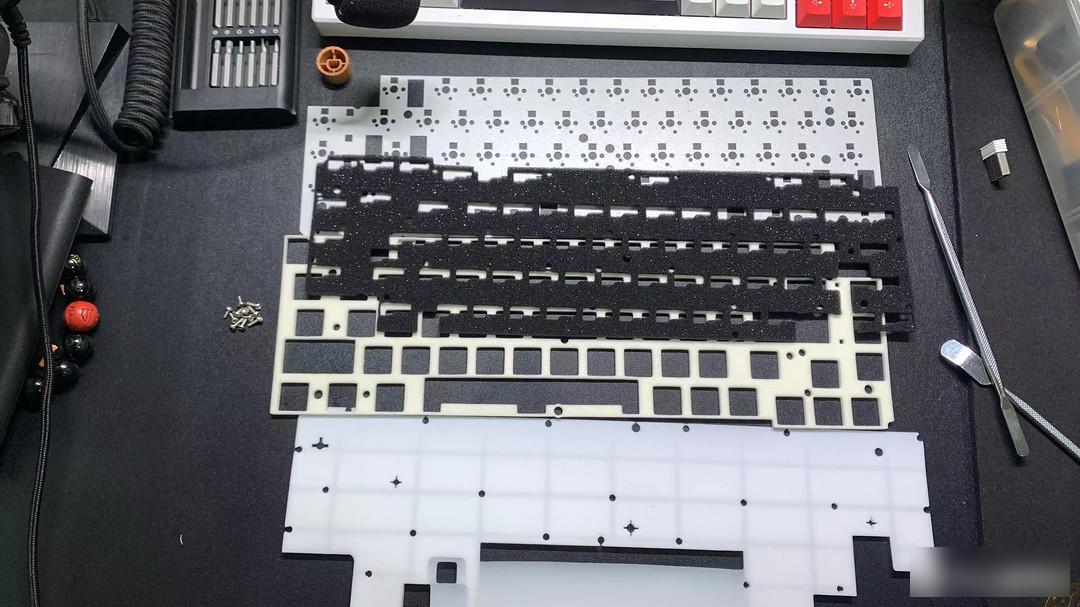

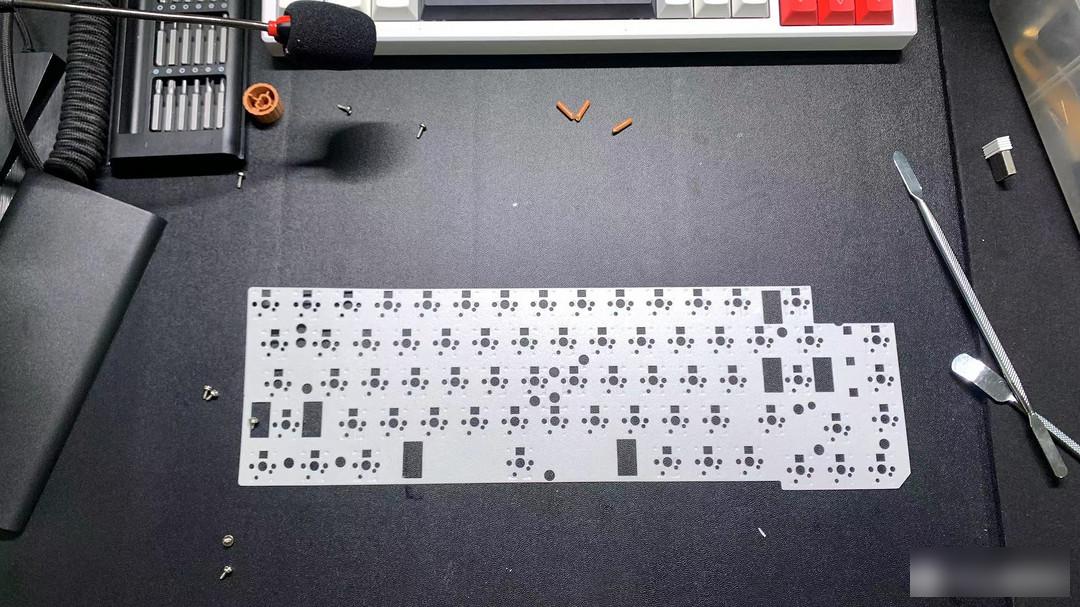

The sandwich cotton is made of white sandwich cotton made of pron material. The sandwich cotton made of pron material will make the sound of the keyboard more dull. This material is something I like very much.

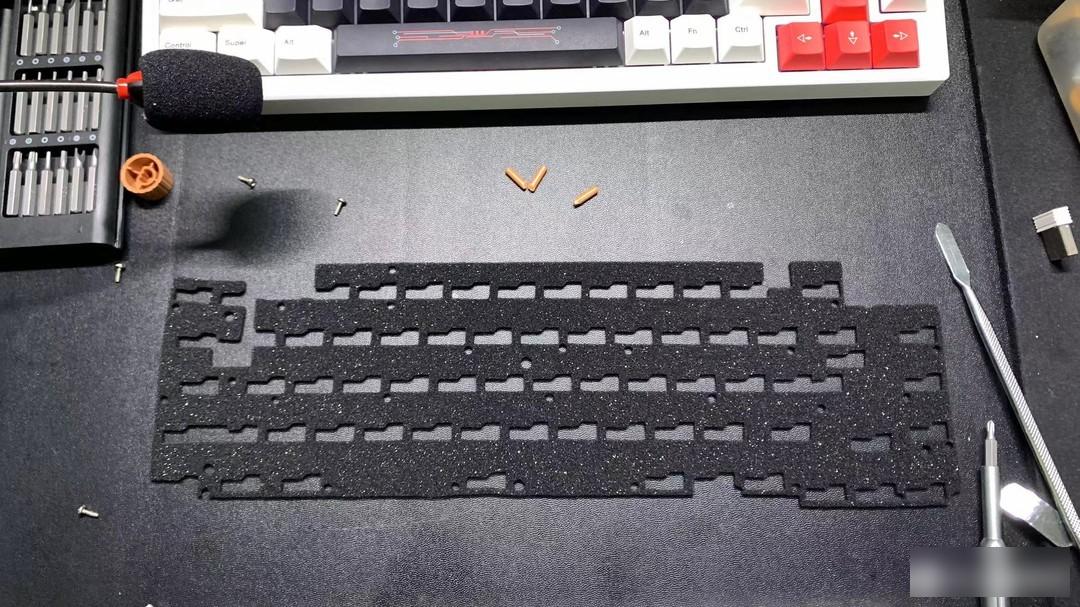

The material of the pad under the shaft is an ixpe material, and the corresponding part of the satellite shaft is slotted. This processing link is actually quite useful, so what is the use? If the corresponding position of the satellite shaft under the shaft is not slotted, he will feel fleshy when he presses it down. Many people don't like this, but he has slotted, and this consequence has been avoided.

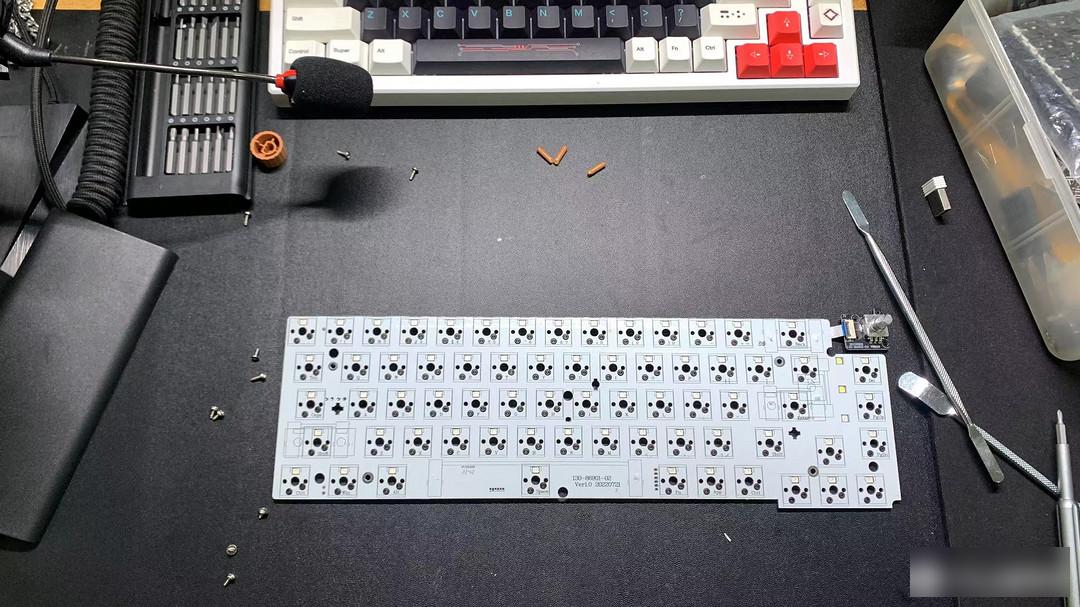

The pcb adopts a pentagonal hot-swappable solution, which supports triangular axes and pentagonal axes, and supports most of the axes on the market (except some optical axes, electrostatic capacitors, etc.)

The shaft seat is equipped with shaft seat cotton like the k75. The function of the shaft seat cotton can be understood as masking paper, but the material of this shaft seat cotton is pearl cotton. To be honest, I am very happy to have shaft seat cotton, but I am a little unhappy that this material is pearl cotton (maybe this is human greed) but after all, it is better than nothing.

The bottom cotton is made of a silicone material, and a separate mold opening design is carried out. This design further reduces the cavity sound of the keyboard. It can be said that with the previous padding, this keyboard is really empty. Accent.

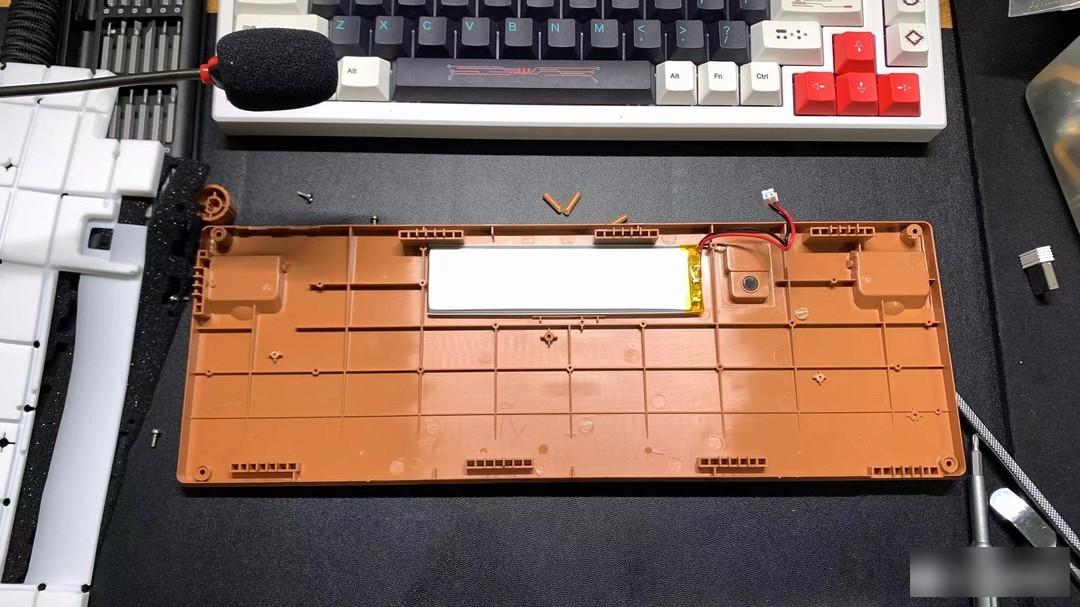

Here on the bottom case, I cut off which limit post it is, and turned it into a real gas structure. Personally, I don’t like limit posts. Although they don’t delay their use, I just I didn't like it, so I cut it off. The bottom shell has a small space and a lot of padding. This also leads to the fact that the keyboard does not have much room for deformation. This keyboard obviously belongs to a hard gas structure.

Key aspects: The large keys of this keyboard use the previous rk new satellite axis. The tuning is in place, and it can be used in a ready-to-use state. In terms of price, it is 19.9 yuan to buy a set alone, which is quite cost-effective.

Shaft aspect: The switch body of this keyboard has gold powder switch v2, fast silver switch v2 and flame purple switch. If you want to play games and trigger fast, then choose fast silver; if you want to type easily, then choose gold powder; if you say this If you want both easy and fast, then choose Flame Purple. The Flame Purple switch can be said to be a neutral product of the fast silver switch and the gold powder switch. My keyboard is the flame purple switch I chose.

Shell texture: The texture of the outer shell is actually a bit soft like k75, but its price is listed here. If he has done a good job of stacking materials inside, of course he has to give up part of the stacking materials to control costs. You use the best, pile up the best, and then the price is very cheap, you have to make money, and you have to live.

In terms of feel and sound: The feel is actually similar to that of the k75. It is a hard gas structure with very little deformation. In terms of sound, I personally feel that the sound of the k68 is better than that of the k75, and the sound of the k68 is a little duller. This is my feeling.

In terms of battery life: To be honest, a 2,000mAh battery is a bit small. For now, with a battery of this capacity, it can’t last for two weeks when the battery life is turned on and the lights are fully turned on.
