What Is Gaming Membrane Keyboard Bestbuy?

Some time ago, I bought the first Gasket structure mechanical keyboard - the upstart GM780. After some experience, I feel that the mute effect of this Gasket structure keyboard is really good. It coincides with TTC recently released the mute axis V2, so it was born. The idea of ​​​​replacing this keyboard with Ice Quiet Axis V2 to reduce the sound to a minimum. Just do it, 80 TTC ice static axis V2 arrangements!

The appearance of Ice Static Axis V2 is worthy of its name. The transparent plastic body of the Axis is crystal clear like small ice cubes. It still looks cool in this hot summer. Different from the yellow-brown shrapnel and spring used in the general shaft body, the Bingjing shaft V2 uses silver shrapnel and spring, which makes the overall tone of the shaft body uniform and unobtrusive, and the visual presentation effect tends to be consistent.

Through dismantling, it can be seen that the shaft core of the ice static shaft V2 continues to use the sound-absorbing double insurance structure design and the double-side wall dust-proof patented structure. Segmented independent sound reduction and noise reduction, the mute effect is obvious; the latter allows the shaft core to still fit the shaft cover when it is pressed down, which effectively solves the problem of dust entering the shaft body and improves the stability of the shaft core.

Concentrating mirror solution, the end of the concentrating mirror is slightly raised and installed to be closer to the LED patch light, gathering and converging the LED light source. At the moment when transparent kits and transparent keycaps are popular, it is undoubtedly a wise choice to enhance the overall lighting perception of the keyboard by enhancing the brightness of the light passing through the shaft body and the scattering effect.

The triggered shrapnel structure is silver-plated, and the contacts of the shrapnel are gold-plated. The gold contacts are very obvious in the silver-white luster. This is the process commonly known as "wearing gold and wearing silver". The long spring design is exactly the same as the gold powder switch, and it is about one-third longer than the spring of the ordinary red switch. You can clearly see the traces of grease on the factory-run switch.

The parameters of the ice static axis V2 are as follows: 39g trigger pressure, 3.5mm total stroke, 2.0mm trigger stroke, and 50 million trigger life. From the specific parameters, we can know that the ice static axis V2 is a linear mute with light pressure and short stroke. shaft. If you are looking for a reference object for benchmarking, the V2 parameters of the ice static axis and the parameters of your own gold powder axis are close, which can be roughly regarded as the silent version of the gold powder axis, but the total stroke is slightly shorter and the bottom will be faster.

相比较于之前的冰静轴，冰静轴V2在冰静轴的基础上主要做了三大升级：加持“穿金戴银”工艺，对导电端子和弹簧进行镀银，提高轴体抗氧化和耐用性；再就是增加聚光镜模块，提高轴体导光表现；最后就是将轴芯替换为更加耐磨的新型透明材料。这一系列的升级优化了前作的一些不足，让冰静轴V2在外观、耐久性、灯光表现上有了显著的提升。

Compared with the TTC ice static axis V2 of the condenser solution and the TTC fast silver axis of the lens solution, the effect of the condenser focusing and converging the light source is quite obvious - under the same LED light source, the brightness of the light projected by the condenser is far better than that of the lens structure, which can be regarded as the current The strongest light guide solution I have ever seen.

Install the shafts one by one on the upstart GM780, turn on the white light of GM780, the almost transparent shaft core and shaft cover add the addition of the condenser to the lighting effect, the crystal clear feeling of TTC ice static shaft V2 becomes more and more obvious , the word transparent is vividly displayed.

Ice Static Axis V2 is not only crystal clear under white light, but its transparent appearance can well display the RGB lighting of the keyboard. It is perfect for matching with the current transparent kit and transparent keycaps.

In terms of feel, the TTC Ice Static Switch V2 is smooth and gentle to press, the rebound is strong with the hand, and there is no lag when pressing to the bottom. The specific hand feeling presentation, as mentioned above, is not far from the feel of the TTC gold powder switch, or even quite similar. The sound-absorbing double insurance structure design will not make a sound when the shaft touches the bottom. With the blessing of the Gasket structure, it basically achieves the experience of integrating into the environment sound.

With the gradual out of the circle of mechanical keyboards and the improvement of user demand, there are many kinds of silent switches on the market recently, but to achieve the mute effect while ensuring that the switch feels smooth and smooth, maybe TTC’s silent switch series is the best. TTC has integrated some of the latest technical optimizations on the Bingjing axis V2, which has both hand feeling and mute performance, and also added a certain "light pollution" attribute. Whether you are an RGB lover or have a relatively strong mute demand for the keyboard, TTC Bingjing Axis V2 is the best choice for your keyboard!

Since I was planted with a small keyboard at my aunt's house, I have always wanted to make my own small keyboard. The following is the process of making this time. It is completely self-made. Please correct me.

Key words: Unilink K230 wireless main control, 40% ordinary keyboard, lithium battery charging, AutoHotKey, borderless, full key programmable

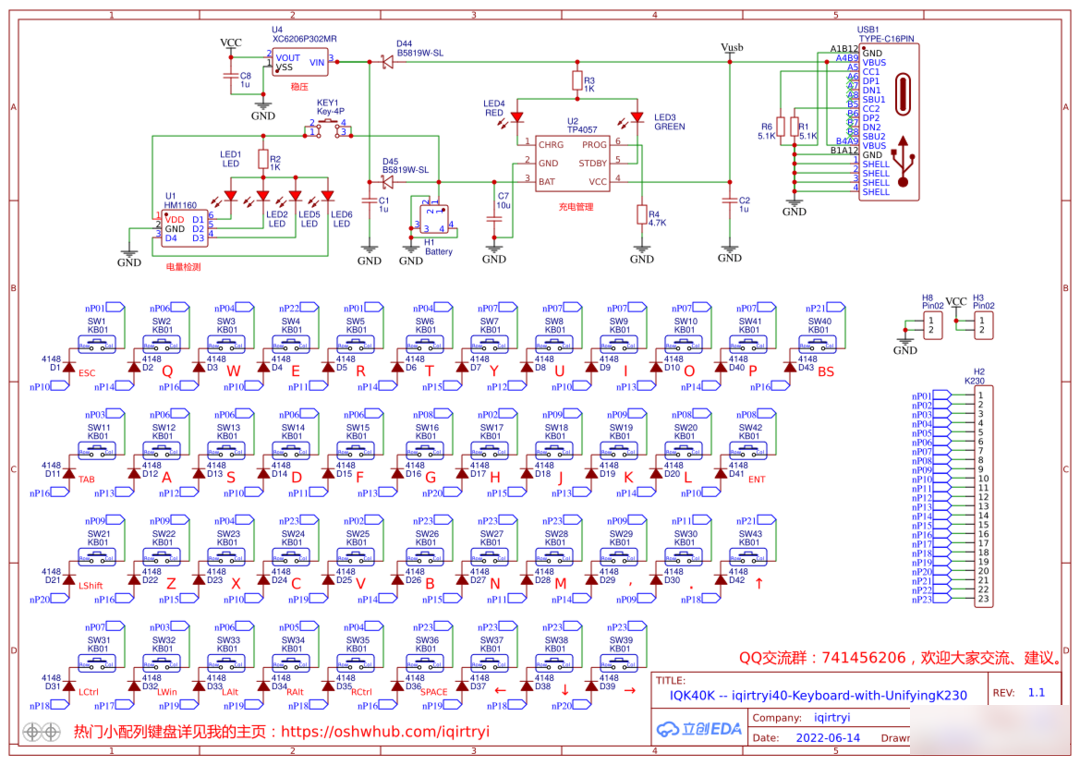

The circuit diagram is as follows: the lithium battery is used for charging, and the LED indicates the charging and full status during the charging process.

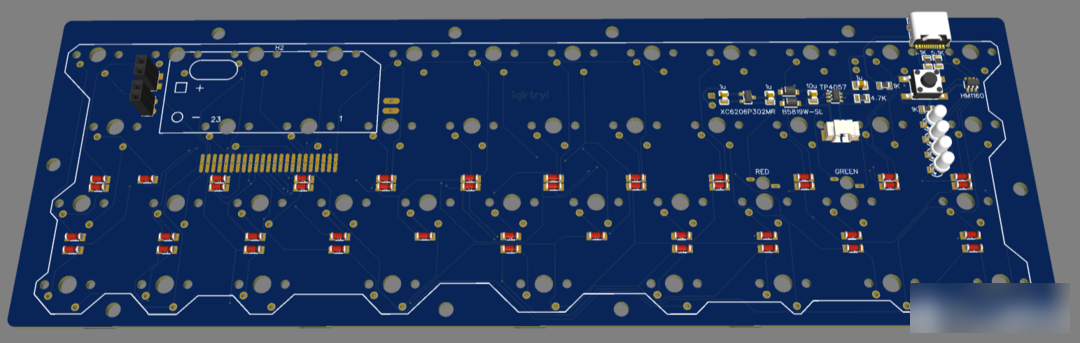

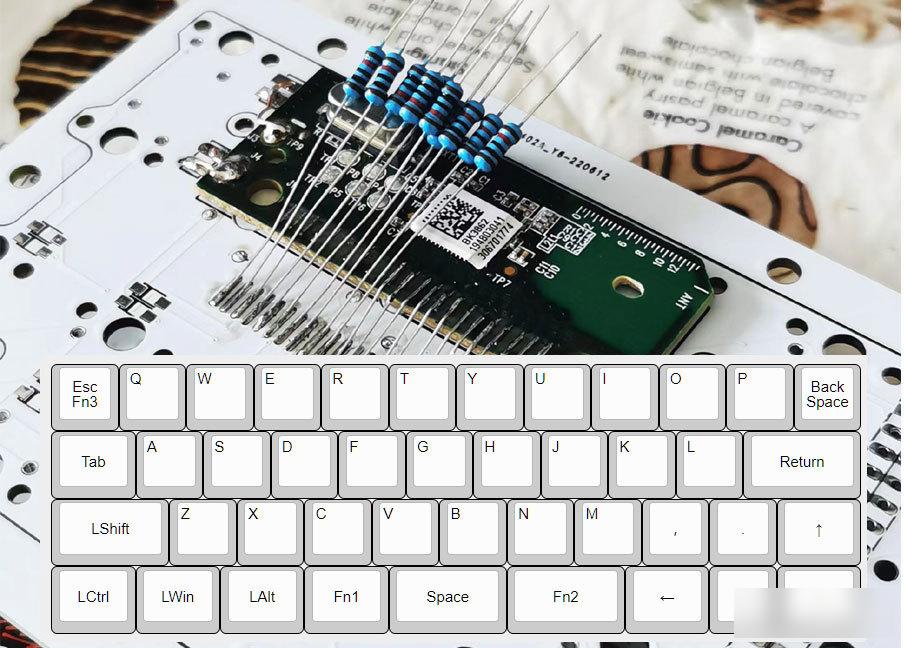

The main control used is disassembled from the Logitech K230 keyboard. The main control board and the keyboard main board are welded with component feet. Try to use thinner wires, and thin enameled wires are better.

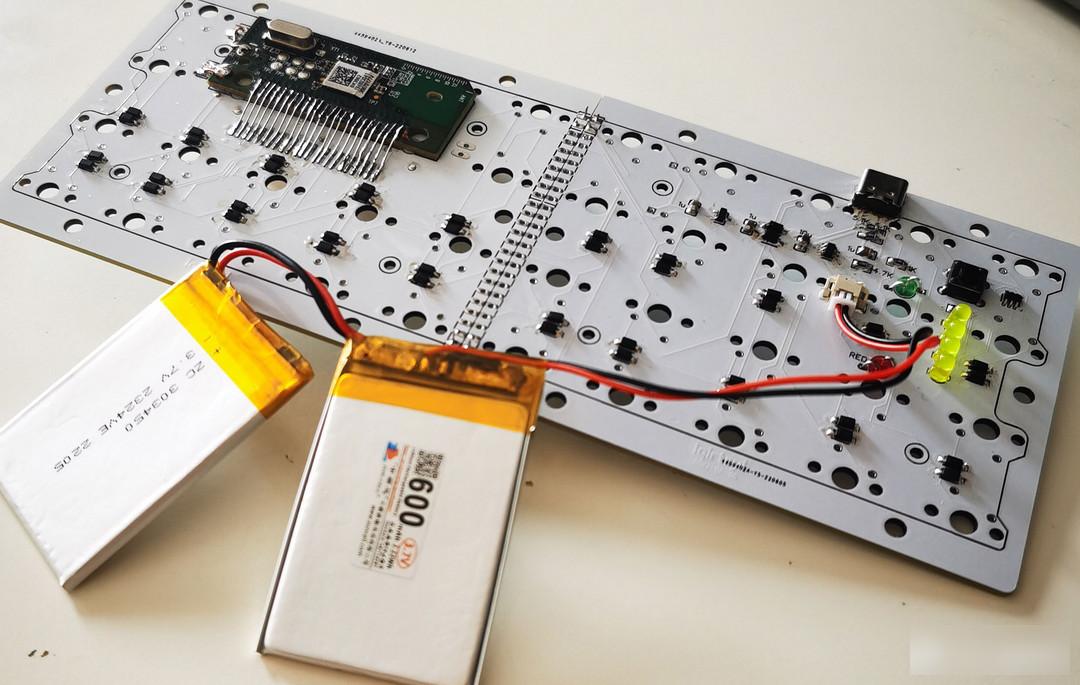

It is equipped with a 1200mAh lithium battery (the ultra-thin twin model of Zhongshunxin), and uses TP4057 for charging management. There are LEDs to display the charging and full status.

HM1160 is added to detect the power. Although it is not commonly used, the components are cheap and easy to make. It doesn’t matter to install it and try it.

The keyboard with a small configuration must be programmable before it can be used. This keyboard can use AutoHotKey software to convert key codes, or use hardware as a U2U key code converter.

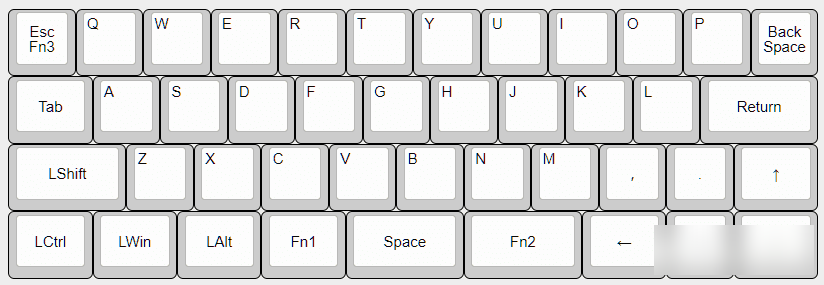

Keyboard layout:

Layer 0: letters + function keys, Fn1 enters the numeric keypad and punctuation mark area, Fn2 enters the F function area and punctuation mark layer. Tap Fn3, output Esc, long press to enter the software shortcut key and media key layer.

Update: In order to facilitate commas and periods as the page turning of the Chinese input method, the independent arrow keys have been slightly changed.

When typing with both hands on the keyboard, press Fn1 and Fn2 directly with two thumbs to switch between Chinese and English, and Fn1 and space to switch between uppercase and lowercase keys.

Press and hold Fn2, the arrow keys will become pageup, pagedown, home, end, and the backspace key will be the Del key, which is convenient and quick.

1st floor: On the left is a complete numeric keypad and arithmetic symbols, which is convenient for the left hand to input numbers with one hand. Some punctuation marks are on the right, and all punctuation marks are arranged according to personal habits and easy to remember, such as ? It is the F position where Fa asks a question, and # is at the J position of the pound sign... +-×/= takes into account the use of the numeric keypad.

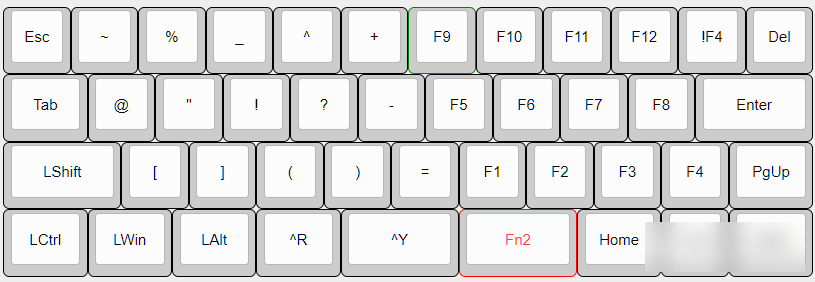

Layer 2: Part of the punctuation marks on the left, the F function key area on the right, and the arrow keys in the lower right corner change to pageup, pagedown, home, and end.

3 layers: software shortcut keys and media keys. The volume, forward and backward of the media playback keys are consistent with the operation habits of the direction keys. Fn3+letter is equivalent to Ctrl+Alt+Shift+letter, which can be set as the shortcut key of the software, such as Fn3+C to run Chrome, Fn3+Q to run QQ, Fn3+W to run WeChat, Fn3+M to run music software, Fn3+V to run videoVideo software...

The SteelSeries Apex 3 TKL is an entry-level gaming keyboard with membrane keys that are not mechanical switches. It's a scaled-down version of the SteelSeries Apex 3, one of the few non-mechanical gaming keyboards in the TenKeyLess size, and since it doesn't have a keypad, it allows for extra room on the desk to move the mouse around. It’s also IP32 certified, which means you don’t have to worry about spilling it on your keyboard while watching a movie while drinking water. All keys are macro-programmable via the new SteelSeries GG software, and it has RGB backlighting, but instead of each key being individually backlit, it's divided into several zones.

The SteelSeries Apex 3 TKL is perfect for gaming. The keys are fairly light to press, but have a long pre-travel distance. All keys are macro-programmable and feature RGB backlighting. Latency is high for competitive gamers though, but should be fine for casual gamers.

The SteelSeries Apex 3 TKL is a purely wired keyboard, not intended for use with mobile devices.

SteelSeries Apex 3 TKL is perfect for office use. The keys are stable, and the membrane keys offer good typing quality and tactile feedback. The ABS keycaps are slippery to the touch and there is no wrist rest, but you won't feel too tired after typing for a long time. Also, it's wired, so you can't connect mobile devices.

SteelSeries Apex 3 TKL is suitable for programming. You can reprogram and macro any key, and it has decent typing quality thanks to the keys. Its ergonomics are not bad, as it lacks a wrist rest. It's still usable in low light because it has RGB backlighting, but it's zone lighting and only has eight customizable zones.

The SteelSeries Apex 3 TKL has a poor experience with a home theater PC setup, it was not designed for this purpose. It's wired, so you have to connect it directly to your TV, and it doesn't have a trackpad, the only downside might be RGB backlighting and dedicated media keys.

Players who have played with peripherals in the past two years know that the mechanical keyboard has opened up a new world, and the wireless mouse is also not far behind. matter. In addition to cost-effectiveness, in fact, there have been many innovations in keyboards and mice in the past two years.

No, I just bought a set of Heijue's keyboard and mouse office suit a while ago - AK992 three-mode keyboard + AJ199 dual-mode mouse, the price is less than 200 yuan respectively. In terms of appearance or user experience, it is almost impeccable for products at this price.

The AK992 keyboard has 4 colors to choose from: Lanqin, Brown Sugar, Green Field, and Ode to Spring. You can choose different colors according to your own preferences. This black one is very suitable for daily use in the office.

The AK992 keyboard adopts a 99+1 (volume knob) key layout design, which is still compact overall, with a numeric keypad, which can easily control office scenes, and of course game scenes are also available.

There are three guide wire slot outlets on the back. When the wire is connected, it can maximize the cleanliness of the desktop. There are also 5 rubber feet at the bottom, two-stage folding angle support, and rubber pads are also added to the contact surface, which is silent and non-slip.

The three-mode switching switch is designed on the left side, which is very smooth to operate, and can only switch between three connection modes: wireless 2.4G, wired, and Bluetooth.

On the other side is the storage slot for the 2.4G receiver. The overall design is very ingenious, maximizing the use of the keyboard space, achieving beauty and practicality.

The volume knob is designed on the upper right. When you press it quickly, you can realize one-key mute. The overall is still very good. If you like younger color schemes, I think the other three models will be more suitable for young people.

The double-stage foot support design is adopted to meet the needs of different heights. In addition, this keyboard actually uses the GASKET gasket structure, which is a screwless structure that first appeared in customized keyboards. By setting the upper and lower covers with silicone gaskets to support the PC positioning plate, the typing feel and mute control are realized. .

The AJ199 mouse is also a very good cost-effective mouse from Heijue. It adopts a left-right symmetrical design. It is a lightweight mouse weighing about 60g, which is very suitable for matching with a keyboard.

The wired mode interface is also a type-c charging port, with fewer buttons on both sides, and the overall emphasis is on practicality.

The button area of ​​this mouse is very friendly, the thumb can be touched directly without exerting force, and the waistline on both sides is not covered with rubber. The integrated body material is very skin-friendly.

The upper and lower two PTFE Teflon pads are designed on the bottom, which reduces the friction on the bottom. The resistance is very low and the movement is smooth. The core sensor bald head is designed in the middle, which makes the whole mouse have a particularly strong sense of balance.

The overall design has a moderate radian, and the streamlined shape is suitable for lying down and grasping dual-handed designs. The innovation of this mouse lies in the detachable design of the back panel. The hollow and perforated back panel provided as a gift can effectively dissipate heat and cool down. For those who love sweaty palms It is a good choice for users.

Of course, the most popular feature of this AJ199 mouse is that it is equipped with the original phase PAW3395 sensor, which can achieve 26000DPI, 650ips and 50g acceleration.

The Bluetooth 5.0 adopted by the AK992 keyboard supports an effective connection range of about 10 meters. The connection is stable and the anti-interference ability is strong. It can also be adapted to win, Mac, Ios and Android systems. It supports up to 3 Bluetooth devices. The mechanical keyboard that costs less than 200 yuan still feels good.

This time I chose the red switch. The red switch is a switch I like very much. For typing users, it has high efficiency, good feel, and the mute control is very good, and it is even better with the gasket structure.

Of course, if you want to experience the feel of other switches in the future, you don’t need to change the keyboard, you can just plug in and replace the switches of this keyboard, because the AK992 keyboard supports full-key hot-swappable, and is compatible with 99 keyboards on the market. % of the tripod shaft body, very playable.

The keycap adopts two-color injection molding process, with a micro-grinding effect, PBT material, strong anti-gloss ability, wear-resistant, and the feel is still very good. Of course, the workmanship is also very good, and the details are well controlled. The 8 pink keycaps that come with it are very eye-catching after being replaced.

On the whole, Heijue AK992 three-mode hot-swappable mechanical keyboard and AJ199 wireless dual-mode gaming mouse are super cost-effective, and the functions are more than enough for daily office or game use. The appearance and details are also very good, especially the mouse can be called 3395 The volume king in the book, AK992 mechanical keyboard and AJ199 gaming mouse have a very good experience of using together. In short, I personally recommend it very much.

The Black Widow Spider series mechanical keyboard is a product launched by Razer in 2010 for the gamer user group. It has been updated to V4. For most professional gamers, a mechanical keyboard with reasonable design and powerful performance is the key to the game. An important guarantee for obtaining bonus points.

The current price of Black Widow Spider V4 is in the early 1800s, which is still relatively expensive for most ordinary players. Of course, ordinary players can also choose their third-generation products, especially fans of Razer products can choose previously released products with higher cost performance model, not recently I just bought a Black Widow Spider V3 mini wireless ghost keycap version of the yellow axis mechanical keyboard.

From the packaging box, the Black Widow Spider V3 Mini Edition is a small keyboard with a 68 layout, which is more suitable for users who like simplicity and does not take up too much desktop space. In terms of packaging style, it is still Razer’s consistent style. There are renderings and core functions of the product on it.

As a typical lighting factory, Razer, I actually like their theme colors, especially the real ones are more beautiful. The side of the box can also be seen to support the settings of Leiyun software, product firmware updates, and RGB lighting effects. Function.

I was quite surprised when I saw the real thing. There are no two-color transparent letters printed on the front of the keyboard, and no printed letters can be seen on the front of the keyboard without lighting the lamp beads. This also makes the front of the product more technological and integrated. sex.

When the lamp beads are turned on, the green light is really beautiful. At this time, the white letters are clearly visible. From the front, the overall layout is actually very good, especially for users who like small desktops.

Because this keyboard uses the ZBS pudding keycap with translucent side design, the specially designed frosted side ensures higher light transmission, thus ensuring the play of the Razer RGB illusion light effect.

Different from the design of most common keycaps on the market, the BlackWidow Spider V3 keycap adopts the design idea of ​​laser printing at the bottom. In this way, by shortening the distance between the keycap and the light source, it can ensure that the printed letters are not worn out and at the same time Maximize the effect of light transmission.

In terms of switch body selection, I tried Razer’s yellow switch. As a smooth linear switch, the yellow switch has a total stroke of 3.5mm, a trigger stroke of 1.2mm, and a trigger pressure of 45g. The button life is as high as 80 million times.

The Black Widow Spider V3 mini wireless version adopts the transparent shaft shell specially made by Razer, which also maximizes the guarantee that the RGB mechanical keyboard can better display the full play of Razer's RGB illusion lighting effects.

In terms of connection, it supports three connection methods: wired, bluetooth and 2.4G. Due to the adoption of Razer HYPERSPEED wireless technology, it is 25% higher than the general wireless technology. It has higher data transmission and lower click delay, especially for games. It can bring stability and responsiveness beyond the wired keyboard at the same time.

It is equipped with a type-c interface to facilitate wired connection with a USB-C cable or to charge the keyboard, and Bluetooth 5.0 technology supports the connection and switching of 3 devices.

There are 2.4G and BT switching buttons at the top of the upper left corner, and a green color scheme is used at the bottom, which is exquisite and generous, and is filled with Razer's classic green everywhere.

In order to meet the needs of different users, a two-stage foot support is configured, and 4 foot pads with moderate hardness and softness are designed at the bottom to prevent the desktop from being scratched.

The bottom of the keyboard adopts a printing-like packaging design. I personally think it is still very beautiful. Both the feel and texture have been greatly improved.

The part near the wrist is specially designed with a small screen with the Razer logo printed on it. It is really beautiful when the lights are on.

Instructions, stickers and Razer's signature card are all available, which are very good accessories for Razer fans.

A USB-C braided cable is included, the workmanship and design are very good, and the details are also very good.

This keyboard actually provides up to 200 hours of long-lasting battery life. Whether it is in Razer HUPERSPEED high-speed wireless mode or Bluetooth mode, it can ensure sufficient power and bring strong battery life to players. filling needs.

I have to say that the Black Widow Spider V3 Mini Edition is indeed a very small but exquisitely crafted keyboard, and it won’t take up too much space on the desktop at all.

The wireless mouse with Razer is very impressive, and it supports the design of connecting the keyboard and mouse to the computer through a 2.4G receiver at the same time. This is really creative and reduces the embarrassment of 2.4G receivers everywhere.

In terms of hand feel, as a linear axis, I think the traditional red axis is very close. It is still very good for users who use a lot of text like me. Even if you write for a long time, your fingers will not feel uncomfortable.

The Razer keyboard can be controlled through their Leiyun software, including firmware update, lighting effect design, and other advanced effects and function settings can be realized through software, which is still very useful for users who like to play with lighting effects High playability.

I tried several lighting effects, and they are still very good, and the playability is very high, but I still like a single color, such as Razer's classic green, which looks very good.

The light transmission of the keycap is also good, and it is a very delicate small-sized keyboard.

This is the first Razer mechanical keyboard I have experienced. Although there is no display screen and fancy knob buttons, for users like me who pursue a simple desktop and minimalist design, the Black Widow Spider V3 Mini Wireless is a good choice. Put very nice keyboard. The switch body, keycaps, connection methods and lighting effects are quite good, and the feel is also very good. The unique immersive design makes it quite distinctive, and the price is still acceptable. After all, compared with the crazy piles of some new domestic brands, I still prefer the precipitation of first-line brands.
