If you want to get by, you must have some materials in your hand. As a digital technology fan, you have at least one or two computers in your hand, and countless keyboard and mouse peripherals, um, not counting. I often draw pictures and code words. This kind of work has unambiguous requirements for keyboard and mouse. As far as my personal choice of keyboard and mouse is concerned, it must be measured according to the price/performance ratio. Talking about the keyboard, I personally need to consider a few points, the smaller the size, the better, the quieter the keys on the axis, the better, the RGB lighting effect must be provided, dual-mode/triple-mode, these are the most important parts, if a keyboard has all of them , Then choose the appearance value, this is not the most recently won a mass-produced version of the mahjong-sound keyboard, Heijue AK816 Pro three-mode gasket mechanical keyboard.

[unpacking]

▲The packaging is designed in a carton box, which is wider and larger. Is it a keyboard with a wrist rest? The cover painting shows the Heijue brand and the LOL professional youth training cooperation brand, which is amazing, and the cooperation with top-tier e-sports games is not bad. The back of the package is the basic parameters and manufacturer information of this keyboard.

Model: AK816 PRO

number of keys:81

Transmission method: wired, 2.4G, bluetooth

Interface type: Type-C

Size: 321.5*136.5*40.3mm

Weight: 1060g

Keycap material: PBT thermal sublimation

Lighting effect: 18 kinds of RGB

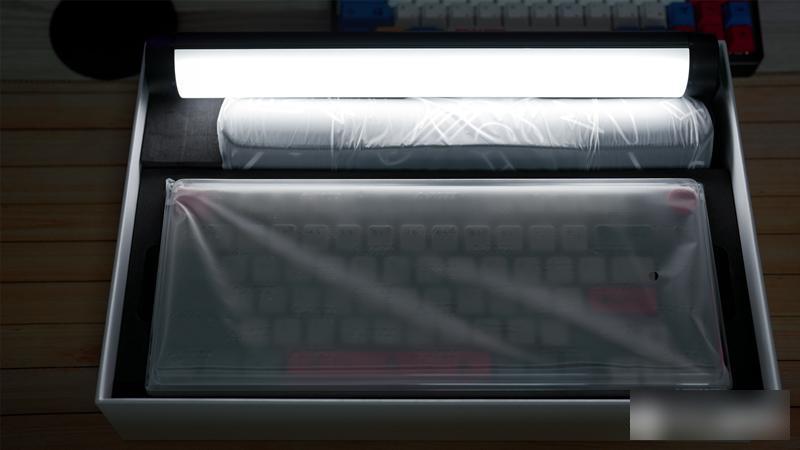

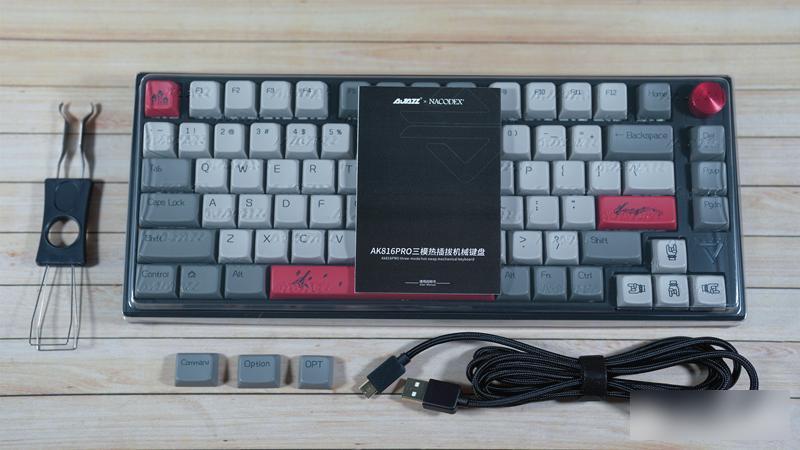

▲ After removing the package, there is a list of accessories, including: Heijue AK816 Pro three-mode mechanical keyboard, transparent dust cover, nylon data cable, three MAC supplementary keycaps, shaft puller, manual, and a large Mouse pad, now I know why this keyboard case is so wide, it turned out to be a pleasant surprise.

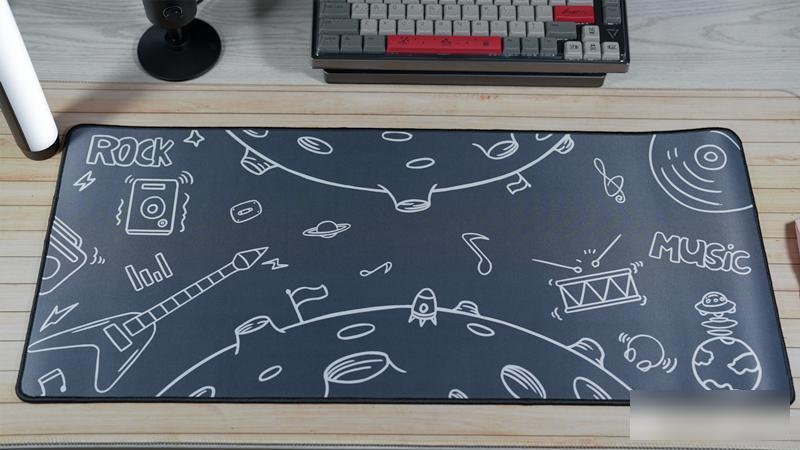

▲It is really an ultra-thick mouse pad. The manufacturer is quite kind. It is sensitive to the high-speed movement of the mouse, with a slight sense of friction and silky movement. The bottom is made of thick rubber material, forming great stability with the desktop, without slipping or drifting. The whole is slightly elastic, and the edges are all knit and overlocked, and the lines are precise, which is very neat. The size is 30*70cm.

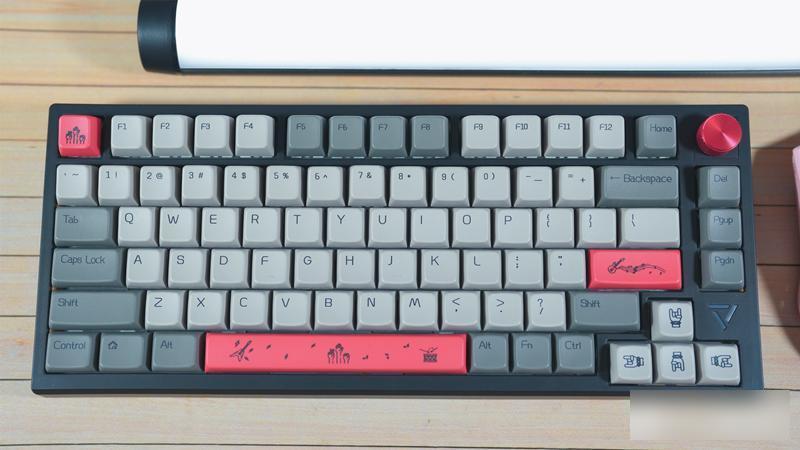

▲First of all, this Heijue AK816 Pro three-mode mechanical keyboard adopts 81-key layout and 80% arrangement. The two colors are divided into rock fantasy and cosmic adventure. My model is naturally rock, and it adopts the three colors of double gray and rock red Solution, the overall configuration adopts the Gasket gasket structure, which is currently very popular in customized key rings, with multi-layer poron noise reduction design, the soft connection structure feels soft and elastic, the percussion sound is very pleasant, and the factory comes with mahjong sound.

The so-called Gasket gasket structure is to set cotton strips or silicone pads on the upper and lower covers of the keyboard to support the positioning plate, so as to prevent some components inside the keyboard from hitting the shell when we hit the keys. In addition to the design of the gasket structure, the AK816 Pro keyboard is also matched with a PC positioning board with a softer feel. The overall feel is more comfortable and softer, and the more you tap, the more comfortable you are.

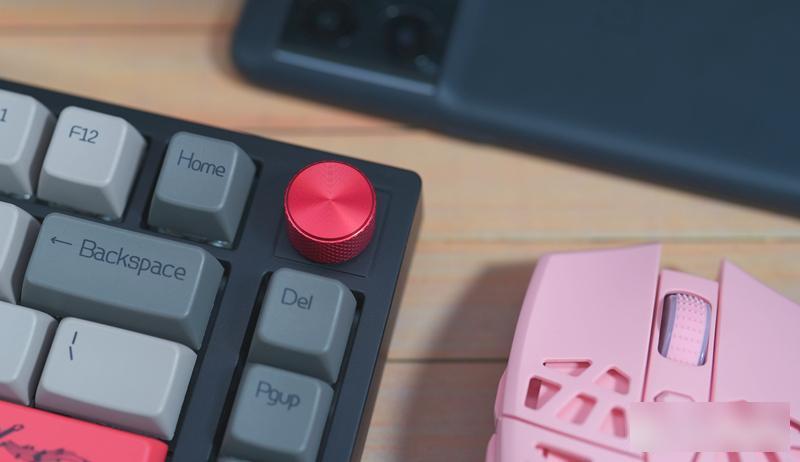

▲ There is also a special design, that is, a quick mute and volume adjustment knob is added in the upper right corner, made of metal, and the adjustment of the rotation process adopts a point design.

▲The back looks like this. The four-corner rubber feet that all conventional keyboards have are non-slip and silent with high friction; the two-stage feet are all rubber on the supporting surface, and the details are good; the three-mode switch and the WIN and MAC dual system keys are also designed On the back, the dots are clear and not meaty at all, and the center position is the brand's certification label must have a drop.

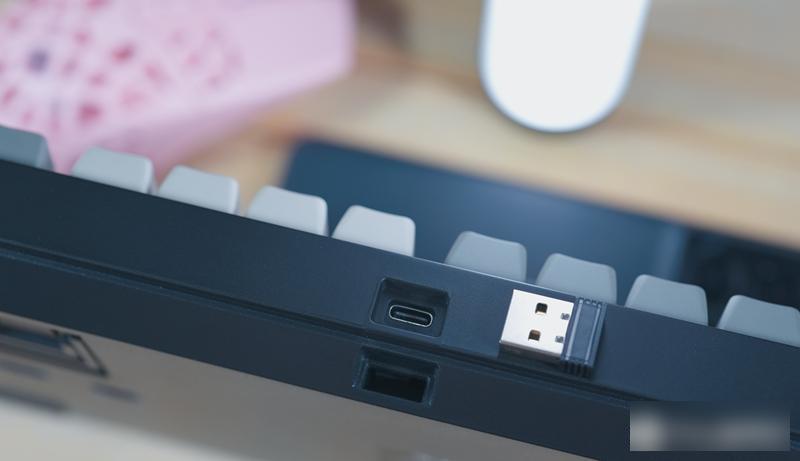

▲The top parallel to the wired mode Type-C interface is the 2.4G mode USB receiver. I like this little detail. Many keyboards, mice, and handles are not slotted in the fuselage to place this receiver. I lost countless, AK816 Pro is good.

Heijue AK816 Pro has a built-in lithium battery with a capacity of 3000mAh. In wireless mode, it can last for 10 hours with full light effect and 100 hours with full light effect. You can press the keyboard continuously for a week without eating, drinking or sleeping.

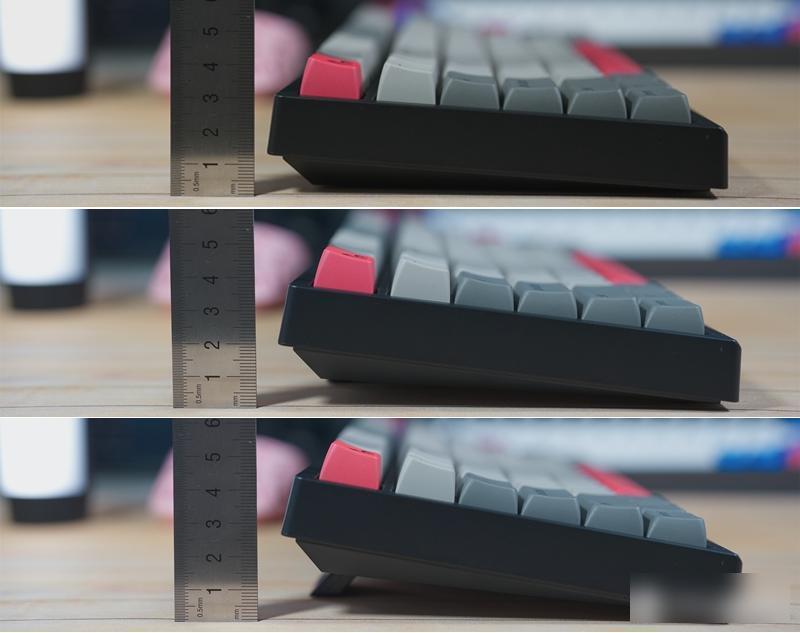

▲The height of the keyboard when it is laid flat and when the feet are opened is about 4.3cm-5cm-5.5cm, which is convenient for people with different habits. According to the shape of the palm and wrist of the individual, my personal habit is to lay it flat, which is absolutely stable.

▲Heijue AK816 Pro three-mode mechanical keyboard, the factory standard configuration is Jiadalong G Silver Pro 2.0 axis body, factory with lubrication, 80 million times of life, the upper light position is equipped with a light-transmitting mirror and a light guide column, allowing RGB to play a role It produces a brighter effect; the market price is about 130 yuan for 90 pieces, and the average unit price is 1.4 yuan per piece. In this way, the optical axis body is calculated, and this keyboard is 81*1.4=113 yuan; the large keys are fine-tuned by our own The satellite switch, the empty key travel and noise of the large key position are well controlled, and there is basically no noise.

▲The keycaps are made of PBT heat-sublimated MDA ball caps, the fingertips feel more consistent with the touch, and the overall percussion feeling is really comfortable. The advantage of PBT material is that it can be used for a long time and still keep new. Unlike ABS material, the surface will obviously shine after a short period of use.

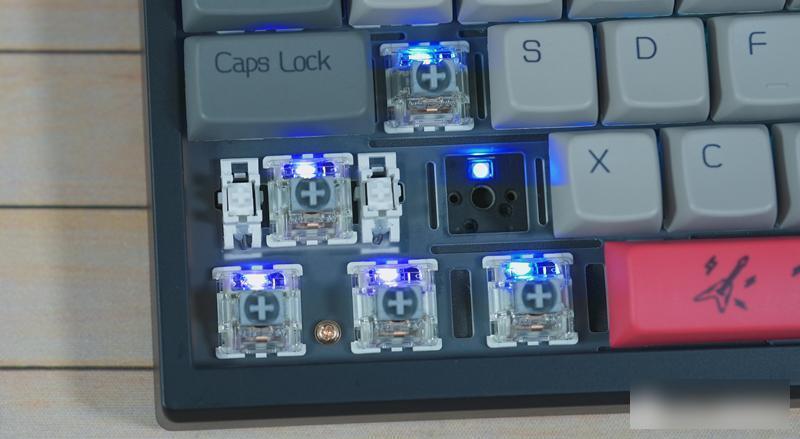

▲Heijue AK816 Pro three-mode mechanical keyboard adopts full-key hot-swappable Kaihua axis seat, and is equipped with Jiadalong G Silver Pro 2.0 linear axis as standard at the factory. Five-legged axis, a very customized design, you can modify it at will, and it is very friendly to the group who love to toss about nothing. The shaft center of the original G Silver Pro 2.0 shaft body is also upgraded with anti-oxidation gold contacts, and the double-segment spring is upgraded to a single-segment spring, which is more linear.

Trigger pressure: 43g

Bottom pressure: 50g

Action stroke: 1.2±0.3mm

Total stroke: 3.4±0.4mm

【Practice】

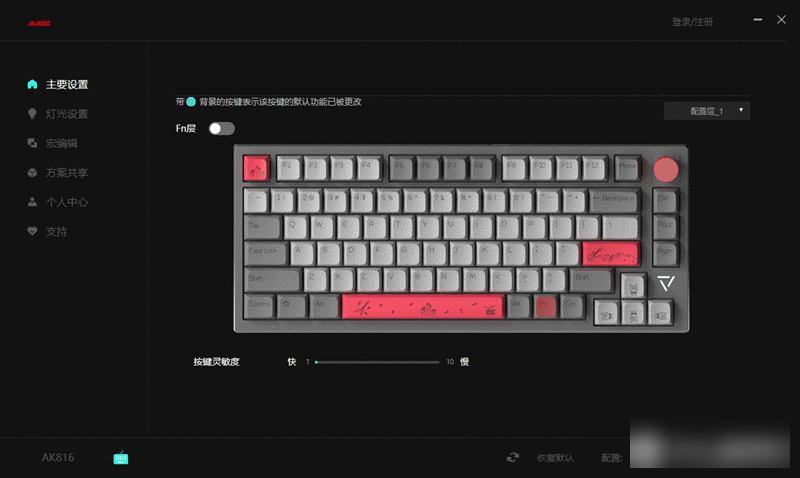

▲Go to Heijue official website to download the PC driver of AK816 PRO, and install it according to the prompts. The function of this driver is very detailed, but it needs to be used in wired mode, which can achieve:

Combination keys can be configured separately for the FN+ layer, which is very convenient, you only need to remember it, and you can also adjust the key sensitivity;

Single selection of 18 preset lighting effects, playback mode, speed, and brightness can be adjusted, one-click to eliminate dazzling light; you can also set lighting effects such as lighting rhythm with music;

Then there is macro recording, which records key combination functions separately, which is very convenient for entertaining games.

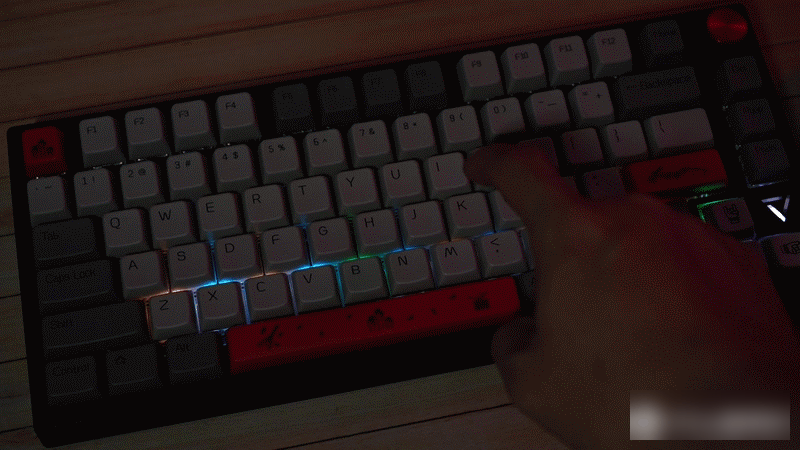

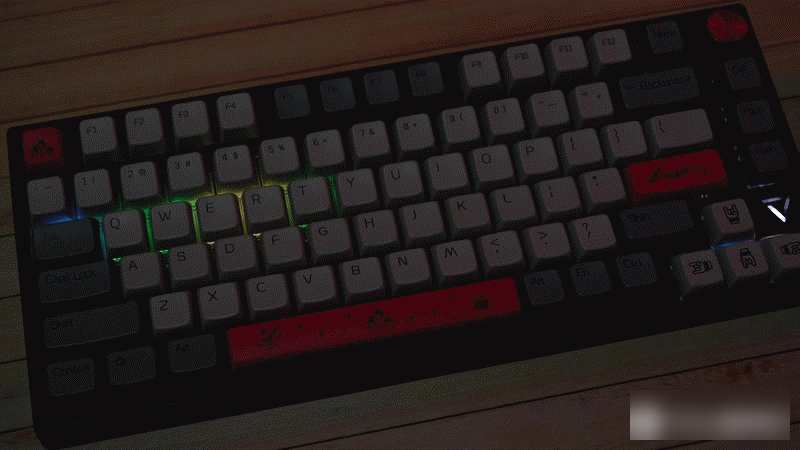

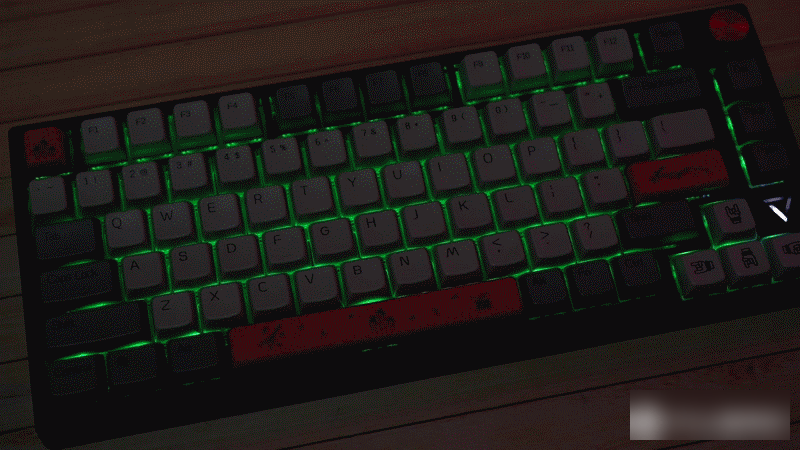

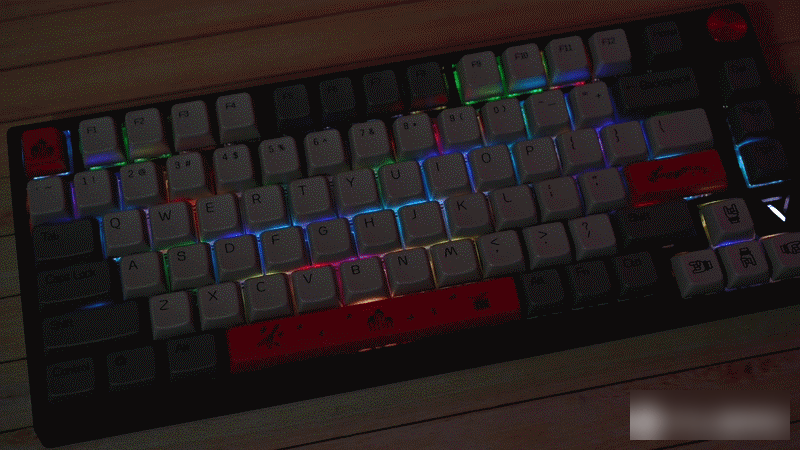

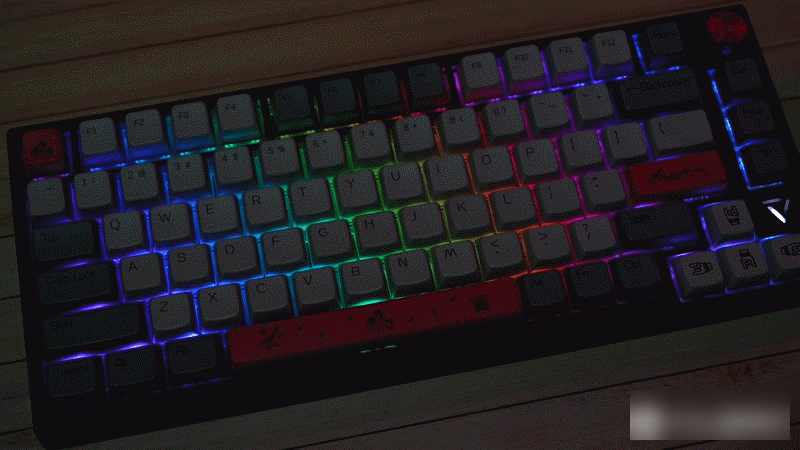

▲Lighting, whole, keyboard with RGB is one of the hard conditions for my purchase, about 16.8 million colors, 18 kinds of lighting effects built-in on the factory board, using FN+ to switch in one stop, with the official PC driver can achieve more Play more. In addition to lighting effects, you can also adjust the brightness, frequency, and direction of RGB. Three sets of game mode lighting effects can be saved for different games, which is enough, and it is enough for me to be bright.

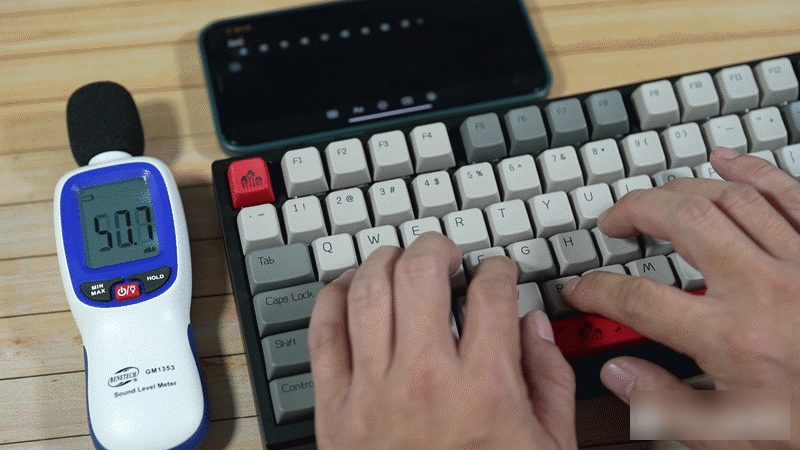

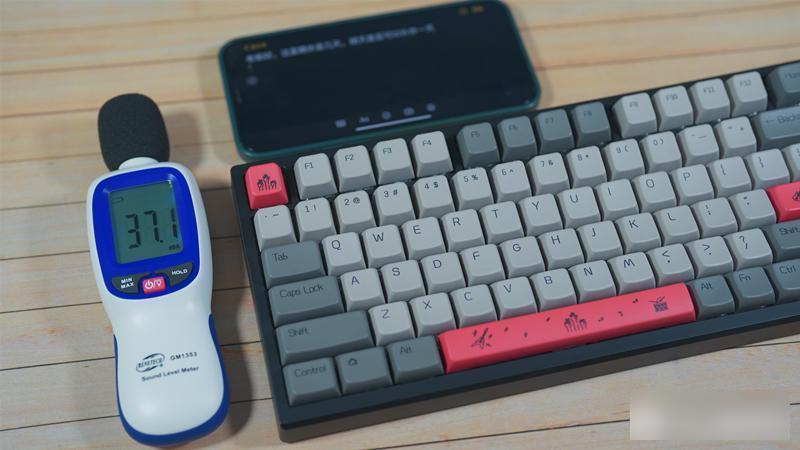

▲To test the comfortable percussion feeling, the ambient sound is basically around 37.1dB. After a series of percussions, the average noise is controlled between 45-55dB, which is quite well controlled, and the stuffiness is very nice Mahjong tone. Moreover, this decibel will not disturb people even in the room at night, and it is very friendly for home use.

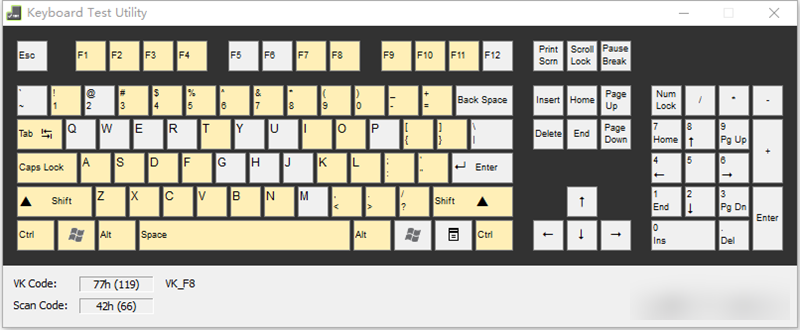

▲The ability of full-key non-retouch is necessary for leaving the factory. The full-key non-repeat test is basically done for the mechanical keyboard before leaving the factory. I also tested it slightly, and the performance still meets expectations. There is no red key in the Keyboard software.

▲As a cooperative brand of the League of Legends professional youth training base, it must engage in LOL. There are fewer keys to trigger skills, but there is no lack of ability to test the keyboard. All games have the experience of using the axis performance. In the overall battle situation of the Jiadalong G Silver Pro switch body, others will basically not feel that you are playing a game, but will wonder why this buddy is typing so slowly. With a total key stroke of 3.4mm, the process of skill triggering is faster, and the skill triggering of the shaft body is accurate throughout the whole battle, and every click without dumb keys is effective.

▲Shadow of the Tomb Raider is a classic masterpiece. It can be said that the overall operational sense of the screen is considered the boss of the series. From jumping, to climbing, to rope fixing, etc., the Heijue AK816 Pro performed well throughout the process, with precise positioning, quiet clicks and stable movements.

▲Gears of War 4, as a shooting FPS game, has no urine in the whole process. When you see a monster, you just hit it, retreat and retreat. The overall movement, dodging bullets, and running while holding down the space all show the output performance of the Heijue AK816 Pro excellently. The sensitivity and accuracy of the few buttons in the game are quite satisfactory.

【table】

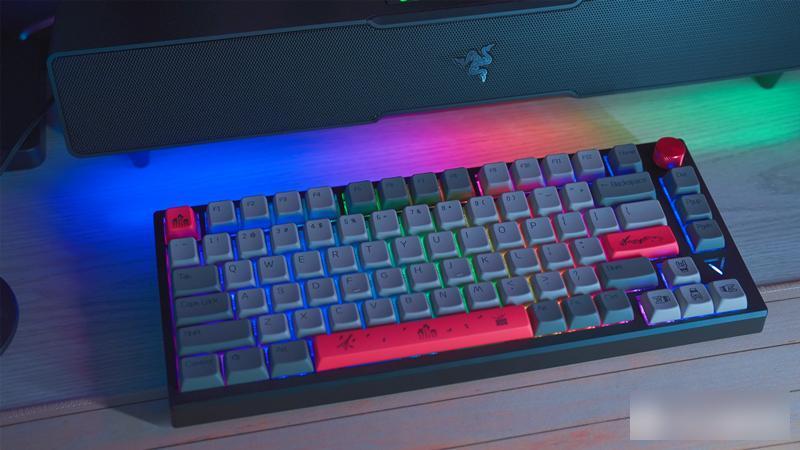

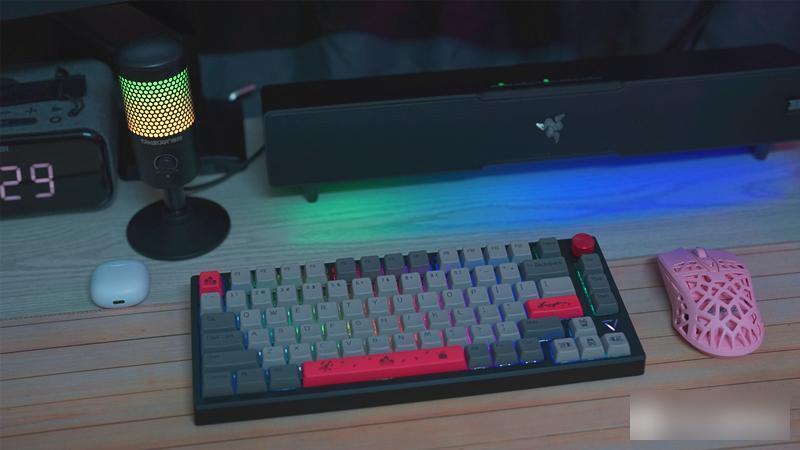

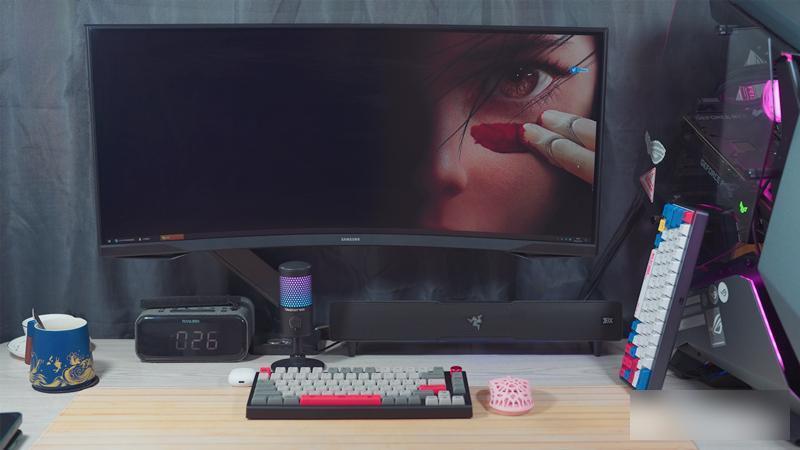

▲In terms of table setting, I like peripherals with RGB. It is best to have them. After turning off the lights, it is definitely a landscape in the room. I will change it to a fully transparent keycap in the future. At present, I feel that the RGB lighting effect has not been able to play. Come out, if you want to see through, it is still a DIY match after all.

【Summarize】

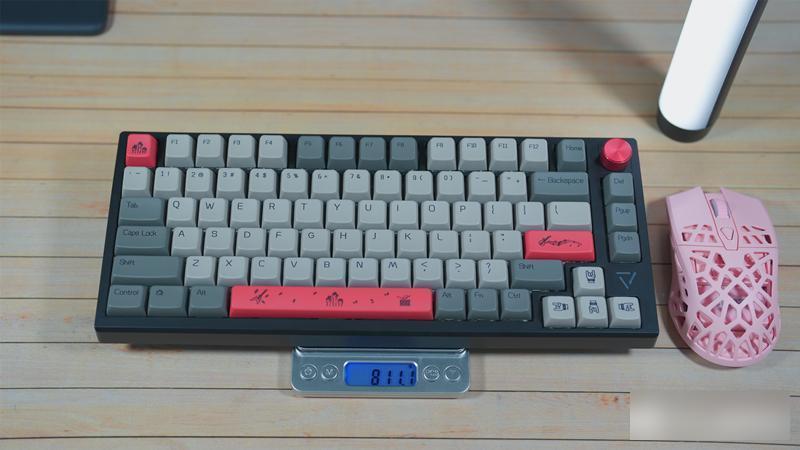

Finally, do a weighing, about 811g, which is basically consistent with the official data. Since this AK816 is not made of aluminum, its relative weight will be much lighter. The relative pressure of carrying a non-aluminum keyboard when going out will be much less.

After two weeks of heavy use, first of all, it operates for 5 hours a day. The battery has not been charged for the first time before leaving the factory. , three layers of mute cotton under the shaft, the direct tapping sound is the mahjong sound, the 18 preset RGB lighting effects are very cool, I hope Heijue will release a fully transparent keycap soon; the volume control button is added on the upper right, which is convenient, It can quickly reduce the volume, the overall output is relatively stable, and the buttons have no empty buttons and dumb buttons. Buy.

Recommend a flagship mechanical keyboard of more than 100 yuan that will be launched soon - KEMOVE K68SE!

KEMOVE K68SE is a derivative of KEMOVE K68. If you are interested, you can search for KEMOVE K68. It has occupied the first place in the best-selling list of certain book keyboards for a long time!

So what's the difference between them?

The answer is: SE does not support hot-swapping, and it is single-mode.

As far as most keyboard users are concerned, they don’t actually have a lot of customization needs. At most, they just need to change the keycaps. Most people want to buy a keyboard that satisfies them directly, and SE is very suitable for this part. User.

68-key layout design, small and exquisite, easy to carry, suitable for games and office work; the keyboard is full-key without punching, keycap OEM height, comfortable to use, PBT material, no fading and no oil, life is guaranteed.

The keyboard is available in black and white, with a unique arc design, implying the love story of the ancient Liang Zhu, turning butterflies into two flies, multi-color lighting options and 19 kinds of RGB lighting effects, the overall appearance is full!

The most important thing is that the keyboard is still equipped with the self-developed driver programming of the KEMOVE series, changing keys, macro settings, custom RGB, music rhythm, etc. are all easy!

There are also many options for the shaft body, and you can choose according to your personal needs at that time!

Today I would like to share this one with you. It is estimated that our company purchases one of the favorite keyboards: Shuangfeiyan brand wired keyboards. It is cheap and durable, and there may be discounts for bulk purchases.

The whole is full size. It is divided into letter area, function key area and small keyboard area.

The writing on the keyboard is clear and wear-resistant.

The two function keys are also polished very smooth.

Typical windows keyboard.

The keycaps have a slight friction feeling, and the touch is quite comfortable.

It is enough for daily office use. I especially appreciate this kind of full-size keyboard. Sometimes the operation will bring a lot of convenience, such as arrow keys, page turning keys, top-to-end keys, etc.

It will save a lot of time in actual operation.

On the far right is an independent numeric keypad. It is very convenient for those who often use office or document office to input numbers.

I appreciate its enter key, which uses this traditional turning block, which is not easy to misuse.

At the bottom of the keyboard, there are anti-skid blocks on the 4 corners.

There are also support feet to adjust the angle.

At the top right is the brand's logo and keypad indicators, upper and lower case indicators and so on.

Generally speaking, the advantage of this keyboard is that it is affordable and durable. It can be used for a long time at a price of tens of yuan. As long as it is not crazy to knock and beat, it can be regarded as very strong, and it is enough to meet the needs of daily office or games. It is indeed one of the favorites for company purchases.

This time, killing the game by slotting PCB, rk r98, this is the ultimate form of mass-produced Gasket

The new benchmark of mechanical keyboard with 98 series is coming!

rk r98, from the lowest 149 to the top 399, a total of four configurations, from wireless to wired, from monochrome backlight to RGB backlight, from ordinary PCB to slotted PCB, are very competitive at every price point.

The 299 version is equipped with the nine-purple smoke and rain switch with a POM shell LY axis, and the 399 version is a TTC steel switch made of all POM materials.

It is strongly recommended to buy the 299 and 399 versions of the slotted PCB and positioning plate, with PORON sandwich cotton and double-layer bottom filling to achieve an extremely soft and elastic feel.

The one I received is the 399 steel shaft version, let’s listen to a typing sound first.

rk r98 typing sound

Before, I often said that the big key of a certain product is T0 level, so this time the big key of r98, I can only say that it belongs to T0 in T0.

The TTC steel shaft is made of full POM material, with a milky white upper cover and shaft, and a red bottom case. This color scheme is indeed somewhat similar to Iron Man. The knocking sound is not loud, but it is very clean. After opening the shaft, I saw that there are not many places for lubrication, there seems to be a little on the small feet, and there is a little grease at the bottom of the spring. The pressure of 41g is between the gold powder and the standard red switch. The basic quality of this switch is still very good.

The mode switching slider is designed on the top, which is not as convenient as the operation on the side, but it feels good, tight and the gears are very clear.

PBT two-color keycaps, the height of the original factory. After using so many keycaps, the most comfortable one is the height of the original factory. I don’t know if my friends feel the same. The surface is relatively smooth, and if you touch it carefully, the character part has a slight bump.

A shortcoming is that the edges of this kit of the R series are sharp and angular, which lacks a bit of a sense of luxury, and the back has a three-way outlet design, which is not very suitable for this era. In order to enhance the texture, rk has added an ambient light bar between the main keypad and the digital area that can adjust the brightness level and lighting mode.

The maximum brightness of the light bar is very bright. If four people in a university dormitory happen to have a rkr98, then after the lights are turned off at night, the dormitory will be very suitable for disco dancing.

In normal use, it is fine to adjust it to the lowest brightness of solid color.

At the same time, the iconic flank light bars of the R series have also been retained.

Finally, let's follow the dismantling to see the trump card of rk r98 this time, the slotted PCB. In fact, this design is not uncommon in customized kits, but it is still a rarity in mass-produced keyboards.

Its significance is to make the Gasket really soft and bounce by making the positioning plate and PCBA deform greatly with the pressing, and the sound attenuation effect will be better. After pressing down, I feel that the entire input area is obviously sunken, and it is very elastic, not blindly soft.

Remove the upper cover, and you can see that the r98 uses a white silicone sleeve for cushioning, which is soft and thick, and the cushioning stroke is quite large.

The poron cotton in the middle is white, which is good for light transmission. The underfill is a piece of PE foam and molded silicone.

The mold opening of the silicone pad is done very carefully, filling the gaps in the mold fully. Two 3600mAh batteries each, it seems that this space can't fit a bigger battery.

It uses rk's own Jiuzi shaft seat. Due to the double plate slotting, the entire inner tank part can produce relatively large deformation.

Because I didn’t try the 299 Misty Rain switch version, for the r98 with 399 steel switches alone, excluding the appearance and texture of the kit, the feel of the small keys and large keys has almost reached the top level of mass production. It feels like there is no way to rise. Especially the soft elastic and silky feeling brought by the slotted PCB and the full POM shaft directly killed the game. It is hard for me to imagine what kind of tricks plastic kits can come up with in the future on the track of cost performance. . Then wait and see.
