Summary of the previous article: The previous article roughly introduced the general steps of building a customized keyboard. Today’s article is to introduce in detail how to choose a mechanical switch.

the As a gift, a mechanical keyboard tailored for him must make him feel your heart! So when choosing a keyboard component, you must know some of his little habits and hobbies. For example, does he usually type more or play more games? What color/shade do you like? How do you want him to use this keyboard? At home or in the office? Does ta like gentle and fresh style or cool cyberpunk? Wait... the more you know, the more helpful it is to impress ta.

Today I will talk about the choice of mechanical axis.

the Creation statement: The following content comes from the information I got through various channels and my own experience in buying shafts. It has no interest. If you have different opinions, please comment. I will accept it with an open mind (not necessarily change it).

The mechanical switch is the first thing we think of when we mention the mechanical keyboard. The switch body is the most important accessory part that affects the feel of the keys of the mechanical keyboard. There are probably hundreds of different types of switch bodies on the market now? According to the sound and feel, there are about 4 categories:

1. Voice axis; 2. Silent axis; 3. Linear axis; 4. Mute axis

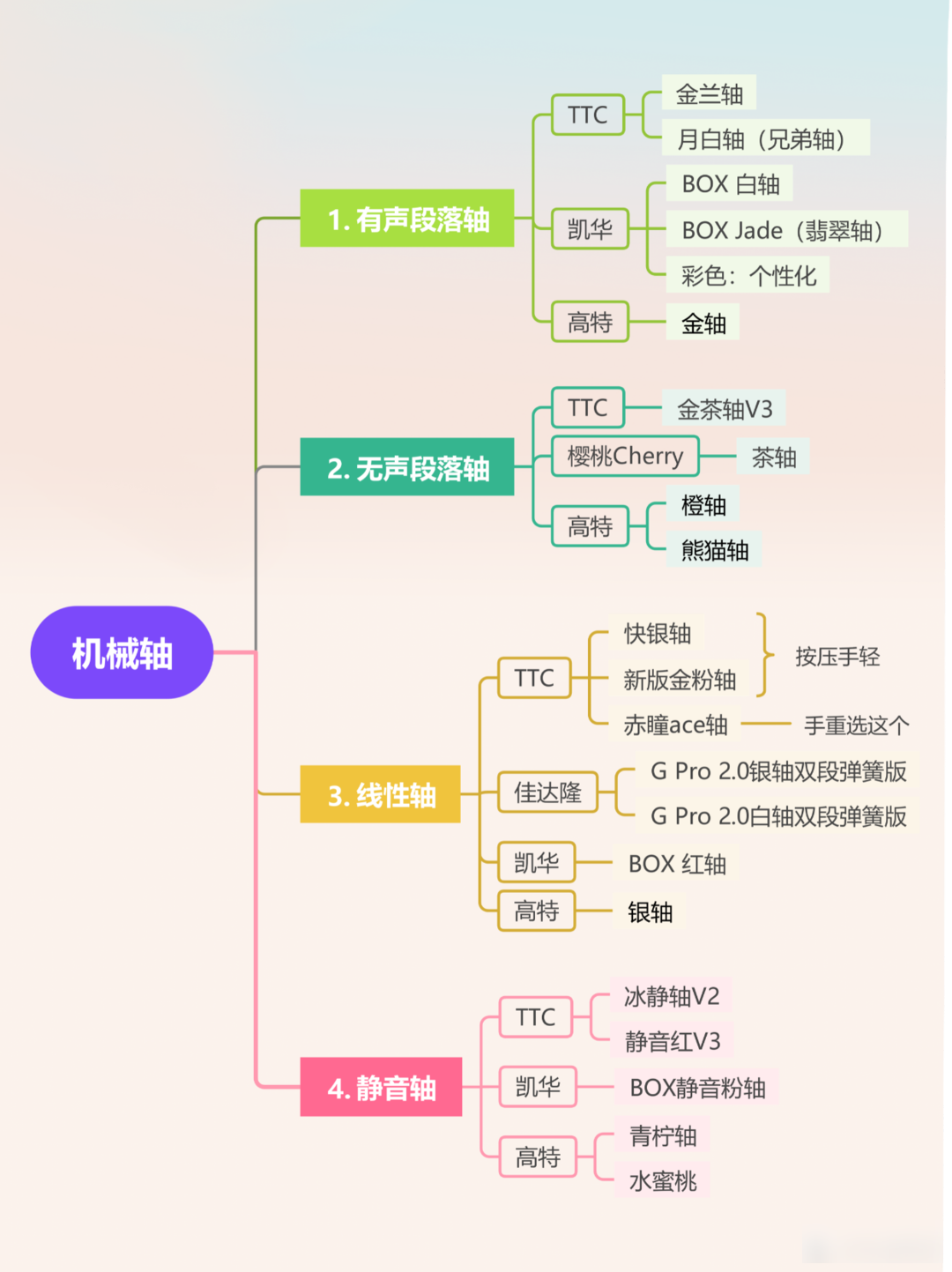

Classification of mechanical axes

the The difference between the typing sounds of these shafts is : 1 is the crackling sound of the ballpoint pen cap being pressed; 2 is the sound of the mechanical pencil being pressed; 3 and 4 are the very light tapping sound of the plastic. If it is more extreme, the mahjong sound is also very popular in Xiaopozhan recently, adding spacers to the linear axis keyboard to achieve this effect.

the Summarize the current axis in one sentence : Except for the cherry tea shaft, other cherry shafts generally cannot beat domestic shafts. So if we choose the shaft now, we can skip the cherry and choose directly from domestic shafts such as Kaihua BOX shaft, TTC shaft, Jiadalong shaft, and Gaote shaft.

Before choosing a mechanical axis, we need to know what is the meaning of "trigger pressure" in the basic parameters of the axis body?

"Trigger pressure" is the pressure required to keep pressing the button down. It is usually measured in cN (centinewtons) or gf (gram force). Get used to it. For girls who type a lot or play games, it is best to choose a light pressure key switch of about 37g~45g.

The jade shaft I bought this time is this type ▼

Real shot of Kaihua BOX Jade

the 2.8 yuan/piece, trigger pressure 37gf . The sound is crisp and has a slight sense of paragraph. It can be triggered with a light touch, but it is not as easy to touch by mistake as the TTC gold powder linear axis. It is very suitable for long-term typing. Nothing wrong with it except it's expensive. ▼

TTC Jinlan shaft (brother shaft)

the 2.8 yuan/piece, trigger pressure 42gf 。 The moon-white axis is a typical TTC axis . The TTC shaft is characterized by a sound-absorbing pad and a double-segment spring design, which has the characteristics of fast triggering, high smoothness, and obvious mute effect.

The Yuebai switch is different from the traditional green switch. It feels a bit like a tea switch when pressed. The "click" sound is not obvious, but there is a clear sense of advance. The rebound after pressing is much stronger than that of gold tea. The feel is similar to that of a membrane keyboard, but it does not lose the sense of mechanical switches when pressed hard. It is a more interesting and special key switch. ▼

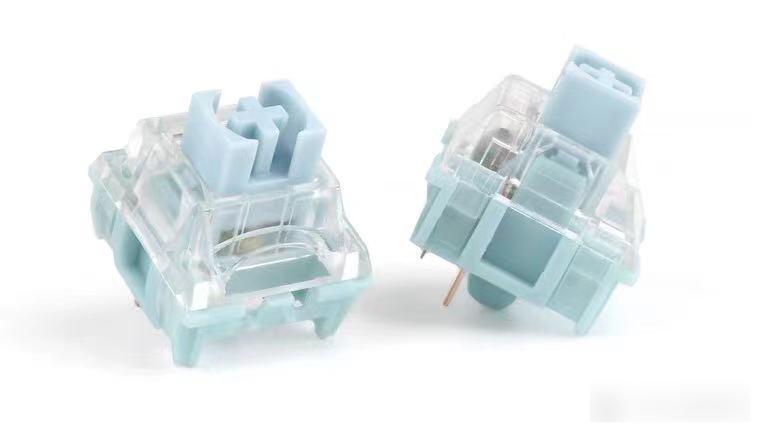

TTC Moon White Axis

the 2.3 yuan/piece, trigger pressure 50gf . The Kaihua BOX axis is the axis that made me hesitate in choosing this time: it is characterized by the most stable axis among all domestically-made axes, the best waterproof and dustproof, but the sounding area uses the tortoise spring to produce sound, compared with the traditional dynamic and static film The sound is crisper, and the clicking sound similar to that of a ballpoint pen is louder...Kaihua BOX Jade is a typical representative of the Box axis. Compared with the paragraph enhanced version of the white axis, it feels super like a ballpoint pen, and it is super decompressed when pressed~ but the trigger force is stronger, and typing for a long time will make your hands tired. It is recommended to buy 5 pieces, and it is enough to put it on the up, down, left, and right keys.

P.s Originally, I thought about using the Jade switch for the space bar. Today, I tested it at the speed of light to persuade you to retreat. How can I describe it... It is the scene of smashing the space bar in the legendary Internet cafe playing Audition! Can you imagine? ▼

Real shot of Kaihua Box jade

the 1.5 yuan/piece, trigger pressure 45g , not as crisp as the Jinlan axis, but the axis is very stable without shaking, the dustproof and waterproof design is very cost-effective, and the user experience is very friendly. ▼

Kaihua Box White Axis

the 0.6 yuan/piece, trigger pressure 50±10gf , the quality is very average, easy to shake, but it is cheaper. The purpose of this collocation is to give priority to ensuring the typing experience of core keys and commonly used keys under a limited budget, and good steel is used wisely.

But few people would choose a noisy keyboard... right?

Tea-like switches can be regarded as silent paragraph switches, but in fact they still have a bit of sound. They are not as silent as silent switches, and there is no crackling sound of green switches. It can be said that it is the pressing force of red switches plus the slight step feeling similar to that of green switches. Synthetic axis, belonging to Universal switch, can take into account both gaming and typing . ——Just like a mechanical pencil, there is a "click" sound, but it is not obvious.

the 2.4 yuan/piece, trigger pressure 45gf . Although there is a sense of paragraph, it is weak. In the paragraph axis, the sound is very light, and it is linear. and out, factory, self, profit , the touch is more silky, silky and full. It is suitable for players like me who are too lazy to toss. After all, dismantling and applying grease one by one is a big project that tests patience...it is a ready-made one that saves trouble.

I took 30 pieces this time. If you only cover the core area, the price is still good. After the actual measurement, I would recommend taking 35 , in addition to the 26 letters, counting commas, periods, left-hand shift and ctrl, and the space key together will make the user experience better.

It is my favorite axis so far, I must give 2 pictures! ▼

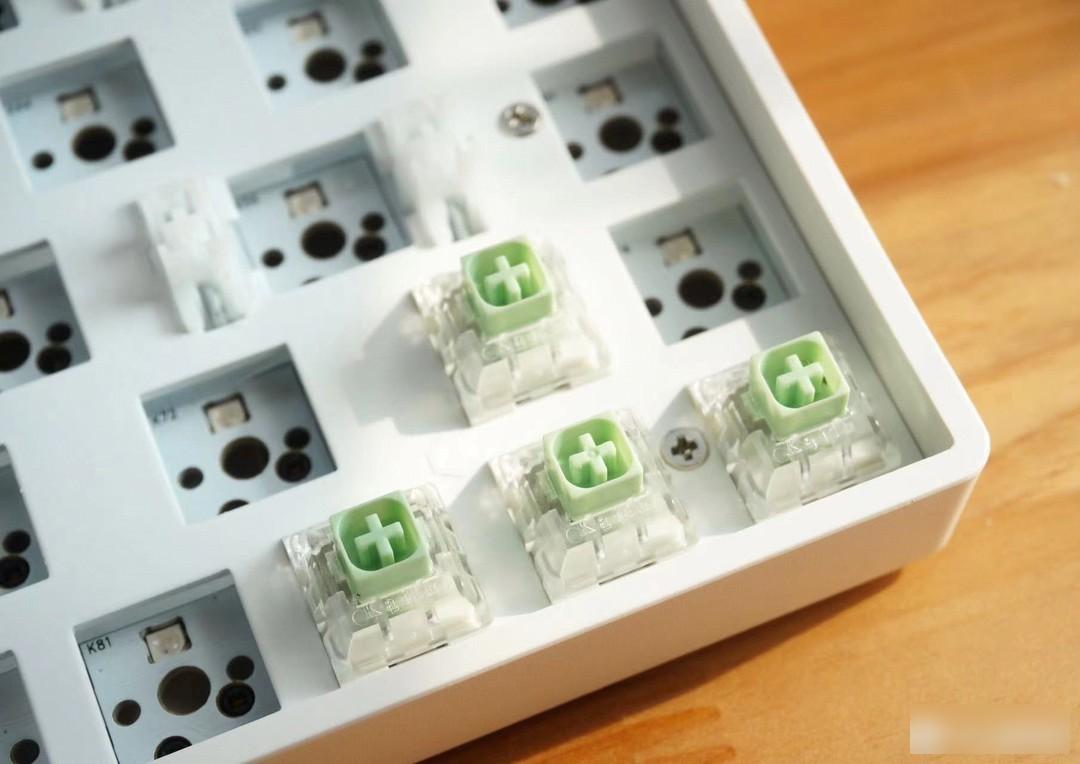

TTC Golden Tea V3 real shot

Golden tea installation drawing

the 2.4 yuan/piece, trigger pressure 45gf . The tea switch can be said to be the most capable mechanical switch in Cherry at present, and it is also the first choice for many novices. It does not have the obvious spring sound like the green axis when pressed, the axis is also more stable, there is no obvious shaking feeling, and the rebound is also easy to follow.

the 0.9 yuan/piece , has been upgraded on the basis of the Gaote tea shaft. It is generally said that it feels much better than Jiadalong tea and Gaote tea. If you want to experience the tea switch at a reasonable price, the high-tech orange switch is a good choice. ▼

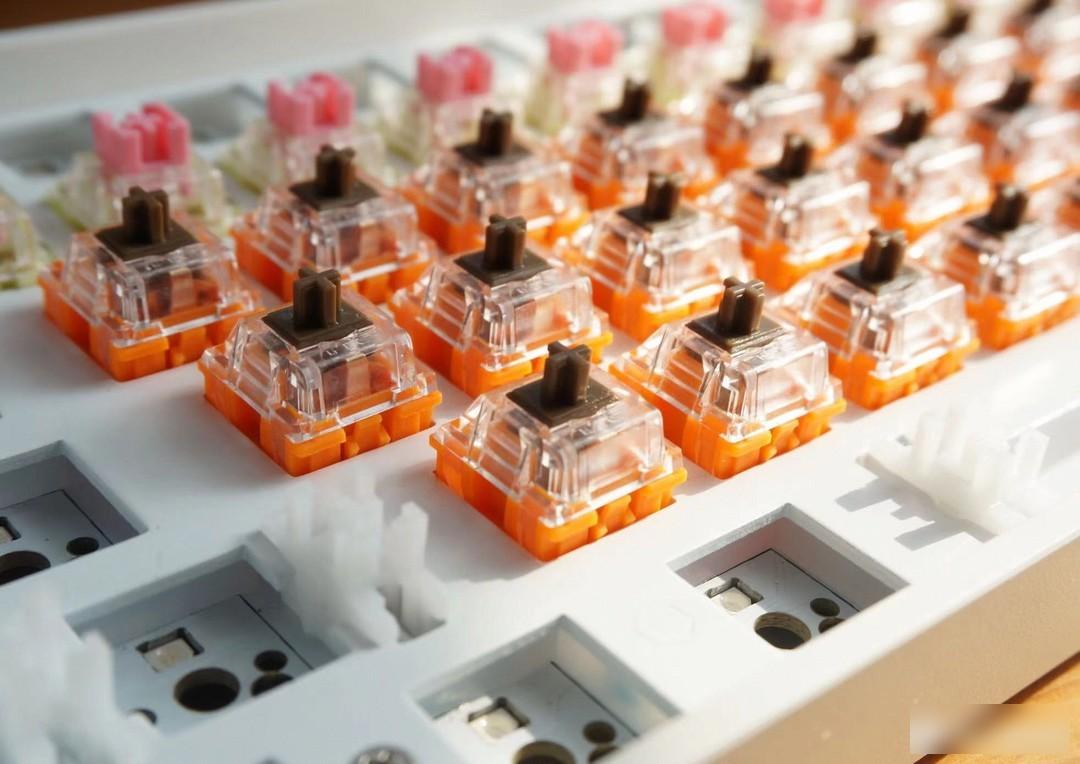

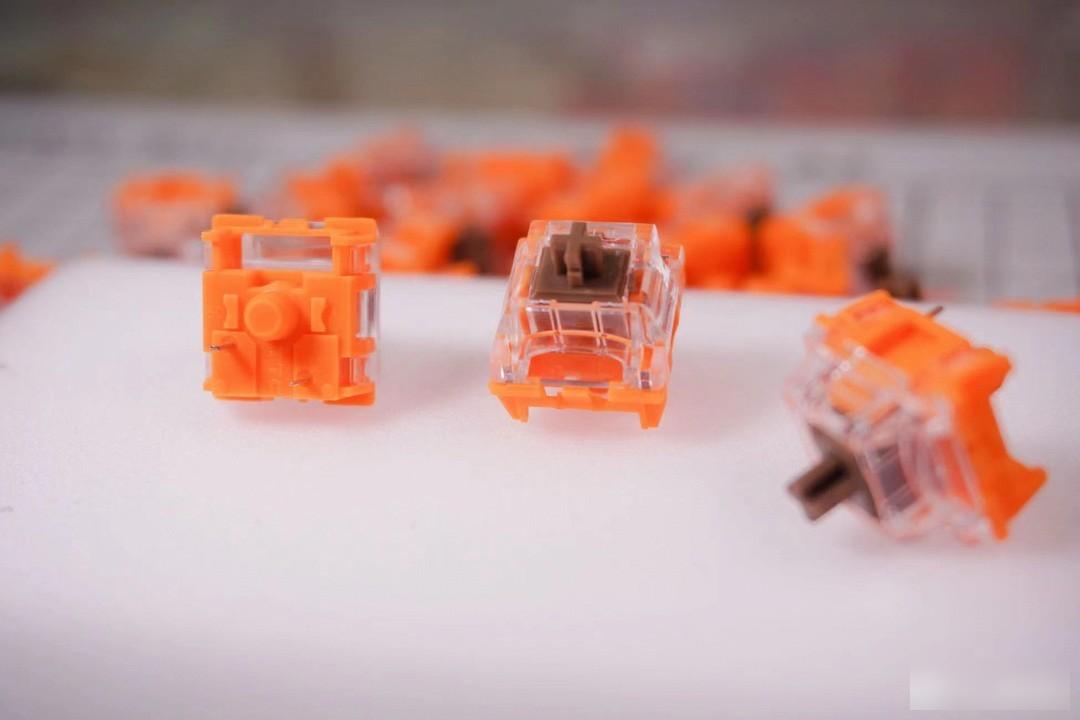

Gott Orange Axis

the 1.3 yuan/piece, trigger pressure 50gf . The tactile feel is similar to TTC Moon White, which is also advanced, but the buttons are looser and the texture is average. Can be used on edge keys. ▼

The color scheme is very similar to Iron Man's panda axis

The characteristic of the linear axis is that it goes straight up and down. This kind of axis is like being pressed on a spring. There is no sense of paragraph at all. The quick trigger feature is suitable for playing games.

the 3.9 yuan/piece, trigger pressure 45±5gf , The fast silver axis has short key travel, fast trigger and fast rebound, suitable for fast clicking and high-speed gaming. ▼

TTC fast silver shaft

the 3 yuan/piece, trigger pressure 37±5gf , The touch is light, and it can be triggered with a slight press. For players with heavy hands, there may be false touches in the initial use. After actual measurement, the edge buttons are also easy to touch accidentally. But after getting used to typing, it is very comfortable to type, and the gold powder switch is also the first choice of many novel authors. "The cotton candy-like feel is very silky, and the text will not affect the thinking" (the original words of an author).

The gold powder switch is also one of the mechanical switches I bought this time. The most expensive One... so I only need 10, and use them on the 1~10 number keys. ▼

TTC gold powder shaft second generation in kind

the 1.9 yuan/piece, trigger pressure 45±5gf . It is also a lazy shaft that is self-lubricating at the factory. The shaft has a dust-proof wall design that is stable and does not shake, and is cost-effective.

Jiadalong is similar to Goto, both of which are imitation cherry shafts. The feel is similar to cherry, but the price is relatively cheap. In recent years, several good shafts have been launched, such as Jiadalong G yellow pro and G white pro. , Tiffany, have a good reputation, self-lubricating at the factory, and a high degree of smoothness. The more obvious disadvantage is that the axis is a little wobbly.

the 3.6 yuan/piece, trigger pressure 53±5gf . The axle is stable and the trigger and rebound are smooth. This kind of black axis has a high pressing force, which is suitable for players with strong diamond fingers. ▼

ACE axis

the 0.8 yuan/piece , except that the sound is a little muffled, it is not much different from the red axis.

The structure of the mechanical switch prevents it from being completely muted, but can only reduce the sound. Therefore, the muted switch from my understanding is to sacrifice some feel (paragraphs disappear, the touch feels softer, and muscle weakness) to forcibly mute the sound.

the 4.3 yuan/piece, trigger pressure 37gf . The linear axis with light pressure and high rebound has an excellent mute effect. Except for a slight sound when it hits the bottom, there is almost no sound whether it is pressed down or rebounded. ▼

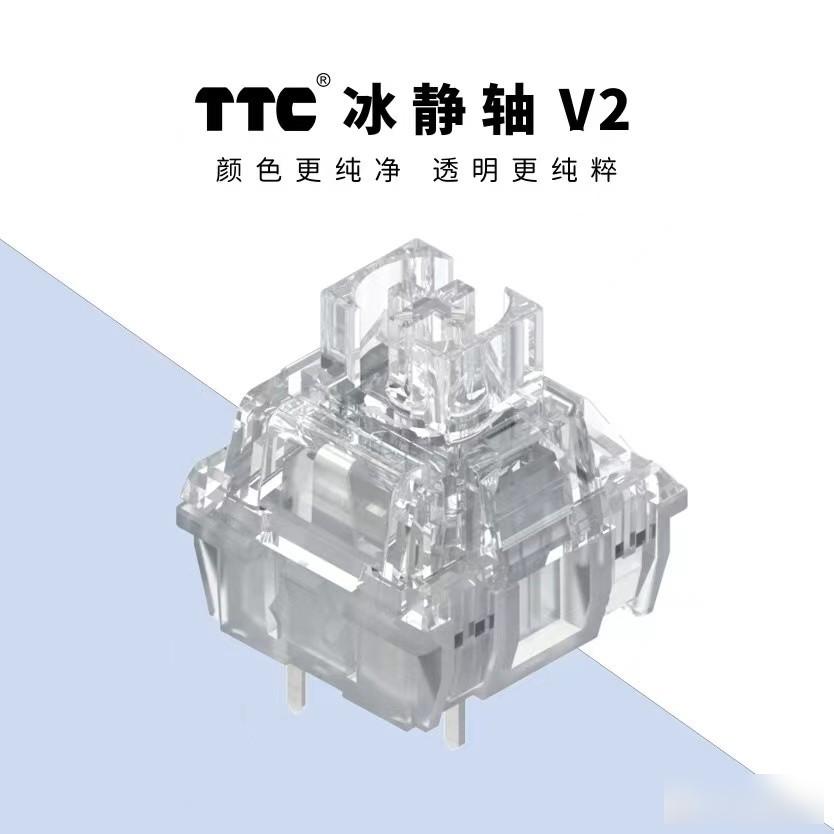

Ice Static Axis

Look at the official introduction to optimize the structure, Hardcore Mute! expensive ... well that's my problem. ▼

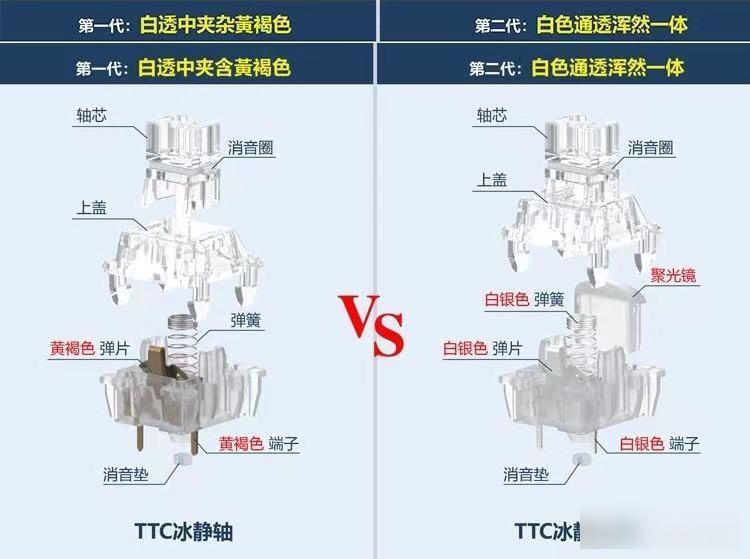

Ice Static Axis Structure

the 3.5 yuan/piece , the rebound is fast, the feel is smooth, and it is a silent switch similar to the feel of the red switch. Compared with the ice static shaft, the Mute Red V3 hits the bottom harder, and the rebound is a bit soft, not as dry as the ice static shaft, and the overall feeling is still good. ▼

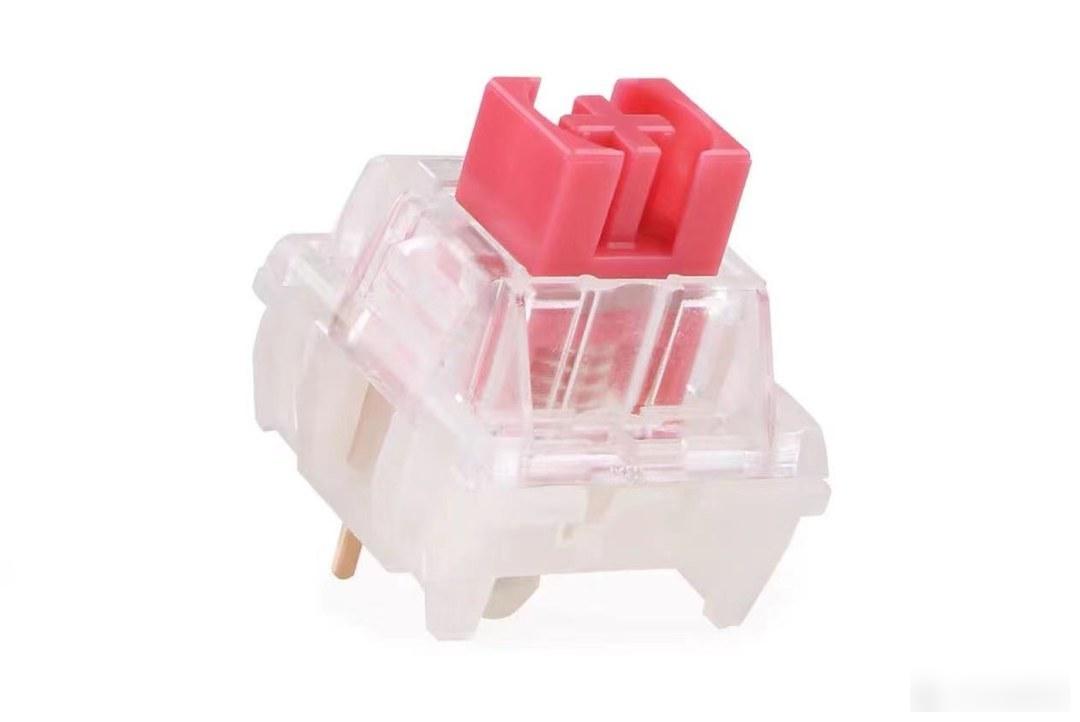

TTC silent red V3

the 3.5 yuan/piece, trigger pressure 35gf . The main source of the sound is the weak rebound sound. In addition, the entire pressing process is almost silent, the trigger is smooth, the rebound is strong, the axis is stable without shaking, and there is no spring sound. Compared with the ice static shaft, it is a shaft that is very friendly to small wallets. ▼

Kaihua mute powder

the 1.2 yuan/piece, the trigger pressure is 35~40gf , Peach is slightly heavier. You need to moisten the keys when you get it (there are also many manual moistening in the seafood market and Pinxixi, and the price is not expensive), the rebound of the peaches is a bit soft, and the comfort is average. Lime has more sense of paragraph than peach. As a counting axis, the price/performance ratio is very good. I just took 40 (actually, it seems to have been factory-run), and I just got together a pair of 87-key Heiji snakes. ▼

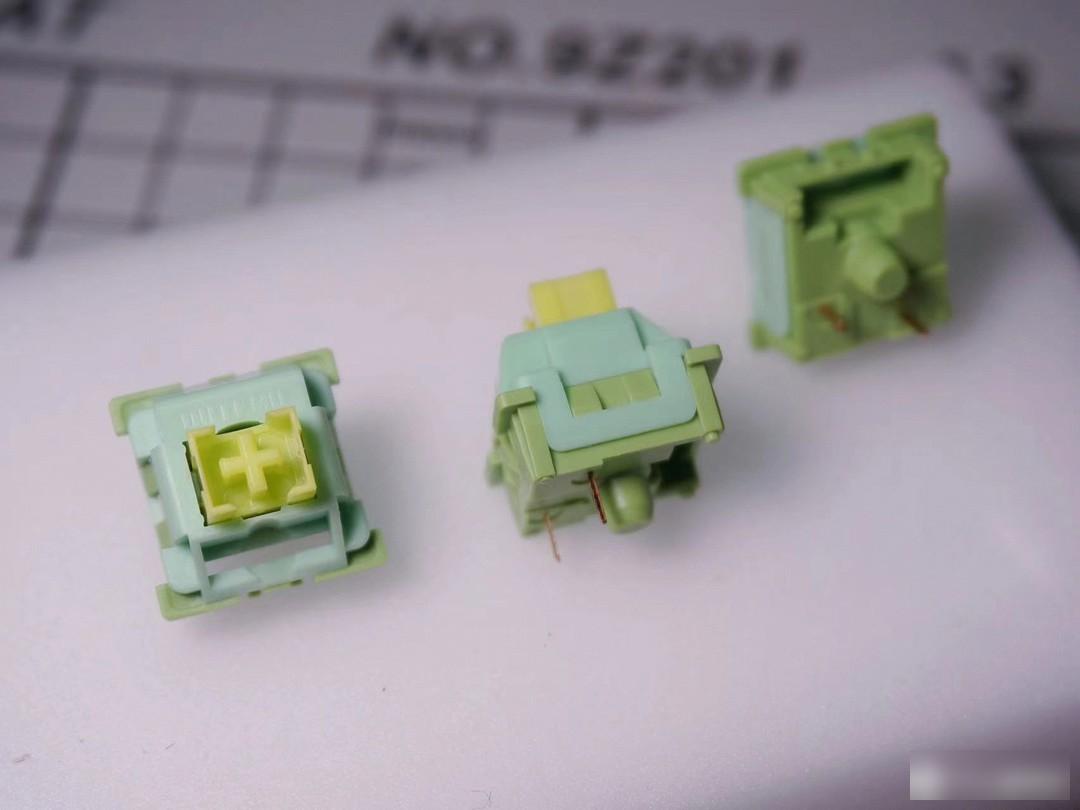

Real shot of Gaote lime shaft

It can be seen from the previous article that I am more supportive of the "hybrid axis". The entire keyboard is divided into three major areas: the main key area, the secondary area and the edge area.

the Primary key area: Refers to commonly used keys, such as 26 letters, the space bar, the left Ctrl and Shift, and the right Enter key.

the Secondary area: 1~10 number keys, etc., will be used, but not so frequently used keys.

the Border area: Not commonly used, almost make up numbers, such as F key, HOME key and the like.

Some people may think that it is strange that the touch of multiple axes on a keyboard is different? In fact, it’s okay. First of all, the frequency of use of these sets of keycaps varies greatly. Who would pay attention to the occasional sound of a key when typing? Anyway, I won't. Furthermore, Although it is a mixed axis, the properties of the key axis are still similar , It’s not that one area uses a paragraph axis, and another adjacent area suddenly becomes a silent axis (like a sudden squib...), the sound and feel are just a little different.

I feel that I have adapted well. After all, after using a keyboard for a long time, the tactility of the commonly used keys and the edge area will be more or less different, and it is impossible for a beginner like me to ask a family member to give it to me once. If you buy a few keyboards to play, it is a more economical and practical way to split the axes in different regions.

But people like my family members who like to use shortcut keys can't accept a keyboard with N kinds of axes at all.

Attached is the assembly list I bought this time, just for reference~

Commonly used buttons (core area): TTC gold tea switch V3 —— silent step switch, with a sense of step, but not noisy.

Secondary area (up, down, left, and right): Kaihua BOX Jade (Jade axis) —— A voice paragraph axis, which is very decompressed like a ballpoint pen.

Secondary area (digital): TTC’s new version of gold powder — I just want to experience what is called “cotton candy-like typing feel”.

Edge buttons: Gotta Lime switch——Mute flat switch, just make up the numbers quietly.

　　—— In general, it is a combination of trying to keep the feel of the paragraph on the basis of typing quietly 。

Then, the most unscrupulous strategy in this series came. In addition to 26 letters, How do you know which keys are commonly used by you? Just use a keyboard membrane! The laptop I work on has always been covered with a keyboard film. You can know which keys are used more by looking at the wear and tear of the keyboard film.

The gift of the Qixi Festival is the heart. If the budget is sufficient, the whole keyboard can be equipped with the top. If the budget is a little short, you can also combine a keyboard that is the most convenient for him. When he uses it every day, he will think of you.

The keyboard I assembled this time

I am a peach tree in Loudong. I hope that today's experience and list sharing can be helpful to you. Remember to move your fingers and click ★.

With the gradual lowering of the domestic customization circle and the entry of major manufacturers, the involution of the domestic keyboard circle has further deepened. Not only the old manufacturers have new products, but also various new brands have successfully disrupted the situation by virtue of their design and cost performance. The three-mode hot-swappable keyboard with Gasket structure has gradually become one of the mainstream keyboard configuration solutions. As a veteran peripheral manufacturer in China, Heijue also launched the AK966 wireless three-mode gaming mechanical keyboard with a 98-like configuration this year. The mainstream configuration scheme is supported, and it has a variety of colors and switches to choose from. Next, follow the author. Let's see how it performs.

包装&附件：

The overall packaging of the Heijue AK966 wireless three-mode gaming mechanical keyboard is very simple. The simple black and white two-color design with the front window allows users to easily view the color scheme of the keycaps. The back of the package provides the specification information of the keyboard, which is convenient for users Learn quickly. In terms of accessories, manuals, key pullers and a USB Type-C data cable are provided, and the performance is quite satisfactory.

外观&细节：

Heijue AK966 Wireless Three-mode Gaming Mechanical Keyboard currently has five color schemes: Xingwan, Mengxia, Senyu, Retro and NGA customized color schemes, and this author is a retro color scheme. The keyboard adopts the popular 98-like layout scheme, with 96 keys and a knob, and has a relatively complete key scheme and convenient multimedia control functions, which is very good for users' daily use. The body size is about 387.5mm×136.8mm×41.5mm, which is shorter than the common standard 104-key position, and the space occupied by the desktop is also reduced by 20%, which can free up more space for mouse operations, and also allows The visual perception looks more coordinated and natural. This retro color scheme uses dark gray with off-white keycaps, with two different red and green keycaps embellished, the texture is still very good, and it can also bring users a good visual experience.

The knob in the upper right corner is made of metal, and the surface is treated with white paint, which has a good texture. The knob cap is pluggable, which is convenient for users to replace the knob cap they like, and the sense of rotation scale is relatively clear, the sense of pressing confirmation is clear, and the handle feedback processing is still very good. In terms of function, it provides the operation functions of rotating to adjust the volume and pressing one button to mute the sound, combined with the multimedia control function of the combination button, the operation and control are convenient and fast, and it still has high practicality and convenience for users' daily use. On the left side of the number keypad on the right, four status indicators are provided, corresponding to the state of the number keypad, uppercase and lowercase, and 2.4G wireless and Bluetooth connection status. The location layout is more reasonable, which is convenient for users to identify the current working status of the keyboard.

The left and right sides of the fuselage adopt an ingenious design scheme. The left side provides a three-stage toggle switch, corresponding to 2.4G wireless mode, wired mode and Bluetooth mode. The user can switch between three different connection modes by directly pushing the switch. The operation is still very convenient and quick. The storage slot for the wireless receiver is provided on the right side, which is convenient for users to store the wireless receiver to avoid loss and damage. The details are handled with great care.

The back of the fuselage also adopts a simple design style, providing three-way outlets and two-stage support feet, so that users can arrange keyboard wiring according to their own desktop layout, and can also adjust the support feet at different heights to obtain a more comfortable feeling. Enter the inclination. At the same time, 5 white rubber anti-skid pads are provided at the bottom, which can ensure the stability of the keyboard on the desktop and avoid affecting the user experience due to sliding and displacement. At the same time, there is also a non-slip pad on the top of the support foot, so that the support foot can also have a good anti-slip effect when it is opened and used, further improving the user experience.

键帽&轴体：

In terms of the shaft matching scheme, this keyboard of the author is equipped with the "Baby Racoon" shaft (Baby Racoon) with the extended shaft of Jiadalong. 2.0 shaft cover, the overall appearance is still very good with the keyboard body. The shaft parameters above adopt a design scheme of 55gf trigger pressure, a total stroke of 3.6mm, and a trigger stroke of 2.0mm. With the extension of the shaft center and the shortening of the key travel, it can realize the hand feeling feedback of early bottoming, smooth and smooth pressing, and quick rebound with the hand. , The bottoming is also solid. The large key position adopts the satellite axis scheme, and the feel adjustment is simple and neat, without unnecessary shaking and noise, and the overall feel performance is still very good.

This keyboard also provides a hot-swappable switch solution for all key positions, compatible with mainstream three-pin and five-pin MX switches, and can take into account most of the switches on the market, so that users can replace the switches according to their personal preferences. You can experience the different feel of different shafts on a keyboard, taking into account the playability and practicality, and the user performance is still very friendly. The keyboard adopts the Gasket structure scheme, which provides sandwich cotton, shaft pads and bottom sound-absorbing cotton inside. With the Gasket support silicone sleeve, it can bring softer feedback and reduce the cavity sound and noise generated when tapping , the handling of the knocking feel and knocking sound is very good, further improving the user experience.

The keycap part adopts the PBT keycap of the two-color injection molding process, the OEM height, the closed character process, the opaque scheme, and the sublimation process. The overall keycap is gray and white in retro style, and the black characters are thicker, taking into account the aesthetics and recognition, and the performance is still very good. The keycaps are comfortable and delicate to the touch, and the PBT material is also wear-resistant and oil-resistant, and the internal ribs further ensure the strength of the keycaps, avoid bending and twisting of the keycaps, and take into account the feel and durability, which is also beneficial to the user experience. A certain improvement.

RGB backlight:

Heijue AK966 wireless three-mode gaming mechanical keyboard supports RGB backlight effect. Although it is equipped with a set of opaque sublimation keycaps, the overall visual perception is still very comfortable. Reasonable keycap gap and button layout, combined with appropriate lighting brightness and lower light position design, also make the keyboard have a good lighting performance, colorful, dynamic and smooth, and the lighting rendering effect is well created. There are 18 built-in lighting effect modes in the fuselage, and three fast game-customized lighting effects are provided, and users can switch freely according to their personal preferences. The lighting effect part also supports users to record custom lighting effects, and supports 8 color adjustments. At the same time, the user can also switch the light brightness, dynamic speed, dynamic direction, backlight color, etc. through the combination of keys, which can bring higher lighting playability to the keyboard.

Use test:

Heijue AK966 wireless three-mode gaming mechanical keyboard provides three connection methods: wired, 2.4G wireless and Bluetooth. The mainstream three-mode connection scheme can also easily correspond to various platforms and compatible devices. It is still very friendly to multi-platform and multi-device users of. At the same time, the keyboard is also adapted to Mac OS, which can be switched through FN+A, which reduces the difficulty of getting started for Mac OS users, which is still very good. 2.4G wireless connection, with lower latency and stronger anti-interference wireless performance, can quickly respond to user key operations, and the connection is stable and continuous, which can bring users a better experience. It can also allow users to switch between multiple devices, which greatly improves the user experience.

The fuselage has a built-in 10000mAh lithium battery, and the large battery capacity can also bring longer battery life. The 2.4G can provide about 1200 hours of use when the light is turned off, and about 50 hours of battery life under the highest brightness, which meets It is enough for daily use by users. With the good popularity of the USB Type-C interface, users can also replenish power for it at any time, reducing battery life anxiety and improving user experience. The keyboard is preset with a rich combination of key functions, which can realize functions such as fast multimedia control and system programs, and also has high convenience in use.

Summarize:

Heijue AK966 wireless three-mode gaming mechanical keyboard has the current mainstream Gasket structure and three-mode hot-swappable solution, and the colorful RGB backlight also brings users more keyboard games. The three-layer Poron sound-absorbing design and the excellent feel feedback of the "Little Raccoon" shaft can also bring users a double enjoyment in feel and hearing. The 98-like arrangement and multimedia knob scheme also has high practicability and convenience in daily use, and can bring users a good experience. This keyboard is now officially on sale, and interested users may wish to pay attention to it during the Double Eleven Shopping Festival.

Hello everyone, I am your old friend sevokk, very happy to meet you again. I have always been a supporter of 87-key keyboards, but it seems that since last year, keyboards with 75% configuration suddenly became popular. Until the middle of this year, many manufacturers have rolled up on this configuration, which made me There is also the idea of ​​replacing it with a new keyboard.

What I bring to you today is the GK75 optical axis mechanical keyboard, which has a translucent keyboard body, RGB lighting effects, CNC metal multi-functional knobs, flick Gasket structure, customized fast optical axis V3, and supports heat dissipation of the axis body. Plug-in, two-color injection molding PBT keycaps, a full set of supplementary keycaps, etc., and supports driving custom lighting effects and buttons.

The packaging design of the small bug GK75 is very geek style. The front of the packaging is printed to depict the outline of the product, and the product LOGO and model are surrounded.

The complete set of GK75 includes a mechanical keyboard body, a thick transparent dust cover, a lot of replacement keycaps, a two-in-one puller, a connection cable, an instruction manual, and a warranty card.

The keyboard adopts a very popular 75% arrangement layout recently. In addition to the main key area, it retains the F key area, direction keys and some function keys. Ample space for activities. Compared with the 6-key keyboard, it makes up for the shortcomings of not having the F keypad and the arrow keys, the operation is more convenient, and the application scenarios are more abundant, especially for more comprehensive support for game control.

This keyboard has two colors of deep space blue powder and gray and black characters. My model is deep space blue powder, which is a neutral color. It will not feel awkward when placed on the desktop of men and women, and this low saturation The color matching is very eye-catching, and it looks very refreshing and lively at first glance.

The small bug GK75 uses a black translucent shell with sharp edges and corners, and the surface is combined with a matte texture. This semi-transparent design provides richer levels of RGB lighting effects and a stronger sense of light when the keyboard is used.

The metal knob is also a highlight of this keyboard. The knob adopts CNC technology and anodizing process. The surface texture is very good.

This knob can not only be rotated, but also pressed. By default, the rotation is for volume adjustment, and the press is for mute, which is very convenient for controlling the volume during audio and video. In addition, the function of the knob can be customized through the driver, such as rewinding and fast forwarding of the video, brightness control of the keyboard lighting effect, etc. The playability is still very high.

In terms of keycaps, the GK75 mechanical keyboard uses PBT two-color injection keycaps, and they are all ball caps, which also look very good-looking. The matte grain on the surface of the keycap is very delicate, and relatively speaking, it feels relatively dry. Compared with ordinary ABS keycaps, the material of PBT has the advantage of being wear-resistant, not prone to oily shine, and has very good durability.

All the keycaps present a downward sloping arc, making it easier for fingers to click from a distance. The keycaps of the middle two rows of buttons are designed shallower, forming a basin. Start to cater to the operation of the thumb. In addition, there is a slight concave in the shape of the ball cap, which can fit the fingers better, and the overall ergonomics are in line with the actual use process, and it is indeed very smooth.

It has to be said that at this price point, the small nerd GK75 comes with so many supplementary keycaps, which is really too kind. You see, the keycaps of the number area are also included. If all the keycaps are replaced on the 104-key keyboard, a uniform color matching can also be achieved.

There is a rib structure behind each keycap, the keycap spout is still well made, and the DIY of the cross keycap is stress-free.

The details of the keycaps of the small bug GK75 are not limited to this, the keycaps also have macOS side engraved characters, which also tells us. The small bug GK75 has been adapted to macOS on the function keys, and can be directly switched to the Mac layout through FN+7, which is undoubtedly the best choice for users with dual system requirements.

There are five silicone pads on the bottom of the keyboard, which can increase the friction between the desktop and the keyboard. The wiring port adopts the TYPE-C port which is the most widely used nowadays, and specially designed the left, right and middle three different direction cable management grooves for the wire, even if it is a wired connection, it can also make the desktop look tidy and refreshing.

The small bug GK75 is equipped with two large and small foot supports, plus the way of laying flat, there are three keyboard tilt angles for adjustment, which fully meet the needs of different usage habits. Both large and small foot supports are equipped with non-slip foot pads, which ensure the stability of the keyboard while adjusting the angle, and the detailed design is still in place.

Although this keyboard is made of all-plastic material, it is full of weight and stable on the desktop. In addition, the height of the space bar is relatively low. Even if the palm rest is not used, the wrist will not feel like it is hanging in the air all the time, and typing for a long time will not be too tiring.

The summary table of the parameters of the different optical axes of the above picture is convenient for everyone to choose the keyboard that suits them according to the difference between the different axes in the above picture and combined with their actual use scenarios.

As you can see, I chose the Glacier Optical Axis Green Tea V3 this time. The pressing weight of this axis is 55±10gf, the action stroke is 1.2±0.2mm, and the total stroke is 3.5±0.3mm. It belongs to the customized fast axis. , has a faster response speed and almost no jitter time, which is very suitable for gamers.

I have to say that the customized optical axis V3 gave me a very good flying experience. It was pre-lubricated when it left the factory, the vibration of the axis core is smaller, and it will have a crisper feeling when it hits the bottom. And the sound is closer to the customized mechanical switch.

The keyboard has also joined the very popular hot-swapping scheme of the shaft body. Use the shaft puller to press the buckles on the upper and lower sides of the shaft body, and pull out the shaft body with light force. Let me explain to you that the optical axis is obviously different from the mechanical axis in terms of principle. It uses the optical principle and optical coupling technology. Because of the different design of the optical axis shaft body, there is no common metal pin design at the bottom of the shaft body. , so it is not common with the traditional tripod axis and five-leg axis. The shaft does not need to be energized, the real electromechanical separation and optical trigger can improve the problems of easy wear and oxidation of ordinary connecting and unloading shafts, greatly prolong the service life of the shaft and reduce the failure rate.

Take another look at the structure of the PCB board, you can see that there are light emitting and receiving components on both sides of the shaft body, and RGB SMD lamp beads on the top. The interior of the keyboard adopts the Lite gasket light flick structure, with double-layer sound-absorbing cotton, which can play a certain role in cushioning when it is impacted, and also play a role in sound-absorbing to a certain extent.

The satellite shaft design adopted by the space key and other large keys can not only ensure that the keycap is fixed and stable, but also ensure that it does not shake when pressed. The entire large key can maintain a balance and fall, and there is almost no spring sound when pressed.

In terms of lighting, the lighting effects of the small bug GK75 are divided into two groups according to constant lighting and lighting, and each group has 5 built-in lighting effects. These 10 lighting effects are enough for our daily use, and the overall effect is still very good. Players can also customize more lighting effects through the driver.

There is also a group in low light, how about it, is it very exciting, the brightness of the RGB backlight is very good, and the default is the streamer mode, which looks very eye-catching. However, the color of my deep space blue powder, the keycap does not have the word see-through effect of the gray and black color, which is somewhat a pity.

As a customized keyboard, rich customization is indispensable. The GK75 uses a driver to control lighting effects, customize keys, and set macro configurations. The driver function is also very considerate. There are a lot of preset effects built in the lighting effect library, which can be used directly by clicking. Then the macro configuration page also provides a wealth of game macro commands, which support one-click application, which saves a lot of time for gamers. Configure the macro command time.

After using it for a period of time, I think that the GK75 mechanical keyboard is an optical mechanical keyboard worth trying for gamers. It has a black shell, Lite Gasket structure, programmable knobs, self-developed glacier optical axis, and full keys without punching. , RGB lighting effects, BPT keycaps and the blessing of driver software can touch your heart from many points.

Talking about the gaming experience, 75% of the keyboard layout gives more space for the mouse to move, and it does not affect the normal operation at all. The F keypad and arrow keys, which are commonly used in games, are retained and are independent. It is very good that there will be no misoperation due to the compact layout.

Then, the advantages of the Glacier Optical Axis V3 are reflected, the optical trigger is sensitive, the full key has no impact, and the pointing is accurate. With the Lite Gasket structure, the tapping feels smoother and the sound is not harsh at all.

In addition, the knob design can help me quickly adjust the volume in the game, which is very convenient for turning up the volume to listen to footsteps when eating chicken, and turning down the volume to reduce noise in the bombing area. If you also want to experience the game as smoothly as I do, this little nerd GK75 mechanical keyboard is really suitable.

Speaking of high-value and hard-powered game artifacts, here I have to mention the recently purchased OnePlus 11, which is also a new product, and also has excellent optimization and experience for games. The achievements of OnePlus 11 lie in the field of mobile games. In terms of performance, OnePlus 11 uses Snapdragon 8 Gen2+ full-blooded version LPDDR5X+ full-blooded version UFS4.0, a proper ceiling-level configuration.

Running "Peace Elite", OnePlus 11 directly adapts to the 90 frame mode by default, the game is extremely smooth throughout the game, and there is no sign of lag in the fierce gun battles and explosion scenes. In addition, the bionic vibration motor on OnePlus 11 also adds to the experience. This motor is currently the largest bionic vibration motor with an area of ​​602mm². This vibration is better presented in games such as eating chicken. First turn on the vibration effect in the game to high quality. In the game, "shooting", "extracting shells", "changing bullets", "broken windows", "bumpy road conditions" and other game details can be passed through this 600mm² bionic vibration The motors are more clearly presented for a more realistic gaming experience.

Well, this is the end of this sharing. If you have any questions about the product, please leave me a message in the comment area, and I will answer it as soon as possible! Thanks for watching, love you guys. Finally, don't forget to like, bookmark, and follow me, see you next time!

The famous translator Mr. Zhou Kexi once said, "Some books are still very young in their seventies or eighties." This sentence is obviously appropriate to describe the fairy tale book "The Little Prince". As one of the best-selling books in the world, "The Little Prince" was completed by French writer Antoine de Saint-Exupery in 1942. The excellent story content also makes this book popular with readers of different ages. Readers love it, and even now, it is one of the most popular co-branded IPs. IQUNIX’s co-branded Little Prince IP has launched two co-branded themed keyboards, “Sunset Reverie” and “Meeting in the Cloud”, and is equipped with an exclusive customized switch body. Let’s follow the author to take a look.

Packaging & Accessories:

The one I got is "Sunset Reverie". It is beautifully packaged in a gift box, and elements of the little prince or dialogues from fairy tales are added to the side of the package and on the title page. The details are handled with great care. A golden metal keycap is also presented inside the package, which is fixed in the positioning cardboard. On the front of the keycap is the head of the little prince. Comes free to replace.

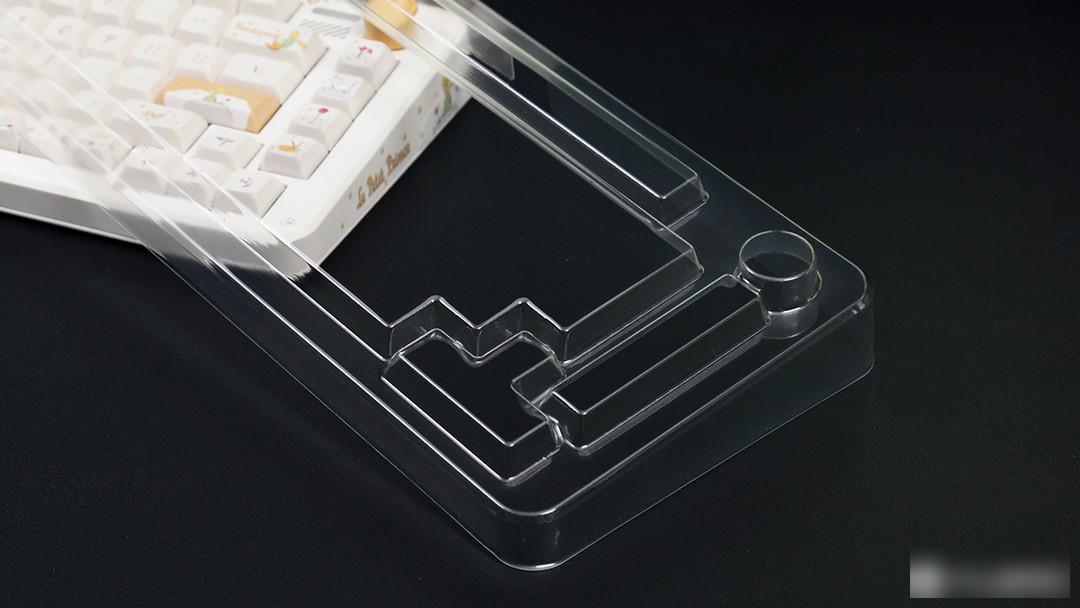

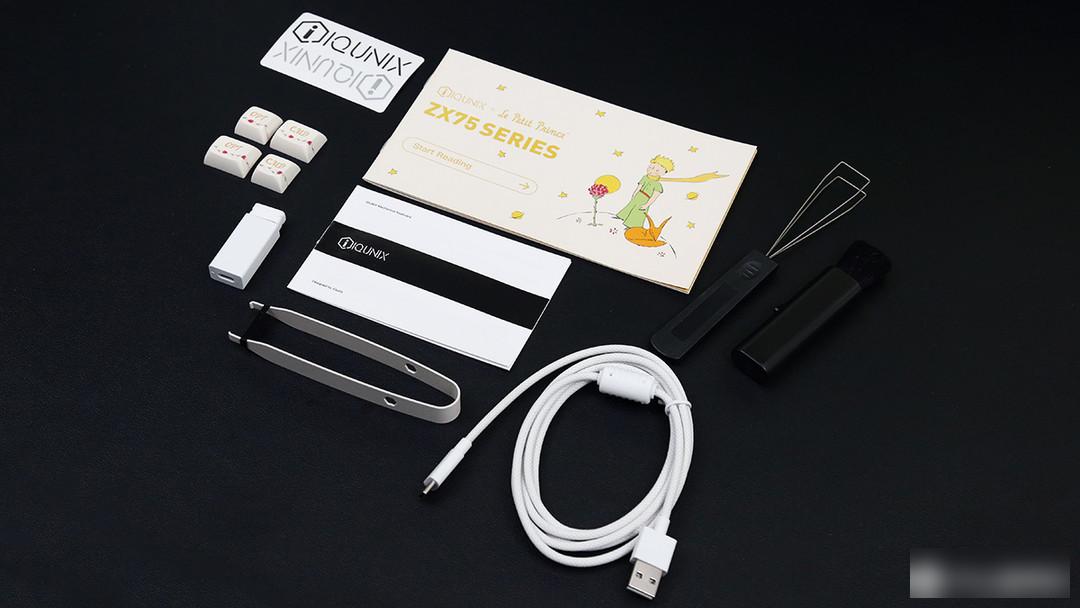

There are two accessory boxes at the bottom of the box. When assembled, they are illustrations of the little prince. The details are handled very well. In terms of accessories, 6 commemorative postcards, key pullers, shaft pullers, cleaning brushes, wireless receivers and converters, Mac replacement keycaps, USB Type-C data cables, brand stickers, manuals, and warranty cards are provided. Along with the keyboard there is also a clear plastic dust cover. The content of the attachment is very rich, and it is more sincere to the user. The classic quotations from the fairy tale book are added to the back of the postcard, which is also friendly enough for the fans of The Little Prince.

Appearance & Details:

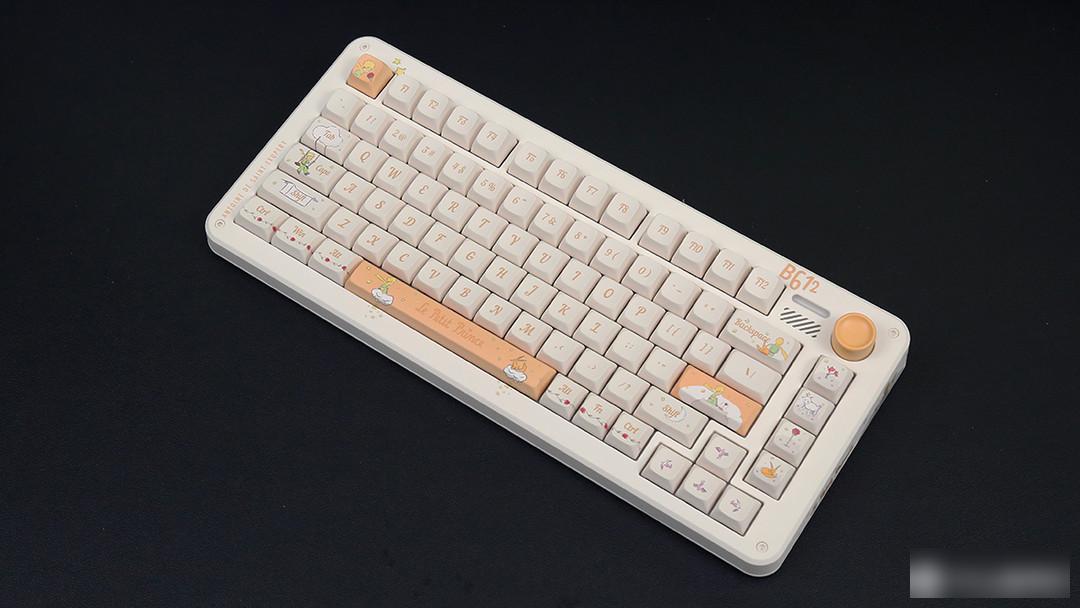

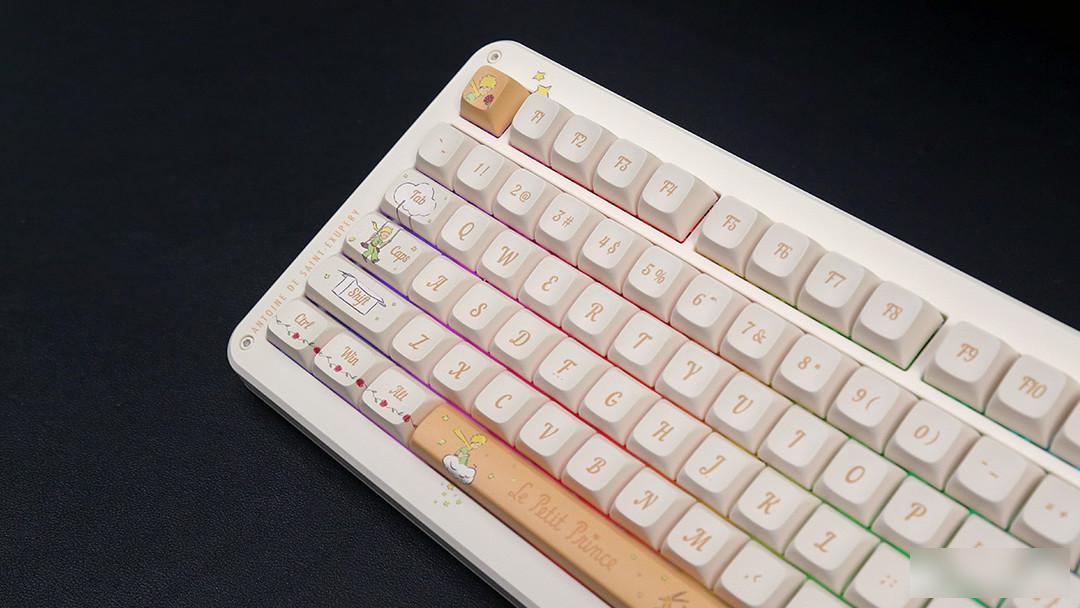

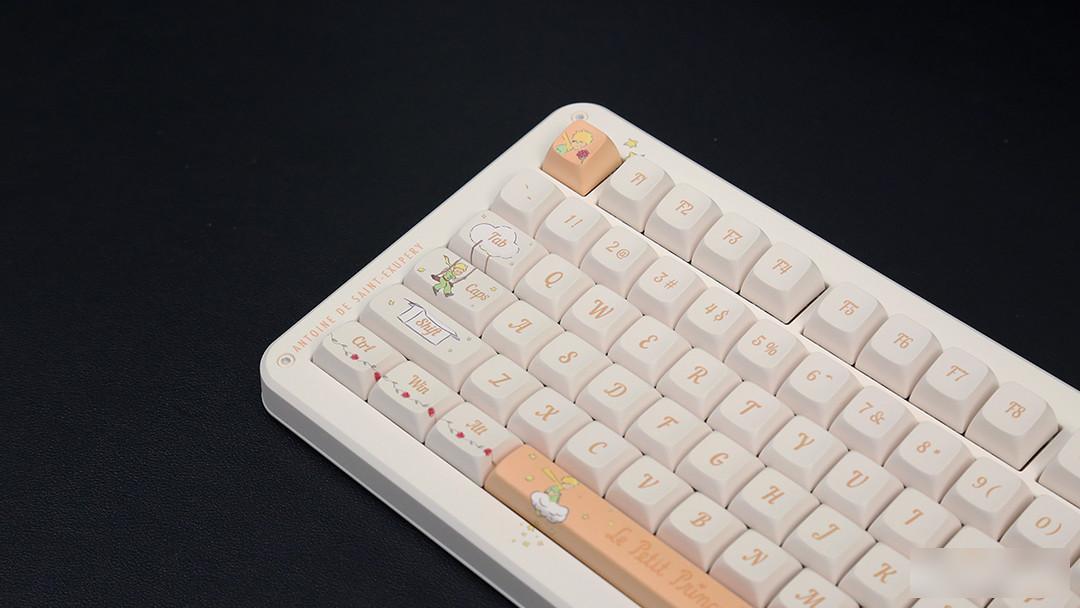

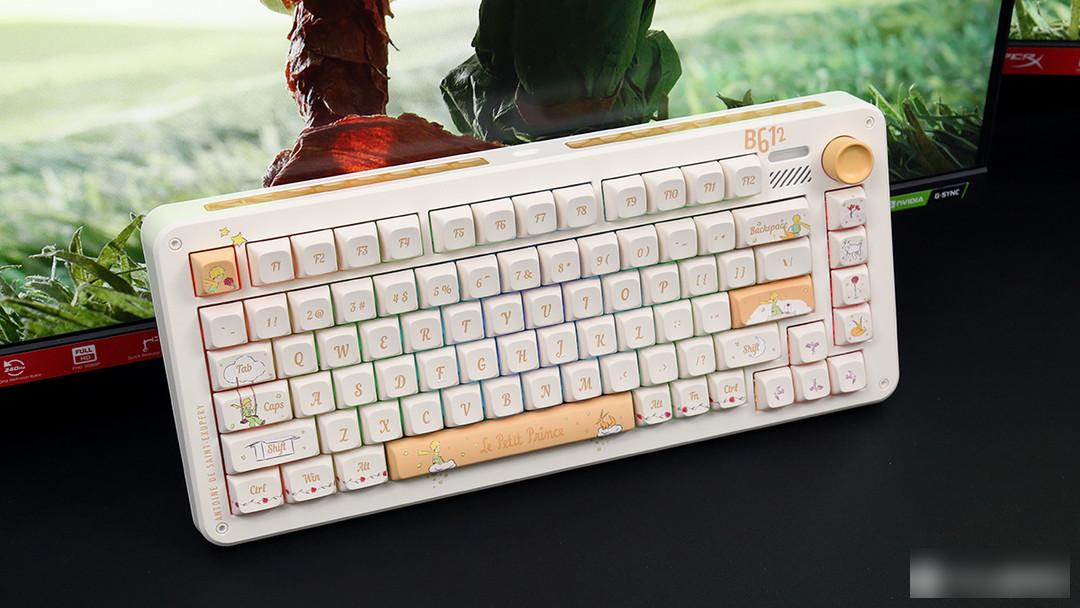

The IQUNIX ZX75 Little Prince co-branded keyboard adopts 75% arrangement and knob scheme, with 81 available keys. It also provides a complete F area key position and direction key area. With four function keys, it can also meet the user's daily input needs such as codewords or games. With the multi-function knob, it can also bring users more convenient and easy functions. Operating experience. The overall appearance design is based on the ZX75 wide frame scheme. The keyboard body and keycaps adopt a light beige color scheme. The body frame and keycaps also add rich elements from the fairy tale book of the little prince, such as B-612 , rose, fox, etc., the fuselage and keycap patterns are processed with pattern matching, which are reflected in the ESC key and space bar, full of details. The outer shell of the fuselage is treated with a matte coating, and the four corners are still the iconic fixing screws of the ZX75, which not only ensures the appearance but also has a good visual recognition.

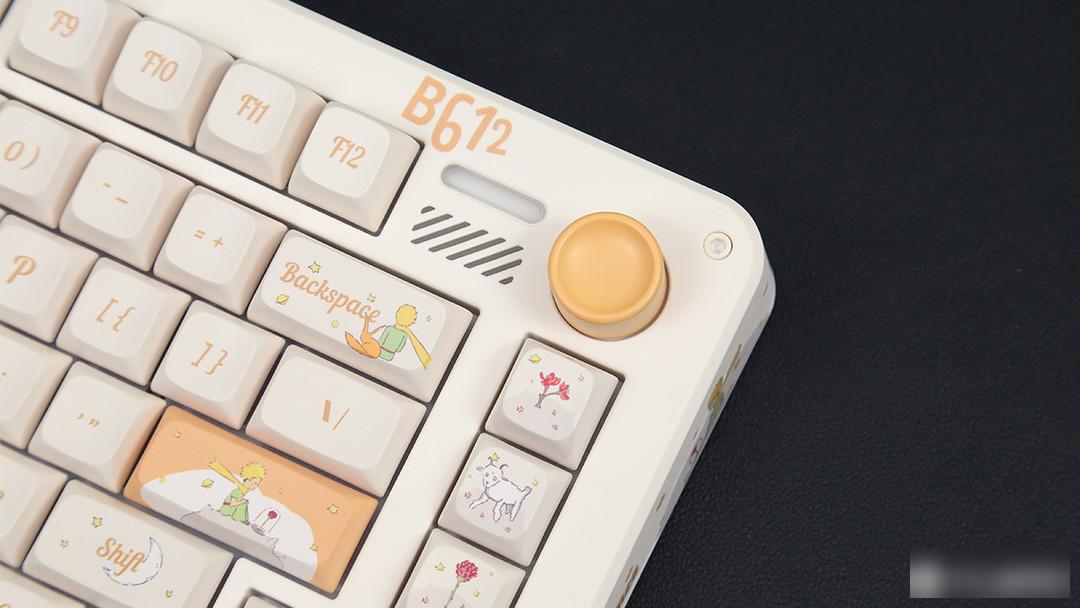

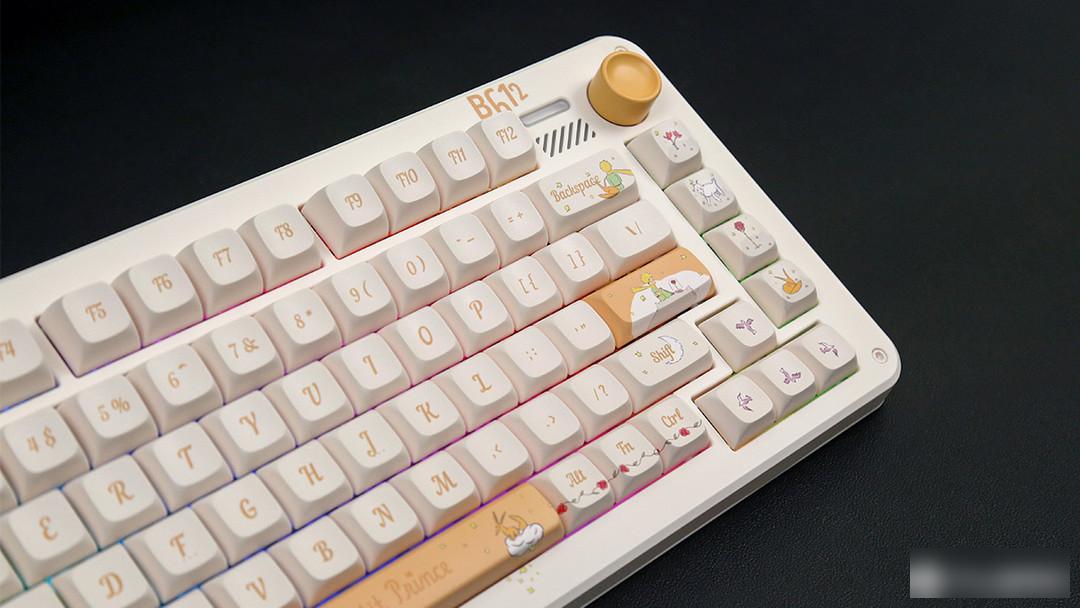

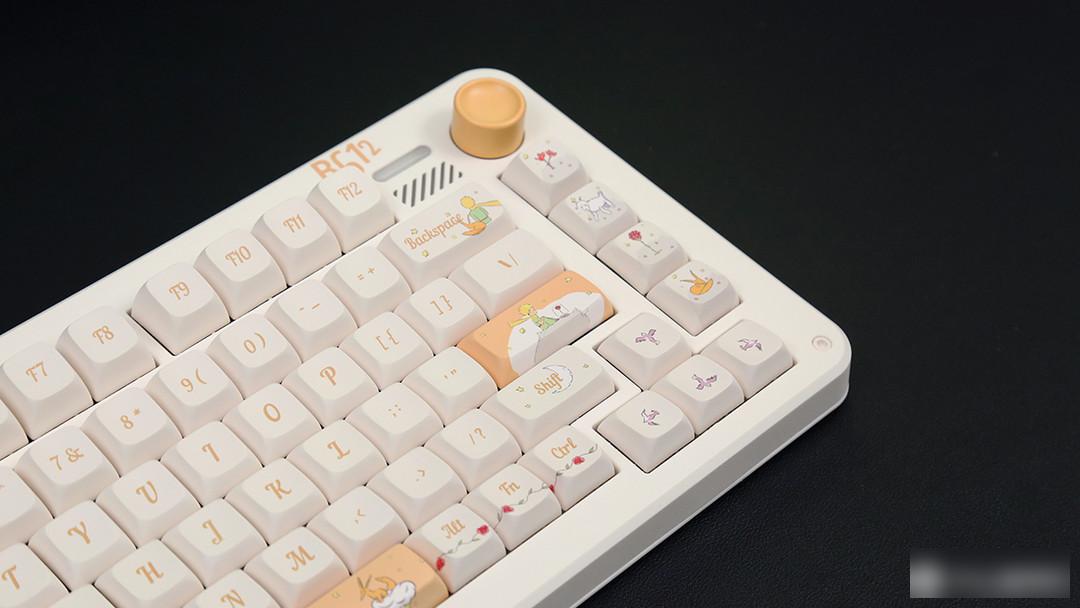

In the upper right corner is a volume knob, which is treated in dark yellow to match the overall style, and on the left is a status indicator light and hollowed-out decoration. The volume knob supports volume level adjustment, and pressing it can realize the play/pause function. It has a clear sense of scale when it is rotated, and the damping treatment is also just right. It feels excellent, and the metal knob also has a good touch and texture. The status indicator light takes into account the working status prompts such as uppercase and lowercase status, connection and pairing status, etc., and will be indicated by lights of different colors, which is convenient for players to check the current status of the keyboard.

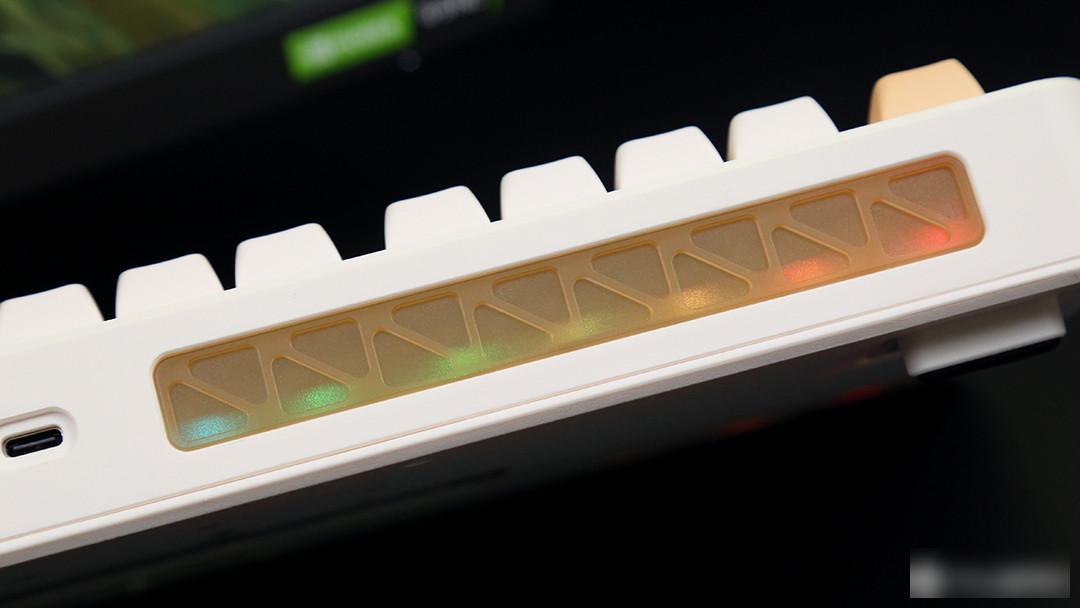

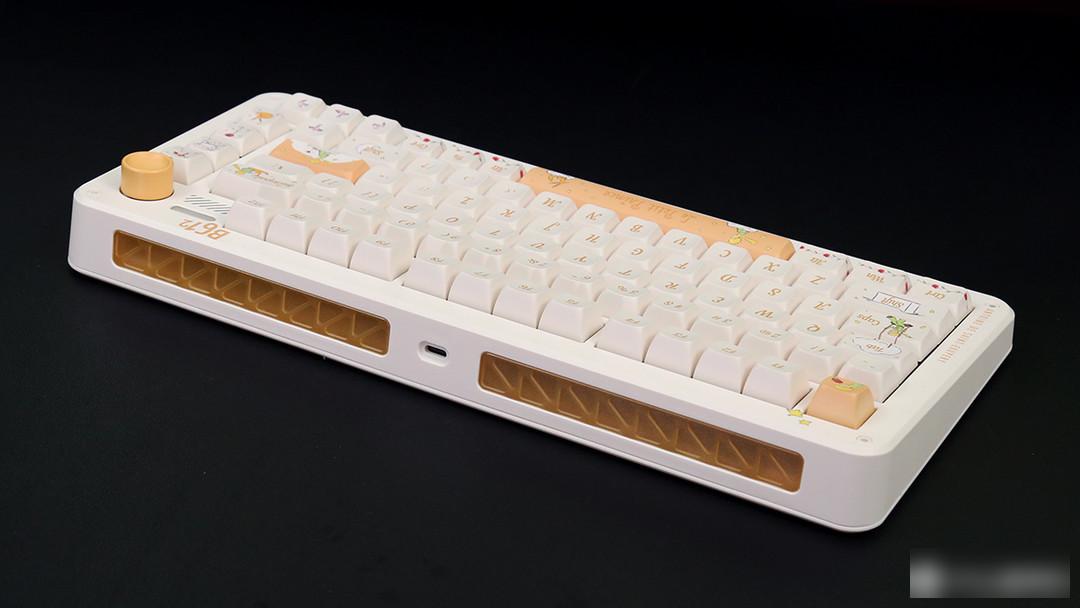

The right side of the fuselage also ingeniously adds elements related to the little prince, which also makes this keyboard more cooperative. The top position is two dark yellow translucent plastic decorative strips, and the USB Type-C data interface is in the middle. The large-area semi-transparent treatment enhances the design sense of the keyboard, and can also project part of the keyboard light onto the user's desktop, bringing a more outstanding sense of lighting atmosphere.

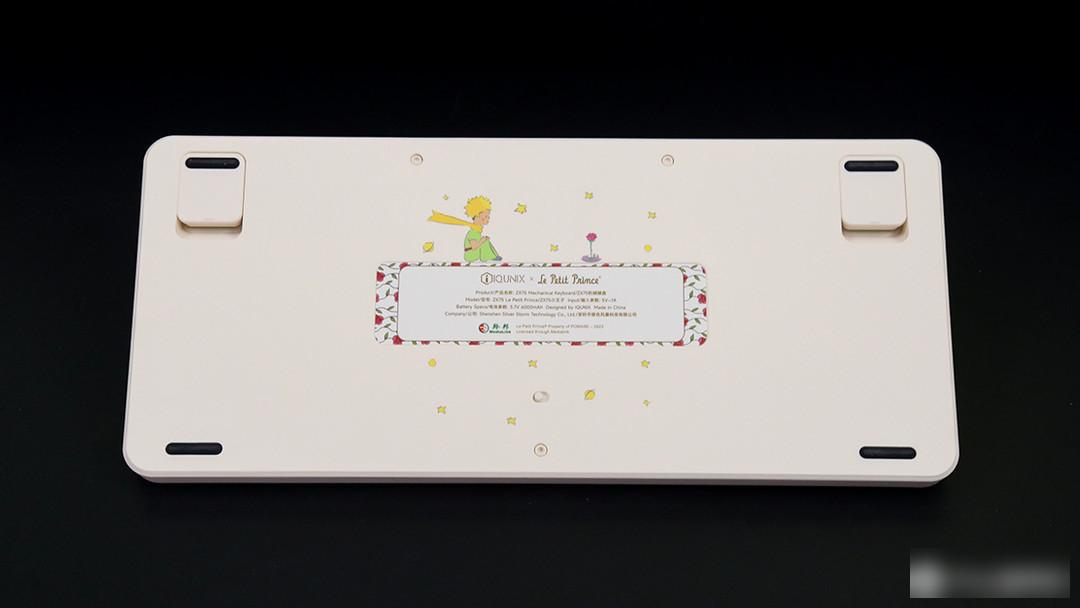

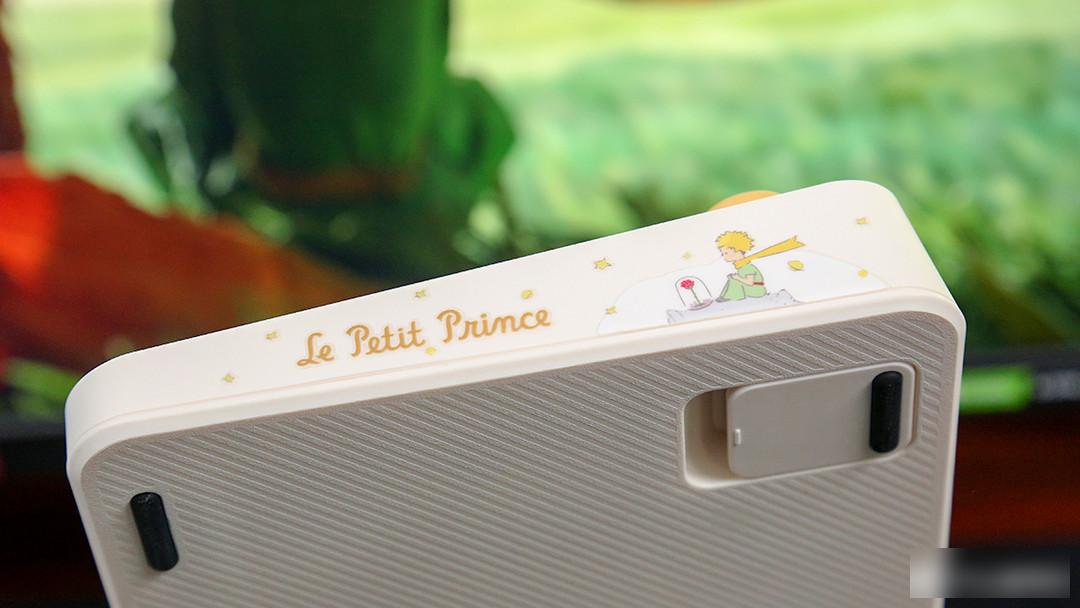

The bottom shell of the fuselage is also light beige, and the rich oblique lines further enhance the overall texture performance. The bottom is very flat as a whole, with elements related to the little prince and product information stickers printed on the middle position, and the power switch is on the bottom. There are two magnetic support feet on the top, with two different height adjustments, which can be easily completed by flipping the installation, and users can adjust the height of the keyboard according to their personal needs. Rubber non-slip pads are provided on both sides of the feet, and the two pads under the fuselage can also play a good role in stabilizing. The bottom power switch also allows users to turn off the power when not in use, further saving power.

Keycap & Shaft:

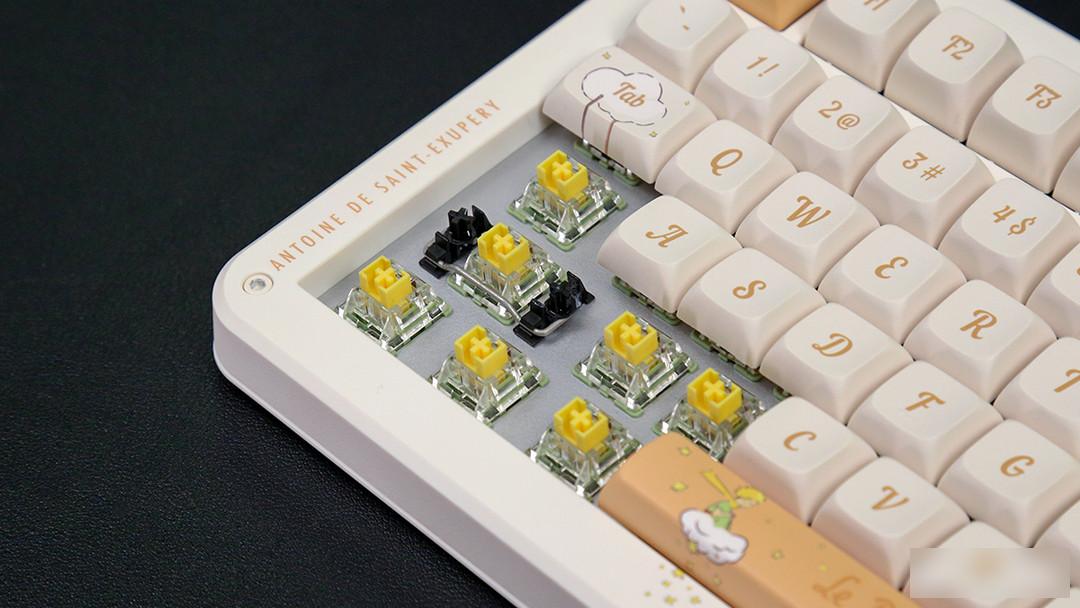

The IQUNIX ZX75 Little Prince co-branded keyboard is equipped with an exclusive customized Little Prince switch. As the first switch body of IQUNIX, the Little Prince switch adopts MX structure and a linear feel scheme. The color matching also refers to the color matching of the character of the Little Prince, and the degree of customization is very high. This shaft has a trigger pressure of 42±5gf, a trigger travel of 2.0±0.4mm, and a total travel of 3.8±0.2mm. As a light-pressure linear axis body, the tapping feels soft and smooth, and the rebound follows the hand. It also has good stability. The good feel feedback also makes this keyboard easily suitable for codewords, games and other usage scenarios. The large key part adopts the balance bar scheme, and adds grease to improve the stability of the feel and suppress noise. The crisp and neat feel adjustment can also meet the feel requirements of most users. This keyboard also provides a full-key shaft hot-swappable solution, which is compatible with mainstream three-legged and five-legged shafts, and allows users to replace the shafts conveniently and quickly. The keyboard also has sandwich sound-absorbing cotton and bottom cotton to reduce Cavity sound and percussion noise have greatly improved the user experience.

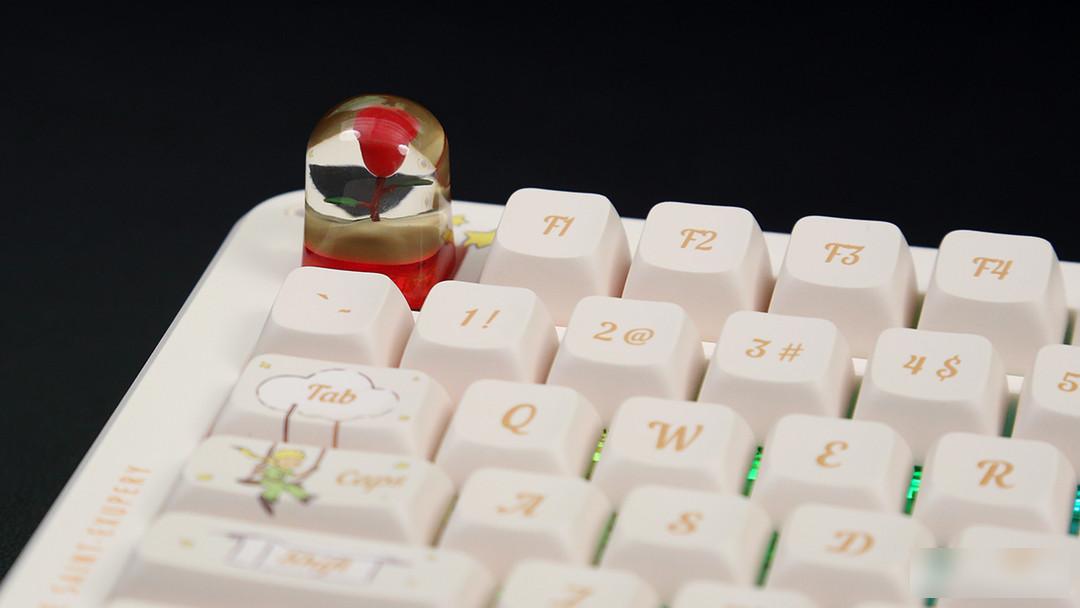

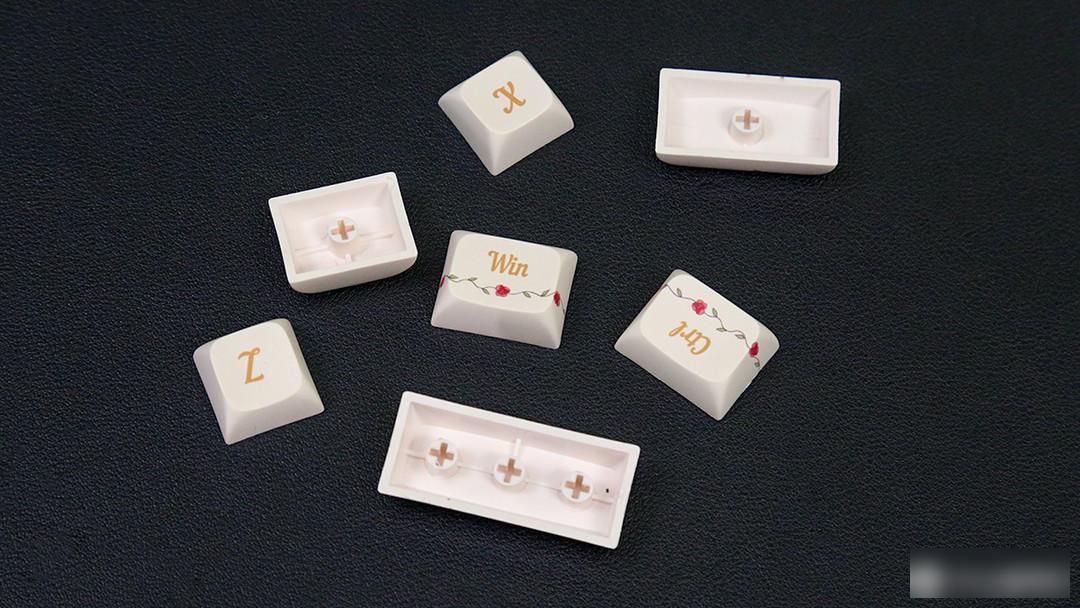

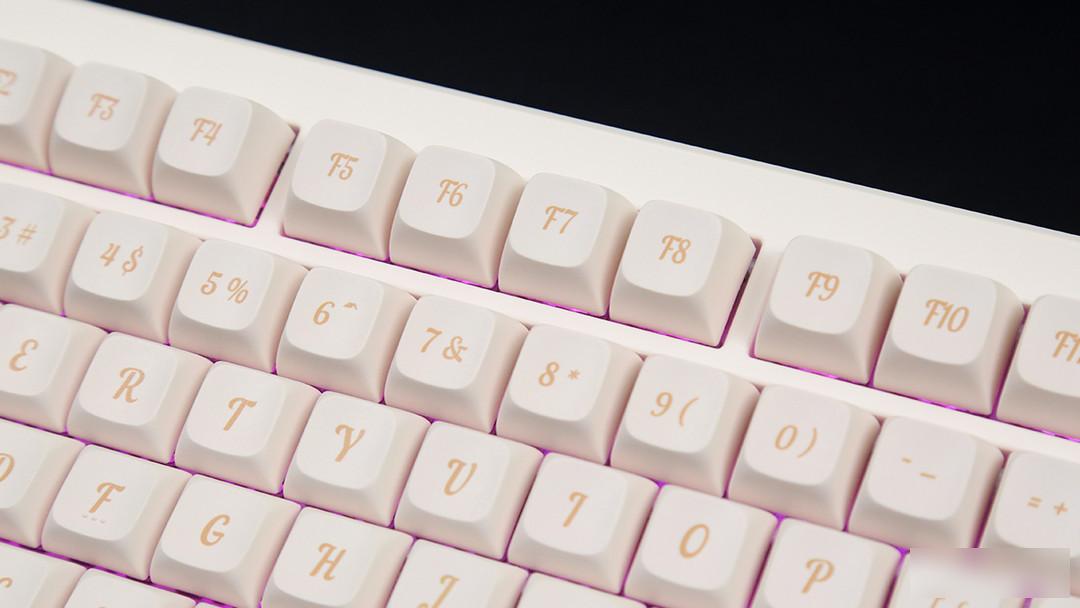

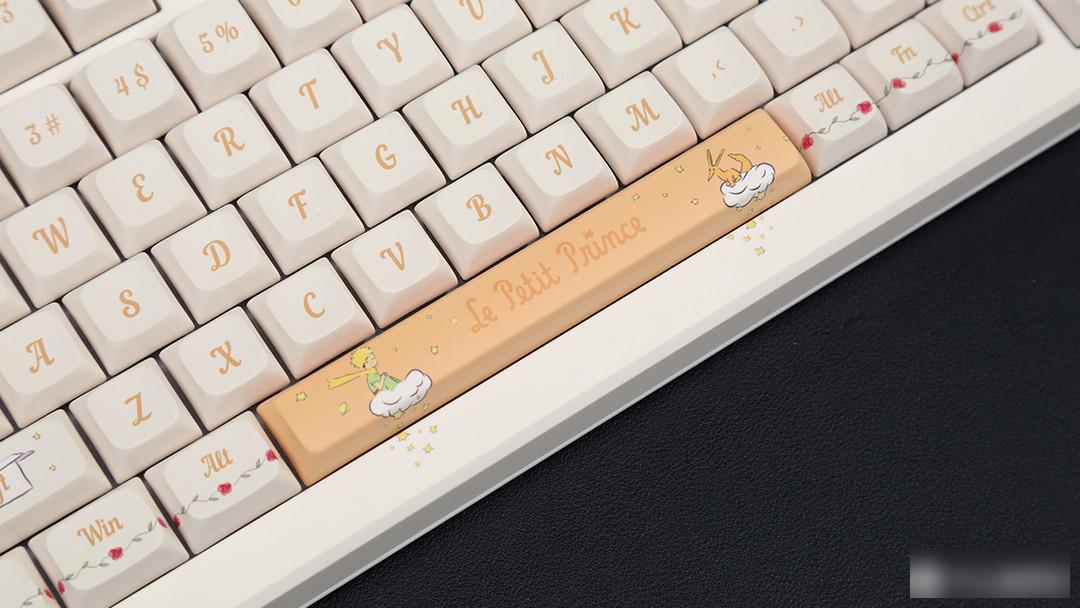

This keyboard is equipped with a set of custom ball caps with KDA height, which is very close to the height of the original factory. Haptic feedback. The keycaps are made of PBT material, closed character scheme, opaque treatment, and the character style is a relatively rare artistic font. The keycaps are processed by thermal sublimation process, the pattern is clear and natural, the color is real and gorgeous, and it is matched with highly recognizable artistic fonts. Excellent performance in feel and appearance. PBT material with sublimation treatment, delicate and dry touch, good wear resistance and anti-oiling performance, and the ball cap design can also bring users a better hand feeling performance.

RGB backlight:

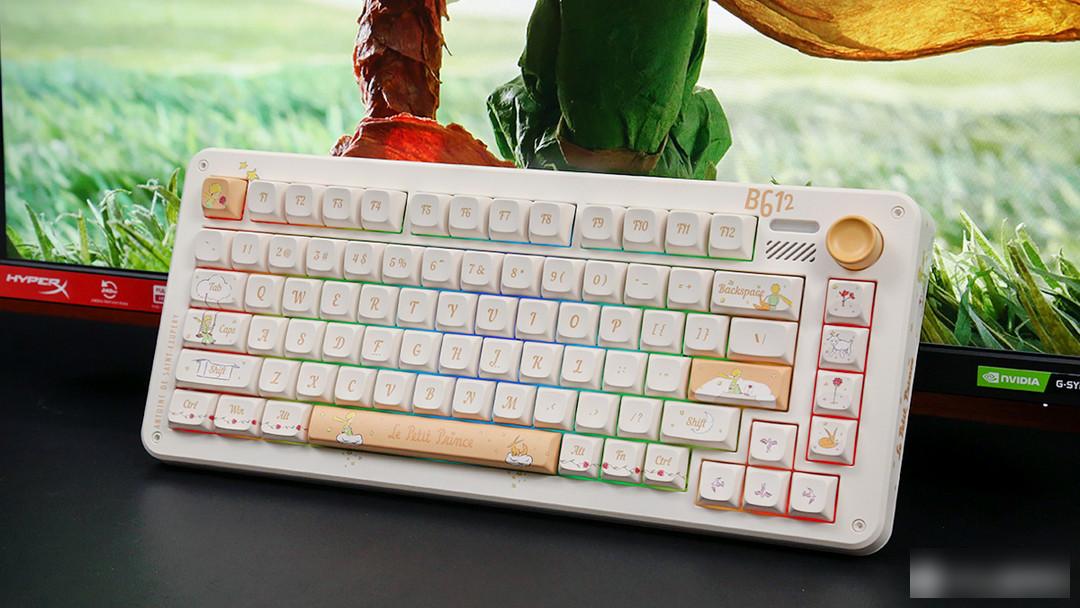

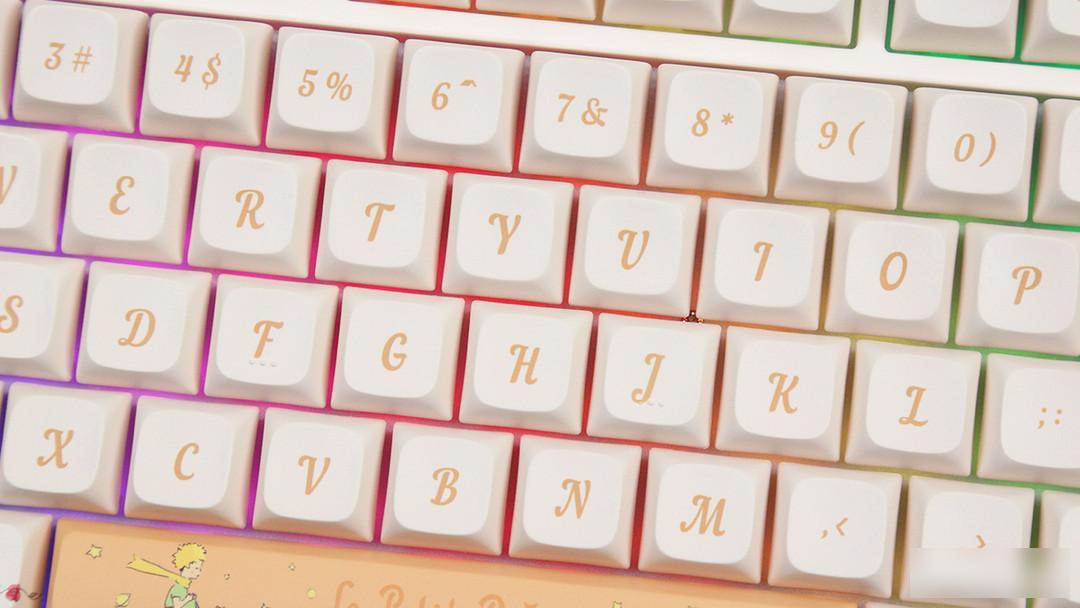

The IQUNIX ZX75 Little Prince co-branded keyboard also provides a global RGB backlight, a lower light position scheme, supports multiple lighting effect modes and 16 million color adjustments, and has a good lighting performance. Through the FN+DEL, INS, HOME and END combination keys, the user can also adjust the light brightness, light effect mode, and light color. FN+↑, ↓ is to adjust the light effect speed, and FN+Z can turn off the backlight. The gameplay is still pretty good. The overall brightness of the light is uniform and soft, the color is gorgeous, and the dynamic performance is also very smooth. The visual experience is still good. The light color can also fill the gap between the keycaps, which reduces the irrelevant influence of the opaque keycap on the light. Performance is still good.

Use test:

The IQUNIX ZX75 Little Prince co-branded keyboard adopts a three-mode connection scheme, which supports three connection methods: wired, 2.4Ghz and Bluetooth 5.1. It has good compatibility with current mainstream system platforms and devices, and is good for multi-platform and multi-device users. Very friendly. The keyboard is also adapted to the MacOS system keys. Just switch the key layout by FN+TAB, which makes it easier for users to get started. The corresponding replacement keycaps are also given in the attachment, and users can replace them as needed. The consideration is also very thoughtful. . At the same time, all three connection methods provide full-key non-contrast processing, which can avoid operation errors or interference caused by key interference, and it is more handy to deal with various usage scenarios.

The fuselage has a built-in 6000mAh lithium battery, and with the low-power wireless module, it can bring this keyboard a longer battery life. The longest battery life in Bluetooth mode can reach more than 300 days, allowing users to get rid of battery life anxiety, and can be used with confidence in various scenarios. The combination key scheme continues the existing IQUNIX scheme, which can realize functions such as lighting control, mode switching, and Bluetooth channel switching. It is simple, fast, and very convenient to use. The independent volume control knob can also facilitate users to realize quick control of multimedia, and the operation is convenient and fast, allowing users to obtain a good experience in different usage scenarios, and the performance is still very brilliant.

Summarize:

ZX75 is a keyboard series with high attention under IQUNIX. This time, it cooperates with Little Prince IP for in-depth customization, whether it is the body shell, theme keycaps or IQUNIX's first customized switch body, rich details and outstanding design. The appearance design also makes this keyboard more eye-catching and easy to use. The mainstream solution of the three-mode connection scheme and the hot-swappable shaft body also brings users a better experience, and the overall performance is still very brilliant. At present, this keyboard has been officially put on sale, priced at 999 yuan, and two color schemes are provided. If you like the little prince, you may wish to pay more attention.

The author declares that there is interest in this article, please respect the author and the content shared, communicate friendly, and make rational decisions~

Welcome to our comprehensive guide for maintaining mechanical keyboards in a busy office! In a fast-paced work environment, the wear and tear on keyboards can be substantial, leading to decreased efficiency and increased frustration for employees. In this article, we will provide you with essential tips and tricks to keep your mechanical keyboards in top condition, ensuring maximum productivity and longevity. Whether you are a busy office manager or an individual looking to optimize your own workstation, this guide is a must-read for anyone looking to prolong the life of their keyboard and maintain a smooth workflow.

Importance of Regular Maintenance for Mechanical Keyboards

Mechanical keyboards have become increasingly popular in offices and homes due to their durability, tactile feedback, and overall performance. However, to ensure the longevity and optimal functioning of these keyboards, regular maintenance is crucial. In a busy office setting, where keyboards are used extensively on a daily basis, it is especially important to implement a maintenance routine to keep mechanical keyboards in top condition.

One of the most important aspects of maintaining mechanical keyboards is cleaning. Dust, dirt, and debris can accumulate over time, causing keys to stick and affect the overall performance of the keyboard. Regularly cleaning the keyboard with compressed air or a small vacuum can help prevent these issues and prolong the lifespan of the keyboard. Additionally, wiping down the keys and surface with a gentle cleanser can help remove oils and grime from constant use.

In addition to cleaning, lubrication is also an important aspect of maintenance for mechanical keyboards. Over time, the switches and stabilizers can become dry, leading to a decrease in performance and increased key wobble. Applying a small amount of lubricant to the switches can help maintain smooth and consistent keystrokes. This process should be done with caution and only with the appropriate type of lubricant to avoid damaging the switches.

Furthermore, keycap maintenance is another essential aspect of caring for mechanical keyboards. Regularly removing the keycaps and cleaning them individually can help prevent the buildup of dirt and oils. It is important to be gentle when removing and replacing the keycaps to avoid damaging the switches or the keycap stems. Additionally, inspecting the keycaps for any signs of wear or damage and replacing them as needed can help maintain the overall aesthetics and functionality of the keyboard.

On top of these routine maintenance tasks, it is important to periodically check the overall condition of the keyboard, including the cable and connectors. Loose or frayed cables can affect the keyboard's connectivity and performance, so ensuring that they are properly secured and in good condition is crucial. Additionally, inspecting the connectors for any signs of damage or wear can help prevent any potential connectivity issues.

In conclusion, the importance of regular maintenance for mechanical keyboards cannot be overstated, especially in a busy office setting. By implementing a maintenance routine that includes cleaning, lubrication, keycap maintenance, and overall inspection, it is possible to prolong the lifespan and ensure the optimal performance of mechanical keyboards. With proper care and attention, mechanical keyboards can continue to provide a superior typing experience for years to come.

Tips for Cleaning and Dusting Keyboard Components

Maintaining mechanical keyboards in a busy office environment can be a challenging task, especially when it comes to keeping the keyboard components clean and dust-free. With the amount of typing and use that mechanical keyboards endure on a daily basis, it’s essential to incorporate regular cleaning and dusting into your office maintenance routine. In this guide, we will provide you with valuable tips and techniques for maintaining and cleaning the components of your mechanical keyboards, ensuring their longevity and optimal functionality.

When it comes to cleaning mechanical keyboards, the first and most important step is to unplug the keyboard from the computer to avoid any electrical damage during the cleaning process. Once unplugged, you can begin cleaning the keyboard by removing any loose debris using a can of compressed air. Gently turn the keyboard upside down and shake it to dislodge any crumbs, dirt, or dust that may have accumulated between the keys.

After removing the loose debris, it’s time to focus on the individual keycaps. Using a keycap puller or a small, flat tool, carefully remove the keycaps from the keyboard. It’s important to be gentle during this process to avoid damaging the key switches underneath. Once the keycaps are removed, they can be cleaned using a gentle cleaning solution or a mixture of warm water and mild soap. Using a soft-bristled brush, gently scrub the keycaps to remove any dirt or grime, and then allow them to air dry completely before reattaching them to the keyboard.

While the keycaps are drying, you can take the opportunity to clean the exposed keyboard surface. Using a microfiber cloth or a soft brush, gently wipe the surface of the keyboard to remove any remaining dust or dirt. Pay special attention to the areas around the key switches, as these are common areas for dust and debris to accumulate.

Once the keycaps are dry, carefully reattach them to the keyboard, making sure they are aligned properly and securely in place. After the keycaps are reattached, take the time to ensure that each key functions properly by pressing each key multiple times. This will help to identify any keys that may be sticking or not functioning as they should.

In addition to regular cleaning, it’s also important to incorporate dusting into your keyboard maintenance routine. Dust can easily accumulate on the surface of the keyboard and in between the key switches, which can affect the keyboard’s performance over time. To effectively remove dust, use a soft brush or a can of compressed air to gently dust the surface of the keyboard and in between the key switches. Be sure to do this in a well-ventilated area and to avoid using excessive force, as this can damage the key switches.

In conclusion, maintaining mechanical keyboards in a busy office environment requires regular cleaning and dusting to ensure their longevity and optimal functionality. By following the tips and techniques provided in this guide, you can effectively clean and dust the components of your mechanical keyboards, keeping them in top condition for years to come. Incorporating these maintenance practices into your office routine will not only prolong the life of your keyboards but also contribute to a cleaner and healthier work environment for you and your colleagues.

Proper Lubrication and Key Switch Maintenance

Mechanical keyboards have gained popularity in recent years due to their durability and tactile feedback. In a busy office environment, these keyboards can be subjected to heavy usage, which can lead to wear and tear over time. Proper maintenance of mechanical keyboards is essential to ensure their longevity and optimal performance. In this guide, we will discuss the importance of proper lubrication and key switch maintenance for maintaining mechanical keyboards in a busy office setting.

Proper lubrication is vital for ensuring the smooth and seamless operation of mechanical keyboards. Over time, the mechanical switches in the keyboard can become stiff and less responsive, leading to a decrease in typing efficiency. To address this issue, it is recommended to apply a small amount of lubricant to the key switches. This will help to reduce friction and improve the overall feel and responsiveness of the keys. When applying lubricant, it is important to use a high-quality, non-conductive lubricant that is specifically designed for mechanical keyboards. It is also important to apply the lubricant sparingly, as over-lubrication can lead to a sticky and unpleasant typing experience.

In addition to proper lubrication, key switch maintenance is also crucial for ensuring the longevity of mechanical keyboards in a busy office environment. Key switches are the heart of a mechanical keyboard, and keeping them clean and functional is essential for optimal performance. Regularly cleaning the key switches using compressed air or a small brush can help remove dust, debris, and other particles that can accumulate over time. This will help prevent key switches from becoming stuck or unresponsive, ultimately prolonging the lifespan of the keyboard.

Furthermore, key switch maintenance also involves the replacement of worn or faulty key switches. In a busy office environment, it is not uncommon for certain keys to experience more wear and tear than others, particularly those used frequently for typing. When a key switch becomes unreliable or unresponsive, it is important to replace it as soon as possible to prevent any further damage to the keyboard. Many mechanical keyboards are designed to allow for the easy replacement of individual key switches, making the maintenance process relatively straightforward.

In conclusion, proper lubrication and key switch maintenance are integral aspects of maintaining mechanical keyboards in a busy office. By regularly lubricating key switches and performing routine maintenance, office workers can ensure that their mechanical keyboards remain in optimal condition, providing them with a comfortable and efficient typing experience. Taking the time to care for and maintain these keyboards can ultimately lead to a longer lifespan and improved performance, benefiting both the user and the office environment as a whole.

Troubleshooting Common Mechanical Keyboard Issues

Mechanical keyboards have become increasingly popular in office settings due to their durability and tactile feedback. However, like any electronic device, they require regular maintenance to ensure optimal performance. In a busy office environment, mechanical keyboards are often subjected to heavy usage which can lead to various issues such as stuck keys, faulty switches, and unresponsive key presses. This guide aims to provide a comprehensive troubleshooting approach to address common mechanical keyboard issues in a busy office setting.

Stuck keys are a common frustration experienced by many office workers using mechanical keyboards. This issue can be caused by debris or dust accumulation between the key caps and the switch. To resolve this, start by gently removing the key caps using a keycap puller or a small flathead screwdriver. Once the key caps are removed, use compressed air to blow out any debris and dust from the switches. Alternatively, a small brush or cotton swab can be used to remove stubborn debris. After cleaning the switches, reattach the key caps and test to ensure the keys are no longer stuck.

Another frequent issue with mechanical keyboards in office settings is faulty switches. Over time, switches can become unresponsive or produce inconsistent feedback. One way to identify faulty switches is to use a keyboard testing tool to check for any irregularities in key presses. If faulty switches are detected, the next step is to desolder the faulty switch from the keyboard's PCB and replace it with a new switch. It is important to use a soldering iron with the appropriate heat settings to avoid damaging the keyboard's components. Once the new switch is soldered in place, test the key to ensure it is functioning properly.

Unresponsive key presses can also be a common occurrence in busy office environments. This issue can be caused by various factors including worn-out key switches, loose connections, or software issues. To troubleshoot unresponsive key presses, start by checking the keyboard's connections and ensuring that the USB cable is securely plugged into the computer. If the connections are secure, the next step is to use a key testing tool to identify any non-responsive keys. Once the non-responsive keys are identified, the switches can be cleaned using the same method mentioned earlier. In some cases, updating the keyboard's firmware or drivers can also resolve unresponsive key presses.

In conclusion, maintaining mechanical keyboards in a busy office setting requires regular cleaning and troubleshooting of common issues such as stuck keys, faulty switches, and unresponsive key presses. By following the troubleshooting steps outlined in this guide, office workers can prolong the lifespan of their mechanical keyboards and ensure a consistent typing experience. With proper maintenance, mechanical keyboards can continue to serve as reliable and durable input devices in the workplace.

Establishing a Maintenance Schedule for Workplace Keyboards

As the use of mechanical keyboards becomes increasingly popular in the workplace, it is crucial to establish a maintenance schedule in order to ensure the longevity and optimal performance of these essential tools. Mechanical keyboards are known for their durability and tactile feedback, making them a preferred choice for many office workers. However, without proper maintenance, these keyboards can become less effective over time, leading to decreased productivity and potential costly repairs or replacements.

The first step in establishing a maintenance schedule for workplace keyboards is to understand the unique features and mechanisms of mechanical keyboards. Unlike traditional membrane keyboards, mechanical keyboards have individual switches for each key, which provide a satisfying tactile response and improved durability. However, these switches can also be more susceptible to dust, debris, and wear-and-tear over time. Therefore, it is essential to regularly clean and maintain mechanical keyboards to ensure their longevity.

One of the most important maintenance tasks for mechanical keyboards is regular cleaning. Dust and debris can easily accumulate within the key switches, leading to inconsistent key presses and decreased responsiveness. To clean a mechanical keyboard, it is recommended to use compressed air to blow out any dust and debris from the switches. Additionally, a keycap puller can be used to remove the keycaps and clean them individually. It is important to be gentle and thorough when cleaning a mechanical keyboard to prevent damage to the switches or keycaps.

In addition to regular cleaning, it is also important to lubricate the switches and stabilizers of mechanical keyboards. Over time, the switches can become stiff or lose their smoothness, leading to a less enjoyable typing experience. By applying a small amount of lubricant to the switches and stabilizers, the smoothness and tactility of the keyboard can be restored. However, it is important to use an appropriate lubricant and apply it carefully to prevent any damage to the switches.

Furthermore, establishing a maintenance schedule for workplace keyboards should also include routine inspections and testing. This can involve checking for any loose or wobbly keycaps, inspecting the overall condition of the keyboard, and testing for any non-responsive or double-pressing keys. By identifying and addressing any issues early on, potential problems can be prevented and the overall lifespan of the keyboard can be extended.

In conclusion, maintaining mechanical keyboards in a busy office environment is essential for ensuring their optimal performance and longevity. By establishing a maintenance schedule that includes regular cleaning, lubrication, and inspection, the lifespan of these essential tools can be extended, leading to increased productivity and a better overall working experience. With the proper care and attention, mechanical keyboards can continue to be a reliable and durable asset in the modern workplace.

Conclusion

In conclusion, maintaining mechanical keyboards in a busy office is essential for ensuring productivity and efficiency in the workplace. By following the tips and guidelines provided in this guide, you can prolong the lifespan of your keyboards and minimize the need for costly replacements. As a company with 7 years of industry experience, we understand the importance of keeping equipment in top condition, and we hope that this guide has been helpful in guiding you towards successful keyboard maintenance. Remember, regular cleaning, proper storage, and timely repairs are key to preserving the performance of your mechanical keyboards. With these best practices in mind, you can keep your keyboards in optimal working condition and ensure a smooth typing experience for years to come.
